Mitsubishi L200. Manual - part 569





AC711983 AC

196.7

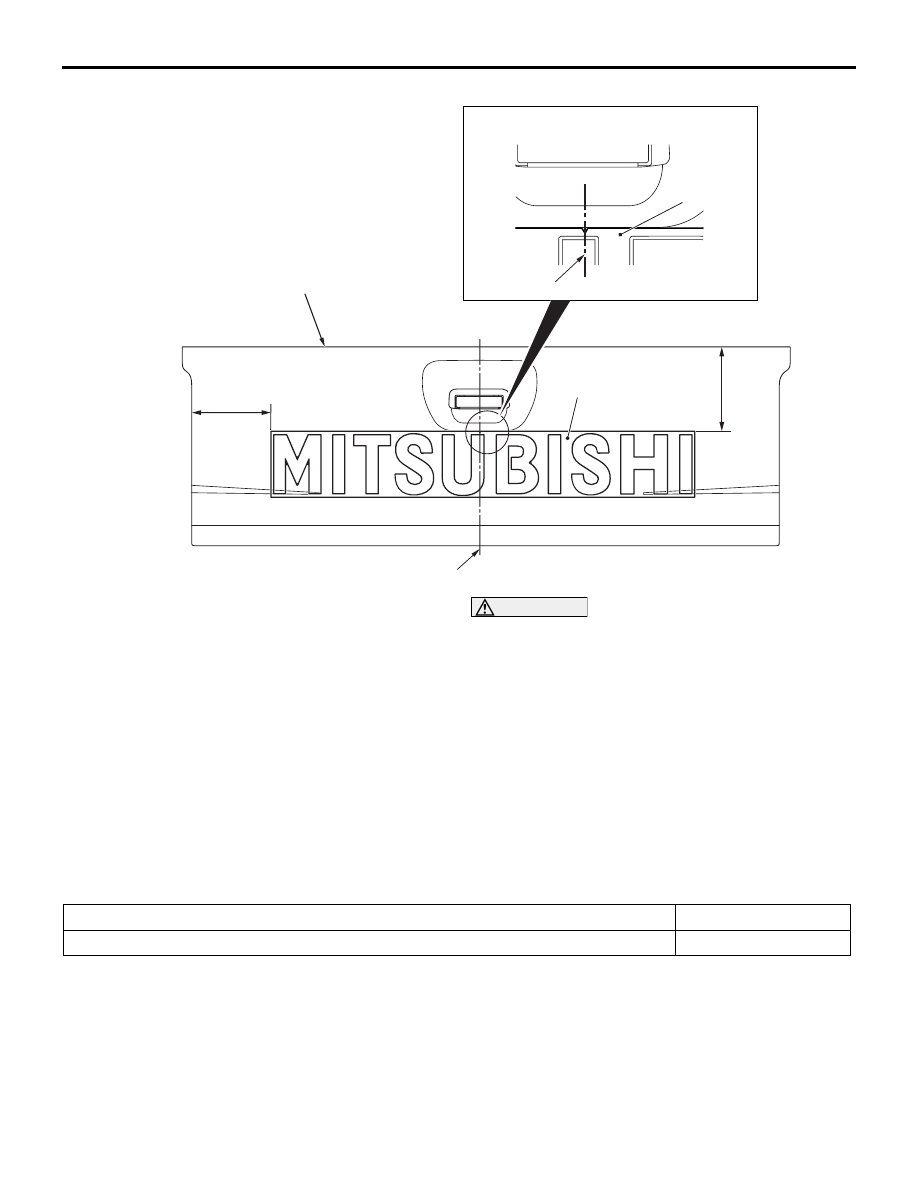

 9. MITSUBISHI decal <Vehicles for
MOROCCO Optional>

Rear gate end line

Unit: mm

200.2

Vehicle centre line

Vehicle centre line

Application tape

Application tape

OUTSIDE MIRROR

EXTERIOR

51-92

1. Clean the mark installation surfaces on the body

with the parts cleaner (MZ100387 or equivalent).

CAUTION

When attaching the marks, the ambient tempera-
ture should be 20

 38°C and the air should be

completely free of dust. If the ambient tempera-
ture is lower than 20

°C, the marks and the places

on the vehicle body where the marks are to be
attached should be heated to 20

 30°C.

2. Peel off the protection sheet on the back of the

mark to paste it on the installation position.

OUTSIDE MIRROR

SERVICE SPECIFICATION

M1511000300789

Item

Standard value

Heated door mirror line resistance

7.2

± 1.4 at 25°C

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1511014600385

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− Contents of Trouble-

shooting .

OUTSIDE MIRROR

EXTERIOR

51-93

TROUBLE SYMPTOM CHART

M1511015000472

Symptom

Inspection
procedure

Reference
page

All heated door mirrors do not operate

1

P.51-93

The right or left heated door mirror does not operate

2

P.51-98

Inspection Procedure 1: All Heated Door Mirrors do not Operate

AC903734

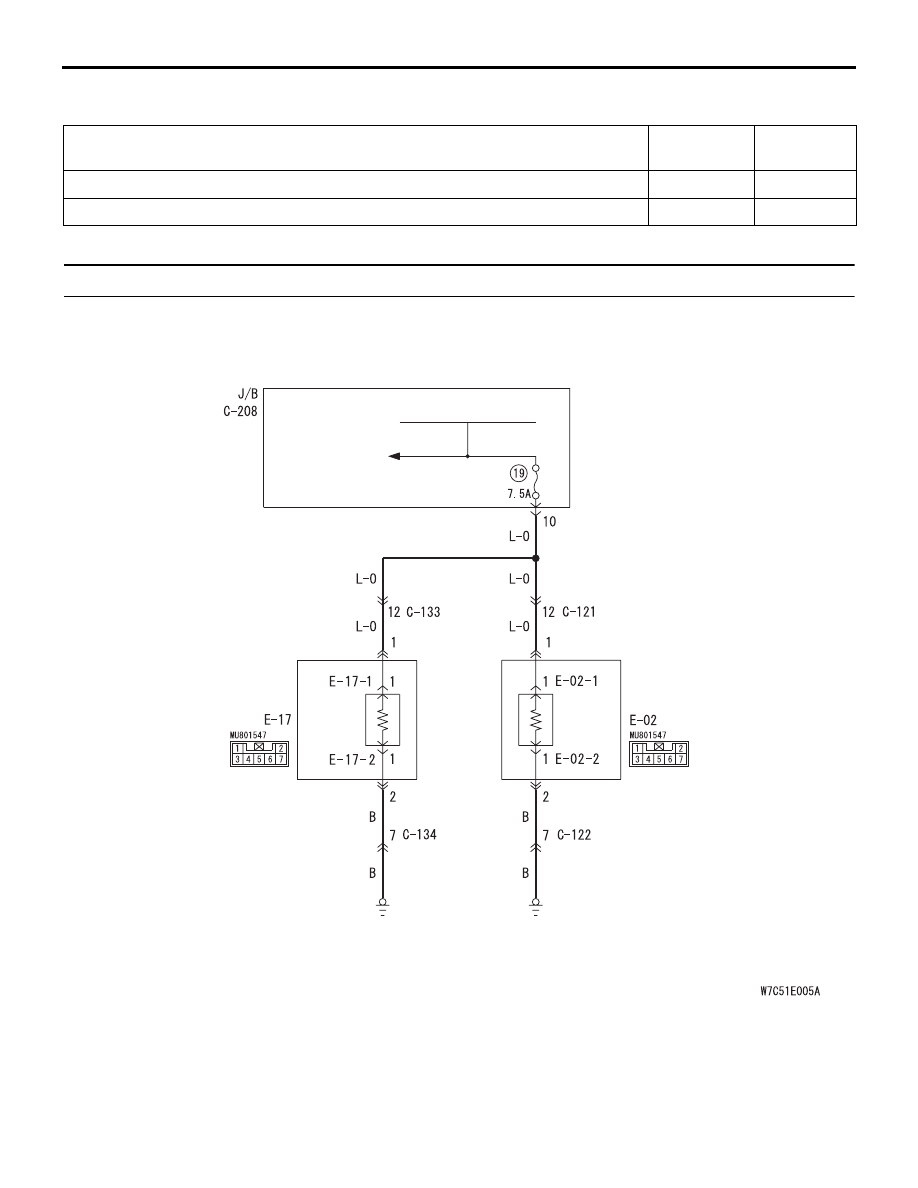

Heated Door Mirror <LHD> Circuit

REAR WINDOW
DEFOGGER RELAY

REAR WINDOW
DEFOGGER RELAY

DOOR
MIRROR
ASSEMBLY (LH)

DOOR
MIRROR
ASSEMBLY (RH)

MIRROR
HEATER

MIRROR
HEATER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

AB

AC903735

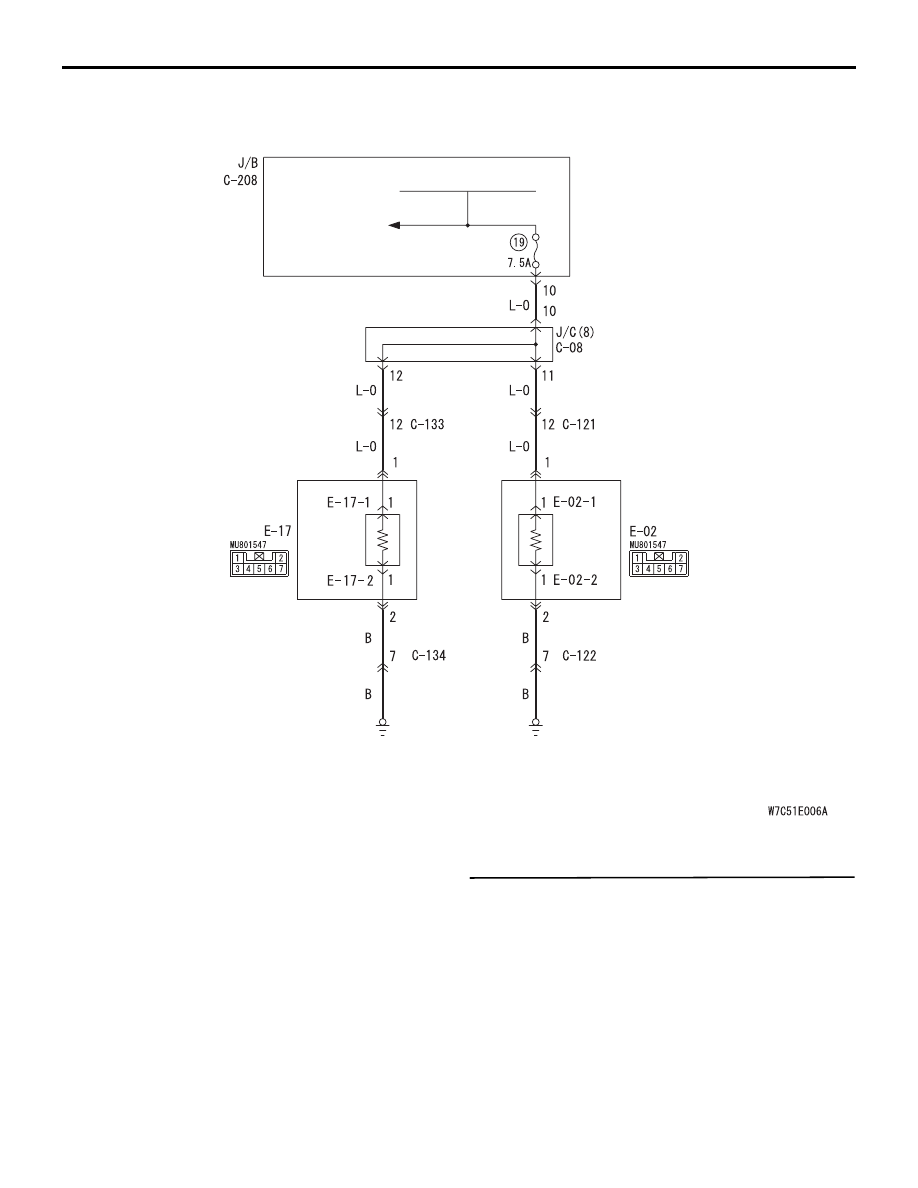

Heated Door Mirror <RHD> Circuit

REAR WINDOW
DEFOGGER RELAY

REAR WINDOW
DEFOGGER RELAY

MIRROR
HEATER

MIRROR
HEATER

DOOR
MIRROR
ASSEMBLY (LH)

DOOR
MIRROR
ASSEMBLY (RH)

AB

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

OUTSIDE MIRROR

EXTERIOR

51-94

COMMENTS ON TROUBLE SYMPTOM
The heated door mirrors should work for approxi-
mately 20 minutes when the rear defogger switch is
turned on. If the mirror heater does not work for the
specified period, the defogger relay circuit (heated
door mirror power supply circuit) may be defective.

POSSIBLE CAUSES

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the rear window defogger.
The rear defogger system should work normally
(Refer to GROUP 54A, Printed Heater Lines Check ).

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Diagnose the rear window defogger (Refer
to GROUP 55B, Troubleshooting ).

OUTSIDE MIRROR

EXTERIOR

51-95

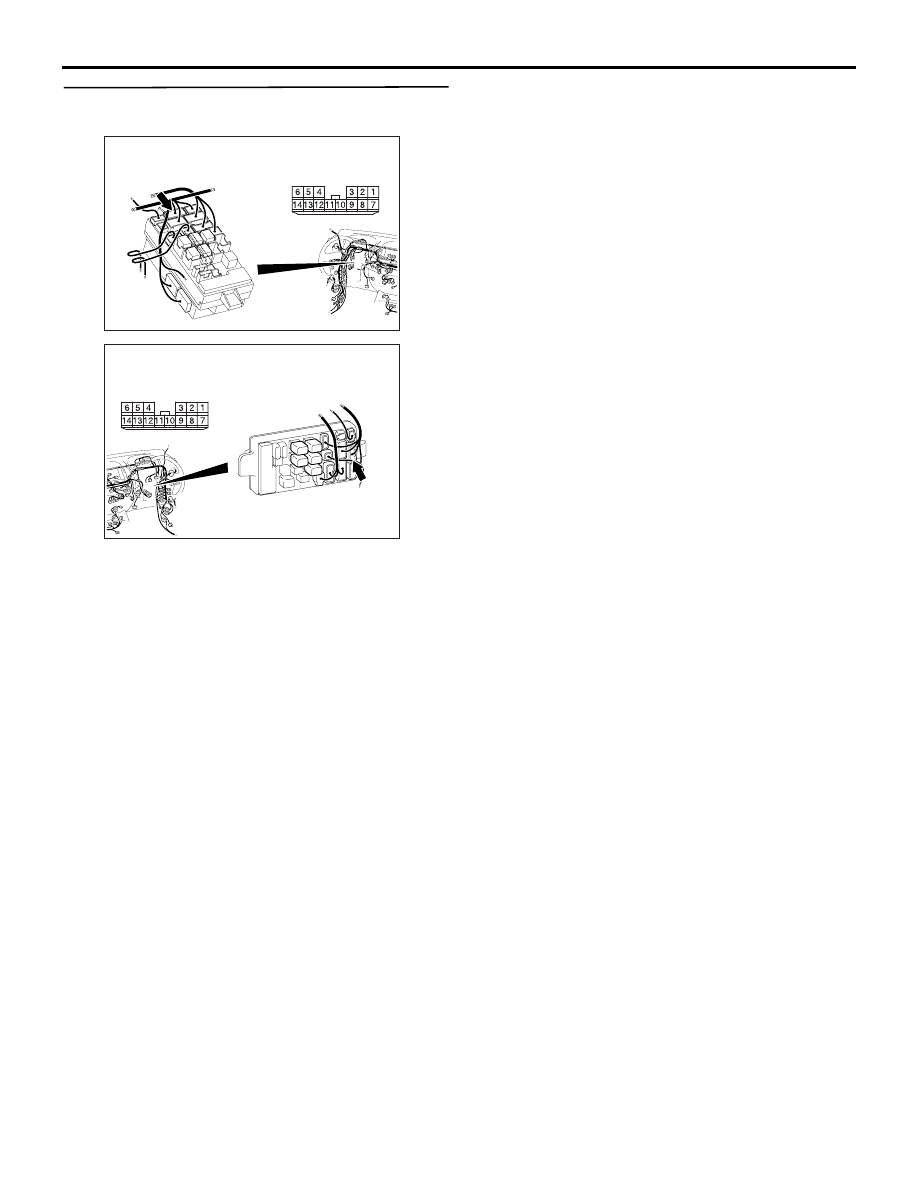

STEP 2. Connector check: C-208 junction block
connector.

AC509934

Connector: C-208 <LHD>

Junction block (Front view)

DA

Harness side

AC509936

Connector: C-208 <RHD>

Harness side

CD

Junction block
(Front view)

Q: Is the check result normal?

YES <LH drive vehicles> :

Go to Step 3.

YES <RH drive vehicles> :

Go to Step 4.

NO :

Repair the defective connector.
