CAUTION

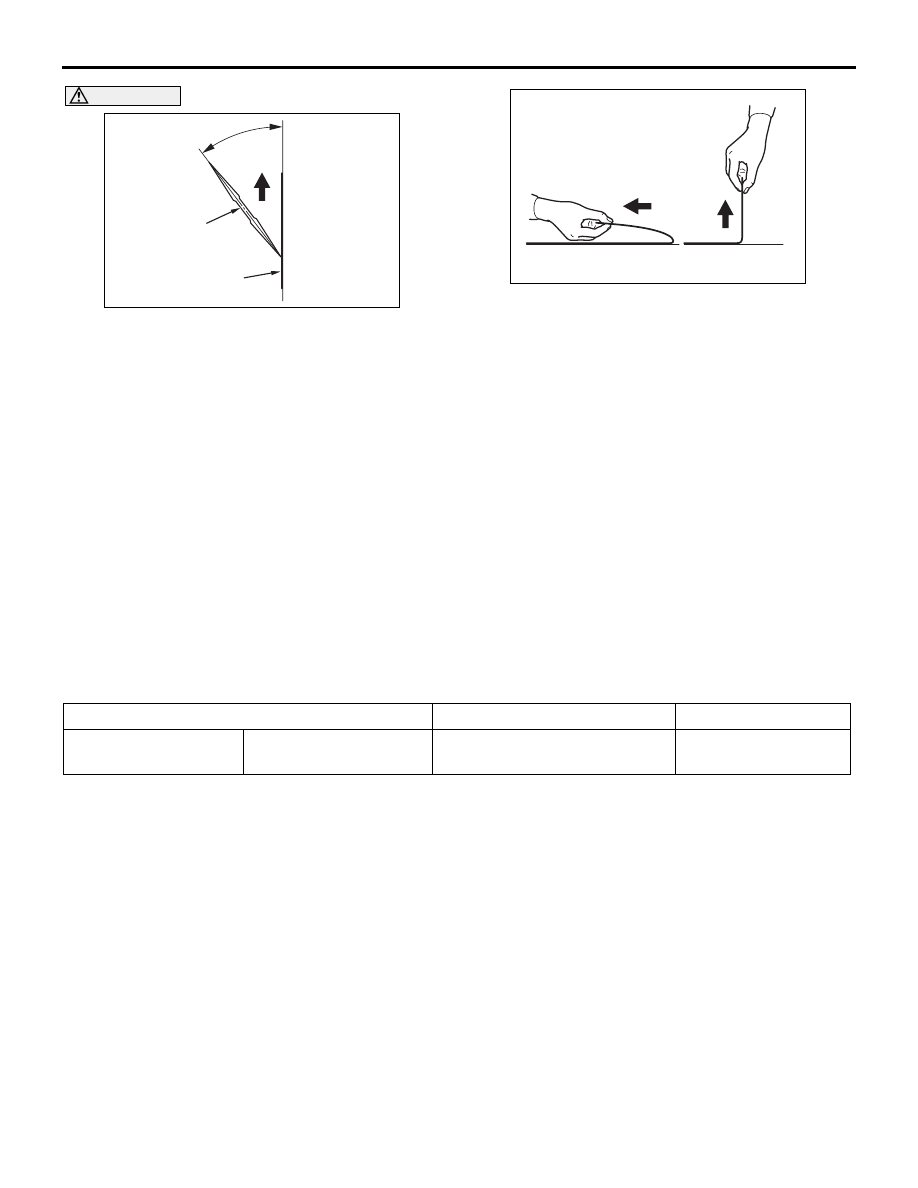

• If the special tool (spatula) slides to the side,

there will be slack at the end of the tape, caus-
ing wrinkles, and the tape may deviate from
the correct application position.

• If the tape is not applied properly, it may come

off later.

3. Attach the tapes so that no air bubbles get

trapped under the surface. For adhesive-type
tapes, use the special tool Stripe Tape Spatula
(MB990528) to press down them evenly, starting
from the centre and working toward the top and
bottom, so that no air bubbles get trapped
underneath.

AC403803AB

Good

Bad

4. For adhesive-type tapes, hold one edge of the

application tape (surface protective layer) and
slowly peel it off horizontally. If there are any air
bubbles in the tape after application, use a sewing
needle to make small holes in the bubbles, and
use the corners of the special tool to press the air
out.

MARK

LUBRICANT

M1511000400140

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required

MARK

EXTERIOR

51-89

REMOVAL AND INSTALLATION

M1511011803840

AC900325

1

3,7

4,5

2

AC

N

N

6

N

N

8

ACB00514

9

N

AB

<Vehicles for MOROCCO optional>

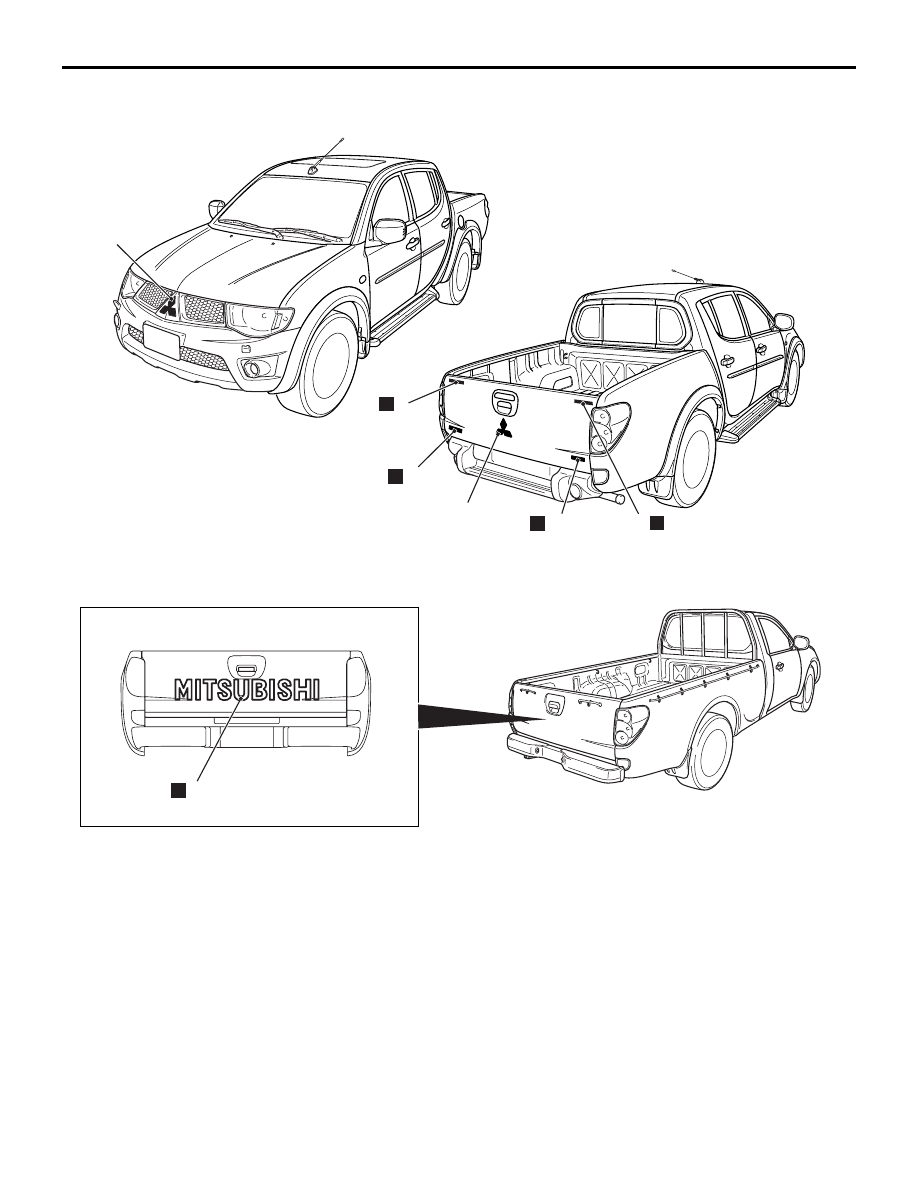

1. Front three-diamond mark (Refer to

P.51-14

 <Single cab>,

P.51-5

 <Club

and Double cab>.)

>>

A

<< 2. Rear three-diamond mark (Refer to

P.51-14

.)

>>

A

<< 3. MITSUBISHI mark

>>

A

<< 4. L200 mark

>>

A

<< 5. DI-D and COMMON RAIL mark

<Optional>

>>

A

<< 6. L200 and Sportero mark <Optional>

>>

A

<< 7. L200 and Sportero mark <Optional>

>>

A

<< 8. DI-D and COMMON RAIL mark

<Optional>

>>

A

<< 9. MITSUBISHI decal <Vehicles for

MOROCCO Optional>

MARK

EXTERIOR

51-90

INSTALLATION SERVICE POINT

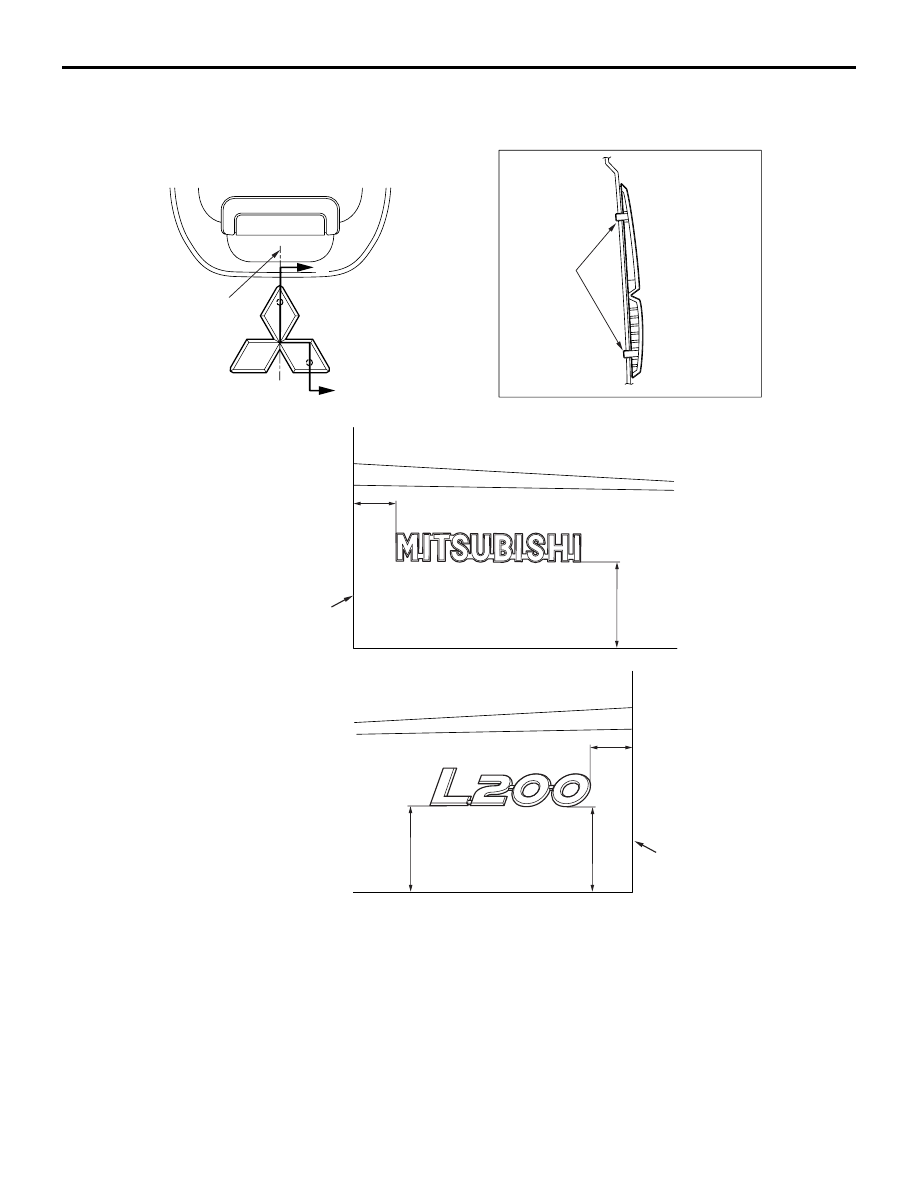

>>A<< MARK INSTALLATION

AC500398

A

AB

Section A – A

2. Rear three-diamond mark

Vehicle centre line

A

Boss

AC805985AB

3. MITSUBISHI mark

Rear gate end line

Unit: mm

64.5

32.0

AC805984AB

4. L200 mark

Rear gate end line

Unit: mm

63.7

64.5

32.0

AC903810 AB

37.0

Rear gate end line

Unit: mm

71.5

3.5

32.0

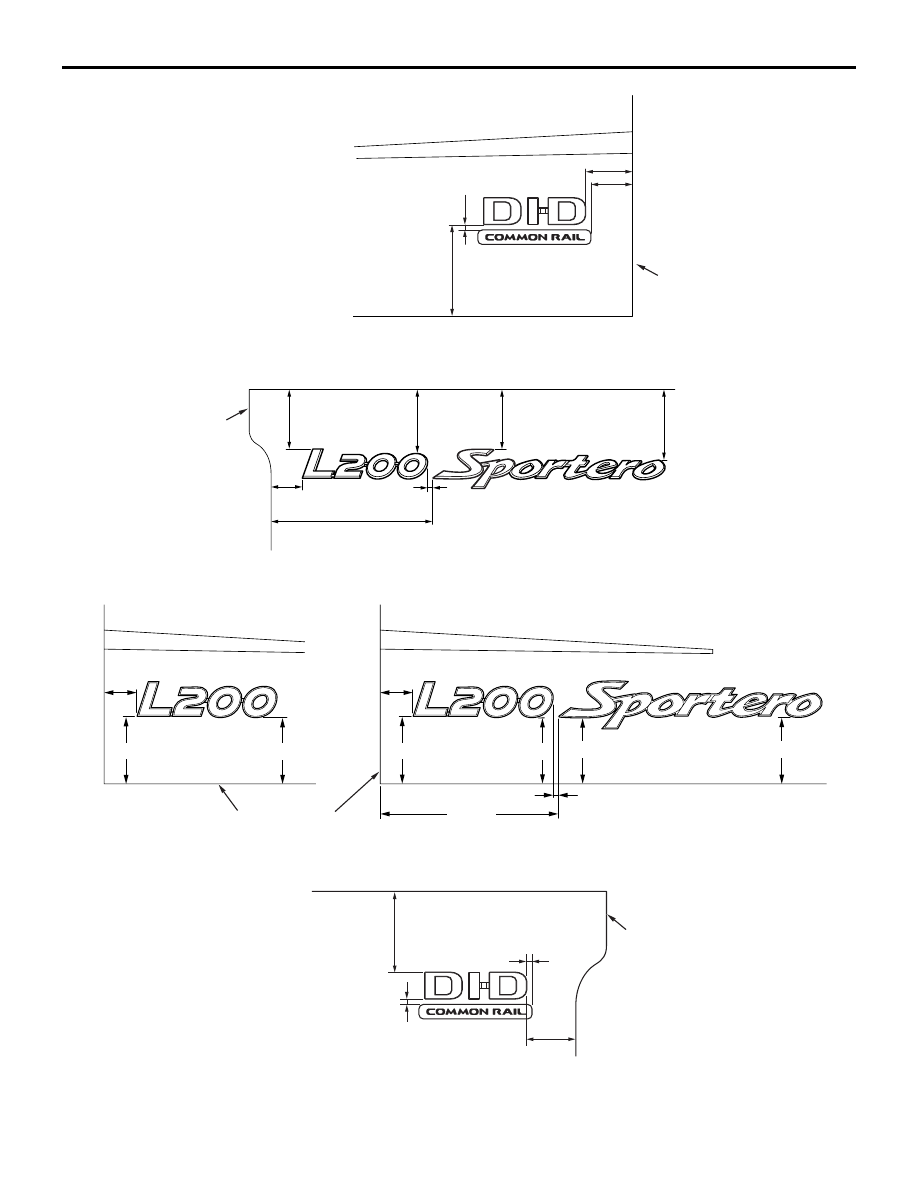

5. DI-D and COMMON RAIL mark <Optional>

AC805987

172.5

AB

Unit: mm

73.5

34

66

6. L200 and Sportero mark <Optional>

62.5

62

5

Rear gate end line

AC809151

32

64.5

63.7

32

64.5

63.7

(5)

(170.2)

63.5

63.5

AC

7. L200 mark <Optional>

Unit: mm

7. L200 SPORTERO mark <Optional>

Rear gate end line

AC903808AB

62

8. DI-D and COMMON RAIL mark <Optional>

Rear gate end line

Unit: mm

37

5.0

3.5

MARK

EXTERIOR
