4. Check to see that the wiper motor runs at low

speed and then stops at the automatic stop
position.

WINDSHIELD WIPER AND WINDSHIELD
WASHER SWITCH CHECK

1

6

8

11

10

9

7

5

4

3

2

AC000417

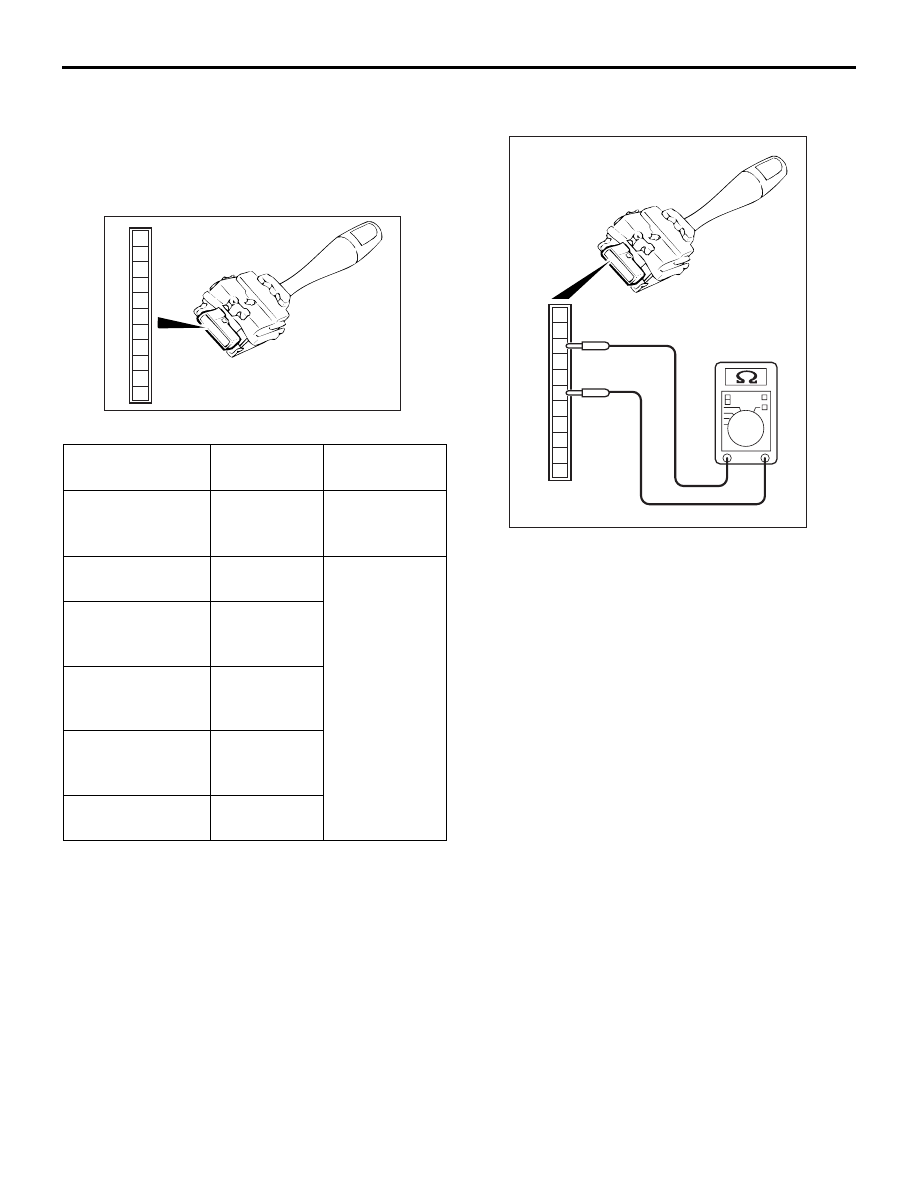

Check continuity between the switch terminals.

Switch position

Tester
connection

Specified
condition

OFF

6

− 11, 6 − 10,

6

− 9, 6 − 8, 6

− 7

Open circuit

Windshield mist
wiper switch

6

− 11

Continuity
exists (2

Ω or

less)

Windshield
intermittent wiper
switch

6

− 10

Windshield low-
speed wiper
switch

6

− 9

Windshield high-
speed wiper
switch

6

− 8

Windshield
washer switch

6

− 7

WINDSHIELD INTERMITTENT WIPER
VOLUME CHECK

1

6

8

11

10

9

7

5

4

3

2

AC201004

Check that the resistance varies between 0 and 1 k

Ω

when the windshield intermittent volume is turned
from FAST to SLOW by after measuring resistance
between connector terminals 3 and 6 at the column
switch.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-73

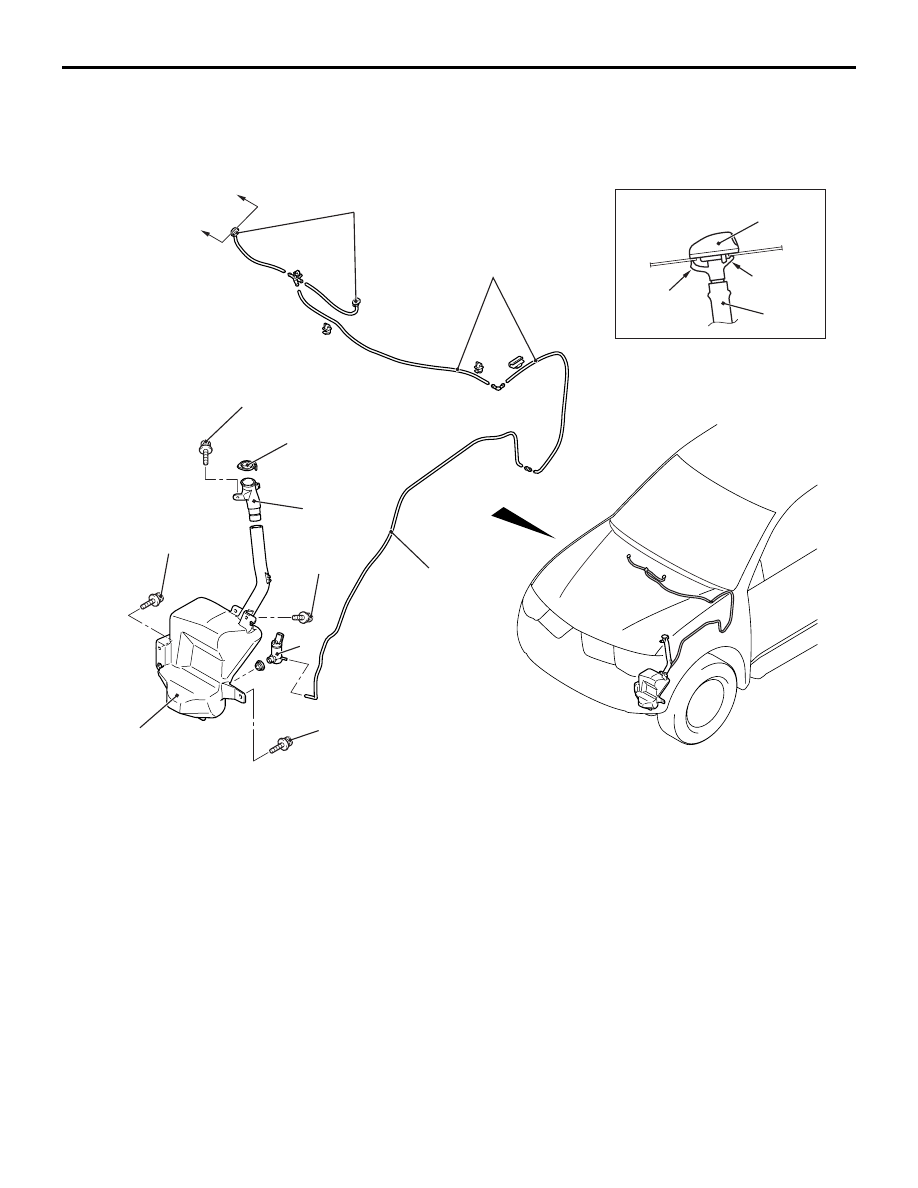

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

M1511008200838

AC500318

1

A

A

2

Section A – A

1

2

Claw

Claw

4

4.9 ± 0.7 N·m

11 ± 1.6 N·m

11 ± 1.6 N·m

11 ± 1.6 N·m

5

6

2

3

AB

Windshield washer nozzle removal
steps

•

Connection of windshield washer
hose

1. Windshield washer nozzle

Washer hose removal steps

•

Splash shield (LH) (Refer to GROUP
42, Fender .)

•

Connection of windshield washer
nozzle/washer tank

2. Windshield washer hose

Washer tank removal steps

•

Splash shield (LH) (Refer to GROUP
42, Fender .)

•

Connection of windshield washer
hose

3. Windshield washer tank
4. Washer tank filler cap
5. Washer tank filler hose
6. Windshield washer motor

Washer motor removal steps

•

Splash shield (LH) (Refer to GROUP
42, Fender .)

•

Connection of windshield washer
hose

6. Windshield washer motor

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch
.

Washer tank removal steps

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-74

INSPECTION

M1511008300813

WINDSHIELD WASHER MOTOR CHECK

1 2

AC502772

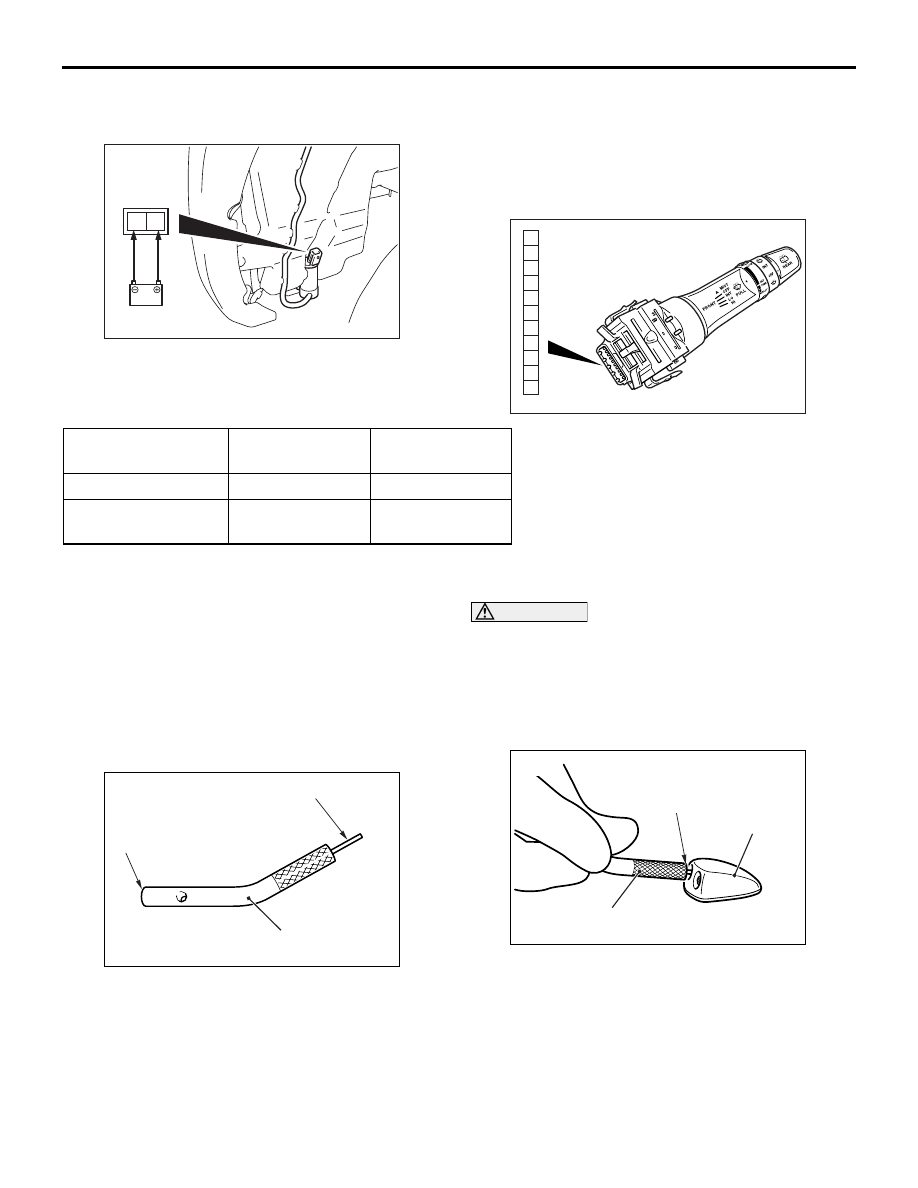

1. Remove the washer tank assembly with the

washer hose connected. Then fill the washer tank
with water.

2. Check to see that the water is vigorously sprayed

when connecting the terminals as shown in the
illustration.

WINDSHIELD WASHER SWITCH CHECK

<LH DRIVE VEHICLES>

AC605524

1

6

8

11

10

9

7

5

4

3

2

AD

<RH DRIVE VEHICLES>
Check the windshield washer switch from the ETACS
diagnosis codes for proper operation (Refer to
GROUP 54A, ETACS ).

WINDSHIELD WASHER FLUID EJECTION
CHECK

Switch position

Tester
connection

Specified
condition

OFF

6

− 7

Open circuit

Windshield washer
switch ON

6

− 7

Continuity exists
(2

Ω or less)

NOTE: Be sure to use the special tool, washer noz-
zle adjustment tool (MB992326) to adjust the splash-
ing points of the nozzle.

AC900637

AC

MB992326

Mist type
washer nozzle adjusting side

Jet type washer nozzle
adjusting side

ADJUSTMENT OF THE JET TYPE WASHER
NOZZLE INJECTION POSITION

CAUTION

Adjust the splashing position within the speci-
fied adjustment range, otherwise the windshield
glass cannot be washed properly.
1. Use the special tool, washer nozzle adjustment

tool (MB992326) to adjust the splashing points of
the nozzle.

AC900640

AB

MB992326

Jet type
washer nozzle
adjusting side

Jet type
washer
nozzle

B

(A)

2. Insert the jet type washer nozzle adjusting side of

the special tool (MB992326) into the injection part
of the washer nozzle as shown in figure (A).

AC900643

AC

MB992326

Jet type washer nozzle
adjusting side

Jet type
washer nozzle

(B)

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-75

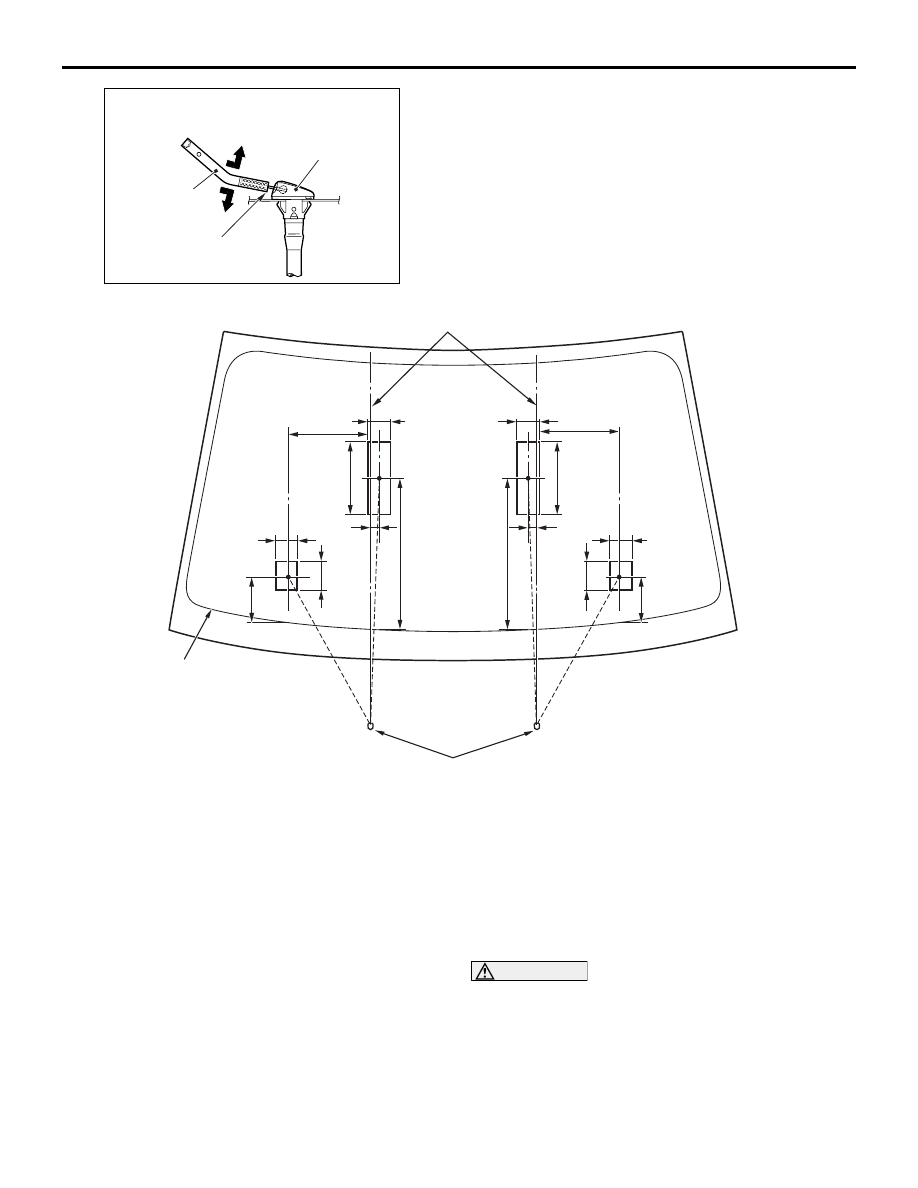

3. Move the special tool (MB992326) up and down

to adjust the angle of the washer nozzle as shown
in figure (B).

ACA01207 AB

50

50

50

115

70

20

70

50

365

<Right>

<Left>

Windshield ceramic
line end

Unit: mm

Windshield washer
nozzle perpendicular

115

210

180

365

Windshield washer nozzle

210

180

20

LIGHTING CONTROL SENSOR

LIGHTING CONTROL SENSOR REMOVAL AND INSTALLATION

M1511028300064

For removal and installation, refer to GROUP 54A,
Lighting control sensor .

Lighting control sensor (rain sensor)
adaptation

M1511028600106

CAUTION

• Before performing the adaptation, check if the

lighting control sensor (rain sensor)-related
diagnosis code is set in the lighting control
sensor (rain sensor).

• Turn the wiper switch to the OFF position.

1. Clean the windshield in fine weather.
