Mitsubishi L200. Manual - part 562

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-64

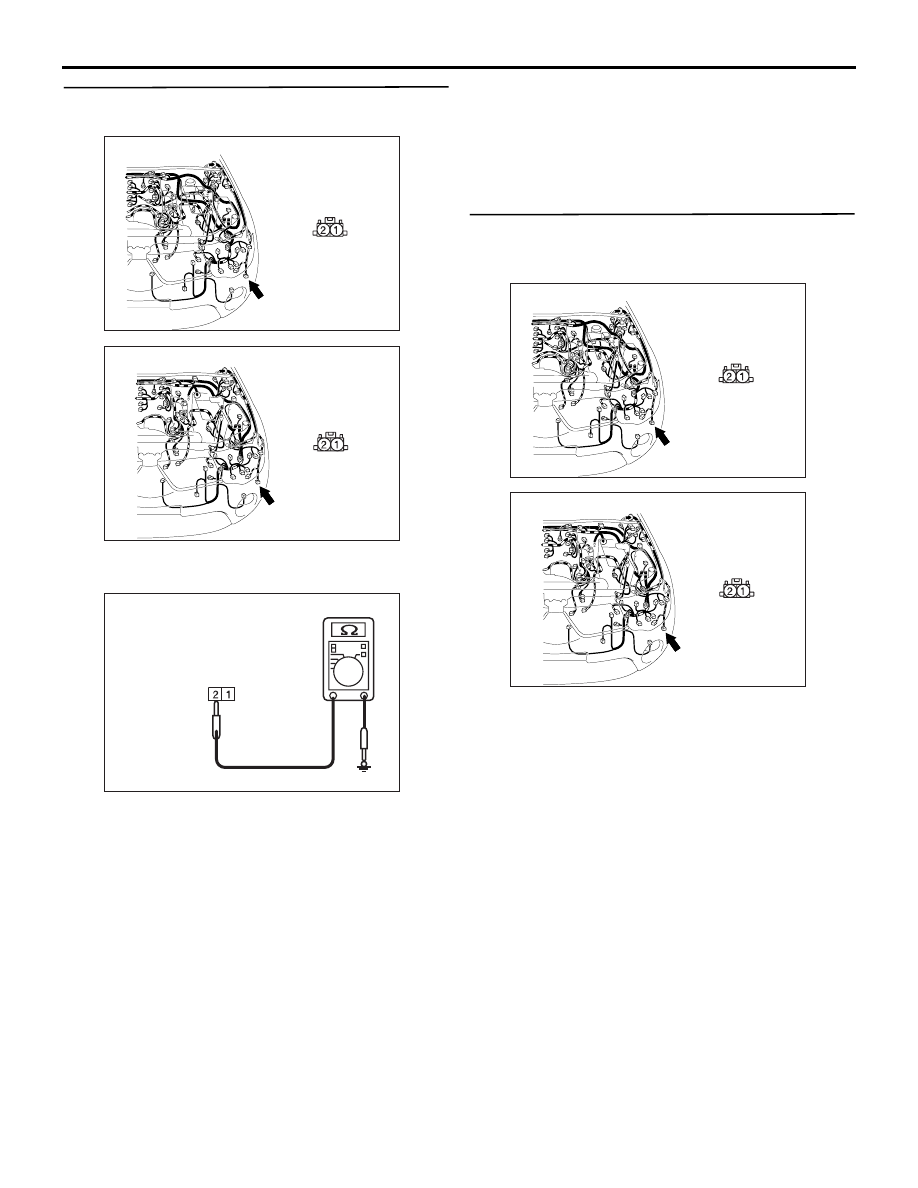

STEP 6. Resistance measurement at the A-29
washer motor connector.

AC903898

Connector: A-29 <LHD>

Harness side

AJ

A-29 (GR)

AC903900

Connector: A-29 <RHD>

Harness side

AJ

A-29 (GR)

(1) Disconnect the connector, and measure at the

wiring harness side.

AC310506 FY

Connector A-29

(Harness side)

(2) Resistance between A-29 washer motor

connector terminal No.2 and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 7.

STEP 7. Check the wiring harness between A-29
washer motor connector terminal No.2 and the
body earth.

AC903898

Connector: A-29 <LHD>

Harness side

AJ

A-29 (GR)

AC903900

Connector: A-29 <RHD>

Harness side

AJ

A-29 (GR)

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-65

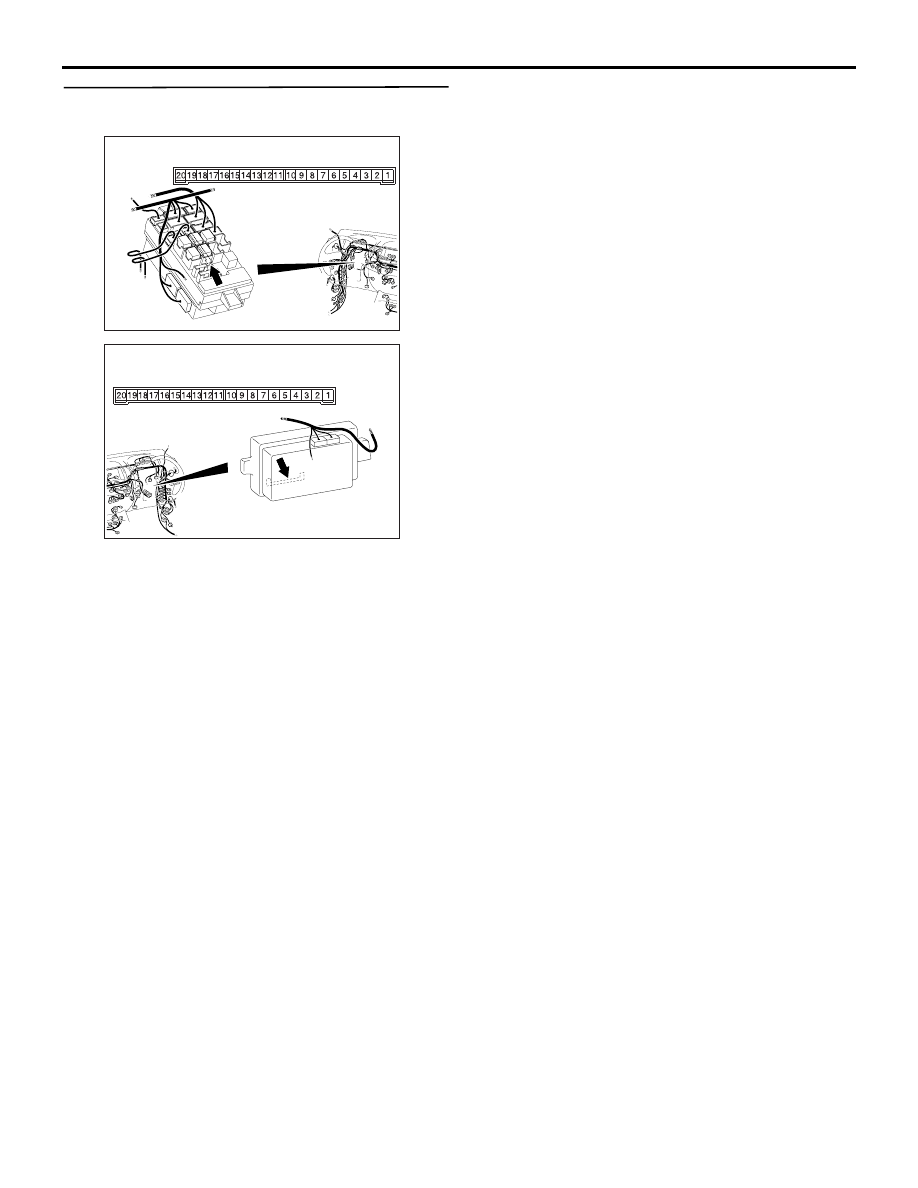

STEP 8. Connector check: C-218 ETACS-ECU
connector

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-66

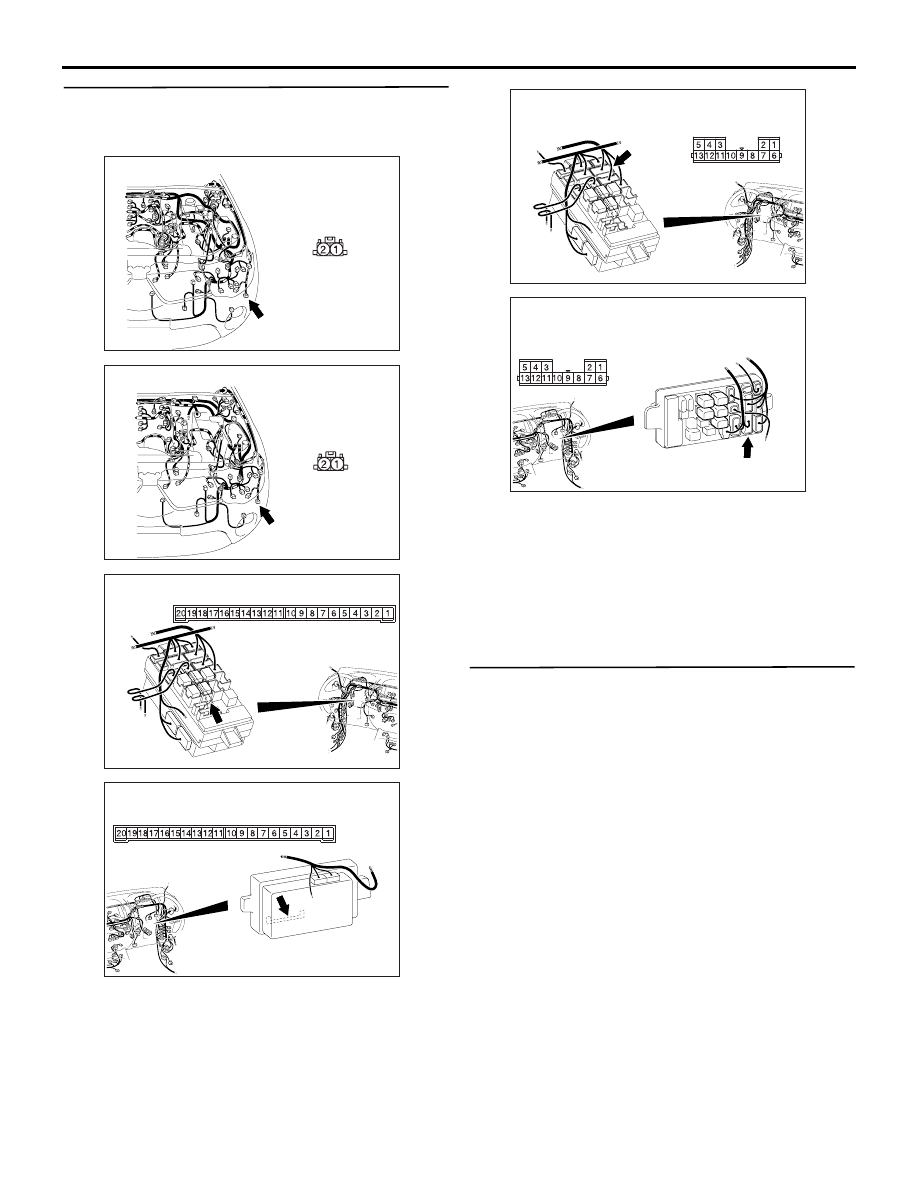

STEP 9. Check the wiring harness from A-29
washer motor connector terminal No.1 to C-218
ETACS-ECU connector terminal No.9.

AC903898

Connector: A-29 <LHD>

Harness side

AJ

A-29 (GR)

AC903900

Connector: A-29 <RHD>

Harness side

AJ

A-29 (GR)

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

NOTE:

AC509934

Connector: C-210 <LHD>

Junction block

AN

Harness side

AC509936

Connector: C-210 <RHD>

Harness side

AJ

Junction block

(Front view)

Prior to the wiring harness inspection, check the
junction block connector C-210 and repair if neces-
sary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

STEP 10. Retest the system.
The windshield washer should now work normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the ETACS-ECU and register the
ID codes.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-67

DATA LIST REFERENCE TABLE

M1511015100060

LIN (LIGHTING CONTROL SENSOR)

Item No. M.U.T.-III display

Check condition

Normal condition

7005

RLS Rain sensor ON/OFF

When the wiper switch is AUTO position

ON

When a switch (except the wiper switch) is
AUTO position

OFF

7006

RLS Rain sensor sensitivity Changes from 1 to 5 according to the

wiper volume.

1, 2, 3, 4, 5

7008

RLS Wiper auto stop SW

When the windshield wiper is in operation Park
Other than above

Outside park

7013

RLS Wiper control output

When the operation is not requested from
lighting control sensor (rain sensor).

OFF

When the LO operation is requested from
lighting control sensor (rain sensor)

LO

When the HI operation is requested from
lighting control sensor (rain sensor)

HI

7020

RLS RS measurement
value(RS1)

When the lighting control sensor (rain
sensor) detects raindrops

The sensor 1 detects
raindrops and the
value changes.

7021

RLS RS measurement
value(RS2)

When the lighting control sensor (rain
sensor) detects raindrops

The sensor 2 detects
raindrops and the
value changes.

7022

RLS RS adaptation
value(RS1)

When initialising after the adaptation
(sensor 1)

The amount of output
when initialising
(sensor 1)

7023

RLS RS adaptation
value(RS2)

When initialising after the adaptation
(sensor 2)

The amount of output
when initialising
(sensor 2)

7024

RLS RS adaptation gain
level

When initialising after the adaptation

The calibrated value of
initialising

ON-VEHICLE SERVICE

WINDSHIELD INTERMITTENT WIPER
INSPECTION

M1511023600071

1. Check that the intermittent wiper interval is

changed as the windshield intermittent wiper vol-
ume is operated.

2. Turn the windshield intermittent wiper switch to

the intermittent operation position. Use the
M.U.T.-III to set a simulated vehicle speed with
the wiper volume held. The intermittent wiper
interval should be changed as the simulated vehi-
cle speed is changed.

3. If either of above is defective, carry out the trou-

bleshooting. (Refer to

P.51-53

)

LIGHTING CONTROL SENSOR (RAIN
SENSOR) INSPECTION

M1511028400083

Turn the ignition switch to the "ON" position when the
windshield glass is dry, and turn the wiper switch to
the "AUTO" position. Apply water to the upper part of
the windshield glass where the lighting control sen-
sor is installed. Confirm that the windshield wiper
operates at this time. If not, perform troubleshooting
(Refer to

P.51-93

).

CUSTOMISATION FUNCTION

M1511027401577

The following functions can be customised using
M.U.T.-III.
