Mitsubishi L200. Manual - part 563





Function

Item name

Configuration

Windshield wiper intermittent control
(vehicle speed sensing intermittent time
adjustable type)

Vehicle speed-
dependent wiper

• Inhibit

• Operation (initial condition)

Wiper linked with washer function

Wiper synchronized
washer

• Inhibit

• Operation (initial condition)

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-68

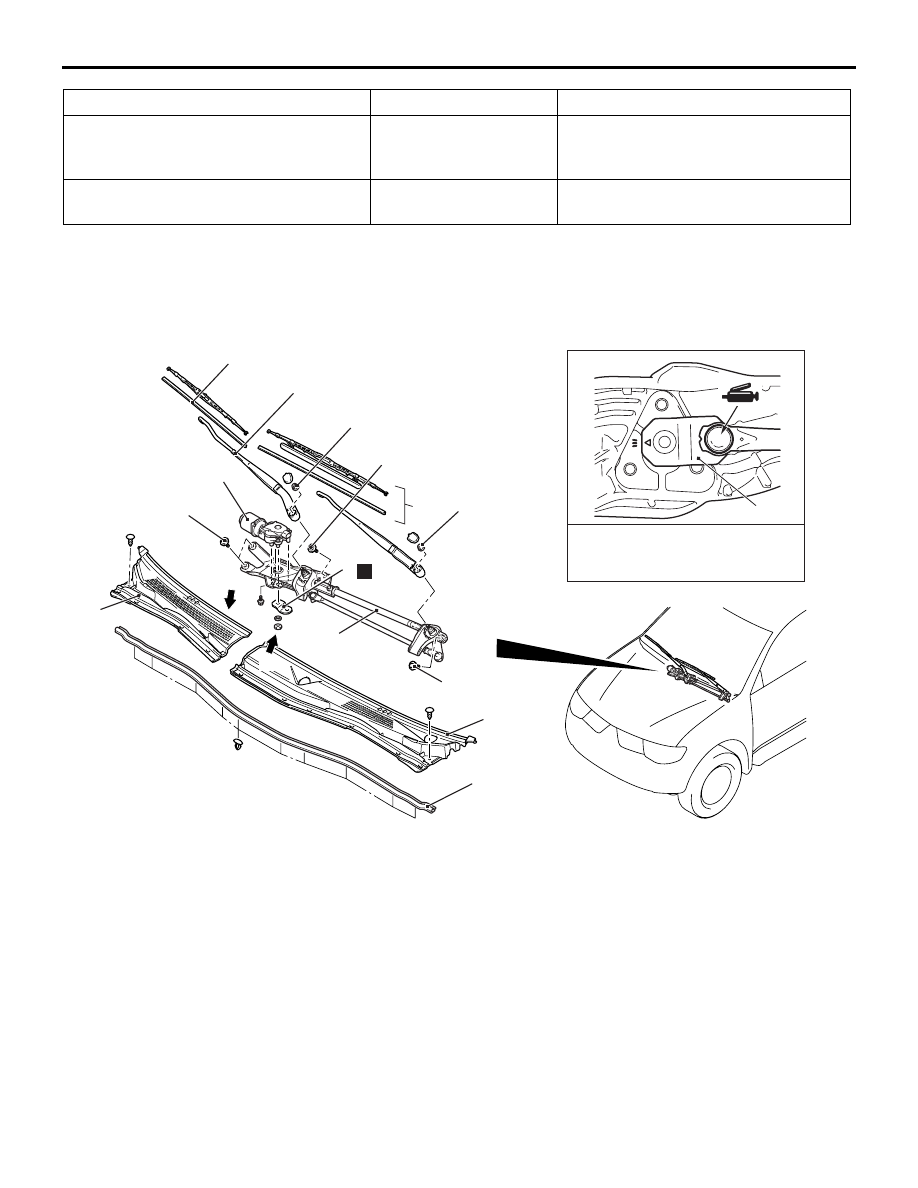

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

M1511007900522

AC509729

1

2

8

3

6

5

4

AB

27 ± 3 N·m

8.0 ± 2 N·m

8.0 ± 2 N·m

8.0 ± 2 N·m

27 ± 3 N·m

B

5

7

N

A

View A

7

Specified grease:
Multipurpose grease
SAE J310, NLGI No.2 or equivalent

AC509856 AB

View B

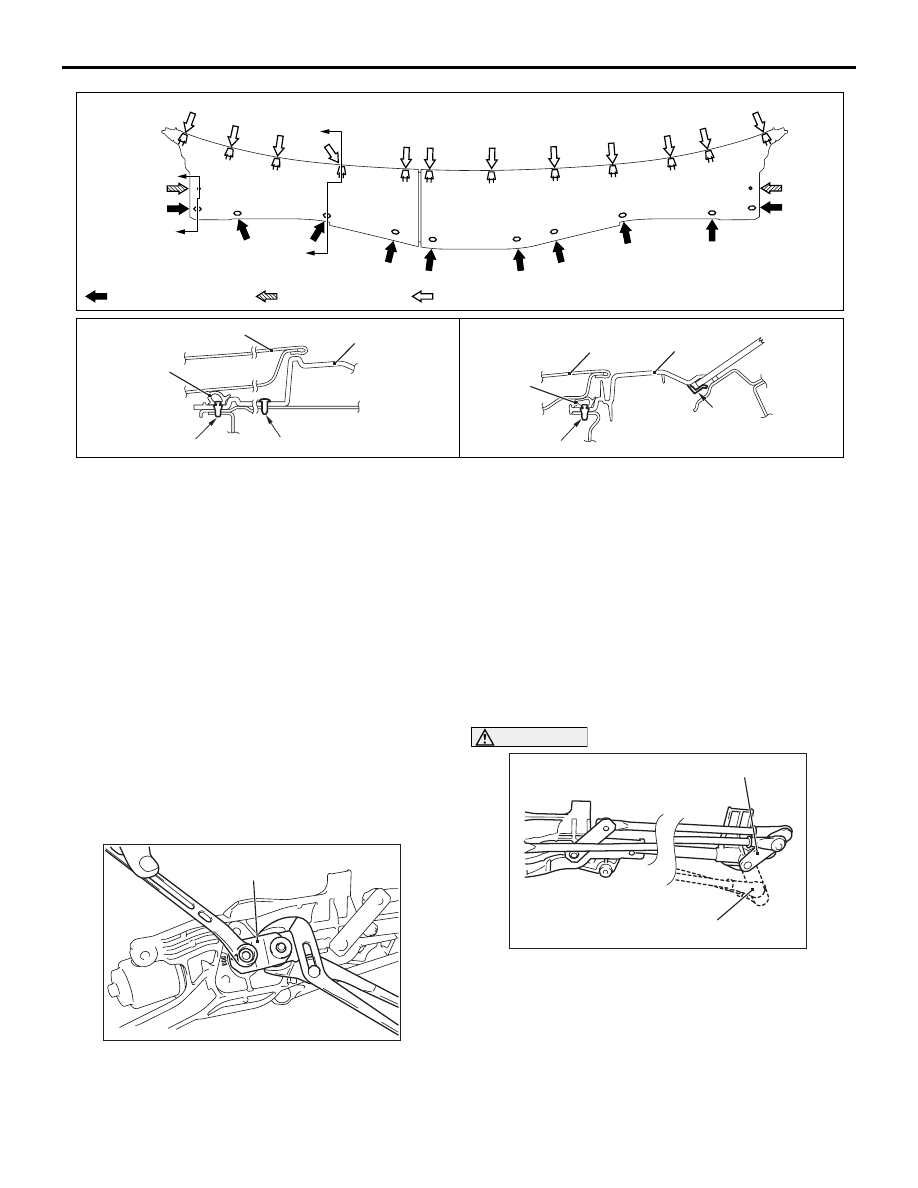

NOTES

C

C

: Clip <a> positions

: Claw positions

: Clip <b> positions

Section C – C

Section D – D

4

Clip <a>

Claw

Hood

4

5

5

Hood

Clip <a>

Clip <b>

D

D

Wiper blade removal steps

1. Wiper blade assembly

>>

C

<< 2. Wiper blade

Windshield wiper motor and link
assembly removal steps

>>

B

<< 3. Wiper arm

4. Hood weather strip
5. Front deck garnish

<<

A

>> >>

A

<< 6. Windshield wiper link

<<

A

>> >>

A

<< 7. Wiper motor link plate

<<

A

>> >>

A

<< 8. Windshield wiper motor

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-69

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch
.

REMOVAL SERVICE POINT

<<A>> WINDSHIELD WIPER LINK/WIPER MOTOR
LINK PLATE/WINDSHIELD WIPER MOTOR
REMOVAL

AC509804AB

Wiper motor link plate

1. To disconnect the wiper motor link plate from the

wiper motor shaft, use an appropriate tool to
counter-hold the plate to prevent it from turning.

2. Remove the wiper motor from the windshield

wiper link.

INSTALLATION SERVICE POINT

>>A<< WINDSHIELD WIPER LINK/WIPER MOTOR
LINK PLATE/WINDSHIELD WIPER MOTOR
INSTALLATION
1. Confirm that the wiper motor has set to automatic

stop position (refer to

P.51-71

).

AC509805AB

Wiper link rod plate
(incorrect location)

Wiper link rod plate (correct location)

CAUTION

Wiper link rod plate at left end should be located
as shown in the illustration (dotted line shows
incorrect location).
2. Assemble the wiper motor to windshield wiper

link.

AC509806AC

Wiper motor link plate

Link rod

Within ± 3˚

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-70

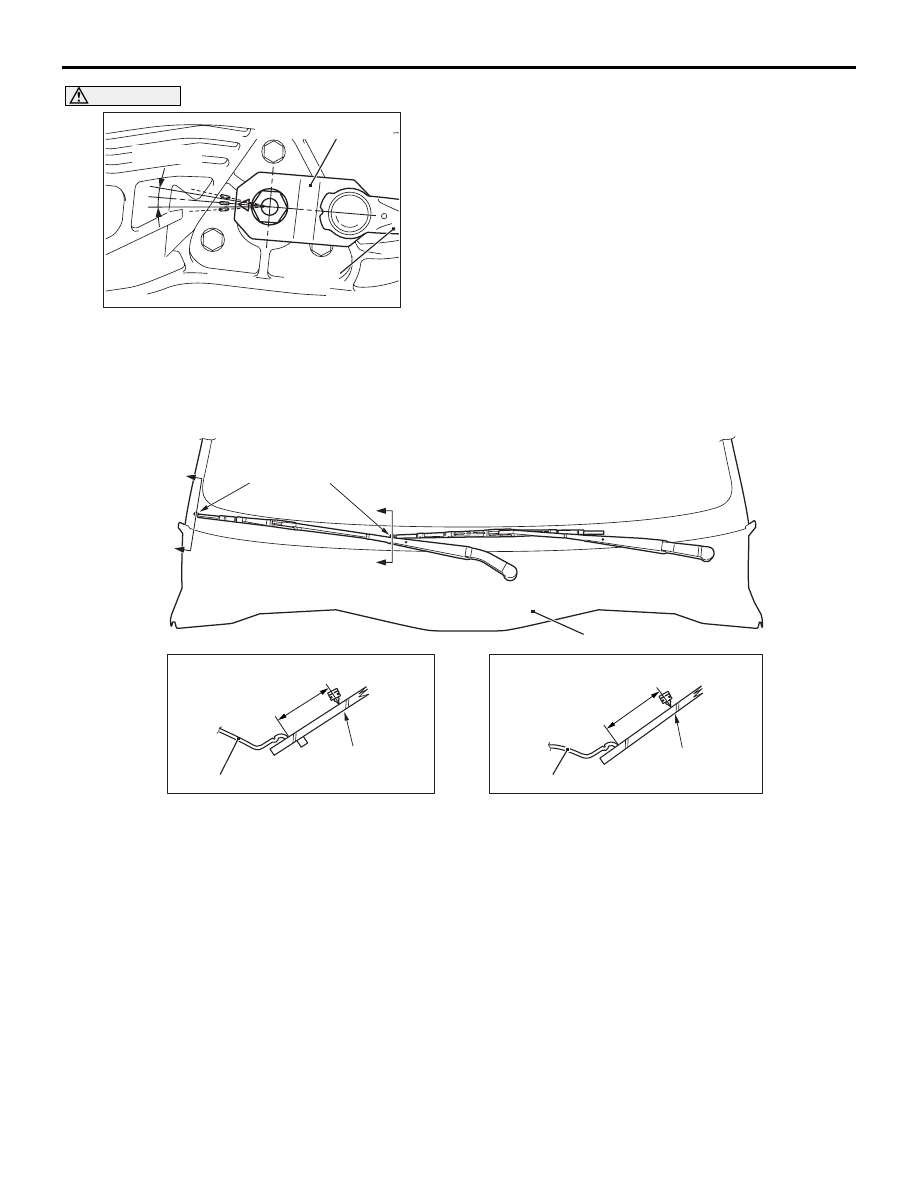

CAUTION

Always replace the wiper motor link plate with
new one.
3. Set the wiper motor link plate onto the wiper motor

shaft; aligning the plate to the windshield wiper
link as shown in the illustration.

4. Tighten the attaching nut of wiper motor link plate

and wiper motor shaft. Use an appropriate tool to
counter-hold the plate to prevent it from turning.

5. Apply grease to the inside of link rod joint (as

required) and connect the link rod to wiper motor
link plate.

>>B<< WIPER ARM INSTALLATION

AC509858AB

Front deck garnish

Front deck garnish

Front deck garnish

Section A – A

Section B – B

A

A

B

B

(33 ± 5 mm)

(31 ± 5 mm)

Marking (small circle on windshield)

Align blade to
marking on
windshield

Align blade to
marking on
windshield

Install the wiper arms and blades at the specified
positions shown above.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-71

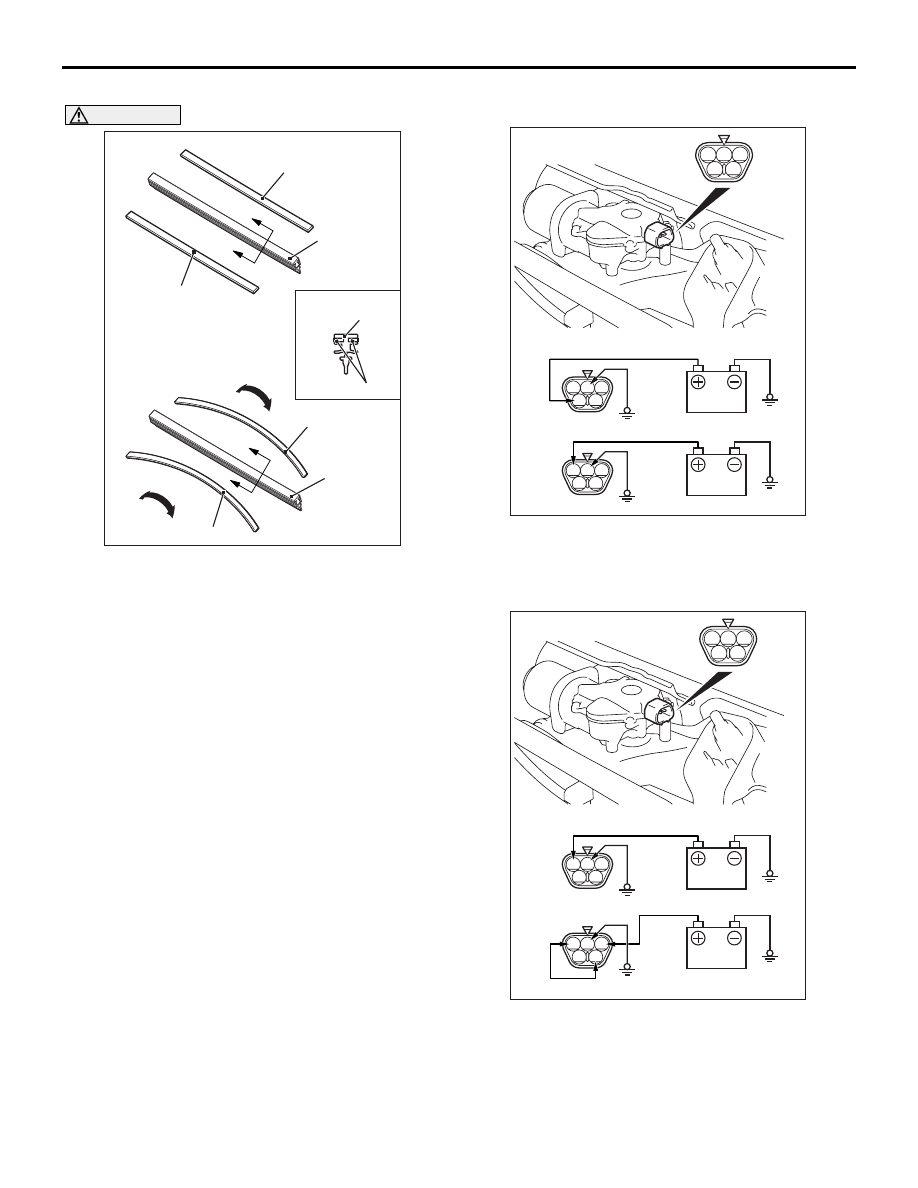

>>C<< WIPER BLADE INSTALLATION

AC103612

AD

Backing

Backing

A

A

Section A – A

Wiper blade

Backing

Wiper blade

Backing

Backing

A

A

<Passenger's side>

<Driver's side>

Wiper blade

CAUTION

For good windshield wiper wiping performance,
use a driver's side windshield wiper without
curve in the backings of the wiper blade. The
windshield wiper on the passenger's side should
be a wiper blade with curved backings.

INSPECTION

M1511008000500

WINDSHIELD WIPER MOTOR CHECK
Inspect the windshield wiper motor by removing the
harness connector with the motor attached to the
vehicle.

WIPER MOTOR AT LOW OR HIGH SPEED
OPERATION

1

4

2

3

5

4

2

3

5

1

1

4

2

3

5

AC509860

Check operation

Low speed

High speed

AB

Connect the battery to the wiper motor to inspect the
operation of motor rotation at low or high speed.

WIPER MOTOR AT STOP POSITION OPERATION

1

4

2 3

5

4

2 3

5

1

4

2

3

5

1

AC509861

Stop position check

(B) Automatic stop

(A) Low speed

AB

1. Connect the battery to the wiper motor as shown

in the illustration (A).

2. Run the wiper motor at low speed, then

disconnect the battery in the middle of the motor
rotation and check to see that the motor stops.

3. As shown in the illustration (B), connect the

terminals of the wiper motor connector.
