FRONT BUMPER ASSEMBLY

EXTERIOR

51-8

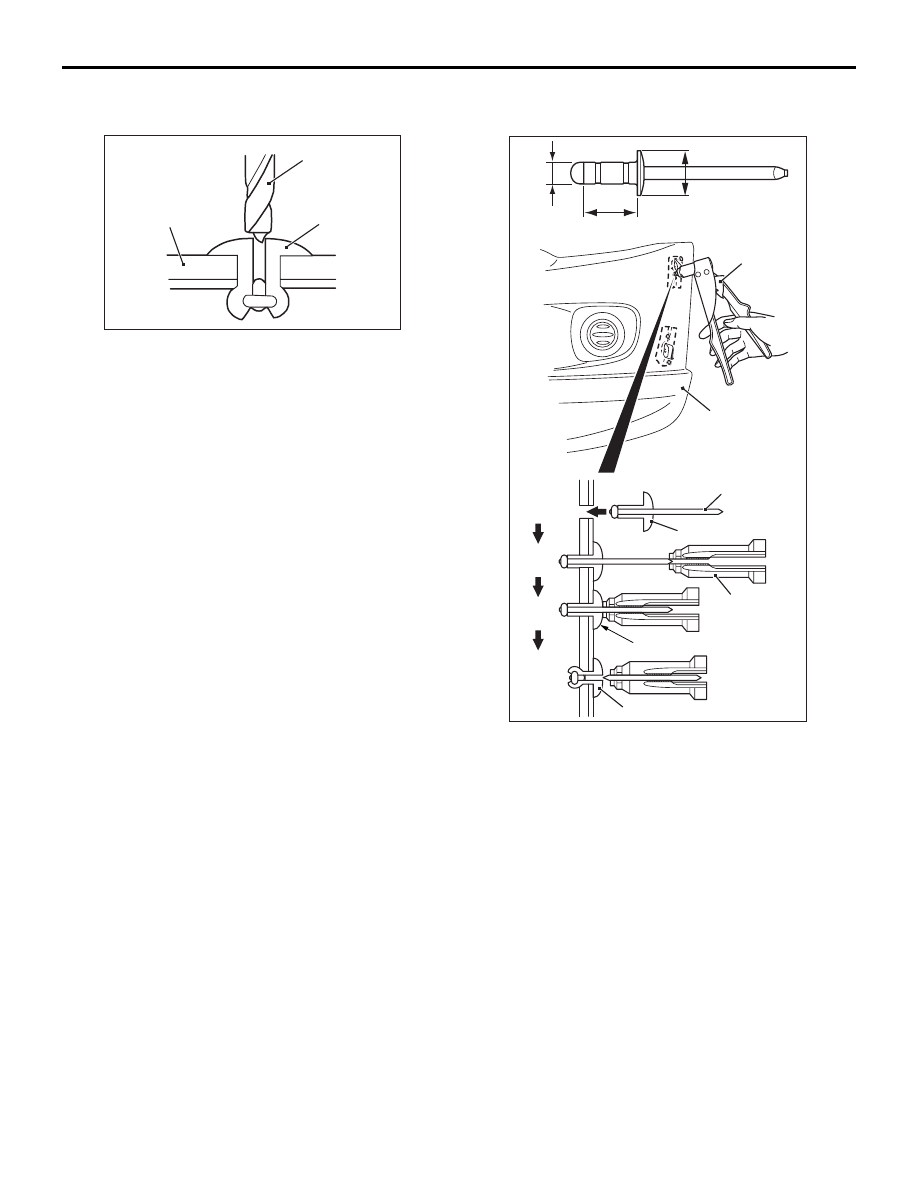

DISASSEMBLY SERVICE POINT

<<A>> RIVETS REMOVAL

AC100411AB

Rivet

Drill

Bumper face

Use a drill (

φ 4.0 mm) to make a hole in the rivet to

break it, and remove the rivet.

REASSEMBLY SERVICE POINT

>>A<< RIVETS INSTALLATION

AC807779 AB

1

2

3

4

Portion C

Rivet

Flange

Rivet

Rivet tool

Bumper face

Rivet

Unit: mm

Ø12.0

Ø4.0

Rivet tool

Use a rivet tool shown in the illustration to connect
the parts with rivets by the following procedures.
1. Insert rivet into the front bumper side bracket and

front bumper face.

2. Place the rivet tool over portion C of rivet.
3. While pushing the flange surface of the rivet onto

parts to be fixed with the rivet tool, press the
handle of the tool.

4. Thin part of portion C of the rivet will cut off and

the rivet is fixed in position.

GUARD BAR

EXTERIOR

51-9

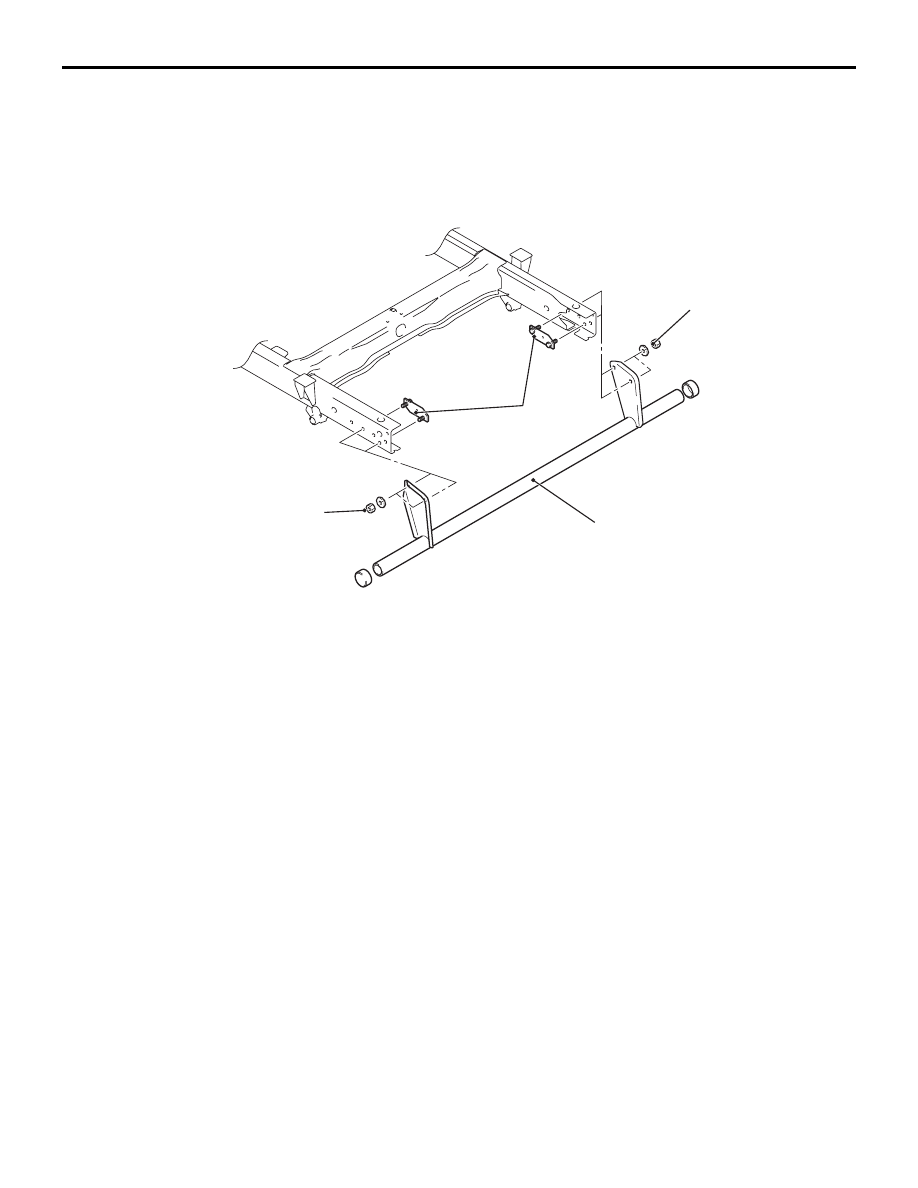

GUARD BAR

REAR GUARD BAR REMOVAL AND
INSTALLATION

M1511010600026

VEHICLES FOR EUROPE AND RUSSIA

AC509703

1

64 ± 9 N·m

2

64 ± 9 N·m

AC509703

AD

Removal steps
1. Rear bumper guard
2. Rear bumper plate

REAR BUMPER ASSEMBLY

EXTERIOR

51-10

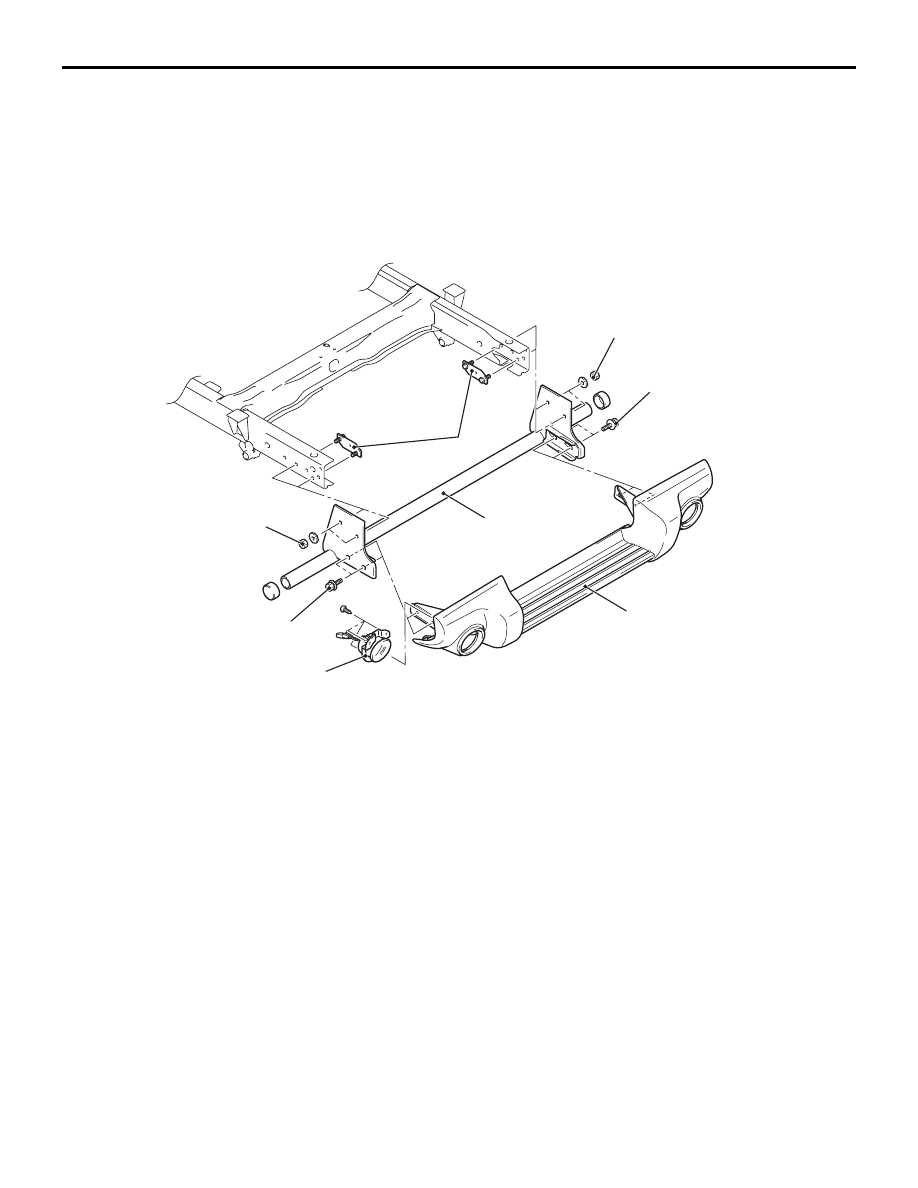

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001902649

VEHICLES FOR EUROPE AND RUS-
SIA(OPTIONAL)
VEHICLES  WITHOUT LONG CARGO BED

AC511260

AC511260

3

2

AC

64 ± 9 N·m

37 ± 14 N·m

4

64 ± 9 N·m

37 ± 14 N·m

1

Removal steps

<<

A

>>

1. Rear fog lamp <Vehicles with rear fog

lamp>

2. Rear step bumper assembly

3. Rear bumper side bracket
4. Rear bumper plate

Removal steps (Continued)

REAR BUMPER ASSEMBLY

EXTERIOR

51-11

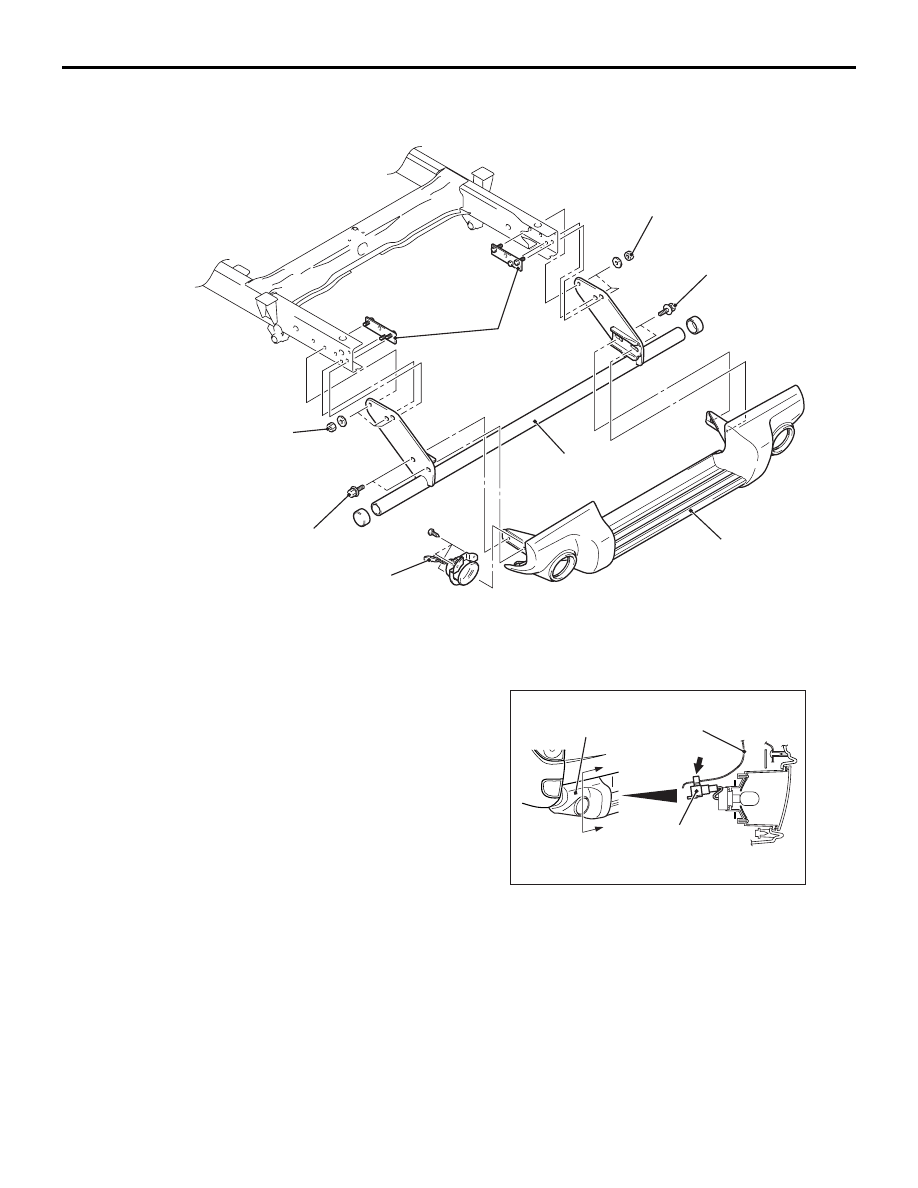

VEHICLES  WITH LONG CARGO BED

ACA00440

3

2

AC

64 ± 9 N·m

4

64 ± 9 N·m

1

37 ± 14 N·m

37 ± 14 N·m

Removal steps

<<

A

>>

1. Rear fog lamp <Vehicles with rear fog

lamp>

2. Rear step bumper assembly
3. Rear bumper guard
4. Rear bumper plate

REMOVAL SERVICE POINT

<<A>> REAR FOG LAMP CONNECTOR
REMOVAL

AC509748

Rear corner
bumper

Rear fog lamp
connector

AB

A

A

Rear end
outer sill

Section A – A

Remove the rear fog lamp connector on rear end
outer sill before removing the rear corner bumper.
