DOOR
BODY
42-156
YES :
Go to Step 4.
NO :
Make the power window switch learn the
fully closed position of the windows (Refer
to
STEP 4. Determine a trouble spot.
Q: Which door does the power window anti-trap
function fail on?
Driver's door :
Go to Step 5.
Front passenger's door :
Go to Step 8.
Rear right door <Double cab> :
Go to Step 14.
Rear left door <Double cab> :
Go to Step 20.

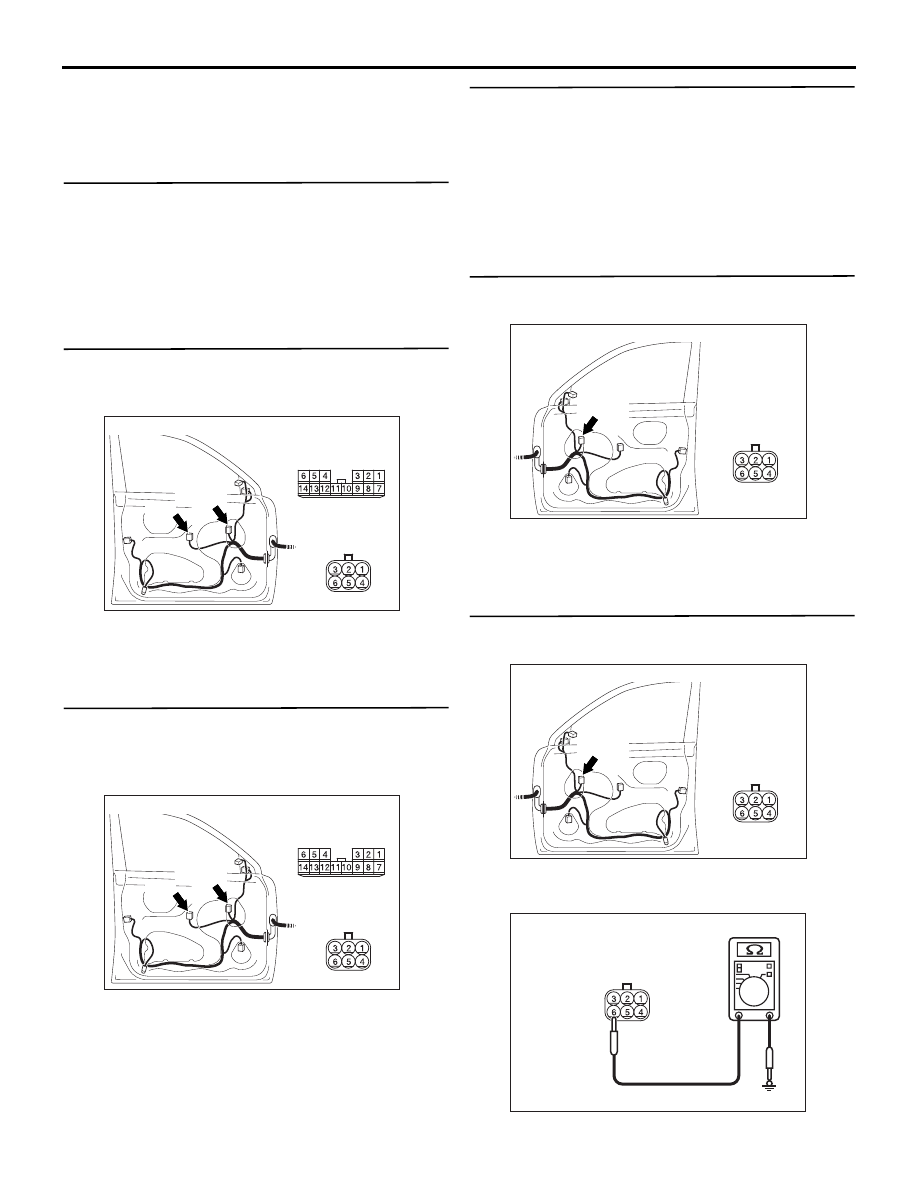

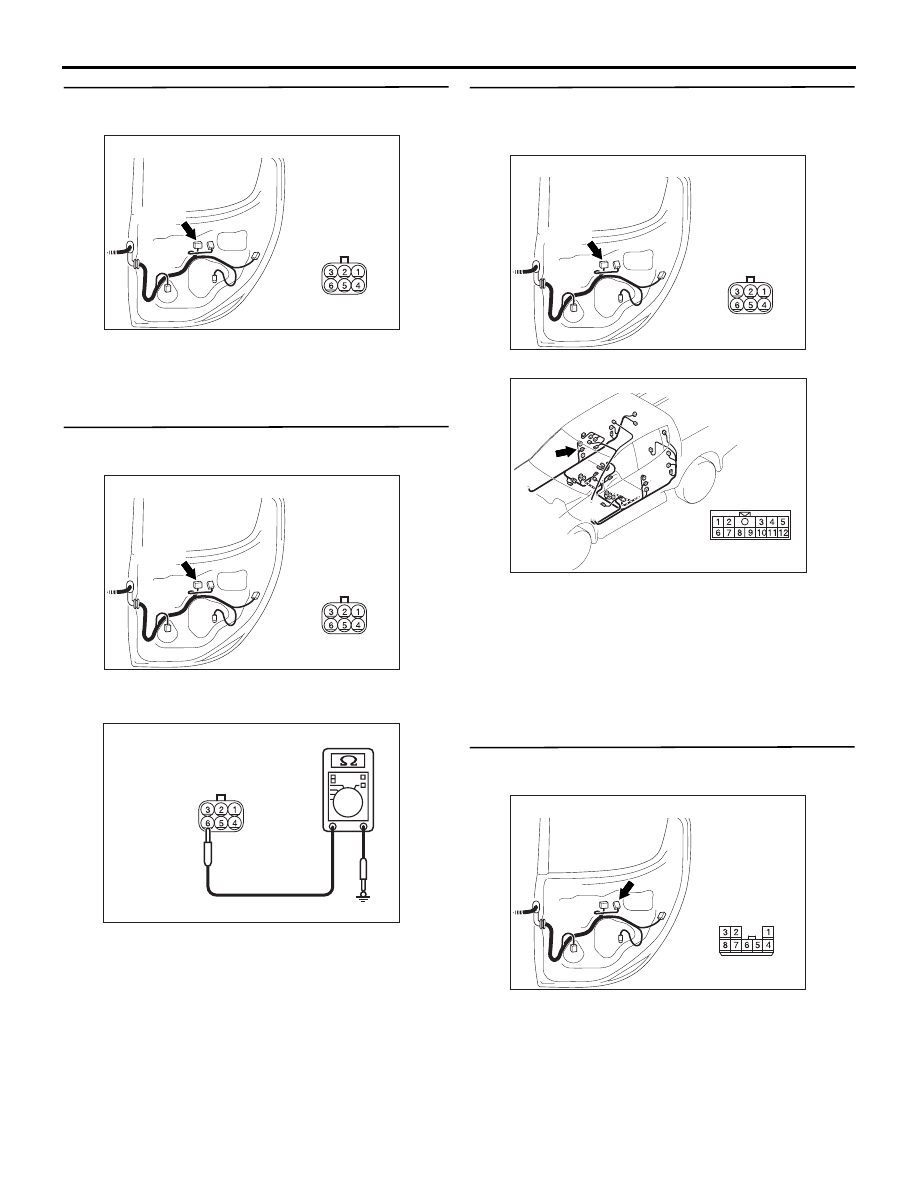

STEP 5. Connector check: E-03 power window
main switch connector and E-18 power window
motor (front: LH) connector
AC509952
Connectors: E-03, E-18 <LHD>
AG
Harness side
E-03
E-03
Harness side
E-18 (B)
E-18 (B)
Q: Is the check result normal?
YES :
Go to Step 6.
NO :
Repair the defective connector.
STEP 6. Check the wiring harness between E-03
power window main switch connector terminal
Nos. 8, 9, 10, 12 and E-18 power window motor
(front: LH) connector terminal Nos. 6, 2, 4, 5.
AC509952
Connectors: E-03, E-18 <LHD>
AG
Harness side
E-03
E-03
Harness side
E-18 (B)
E-18 (B)
• Check the input and output lines to the revolution
detection sensor for open and short circuit.
Q: Is the check result normal?
YES :
Go to Step 7.
NO :
Repair the wiring harness.
STEP 7. Retest the system.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap
function works.
Q: Is the check result normal?
YES :
The procedure is complete.
NO :
Replace the power window motor (front:
LH).

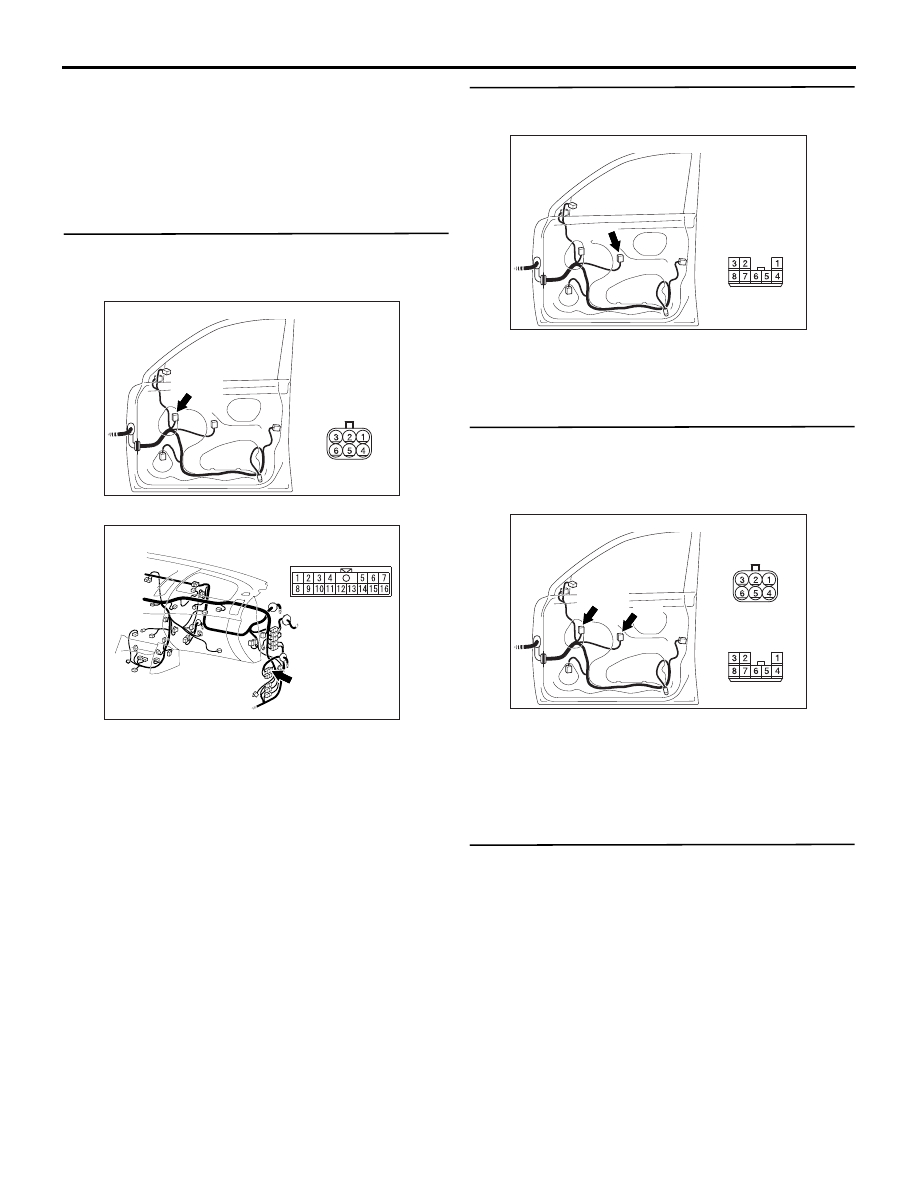

STEP 8. Connector check: E-01 power window
motor (front: RH) connector
AC509954
Connectors: E-01 <LHD>
AK
Harness side
E-01 (B)
Q: Is the check result normal?
YES :
Go to Step 9.
NO :
Repair the defective connector.

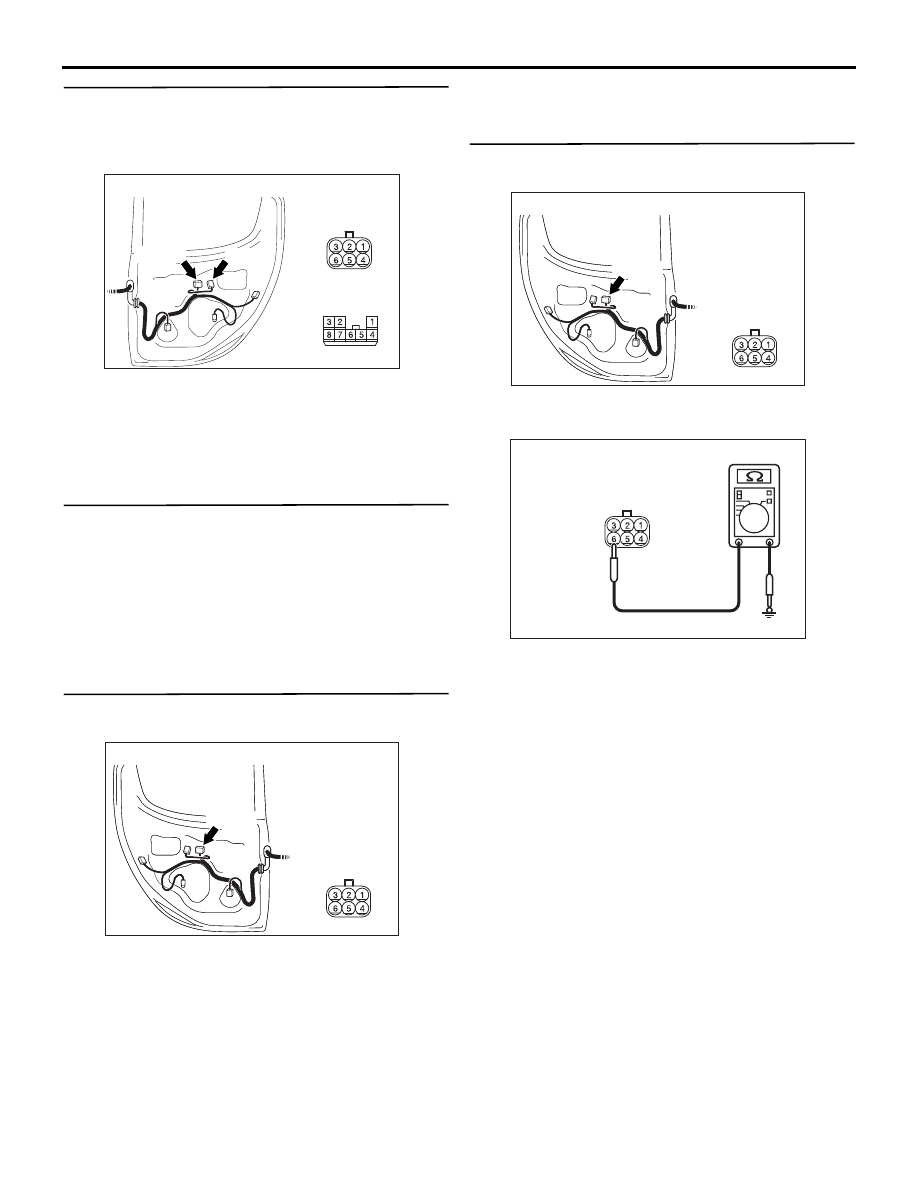

STEP 9. Resistance measurement at the E-01
power window motor (front: RH) connector.
AC509954
Connectors: E-01 <LHD>
AK
Harness side
E-01 (B)
(1) Disconnect the connector, and measure at the
wiring harness side.
AC209731
AC208731BI
Connector E-01
(Harness side)
(2) Check the resistance between E-01 power
