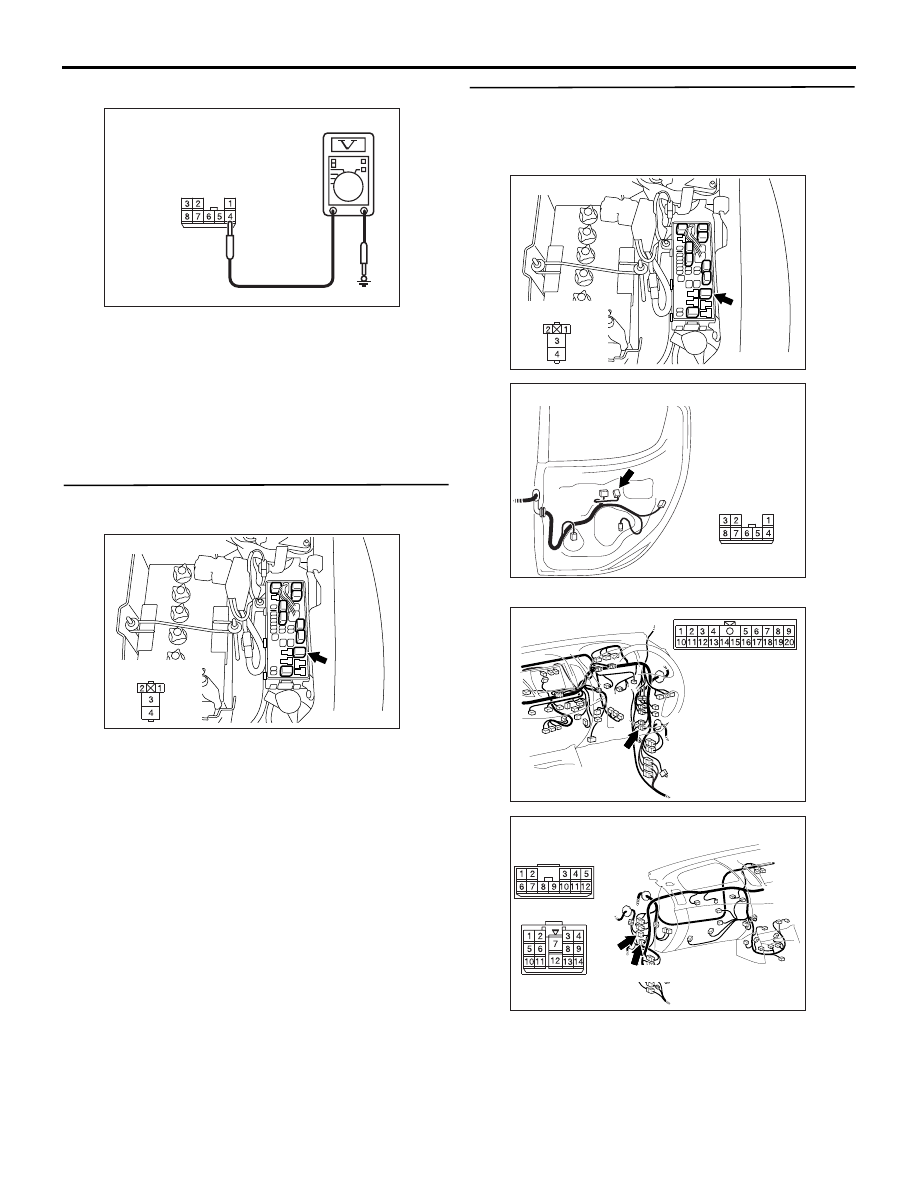

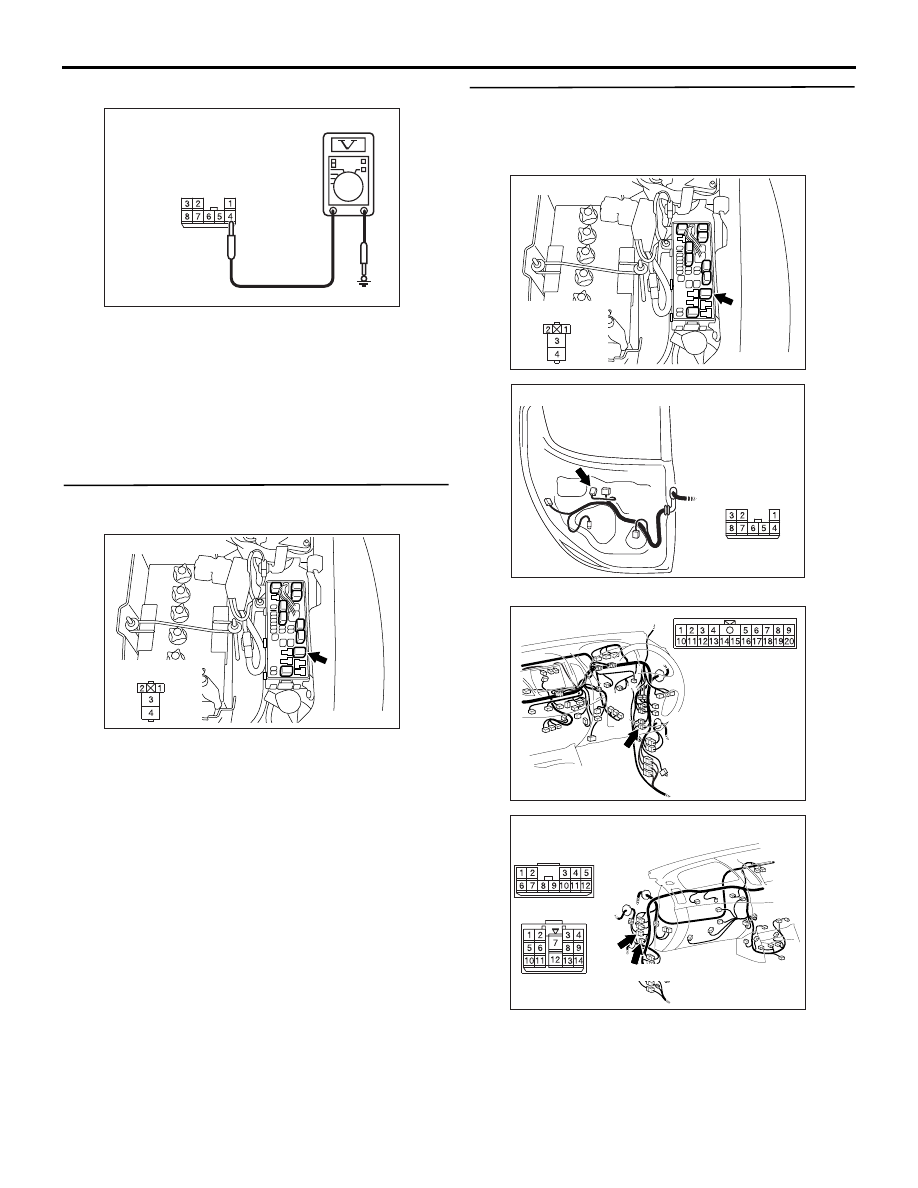

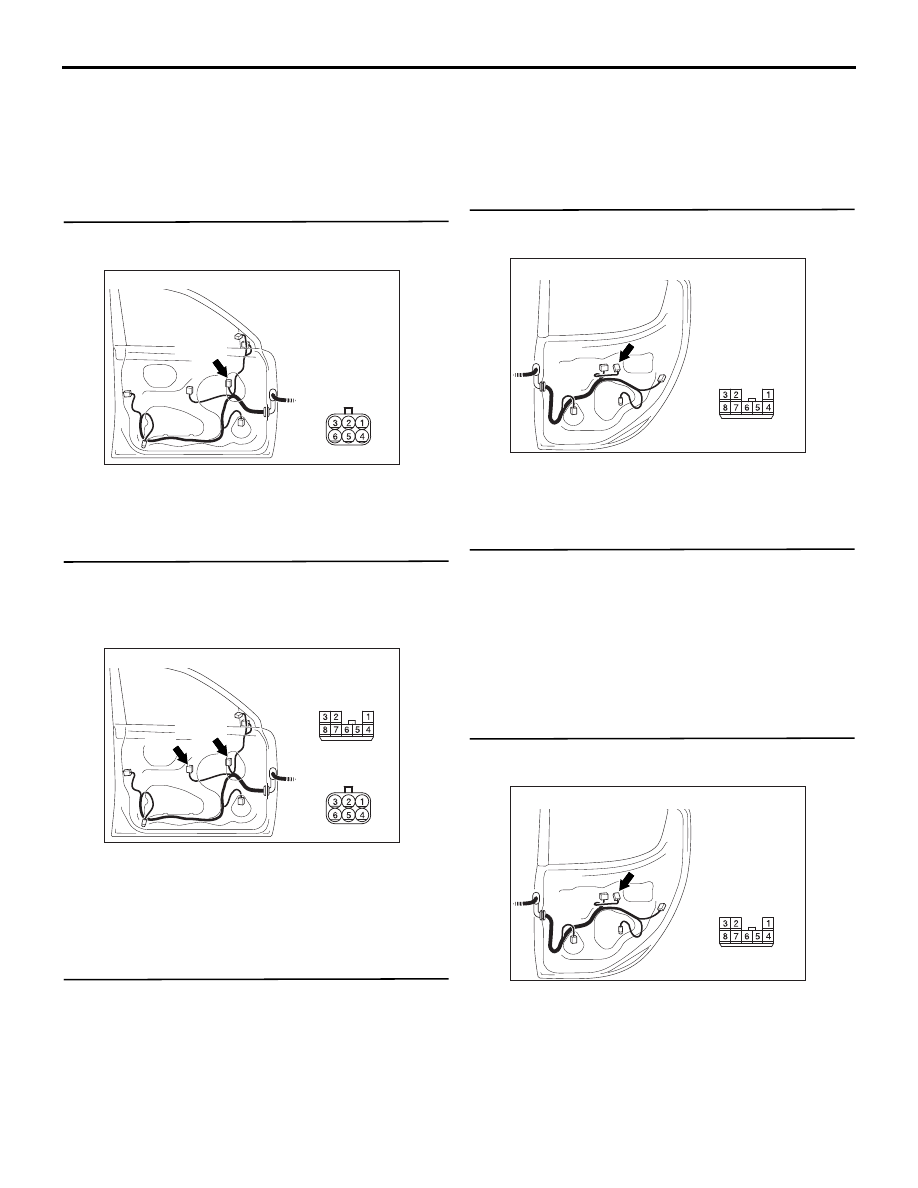

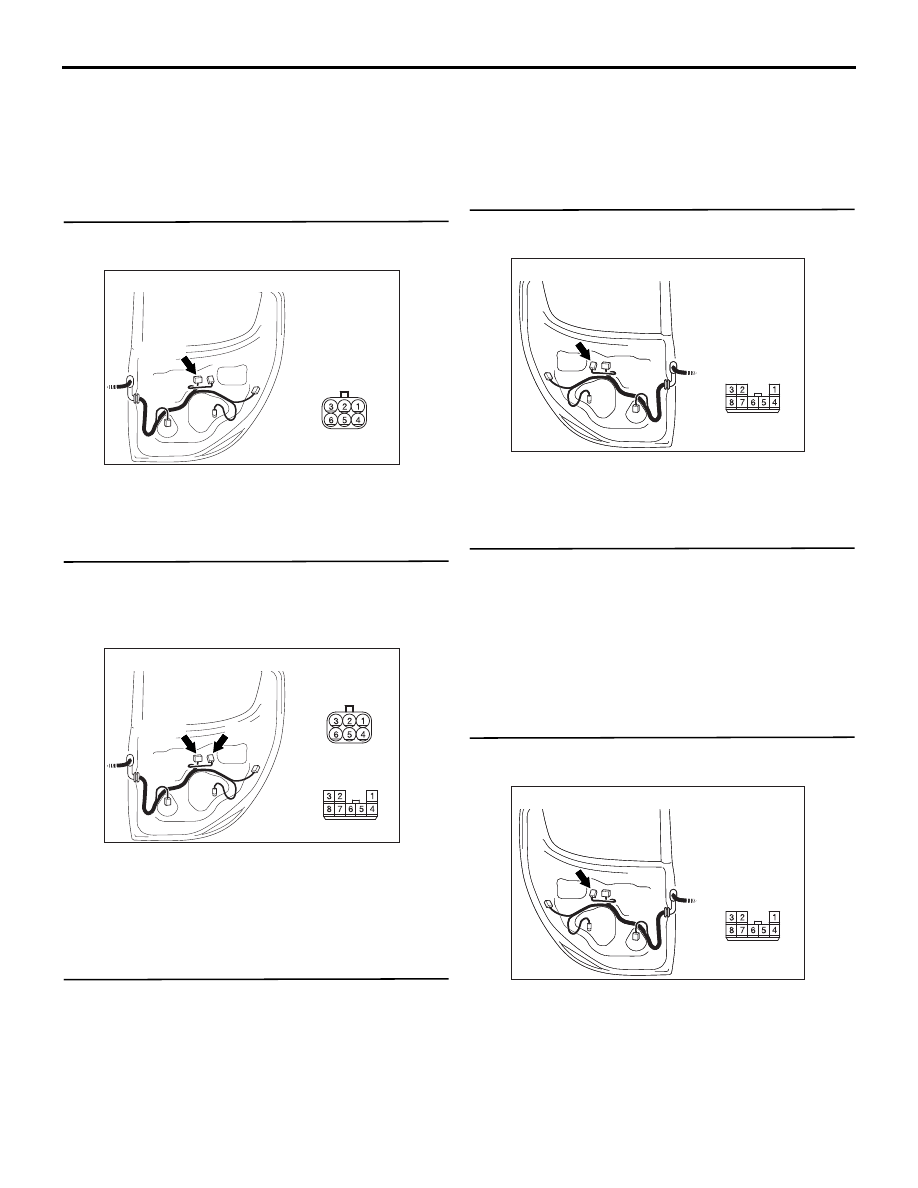

DOOR BODY 42-148 YES : The trouble can be an intermittent malfunction (Refer to GROUP 00, How to − How to Cope with Intermittent Malfunction ). NO : Repair the wiring harness. STEP 9. Connector check: E-18 power window AC509952 Connector: E-18 <RHD> AK Harness side E-18 (B) Q: Is the check result normal? YES : Go to Step 10. NO : Repair the connector. STEP 10. Check the wiring harness between E-18 AC509952 Connectors: E-16, E-18 <RHD> AH E-16 Harness side E-18 (B) E-18 (B) Harness side E-16 • Check the input and output lines for open and short circuit. Q: Is the check result normal? YES : Go to Step 11. NO : Repair the wiring harness. STEP 11. Retest the system. window can be operated by the power window sub switch (front: LH). Q: Is the check result normal? YES : The procedure is complete. NO : Replace the power window motor (front: STEP 12. Connector check: E-06 power window AC509958 Connector: E-06 AD Harness side Q: Is the check result normal? YES : Go to Step 13. NO : Repair the connector. STEP 13. Check the power window sub switch Q: Is the check result normal? YES : Go to Step 14. NO : Replace the power window sub switch (rear: STEP 14. Voltage measurement at the E-06 power AC509958 Connector: E-06 AD Harness side (1) Disconnect the connector, and measure at the wiring harness side. |
