Mitsubishi L200. Manual - part 523





DOOR

BODY

42-152

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

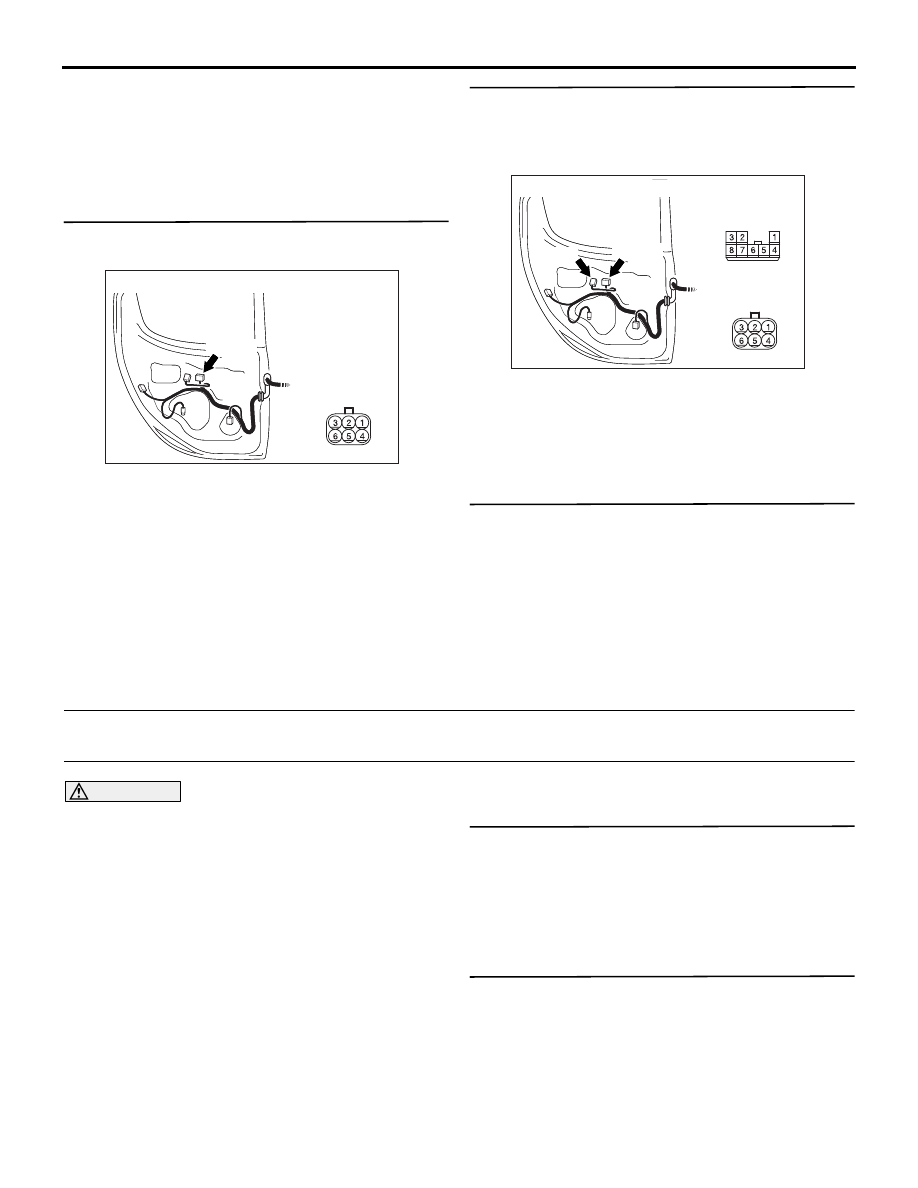

STEP 25. Connector check: E-14 power window
motor (rear: LH) connector

AC509956

Connector: E-14

AE

Harness side

E-14 (B)

Q: Is the check result normal?

YES :

Go to Step 26.

NO :

Repair the connector.

STEP 26. Check the wiring harness between E-14
power window motor (rear: LH) connector
terminal Nos. 1, 3 and E-13 power window sub
switch (rear: LH) connector terminal Nos. 7, 5.

AC509956

Connectors: E-13, E-14

AC

E-13

Harness side

E-14 (B)

E-14 (B)

Harness side

E-13

• Check the input and output lines for open and

short circuit.

Q: Is the check result normal?

YES :

Go to Step 27.

NO :

Repair the wiring harness.

STEP 27. Retest the system.
(1) Replace the power window sub switch (rear: LH).
(2) Check that the rear door power window can be

operated by the power window sub switch (rear:
LH).

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the power window motor (rear: LH).

Inspection Procedure B-6: Front Passenger's and /or Rear Power Window do not Work by means of
the Power Window Main Switch.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
If the passenger's and/or rear power window <Dou-
ble cab> does not work by means of the power win-
dow main switch, the power window main switch or
the respective power window sub switch(es) may be
defective.

PROBABLE CAUSES

• Malfunction of the power window main switch

• Malfunction of the power window sub switch

(front: RH), power window sub switch (rear: RH)
or power window sub switch (rear: LH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the power window main switch.
Check that the driver's power window works by
means of the power window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to

P.42-65

.

STEP 2. Check the power window sub switch.
Check that each power window works by means of
the respective power window sub switch when the
power window lock switch is turned off.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to

P.42-65

.

DOOR

BODY

42-153

STEP 3. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Refer to GROUP 54A, Inspection Procedure
A-1 "Check the battery power supply circuit
to the ETACS-ECU" .

STEP 4. M.U.T.-III diagnosis code.
When the ignition switch is turned to the "ON" posi-
tion, check that the ETACS-ECU does not set the
diagnosis code.

Q: Is the diagnosis code set?

YES :

GROUP 54B, Diagnosis Code Chart (Refer

to ).

NO :

Go to Step 5.

STEP 5. Retest the system.
Check that the front passenger’s and/or rear power
window operate with the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the power window main switch.

Inspection procedure B-7: Power Window Timer Function does not Work Normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
If the power window timer function does not work, the
input circuit from the ignition switch (IG1) or the
driver's door switch, the communication lines
between the ETACS-ECU and the power window
main switch, the power window main switch or the
ETACS-ECU may be defective.

PROBABLE CAUSES

• Malfunction of ETACS-ECU

• Malfunction of the power window main switch

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the power window main switch.
Check that all of the front passenger's and rear door
<Double cab> power windows can operate by means
of the power window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to

P.42-65

."

STEP 2. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to GROUP 54A, Inspection Procedure
A-1 "Check The Battery Power Supply
Circuit to The ETACS-ECU ."

STEP 3. M.U.T.-III data list
Check the input signals below, which are related to
the power window timer function.

• Ignition switch: OFF

Item
No.

Item name

Normal condition

19

Driver's door switch

ON

30

Ignition switch (IG1)

OFF

Drive’s door: Open

OK: Normal conditions are displayed for all
the items.

Q: Is the check result normal?

YES (All the signals are received normally.) :

Go to

Step 4.

NO (The driver's door switch signal is not
received.) :

Refer to GROUP 54A, Inspection

Procedure C-5 "One of the switch signals is
not received ."

NO (The ignition switch (IG1) signal is not
received.) :

Refer to GROUP 54A, Inspection

Procedure C-3 "The ignition switch (IG1)
signal is not received ."

DOOR

BODY

42-154

STEP 4. Retest the system.
Check that the power window timer function works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the power window main switch.

Inspection Procedure B-8: Power window anti-trap function does not work normally. <LH drive
vehicles>

AC806167

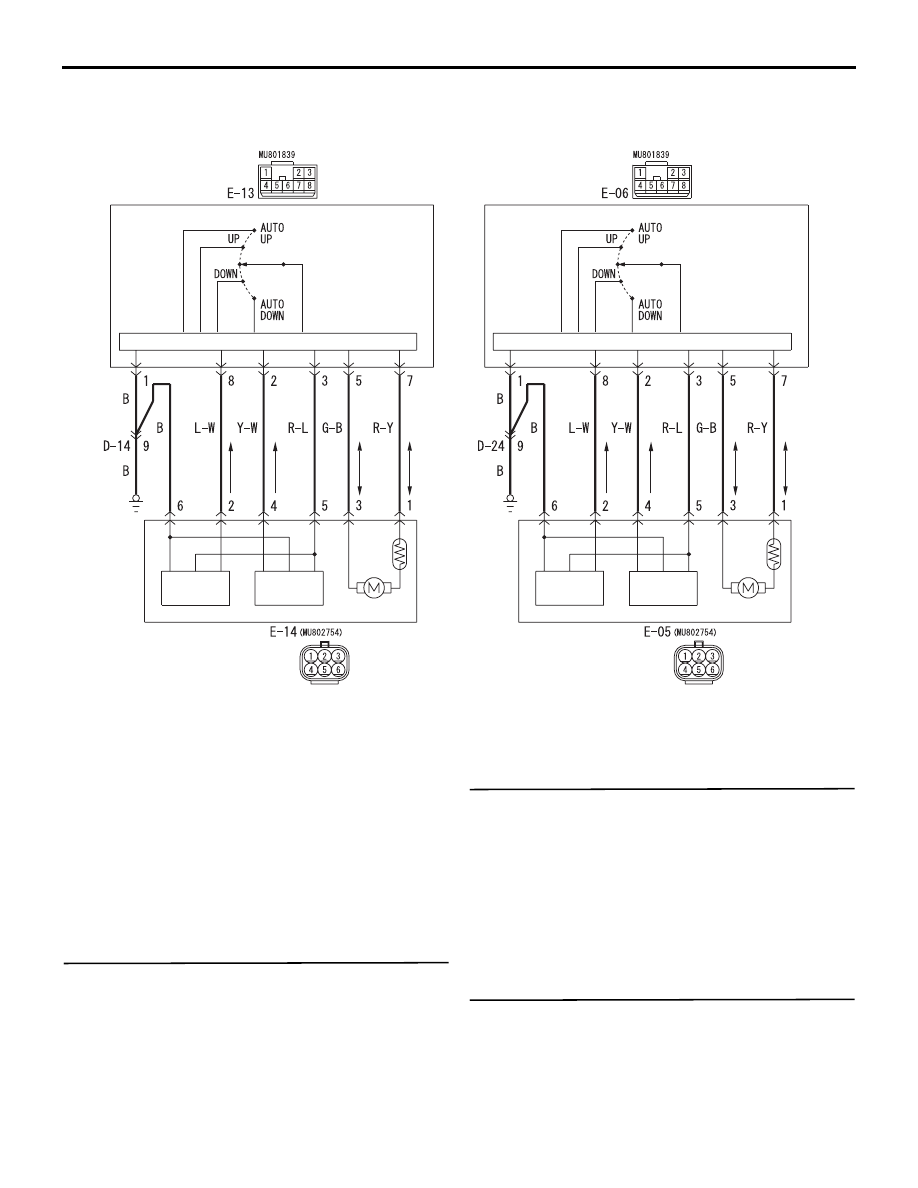

Power Window (front) Circuit <LH drive vehicles>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

HALL IC

HALL IC

HALL IC

HALL IC

CPU

CPU

FRONT
(LH)

POWER WINDOW
MAIN SWITCH

POWER WINDOW
MOTOR
(FRONT: LH)

POWER WINDOW
SUB SWITCH
(FRONT)

POWER WINDOW
MOTOR
(FRONT: RH)

AC

C-134

7

7

AC806168

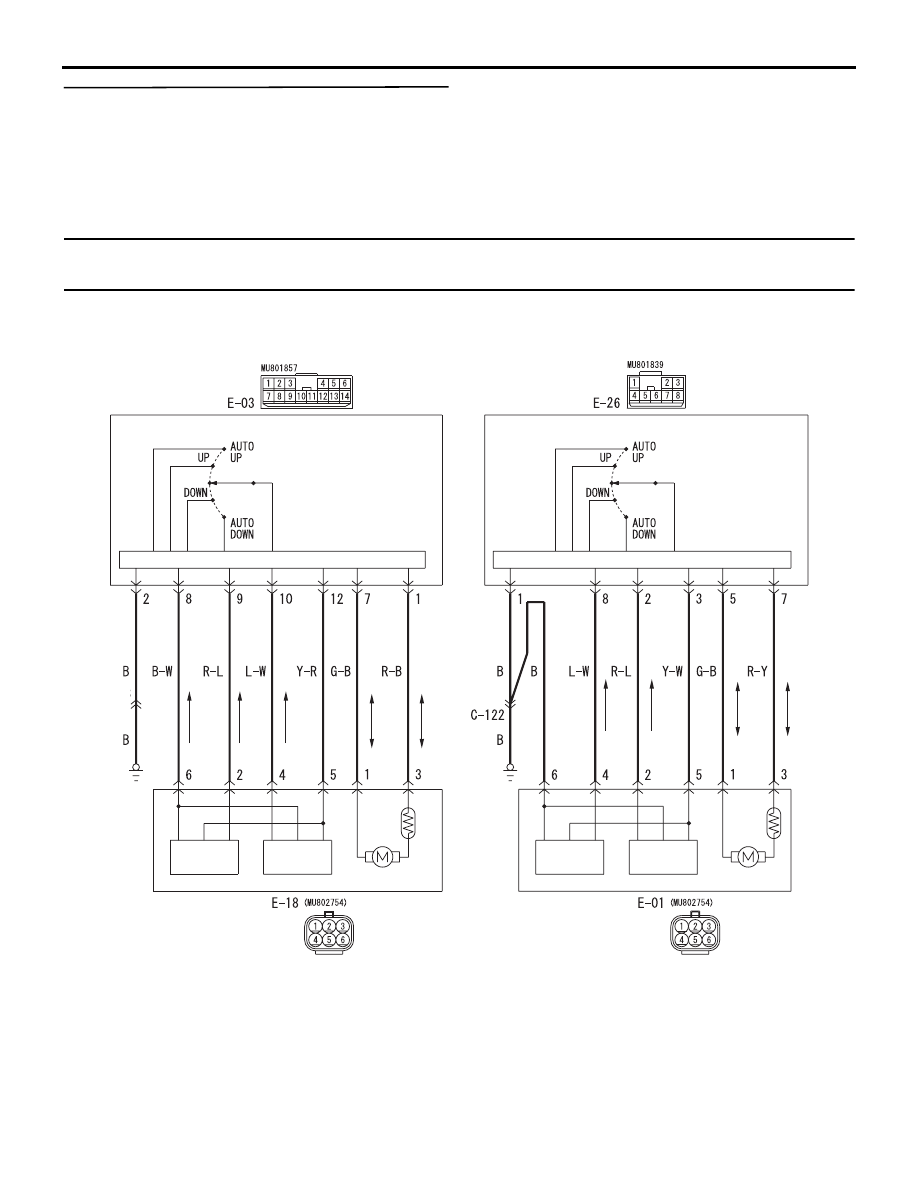

Power Window (rear) Circuit <Vehicles with rear power window>

CPU

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

POWER WINDOW
SUB SWITCH
(REAR: RH)

POWER WINDOW
MOTOR
(REAR: RH)

HALL IC

HALL IC

HALL IC

HALL IC

POWER WINDOW
SUB SWITCH
(REAR: LH)

POWER WINDOW
MOTOR
(REAR: LH)

AB

DOOR

BODY

42-155

COMMENTS ON TROUBLE SYMPTOM
The revolution detection sensor, which is incorpo-
rated in the power window motor, may be defective.

PROBABLE CAUSE

• Malfunction of the power window motor

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code.
When the ignition switch is turned to the "ON" posi-
tion, check that the ETACS-ECU does not set the
diagnosis code.

Q: Is the diagnosis code set?

YES :

Refer to

P.42-64

.

NO :

Go to Step 2.

STEP 2. Check the power window operating
current.
Check that the power window operating current is
normal (Refer t

P.42-171

).

Q: Is the check result normal?

YES :

Adjust the door window glass (Refer to

P.42-169

), and then go to Step 3.

NO :

Replace the defective power window motor
which operating current are abnormal.

STEP 3. Confirm the power window learning
function.
Check that the power window switch has learned the
fully closed position of the windows (Refer to

P.42-

172

).

Q: Is the check result normal?
