Removal steps

<<

A

>> >>

B

<< 1. Rear window glass

>>

A

<< 2. Window dam

>>

A

<< 3. Glass stopper

>>

A

<< 4. Fastener

WINDOW GLASS

BODY

42-24

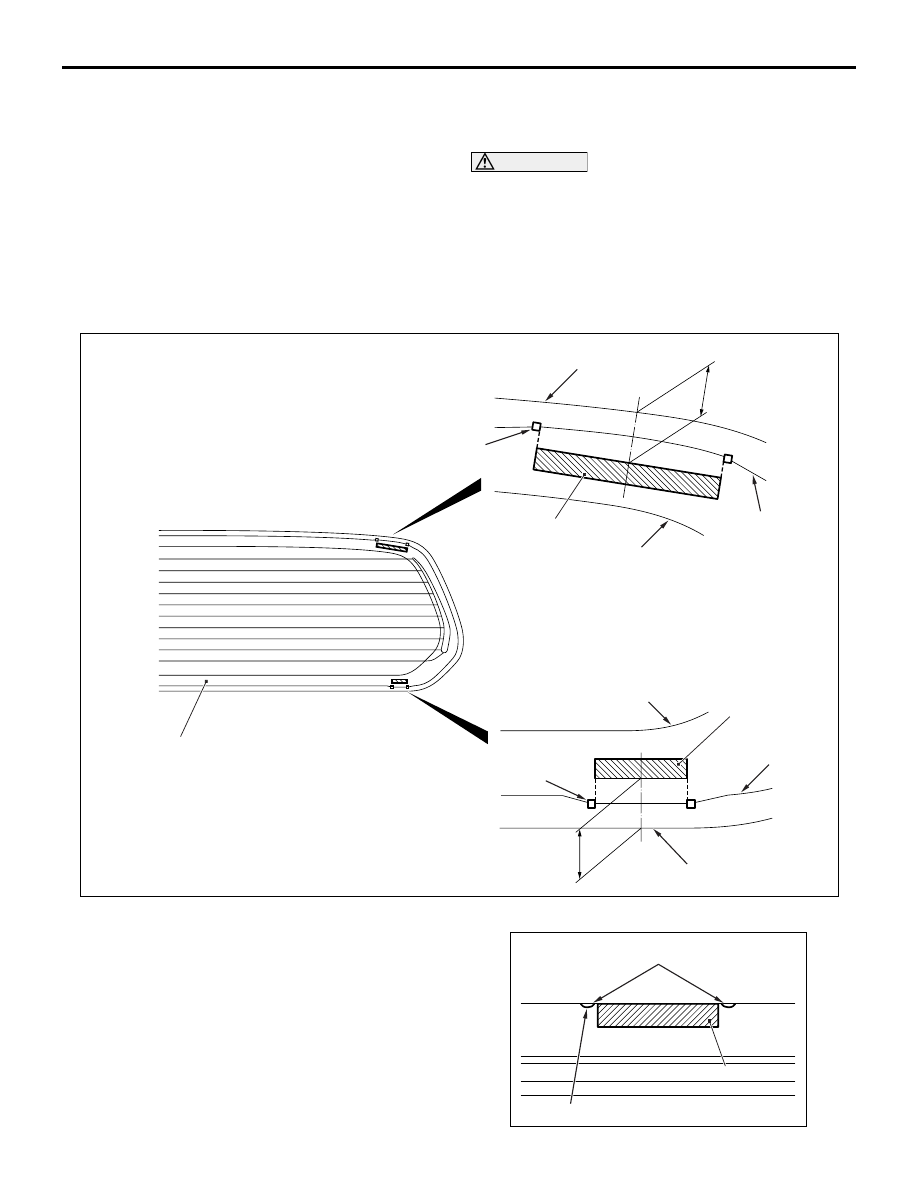

REMOVAL SERVICE POINT

<<A>> REAR WINDOW GLASS REMOVAL
Remove the rear window glass in the same proce-
dure as for the windshield glass removal (Refer to

P.42-17

).

INSTALLATION SERVICE POINTS

>>A<< FASTENER/GLASS STOPPER/WINDOW
DAM INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.
1. Use the parts cleaner (MZ100387 or equivalent)

to degrease the inside and outside edges of the
rear window glass and the surface of the body
flange.

AC502951

AC502508

AC502509

AC502510

AC

Fastener

Glass stopper

Seal line

Ceramic line

Ceramic line

Rear window
glass end line

Fastener and glass stopper installation positions

Align the glass stopper end line
with the rear window glass mark.

Align the fastener end line with
the rear window glass mark.

Seal line

Rear window glass

21.7 ± 0.5 mm

15.6 ± 1 mm

Rear window
glass end line

2. Install the fasteners and glass stoppers to the

specified positions of the rear window glass.

AC502511

AB

Fastener

Attach the fastener in
alignment with the notches

Notch on the body flange

REAR PANEL POWER WINDOW <Vehicles with rear panel power window>

BODY

42-25

3. Install the fasteners to the left and right lower

corner of the body flange.

4. Install the window dam.

>>B<< REAR WINDOW GLASS INSTALLATION
Install the rear window glass in the same way as for
the windshield glass installation (Refer to

P.42-17

).

REAR PANEL POWER WINDOW <Vehicles with rear panel

power window>

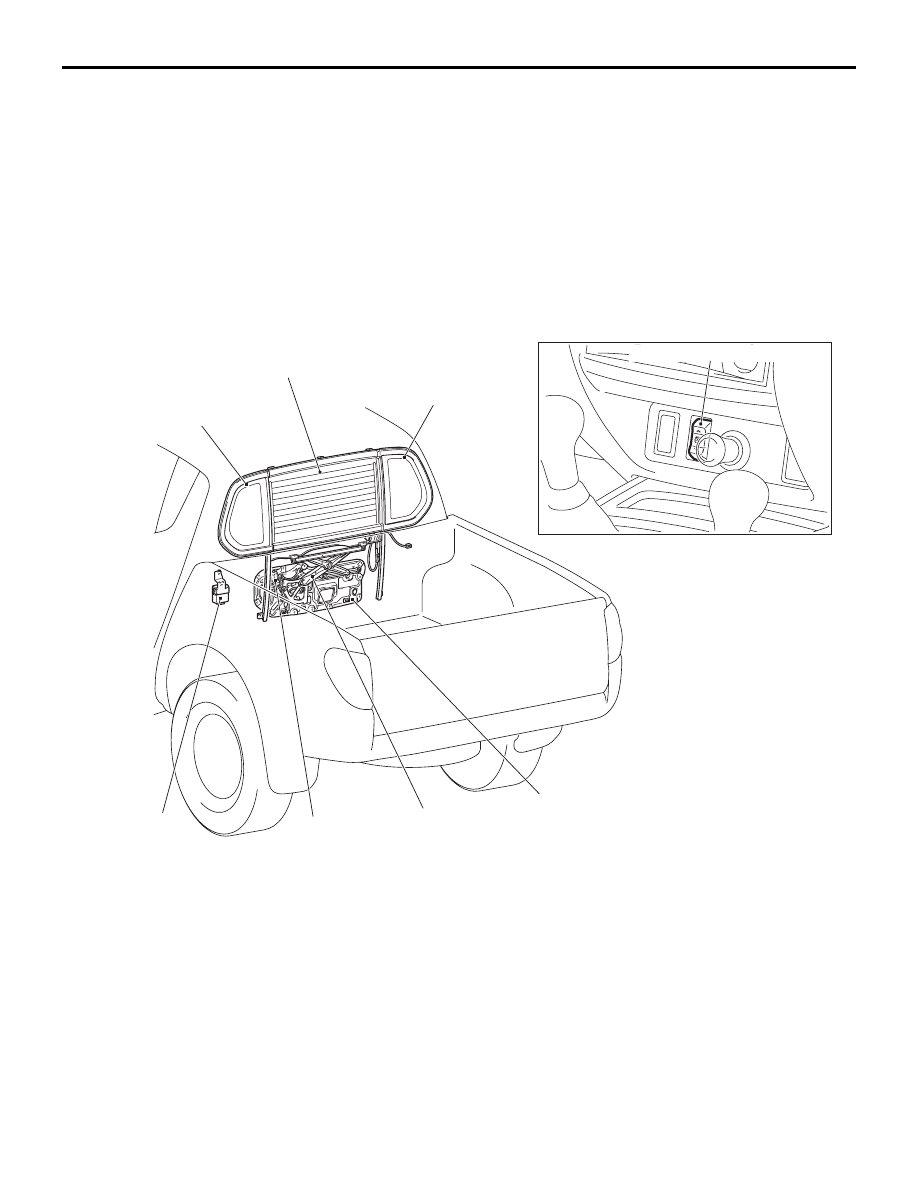

GENERAL INFORMATION

M1421000100701

REAR PANEL POWER WINDOW

AC901885AB

Rear panel power
window motor

Rear panel power
window regulator

Rear slide window glass

Rear side window glass

Rear side window glass

Rear window panel

Rear panel power
window ECU

Rear panel power window switch

A rear panel power window has been installed in the
double cab to improve open airy feeling and ventila-
tion performance <Vehicles with rear panel power
window>. The rear panel power window has the fol-
lowing features.

• The anti-trapping function is adopted.

• The power window timer function is adopted.

REAR PANEL POWER WINDOW <Vehicles with rear panel power window>

BODY

42-26

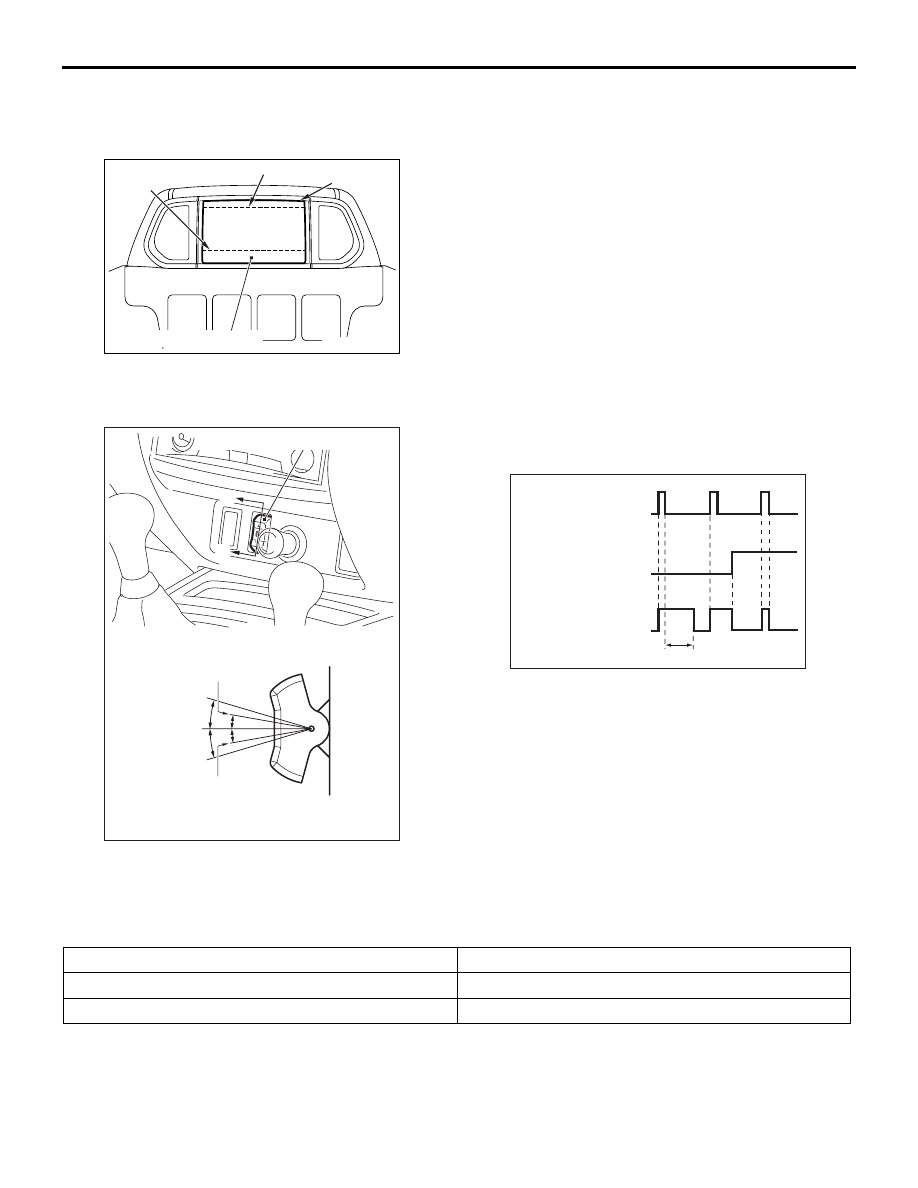

DESCRIPTION OF STRUCTURE AND
OPERATION

REAR PANEL POWER WINDOW FUNCTION

•

AC501245

AB

Rear slide window glass

Fully open
position

Fully close
position

Ventilation position

As for the rear panel power window, the rear slide

window glass moves in 3 levels by operating the
rear power window switch.

•

AC901886AB

Section A – A

Rear panel power window switch

Fully close

Off

Fully open

Ventilation
close

A

A

Ventilation
open

The rear panel power window switch employs the

push operation method to improve safety. To
open a rear slide window glass, press in the
switch knob lower side, and to close, press in the
upper side.

• The one-touch mechanism is adopted to the rear

panel power window switch to fully open or close
rear slide window glass in a single operation.

ANTI-TRAPPING FUNCTION
The rear panel power window with the safety mecha-
nism is adopted. If any obstacle such as a hand or a
head is detected to be trapped during a window
glass closing operation, the window glass is opened
by approximately 150 mm to improve safety.
NOTE: If anti-trapping function is activated consecu-
tively three times or more, the fully closed position
that power window switch has learned will be erased.
With this state, auto-up/down function becomes inef-
fective. To make the rear panel power window switch
learn the fully closed position, the initialisation is
required. Refer to

P.42-55

.

REAR PANEL POWER WINDOW TIMER
FUNCTION

AC501237

Ignition switch (IG1)

ON

(Open)ON

ON

t

OFF

t: 30 seconds

(Close)OFF

OFF

Driver's door
switch

Power window relay

AC

The rear panel power window can be opened or
closed by a timer function after the ignition switch is
turned to the OFF position (The timer delay is
extended for 30 seconds if the driver’s door is
opened while the timer is on. The timer operation,
however, is cancelled when the driver’s door is
closed before the timer ends).

SEALANTS

M1429000500059

Item

Specified sealant

Rear side window glass assembly

3M ATD Part No.3509 or equivalent

Waterproof film

3M ATD Part No.8625 or equivalent

REAR PANEL POWER WINDOW <Vehicles with rear panel power window>

BODY

42-27

SPECIAL TOOLS

M1429000600078

Tool

Number

Name

Use

MB990480

MB990480

Window glass holder

Removal of rear panel window
regulator
