FENDER

BODY

42-8

FENDER

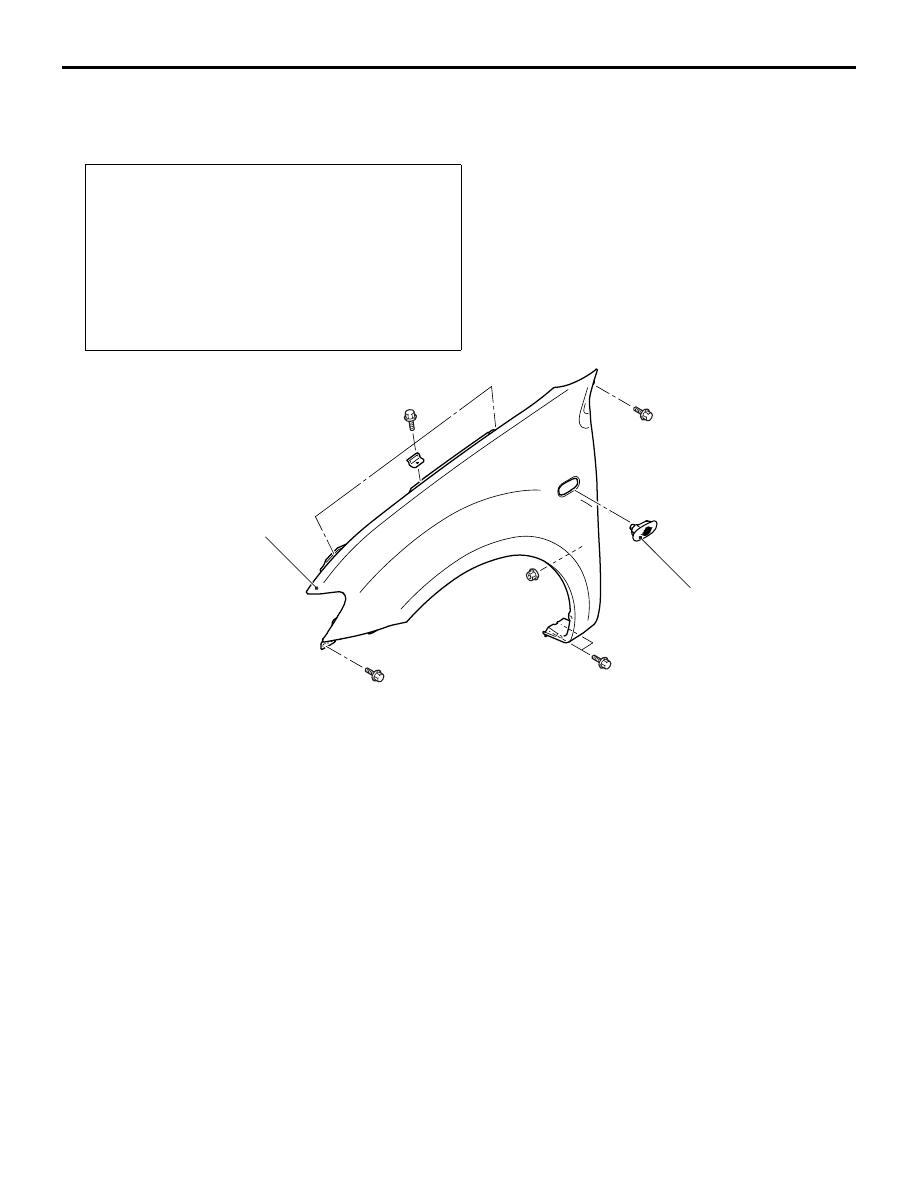

REMOVAL AND INSTALLATION

M1421001901543

Pre-removal and Post-installation Operation
• Front Splash Shield Removal and Installation (Refer to

P.42-13

).

• Front Deck Garnish Removal and Installation (Refer to

GROUP 51, Windshield Wiper ).

• Headlamp Assembly Removal and Installation (Refer to

GROUP 54A, Headlamp ).

• Front Overfender Removal and Installation <Vehicles with

wide fender> (Refer to GROUP 51, Overfender .)

• Front Bumper Support Bracket Removal and Installation

(Refer to GROUP 51, Front Bumper Assembly ).

AC501252

1

2

AB

Removal steps

<<

A

>> >>

A

<< 1. Side turn-signal lamp

2. Fender

FENDER

BODY

42-9

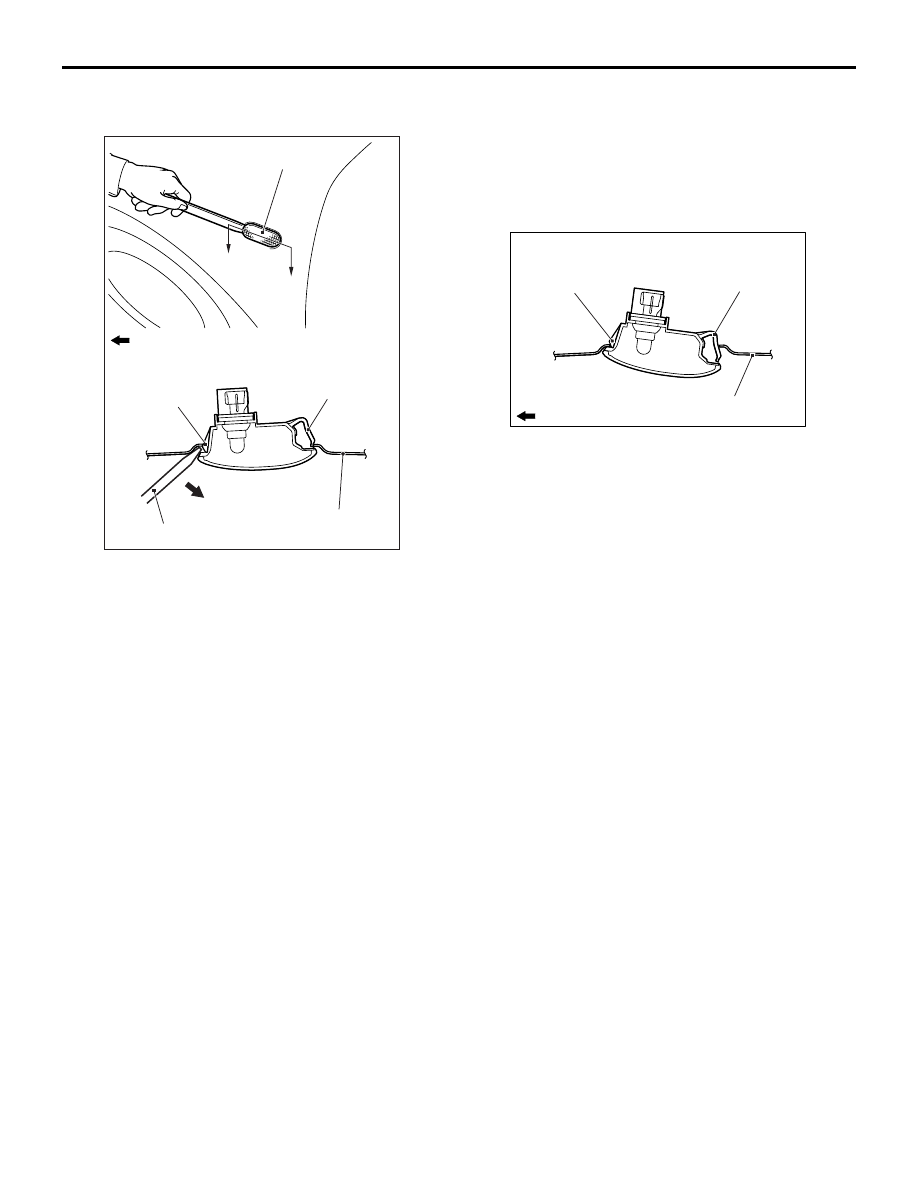

REMOVAL SERVICE POINT

<<A>> SIDE TURN-SIGNAL LAMP REMOVAL

AC500497

AC407202

AC502956

A

A

Claw

Fender

AB

: Front of vehicle

MB990784

Section A – A

Hook

Side turn-signal lamp

Insert the special tool ornament remover
(MB990784) as shown to compress the hook and
disengage the claw. Remove the side turn-signal
lamp.

INSTALLATION SERVICE POINT

>>A<< SIDE TURN-SIGNAL LAMP INSTALLATION

AC502957

AC407202

Hook

Fender

Claw

AB

: Front of vehicle

Engage the claw and the hook onto the fender to
install the side turn-signal lamp.

FUEL FILLER LID

BODY

42-10

FUEL FILLER LID

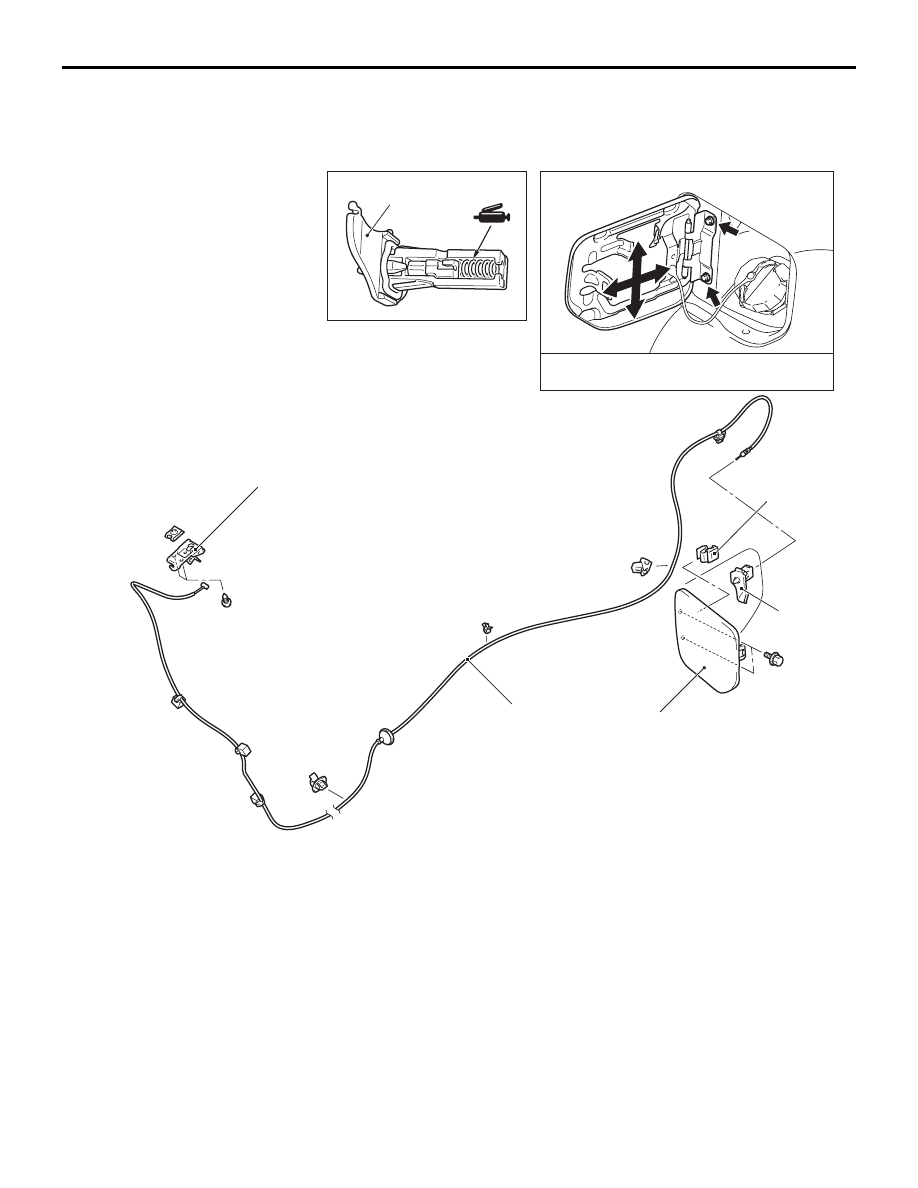

REMOVAL AND INSTALLATION <SINGLE CAB>

M1421002501098

AC509874

Fuel filler lid height and clearance adjustment

1

2

3

4

4

5

AB

Fuel filler lid removal steps

1.

Fuel filler lid assembly

2.

Fuel filler lid locking clip
Fuel filler lid lock release handle
removal

3.

Fuel filler lid lock release handle
Fuel filler lid lock release cable
removal steps

•

Rear splash shield (Refer to

P.42-

13

.)

4.

Fuel filler lid hook

•

Front scuff plate and rear pillar trim
(Refer to GROUP 52A, Interior Trim
.)

•

A/C cooling unit (Refer to GROUP
55A, Heater Unit and Cooling Unit
.)

5.

Fuel filler lid lock release cable

Fuel filler lid lock release cable
removal steps (Continued)

FUEL FILLER LID

BODY

42-11

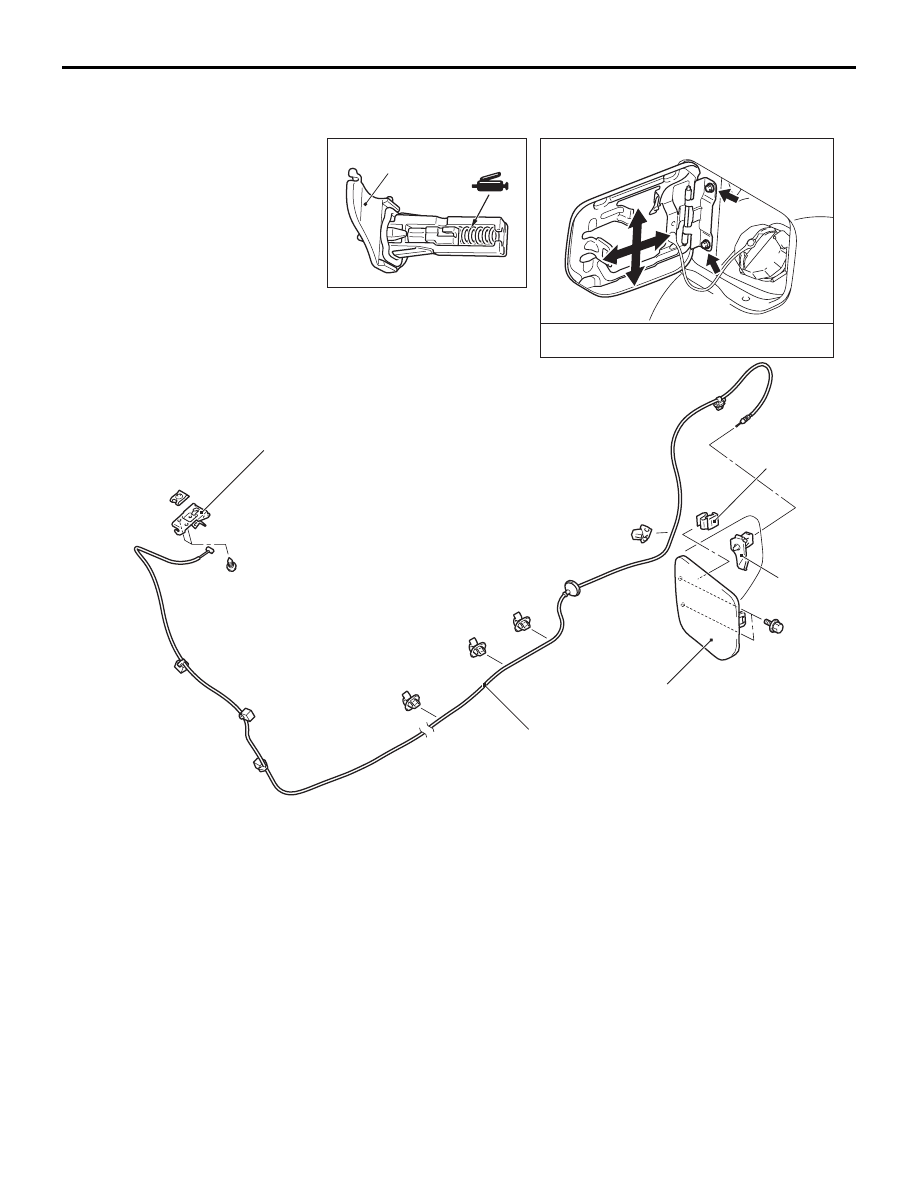

REMOVAL AND INSTALLATION <CLUB CAB>

M1421002501106

AC509875

Fuel filler lid height and clearance adjustment

1

2

3

4

4

5

AB

Fuel filler lid removal steps

1.

Fuel filler lid assembly

2.

Fuel filler lid locking clip
Fuel filler lid lock release handle
removal

3.

Fuel filler lid lock release handle
Fuel filler lid lock release cable
removal steps

•

Rear splash shield (Refer to

P.42-

13

.)

4.

Fuel filler lid hook

•

Front scuff plate and quarter trim
lower (Refer to GROUP 52A,
Interior Trim .)

•

A/C cooling unit (Refer to GROUP
55A, Heater Unit and Cooling Unit
.)

5.

Fuel filler lid lock release cable

Fuel filler lid lock release cable
removal steps (Continued)
