TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-25

Code No.C1200 is set

• Between terminal No.7 and body earth

Code No.C1205 is set

• Between terminal No.9 and body earth

Code No.C1210 is set

• Between terminal No.21 and body earth

Code No.C1215 is set

• Between terminal No.9 and body earth

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the wiring harness. Then go to Step
13.

STEP 12. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 15 km/h or more.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 15 km/h
or higher.

Q: Are diagnosis codes No.C1201, C1206, C1211 or

C1216 set?
YES :

Replace the hydraulic unit (integrated with

ABS-ECU) (Refer to

P.35B-60

.). Then go to

Step 13.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Cope with Intermittent

Malfunctions .).

STEP 13. Check whether the diagnosis code is
reset.
(1) Erase the diagnosis code.
(2) Drive the vehicle at 15 km/h or more.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 15 km/h
or higher.

Q: Are diagnosis codes No.C1201, C1206, C1211 or

C1216 set?
YES :

Return to Step 1.

NO :

This diagnosis is complete.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-26

Code No.C1202: Wheel speed sensor (FR) (malfunction power circuit)



Code No.C1207: Wheel speed sensor (FL) (malfunction power circuit)



Code No.C1212: Wheel speed sensor (RR) (malfunction power circuit)



Code No.C1217: Wheel speed sensor (RL) (malfunction power circuit)

<2WD (Except High rider)>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

(LH)

(RH)

ABS-ECU

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

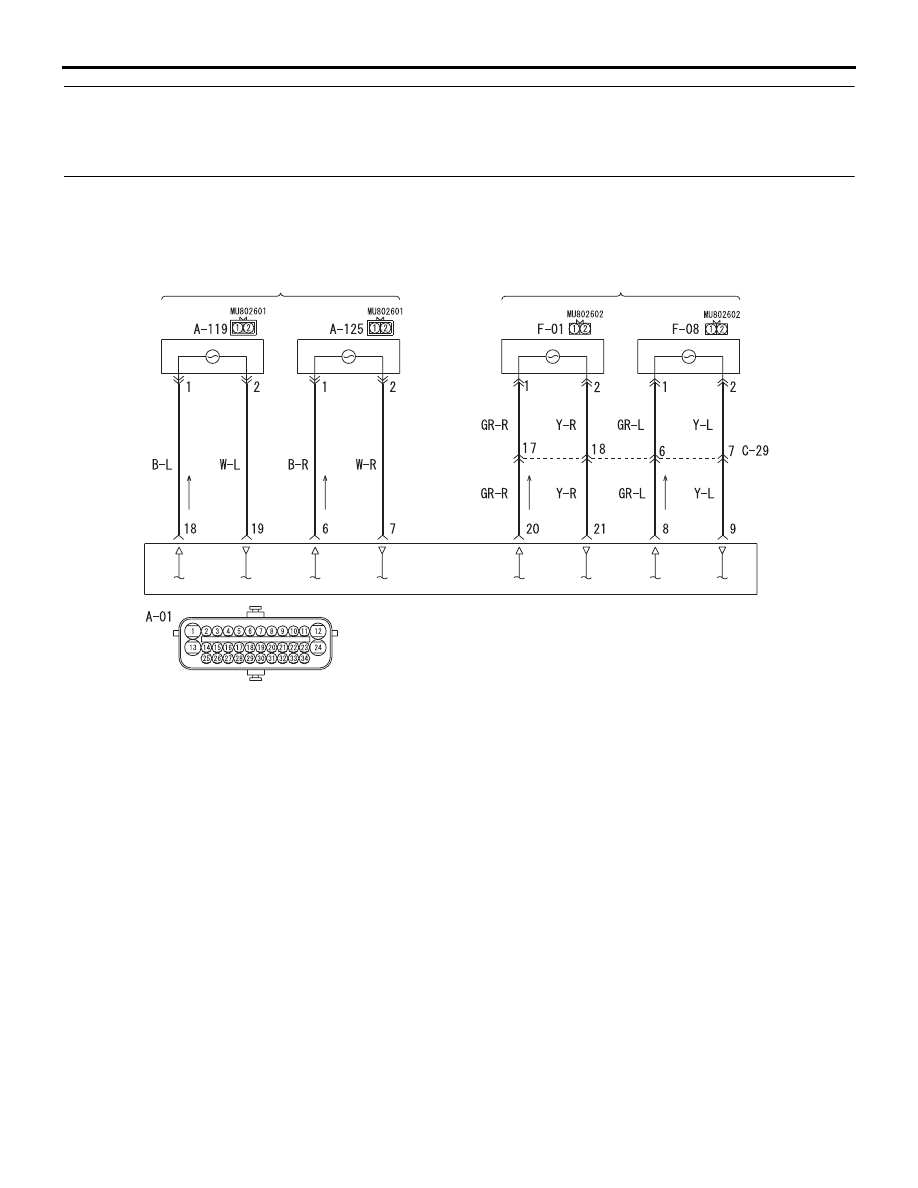

Wheel Speed Sensor Circuit

(LH)

(RH)

ACB00766

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-27

<2WD (High rider), 4WD>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

(LH)

(RH)

ABS-ECU

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

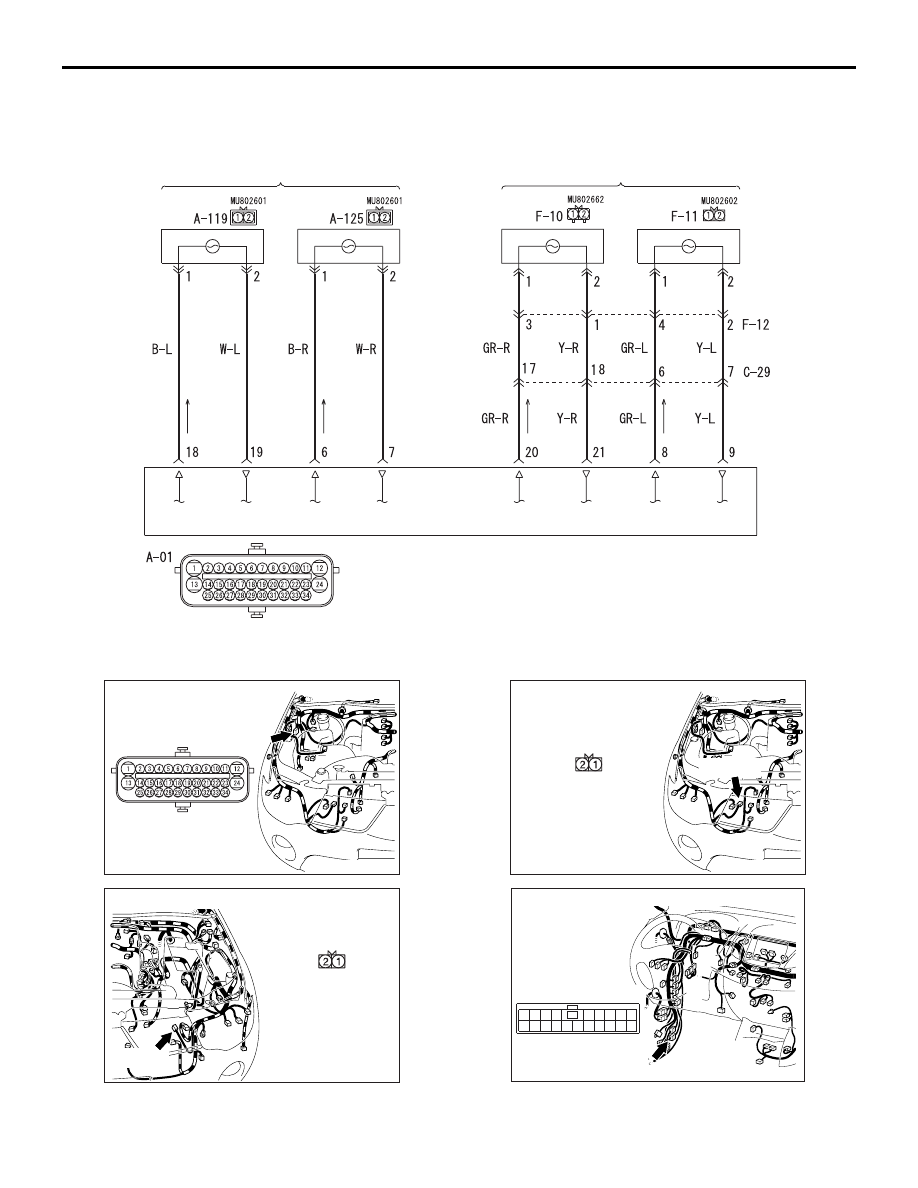

Wheel Speed Sensor Circuit

(LH)

(RH)

ACB00767

AC501971

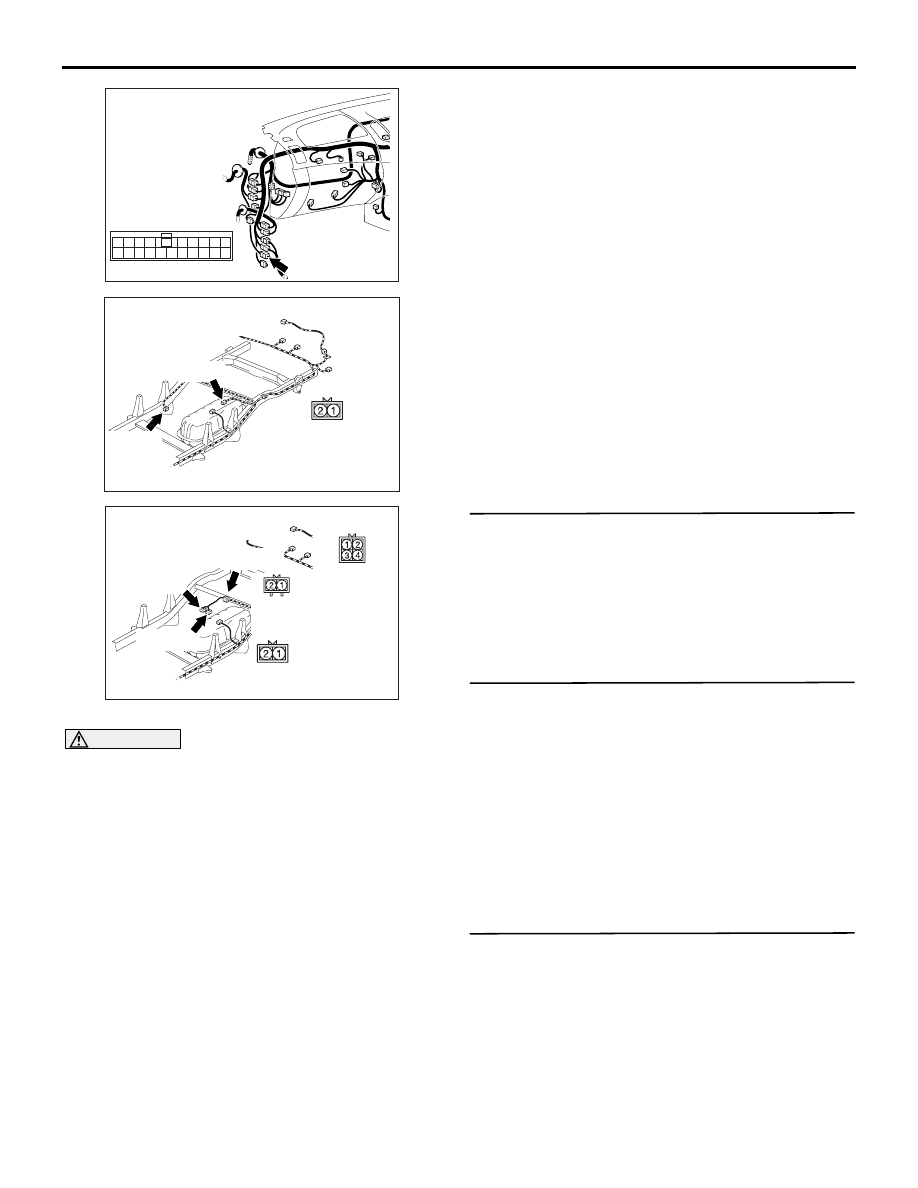

Connector: A-01

AU

(B)

AC502545AS

Connector: A-119

A-119 (B)

A-119 Harness
connector
(harness side)

AC501971AL

Connector: A-125

A-125 (B)

A-125 Harness
connector
(harness side)

AC600687CB

Connectors: C-29 <LHD>

16

10

13

4

1112

1 2 3

15

14

5

20

18

17

19

7

6

8 9

AC600635BE

Connector: C-29 <RHD>

16

10

13

4

1112

1 2 3

15

14

5

20

18

17

19

7

6

8 9

AC503114 AK

Connectors: F-01, F-08
<2WD (Except High rider)>

F-01 (B)

F-01, F-08
Harness connector
(harness side)

F-08 (B)

AC504324 AR

Connectors: F-10, F-11, F-12
<2WD (High rider), 4WD>

F-10 (GR)

F-11 (B)

F-11 Harness connector
(harness side)

F-10 Harness connector
(harness side)

F-12 (B)

F-12

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-28

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus lines
(Refer to GROUP 54C

− CAN Bus Diagnostics

Table .).

• Before replacing the ECU, ensure that the

communication circuit is normal.

OPERATION

• A toothed ABS rotor generates a pulse signal as

it moves across the pickup field of each wheel
speed sensor.

• The wheel speed sensors transmit the frequency

of the pulses to the ABS-ECU.

• The hydraulic unit assembly (integrated with

ABS-ECU) modulates the amount of braking
force individually applied to each wheel cylinder.

DIAGNOSIS CODE SET CONDITION
Diagnosis codes No.C1202, C1207, C1212 or C1217
is set when the supply voltage to each wheel speed
sensor has decreased.

PROBABLE CAUSES

Current trouble

• Damaged wiring harness and connectors

• Noise interference

• Wheel speed sensor malfunction

• ABS-ECU malfunction

Past trouble

• Carry out diagnosis with particular emphasis on

wiring harness and connector failures between
ABS-ECU and the wheel speed sensor. For diag-
nosis procedures, refer to How to treat past trou-
ble (GROUP 00

− How to Cope with Intermittent

Malfunctions .).

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnosis
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus lines (Refer to GROUP
54C

− CAN Bus Diagnostics Table .). On

completion, go to Step 2.

STEP 2. Diagnosis code recheck after resetting
CAN bus lines
(1) Erase the diagnosis code.
(2) Drive the vehicle at 15 km/h or more.

NOTE: The ABS warning lamp does not turn OFF
in some cases unless the vehicle runs at 15 km/h
or higher.

Q: Are diagnosis codes No.C1202, C1207, C1212 or

C1217 set?
YES :

Go to Step 3.

NO :

This diagnosis is complete.

STEP 3. M.U.T.-III data list
Check the following data list (Refer to

P.35B-54

.).

• Item No.01: FL wheel speed sensor

• Item No.02: FR wheel speed sensor

• Item No.03: RL wheel speed sensor

• Item No.04: RR wheel speed sensor

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Go to Step 4.
