FRONT ENGINE MOUNTING

POWER PLANT MOUNT

32-3

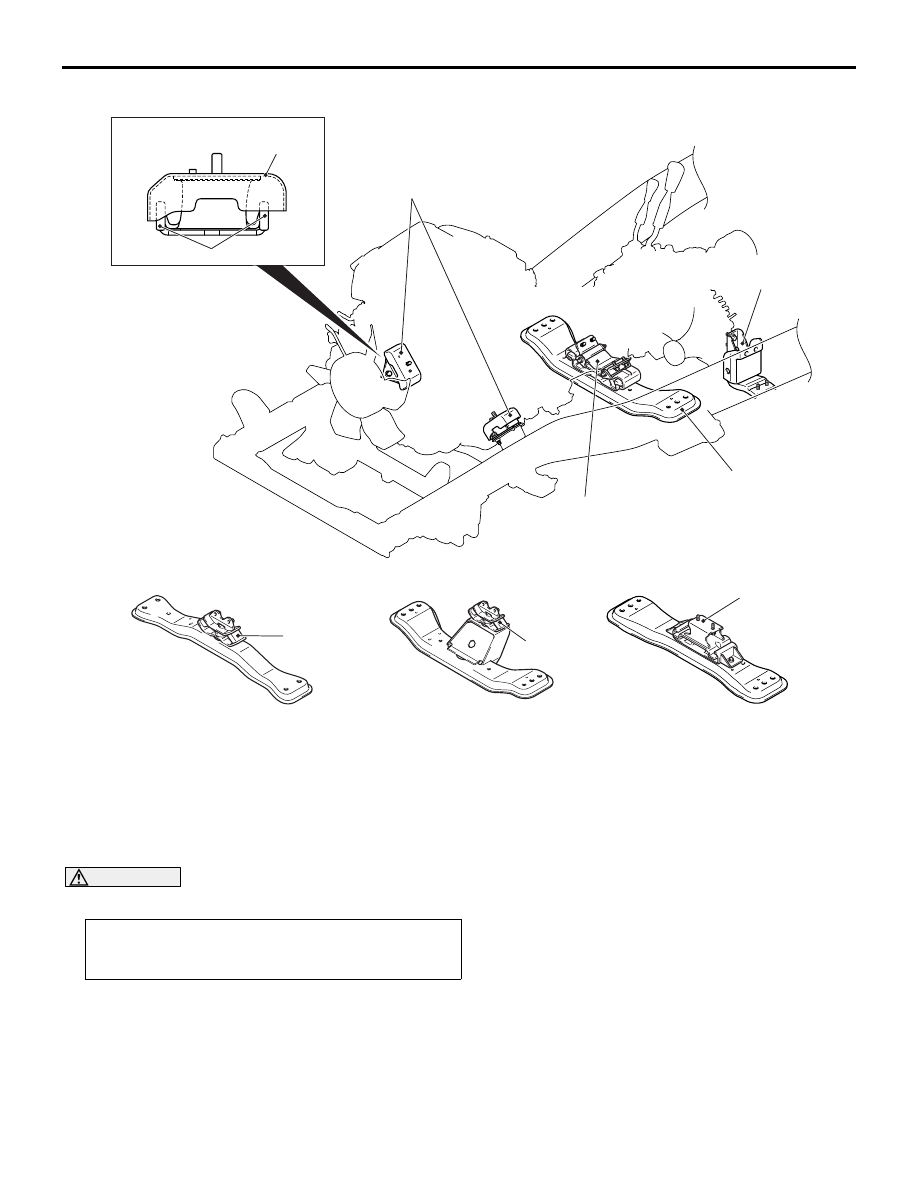

CONSTRUCTION DIAGRAM

AC903785

No.2 crossmember

Front engine support insulator

AB

<4WD-A/T>

<2WD-Except high rider>

Rear engine
support insulator

Stopper cover

Stopper

Front engine support insulator

<4WD-M/T>

Rear engine
support insulator

<2WD-High rider>

Transfer roll
stopper <4WD-M/T>

Rear engine
support insulator

Rear engine
support insulator

FRONT ENGINE MOUNTING

REMOVAL AND INSTALLATION

M1321006600020

CAUTION

Do not distort rubber portions, and never stain rubber portions with fuel oil.

Pre-removal and Post-installation Operation
• Engine Assembly Removal and Installation (Refer to

GROUP 11A

− Engine Assembly ).

AC505370

26 ± 5 N·m

1

26 ± 5 N·m

1

2

48 ± 7 N·m

48 ± 7 N·m

2

3

3

AC

Removal steps

1.

Engine mounting nut

2.

Engine mounting bolt

>>

A

<<

3.

Front engine support insulator

FRONT ENGINE MOUNTING

POWER PLANT MOUNT

32-4

INSTALLATION SERVICE POINT

>>A<< FRONT ENGINE SUPPORT INSULATOR
INSTALLATION

CAUTION

Do not distort rubber portions, and never stain
rubber portions with fuel or oil.

INSPECTION

M1321006700016

Check the front engine support insulator for cracks,
separation or deformation.

REAR ENGINE MOUNTING

POWER PLANT MOUNT

32-5

REAR ENGINE MOUNTING

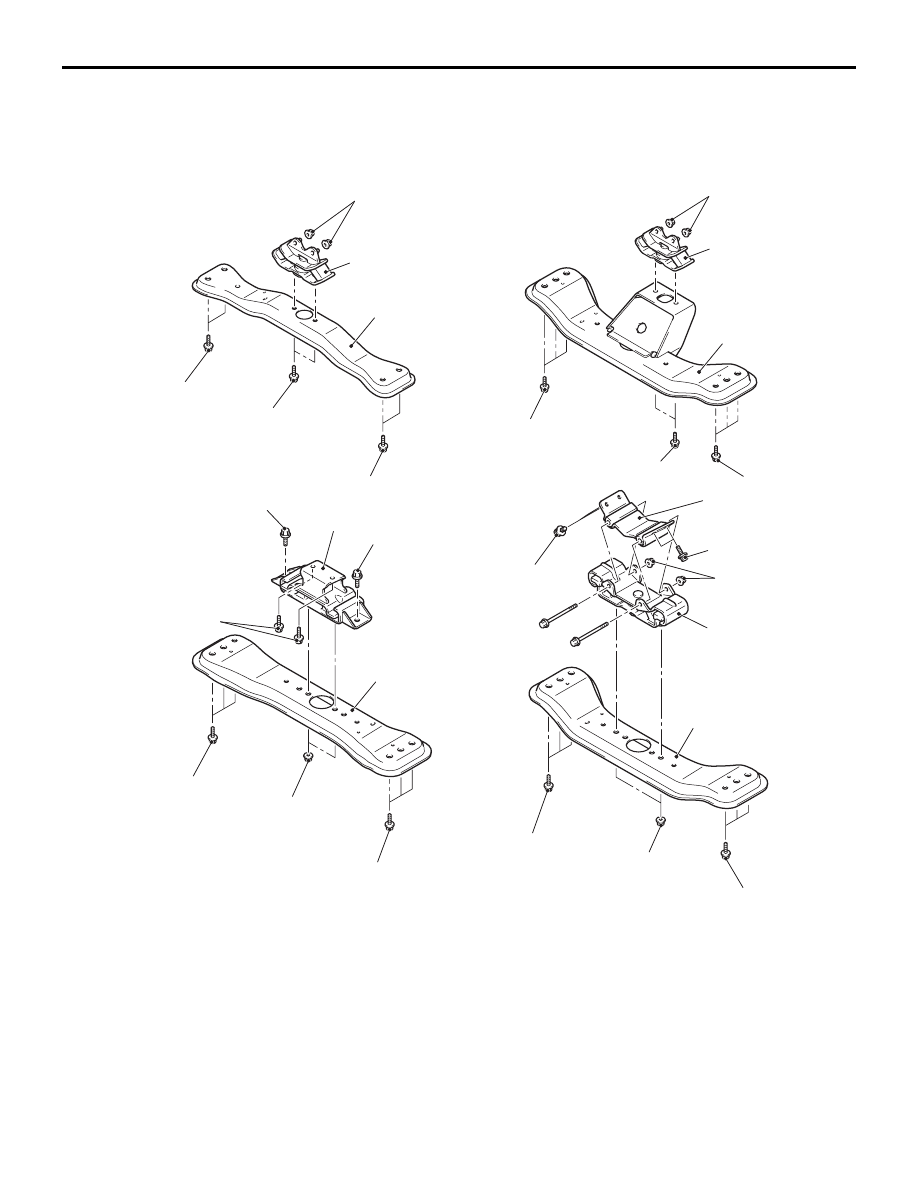

REMOVAL AND INSTALLATION

M1321005600232

AC903789

<4WD-M/T>

<4WD-A/T>

1

2

2

3

83 ± 12 N·m

83 ± 12 N·m

46 ± 8 N·m

46 ± 8 N·m

46 ± 8 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

<2WD-High rider>

2

42 ± 3 N·m

1

23 ± 2 N·m

83 ± 12 N·m

83 ± 12 N·m

1

83 ± 12 N·m

83 ± 12 N·m

46 ± 8 N·m

<2WD-Except high rider>

2

42 ± 3 N·m

1

23 ± 2 N·m

83 ± 12 N·m

83 ± 12 N·m

AB

Removal steps

<<

A

>>

•

Support the manual transmission
assembly or automatic
transmission assembly.

1.

No.2 crossmember

2.

Rear engine support insulator

3.

Transmission bracket <4WD-M/
T>

Removal steps (Continued)

TRANSFER MOUNTING <4WD-M/T>

POWER PLANT MOUNT

32-6

REMOVAL SERVICE POINT

<<A>> SUPPORT THE MANUAL TRANSMISSION
ASSEMBLY OR AUTOMATIC TRANSMISSION
ASSEMBLY

AC503630

AB

Transmission jack

M/T assembly or
A/T assembly

Use a transmission jack to support the manual trans-
mission assembly or automatic transmission assem-
bly.

INSPECTION

M1321005700079

Check the rear engine support insulator for cracks,
separation or deformation.

TRANSFER MOUNTING <4WD-M/T>

REMOVAL AND INSTALLATION

M1321005300208

AC806115

1

25 ± 5 N·m

2

3

25 ± 5 N·m

25 ± 5 N·m

45 ± 9 N·m

25 ± 5 N·m

AB

Removal steps

>>A<<

1.

Transfer roll stopper

2.

Transfer mount bracket

3.

Transfer mount bracket assembly

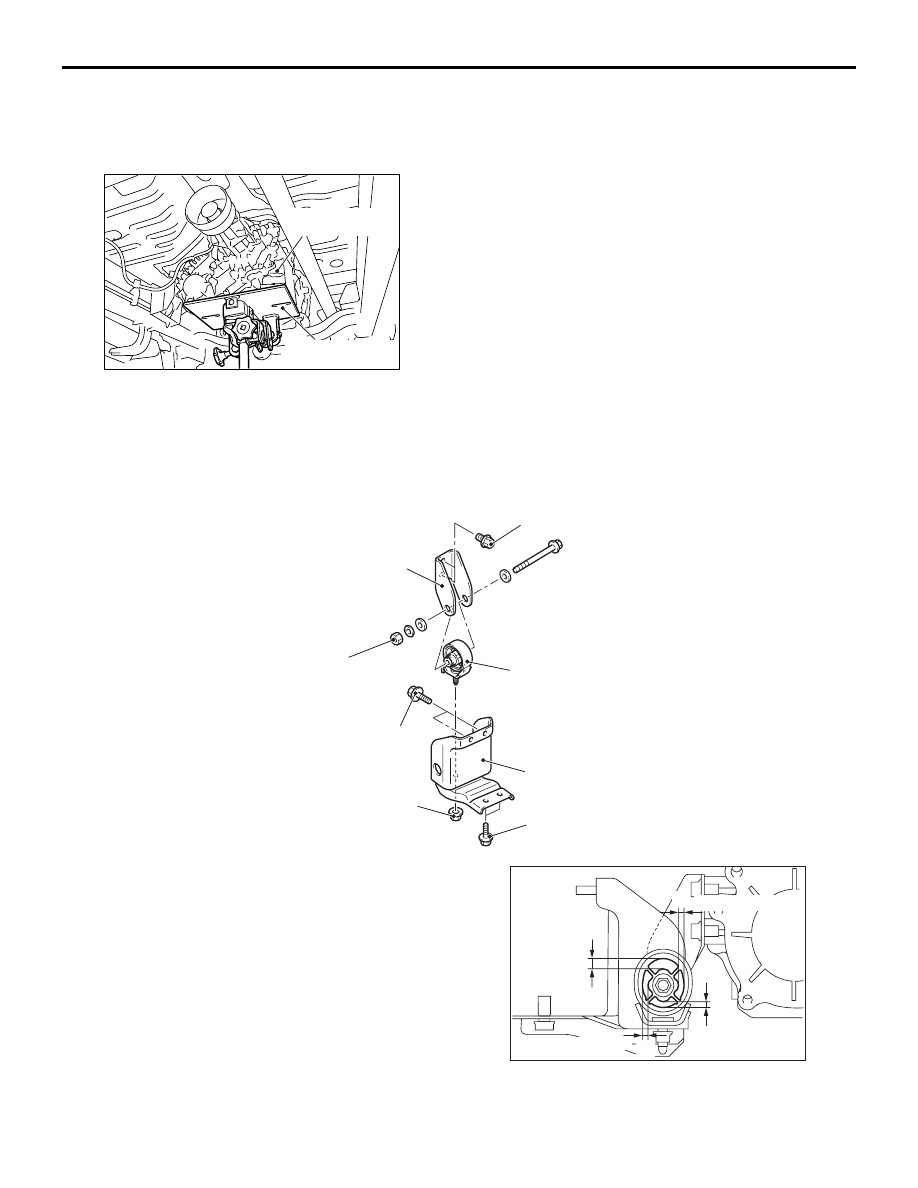

INSTALLATION SERVICE POINT

>>A<< TRANSFER ROLL STOPPER INSTALLA-
TION
1. Tighten the transfer roll stopper provisionally.

AC503956AB

(A)

Approx.
10 mm

(B)

(B)

(B)

Approx. 6 mm

Approx. 6 mm

Approx. 6 mm

2. Tighten the transfer roll stopper inner and outer so

that the clearance (A) between them is as shown
in the illustration.
