Mitsubishi L200. Manual - part 399





ON-VEHICLE SERVICE

WHEEL AND TYRE

31-6

ON-VEHICLE SERVICE

TYRE INFLATION PRESSURE CHECK

M1311000900516

NOTE: For information on tyre inflation pressure,
refer to the label attached to the centre pillar on the
driver's side.

TYRE WEAR CHECK

M1311001000594

Measure the tread depth of the tyres.

Minimum limit: 1.6 mm

If the remaining tread depth is less than the minimum
limit, replace the tyre.
NOTE: When the tread depth of the tyres is reduced
to 1.6 mm  or less, wear indicators will appear.

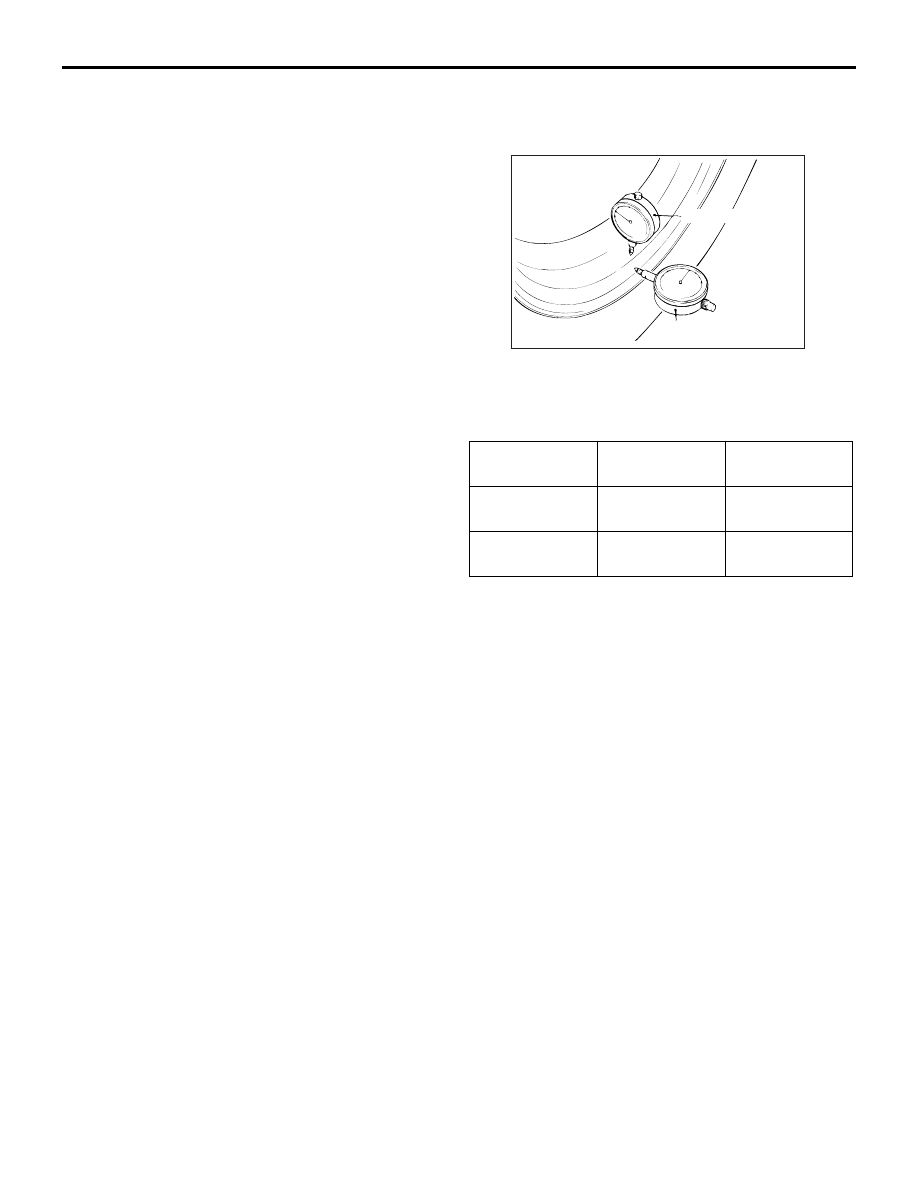

WHEEL RUNOUT CHECK

M1311001100609

ACX00651AB

Lateral

Radial

Jack up the vehicle so that the wheels are clear of
the floor. While slowly turning the wheel, measure
wheel runout with a dial indicator.
Limit:

Item

Steel wheel

Aluminium
wheel

Radial runout
mm

1.2 or less

1.0 or less

Lateral runout
mm

1.2 or less

1.0 or less

If wheel runout exceeds the limit, replace the wheel.

WHEEL AND TYRE

INSTALLATION SERVICE POINT

M1311001300476

Tighten the wheel nuts to the specified torque.

Tightening torque:

147

± 10 Nm <Steel wheel>

128

± 9 Nm <Aluminium wheel>

SPARE TYRE CARRIER

WHEEL AND TYRE

31-7

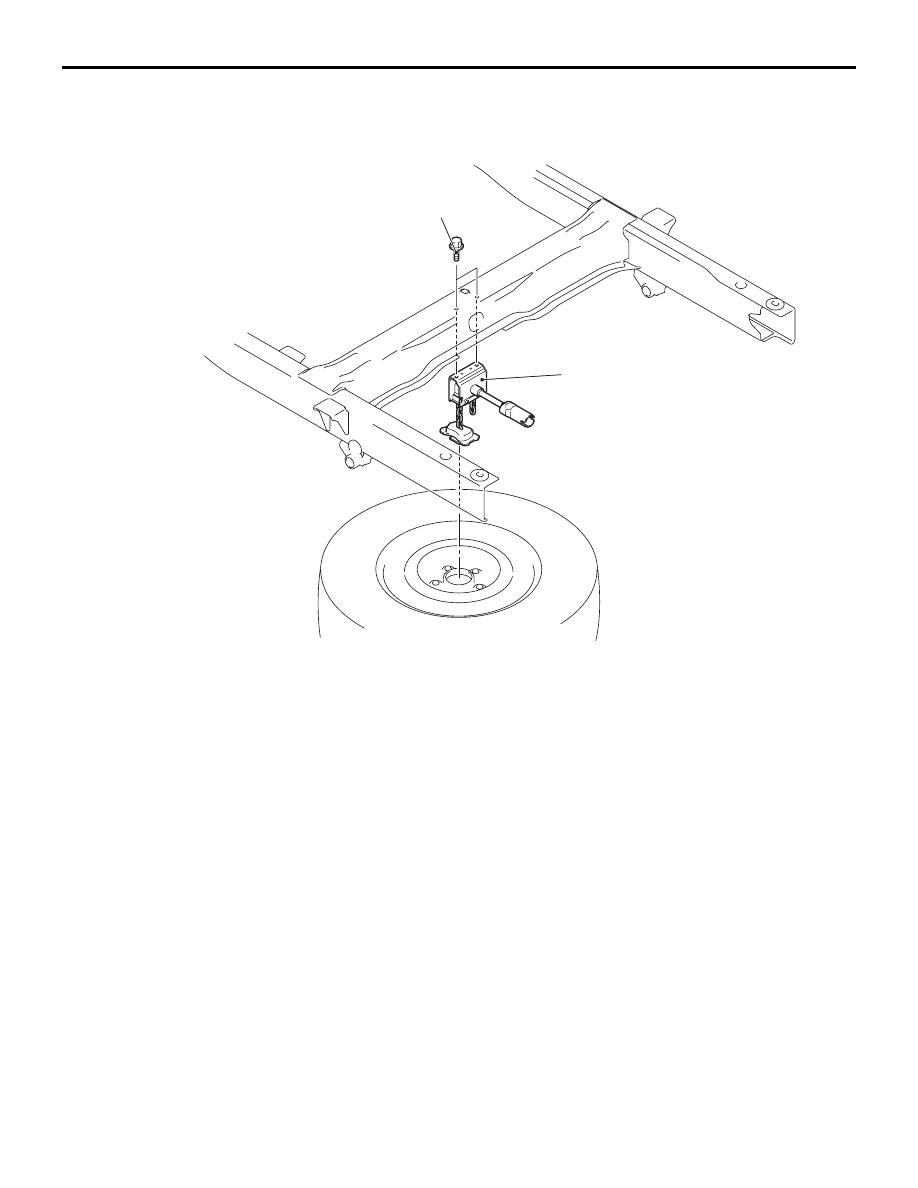

SPARE TYRE CARRIER

REMOVAL AND INSTALLATION

M1311006700071

AC501849AB

13 ± 2 N·m

Spare tyre carrier assembly

32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL INFORMATION . . . . . . . .

32-2

FRONT ENGINE MOUNTING  . . . . . .

32-3

FRONT ENGINE MOUNTING REMOVAL AND
INSTALLATION. . . . . . . . . . . . . . . . . . . . . .

32-3

FRONT ENGINE MOUNTING INSPECTION



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32-4

REAR ENGINE MOUNTING  . . . . . . .

32-5

REAR ENGINE MOUNTING REMOVAL AND
INSTALLATION . . . . . . . . . . . . . . . . . . . . . .

32-5

REAR ENGINE MOUNTING INSPECTION

32-6

TRANSFER MOUNTING <4WD-M/T>

32-6

TRANSFER MOUNTING REMOVAL AND
INSTALLATION <M/T> . . . . . . . . . . . . . . . .

32-6

TRANSFER MOUNTING INSPECTION . . .

32-7

GENERAL INFORMATION

POWER PLANT MOUNT

32-2

GENERAL INFORMATION

M1321000101699

For engine and transmission mounts, gravity-centre
support engine type has been adopted as follows: 3-
point support type (two places at the engine and one
place at the transmission) for A/T vehicles, and 4-
point support type (two places at the engine, one
place at the transmission and one place at the trans-
fer) for 4WD-M/T vehicles.

• The clearance of the stopper for front engine sup-

port insulator has been enlarged to improve
vibration at the vehicle start-up.

• Cup-type stopper cover made of heat-resistant

material has been adopted to abolish the heat
protector for light weighting.

• Low-speed action spring material has been

adopted for front engine support insulator and
rear engine support insulator to reduce vibration
transmission ratio of the power plant.
