AK403806

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-29

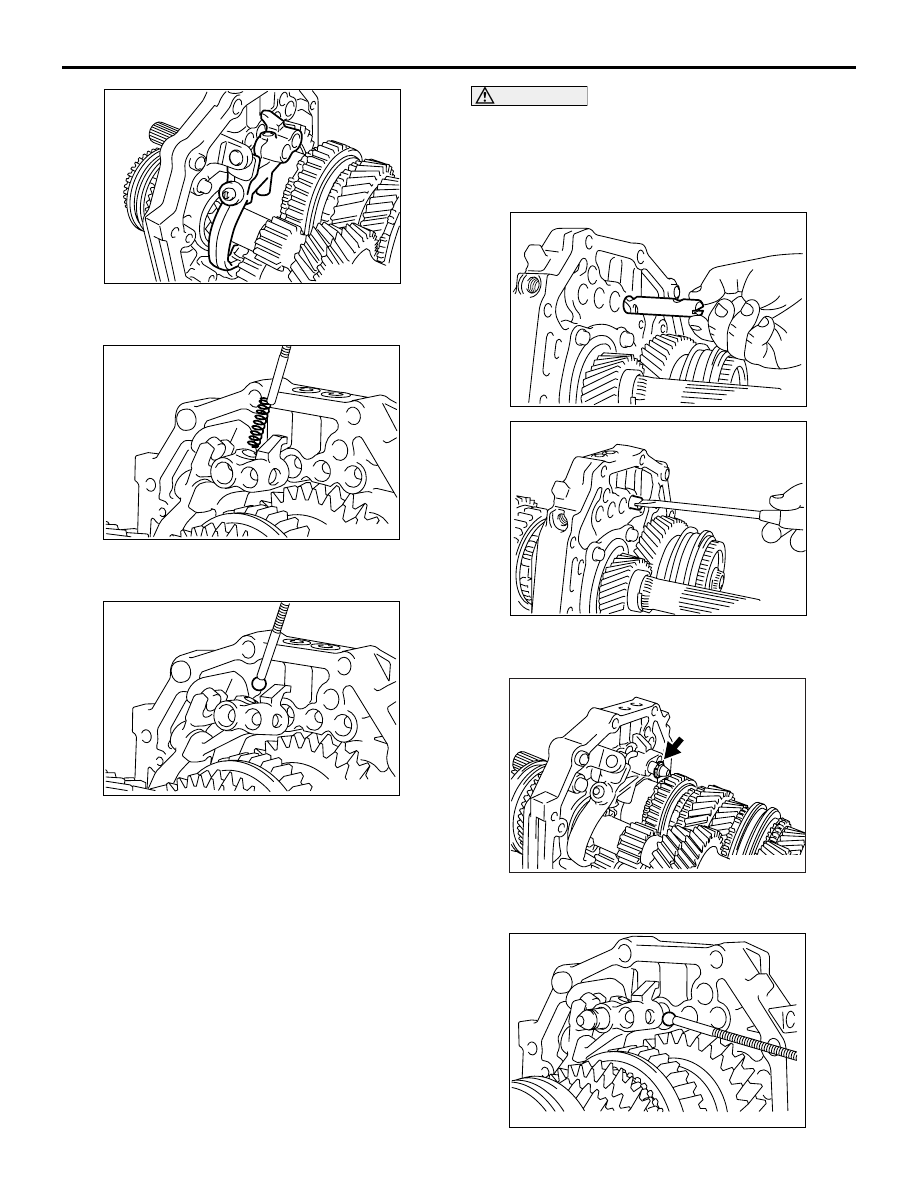

22.Install the reverse shift fork and the reverse shift

arm to the intermediate plate.

AK403805

23.Install the compression spring into the reverse

shift fork.

AK403804

24.Install the ball into the reverse shift fork.

CAUTION

Install the gear shift fork shaft No.4 carefully in
the specified direction. If the installation direc-
tion is wrong, the roller would be in the shaft
concave and the gearshift fork shaft No.4 would
not be installed.

AK403803

AK403802

25.Install the gear shift fork shaft No.4 into the

intermediate plate and the reverse shift fork.

AK500453AB

26.Install the shaft snap ring into the gear shift fork

shaft No.4.

AK403801

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-30

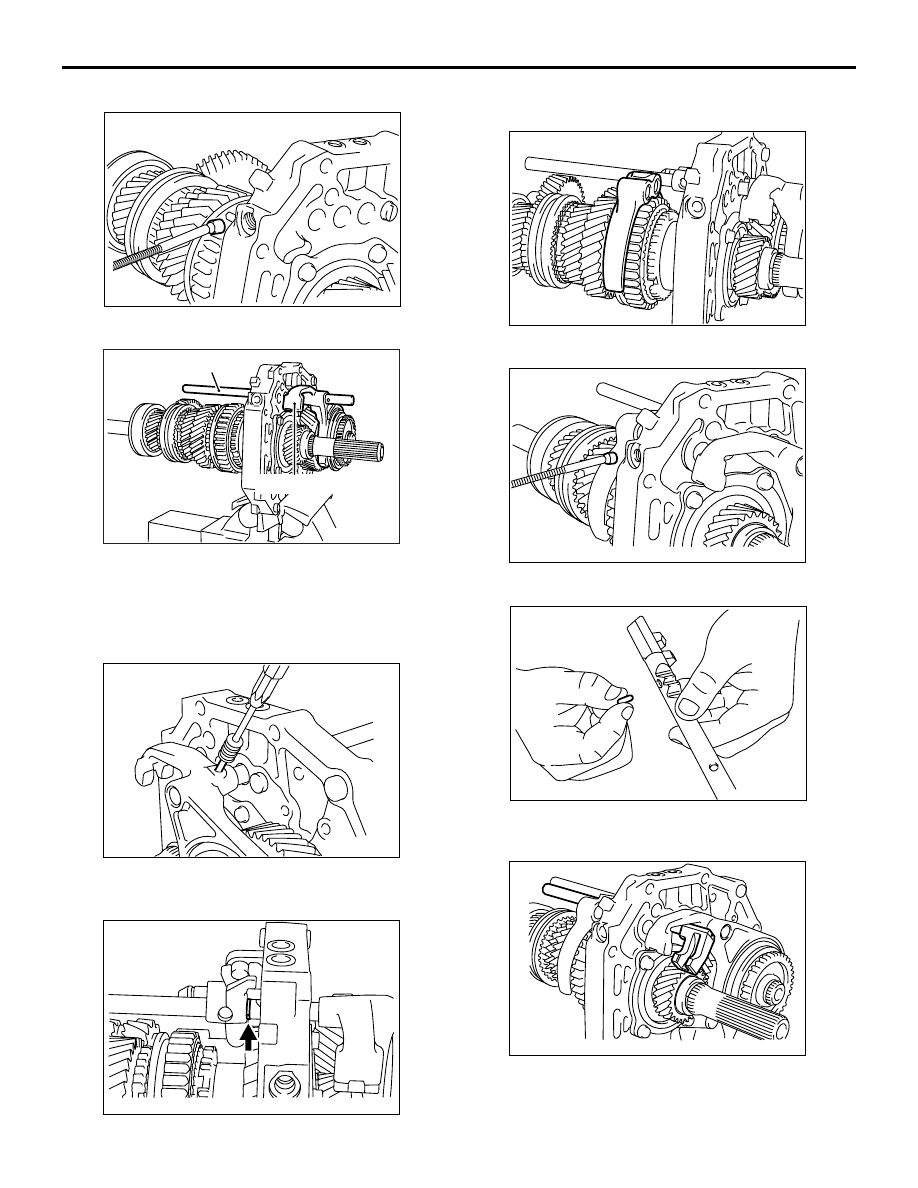

27.Install the ball into the reverse shift fork.

AK403800

28.Install the roller A to the intermediate plate.

AK500461AB

Gear shift fork shaft No.3

Gear shift fork No.3

29.Install the gear shift fork No.3 assembly on the

transmission hub sleeve No.3 and hold it. Insert
the gear shift fork shaft No.3 into the gear shift
fork No.3 assembly, the intermediate plate and
the reverse shift fork.

AK500267

30.Install the slotted spring pin to the gear shift fork

No.3 assembly.

AK500266

AB

31.Install the snap ring to the gear shift fork shaft

No.3.

AK500265

32.Install the gear shift fork No.1 on the reverse gear.

AK500264

33.Install the roller A to the intermediate plate.

AK500270

34.Install the straight pin to the gear shift fork shaft

No.1.

AK500263

35.Install the gear shift fork shaft No.1 to the

intermediate plate and the gear shift fork No.1.

AK500262

AB

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-31

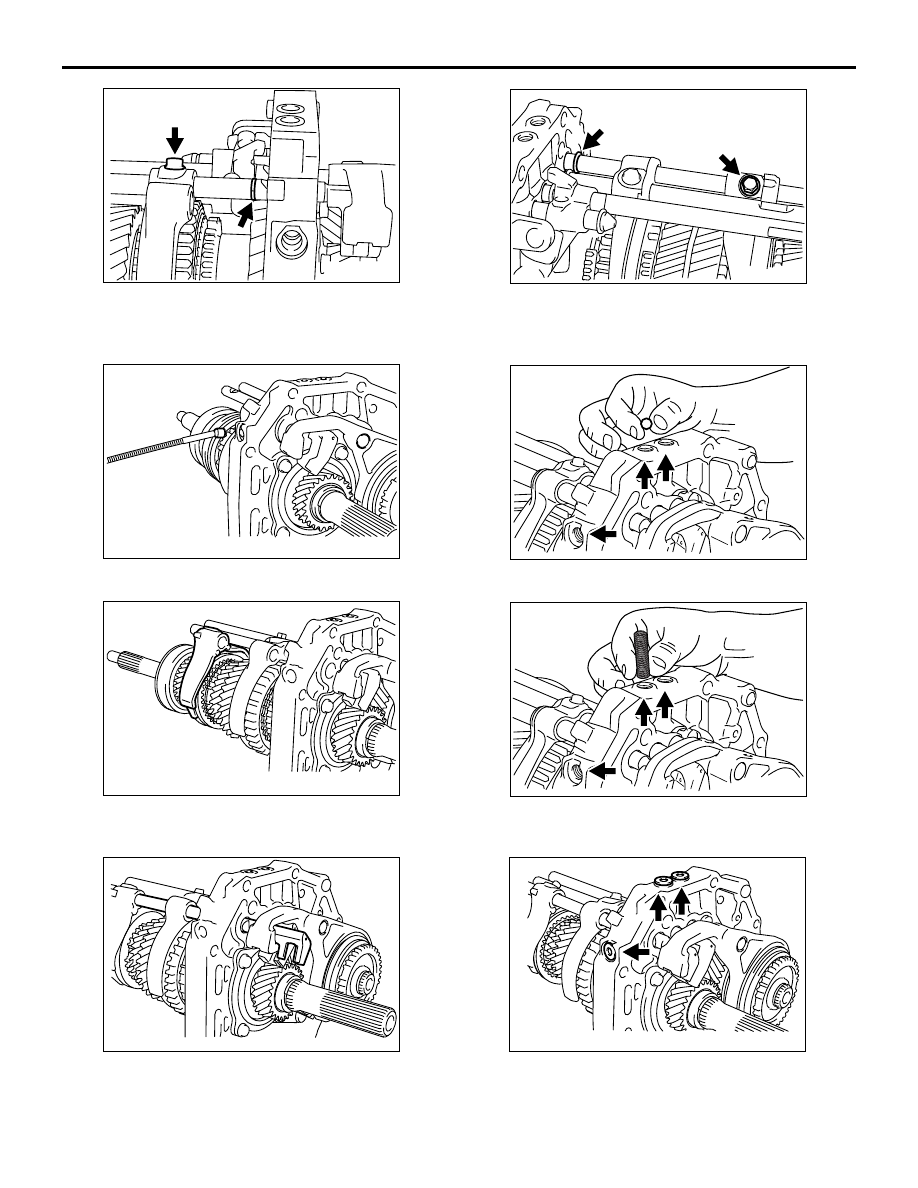

36.Install the shaft snap ring to the gear shift fork

shaft No.1. Tighten the washer based hexagon
bolt to the specified torque of 19.5

± 3.9 N⋅m.

AK500261

37.Install the roller A to the intermediate plate.

AK500260

38.Install the gear shift fork No.2 on the transmission

hub sleeve No.2.

AK500259

39.Install the gear shift fork shaft No.2 to the

intermediate plate, the gear shift fork No.1 and the
gear shift fork No.2.

AK403792

AB

40.Install the shaft snap ring to the gear shift fork

shaft No.2. Tighten the washer based hexagon
bolt to the specified torque of 19.5

± 3.9 N⋅m.

AK403789

AB

41.Install the ball to the intermediate plate (3 places).

AK403788

AB

42.Install the compression spring to the intermediate

plate (3 places).

AK403786

AB

43.Apply sealant to the threads. Tighten the straight

screw plug with head to the specified torque of
18.5

± 5.5 N⋅m (3 places).

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <V5MB1>

22C-32

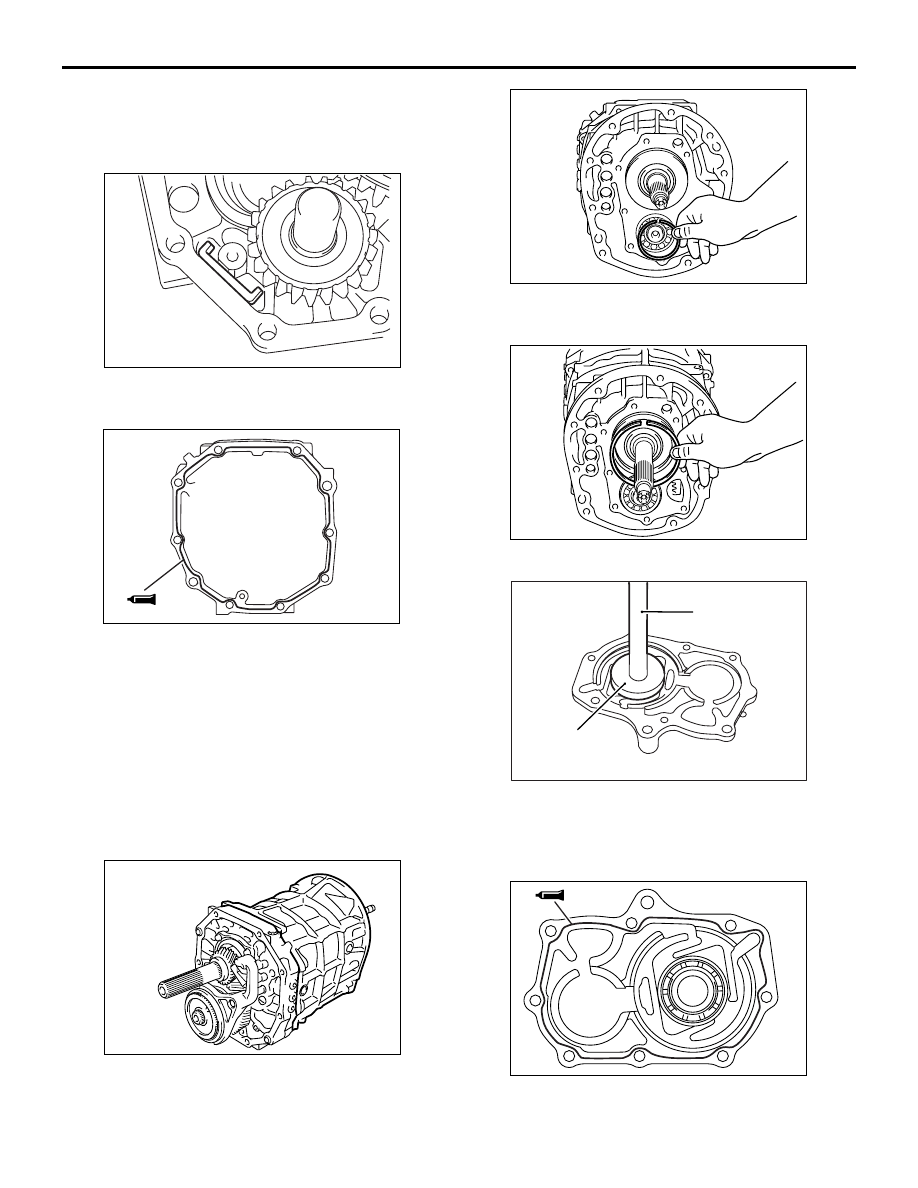

Special sealant: Mitsubishi genuine sealant
Part No. MD974421 or equivalent

NOTE: The new bolt does not require sealant
application as it is precoated with sealant.

AK500257

44.Install the transmission magnet to the

intermediate plate.

AK500527

AB

45.Completely degrease the FIPG-applied surface

so that water and oil including the old sealant
cannot adhere to the surface coated with the
sealant.
Never touch the degreased surface by hand.

46.Apply a 1.2 mm diameter bead of liquid gasket to

the intermediate plate mounting surface of the
transmission case sub-assembly.

Special sealant: Mitsubishi genuine sealant
Part No. MD974421 or equivalent

AK500560

47.Install the transmission case sub-assembly to the

intermediate plate.

AK403783

48.Install the snap ring to the cylindrical roller

bearing.

AK403782

49.Install the snap ring to the radial ball bearing.

AK600320

MB990938

MB990929

AB

50.Using special tool install the oil seal to the front

bearing retainer.

• Installer adapter (MB990929)

•

AK403775

AB

Installer bar (MB990938)
