TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <R5MB1>

22B-13

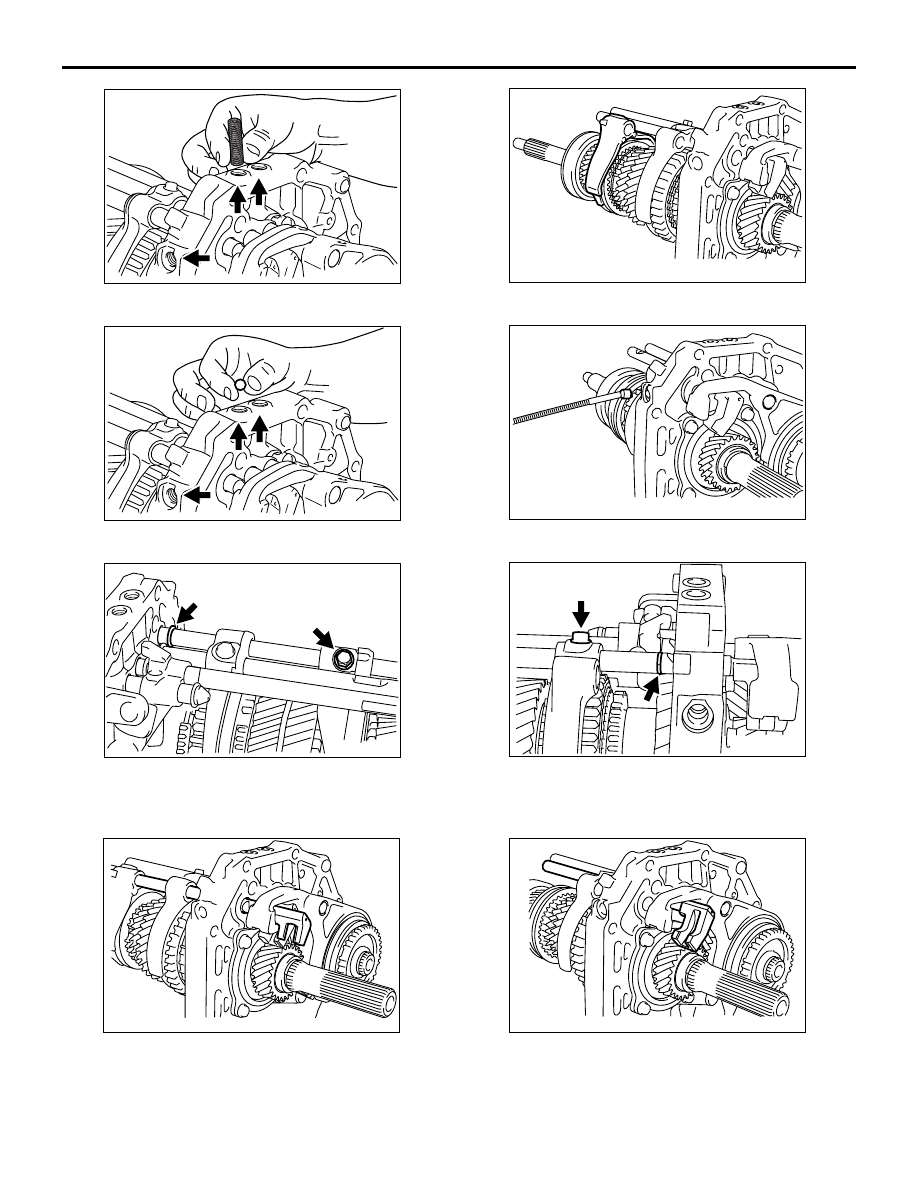

16.Remove the compression spring (3 places).

AK403789

AB

17.Remove the ball (3 places).

AK403792

AB

18.Remove the shaft snap ring of the gear shift fork

shaft No.2 and the washer based hexagon bolt of
the gearshift fork No.2.

AK500259

19.Remove the gear shift fork shaft No.2.

AK500260

20.Remove the gear shift fork No.2.

AK500261

21.Remove the roller A.

AK500262

AB

22.Remove the shaft snap ring of the gear shift fork

shaft No.1 and the washer based hexagon bolt of
the gear shift fork No.1.

AK500263

23.Remove the gear shift fork shaft No.1.

AK500270

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <R5MB1>

22B-14

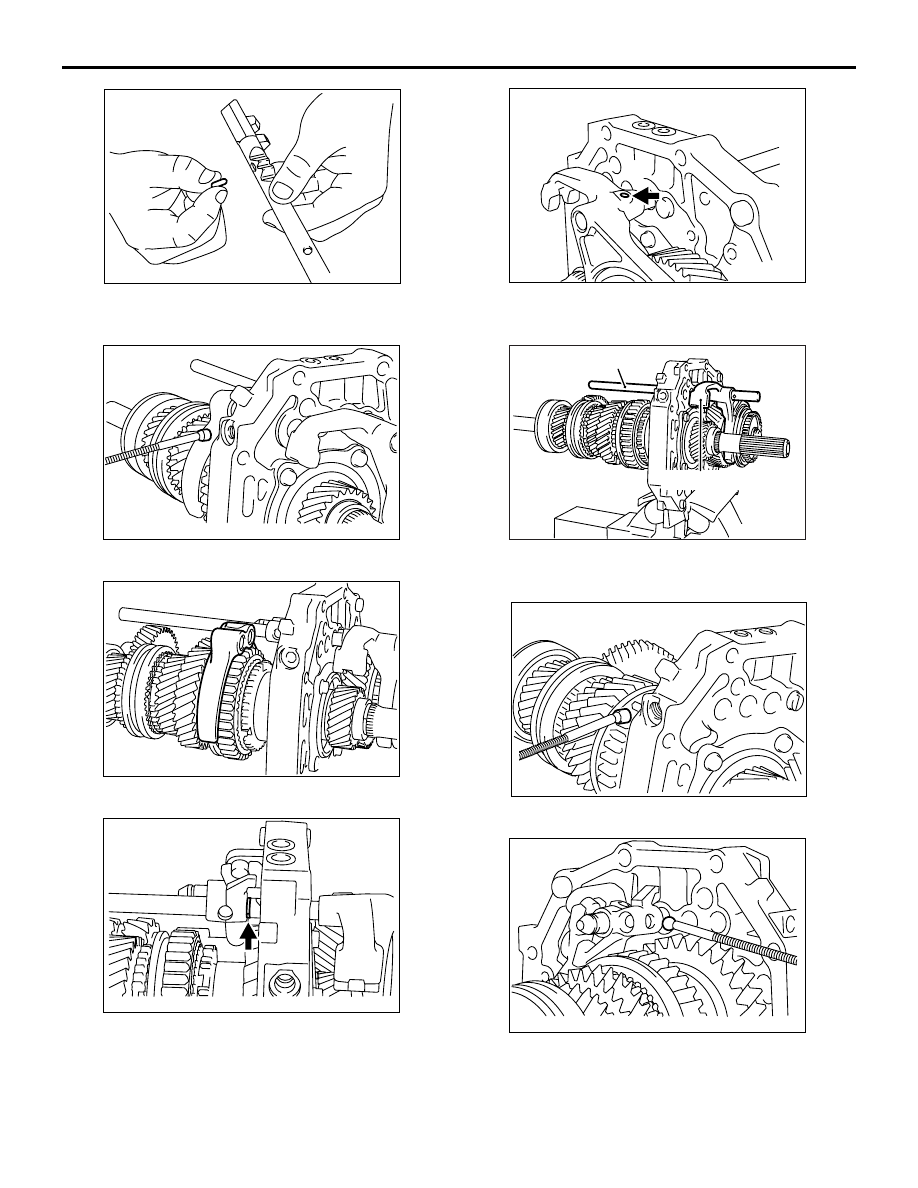

24.Remove the straight pin of the gear shift fork shaft

No.1.

AK500264

25.Remove the roller A.

AK500265

26.Remove the gear shift fork No.1.

AK500266

AB

27.Remove the shaft snap ring of the gear shift fork

shaft No.3.

AK403790

AB

28.Remove the slotted spring pin of the gear shift

fork No.3 assembly.

AK500461AB

Gear shift fork shaft No.3

Gear shift fork No.3

29.Remove the gear shift fork No.3 and the gear shift

fork shaft No.3.

AK403800

30.Remove the roller A.

AK403801

31.Remove the ball.

AK500453AB

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <R5MB1>

22B-15

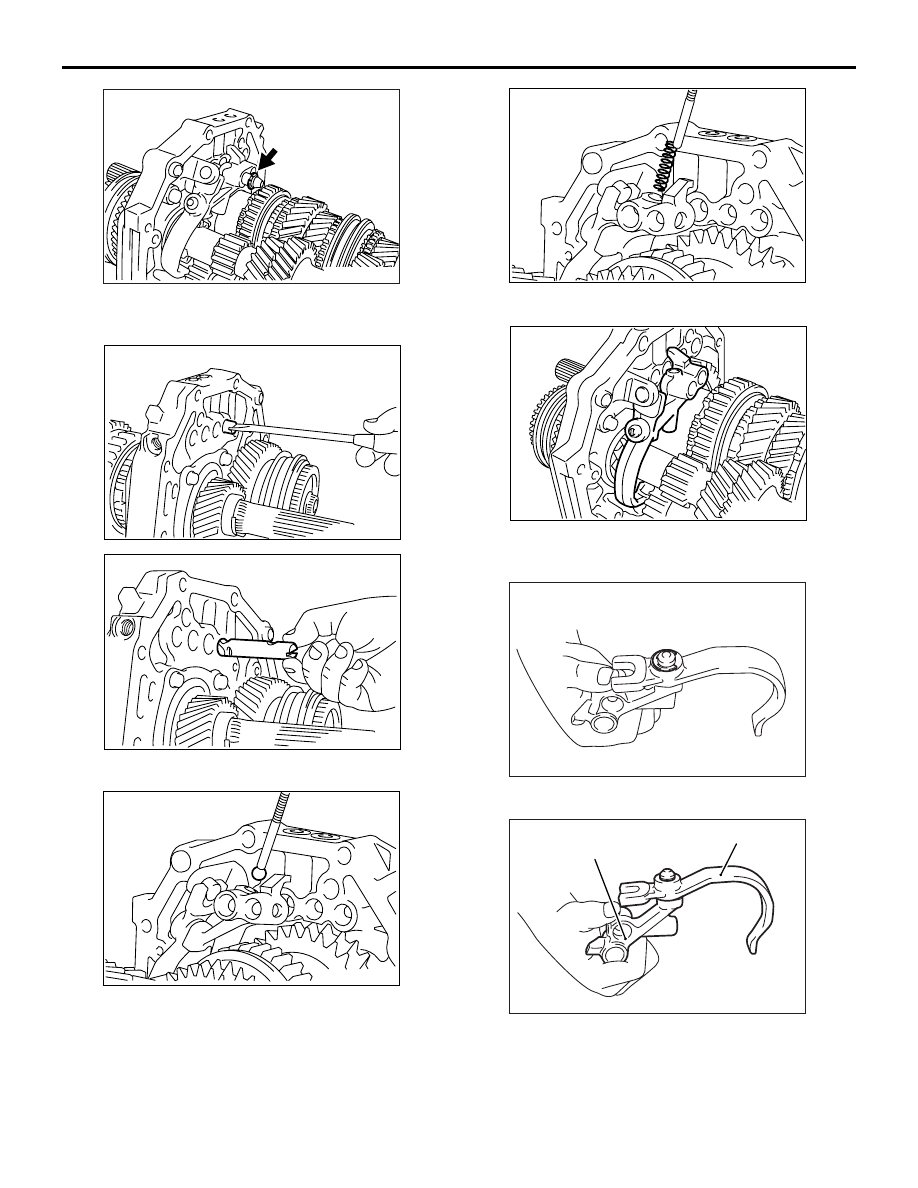

32.Remove the shaft snap ring of the gear shift fork

shaft No.4.

AK403802

AK403803

33.Remove the gear shift fork shaft No.4.

AK403804

34.Remove the ball.

AK403805

35.Remove the compression spring.

AK403806

36.Remove the reverse shift fork and the reverse

shift arm.

AK500455

37.Remove the E-ring.

AK500454AB

Reverse shift fork

Reverse shift arm

38.Remove the reverse shift arm and reverse shift

fork.

AK500818AB

Rotor

Ball

Shaft snap ring

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL <R5MB1>

22B-16

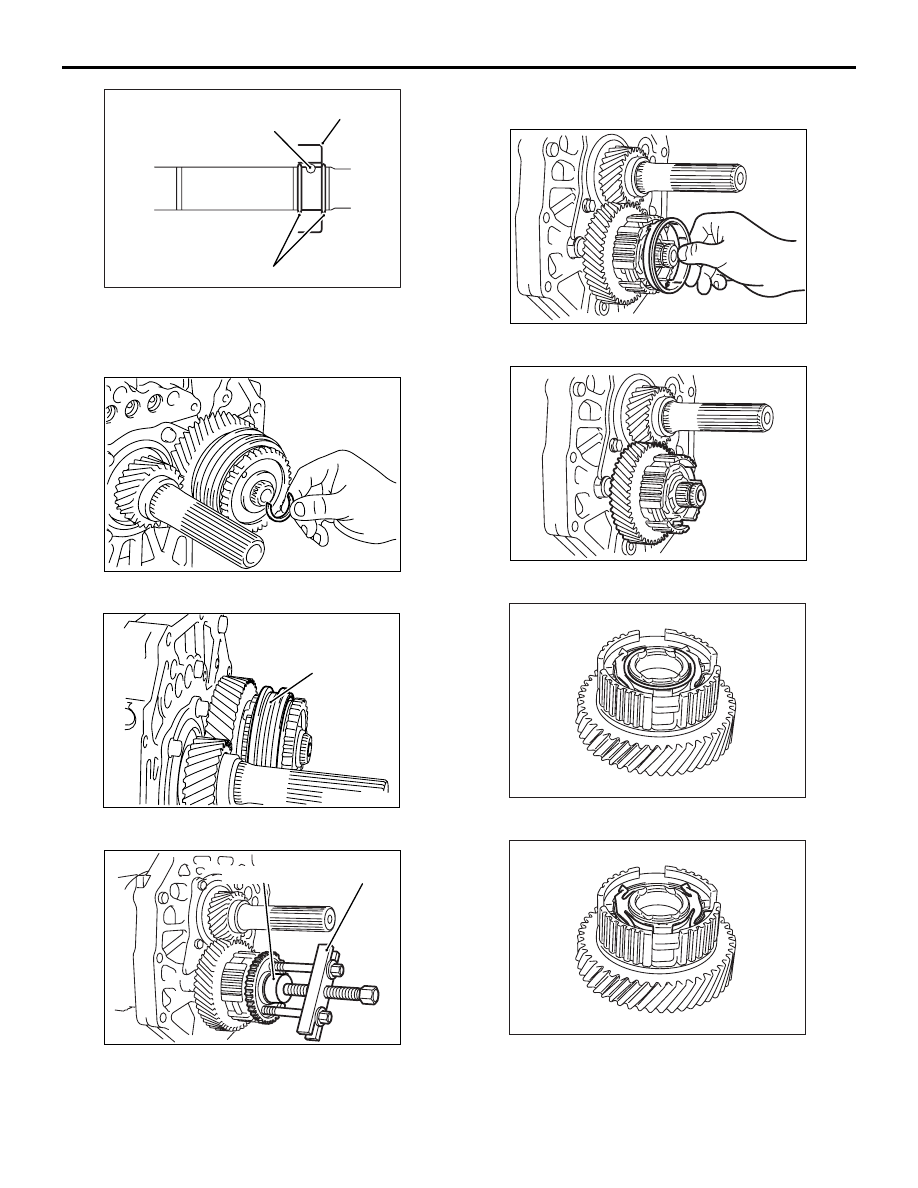

39.Remove the shaft snap ring (2 places).
40.Remove the rotor.
41.Remove the ball.

AK403807

42.Remove the shaft snap ring.

AK500269

AB

Transmission
hub sleeve No.3

43.Remove the transmission hub sleeve No.3.

AK403982

MB990803

AC

MB990811

44.Use special tools to remove the gear spline piece

No.5.

• Steering wheel puller (MB990803)

•

AK403983

Side bearing puller cup (MB990811)

45.Remove the synchronizer outer race No.3.

AK403984

46.Remove the counter shaft gear No.5.

AK500526

47.Remove the shaft snap ring.

AK500456

48.Remove the synchromesh shifting key spring

No.3.
