EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-48

Standard value: 120

− 560 kΩ (at 20°C)

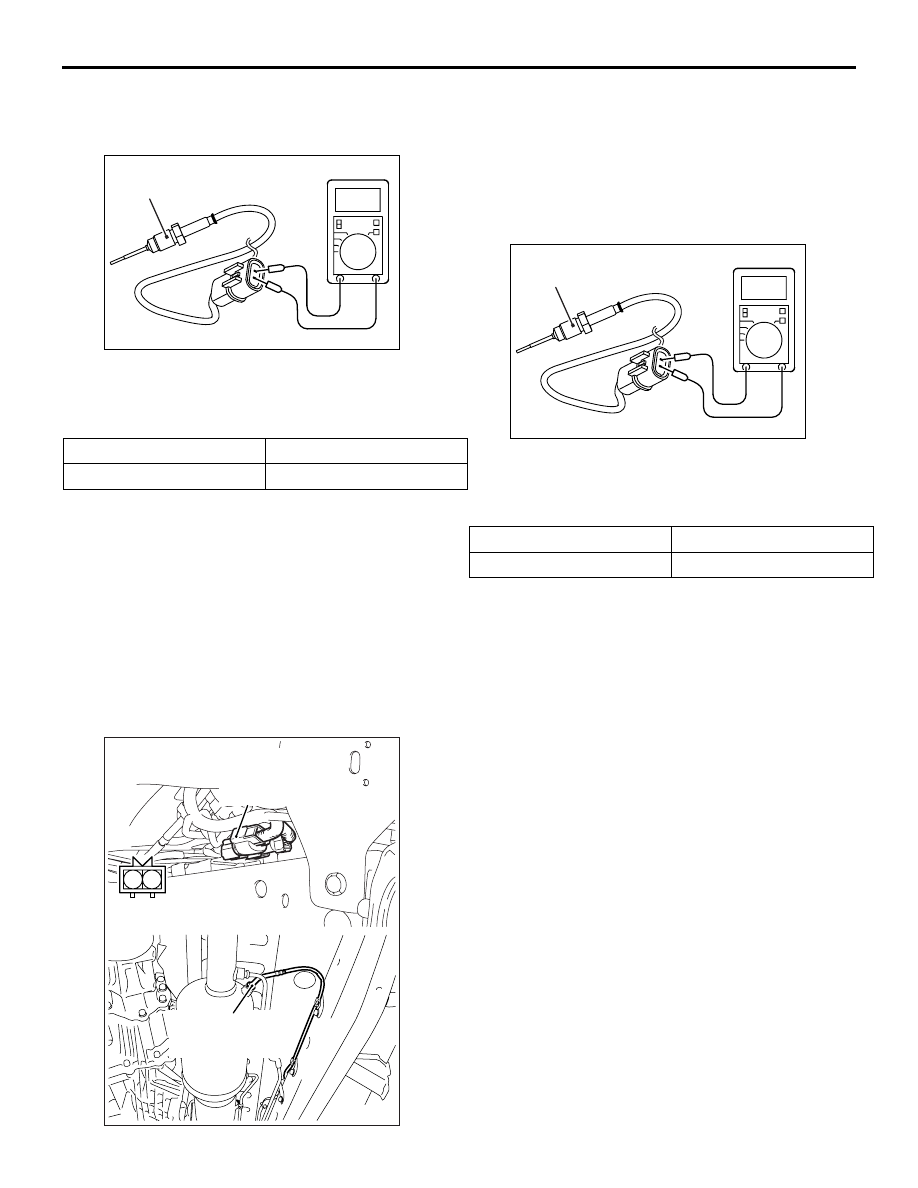

3. Remove the No. 2 exhaust gas temperature

sensor (catalyst temperature).

AKB00243

Exhaust gas
temperature sensor

AB

4. Measure resistance while heating the sensor

using a hair drier.

Normal condition:

Temperature (

°C)

Resistance (k

Ω)

Higher

Smaller

5. If the value deviates from the standard value or

the resistance remains unchanged, replace the
No. 2 exhaust gas temperature sensor (catalyst
temperature) assembly.

6. Install the No. 2 exhaust gas temperature sensor

(catalyst temperature) and tighten it to the
specified torque.

Tightening torque: 30

± 5 N⋅m

 No. 3 EXHAUST GAS TEMPERATURE
SENSOR (DPF TEMPERATURE) CHECK

M1175007300177

AKB00306

1 2

AB

No. 3 exhaust gas
temperature sensor
(DPF temperature)

No. 3 exhaust gas
temperature sensor
(DPF temperature)
connector

Equipment side
connector

1. Disconnect the No. 3 exhaust gas temperature

sensor (DPF temperature) connector.

2. Measure resistance between terminals No. 1 and

No. 2.

Standard value: 120

− 560 kΩ (at 20°C)

3. Remove the No. 3 exhaust gas temperature

sensor (DPF temperature).

AKB00243

Exhaust gas
temperature sensor

AB

4. Measure resistance while heating the sensor

using a hair drier.

Normal condition:

Temperature (

°C)

Resistance (k

Ω)

Higher

Smaller

5. If the value deviates from the standard value or

the resistance remains unchanged, replace the
No. 3 exhaust gas temperature sensor (DPF
temperature) assembly.

6. Install the No. 3 exhaust gas temperature sensor

(DPF temperature) and tighten it to the specified
torque.

Tightening torque: 30

± 5 N⋅m

CHECK AT THE ECU TERMINALS

M1175003000390

Refer  GROUP 13A

− Troubleshooting − Check at

the ECU terminals.

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-49

DIESEL PARTICULATE FILTER (DPF)
<Euro5>

REMOVAL AND INSTALLATION

M1175007700238

Refer to GROUP 15

− Exhaust Pipe and Main Muffler .

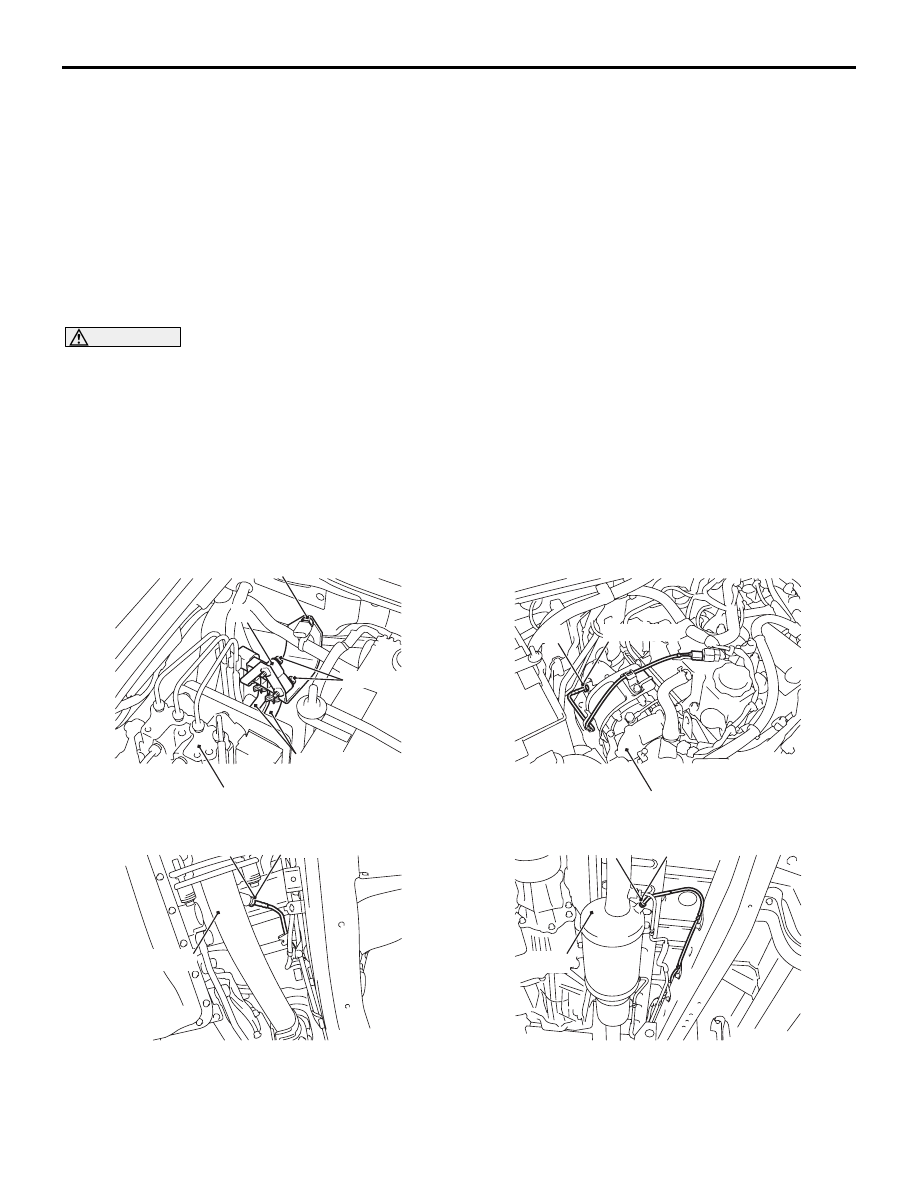

DIESEL PARTICULATE FILTER (DPF)
SYSTEM SENSORS <Euro5>

REMOVAL AND INSTALLATION

M1175008000180

CAUTION

• When the exhaust differential pressure sensor is replaced, use the M.U.T.-III to initialise the learn-

ing value (Refer to GROUP 00

− Precautions before Service, Initialisation Procedure for Learning

Value in DPF System ).

• When the exhaust differential pressure sensor is replaced, perform the forcible DPF regeneration

after learning value in DPF system (Refer to

P.17-46

).

• When the No.1, No.2 or No.3 exhaust gas temperature sensor is replaced, perform the forcible DPF

regeneration (Refer to

P.17-46

).

ACB02032

ACB00708

ACB00705

ACB00706

ACB00707

AB

1

2

Hydraulic unit

4.5 ± 1.5 N·m

11 ± 1 N·m

Turbocharger

3

30 ± 5 N·m

4

Front exhaust pipe

DPF

5

30 ± 5 N·m

30 ± 5 N·m

Removal steps

1.

Exhaust pressure hose connection

2.

Exhaust differential pressure
sensor

•

Engine cover (Refer to GROUP
11A

− Engine Assembly ).

<<

A

>>

3.

No.1 exhaust gas temperature
sensor

•

Under skid plate and engine room
under cover (Refer to GROUP 51

−

Under Cover ).

<<

A

>>

4.

No.2 exhaust gas temperature
sensor

<<

A

>>

5.

No.3 exhaust gas temperature
sensor

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-50

REMOVAL SERVICE POINT

<<A>> EXHAUST GAS TEMPERATURE SENSOR
REMOVAL

CAUTION

Do not use the exhaust gas temperature sensor
which dropped.

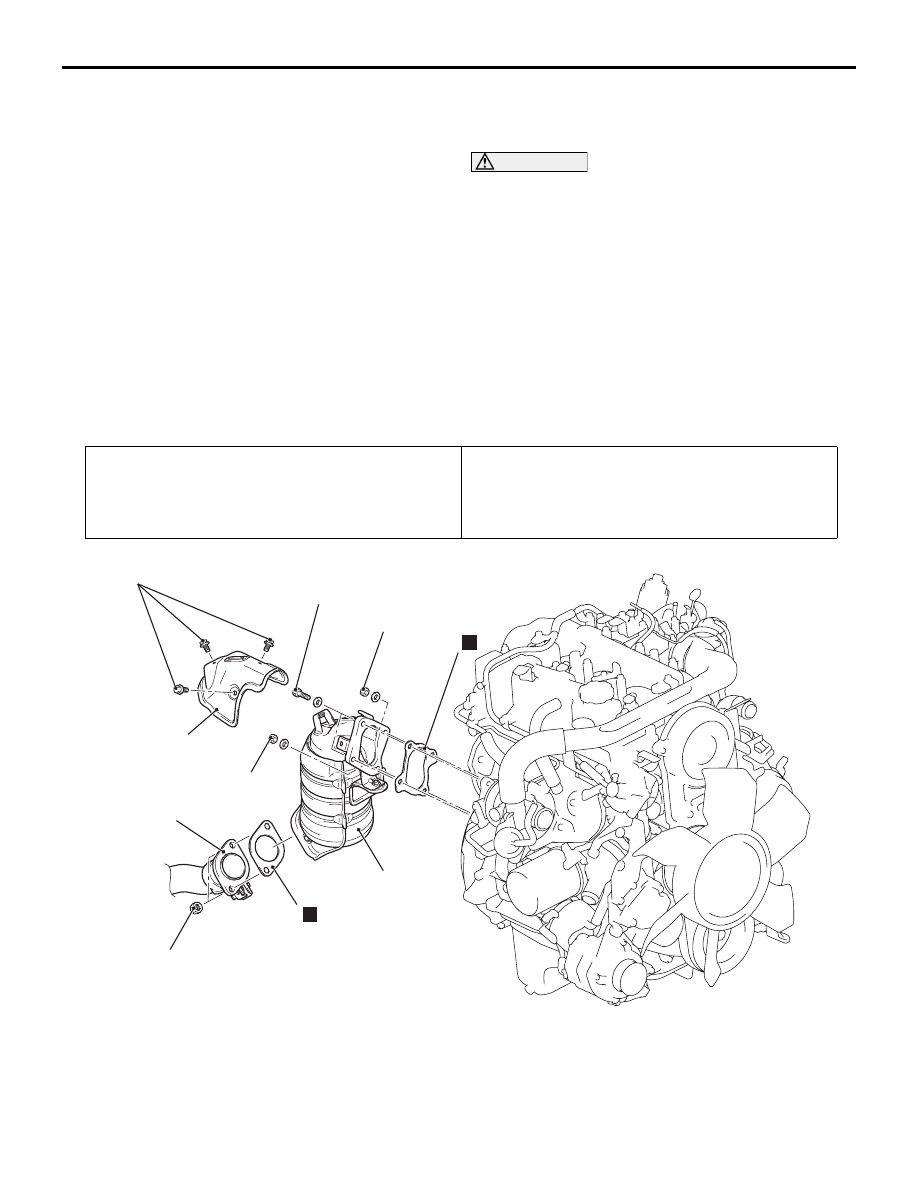

CATALYTIC CONVERTER

REMOVAL AND INSTALLATION

M1175002100673

<Except Euro5>

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover ).

• Battery and Battery Box Removal (Refer to 54A − Battery

) <Vehicles with Sub Battery>.

Post-installation Operation
• Battery and Battery Box Installation (Refer to 54A − Bat-

tery ) <Vehicles with Sub Battery>.

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover ).

AC502841

1

2

N

9.0 ± 1.0 N·m

AD

3

4

5

N

59 ± 5 N·m

59 ± 5 N·m

59 ± 5 N·m

57 ± 7 N·m

Removal steps

1.

Front exhaust pipe connection

2.

Exhaust pipe gasket

3.

Catalytic converter protector

4.

Catalytic converter

5.

Catalytic converter gasket

Removal steps (Continued)

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-51

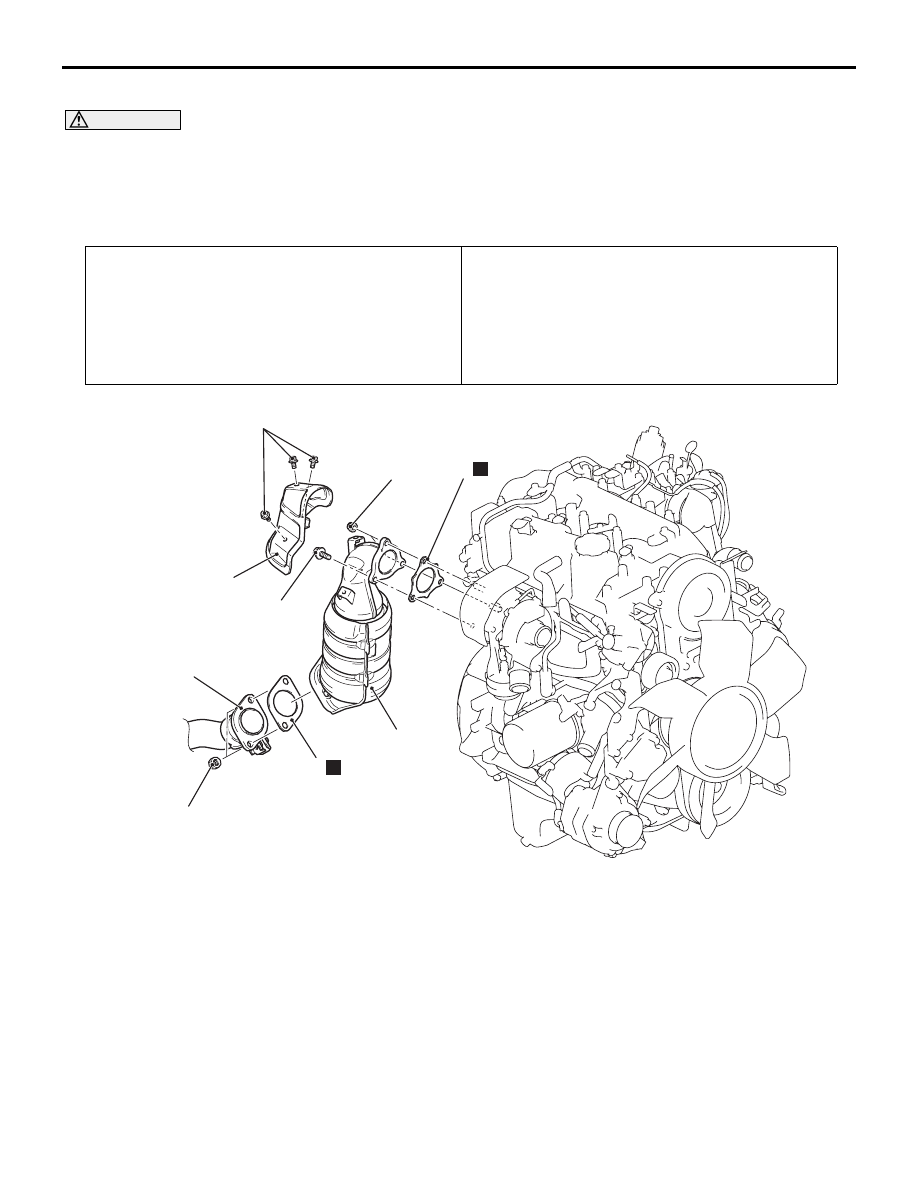

<Euro5>

CAUTION

• When the catalytic converter is replaced, use the M.U.T.-III to initialise the learning value (Refer to

GROUP 00

− Precautions before Service, Initialisation Procedure for Learning Value in DPF Sys-

tem ).

• When the catalytic converter is replaced, perform the forcible DPF regeneration after learning

value in DPF system (Refer to

P.17-46

).

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover ).

• Battery and Battery Box Removal (Refer to 54A − Battery

) <Vehicles with Sub Battery>.

• No.1 Exhaust Gas Temperature Sensor Removal (Refer

to GROUP 17

− Emission Control, DPF System Sensors

P.17-49

).

Post-installation Operation
• No.1 Exhaust Gas Temperature Sensor Installation (Refer

to GROUP 17

− Emission Control, DPF System Sensors

P.17-49

).

• Battery and Battery Box Installation (Refer to 54A − Bat-

tery ) <Vehicles with Sub Battery>.

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover ).

AC805698

1

2

N

9.0 ± 1.0 N·m

AB

3

4

5

N

59 ± 5 N·m

59 ± 5 N·m

57 ± 7 N·m

Removal steps

1.

Front exhaust pipe connection

2.

Exhaust pipe gasket

3.

Catalytic converter protector

4.

Catalytic converter

5.

Catalytic converter gasket

Removal steps (Continued)
