EGR GAS TEMPERATURE SENSOR
CHECK <Euro5>

M1175011500022

AKB00298

1 2

AB

EGR gas
temperature
sensor

Equipment side
connector

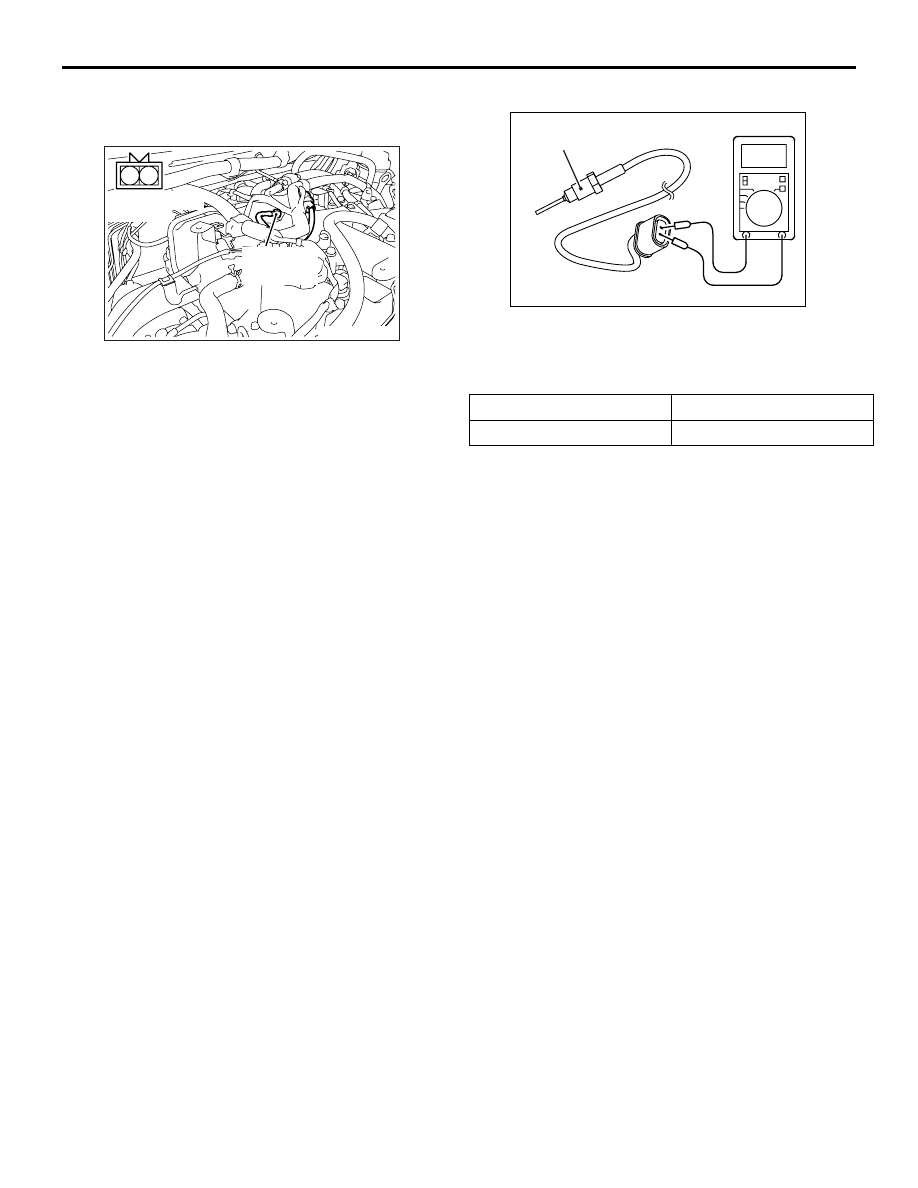

1. Disconnect the EGR gas temperature sensor

connector.

2. Measure resistance between terminals No. 1 and

No. 2.

Standard value:

55

− 78 kΩ (at −20°C)

29

− 41 kΩ (at 0°C)

17

− 23 kΩ (at 20°C)

10

− 14 kΩ (at 40°C)

7.1

− 8.8 kΩ (at 60°C)

4.8

− 5.9 kΩ (at 80°C)

3. Remove the EGR gas temperature sensor

AKA00756

EGR gas
temperature sensor

AB

4. Measure resistance while heating the sensor

using a hair drier.

Normal condition:

Temperature (

°C)

Resistance (k

Ω)

Higher

Smaller

5. If the value deviates from the standard value or

the resistance remains unchanged, replace the
EGR gas temperature sensor.

6. Install the EGR gas temperature sensor and

tighten it to the specified torque.

Tightening torque: 20

± 4 N⋅m

AIR FLOW SENSOR CHECK

M1175005700027

Refer to  GROUP 13A

− Troubleshooting − Inspec-

tion Chart for Diagnosis Code.

CRANK ANGLE SENSOR CHECK

M1175005200044

Refer to  GROUP 13A

−Troubleshooting − Inspection

Chart for Diagnosis Code.

ENGINE COOLANT TEMPERATURE SENSOR CHECK

M1175001500054

Refer to  GROUP 13A

− On-vehicle service − Engine

coolant temperature sensor check.

INTAKE AIR TEMPERATURE SENSOR CHECK

M1175005800035

<Intake air temperature sensor No. 1>

Refer to  GROUP 13A

− On-vehicle service − Air

temperature sensor No. 1 check.

<Intake air temperature sensor No. 2>

Refer to  GROUP 13A

− On-vehicle service − Air

temperature sensor No. 2 check.

CHECK AT THE ECU TERMINALS

M1175003000055

Refer to  GROUP 13A

− Troubleshooting − Check at

the ECU terminals.

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-41

EGR VALVE AND EGR COOLER

REMOVAL AND INSTALLATION

M1175007200493

<Except Euro5>

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover ).

• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Battery and Battery Box Removal (Refer to 54A − Battery

).

Post-installation Operation
• Battery and Battery Box Installation (Refer to 54A − Bat-

tery ).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover ).

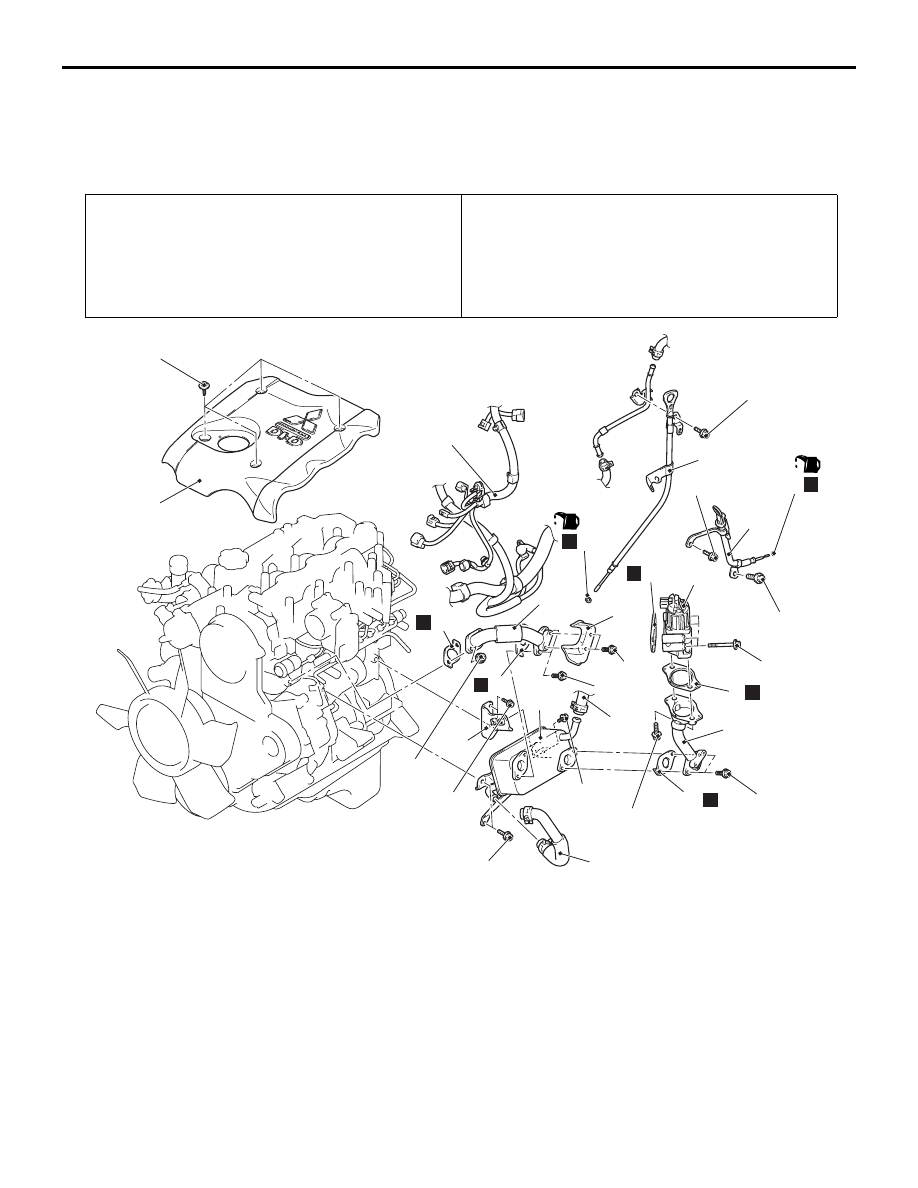

AC509026AC

3

5

12

10

18

7

N

14

22 ± 4 N·m

13

17

19

1

24 ± 3 N·m

49 ± 6 N·m

17 ± 2 N·m

3.0 ± 0.5 N·m

4

N

9

N

8

N

15

N

11

N

6

N

48 ± 6 N·m

2

24 ± 3 N·m

16

17 ± 2 N·m

24 ± 3 N·m

50 ± 7 N·m

48 ± 6 N·m

17 ± 2 N·m

11 ± 1 N·m

(Engine oil)

(ATF)

Removal steps

1.

Engine cover

2.

Wiring harness connection

3.

Engine oil level gauge and guide
assembly

4.

O-ring

5.

Transmission fluid level gauge and
guide assembly <A/T>

6.

O-ring <A/T>

7.

EGR valve

>>

B

<<

8.

EGR valve gasket

>>

A

<<

9.

EGR pipe gasket

10. EGR pipe B

>>

A

<<

11. EGR pipe gasket
12. EGR pipe heat protector
13. EGR pipe A

>>

A

<<

14. EGR pipe gasket

>>

A

<<

15. EGR pipe gasket
16. Water hose
17. Heater piping hose connection
18. EGR cooler
19. EGR cooler bracket

Removal steps (Continued)

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-42

<Euro5>

Pre-removal Operation
• Engine Cover Removal (Refer to GROUP 11A − Engine

Assembly ).

• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover ).

• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Battery and Battery Box Removal (Refer to 54A − Battery

).

Post-installation Operation
• Battery and Battery Box Installation (Refer to 54A − Bat-

tery ).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement ).

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover ).

• Engine Cover Installation (Refer to GROUP 11A − Engine

Assembly ).

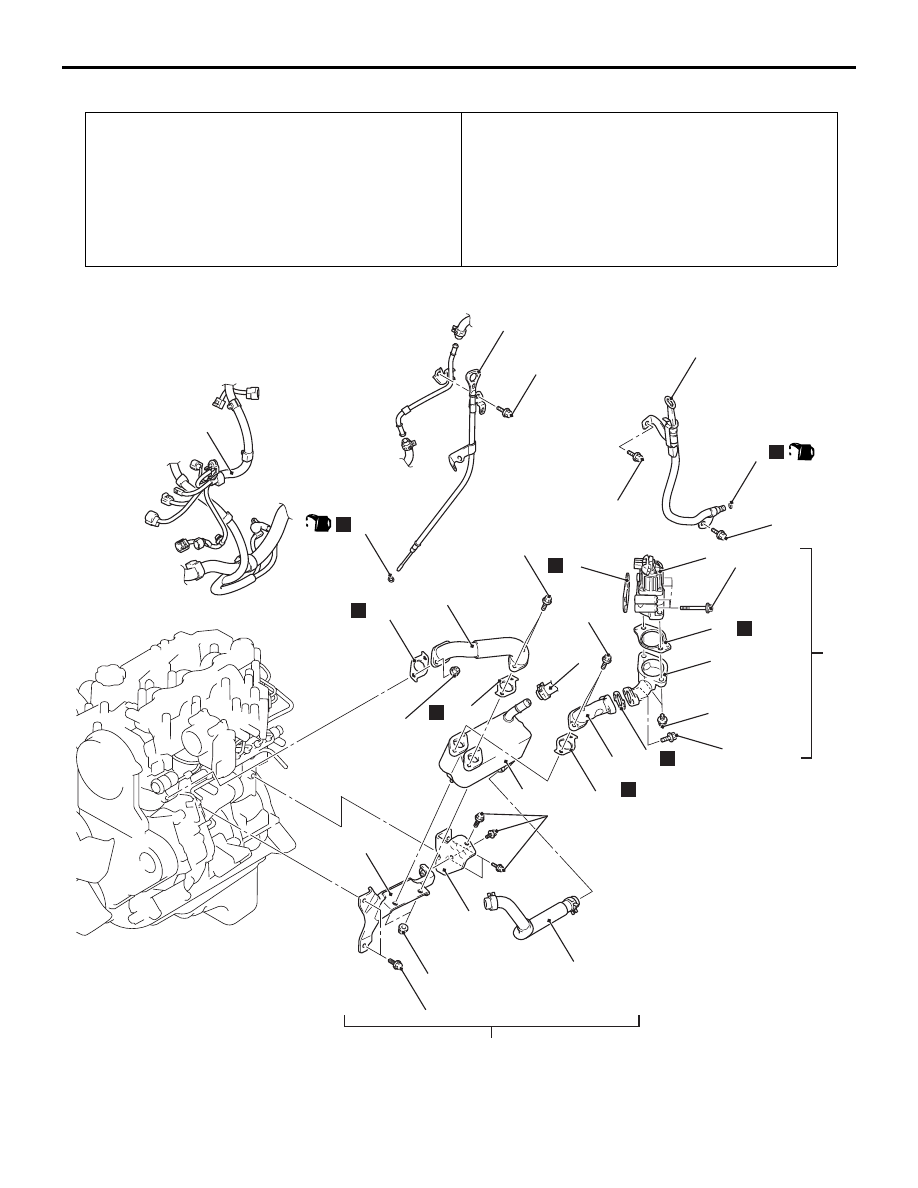

ACB00714AB

1

19

18

17

16

15

14

13

12

10

9

8

7

6

5

11

4

3

2

22

20

21

N

N

N

N

N

N

N

N

(Engine oil)

(ATF)

48 ± 6 N·m

22 ± 4 N·m

50 ± 7 N·m

48 ± 6 N·m

49 ± 6 N·m

17 ± 2 N·m

17 ± 2 N·m

17 ± 2 N·m

17 ± 2 N·m

28 ± 4 N·m

24 ± 3 N·m

24 ± 3 N·m

Removal steps

1.

Wiring harness connection

2.

Engine oil level gauge and guide
assembly

3.

O-ring

4.

Transmission fluid level gauge and
guide assembly <A/T>

Removal steps (Continued)

EMISSION CONTROL

ENGINE AND EMISSION CONTROL

17-43

REMOVAL SERVICE POINT

<<A>> EGR PIPE B, EGR COOLER AND
BRACKET ASSEMBLY REMOVAL
1. Remove the EGR bracket mounting bolts from the

wheelhouse (LH).

2. Remove the EGR pipe B, EGR cooler and bracket

assembly from above the vehicle.

INSTALLATION SERVICE POINTS

>>A<< EGR PIPE GASKET INSTALLATION

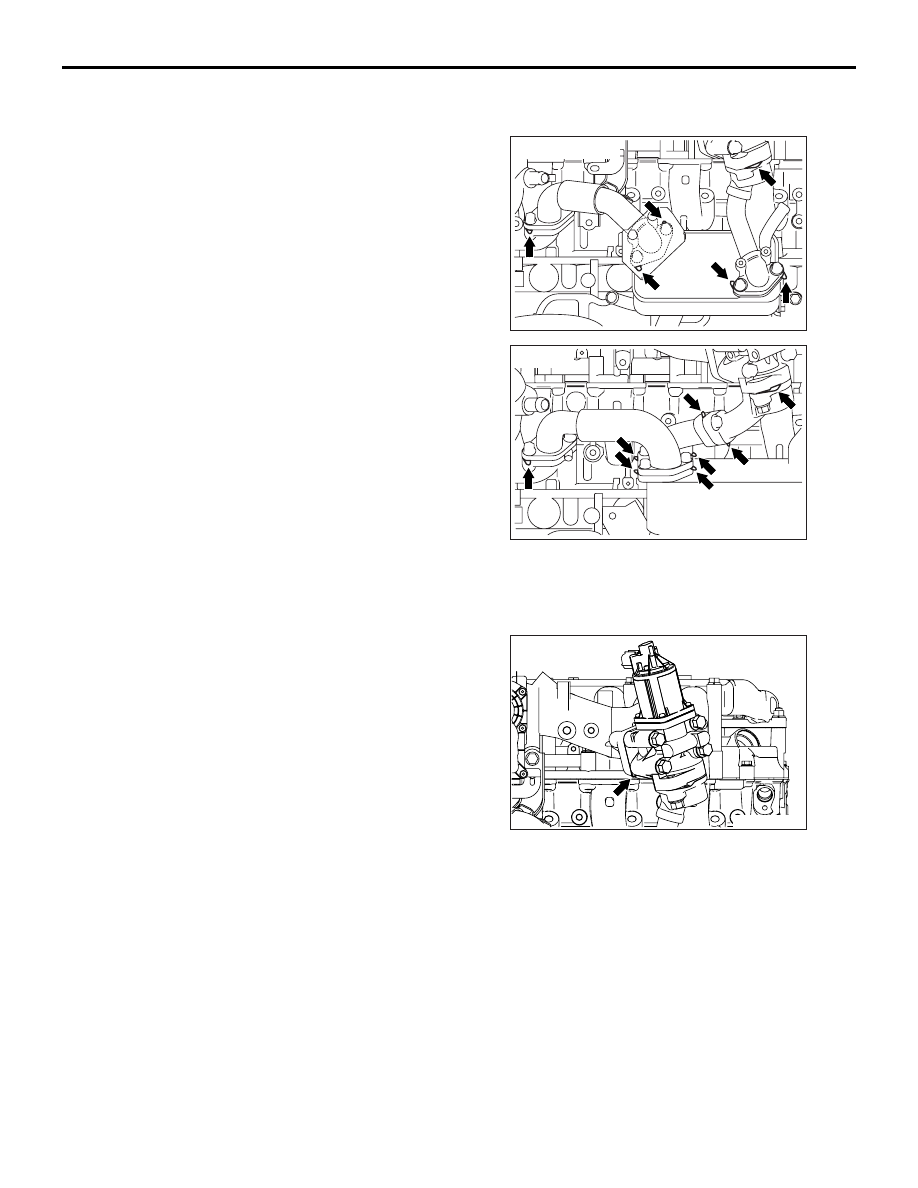

ACB00713AB

<Except Euro5>

ACB00715AB

<Euro5>

The projection on the EGR pipe gasket should be
position as shown.

>>B<< EGR VALVE GASKET INSTALLATION

AC502840AC

The projection on the EGR valve gasket should be
position as shown.

DIESEL PARTICULATE FILTER (DPF)
SYSTEM <Euro5>

GENERAL INFORMATION (DIESEL
PARTICULATE FILTER SYSTEM)

M1175006600261

The Diesel Particulate Filter (DPF) system is used to
adsorb and remove the Particulate Matter (PM) con-
tained in the exhaust gas. The engine-ECU antici-
pates the amount of PM accumulated in the DPF
through the input signal from each sensor.

5.

O-ring <A/T>

6.

EGR valve and EGR pipe B fitting

>>

B

<<

7.

EGR valve gasket

>>

A

<<

8.

EGR pipe gasket

9.

EGR valve

>>

A

<<

10. EGR pipe gasket
11. EGR pipe B fitting
12. EGR pipe A

>>

A

<<

13. EGR pipe gasket

>>

A

<<

14. EGR pipe gasket
15. Heater piping hose connection
•

Starter assembly (Refer to GROUP
16

− Starting System, Starter

Assembly )

16. Water hose

<<

A

>>

17. EGR pipe B, EGR cooler and

bracket assembly

18. EGR pipe B

>>

A

<<

19. EGR pipe gasket
20. EGR cooler bracket A
21. EGR cooler bracket B
22. EGR cooler

Removal steps (Continued)
