ENGINE CONTROL

ENGINE AND EMISSION CONTROL

17-4

ACCELERATOR PEDAL

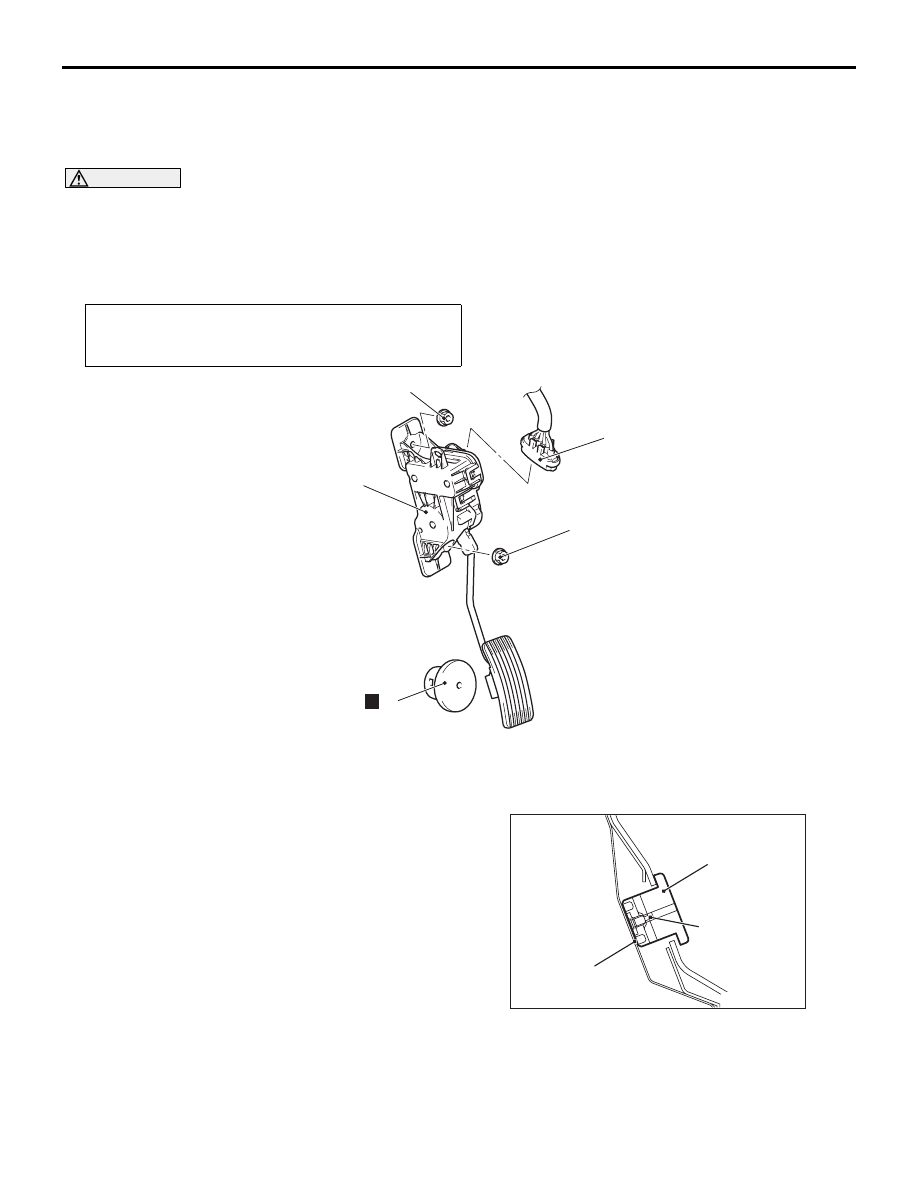

REMOVAL AND INSTALLATION

M1171003001238

CAUTION

• Never loosen the screw fixing the accelerator pedal assembly resin cover. If the screw is loos-

ened, the sensor position which exists inside the resin cover is off and the accelerator pedal posi-
tion sensor does not work normally.

Pre-removal and Post-installation Operation
Instrument Panel Driver’s Side Under Cover Removal and
Installation (Refer to GROUP 52A

− Instrument Panel ).

AC501727

13 ± 2 N·m

1

2

AD

3

13 ± 2 N·m

N

Removal steps

1.

Accelerator pedal position sensor
connector

2.

Accelerator pedal assembly

<<

A

>>

>>

A

<<

3.

Accelerator pedal arm stopper

Do not remove the accelerator pedal pad. If the pad is removed and installed, excessive force may
damage accelerator pedal position sensor.

REMOVAL SERVICE POINT

<<A>> ACCELERATOR PEDAL ARM STOPPER
REMOVAL
Remove turning the accelerator pedal arm stopper.

INSTALLATION SERVICE POINT

>>A<< ACCELERATOR PEDAL ARM STOPPER
INSTALLATION

AC600545AD

Accelerator
pedal arm
stopper

Stud bolt

Body

1. Insert the accelerator pedal arm stopper straight

into the stud bolt of the floor.

2. Install the accelerator pedal arm stopper securely

by turning it clockwise until its underside contacts
with the body as shown in the figure.

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-5

3. After the installation, slightly pull the accelerator

pedal arm stopper by hand to check that it cannot
be removed easily (appropriate holding power:
100 N or more).

CRUISE CONTROL

GENERAL INFORMATION

M1172000101228

By using the cruise control system, the driver can
drive at preferred speeds in a range of approximately
40 to 200 km/h without depressing the accelerator
pedal.

For this cruise control system, in conjunction with the
common rail fuel control system, the engine-ECU
electronically controls the fuel injection system.

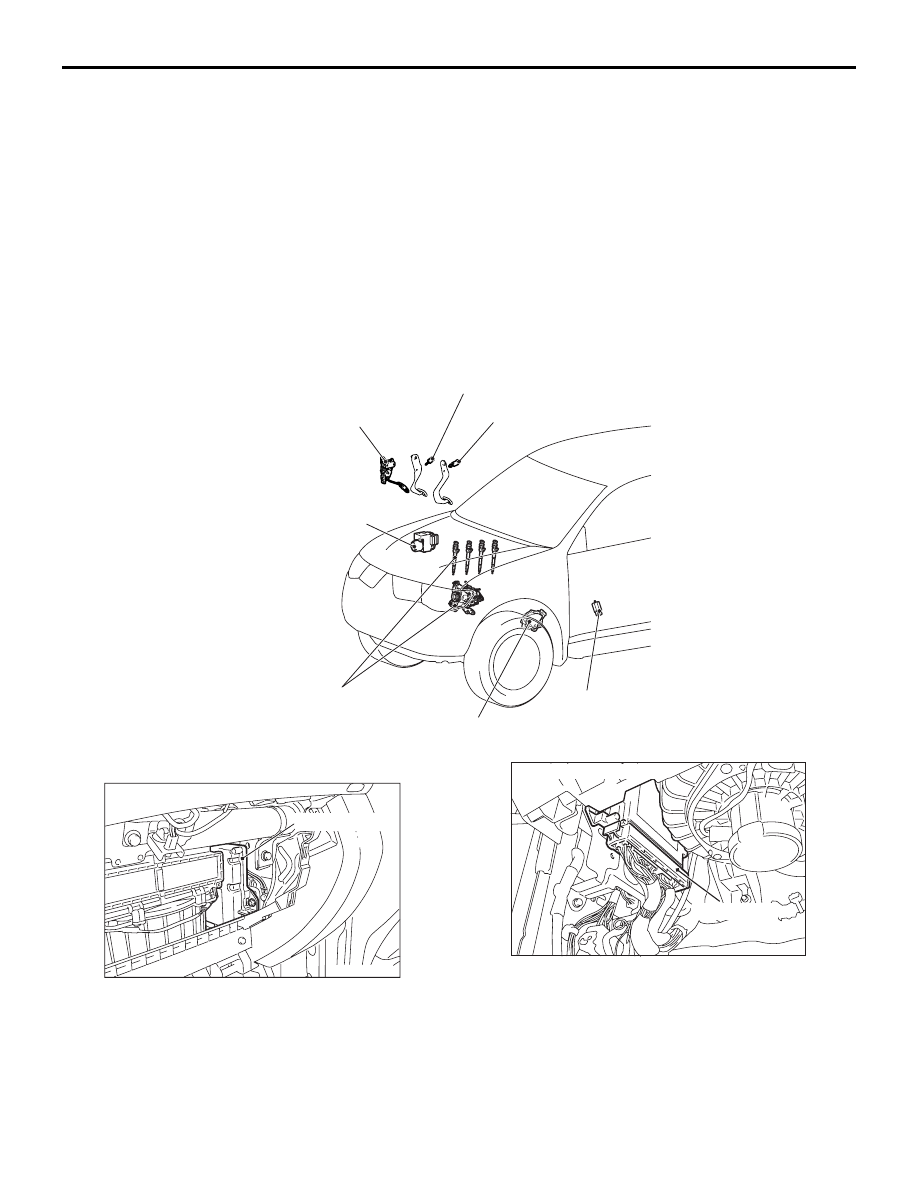

CONSTRUCTION DIAGRAM

AC711389

Stop lamp switch

Vehicle
speed sensor

Clutch switch <M/T>

Accelerator pedal
(Built-in accelerator
pedal position sensor)

AC

Fuel injection system

Inhibitor switch
<A/T>

Hydraulic unit
assembly
(integrated with
ASTC-ECU)

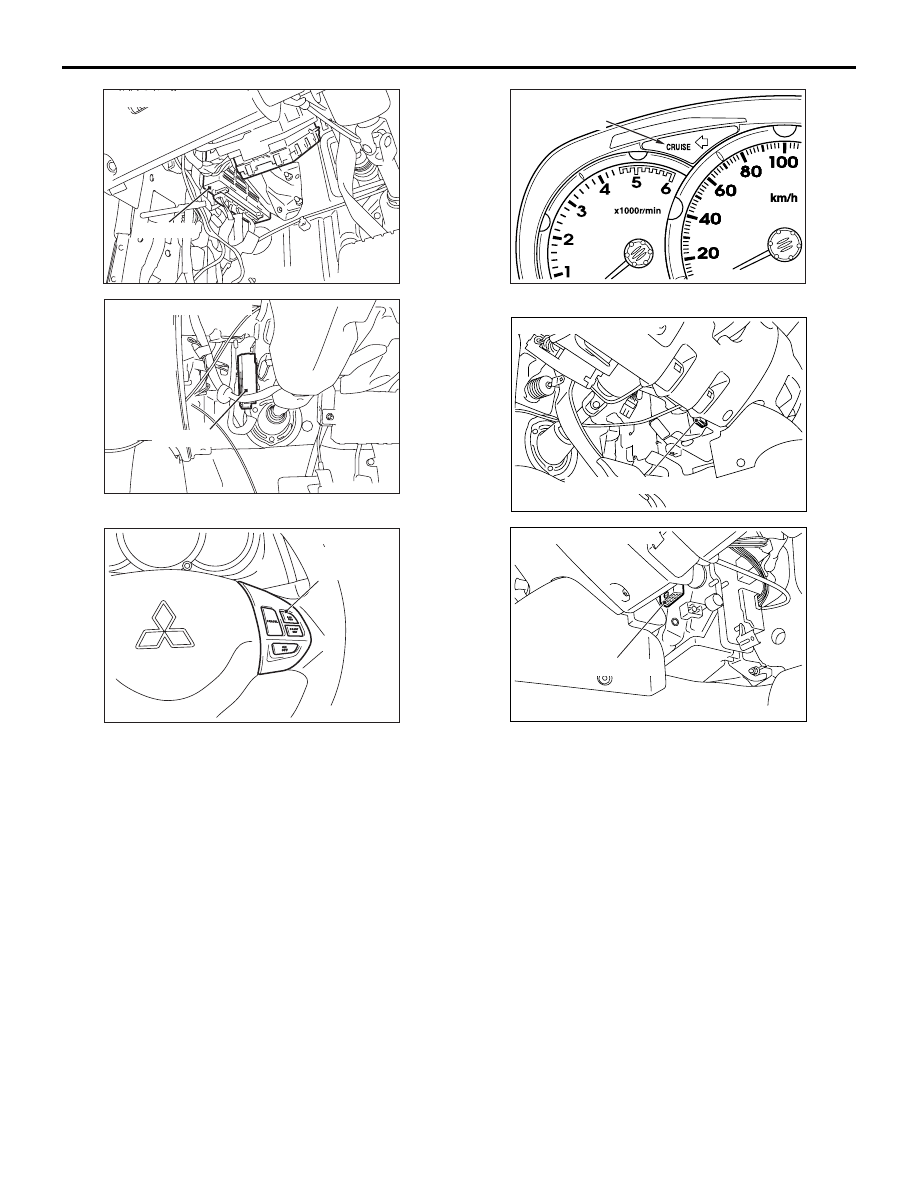

AC509982AG

Engine-ECU

<L H drive vehicles>

AC500966AJ

Engine-ECU

<R H drive vehicles>

AC509994 AC

A/T-ECU

<L H drive vehicles>

AC500965AJ

A/T-ECU

<R H drive vehicles>

AC801078AB

Cruise control
switch

AC900932

Cruise control
indicator lamp

AB

AC711565

AB

Diagnosis connector

<L H drive vehicles>

AC501596

AC

Diagnosis connector

<R H drive vehicles>

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-6

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-7

SPECIAL TOOLS

M1172000601740
