FUEL FILTER

FUEL SUPPLY

13B-10

<Vehicles with plastic fuel filter case>

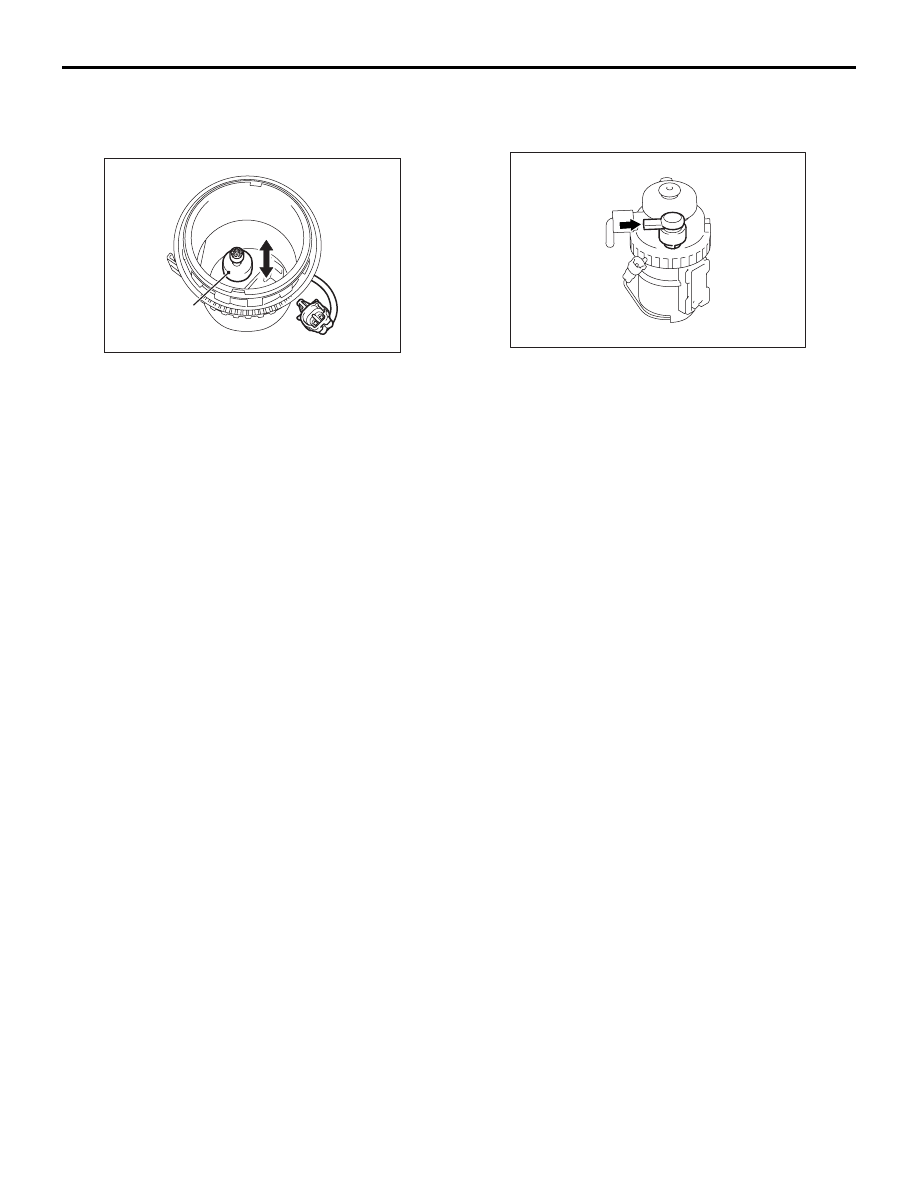

WATER LEVEL SWITCH CHECK
1. Connect the circuit tester to the water level switch.

ACB01915AB

Float

2. There should be continuity when the float is

raised, while there is no continuity when it is
lowered.

3. Replace the fuel filter assembly if it is faulty.

FUEL FILTER VACUUM SWITCH CHECK

ACB01916AB

1. Connect the circuit tester to the fuel filter vacuum

switch and check to see that there is continuity
between the terminals.

2. Replace the fuel filter assembly if it is faulty.

14-1

GROUP 14

ENGINE COOLING

CONTENTS

GENERAL INFORMATION . . . . . . . .

14-2

SERVICE SPECIFICATION(S)  . . . . .

14-2

LUBRICANT(S)  . . . . . . . . . . . . . . . . .

14-2

SEALANT(S) OR ADHESIVE(S) . . . .

14-2

SPECIAL TOOL(S)  . . . . . . . . . . . . . .

14-3

ON-VEHICLE SERVICE. . . . . . . . . . .

14-3

ENGINE COOLANT LEAK CHECK  . . . . . .

14-3

RADIATOR CAP OPENING PRESSURE CHECK



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-3

ENGINE COOLANT CHANGE . . . . . . . . . .

14-4

ENGINE COOLANT CONCENTRATION TEST



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-4

WATER PUMP COOLANT LEAK CHECK .

14-4

RADIATOR FAN  . . . . . . . . . . . . . . . .

14-6

RADIATOR FAN REMOVAL AND INSTALLATION



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-6

THERMOSTAT . . . . . . . . . . . . . . . . . .

14-7

THERMOSTAT REMOVAL AND INSTALLATION



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-7

THERMOSTAT INSPECTION . . . . . . . . . . .

14-8

WATER PUMP  . . . . . . . . . . . . . . . . . .

14-9

WATER PUMP REMOVAL AND INSTALLATION



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-9

WATER HOSE AND WATER PIPE  . .

14-10

WATER HOSE AND WATER PIPE REMOVAL AND
INSTALLATION . . . . . . . . . . . . . . . . . . . . . .

14-10

WATER HOSE AND WATER PIPE INSPECTION



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-15

RADIATOR . . . . . . . . . . . . . . . . . . . . .

14-16

RADIATOR REMOVAL AND INSTALLATION



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-16

GENERAL INFORMATION

ENGINE COOLING

14-2

GENERAL INFORMATION

M1141000101824

The cooling system is designed to keep every part of
the engine at appropriate temperature in whatever
condition the engine may be operated. The cooling
method is of the water-cooled, pressure forced circu-
lation type in which the water pump pressurizes cool-
ant and circulates it throughout the engine. If the
coolant temperature exceeds the prescribed temper-

ature, the thermostat opens to circulate the coolant
through the radiator as well so that the heat
absorbed by the coolant may be radiated into the air.
The water pump is of the centrifugal type and is
driven by the drive belt from the crankshaft. The radi-
ator is the corrugated fin, cross-flow type.

Item

Specification

Radiator

Performance kJ/h

244,300

Built-in A/T oil cooler

Performance kJ/h

6,800

SERVICE SPECIFICATIONS

M1141000300739

Item

Standard value Limit

High-pressure valve opening pressure of radiator cap kPa

93

− 123

Minimum 83

Range of coolant antifreeze concentration of radiator %

30

− 60

-

Thermostat

Valve opening temperature of thermostat

°C

82

± 2

-

Full-opening temperature of thermostat

°C

95

-

Valve lift mm

10 or more

-

LUBRICANT

M1141000400662

Item

Specified coolant

Quantity L

Engine coolant (including
radiator condense tank)

DIA QUEEN SUPER LONG LIFE COOLANT or
equivalent

8.2

SEALANTS

M1141000501576

Item

Specified sealant

Engine coolant temperature gauge unit

3M ATD Part No.8660 or exact equivalent

Engine coolant temperature sensor

ThreeBond 1324N, LOCTITE 262 or equivalent

SPECIAL TOOLS

ENGINE COOLING

14-3

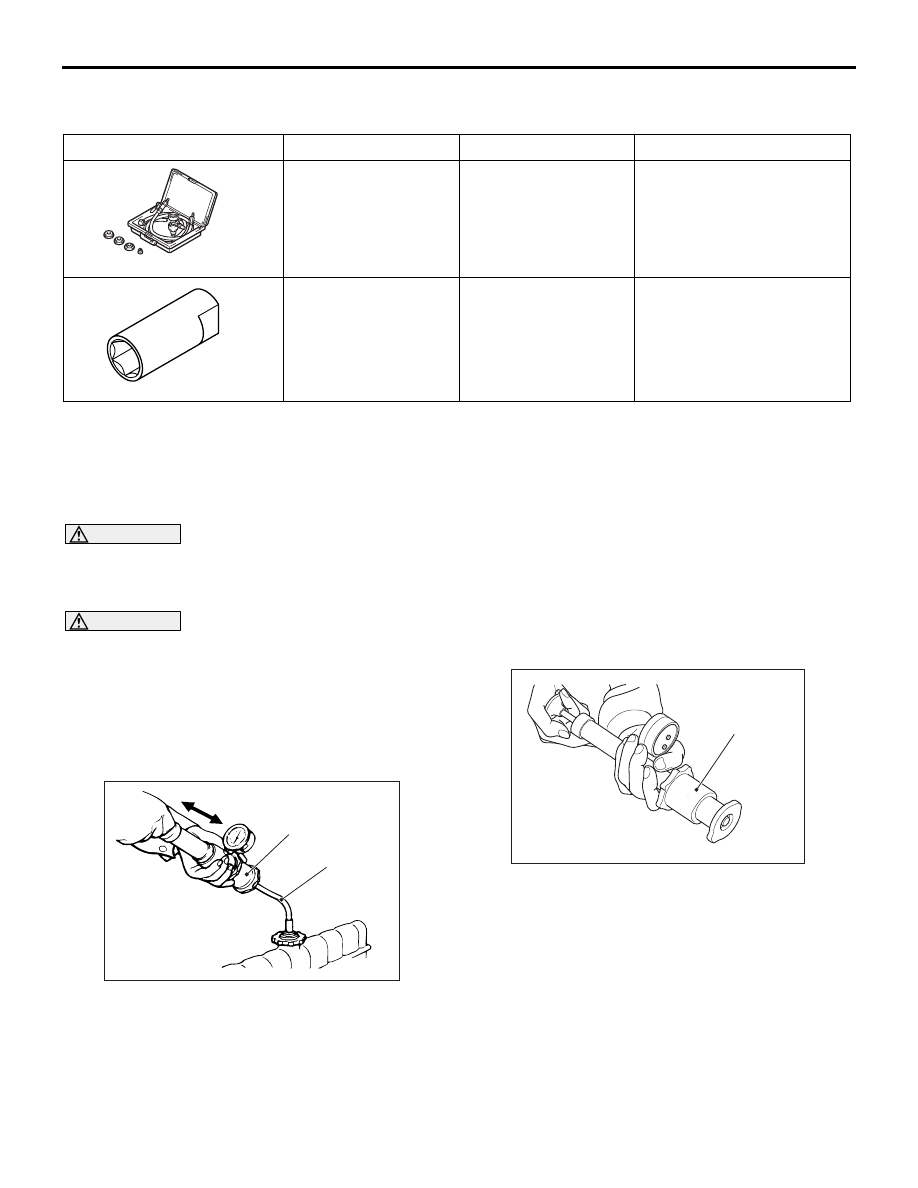

SPECIAL TOOLS

M1141000601432

Tool

Number

Name

Use

MB991871

MB991871

LLC changer

Coolant refilling

MB992042

MB992042

Engine coolant
temperature sensor
wrench

Removal and installation of
the engine coolant
temperature sensor

ON-VEHICLE SERVICE

ENGINE COOLANT LEAK CHECK

M1141001000515

WARNING

When pressure testing the cooling system,
slowly release cooling system pressure to
avoid getting burned by hot coolant.

CAUTION

• Be sure to completely clean away any mois-

ture from the places checked.

• When the tester is taken out, be careful not to

spill any coolant.

•

ACX01844

Cap adapter

Adapter

AC

Be careful when installing and removing the
tester and when testing not to deform the
filler neck of the radiator.

1. Check that the coolant level is up to the filler neck.

Install a radiator tester and apply 160 kPa
pressure, and then check for leakage from the
radiator hose or connections.

2. If there is leakage, repair or replace the

appropriate part.

RADIATOR CAP VALVE OPENING
PRESSURE CHECK

M1141001300646

NOTE: Be sure that the cap is clean before test-
ing. Rust or other foreign material on the cap seal
will cause an improper reading.

AC211643 AB

Cap adapter

1. Use a cap adapter to attach the cap to the tester.
2. Increase the pressure until the indicator of the

gauge stops moving.
Minimum limit: 83 kPa
Standard value: 93

− 123 kPa

3. Replace the radiator cap if the reading does not

remain at or above the limit.
