CAMSHAFT POSITION SENSOR

DIESEL FUEL

13A-612

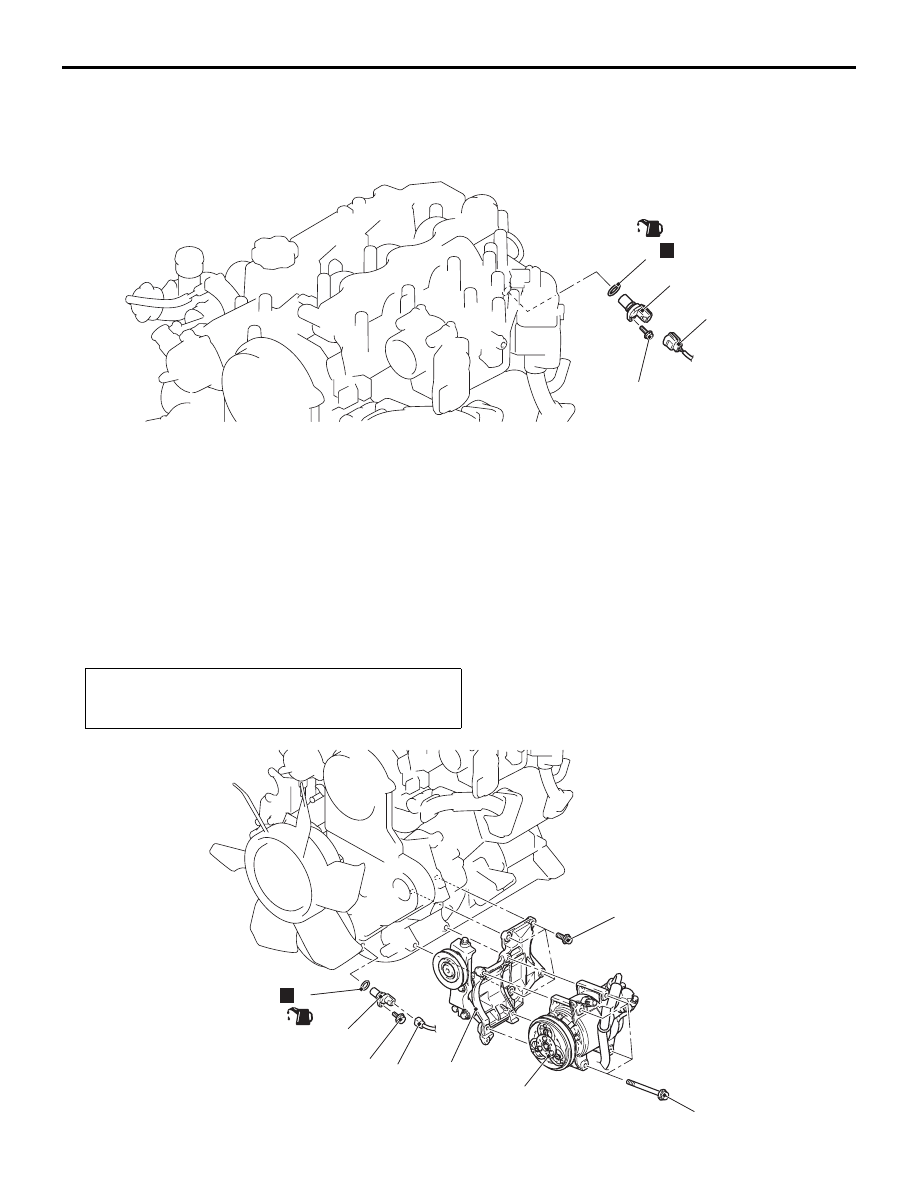

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1133010000091

CRANK ANGLE SENSOR

REMOVAL AND INSTALLATION

M1133010200147

AC502938 AC

N

3

11 ± 1 N·m

2

1

(Engine oil)

Removal steps

1.

Camshaft position sensor
connector

2.

Camshaft position sensor

3.

O-ring

Removal steps (Continued)

Pre-removal and Post-installation Operation
• A/C Compressor Drive Belt Removal and Installation

(Refer to GROUP 11A

− Crankshaft Pulley ).

AC805916 AC

44 ± 8 N·m

2

3

4

5

11 ± 1 N·m

22 ± 4 N·m

N

1

(Engine oil)

ENGINE-ECU

DIESEL FUEL

13A-613

REMOVAL SERVICE POINT

<<A>> A/C COMPRESSOR ASSEMBLY
REMOVAL
1. With the hose installed, remove the A/C

compressor assembly from the bracket.

2. After removing the A/C compressor assembly,

secure it with a cord in the location where the
removal and installation of the crankshaft position
sensor cannot be hindered.

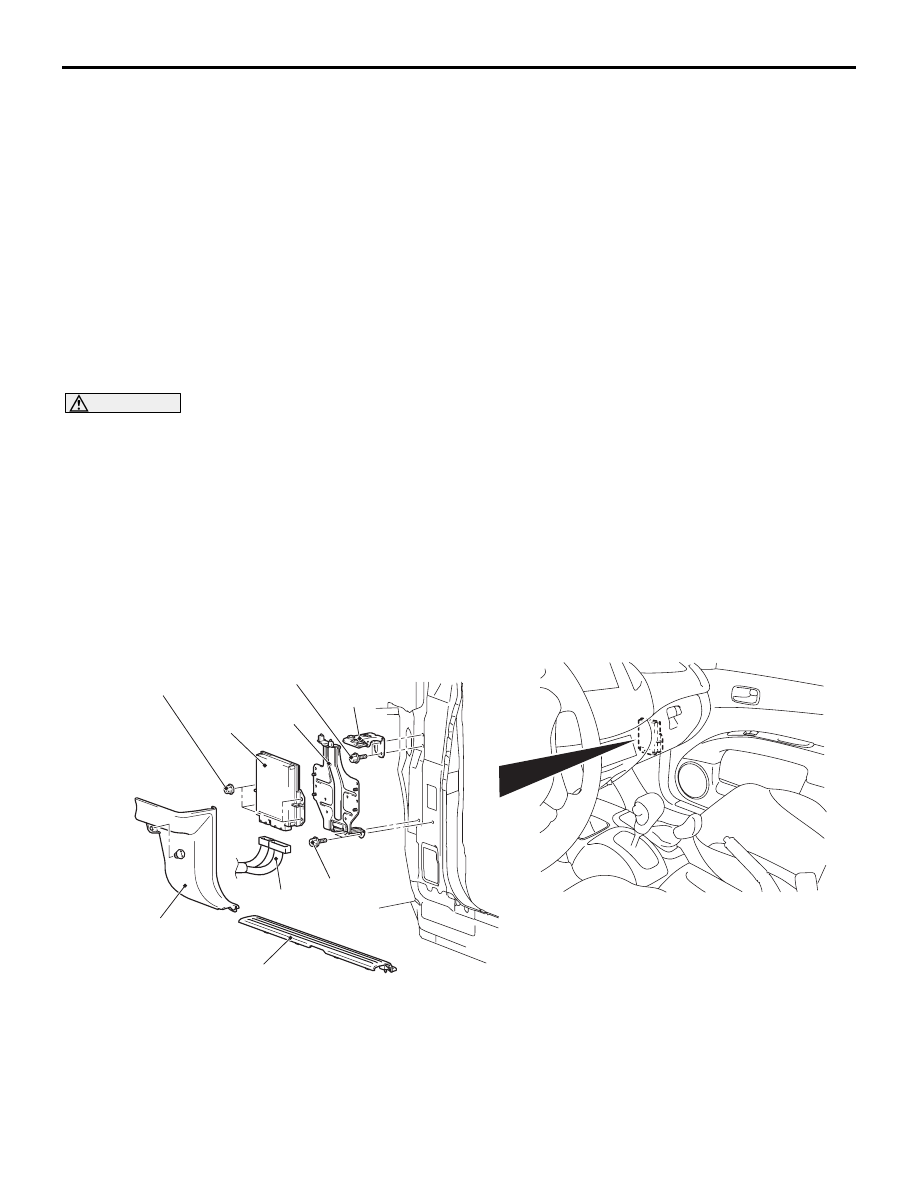

ENGINE-ECU

REMOVAL AND INSTALLATION

M1133009200767

CAUTION

• After having replaced the engine-ECU, use the M.U.T.-III to register the chassis number. [Refer to

GROUP 00

− Precautions before Service, How to perform chassis number (Chassis No.) writing ].

• When the engine-ECU is replaced, register the injector identification code and perform the small

injection quantity learning. (Refer to GROUP 00

− Precautions before Service, What the Common

Rail Engine Learns ).

• When the engine-ECU is replaced, make the battery current sensor learn the neutral point by

using M.U.T.-III (Refer to GROUP 00

− Precautions before Service, Battery Current Sensor Calibra-

tion ) <Euro5>.

<LH drive vehicles>

Removal steps

<<

A

>>

1.

A/C compressor assembly

2.

A/C compressor bracket assembly

3.

Crankshaft position sensor
connector

4.

Crankshaft position sensor

5.

O-ring

AC508203

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

1

2

3

4

5

6

AD

Removal steps

1.

Scuff plate

2.

Cowl side trim

3.

Engine-ECU connectors

4.

Engine-ECU

5.

ECU lower bracket

6.

ECU upper bracket

Removal steps (Continued)

ENGINE-ECU

DIESEL FUEL

13A-614

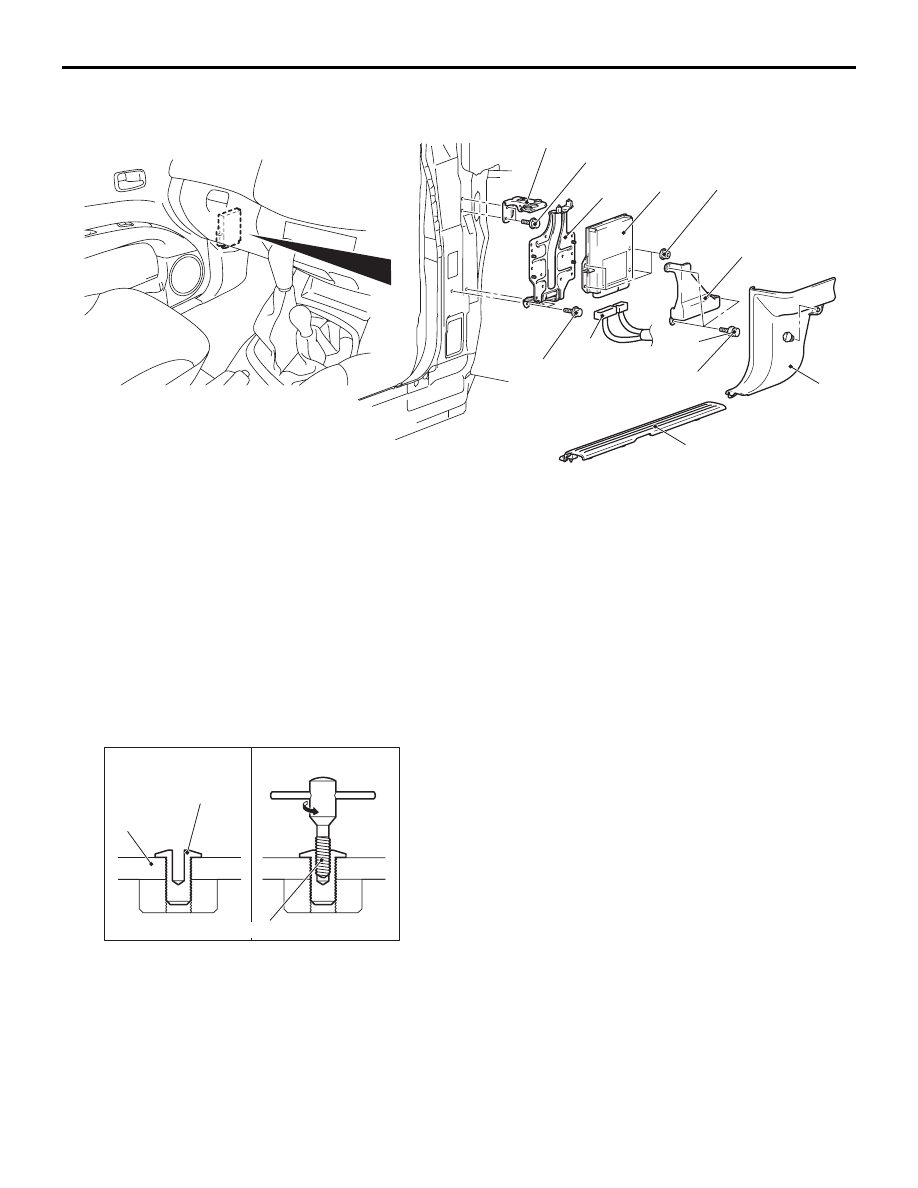

<RH drive vehicles>

REMOVAL SERVICE POINT

<<A>> BREAK OFF BOLT REMOVAL <RH DRIVE
VEHICLES>

1. Drill in the break off bolt a hole deep enough for

the tap to stand.

2. Use the recommended tool screw extractor set

(MB992678) or equivalent to remove the break off
bolt.

INSTALLATION SERVICE POINT

>>A<< BREAK OFF BOLT INSTALLATION <RH
DRIVE VEHICLES>
Tighten the break off bolt until its head is broken off.

AC805918

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

5.0 ± 2.0 N·m

1

2

5

6

7

8

AB

4

7.5 ± 1.5 N·m

3

Removal steps

1.

Scuff plate

2.

Cowl side trim

<<

A

>>

>>

A

<<

3.

Brake off bolt

4.

ECU cover

5.

Engine-ECU connectors

6.

Engine-ECU

7.

ECU lower bracket

8.

ECU upper bracket

AC609908AG

Break off bolt

ECU bracket

MB992678 or equivalent

13B-1

GROUP 13B

FUEL SUPPLY

CONTENTS

GENERAL INFORMATION . . . . . . . .

13B-2

SPECIAL TOOL(S)  . . . . . . . . . . . . . .

13B-2

ON-VEHICLE SERVICE. . . . . . . . . . .

13B-2

FUEL LEAK CHECK OF FUEL TANK  . . . .

13B-2

FUEL DRAINING  . . . . . . . . . . . . . . . . . . . .

13B-3

FUEL TANK . . . . . . . . . . . . . . . . . . . .

13B-4

FUEL TANK REMOVAL AND INSTALLATION



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13B-4

FUEL GAUGE UNIT DISASSEMBLY AND
REASSEMBLY  . . . . . . . . . . . . . . . . . . . . . .

13B-5

FUEL GAUGE UNIT CHECK  . . . . . . . . . . .

13B-5

FUEL FILTER . . . . . . . . . . . . . . . . . . .

13B-6

FUEL FILTER REMOVAL AND INSTALLATION
<Vehicles with steel fuel filter case> . . . . . .

13B-6

FUEL FILTER REMOVAL AND INSTALLATION
<Vehicles with plastic fuel filter case> . . . . .

13B-8

FUEL FILTER INSPECTION . . . . . . . . . . . .

13B-9
