COMMON RAIL AND SUPPLY PUMP

DIESEL FUEL

13A-608

3. Tighten the common rail assembly side flare nut in

the fuel supply pump pipe and the supply pump
assembly side flare nut alternately in several
steps to the specified torque.

Tightening torque: 35

± 5 N⋅m

4. Tighten the supply pump assembly bolts to the

specified torque.

Tightening torque: 24

± 4 N⋅m

5. Tighten the fuel supply pump pipe bolt.

>>D<< INJECTION PUMP SPROCKET
INSTALLATION

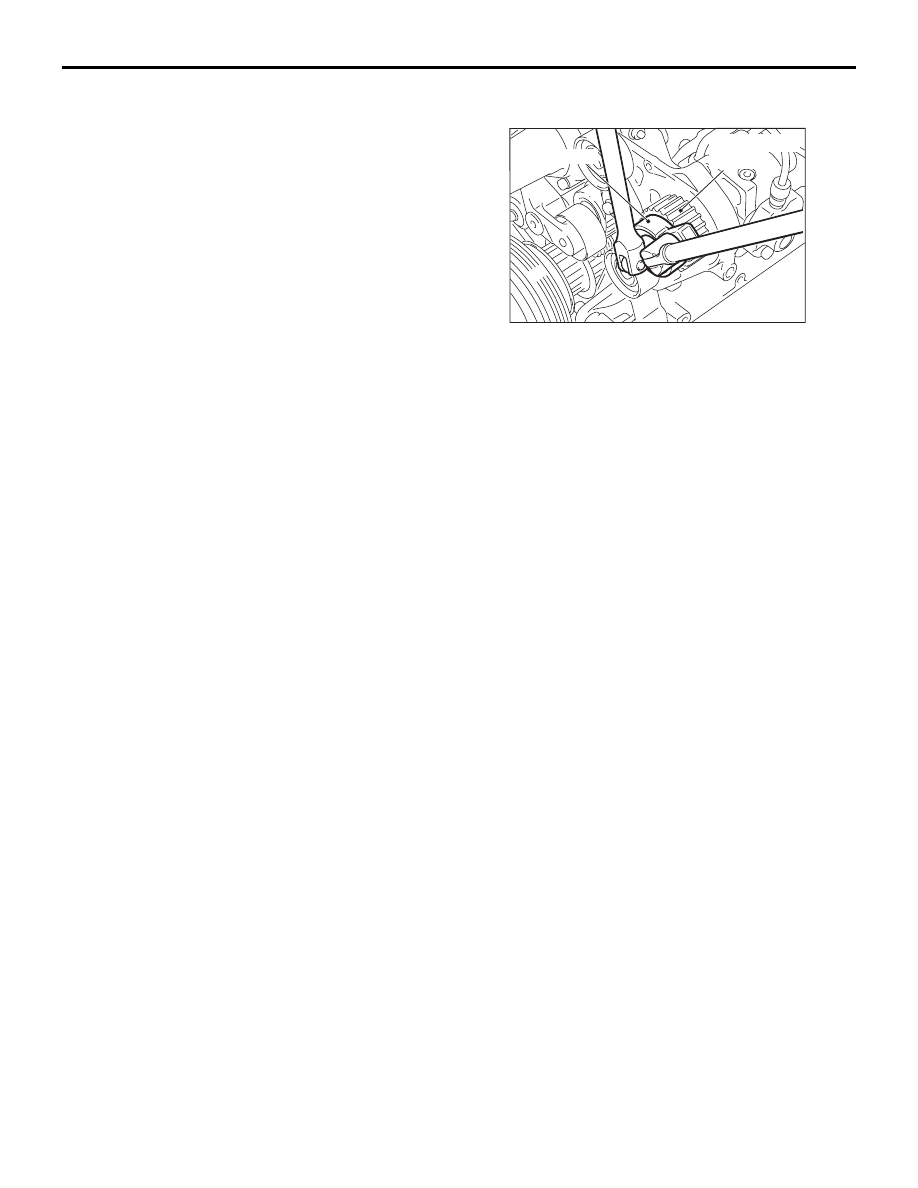

In the same manner as for removal, using special
tool sprocket holder (MB992048), lock the injection
pump sprocket, and then tighten the injection pump
sprocket mounting nut to the specified torque.

Tightening torque: 64

± 5 N⋅m

AC503013 AB

MB992048

Injection pump
sprocket

SUCTION CONTROL VALVE

DIESEL FUEL

13A-609

SUCTION CONTROL VALVE

REMOVAL AND INSTALLATION

M1133011900213

REMOVAL SERVICE POINT

<<A>> SUCTION CONTROL VALVE/GASKET/O-
RING REMOVAL.
1. Clean the area around the suction control valve

with a cleaner, etc.

CAUTION

Pay attention not to let foreign materials get into
the supply pump assembly during and after the
suction control valve removal.
2. Loosen the suction control valve mounting bolts,

and remove the suction control valve from the
supply pump assembly.

3. Remove the gasket
4. Remove the o-ring from the supply pump

assembly.

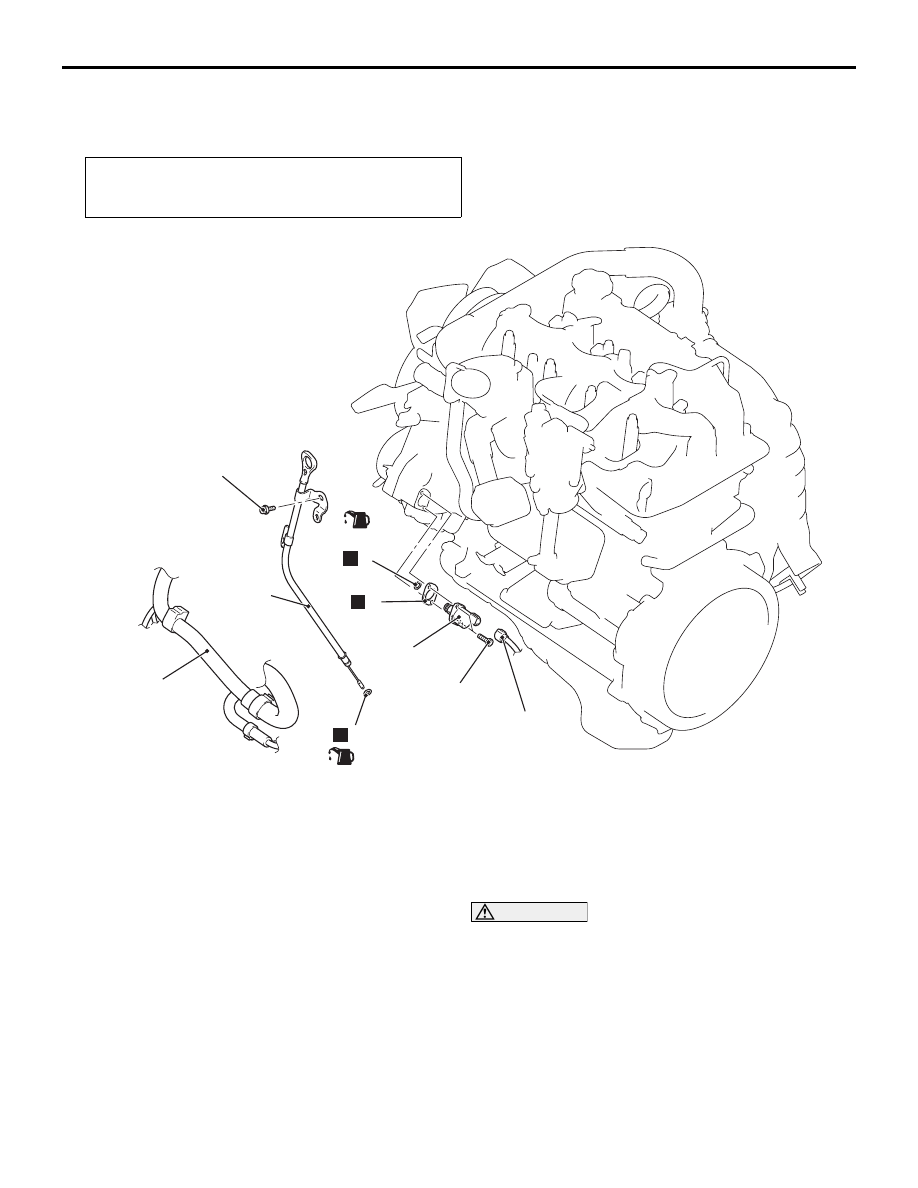

Pre-removal and Post-installation Operation
• Battery and Battery Tray Stay Removal and Installation

(Refer to GROUP 54A

− Battery ).

AC704545

N

3

1

2

N

AC

8.9 ± 1.9 N·m

4

7

6

5

N

48 ± 6 N·m

(Engine oil)

(Engine oil)

Removal steps

•

Supply pump assembly correction
learning (Refer to GROUP 00

−

Precautions Refer Service, Supply
Pump Correction Learning
procedure ) <only at installation>.

1.

Battery wiring cable connection

2.

Engine oil level gauge and guide
assembly

3.

O-ring

4.

Suction control valve connector
connection

<<

A

>> >>

A

<< 5.

Suction control valve

<<

A

>> >>

A

<< 6.

Gasket

<<

A

>> >>

A

<< 7.

O-ring

SUCTION CONTROL VALVE

DIESEL FUEL

13A-610

INSTALLATION SERVICE POINT

>>A<< O-RING/GASKET/SUCTION CONTROL
VALVE INSTALLATION

CAUTION

• Pay attention not to let the suction control

valve be contaminated with foreign material
when installing it.

• Pay attention not to let foreign materials get

into the supply pump assembly during the
suction control valve installation.

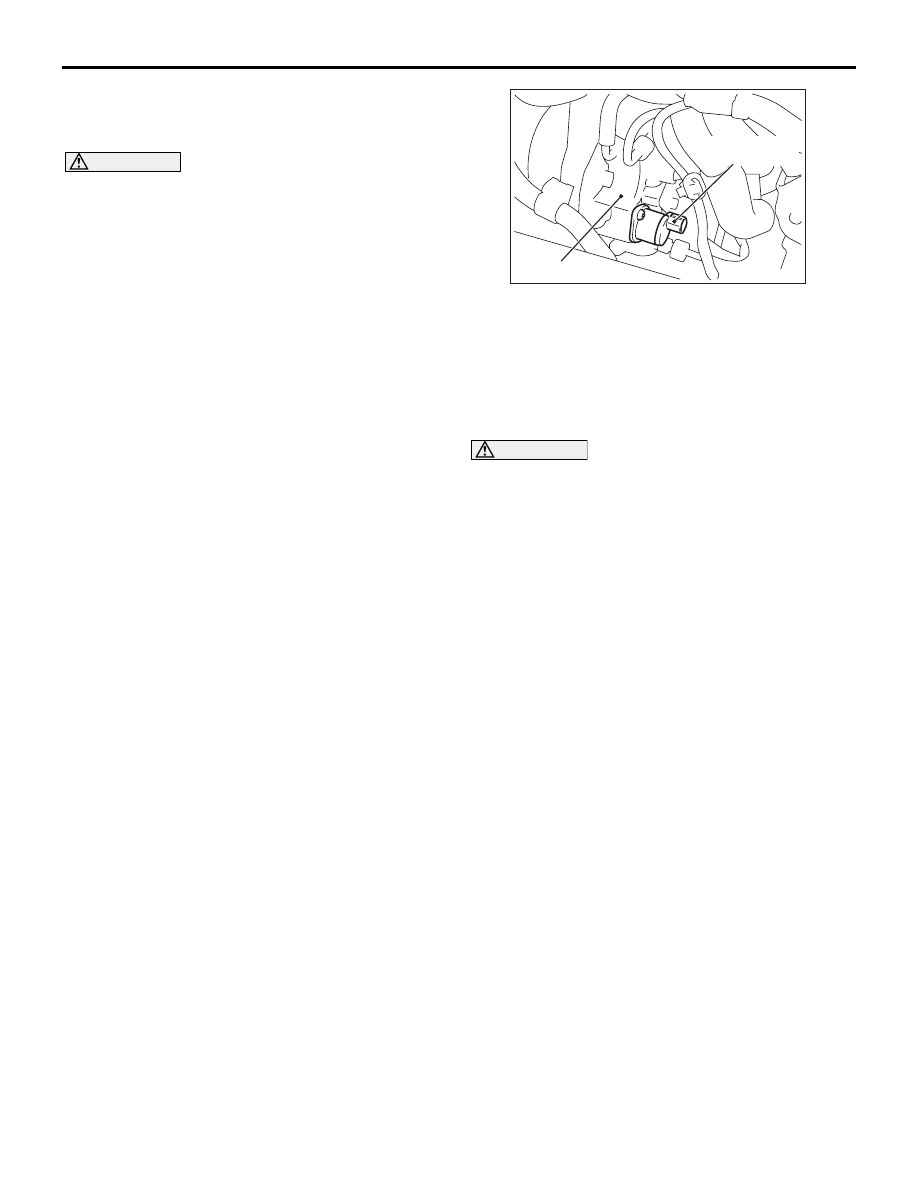

1. Fit the O-ring to the O-ring groove on the supply

pump assembly.

2. Install the gasket to the suction control valve.

3. Apply a drop of new engine oil to the O-ring in the

supply pump assembly groove, and insert the
suction control valve by hands until it contacts
with the supply pump assembly. When inserting
the suction control valve, make sure that the
suction control valve connector is in the direction
shown in the figure.

CAUTION

Tighten the two suction control valve mounting
bolts evenly.
4. Tighten the suction control valve mounting bolts to

the specified torque.

Tightening torque: 8.9

± 1.9 N⋅m

AC704546AB

Supply pump

Suction control
valve connector

THROTTLE BODY ASSEMBLY

DIESEL FUEL

13A-611

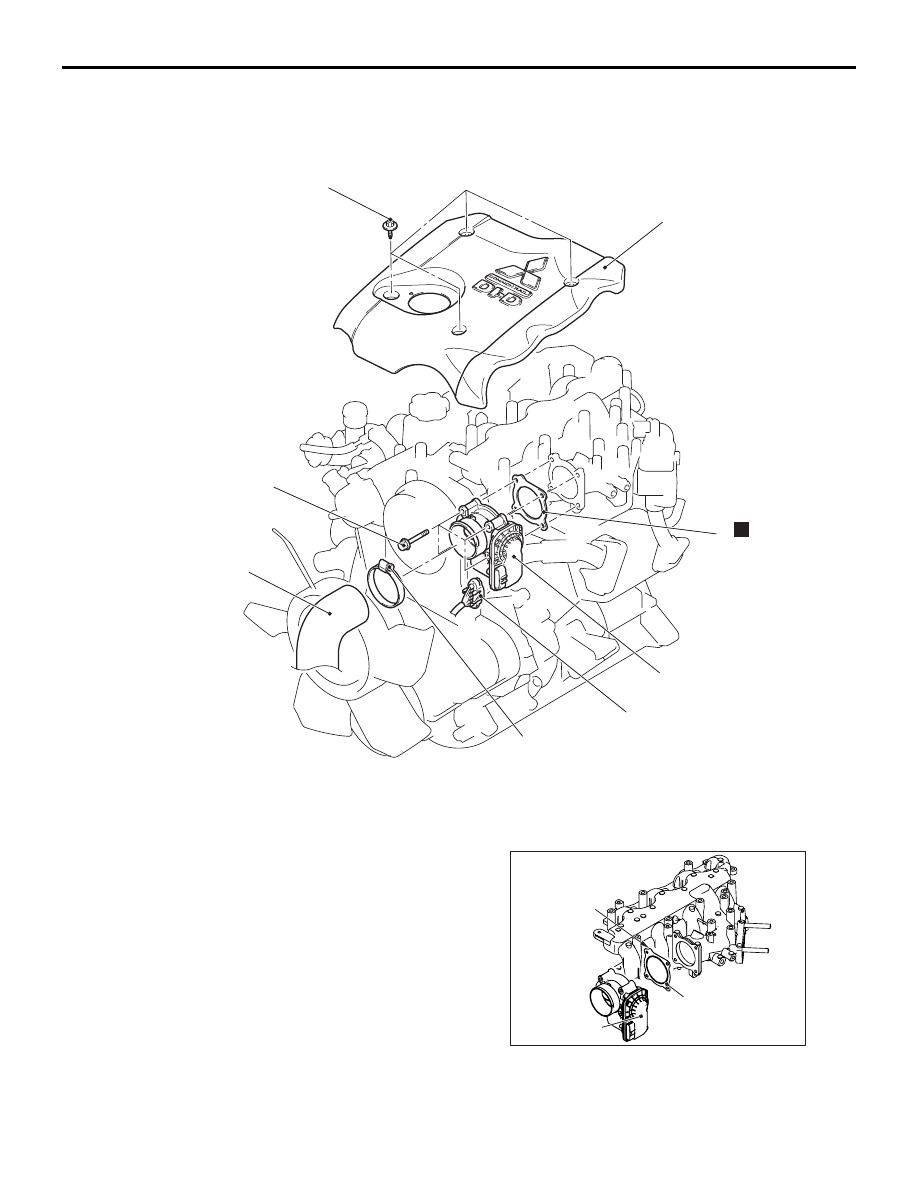

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

M1133007600435

INSTALLATION SERVICE POINT

>>A<< THROTTLE BODY GASKET INSTALLA-
TION

Install the throttle body gasket as shown in the illus-
tration.

AC502843AD

1

3.0 ± 0.5 N·m

2

3

N

5

4

13 ± 2 N·m

6.0 ± 1.0 N·m

Removal steps

1.

Engine cover

2.

Inter cooler outlet air hose
connection

3.

Throttle body connector

4.

Throttle body

>>

A

<< 5.

Throttle body gasket

AC502844AB

Projection

Throttle body
gasket

Throttle body
