TROUBLESHOOTING

DIESEL FUEL

13A-488

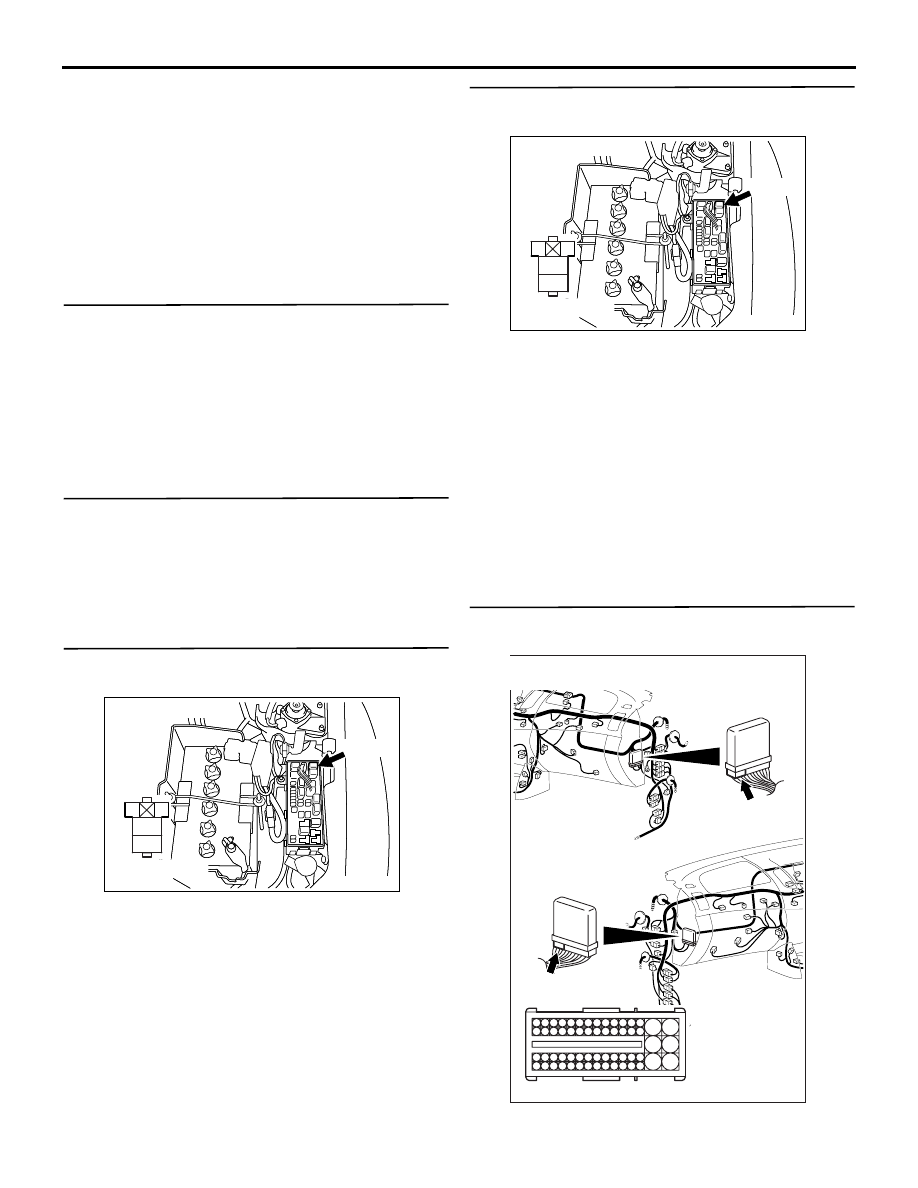

• Failed engine control relay

• Damaged harness (Open circuit between engine-

ECU and engine control relay, engine control
relay and relay box, engine-ECU and earth, and
open circuit between engine-ECU and J/B)

• Damaged connector (Engine-ECU connector,

diagnosis connector)

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check battery voltage.

• Measure battery voltage during cranking.

OK: 8 V or more

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Check battery (Refer to GROUP 54A

−

Battery

− On-vehicle Service − Battery test

).

STEP 2. Check engine control relay itself.

• Check engine control relay itself (Refer to

P.13A-

594

).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the engine control relay.

STEP 3. Connector check: A-20X engine control
relay connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace.

STEP 4. Perform voltage measurement at A-20X
engine control relay connector.

• Remove relay, and measure at harness side.

• Voltage between terminal No. 1 and earth, also

between terminal No. 4 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Check intermediate connector A-115, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between A-20X (terminal No. 1 and
terminal No. 4) engine control relay
connector and battery.

STEP 5. Connector check: C-103 engine-ECU
connector.

Q: Is the check result normal?

AK501321

2

1

3
4

Relay box's side
connector

A-20X

Connector: A-20X

AC

AK501321

2

1

3
4

Relay box's side
connector

A-20X

Connector: A-20X

AC

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

TROUBLESHOOTING

DIESEL FUEL

13A-489

YES :

Go to Step 6 .

NO :

Repair or replace.

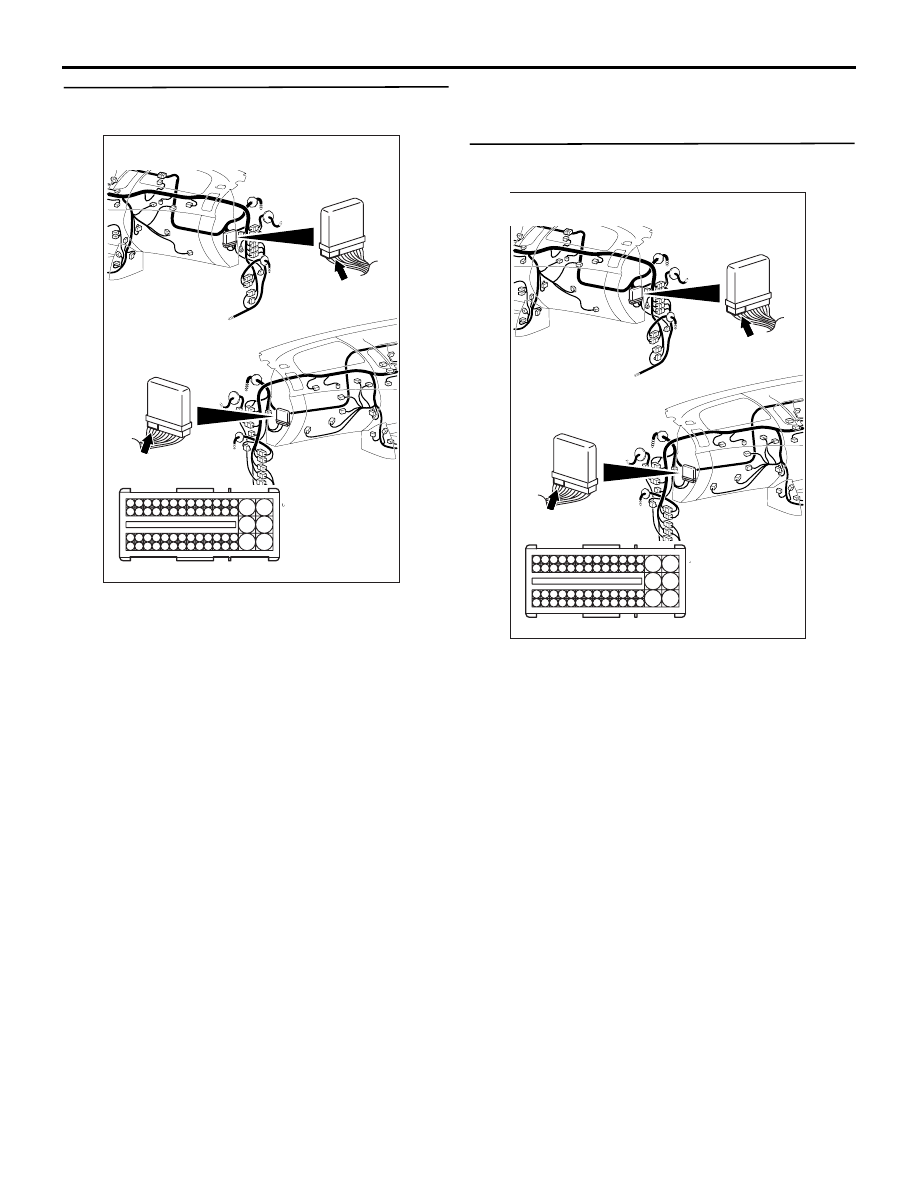

STEP 6. Perform voltage measurement at C-103
engine-ECU connector

• Disconnect connector, and measure at harness

side.

• Voltage between terminal No. 118 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the harness wire.

STEP 7. Perform voltage measurement at C-103
engine-ECU connector.

• Disconnect connector, and measure at harness

side.

• Short-circuit terminal No. 118 to earth.

• Voltage between terminal No. 101 and earth also

between terminal No. 102 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair the harness wire.

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

TROUBLESHOOTING

DIESEL FUEL

13A-490

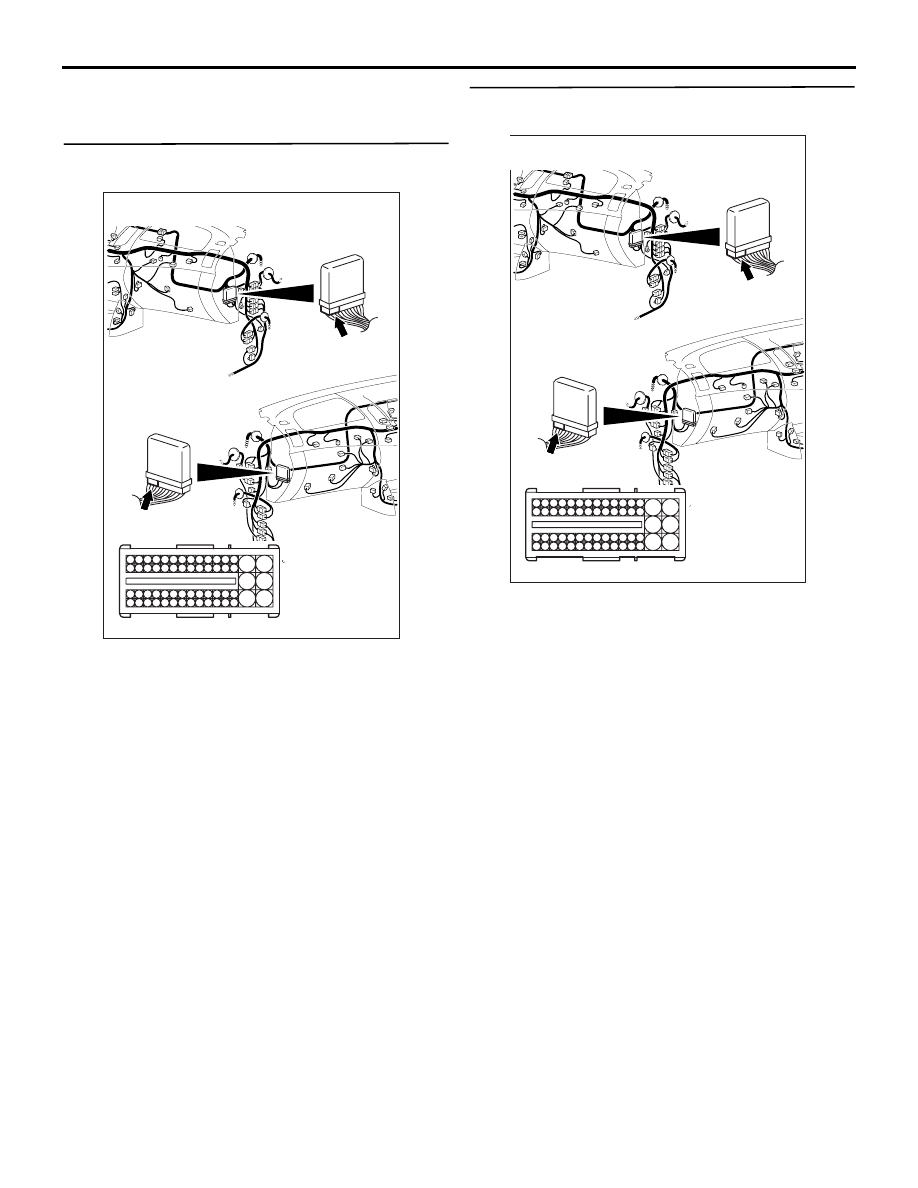

STEP 8. Check for open circuit between engine-
ECU connector C-103 and earth.

• Disconnect connector, and measure at harness

side.

• Check open circuit between terminal No. 145 and

earth.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair the harness wire.

STEP 9. Connector check: C-103 engine-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace.

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

TROUBLESHOOTING

DIESEL FUEL

13A-491

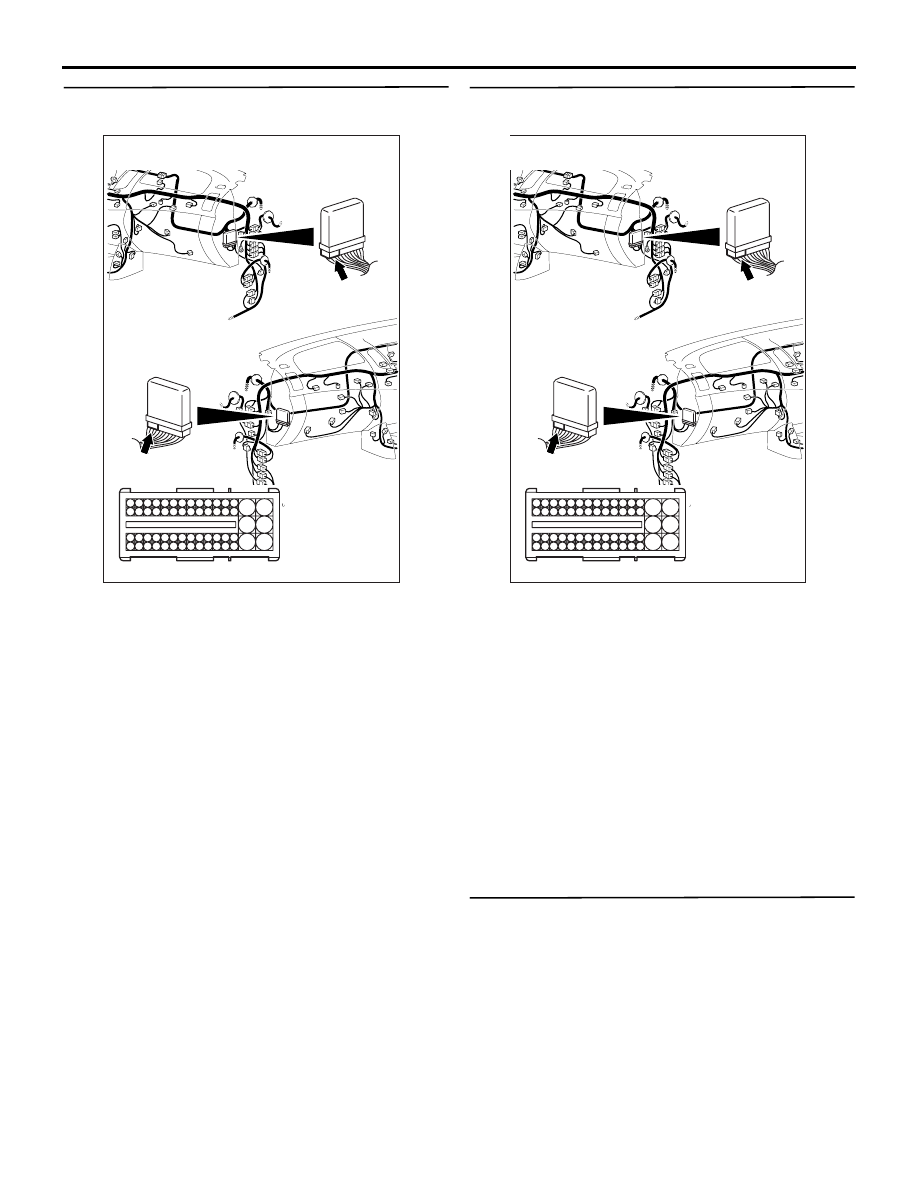

STEP 10. Check for open circuit between engine-
ECU connector C-103 and earth.

• Disconnect connector.

• Check open circuit between terminal No. 116 and

earth also between terminal No. 117 and earth.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair the harness wire.

STEP 11. Perform voltage measurement at C-103
engine-ECU connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 104 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Check intermediate connector C-53 <L. H.
drive vehicles> or C-35 <R. H. drive
vehicles>, and repair if necessary. If
intermediate connector is normal, check and
repair harness between C-103 (terminal No.
104) engine-ECU connector and C-208 J/B
connector.

STEP 12. Check the trouble symptoms.

Q: Does trouble symptom persist?

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB
