TROUBLESHOOTING

DIESEL FUEL

13A-452

Inspection Procedure 4: Starting Impossible (No Initial Combustion) <A/T>

1

1

1

2

3
4

AKB00287

1

2 3

6

7 8

4 5

9 10

101 102

103104 105 106107 108109 110 111112 113 114115

118119 120 121122 123124 125126127 128 129130

131132 133 134135 136137 138139140 141142 143

146147 148 149150 151152 153154155 156 157158

117

145

116

144

1 2 3
4 5 6

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple

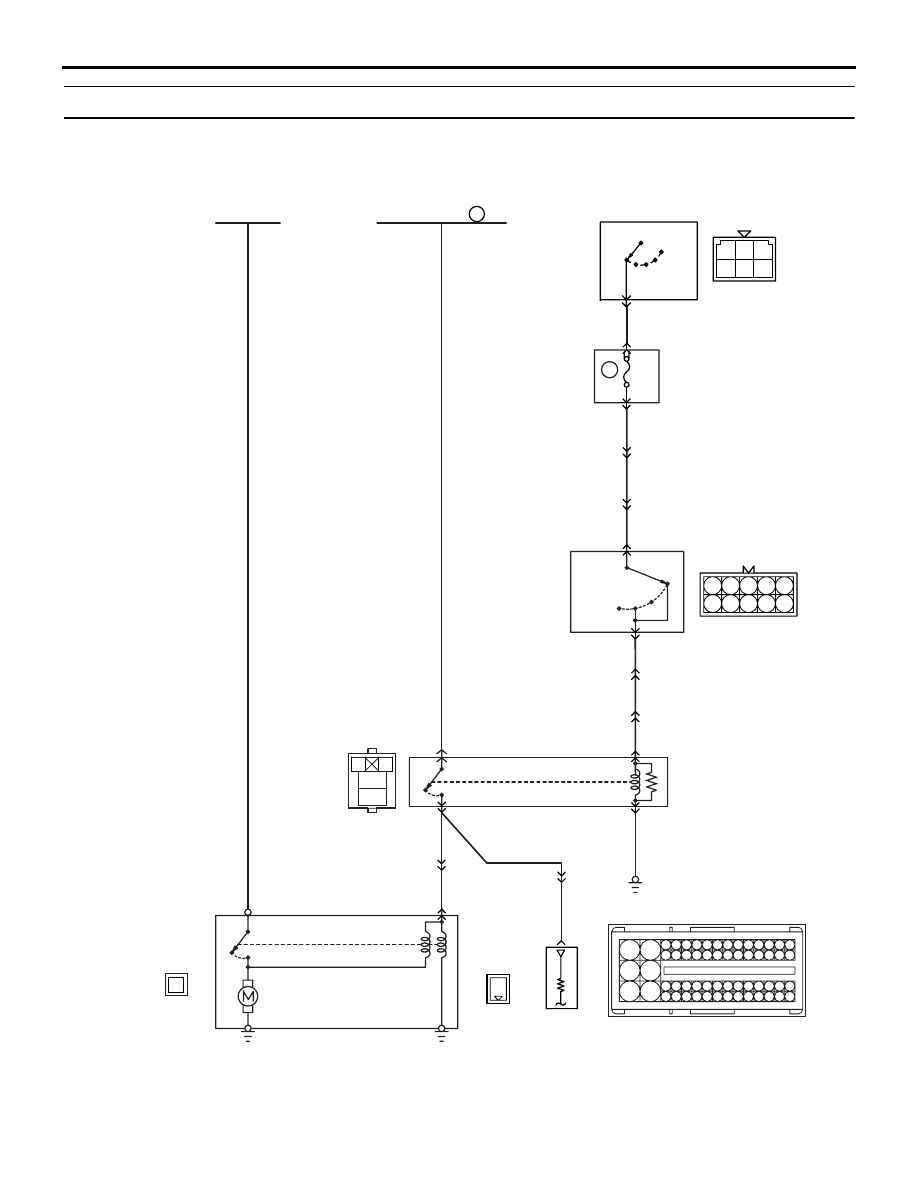

Starting Impossible (no initial combustion) <A/T>

Battery

Fusible link

Ignition switch

Inhibitor
switch

3

5

5

10

9

6

B-10

J/B

2

4

7.5A

C-211

11

5

A-115

B-10

2

1

4

3

ON

OFF

ON

OFF

6

1

1

8

A-115

A-27

B-14

MU802645

C-207

R-B

R-B

R-B

R-B

B-Y

B

B-L

B-L

G-R

B-W

B-R

W

P

R

N

D

B-Y

B-Y

A-10

A-110

(MU801211)

C-103

A-16X

Engine-ECU

Starter
relay

Starter

C-307

IG2

ST

LOCK

ACC

IG1

111

10

A-115

AB

TROUBLESHOOTING

DIESEL FUEL

13A-453

COMMENT ON TROUBLE SYMPTOM

• Failure is possibly caused by failed starter itself

or failed related circuit.

PROBABLE CAUSES

• Failed battery

• Failed inhibitor switch

• Failed starter motor

• Failed starter relay

• Open/short circuit in starter associated circuit or

loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check battery voltage.

• Measure battery voltage at cranking.

OK: 8 V or higher

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Check battery (Refer to GROUP 54A

−

Battery-On-vehicle Service

− Battery Test ).

STEP 2. M.U.T.-III data list

• Item 40: Starter switch

OK:

ON (Ignition switch: ST)
OFF (Ignition switch: ON)

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Go to Step 3.

STEP 3. Connector check: A-16X starter relay
connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair or replace.

STEP 4. Check starter relay

• Check starter relay (Refer to GROUP 16 − Start-

ing System

− Starter Relay Check ).

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the starter relay.

STEP 5. Perform voltage measurement at A-16X
starter relay connector.

• Disconnect connector, and measure at the har-

ness side.

• Ignition switch: ST

• Voltage between terminal No. 2 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 6.

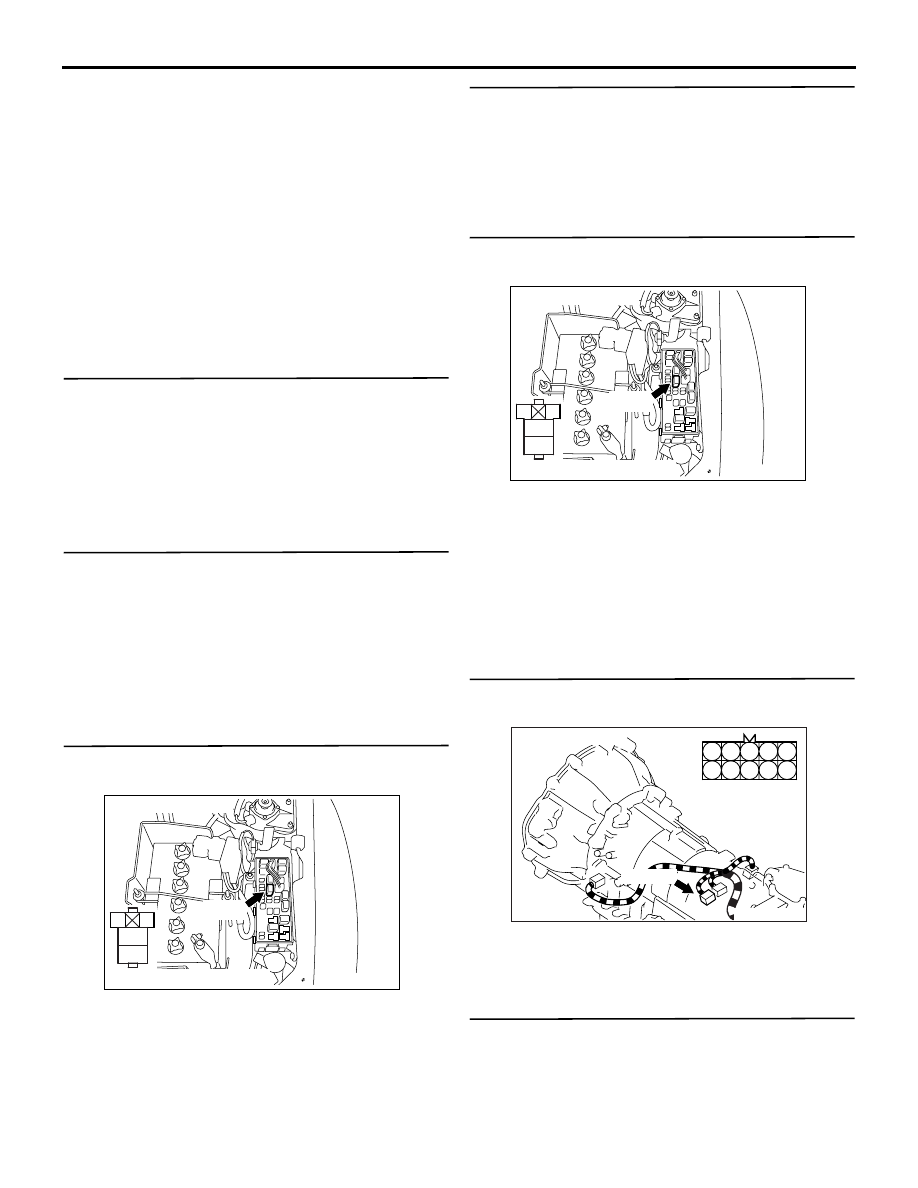

STEP 6. Connector check: B-14 inhibitor switch
connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair or replace.

STEP 7. Check inhibitor switch

• Check inhibitor switch (Refer to GROUP 23A −

On-vehicle Service

− Inhibitor Switch Continuity

Check ).

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the inhibitor switch.

AK501014

2

1

3
4

AC

A-16X

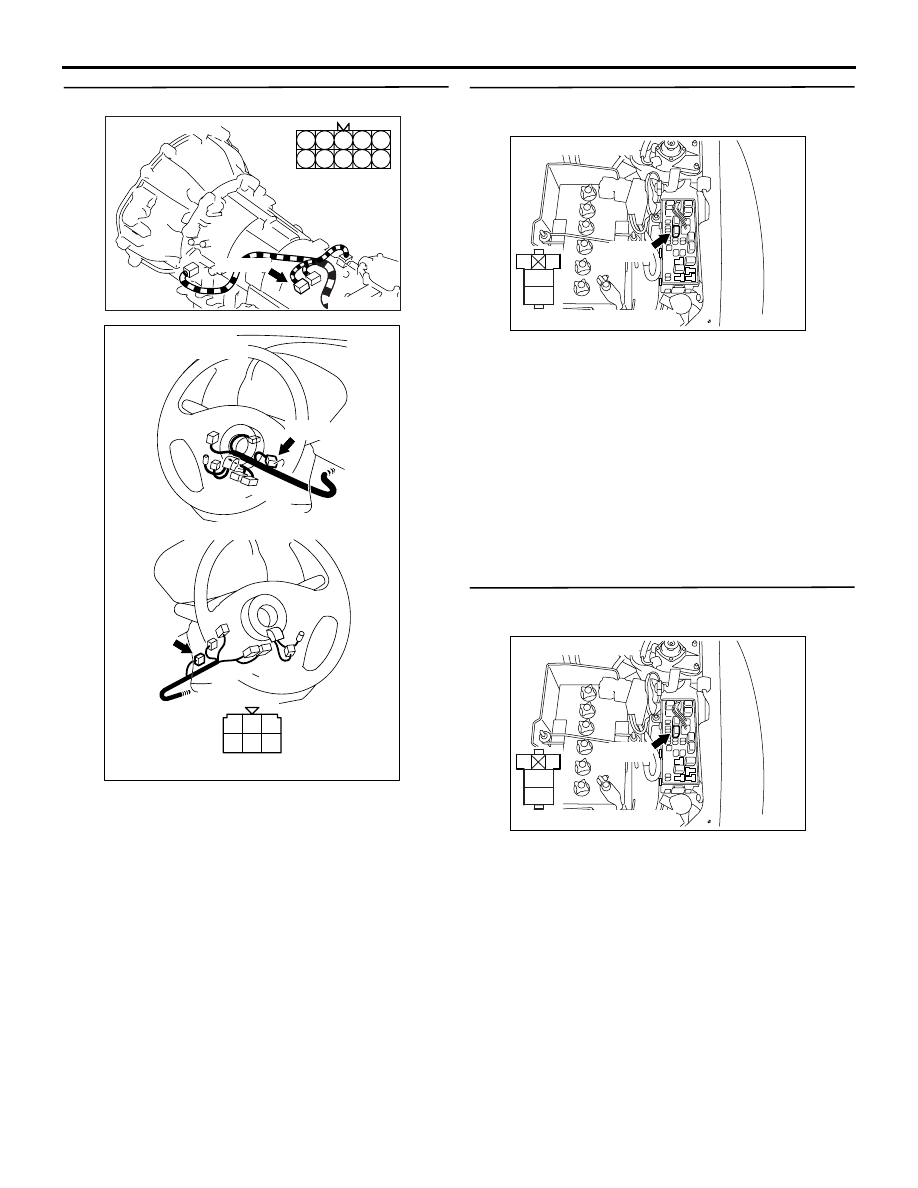

Connector: A-16X

Relay box's side connector

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

AK700823

3

4

5

8

9

1

2

6

7

10

AB

Connector: B-14

B-14 (B)

Harness side
connector

TROUBLESHOOTING

DIESEL FUEL

13A-454

STEP 8. Perform voltage measurement at B-14
inhibitor switch connector

• Disconnect connector, and measure at the har-

ness side.

• Ignition switch: ST

• Voltage between terminal No. 10 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Check intermediate connectors A-115 and

B-10, and repair if necessary. If starter relay
connector are normal, check and repair
harness between A-16X (terminal No. 2)
starter relay connector and B-14 (terminal
No. 9) inhibitor switch connector.

• Check power supply line for open/

short circuit.

NO :

Go to Step 9.

STEP 9. Connector check: C-307 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair or replace.

AK700823

3

4

5

8

9

1

2

6

7

10

AB

Connector: B-14

B-14 (B)

Harness side
connector

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

AKB00286

1

2

3

4

5

6

C-307

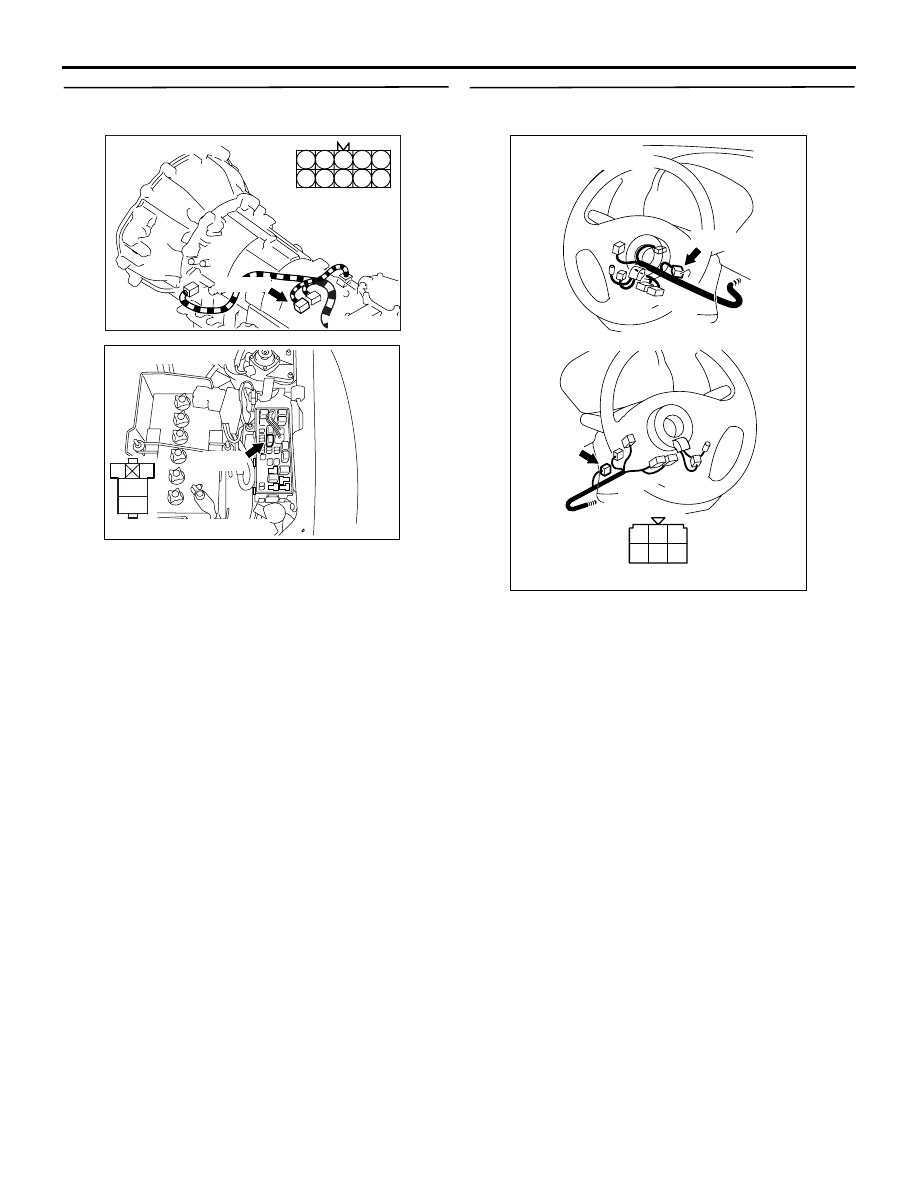

Connector: C-307

<R.H. drive vehicles>

C-307

AB

Harness side connector

<L.H. drive vehicles>

TROUBLESHOOTING

DIESEL FUEL

13A-455

STEP 10. Check ignition switch

• Check ignition switch (Refer to GROUP 54A −

Ignition switch

− Inspection ).

Q: Is the check result normal?

YES :

Check intermediate connectors A-115, B-

10, C-207 and C-211, and repair if
necessary. If starter relay connectors are
normal, check and repair harness between
B-14 (terminal No. 10) inhibitor switch
connector and C-307 (terminal No. 5)
ignition switch connector.

• Check power supply line for open/

short circuit.

NO :

Replace the ignition switch.

STEP 11. Perform voltage measurement at A-16X
starter relay connector.

• Disconnect connector, and measure at the har-

ness side.

• Voltage between terminal No. 4 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Check and repair harness between A-16X

(terminal No. 4) starter relay connector and
battery.

• Check power supply line for open/

short circuit.

STEP 12. Perform resistance measurement at A-
16X starter relay connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 1 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Check and repair harness between A-16X

(terminal No. 1) starter relay connector and
body earth.

• Check earth line for open circuit and

damage.

AK700823

3

4

5

8

9

1

2

6

7

10

AB

Connector: B-14

B-14 (B)

Harness side
connector

AKB00286

1

2

3

4

5

6

C-307

Connector: C-307

<R.H. drive vehicles>

C-307

AB

Harness side connector

<L.H. drive vehicles>

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector
