TROUBLESHOOTING

DIESEL FUEL

13A-456

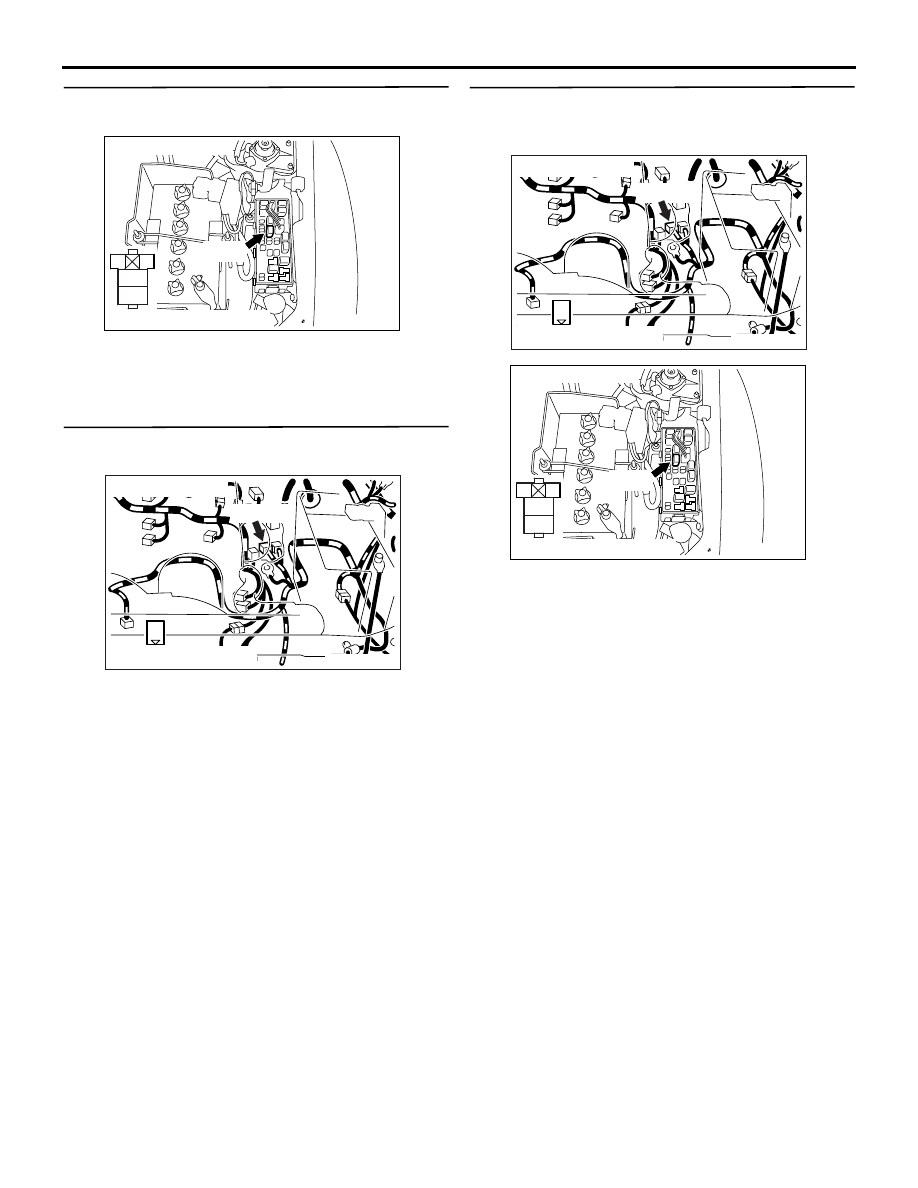

STEP 13. Connector check: A-16X starter relay
connector

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair or replace.

STEP 14. Connector check: A-110 starter
connector

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair or replace.

STEP 15. Check harness between A-110 (terminal
No. 1) starter connector and A-16X (terminal No.
3) starter relay connector.

NOTE: Before checking harness, check intermediate
connector A-27, and repair if necessary.

• Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the damaged harness wire.

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

AK700920

1

Harness side connector

Connector: A-110

AB

A-110 (B)

AK700920

1

Harness side connector

Connector: A-110

AB

A-110 (B)

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

TROUBLESHOOTING

DIESEL FUEL

13A-457

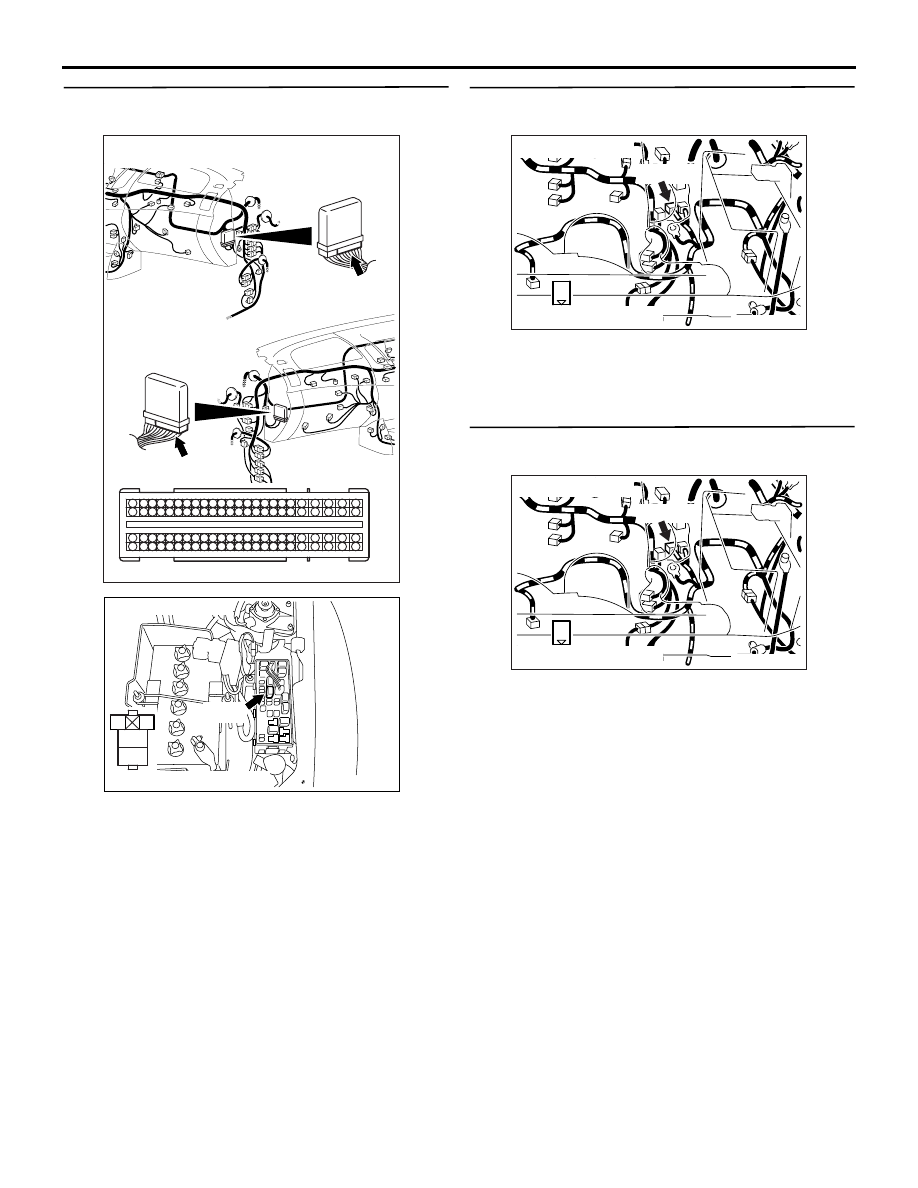

STEP 16. Connector check: C-103 engine-ECU
connector.

Q: Is the check result normal?

YES :

Check intermediate connector A-115, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between C-103 (terminal No. 111)
starter connector and A-16X (terminal No.
3) starter relay connector.

• Check output line for short circuit.

NO :

Repair or replace.

STEP 17. Connector check: A-110 starter
connector

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair or replace.

STEP 18. Perform voltage measurement at A-110
starter connector.

• Disconnect connector, and measure at the har-

ness side.

• Ignition switch: ST

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Go to Step 19.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

AK700920

1

Harness side connector

Connector: A-110

AB

A-110 (B)

AK700920

1

Harness side connector

Connector: A-110

AB

A-110 (B)

TROUBLESHOOTING

DIESEL FUEL

13A-458

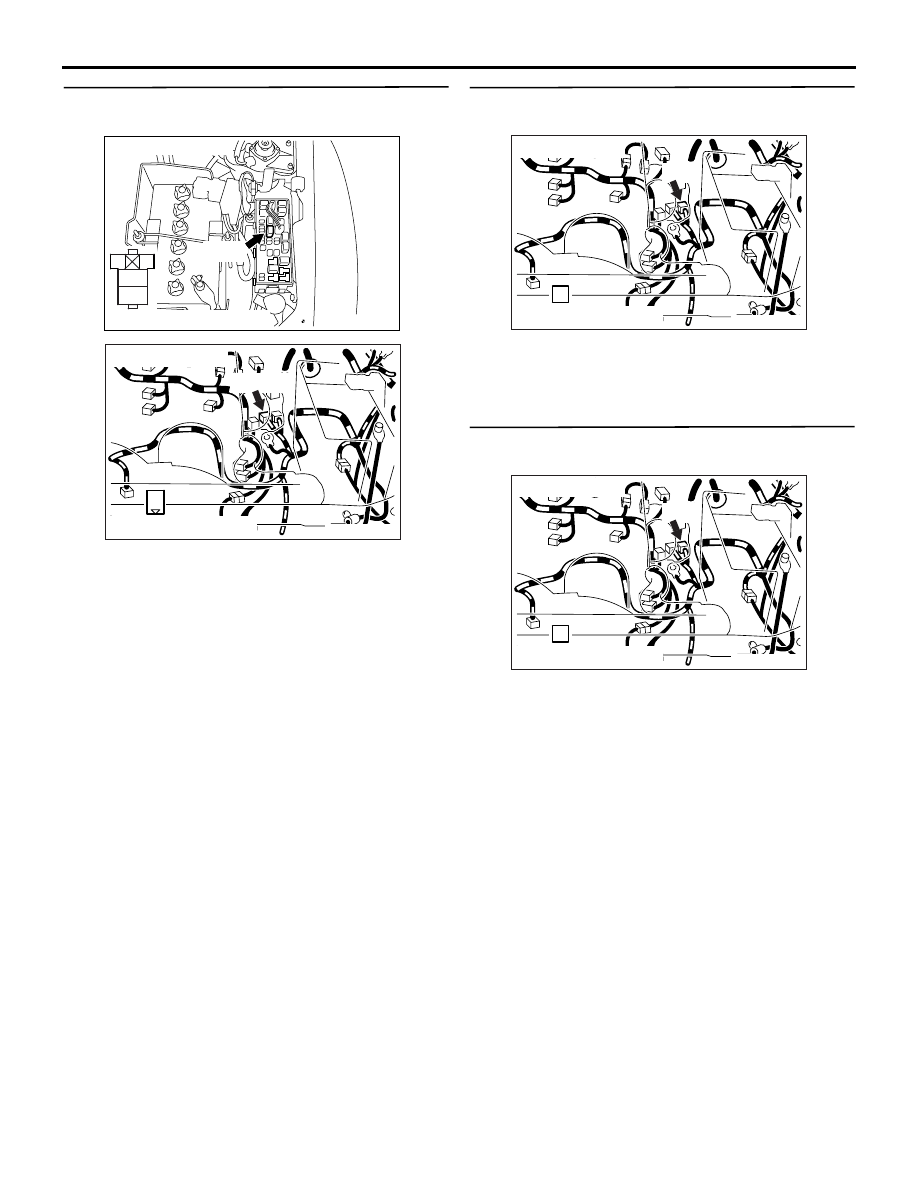

STEP 19. Connector check: A-16X starter relay
connector

Q: Is the check result normal?

YES :

Check intermediate connector A-27, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between A-16X (terminal No. 3)
starter relay connector and A-110 (terminal
No. 1) starter connector.

• Check output line for open circuit and

damage.

NO :

Repair or replace.

STEP 20. Connector check: A-10 starter
connector

Q: Is the check result normal?

YES :

Go to Step 21.

NO :

Repair or replace.

STEP 21. Perform voltage measurement at A-10
starter connector.

• Disconnect connector, and measure at the har-

ness side.

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Check and repair harness between A-10

(terminal No. 1) starter connector and
battery.

• Check power supply line for open/

short circuit.

AK501014

2

1

3
4

AC

A-16X

Connector: A-16X

Relay box's side connector

AK700920

1

Harness side connector

Connector: A-110

AB

A-110 (B)

1

AK700921

Harness side connector

Connector: A-10

AB

A-10

1

AK700921

Harness side connector

Connector: A-10

AB

A-10

TROUBLESHOOTING

DIESEL FUEL

13A-459

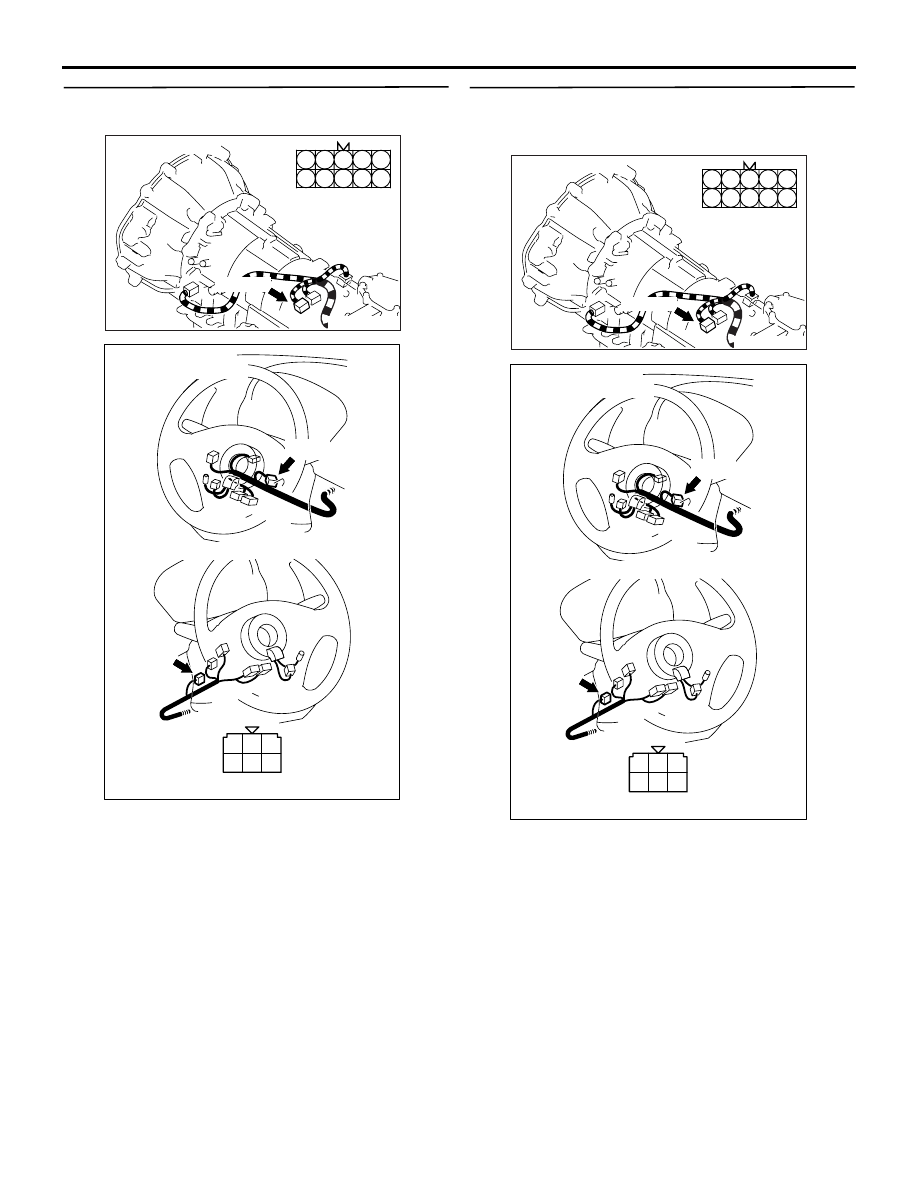

STEP 22. Connector check: B-14 inhibitor switch
connector and C-307 ignition switch connector

Q: Are the check results normal?

YES :

Go to Step 23.

NO :

Repair or replace.

STEP 23. Check harness between B-14 (terminal
No. 10) inhibitor switch connector and C-307
(terminal No. 5) ignition switch connector.

NOTE: Before checking harness, check starter relay
connectors A-115, C-207 and C-211, and repair if
necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 24.

NO :

Repair the damaged harness wire.

AK700823

3

4

5

8

9

1

2

6

7

10

AB

Connector: B-14

B-14 (B)

Harness side
connector

AKB00286

1

2

3

4

5

6

C-307

Connector: C-307

<R.H. drive vehicles>

C-307

AB

Harness side connector

<L.H. drive vehicles>

AK700823

3

4

5

8

9

1

2

6

7

10

AB

Connector: B-14

B-14 (B)

Harness side
connector

AKB00286

1

2

3

4

5

6

C-307

Connector: C-307

<R.H. drive vehicles>

C-307

AB

Harness side connector

<L.H. drive vehicles>
