Mitsubishi L200. Manual - part 117

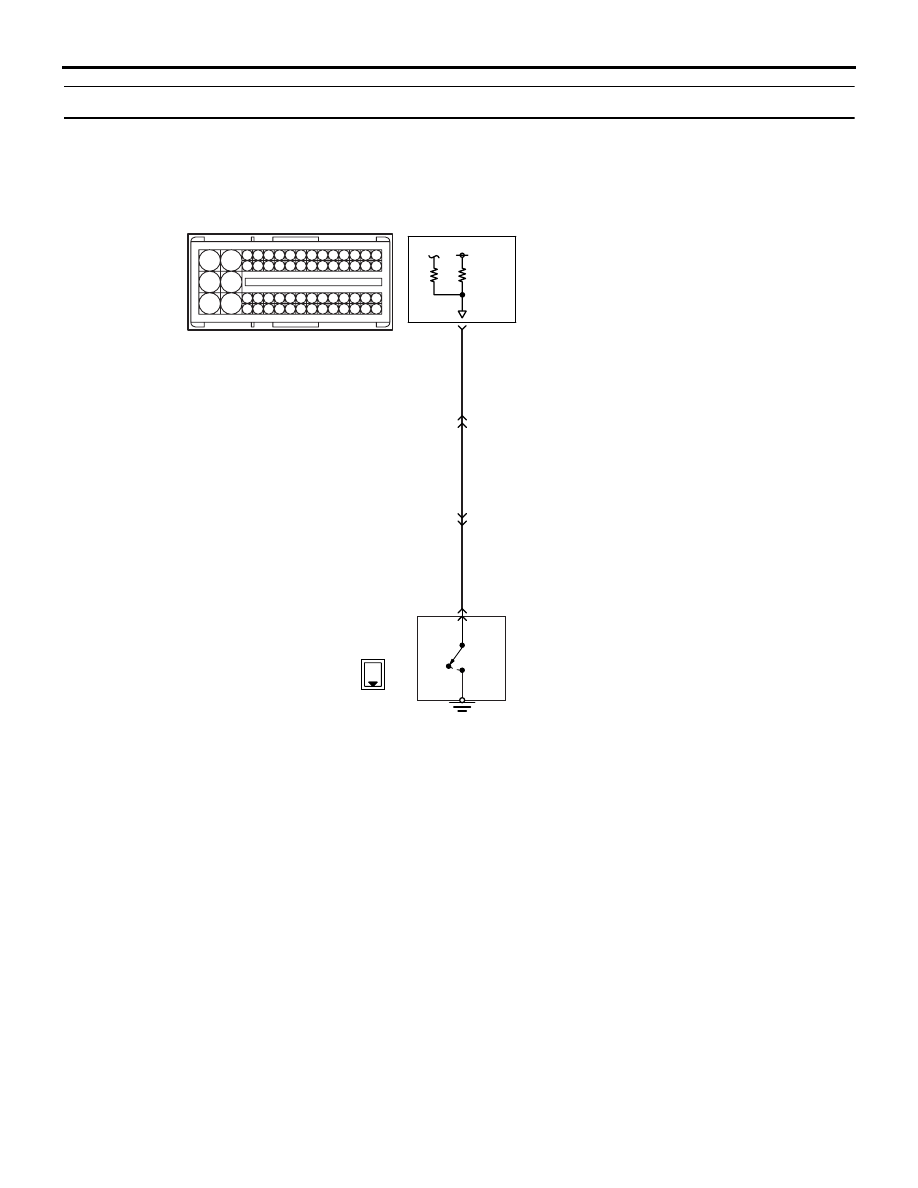

TROUBLESHOOTING
DIESEL FUEL
13A-264
STEP 6. Check harness between A-149 (terminal
No. 1) No. 1 exhaust gas temperature sensor
connector and C-105 (terminal No. 58) engine-
ECU connector.
• Check output line for open circuit.
Q: Is the check result normal?
YES :
Go to Step 7 .
NO :
Repair the damaged harness wire.
STEP 7. M.U.T.-III data list
• Refer to Data List Reference Table
a. Item 117: No. 1 exhaust gas temperature sensor
Q: Is the check result normal?
YES :
Intermittent malfunction (Refer to GROUP
00
− How to Use Troubleshooting/
Inspection Service Points
− How to Cope
with Intermittent Malfunctions ).
NO :
Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00
− Precautions Before
Service
− How to Perform Chassis Number
Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00
−
Precautions Before Service
− What The
Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17
− Emission Control −
Diesel Particulate Filter (DPF) System
−
Forcible DPF Regeneration ).
STEP 8. Perform resistance measurement at A-
149 No. 1 exhaust gas temperature sensor
connector.
• Disconnect connector, and measure at harness
side.
• Resistance between terminal No. 2 and earth.
OK: Continuity (2
Ω or less)
Q: Is the check result normal?
YES :
Go to Step 11 .
NO :
Go to Step 9 .

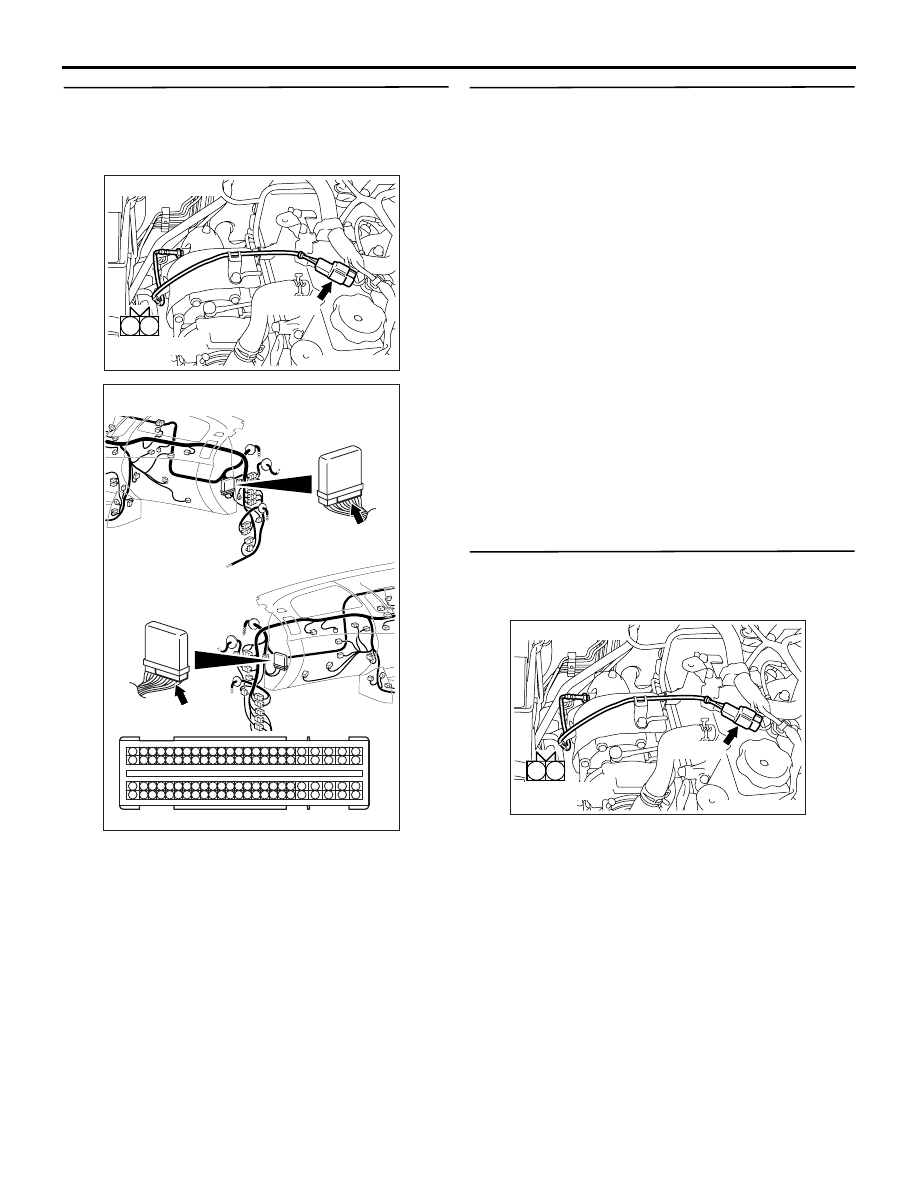

AKB00276
1
2
Harness side
connector
AB
A-149 (B)
Connector: A-149
AKA00089
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
43
44
45
46
47
48
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

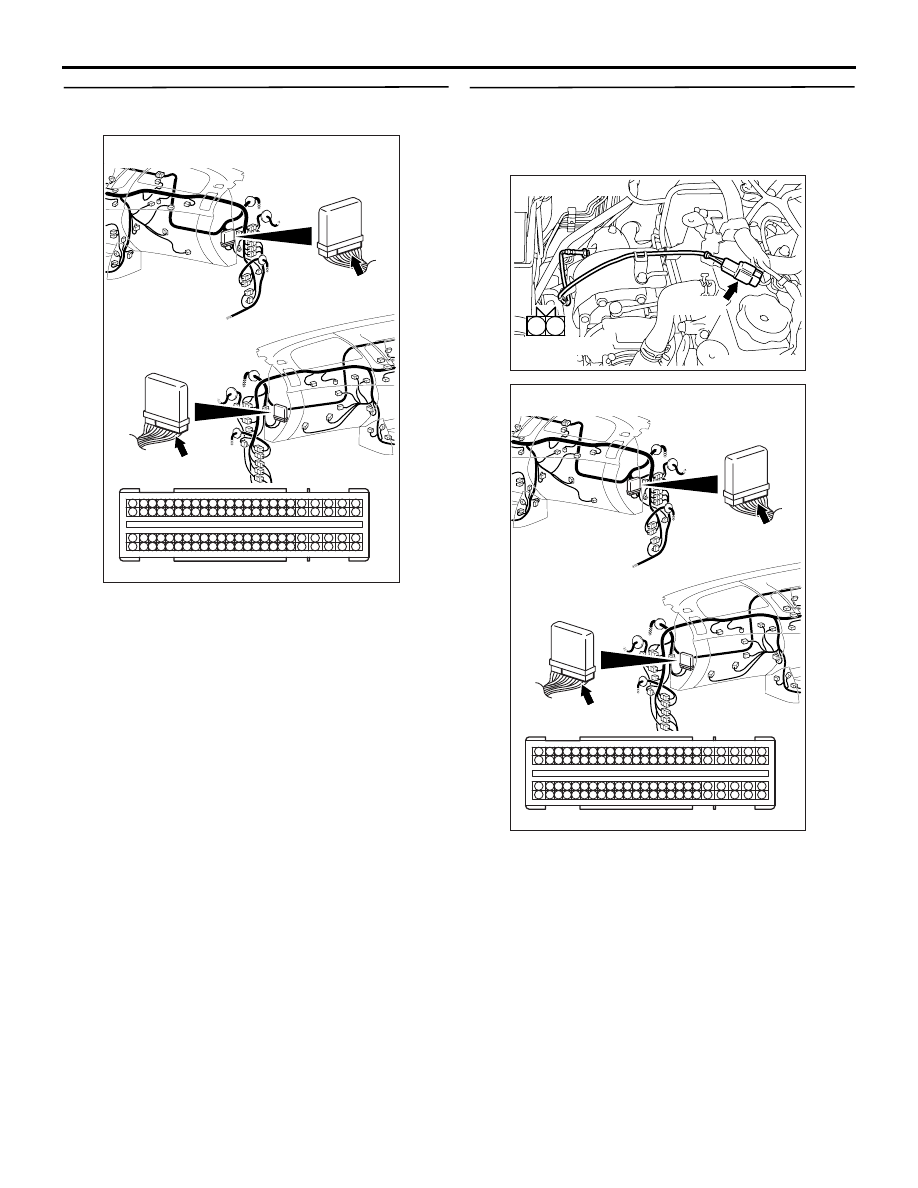

C-105 (B)
C-105 (B)
<R.H. drive vehicles>
Harness side connector
<L.H. drive vehicles>
Connector: C-105
AB
AKB00276
1
2
Harness side
connector
AB
A-149 (B)
Connector: A-149
