TROUBLESHOOTING

DIESEL FUEL

13A-260

• Failed engine-ECU

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 117: No.1 exhaust gas temperature sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

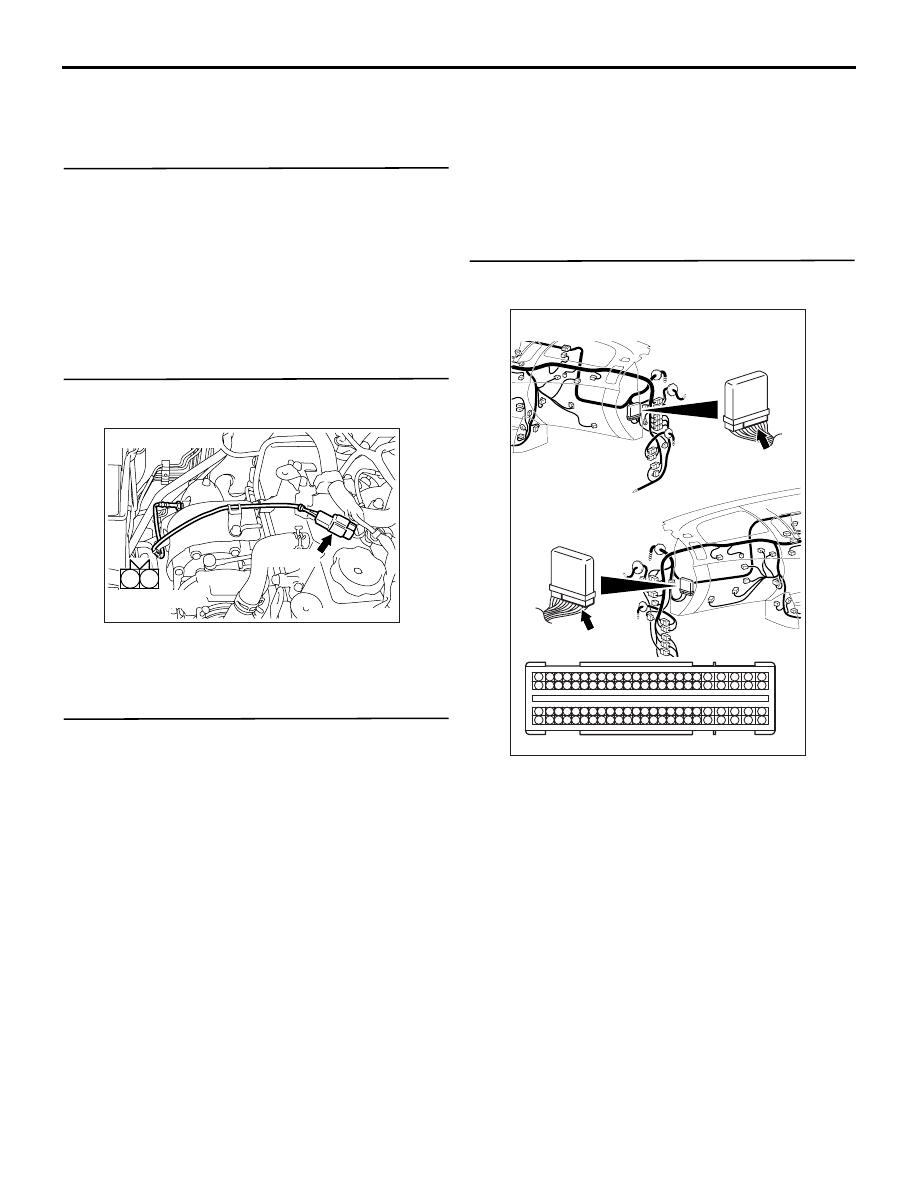

STEP 2. Connector check: A-149 No.1 exhaust
gas temperature sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Check No.1 exhaust gas temperature
sensor itself.

• Check No.1 exhaust gas temperature sensor

itself (Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

− No.1

exhaust gas temperature sensor Check ).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the No.1 exhaust gas temperature
sensor. After replacing the No.1 exhaust
gas temperature sensor, carry out the
forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

STEP 4. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

AKB00276

1

2

Harness side
connector

AB

A-149 (B)

Connector: A-149

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-261

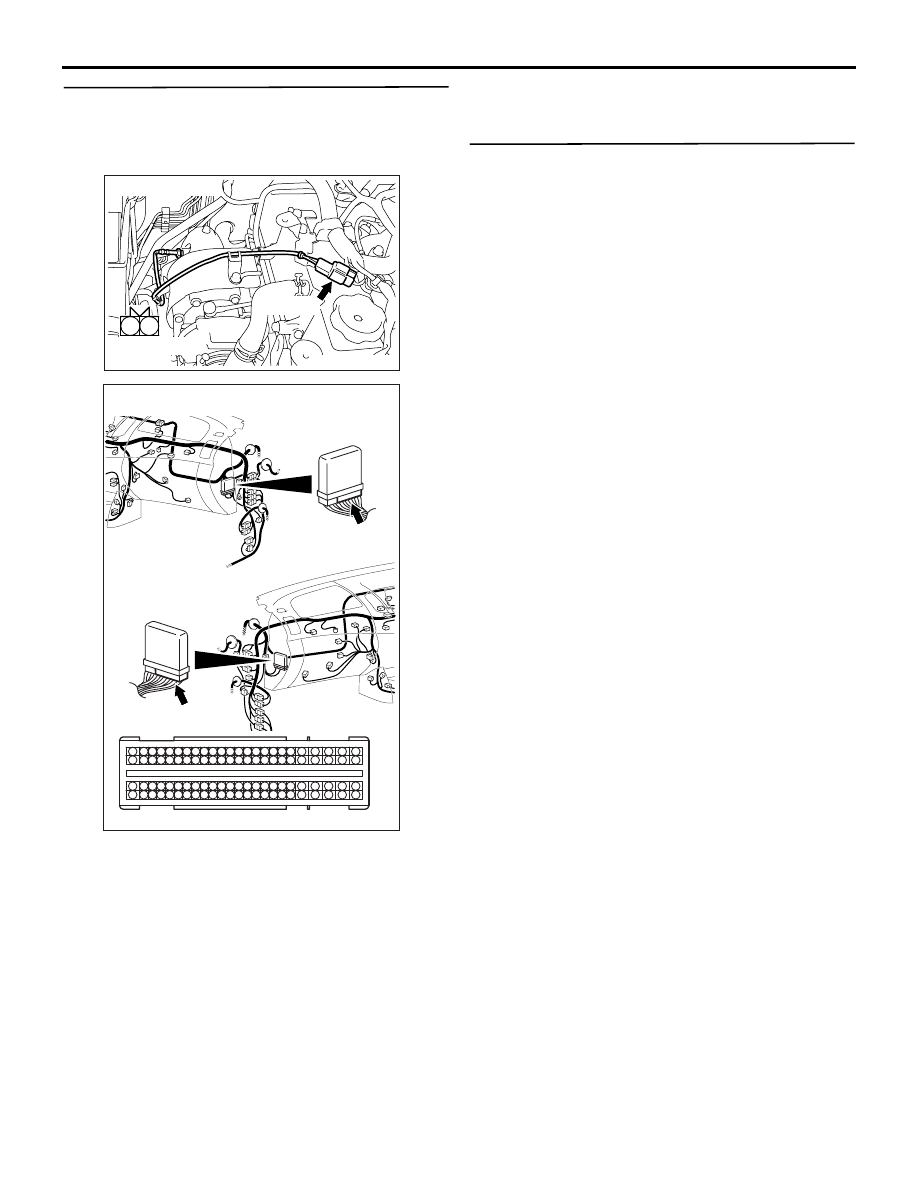

STEP 5. Check harness between A-149 (terminal
No. 1) No. 1 exhaust gas temperature sensor
connector and C-105 (terminal No. 58) engine-
ECU connector.

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

a. Item 117: No.1 exhaust gas temperature sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

AKB00276

1

2

Harness side
connector

AB

A-149 (B)

Connector: A-149

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-262

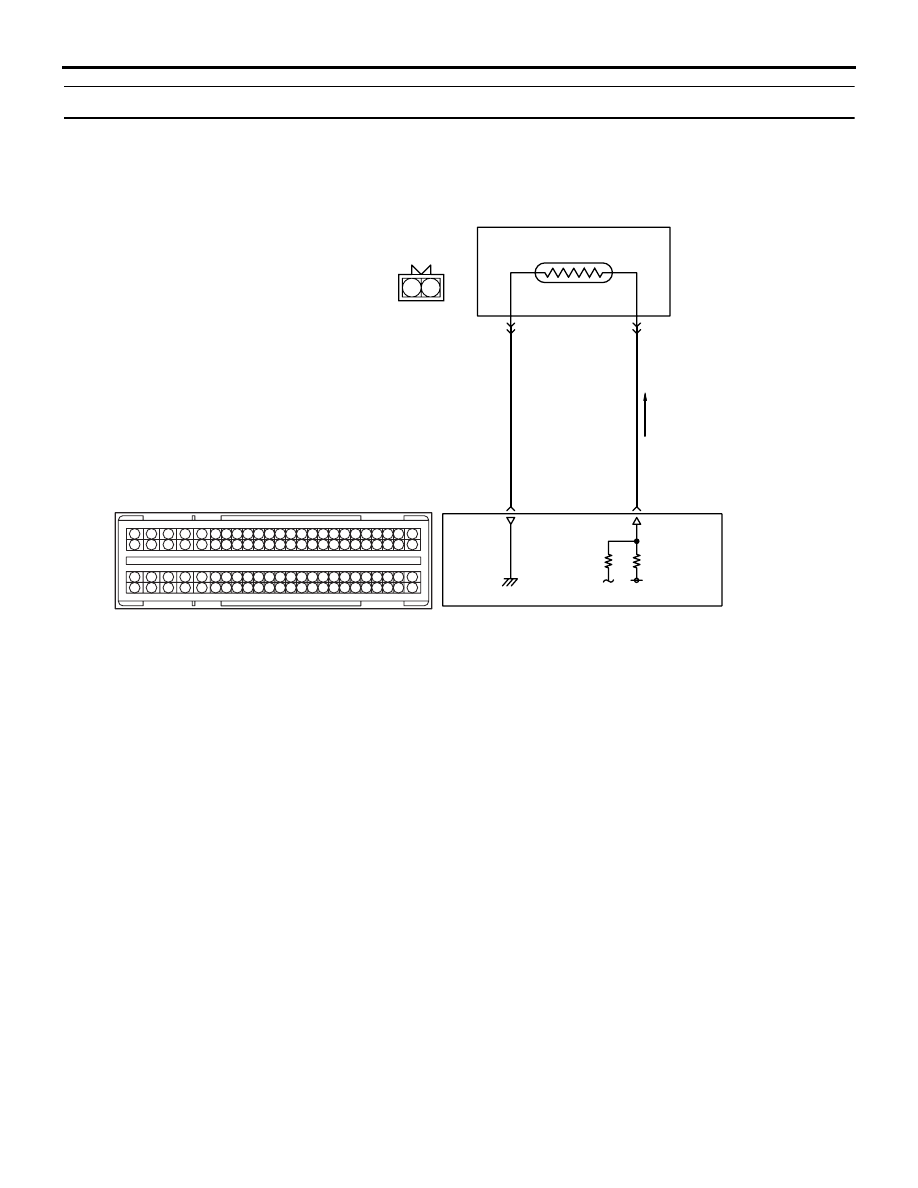

Code No. P0546: No. 1 exhaust gas temperature sensor Circuit High Input <Euro5>

OPERATION

• A power voltage of 5 V is applied to the No. 1

exhaust gas temperature sensor output terminal
(terminal No. 1) from the engine-ECU (terminal
No. 58).

• The power voltage is earthed to the engine-ECU

(terminal No. 82) from the No. 1 exhaust gas tem-
perature sensor (terminal No. 2).

FUNCTION

• The No. 1 exhaust gas temperature sensor con-

verts the exhaust gas temperature into a voltage
and inputs the voltage signal to the engine-ECU.

• Engine-ECU uses this voltage for DPF regenera-

tion control.

• The No. 1 exhaust gas temperature sensor is a

kind of resistor, which has characteristics to
reduce its resistance as the exhaust gas temper-
ature rises. Therefore, the sensor output voltage
varies with the exhaust gas temperature, and
becomes lower as the exhaust gas temperature
rises.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V.

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up.

• Vehicle speed is 20 km/h or higher.

Judgment Criterion

• The No. 1 exhaust gas temperature sensor out-

put voltage is 4.95 V or more.

PROBABLE CAUSES

• Failed No. 1 exhaust gas temperature sensor

AKB00275

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

1 2

AB

O-G

BR-L

Engine-ECU

No. 1 exhaust gas
temperature sensor

A-149

MU802601

No. 1 Exhaust Gas Temperature Sensor Circuit

2

82

1

58

5 V

C-105

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

TROUBLESHOOTING

DIESEL FUEL

13A-263

• Open circuit or harness damage in No. 1 exhaust

gas temperature sensor circuit or loose connector
contact

• Failed engine-ECU

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

a. Item 117: No. 1 exhaust gas temperature sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

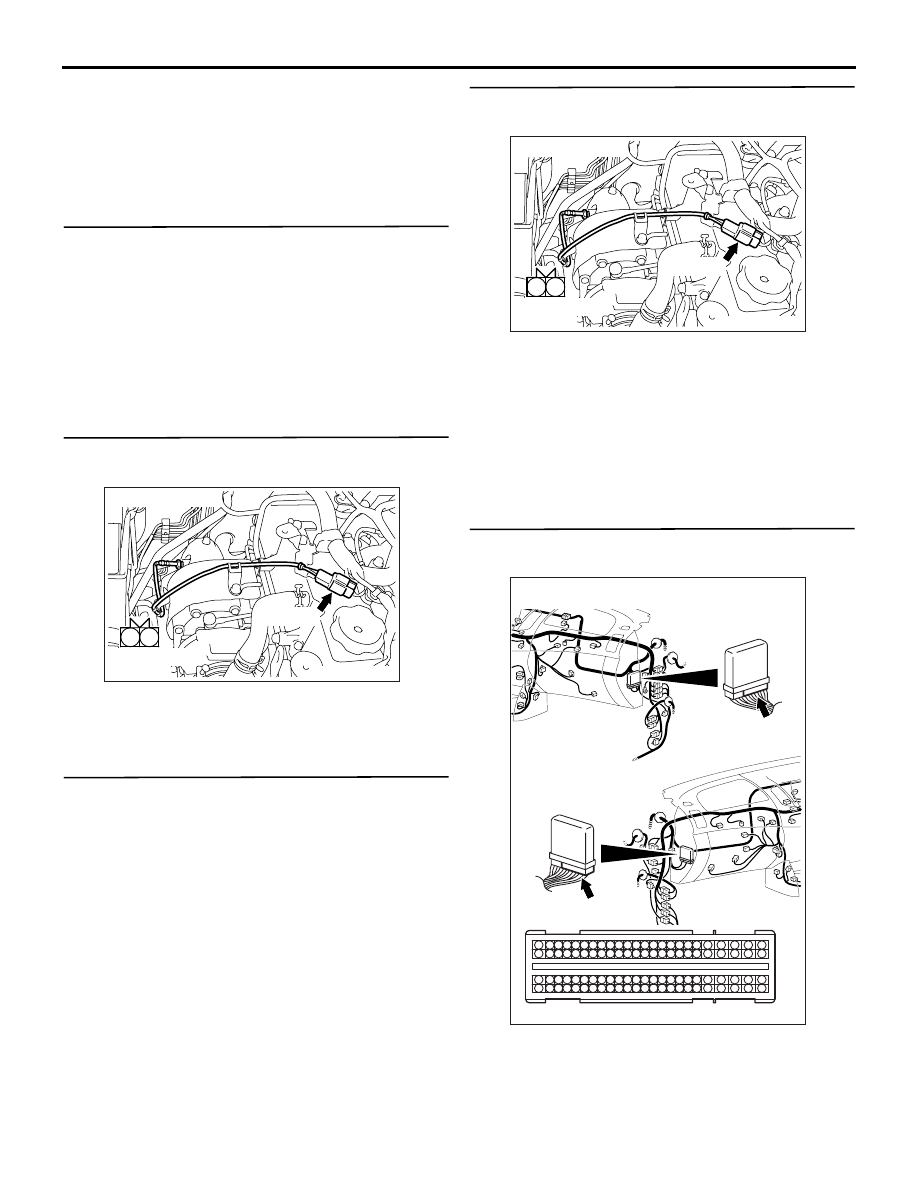

STEP 2. Connector check: A-149 No. 1 exhaust
gas temperature sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Check No. 1 exhaust gas temperature
sensor itself.

• Check No. 1 exhaust gas temperature sensor

itself (Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

− No. 1

exhaust gas temperature sensor Check ).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the No. 1 exhaust gas temperature
sensor. After replacing the No. 1 exhaust
gas temperature sensor, carry out the
forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

STEP 4. Perform voltage measurement at A-149
No. 1 exhaust gas temperature sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 5 .

STEP 5. Connector check: C-105 engine-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace the connector.

AKB00276

1

2

Harness side
connector

AB

A-149 (B)

Connector: A-149

AKB00276

1

2

Harness side
connector

AB

A-149 (B)

Connector: A-149

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
