Mitsubishi L200. Manual - part 30

AC502920AB

Timing belt B
tensioner
assembly

Flange
bolt

Hexagon socket
head bolt

TIMING BELT

ENGINE MECHANICAL

11A-48

3. Loosen timing belt B tensioner assembly

mounting flange bolt, one to two turns.

4. Tighten the timing belt B tensioner assembly

mounting hexagon socket head bolt.

5. timing belt B tensioner assembly mounting flange

bolt.
NOTE: If the bolt is tightened first, the timing belt
B tensioner assembly should be turned together,
resulting in reduced timing belt B tensioner
assembly.

AC502921

Balancer shaft
sprocket

Crankshaft
sprocket B

Belt
deflection

AB

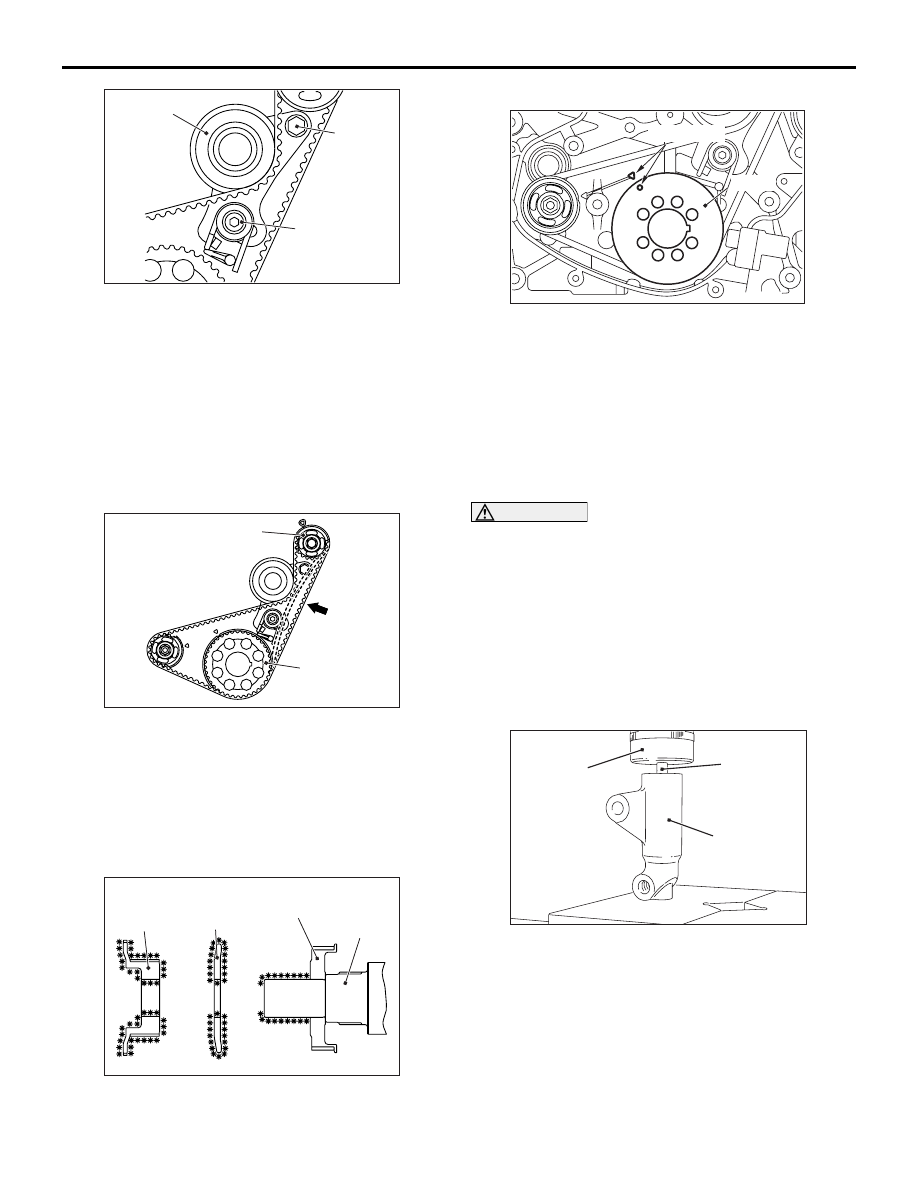

6. Ensure that the deflection is as specified when the

timing belt B is pushed by the index finger at the
position indicated by an arrow.

Belt deflection: 4

− 5 mm

>>C<< FLANGE/CRANKSHAFT SPROCKET
INSTALLATION

AC502922AB

Crankshaft
sprocket

Crankshaft
sprocket B

Crankshaft

Flange

1. Clean or degrease the crankshaft, the flange and

crankshaft sprocket as shown.

NOTE: Also clean the degreased surfaces.

AC502923 AB

Timing mark

Flange

2. Assemble the flange by aligning the timing mark

of the front lower case and the timing mark of the
flange.

>>D<< TENSIONER ARM ASSEMBLY/TIMING
BELT/AUTO TENSIONER INSTALLATION

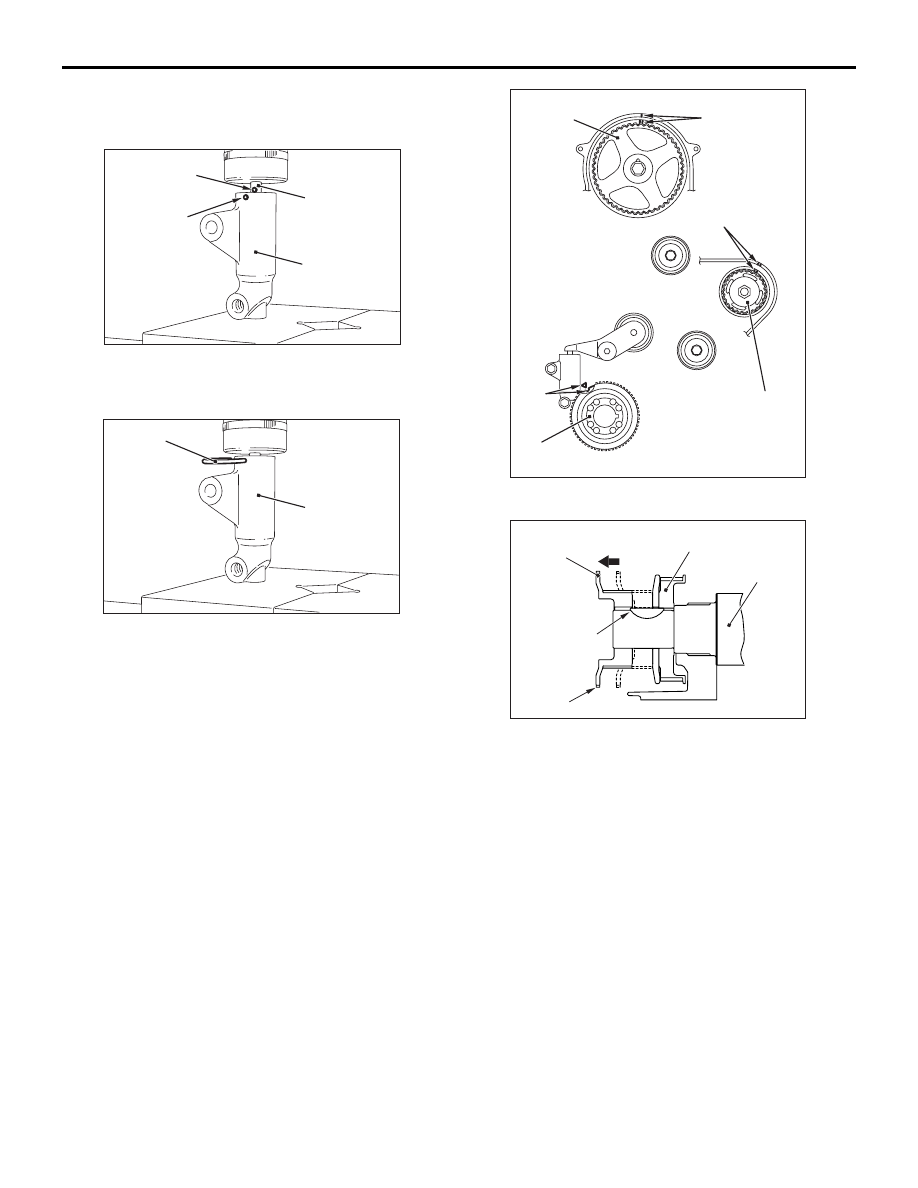

1. To reuse the auto tensioner, bleed the air

according to the procedure below, and then set
the rod to the auto tensioner.

CAUTION

• If a horizontal press such as a vice is used,

the air entrainment may occur. Thus, a verti-
cal press must be used.

• If the compression is too fast, the procedure

may damage the rod. Make sure to compress
slowly and thoroughly.

•

AC502924 AB

Auto tensioner

Press

Rod

To prevent a damage to the auto tensioner, do
not push down the rod exceeding the bottom
end (a position where the rod protrusion is at
0.5 mm from the auto tensioner).

(1) Set the auto tensioner to the vertical press,

and then slowly compress the rod to the
bottom end (a position where the rod
protrusion is at 0.5 mm from the auto
tensioner). Perform this operation 2 to 3 times.

(2) With the rod protruding (a position where the

rod protrusion is at 5 mm from the auto
tensioner), check that there is a rigidity when
the rod is pushed with a load (100 to 200 N).

TIMING BELT

ENGINE MECHANICAL

11A-49

(3) If the rod rigidity is not obtained by repeating

the operations of (1) and (2), replace the auto
tensioner.

AC502924 AC

Auto tensioner

A

B

Rod

(4) Compress the rod slowly, and then align the

set hole A of the rod with the set hole B of the
auto tensioner body.

AC502925AB

Auto tensioner

Wire or pin

(5) Insert a wire or pin in the aligned set hole.

NOTE: When the auto tensioner is replaced
with a new part, the auto tensioner is set with a
pin.

2. Install the auto tensioner in position. Leave the

wire or pin installed until the auto tensioner is
completely installed.

3. Install the tensioner arm assembly.

AC502916AB

Timing mark

Crankshaft
sprocket

Camshaft
sprocket

Timing mark

Timing
mark

Injection pump
sprocket

4. Align the timing mark of each sprocket.

AC502926AB

Slide

Crankshaft
sprocket

Key top end

Notched area

Crankshaft
sprocket B

Crankshaft

5. In the order below, install the timing belt without

slack.
NOTE: When installing the timing belt into the
crankshaft sprocket, slide the crankshaft sprocket
to near the tip of the key, and then install the tim-
ing belt. (When installing the timing belt, be care-
ful not to damage the belt by the cut-out of
crankshaft sprocket.) After that, install the crank-
shaft sprocket to the correct position.
(1) Crankshaft sprocket
(2) Idler pulley
(3) Injection pump sprocket
(4) Idler pulley
(5) Camshaft sprocket
(6) Tensioner pulley

6. Check that the timing marks on sprockets are at

the correct positions.

7. Remove the wire or pin of the auto tensioner.

VACUUM PUMP

ENGINE MECHANICAL

11A-50

8. Turn the crankshaft 2 turns clockwise, and then

measure the protrusion of auto tensioner rod.

Standard value: 2.3

− 7.6 mm

9. Check again that the timing marks on sprockets

are at the correct positions.

VACUUM PUMP

REMOVAL AND INSTALLATION

M1112005200458

Pre-removal and Post-installation Operation
• A/C Compressor Drive Belt, Alternator and Power Steer-

ing Oil Pump Drive Belt Removal and Installation (Refer to

P.11A-17

).

• Air Duct Removal and Installation (Refer to GROUP 15 −

Air Cleaner

P.15-6

).

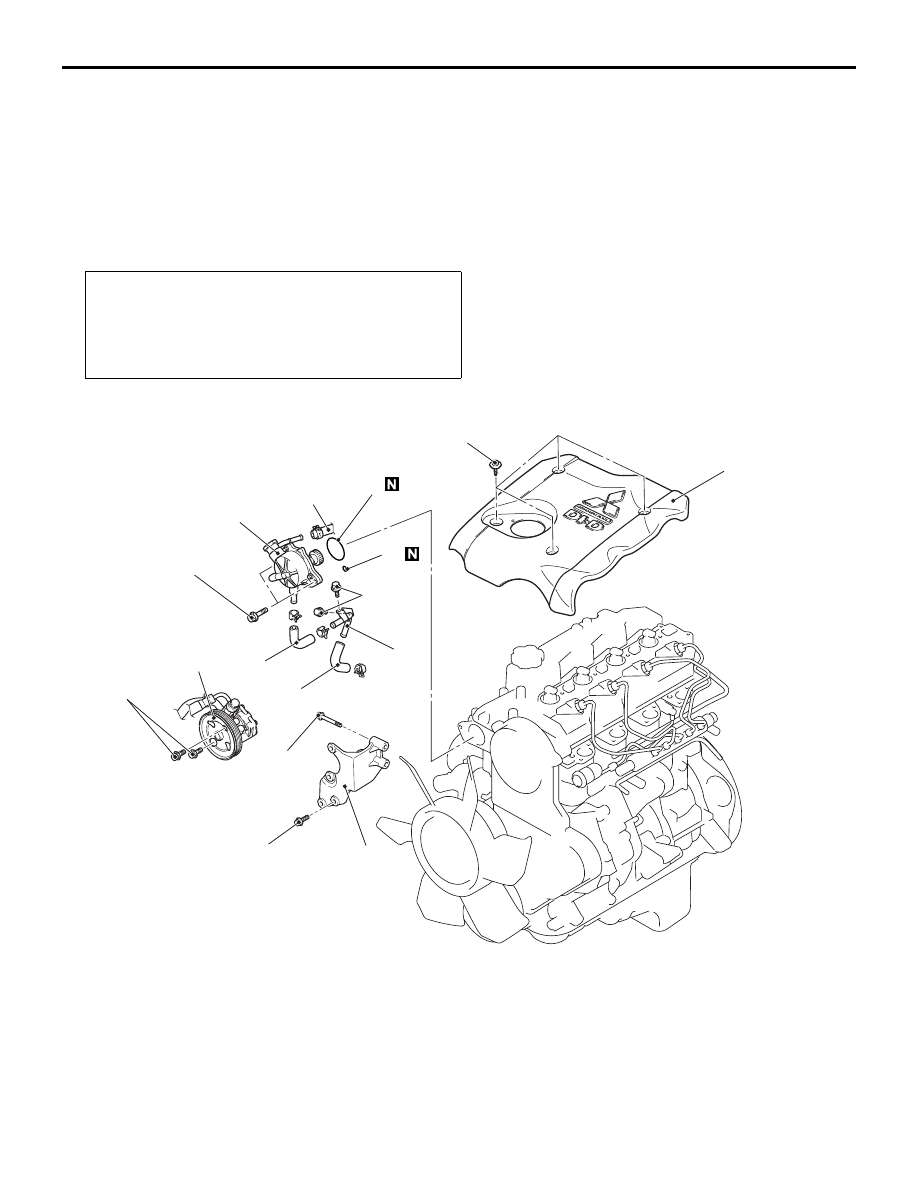

<Except Euro5>

AC805886

6

5

3

2

AC

9

7

8

11 ± 1 N·m

1

4

3.0 ± 0.5 N·m

24 ± 3 N·m

23 ± 3 N·m

24 ± 4 N·m

10

20 ± 4 N·m

Removal steps

1.

Engine cover

<<

A

>>

2.

Power steering oil pump assembly

3.

Power steering oil pump bracket A

4.

Oil hose

5.

Oil hose

6.

Oil pipe

7.

Vacuum hose connection

8.

Vacuum pump assembly

9.

O-ring

10. O-ring

Removal steps (Continued)

VACUUM PUMP

ENGINE MECHANICAL

11A-51

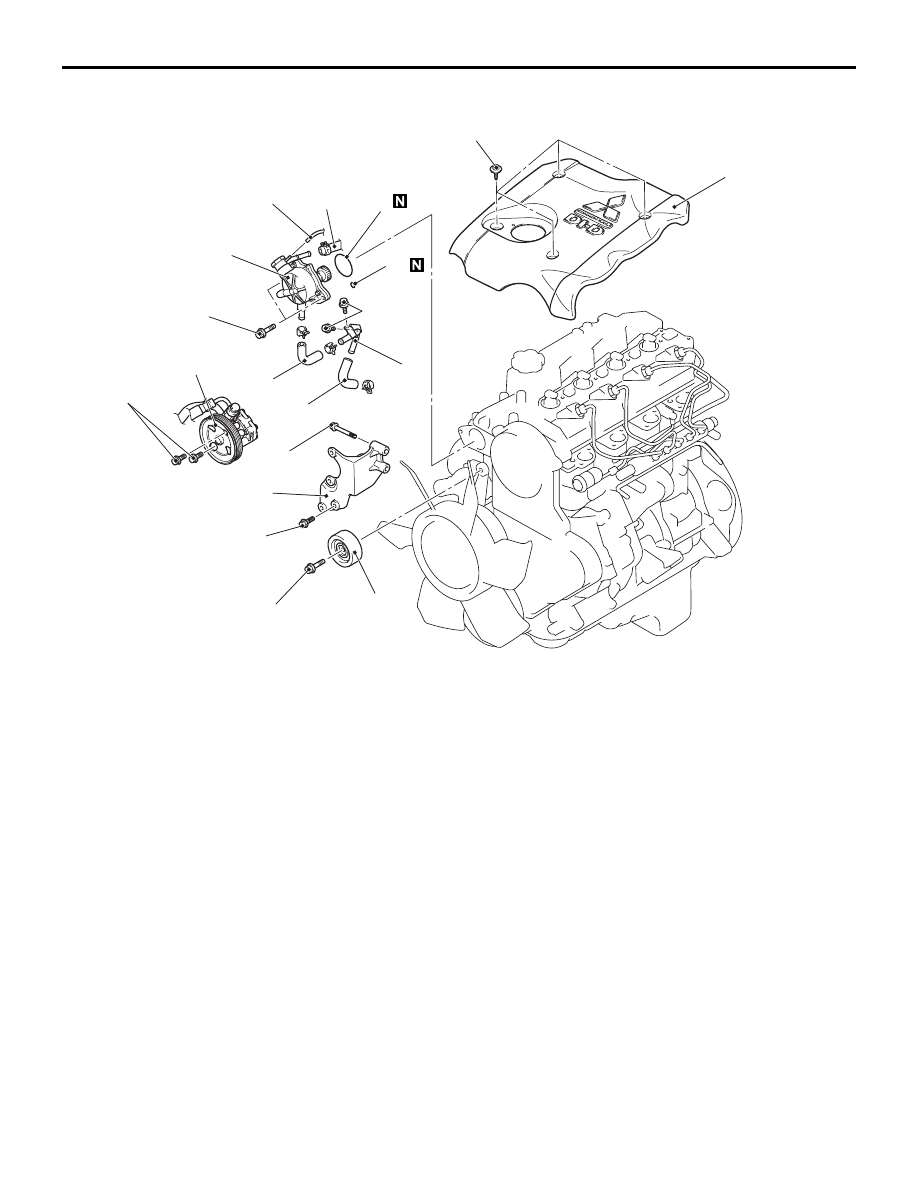

<Euro5>

AC805665

7

6

3

2

AC

11

8

10

11 ± 1 N·m

1

5

3.0 ± 0.5 N·m

24 ± 3 N·m

23 ± 3 N·m

24 ± 4 N·m

12

20 ± 4 N·m

4

50 ± 5 N·m

9

Removal steps

1.

Engine cover

<<

A

>>

2.

Power steering oil pump assembly

3.

Power steering oil pump bracket A

4.

Idler pulley

5.

Oil hose

6.

Oil hose

7.

Oil pipe

8.

Vacuum hose connection

9.

Vacuum hose connection

10. Vacuum pump assembly
11. O-ring
12. O-ring

REMOVAL SERVICE POINT

<<A>> POWER STEERING OIL PUMP ASSEMBLY
REMOVAL
1. With the hose installed, remove the power

steering oil pump assembly from the bracket.

2. After removing the power steering oil pump

assembly, secure it with a cord in the location
where the removal and installation of the vacuum
pump assembly cannot be hindered.
