Interior Features

Climate Control System

Dashboard and Floor Vents

NOTE

The location airflow exits the air vents

and the airflow amount may change

depending on the open or close status

of the air vents.

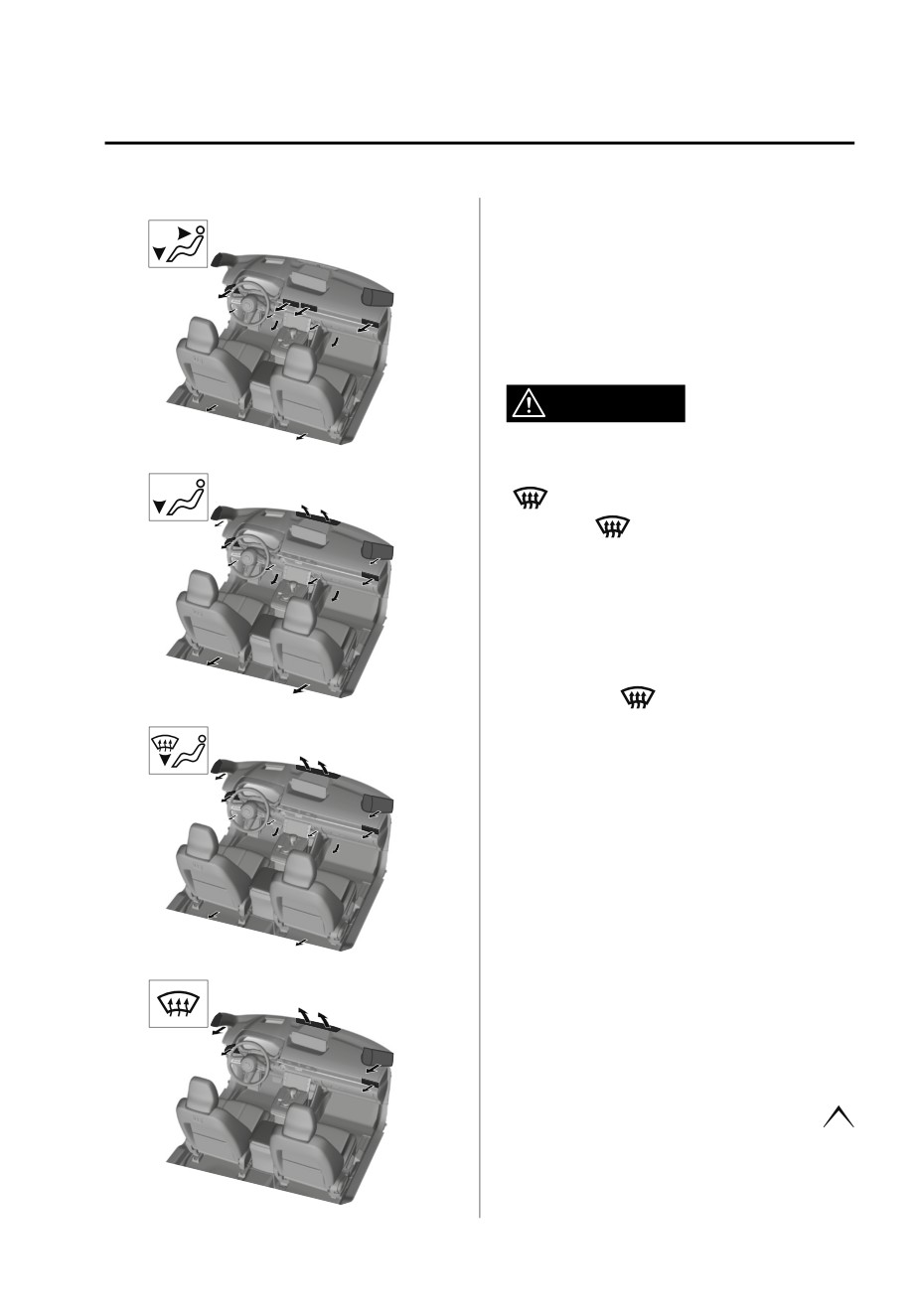

▼ Windshield Defrosting and

Defogging

WARNING

Set the temperature control to the hot

Floor Vents

or warm position when defogging

(

position):

Using the

position with the

temperature control set to the cold

position is dangerous as it will cause

the outside of the windshield to fog

up. Your vision will be hampered,

which could lead to a serious accident.

Press the windshield defroster switch,

or touch the

Defroster and Floor Vents

In this position, the outside air position

is automatically selected, and the air

conditioner automatically turns on.

The air conditioner will directly

dehumidify the air to the front

windshield and side windows. Airflow

amount will be increased.

NOTE

^ If any of the following operations is

done, the window glass will fog up

Defroster Vents

more easily:

^ Switching to recirculate mode

^ Turning off the air conditioner

(cooling, defrosting functions)

^ For faster defrosting, do any of the

following operations

^ Operate the fan control switch/

to increase the airflow amount

5-9

Interior Features

Climate Control System



Operate the temperature setting

Convenient Ways to Use

switch/

(red) to increase the

the Climate Control

airflow temperature

^ Only use the defroster when the

System

window glass needs to be defogged.

The power consumption of the air

▼ Cautions Concerning Cabin

conditioner is suppressed, making

Preconditioning

driving more economical.

^ For defrost mode, warm airflow is

Cabin preconditioning is a collective

supplied for defrost even if the set

term regarding use of the Climate

temperature is decreased, however,

Control Timer and the remote climate

this does not indicate a problem.

control.

You can cool or warm the cabin, or

defog the window glass before getting

in the vehicle by setting your departure

time in advance (Climate Control

Timer) or by a remote operation

(remote climate control) using your

Smartphone.

WARNING

Do not operate the cabin

preconditioning with people or pets

in the vehicle:

The cabin preconditioning may stop

automatically due to the vehicle

conditions and the surrounding

environment. If the climate control

system stops and the temperature

inside the vehicle increases or

decreases, it could cause a serious

medical condition such as heat

exhaustion and dehydration or even

death.

CAUTION

¾ If any of the following conditions are

met, the cabin preconditioning will

not operate. In addition, if the cabin

preconditioning is operating, it will

stop. However, if the liftgate is

opened while the cabin

preconditioning is operating, the

cabin preconditioning will not stop.

5-10

Interior Features

Climate Control System

¾ The high voltage battery or the

Power switch position

lead-acid battery charge is low

ON

ON

¾ The doors/liftgate are open

(EV

(EV

Function

¾ The power switch is switched to a

OFF

ACC

sys-

sys-

position other than OFF

tem

tem

¾ There is a problem with the vehicle

off)

on)

¾ If the operation conditions are not

Cooling/heating

—

—

X^*1

X

met 30 minutes before the departure

time set by the climate control timer,

Climate Control

X

—

—

—

the climate control timer will not

Timer

operate.

Remote climate

¾ If any of the following conditions is

X

—

—

—

control

met, the climate control system will

not operate effectively and the cabin

X: Available

temperature may not reach the set

—: Not available

temperature:

*1

The cooling/heating function can

be used only while charging.

¾ Your power consumption is high

¾ Extremely high or low

NOTE

temperatures

¾ The climate control system stops at

^ The recommended set temperature

the departure time. The cabin

is 22 °C (72 °F). If you set an

temperature may not reach the set

extremely high or low temperature,

temperature if you get in the vehicle

power consumption will increase

earlier or later than the set departure

and the charging time will take

time.

longer.

¾ If you operate the cabin

^ If you operate the cabin

preconditioning while charging the

preconditioning while the charging

vehicle, it could take more time to

connector is connected, you can

charge the high voltage battery.

reduce the electric power

¾ During the cabin preconditioning

consumption of the high voltage

operation, the cooling fan, the

battery. Cabin preconditioning can

compressor, and the cabin fans

be operated even without

operate, but this does not indicate a

connecting the charging connector,

problem.

however, the electrical power of the

¾ The climate control system functions

high voltage battery will decrease.

you can use differ depending on the

^ If quick charge is started during cabin

power switch position.

preconditioning, the cabin

preconditioning is stopped.

Power switch position

^ While the cabin preconditioning is

ON

ON

operating, the indicator light for the

(EV

(EV

climate control power switch turns

Function

OFF

ACC

sys-

sys-

on.

tem

tem

off)

on)

Air circulation

—

—

X

X

5-11

Interior Features

Climate Control System



The cabin preconditioning operates

^ The Climate Control Timer can be

for 30 minutes. If you set the

stopped by a Smartphone remote

departure time using the Climate

operation.

Control Timer, set it 30 minutes or

^ When programming days for the

later from the current time and if you

Climate Control Timer, you do not

want to make several settings, space

have to set it every time because the

them out at intervals of 30 minutes

programming continues into the

or longer.

following weeks.

^ Enabling the defroster setting will aid

How to set the Climate Control Timer

you in defrosting and removing ice or

snow from the window glass. The

NOTE

defroster performance changes

Place a check in the check box for the

according to the set temperature.

^ The Climate Control Timer does not

function you want to enable (

) or

work immediately after the lead-acid

uncheck it to disable (

) the

battery is removed or installed, or

function.

when no GPS signal has been

received. When GPS signals are

1. Select “Settings” from the Mazda

received, the Climate Control Timer

Connect home screen.

becomes operational.

2. Select “EV Settings”.

3. Select “Climate Control Timer”.

▼ Turning On the Climate Control

4. Select the item setting you would

System Using the Timer (Climate

like to change from the displayed

Control Timer)

content.

By setting the departure time using

Climate Control Timer

Mazda Connect, the climate control

system operates and adjusts the cabin

Allows climate control to adjust cabin

temperature by the departure time.

temperature before driving.

The departure time, day, set

Function

Available setting changes

temperature, and defroster operation/

non-operation can be personalized,

1 ---

and 7 types of patterns can be

2 ---

programmed in advance. You can

3 ---

check the cabin temperature and the

Enable,

Edit,

setting status using your Smartphone

4 ---

Disable^*1

Delete^*2

while the Climate Control Timer is

5 ---

operating.

6 ---

To operate the Climate Control Timer,

7 ---

switch the power switch OFF.

NOTE

*1

If an item selected using the cursor

has been set, the item can be

^ The Climate Control Timer does not

enabled or disabled.

operate while the remote climate

*2

Settings can be “Edit”/“Delete” by

control is operating.

sliding an item selected using the

cursor to the right.

5-12

Interior Features

Climate Control System

Edit

The Climate Control Timer settings can

be edited.

Available setting

Function

changes

Time

Departure Time

(10-minute inter-

vals)

Monday ― Sun-

Repeat

day

15.5℃ (61 ℉) ―

Temperature

28.5℃ (83 ℉)

Enable,

Front Defroster

Disable

Enable,

Rear Defroster

Disable

▼ Turning On the Climate Control

System from A Remote Location

(Remote Climate Control)

Using your Smartphone, you can turn

on the climate control system remotely

before departing. You can check the

cabin temperature and the setting

status using your Smartphone while the

remote climate control is operating.

To operate the remote climate control,

switch the power switch OFF.

Please refer to local Mazda website for

more Connected Service information.

CAUTION

¾ To use the remote climate control, it

is necessary to subscribe to

Connected Service.

¾ The remote climate control can be

used when your Smartphone is

connected to your vehicle using the

Connected Service.

¾ The remote climate control may not

be available depending on the

model of the Smartphone you are

using. Please check in advance.

5-13

Interior Features

Mazda Connect

What is Mazda Connect ?

▼ What is Mazda Connect ?

This manual only indicates a part of the information for Mazda Connect. For details,

check the Web owner's manual at the Mazda site for each country and region.

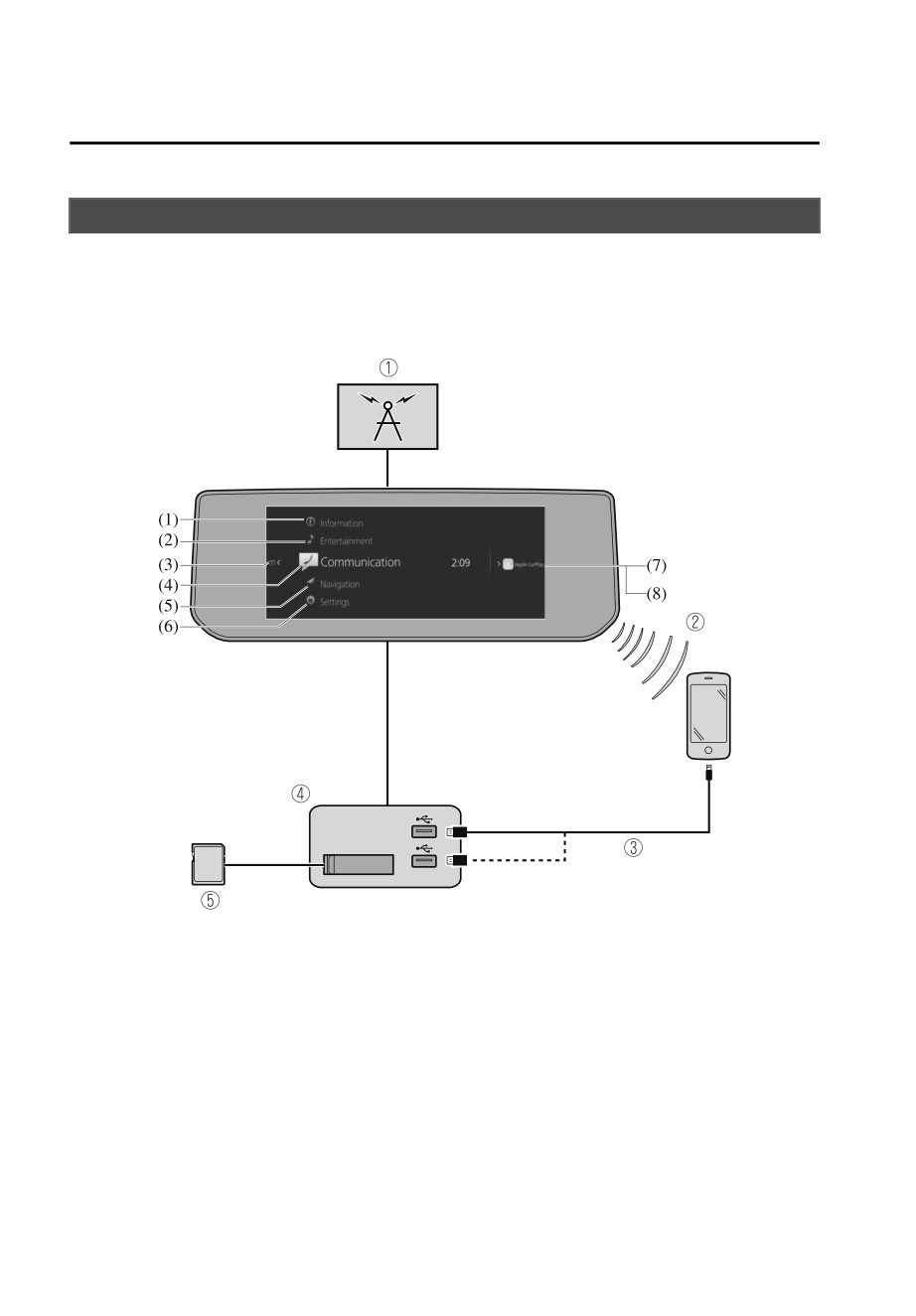

1. Radio

2. Bluetooth® Audio/Hands-Free Call/SMS (Short Message Service)

3. USB Audio/USB Video

4. USB port*1/SD card slot*2

5. SD card (Navigation system)*

*1

The location of the USB slot differs depending on the specifications.

*2

The SD card slot is for the navigation system only. For vehicles with the

navigation system, the SD card (Mazda genuine) with stored map data is

inserted into the SD card slot and used.

5-14

*Some models.

Interior Features

Mazda Connect

No.

Menu

Explanation

Energy Efficiency History:

Monitor energy efficiency in real time and view energy efficiency histo-

ry.

High Voltage Battery Monitor:

View high voltage battery charge level, charging schedule, and more.

(1)

Information

SiriusXM Travel Link^*:

Access traffic information, weather, fuel prices, parking information

and sports scores.

Vehicle Status Monitor:

View important vehicle maintenance messages, information, and inter-

vals.

FM

SiriusXM^*

Pandora^*

Bluetooth

(2)

Entertainment

USB1 Audio/USB2 Audio

USB1 Video/USB2 Video

Smartphone Apps^*/Apple CarPlay^*/Android Auto^*

Audio Off

Displays text messages received by the mobile device paired to Mazda

Connect and notifications from the vehicle. The number of notifica-

(3)

Notifications

tions is displayed, and if they exceed 100, 99+ is displayed. If a serious

problem occurs, the background color changes to amber or red.

By connecting your mobile device, such as a Smartphone, to Mazda

(4)

Communication

Connect via Bluetooth^®, you can use the hands-free call and short mes-

sage functions.

The navigation system (vehicles with navigation system) can be used

when the SD card for the navigation system is inserted.

If the SD card for the navigation system is not inserted, the compass in-

(5)

Navigation

dicating the direction in which the vehicle is moving is displayed. The

compass may not indicate the correct bearing when the vehicle is stop-

ped or traveling at a slow speed.

For the navigation system operation, refer to the navigation system

manual.

*Some models.

5-15

Interior Features

Mazda Connect

No.

Menu

Explanation

You can change the settings for the Mazda Connect screen, sound set-

tings, and the vehicle functions.

EV Settings:

Configures charging schedule, climate control timer, and more.

In-Vehicle Displays:

Configures settings and content for all in-vehicle displays.

Sound Settings:

Configures the in-vehicle listening experience.

(6)

Settings

Safety Settings:

Configures safety and driver assistance features.

Vehicle Settings:

Configures vehicle convenience features.

Connectivity Settings:

Configures Bluetooth and other device connectivity settings.

System Settings:

Configures language, time, and other general settings.

You can use Apple CarPlay™ by connecting an iPhone^® compatible with

(7)

Apple CarPlay

Apple CarPlay™ to the USB slot.

You can use Android Auto™ by connecting an Android™ Smartphone

(8)

Android Auto

compatible with Android Auto™ to the USB port.

WARNING

Always adjust Mazda Connect while the vehicle is stopped:

Do not adjust Mazda Connect with the Commander switch while driving the

vehicle. Adjusting Mazda Connect with the Commander switch while driving the

vehicle is dangerous as it could distract your attention from the vehicle operation

which could lead to a serious accident.

Even if the audio remote control switches are equipped on the steering wheel, learn

to use the switches without looking down at them so that you can keep your

maximum attention on the road while driving the vehicle.

Do not allow the connection plug cord to get tangled with the selector lever:

Allowing the plug cord to become tangled with the selector lever is dangerous as it

could interfere with driving, resulting in an accident.

5-16

Interior Features

Mazda Connect

Mazda Connect Basic Operations

▼ Mazda Connect Basic Operations

NOTE

The explanation of functions described in this manual may differ from the actual

operation, and the shapes of screens and buttons and the letters and characters

displayed may also differ from the actual appearance.

Additionally, depending on future software updates, the content may successively

change without notice.

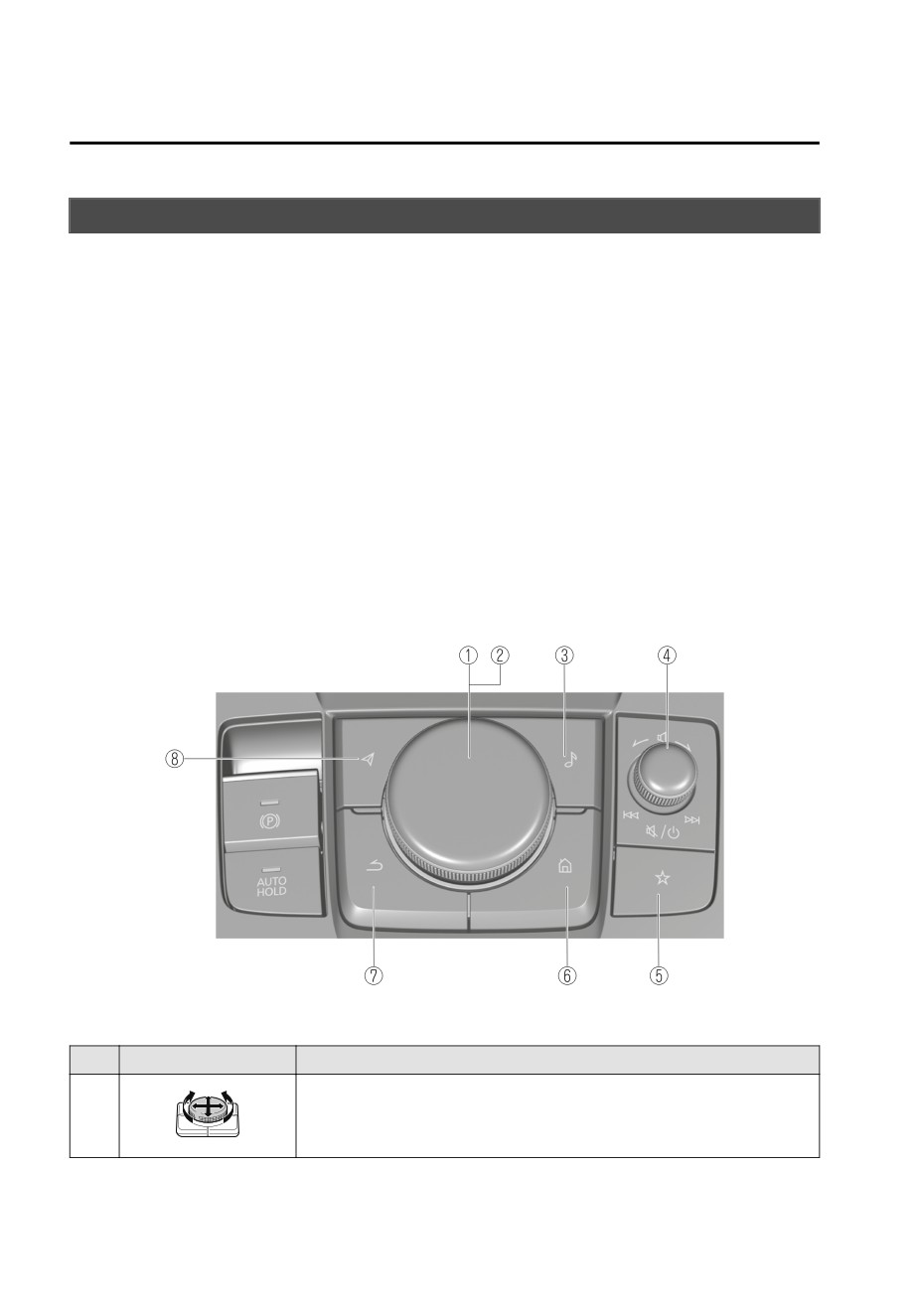

▼ Commander Switch Operation

The commander switch can be used to switch to each function and to operate each

function.

Set the palm of your hand on the commander knob so that your fingers can touch

each of the switches.

You can switch the screens without having to look down at your hand.

NOTE

For safety reasons, some operations are disabled while driving the vehicle.

The shape of the switches varies depending on the specifications.

No.

Item

Explanation

Commander knob (selection):

1

Rotate or slide the commander knob to highlight/select the on-screen

functions you want to use.

5-18

Interior Features

Mazda Connect

No.

Item

Explanation

Commander knob (select):

2

Depress the commander knob to select the desired on-screen function

you want to use.

Entertainment button:

The audio source screen last used is displayed.

3

(During Apple CarPlay™ or Android Auto™ music playback)

Displays the Apple CarPlay™ or Android Auto™ now playing screen.

5-19

Interior Features

Mazda Connect

No.

Item

Explanation

Volume knob:

Volume adjustment

Adjust the volume by turning the volume knob.

If you adjust the volume during voice guidance, the volume of the

voice guidance will change.

If you adjust the volume during a hands-free call, the conversation vol-

ume will change.

Press the volume knob to mute/pause the audio. Press the knob again

to resume.

Power off/on

Press and hold to turn off the Mazda Connect power and turn off the

screen.

Press and hold again to turn on the Mazda Connect power.

NOTE

If you press the volume knob to mute an audio source which can be

paused, such as Apple CarPlay™, USB audio, or Bluetooth^® audio,

while it is playing, the song playback pauses. Press the volume knob

4

again to cancel the mute and the pause at the same time.

Selecting a radio station

Radio stations saved to your Favorites can be selected by sliding the

volume knob left (SEEK DOWN)/right (SEEK UP) while listening to

FM/SiriusXM^®. The station will change each time you slide the volume

knob.

If you want to manually tune to the next available station before or af-

ter the currently selected station, slide and hold the volume knob left

(SEEK DOWN) or right (SEEK UP) until you hear a beep and the tuner

will select the next available station.

Playback Control

Music and video files can be cued when listening to stored content via

USB, Bluetooth^®, and SiriusXM^®, audio, or video.

Slide the volume knob right to skip to the next track or slide it to the

left to go back to the previous track. You can also slide and hold the

volume knob to fast forward or rewind the track.

5-20

Interior Features

Mazda Connect

No.

Item

Explanation

Favorites button:

Displays the favorites screen.

5

Press and hold to register FM/SiriusXM^® stations, contacts, navigation

destinations, or any highlighted menu items to create easily accessible

shortcuts.

Home button:

Displays the home screen.

(While Apple CarPlay™ or Android Auto™ is displayed)

Displays the Apple CarPlay™ or Android Auto™ home screen.

6

(While Apple CarPlay™ or Android Auto™ is connected)

Press and hold while the Mazda Connect screen is displayed to switch

the screen from Mazda Connect to Apple CarPlay™ or Mazda Connect

to Android Auto™. In addition, press and hold while the Apple

CarPlay™ or Android Auto™ screen is displayed to switch to the Mazda

Connect screen.

Back button:

7

Returns to previous screen.

Map button:

Displays the navigation screen (vehicles with navigation system).

In order for the navigation system to function, the SD card for the navi-

gation system is required.

If the SD card for the navigation system is not inserted, the compass in-

dicating the direction in which the vehicle is moving is displayed.

For the navigation system operation, refer to the navigation system

8

manual.

(During Apple CarPlay™ or Android Auto™ route guidance)

Displays the Apple CarPlay™ or Android Auto™ map screen.

NOTE

With an active Mazda Navigation route, pressing the Map button will

repeat the navigation voice guidance.

5-21

Interior Features

Mazda Connect

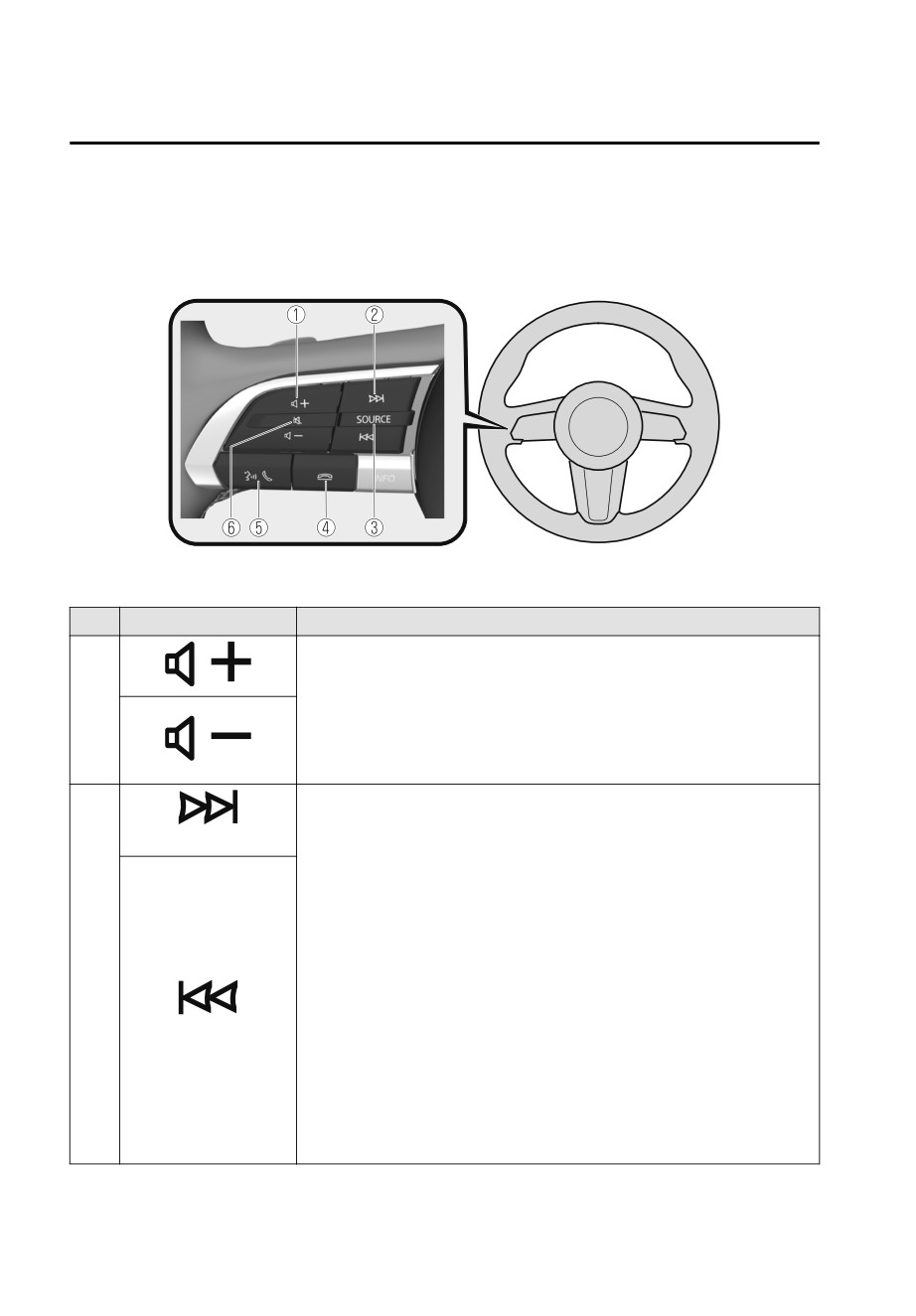

▼ Audio Remote Control Switch Operation

The audio remote control switch is on the left side of the steering wheel. You can

operate basic audio functions, pick up/hang up the phone, or activate voice

control using the switch.

The shape of the switches may differ depending on the specifications.

No.

Item

Explanation

Volume adjustment button:

Press the (+) or (-) button to adjust the volume.

If you adjust the volume during voice guidance, the volume of the

1

voice guidance will change.

If you adjust the volume during a hands-free call, the conversation vol-

ume will change.

Seek Switch:

Selecting a radio station

(SEEK UP)

Radio stations saved to your Favorites can be selected by pressing the

seek switch while listening to FM/AM radio. The station will change to

the previous or next favorite station each time you press the seek

switch. If you want to manually tune to the next available station be-

fore or after the currently selected station, press and hold the seek

2

switch until it beeps and the tuner will select the next available station.

(SEEK DOWN)

Playback Control

Music and video files can be cued when listening to stored content via

USB, Bluetooth^®, and SiriusXM^®, audio, or video.

Slide the volume knob right to skip to the next track or slide it to the

left to go back to the previous track. You can also slide and hold the

volume knob to fast forward or rewind the track.

5-22

Interior Features

Mazda Connect

No.

Item

Explanation

SOURCE button:

The audio source can be switched each time the button is pressed.

In addition, when the button is pressed and held, the current au-

3

SOURCE

dio source is muted and the audio source selection screen is displayed.

(During Apple CarPlay™ or Android Auto™ playback)

Press and hold the SOURCE button to mute the current audio source.

Hang-up button:

(During a call)

Press the button to end the call.

4

(While receiving a call)

Press the button to refuse a call.

Talk/Pick-up button:

5

(While receiving a call)

Press the button to answer the call.

Mute button:

Press the button to mute.

Press it again to cancel the mute.

6

NOTE

If you press the mute button to mute an audio source which can be

paused, such as Apple CarPlay™, USB audio, or Bluetooth^® audio,

while it is playing, the song playback pauses. Press the mute button

again to cancel the mute and the pause at the same time.

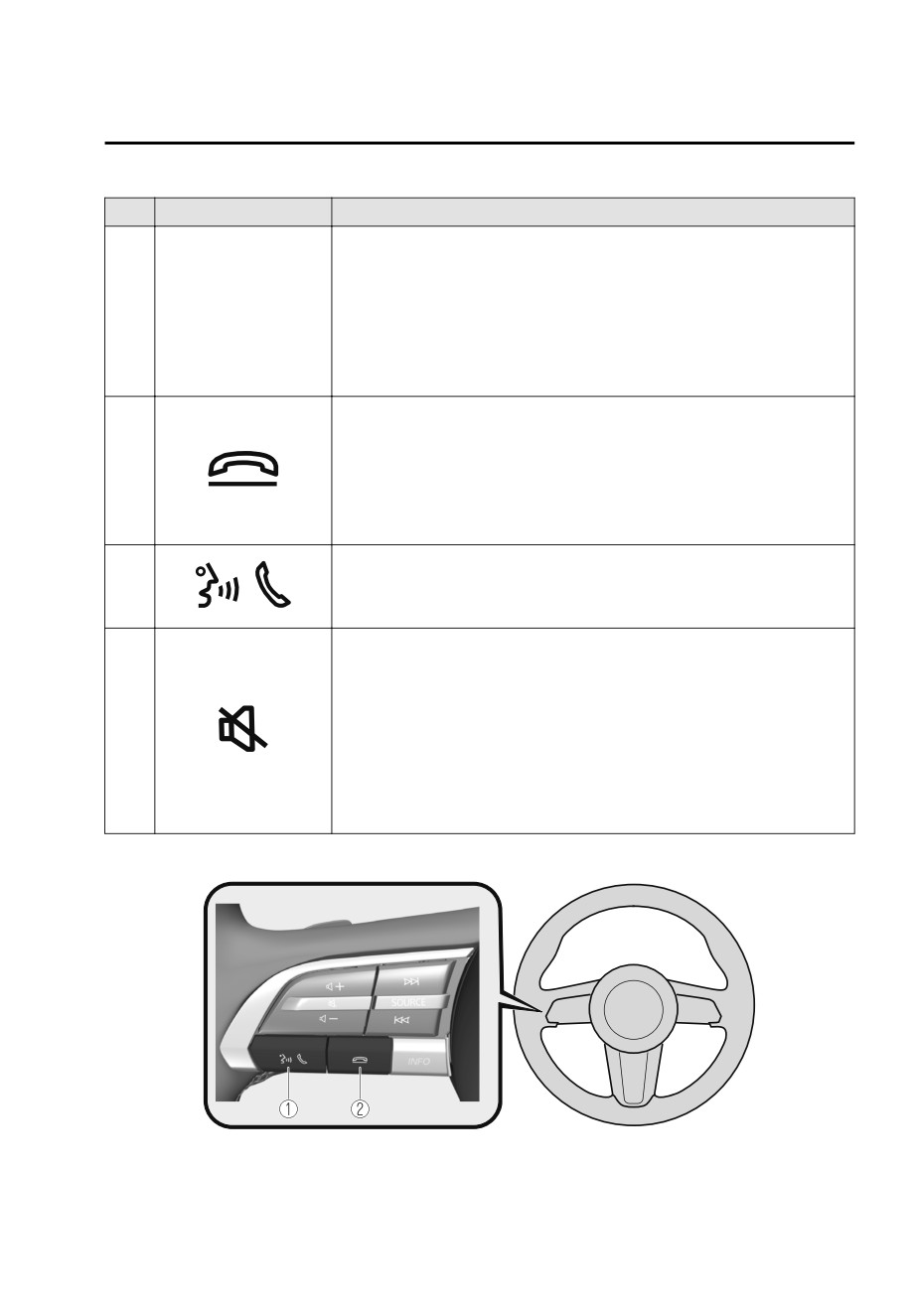

▼ Operation Using Voice Recognition Function

The shape of the switches may differ depending on the specifications.

5-23

Interior Features

Mazda Connect

No.

Item

Explanation

Talk/Pick-up button:

When the button is pressed, the voice recognition top screen is dis-

played and the voice recognition is activated.

1

(While voice guidance is being announced)

Press the button to skip the voice guidance.

Hang-up button:

2

Press the button to end the voice recognition.

Voice recognition activation

When the talk/pick-up button on the audio remote control switch is pressed, top

screen of the voice recognition will be displayed.

NOTE

When an Apple CarPlay™ or Android Auto™ compatible device is connected, the

Mazda Connect voice recognition system is disabled to allow the use of Siri® or

Android Auto™ voice recognition at any time with the talk/pick-up button.

Commands usable at any time

“Help” - Can be used to check for usable voice commands.

“Back” - Returns to the previous screen. When a voice command is spoken while on

the telephone number input screen, the content that was previously input is deleted.

“Cancel”- The voice recognition is ended.

To learn more on how to operate Mazda Connect

“Owner's Manual” - The operation guide screen is displayed.

Ending voice recognition

Do any one of the following operations:

^ Press the hang-up button.

^ Press and hold the talk/Pick-up button.

^ Say the word, “Cancel”.

5-24

Interior Features

Mazda Connect

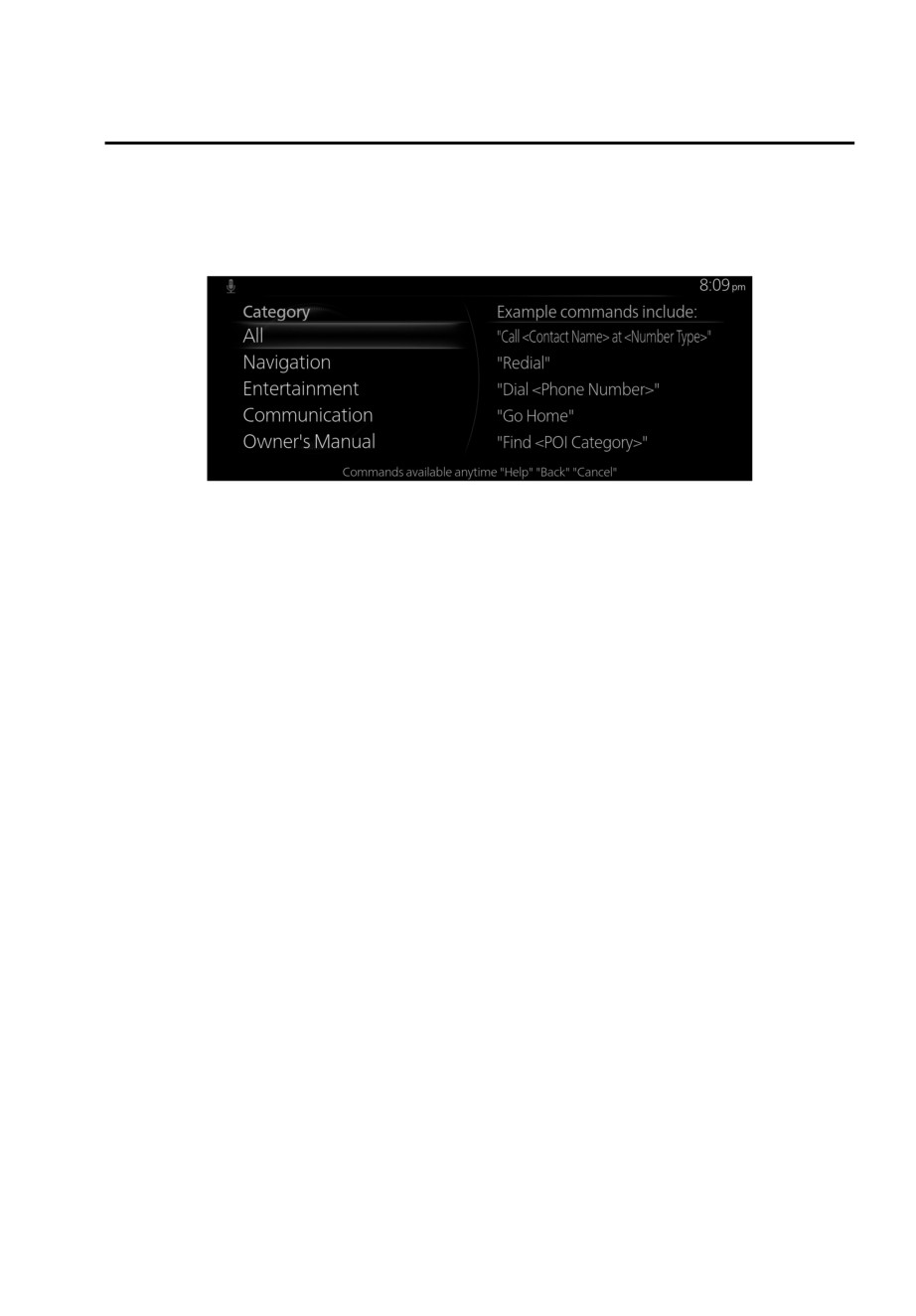

Convenient operating tips for using the voice recognition function

Examples of effective voice commands in various categories are displayed on top

screen of the voice recognition.

NOTE

^ The voice command examples shown in this manual are only a partial list of the

available commands. Some commands may be unusable depending on the

specifications.

^ Some commands cannot be used depending on the device connection conditions

and the use conditions.

^ When the Barge-In setting is on, voice commands can be made even while the

voice guidance is being announced. For details on Barge-In, refer to the System

Settings section in the Mazda Connect Owner's Manual.

^ For details on voice commands which can be used on the navigation screen, refer

to the navigation system manual.

To prevent misunderstood voice commands, be aware of the following points:

^ Connect your mobile phone to Bluetooth® before operating the mobile phone

using voice recognition.

^ After pressing the talk/pick-up button, wait for the beep before speaking a

command.

^ Speaking in a slightly louder voice will improve voice recognition, but an

excessively loud voice is unnecessary. Try to speak in a slightly louder voice than

when talking to other passengers in the vehicle.

^ You do not need to speak slowly. Speak at a normal speed.

^ When calling a person in the device's phone book, the recognition rate increases

the longer the name is. Errors may occur with names that are short such as

“Mama”, “Home”, or “wife”.

^ Speak clearly, without pausing between words or numbers.

^ Voice commands other than those specified, cannot be recognized. Speak in the

wording specified by the voice commands.

^ It is not necessary to face the microphone or approach it. Speak the voice

commands while maintaining a safe driving position.

^ Close the windows and the moonroof* to reduce loud noises from outside the

vehicle and to prevent the airflow of the air-conditioning system from being a

disturbance when using Bluetooth® Hands-Free.

*Some models.

5-25

Interior Features

Mazda Connect

Source

^ Change Source (You can also use “Change Source to USB”*1 and “USB”*1.)

^ Audio OFF (You can also use “Change Source to Audio OFF”.)

Phone

^ Dial Phone Number (You can also use “Dial {Phone Number}”.)

^ Call History

^ Call a Contact (You can also use “Call {Contact Name}” and “Call {Contact Name}

at {Number Type}”.)

^ Redial

*1

: Audio source names other than “USB” can also be used as follows:

Bluetooth/FM/SiriusXM/Pandora/USB1 Audio/USB2 Audio/USB1 Video/

USB2 Video

▼ Appendix

Gracenote® Database

When connecting a USB audio device or Bluetooth® audio device to this unit and

playing audio, the unit searches the database stored in the vehicle for the album art.

If there is a match in the vehicle's database compilation to the music being played,

the album art is displayed. The database information stored in this device uses

database information in the Gracenote® music recognitions service.

SiriusXM Travel Link®*

CAUTION

ADVISORY ONLY

The weather information is subject to service interruptions and may contain errors or

inaccuracies and consequently should not be relied upon exclusively. You are urged

to check alternate weather information sources prior to making safety related

decisions. You acknowledge and agree that you shall be solely responsible for use of

the information and all decisions taken with respect thereto. By using this weather

service, you release and waive any claims against Sirius XM Radio Inc. and Mazda

Motor Corporation and all of their respective affiliates with regard to this service.

SiriusXM® Satellite Radio*

Products/applications shall display “Call [Appropriate Phone Number] to Enable

Services” for any unsubscribed SiriusXM Data Service(s).

This shall be shown on the same screen as the Radio ID and the service subscription

status:

Contact your SiriusXM Representative for the appropriate call center phone number.

*Some models.

5-27

Interior Features

Mazda Connect



When using Android Auto™, location, speed, and other vehicle data is transferred

to your smart phone. For further details, refer to Google Privacy Policy.

Trademark

^ Pandora®, the Pandora® logo, and the Pandora® trade dress are trademarks or

registered trademarks of Pandora Media, Inc., used with permission.

^ HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of

iBiquity Digital Corp.

^ iPhone, iPod touch, iPod nano, Siri and Apple Music are registered trademarks of

Apple Inc.

^ Apple CarPlay is trademarks of Apple Inc.

^ iOS is a trademark or registered trademark of Cisco in the U.S. and other countries

and is used under license.



“Made for iPhone” and “Made for iPod” mean that an accessory has been

designed to connect specifically to iPhone or iPod, and has been certified by the

developer to meet Apple performance standards. Apple is not responsible for the

operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPhone or iPod may affect wireless

performance.

Made for

iPhone 11 Pro Max

iPhone 11 Pro

iPhone 11

iPhone XS Max

iPhone XS

iPhone XR

iPhone X

iPhone 8 Plus

iPhone 8

iPhone 7 Plus

iPhone 7

iPhone SE

iPhone 6s Plus

iPhone 6s

iPhone 6 Plus

iPhone 6

iPhone 5s

iPod touch (7th generation)

5-32

Interior Features

Mazda Connect

iPod touch (6th generation)

^ Google, Android, Android Auto and other related marks are trademarks of Google

LLC.

^ AudioPilot is a registered trademark of Bose Corporation.

^ Centerpoint is a registered trademark of Bose Corporation.

^ Windows Media and Microsoft are registered trademarks of Microsoft Corporation

U.S. in the United States and other countries.

This product is protected by certain intellectual property rights of Microsoft

Corporation and third parties.

Use or distribution of such technology outside of this product is prohibited

without a license from Microsoft or an authorized Microsoft subsidiary and third

parties.

^ The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under

license. Other trademarks and trade names are those of their respective owners.

^ SDHC Logo is a trademark of SD-3C, LLC.

^ Gracenote, the Gracenote logo and logotype are either a registered trademark or a

trademark of Gracenote, Inc. in the United States and/or other countries.

5-33

Interior Features

Mazda Connect

Connected Service (If applicable)

▼ Connected Service Overview

There are several types of connected services available via Mazda Connect. Some

services may require you to download the MyMazda app to your smartphone and

subscribe to the services, while others may require you to pair your smartphone to

the vehicle via Bluetooth®. In addition, on a regular basis and unless you opt-out,

your vehicle will automatically transmit certain geo-location, driving behavior data,

and vehicle health information to Mazda for product quality, data analysis, research,

and product development. Using the QR codes or URLs below, refer to the

Connected Service Owner's Manual and Privacy Policy for more details and opt-out

options.

^ Connected Service Owner's Manual

https://www.mazdausa.com/static/manuals/mazda-connected-service/

index.html

Privacy

Mazda maintains a Privacy Statement which describes how we collect, use, share,

store and secure data from your vehicle equipped with connected services.

We provide you with connected services by collecting and using your personal

information and vehicle location, health and driving data.

To learn more about our Privacy Statement, please visit: https://

www.mazdausa.com/site/privacy-connectedservices

5-35

Interior Features

Interior Equipment

If your vehicle is equipped with a

Sunvisors

vanity mirror light, it will illuminate

when you open the cover.

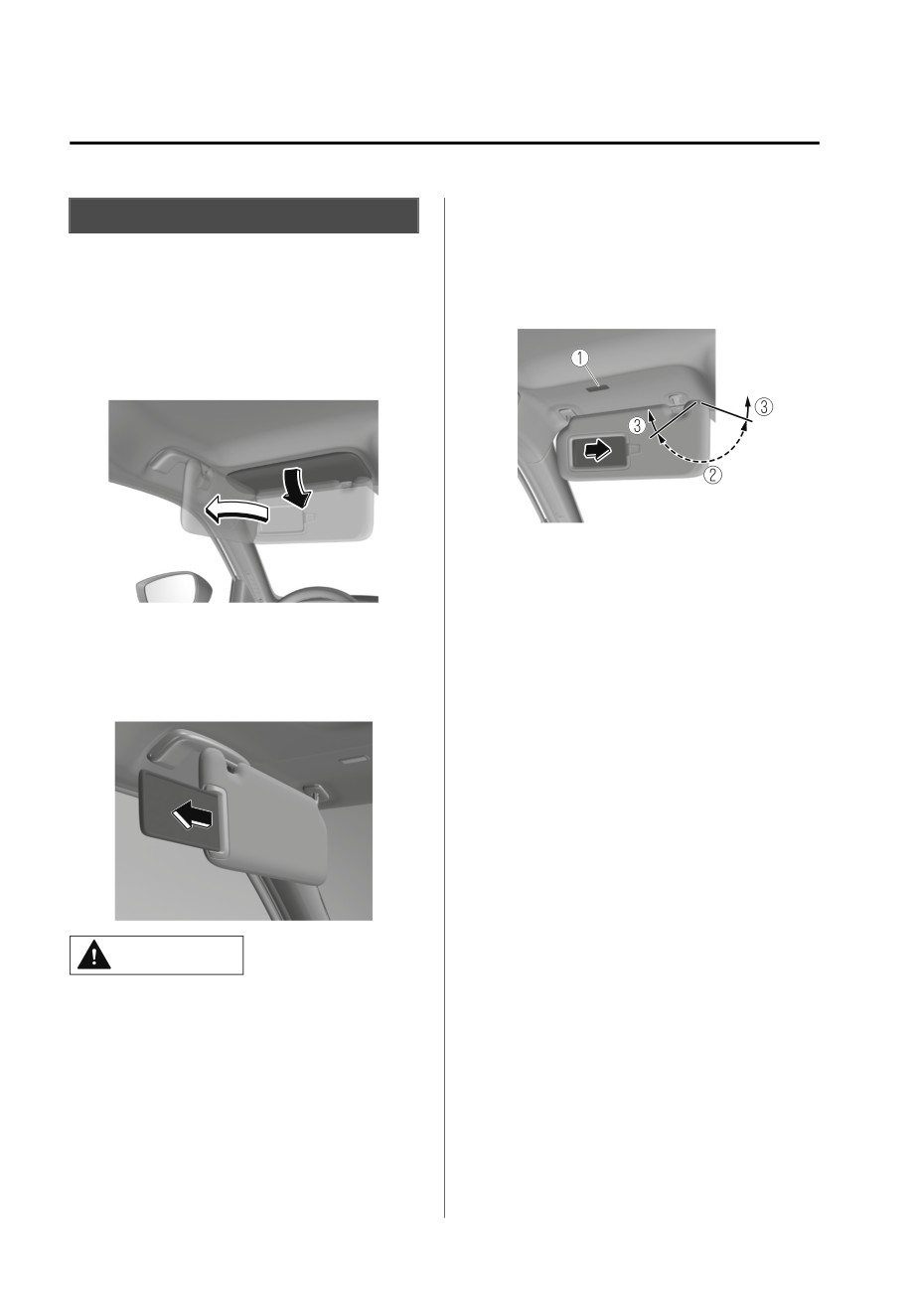

▼ Sunvisors

The vanity mirror will only illuminate in

the tilt range shown in the figure.

Lower the sunvisor to block sunlight

from the front.

To block sunlight from the side, lower

and unhook the sunvisor, and then

swing it to the side.

1. Vanity mirror light

2. On

3. Off

▼ Side Extension Sunvisors

NOTE

If a vanity mirror light is left on with the

The visor extender extends the

power switch switched OFF, the light is

sunvisor's range of sun shading.

turned off automatically to prevent the

To use, pull it out.

lead-acid battery from being

discharged.

The vanity mirror light can be turned

on again by doing any of the following

operations:

^ Opening/closing any door.

^ Unlocking any door.

^ Switching the power switch to ACC

or ON.

^ Switching an overhead light/front

CAUTION

map light on.

When moving the sunvisor, retract the

visor extender to its original position.

Otherwise, the visor extender could hit

the rearview mirror.

▼ Vanity Mirrors

The vanity mirror is on the backside of

the sunvisor.

5-36

Interior Features

Interior Equipment

Switch

Overhead Lights

Interior Lights

The door interlock can be switch-

▼ Interior Lights

ed ON/OFF.

When the door interlock is OFF,

NOTE

the indicator light in the switch

Do not leave the lights on for long

turns on.

periods while the EV system is

stopped. Otherwise the lead-acid

Door interlock ON (indicator

battery power could be depleted.

light in switch is off)

DOOR OFF

Overhead lights

 The lights turn on when any of

the doors is opened.

Front

 The lights turn on/off in con-

junction with the illuminated

entry system.

Rear

(Vehicles without rear map lights)

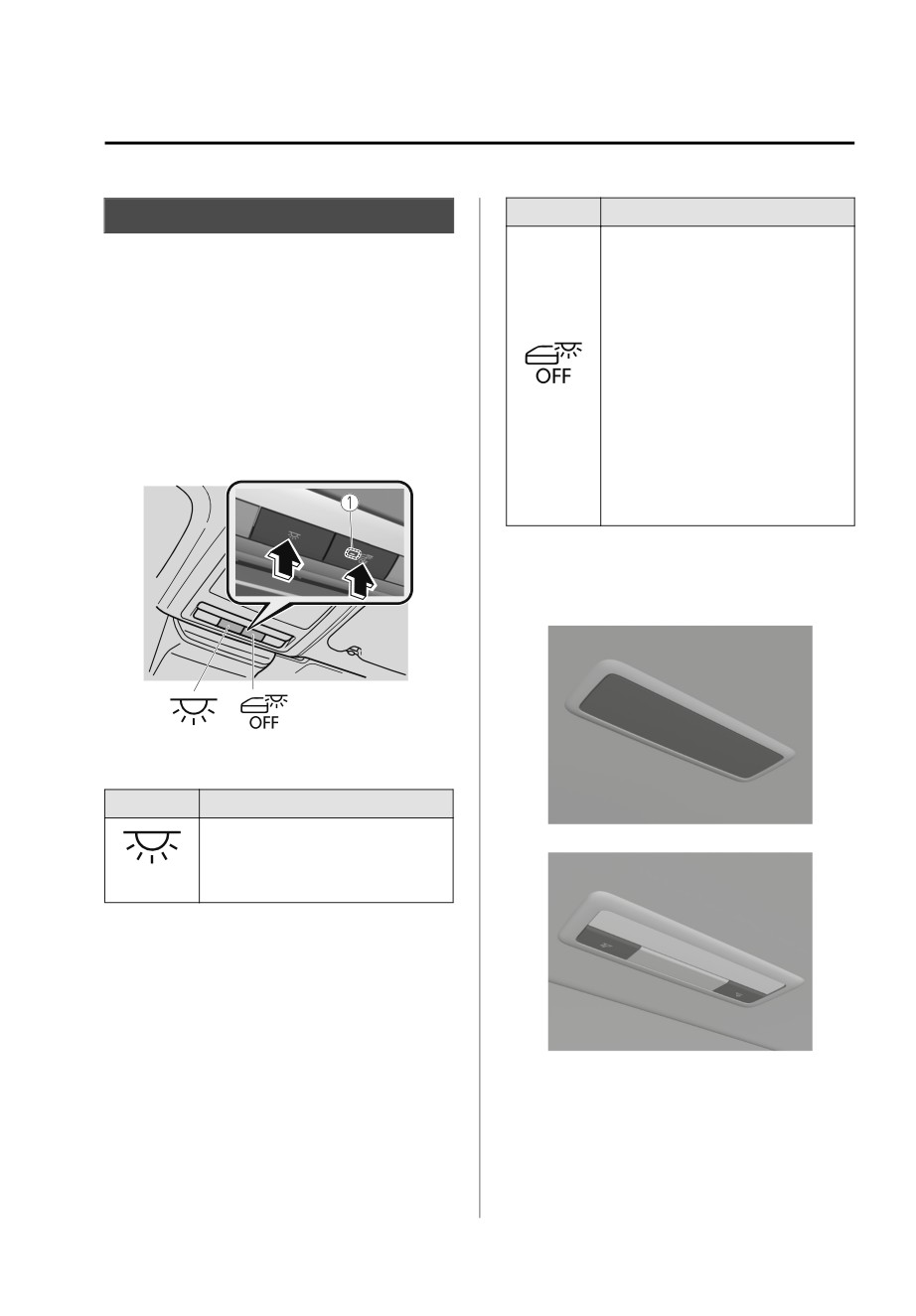

1. Indicator light

Switch

Overhead Lights

Press the switch to turn it on.

(Vehicles with rear map lights)

Press the switch again to turn off

the lights.

ON/OFF

NOTE

The rear overhead light also turn on

and off when the front overhead light

switch is operated.

5-37

Interior Features

Interior Equipment

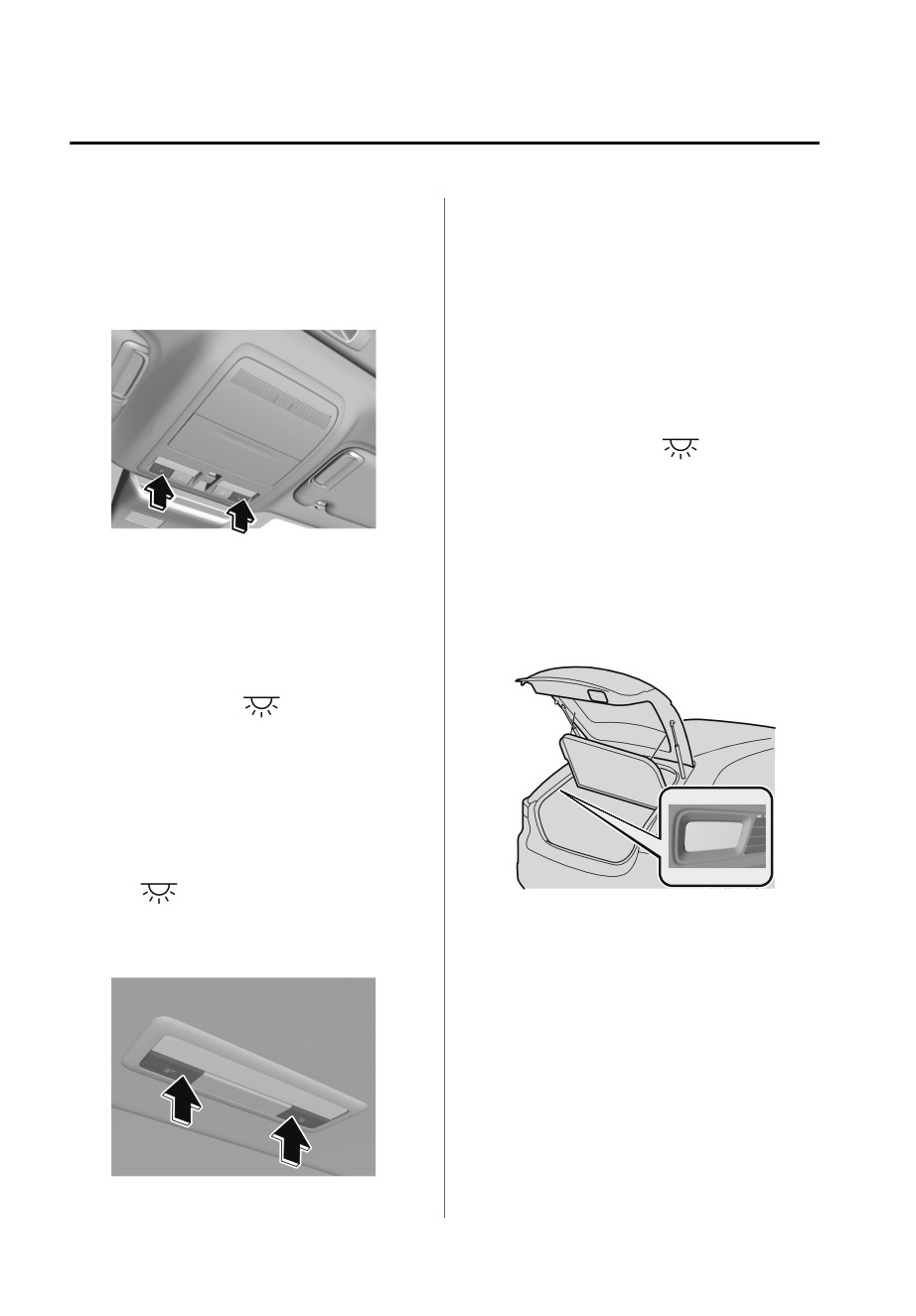

Map lights

NOTE

Front

^ Once the rear map lights have been

turned off, they will turn on and off

Press the switch to illuminate the front

in conjunction with the overhead

map lights, and then press the switch

light operation.

again to turn them off.

^ The rear map lights will not turn off

even if the switch is pressed in the

following cases:

^ The overhead lights turn on by

operating the overhead light

ON/OFF switch (

).

^ The overhead lights turn on in

conjunction with a door opening/

closing.

^ The illuminated entry system is on.

NOTE

Luggage compartment light

The front map lights will not turn off

even if the switch is pressed in the

The luggage compartment light is on

following cases:

when the liftgate is open and off when

it is closed.

^ The overhead lights turn on by

operating the overhead light

ON/OFF switch (

).

^ The overhead lights turn on in

conjunction with a door opening/

closing.

^ The illuminated entry system is on.

Rear*

When the overhead light ON/OFF

switch (

) is off, press the switch to

illuminate the rear map lights, and

NOTE

then press the switch again to turn

Do not leave the liftgate open for long

them off.

periods while the EV system is

stopped. Otherwise the lead-acid

battery power could be depleted.

▼ Illuminated Entry System

The overhead lights turn on when any

of the following operations is done

with the overhead light switch in the

DOOR position.

^ The driver's door is unlocked with

the power switch switched OFF.

5-38

*Some models.

Interior Features

Interior Equipment



The power switch is switched OFF

Accessory Sockets

with all doors closed.

▼ Accessory Sockets

NOTE

Only use genuine Mazda accessories

^ The illumination time differs

or the equivalent requiring no greater

depending on the operation.

than 120 W (DC 12 V, 10 A).

^ The vehicle is equipped with a

The power switch must be switched to

battery saver. If an interior light is left

ACC or ON.

on with the power switch switched

OFF, the light turns off automatically

after a certain period of time has

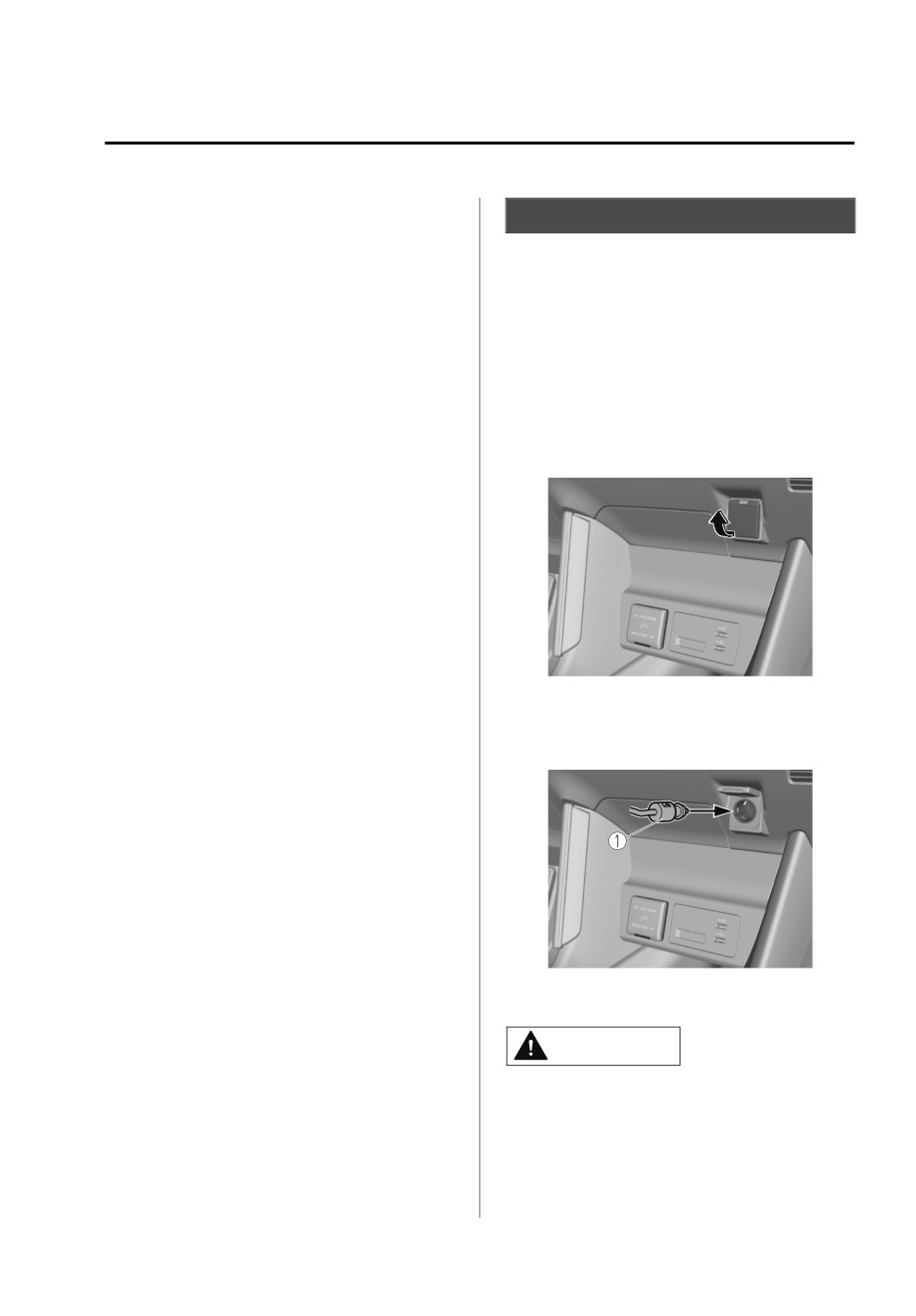

Connecting the accessory socket

passed to prevent lead-acid battery

1. Open the lid.

depletion.

^ The operation of the illuminated

entry system can be changed.

Refer to the Settings section in the

Mazda Connect Owner's Manual.

^ The illuminated entry system does

not operate in conjunction with the

overhead lights when the overhead

lights are turned on using the

overhead light ON/OFF switch.

2. Pass the connection plug cord

through the cutout of the console

and insert the plug into the

accessory socket.

1. Plug

CAUTION

¾ To prevent accessory socket damage

or electrical failure, pay attention to

the following:

¾ Do not use accessories that require

more than 120 W (DC 12 V, 10 A).

5-39

Interior Features

Interior Equipment

¾ Do not use accessories that are not

AC Power Outlet

genuine Mazda accessories or the

equivalent.

▼ AC Power Outlet

¾ Close the cover when the

accessory socket is not in use to

The AC power outlet can be used as a

prevent foreign objects and liquids

socket for accessories when the power

from getting into the accessory

switch is switched to ACC or ON.

socket.

Only use AC 120 V/60 Hz accessories

¾ Correctly insert the plug into the

that have a maximum power

accessory socket.

consumption of 150 W or below.

¾ Do not insert the cigarette lighter

WARNING

into the accessory socket.

¾ Noise may occur on the audio

playback depending on the device

Never use medical instruments with

connected to the accessory socket.

the power outlet:

¾ Depending on the device connected

Otherwise, the operation of the

to the accessory socket, the vehicle's

medical device might be affected.

electrical system may be affected,

which could cause the warning light

Heed the following cautions when

to illuminate. Disconnect the

using the AC power supply to prevent

connected device and make sure

electrical shock, smoking, or

that the problem is resolved. If the

combustion.

problem is resolved, disconnect the

¾ Be careful with the AC power outlet

device from the socket and switch

and plug during and after use.

the power switch off. If the problem

¾ Because an electrical appliance

is not resolved, consult an

could operate at the moment it is

Authorized Mazda Dealer.

plugged in, check the safety before

plugging it in.

NOTE

¾ Do not plug accessories into the

To prevent the lead-acid battery from

power outlet or unplug them with

depleting, do not use the socket for

wet hands.

long periods with the EV system

¾ Be careful not to allow liquid to

stopped.

penetrate the AC power outlet.

¾ Do not put anything other than plugs

into the AC power outlet.

¾ Do not disassemble the AC power

outlet.

¾ Do not use the AC power outlet if it

is damaged. If part replacement or

repair is required, consult an

Authorized Mazda Dealer.

5-40

*Some models.

Content      ..     10      11      12      13     ..
