When Driving

i-ACTIVSENSE

“Check surroundings for safety.” message is displayed

Top view/Rear wide view

Displays the image of the area around the vehicle and the rear of the vehicle

(wide-area).

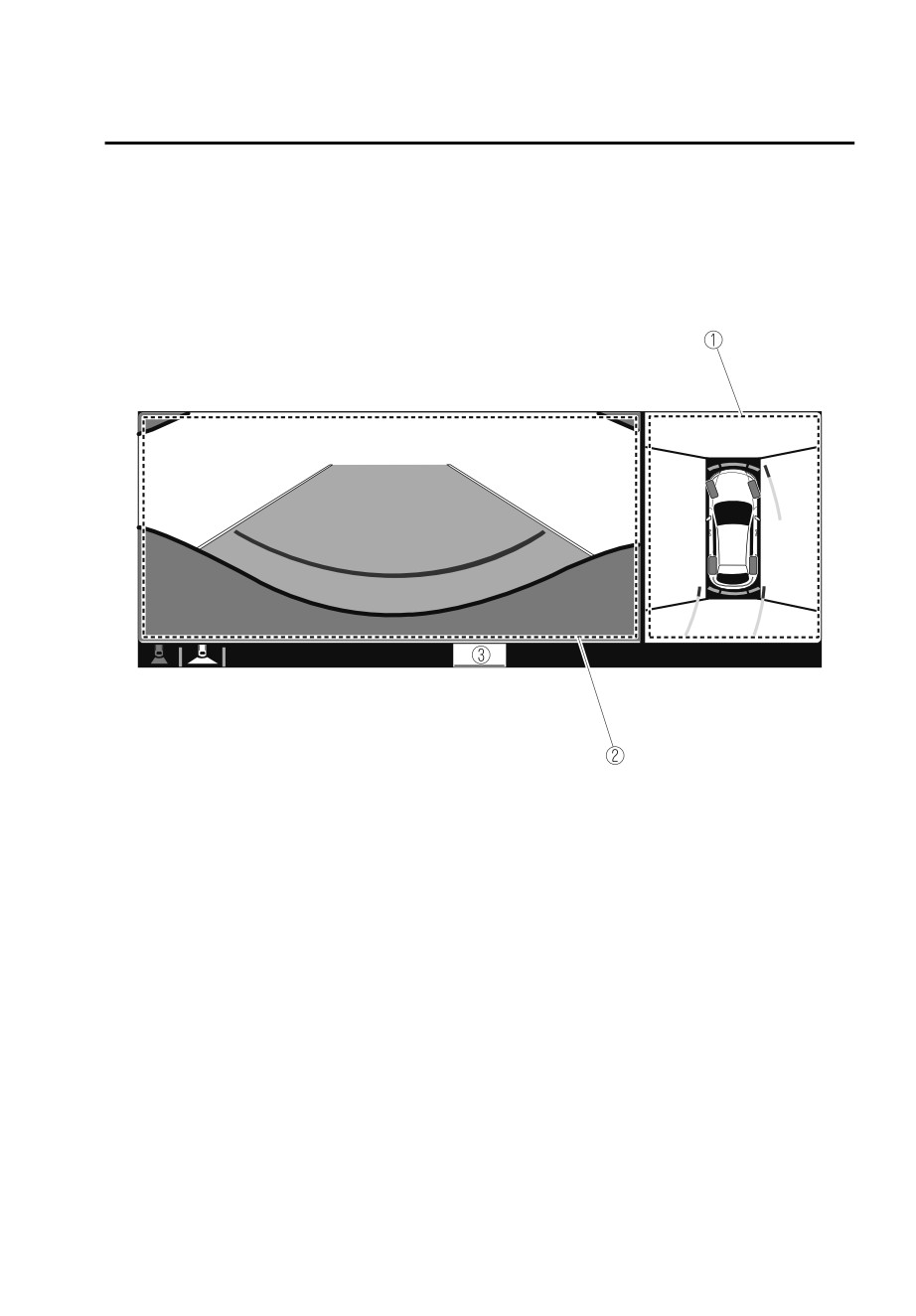

1. Top view screen

2. Rear wide view screen

“Check surroundings for safety.” message is displayed

▼ How to Use the System

Top view/Front view, Top view/Front wide view, Side view

Indication

Images are displayed on the screen when the 360°View Monitor switch is pressed

with all of the following conditions met.

^ The power switch is switched ON.

4-151

When Driving

i-ACTIVSENSE



The selector lever is in a position other than R.

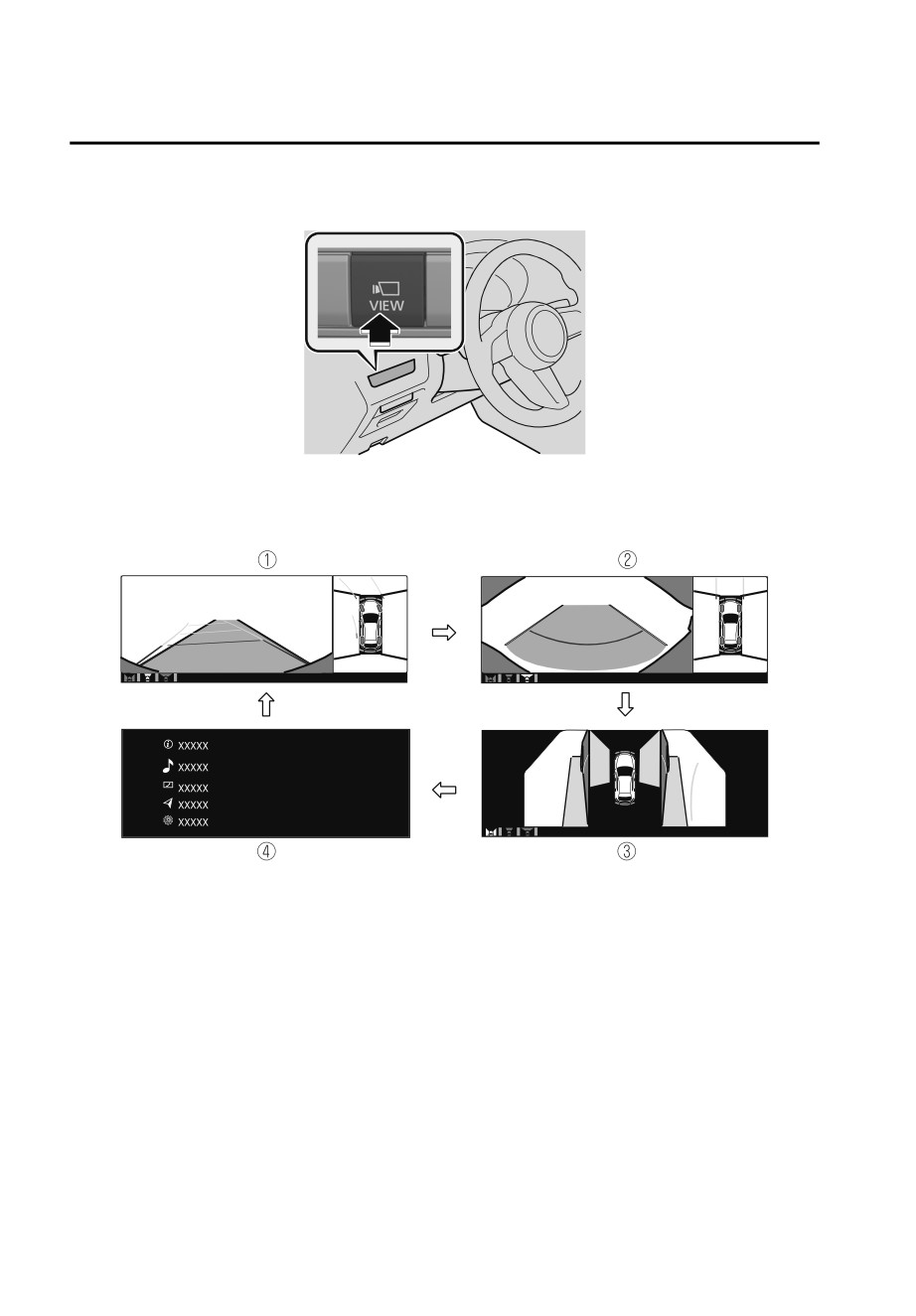

Display switching

The displayed screen can be changed each time the 360°view monitor switch is

pressed.

1. Top view/Front view

2. Top view/Front wide view

3. Side view

4. Home screen

NOTE

^ When the selector lever is in R position, the displayed screen does not switch to

the top view/front view, top view/front wide view, or the side view.

^ Display of the top view/front view, top view/front wide view, or the side view

stops even with the display conditions met if any of the following conditions

occurs.

^ When a switch around the commander knob is pressed.

^ The selector lever is shifted to P position (displayed when the selector lever is in

a position other than P).



(Displayed when vehicle speed is less than 15 km/h (9.3 mph))

4-152

When Driving

i-ACTIVSENSE



4 minutes and 30 seconds have passed.

^ The vehicle speed is about 15 km/h (9.3 mph) or faster.



(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)

^ The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have

passed since pressing the 360°View Monitor switch.



4 minutes and 22 seconds have passed from the point when the vehicle speed

was less than 15 km/h (9.3 mph) after 8 seconds have passed since pressing

the 360°View Monitor switch.

^ The 360°View Monitor settings can be changed as follows.

Refer to the Settings section in the Mazda Connect Owner's Manual.

^ Automatic display of the 360°View Monitor when the ultrasonic sensor detects

an obstruction.

^ Automatic display of the 360°View Monitor when the power switch is switched

ON.

^ Screen priority level when the system launches.

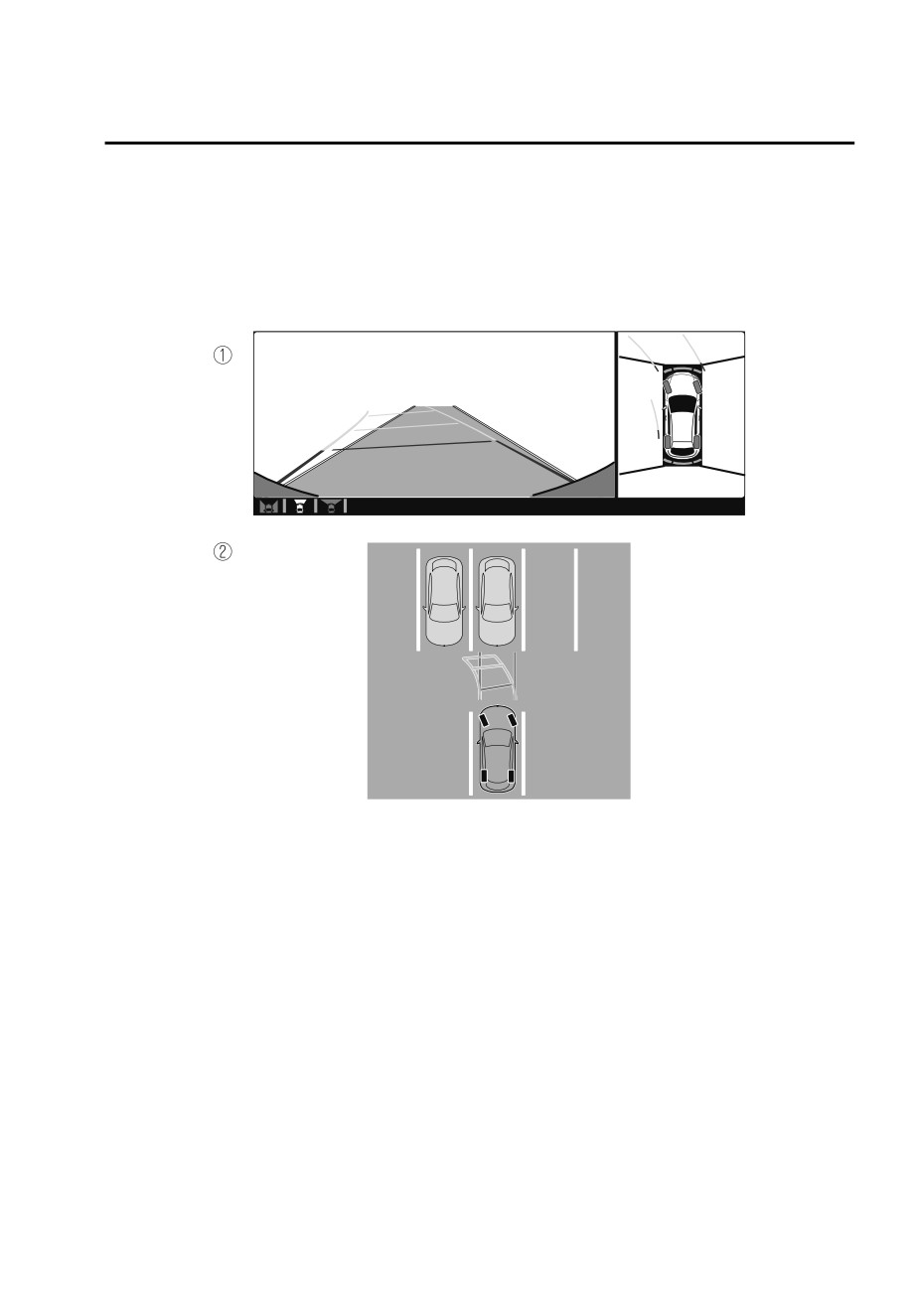

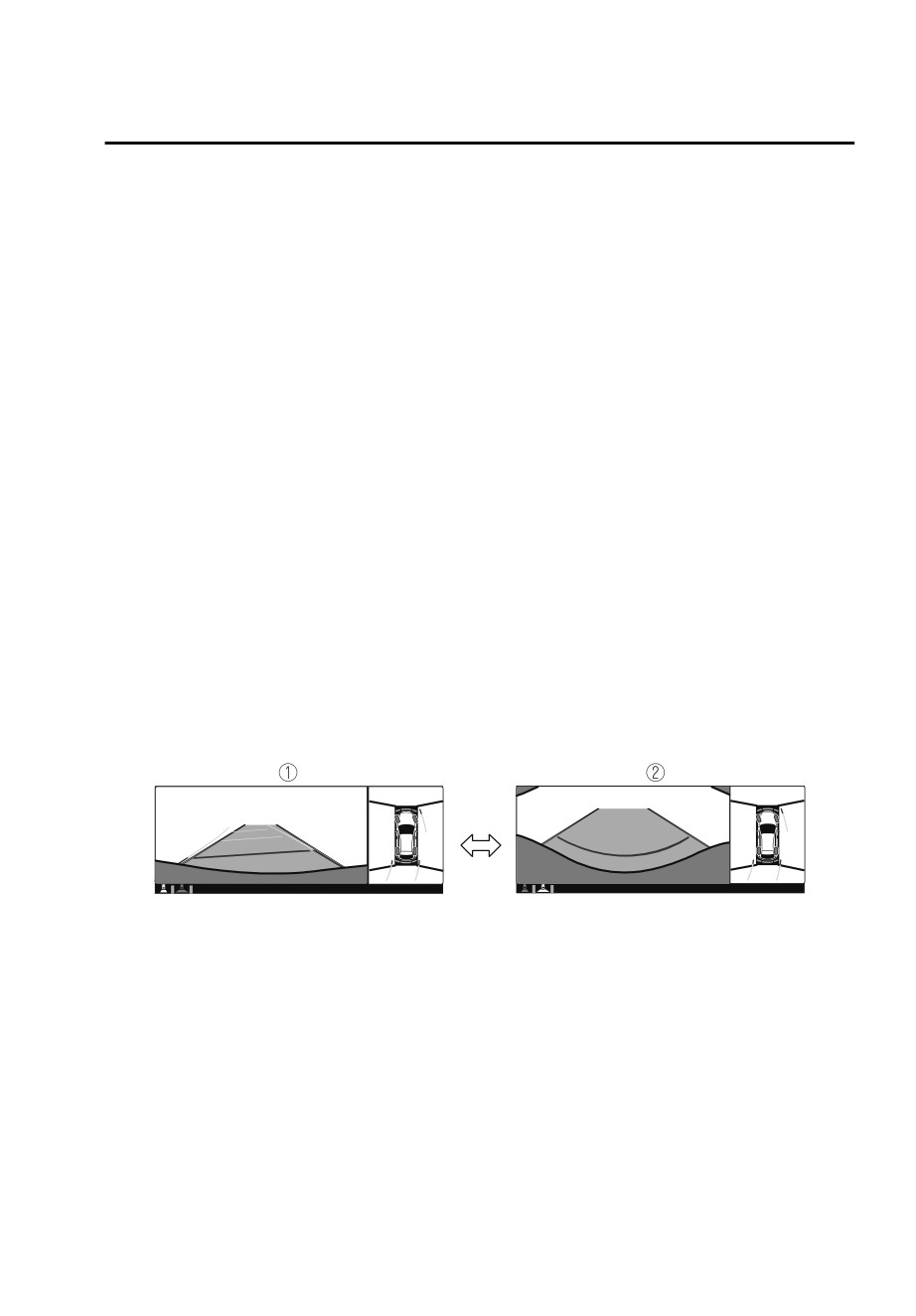

Top view/Rear view, Top view/Rear wide view

The top view/rear view, top view/rear wide view displays when all of the following

conditions are met.

^ The power switch is switched ON.

^ Selector lever is in R position.

Display switching

The displayed screen can be changed each time the 360°view monitor switch is

pressed.

1. Top view/Rear view

2. Top view/Rear wide view

NOTE

^ The top view/rear view and top view/rear wide view automatically display

whether or not the 360°View Monitor switch is turned on or off when shifting the

selector lever to R position.

^ The top view/rear view and top view/rear wide view displays the previously

displayed screen.

^ The setting can be changed to display the top view/front view when shifting from

reverse to a forward gear without operating the 360°View Monitor switch to check

the front of the vehicle while parallel parking.

Refer to the Settings section in the Mazda Connect Owner's Manual.

4-153

When Driving

i-ACTIVSENSE

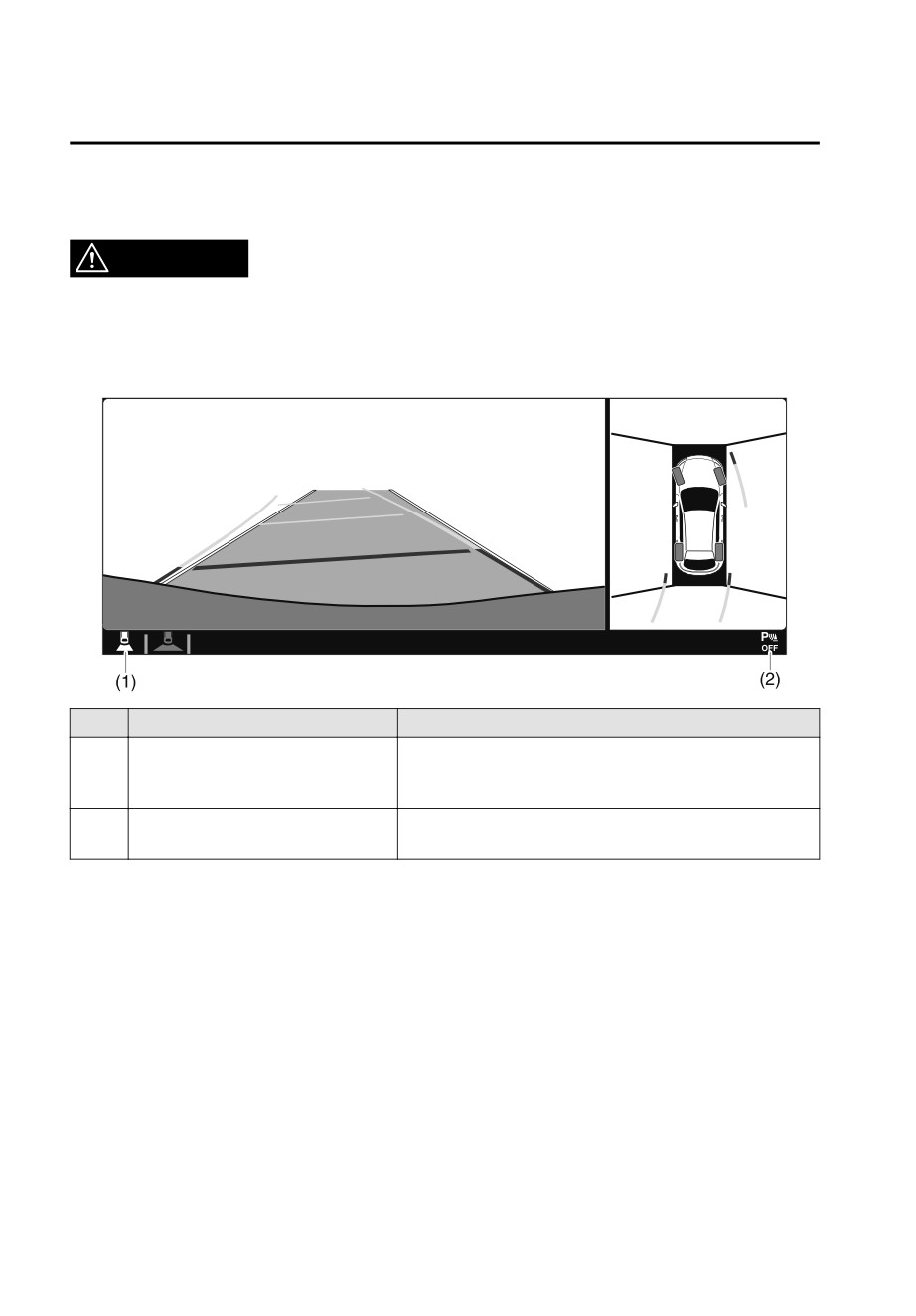

Screen operation/icon

WARNING

Always stop the vehicle when adjusting the 360°View Monitor image quality.

Do not adjust the 360°View Monitor image quality while driving. If you adjust the

360°View Monitor image quality (such as brightness, contrast, tone, and color

density) while driving, it could lead to an unexpected accident.

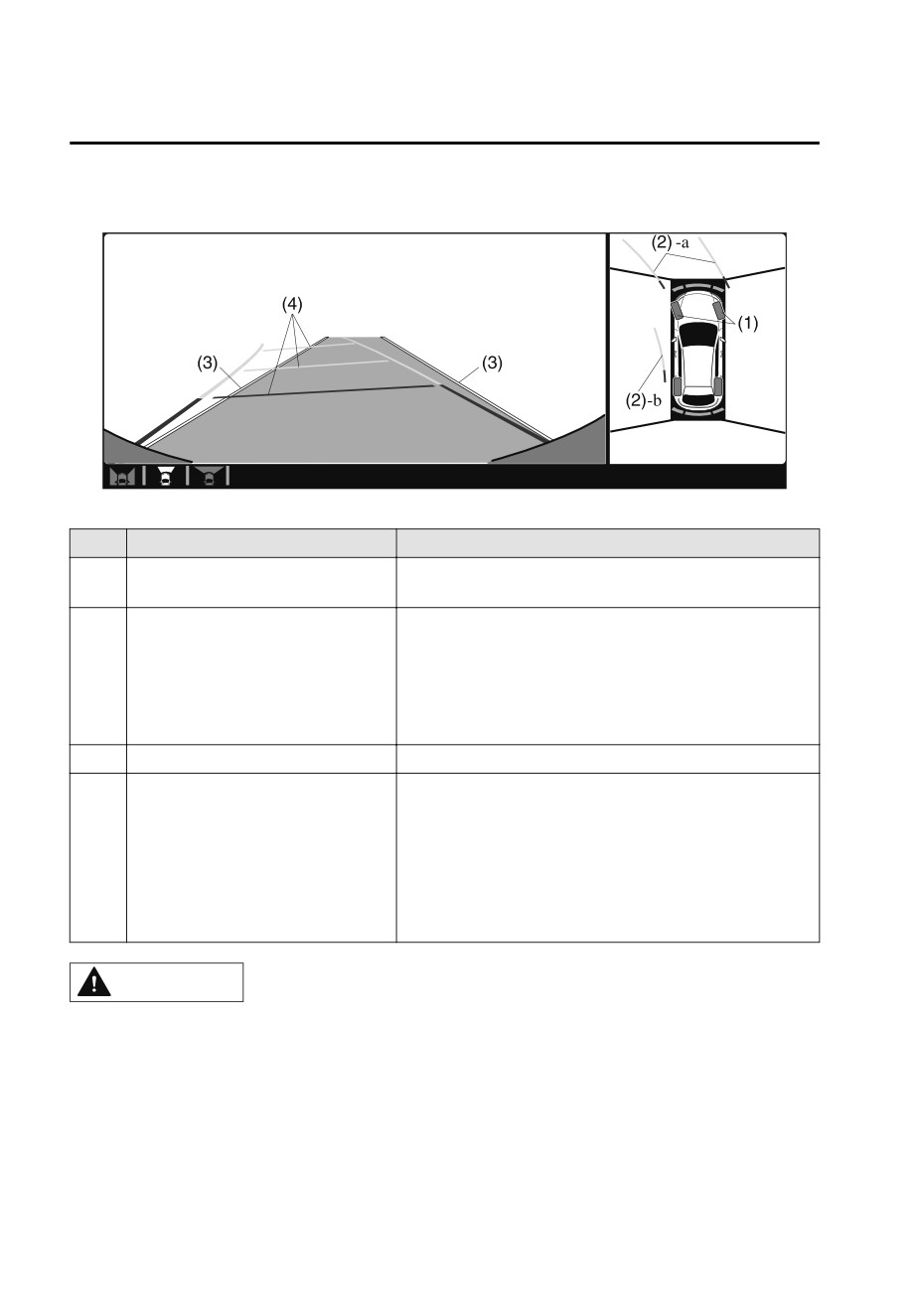

Display/Icon

Content

(1)

View status icon

Indicates which image is displayed among the front

view/front wide view/side view/rear view/rear wide

view.

(2)

Parking sensor status icon

Indicates that the parking sensor has a problem or it is

switched off.

▼ Top View/Front View

Use the top view/front view to assist in checking the safety of the surrounding area

when accelerating from a stop, parking, or stopping the vehicle.

4-154

When Driving

i-ACTIVSENSE

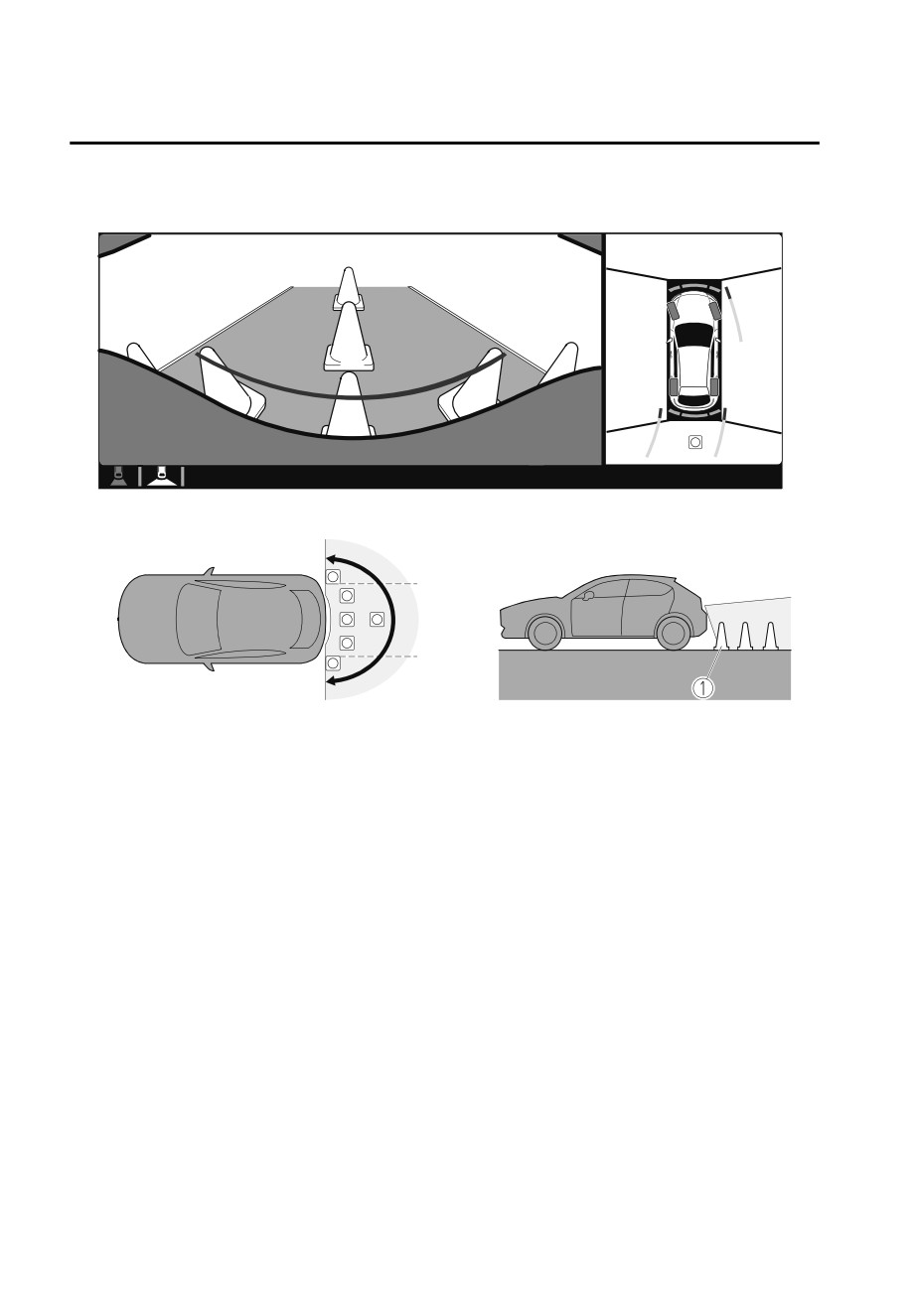

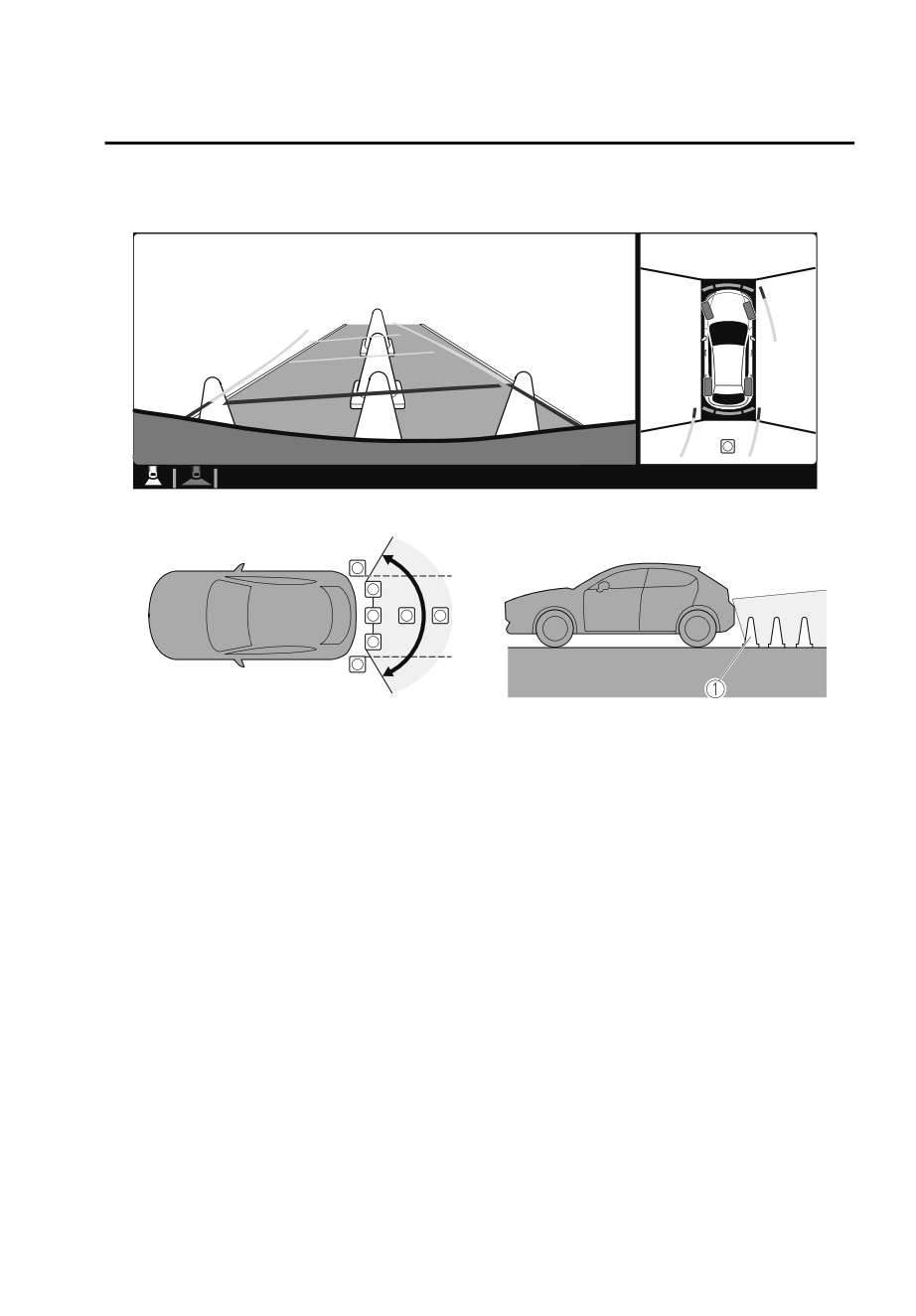

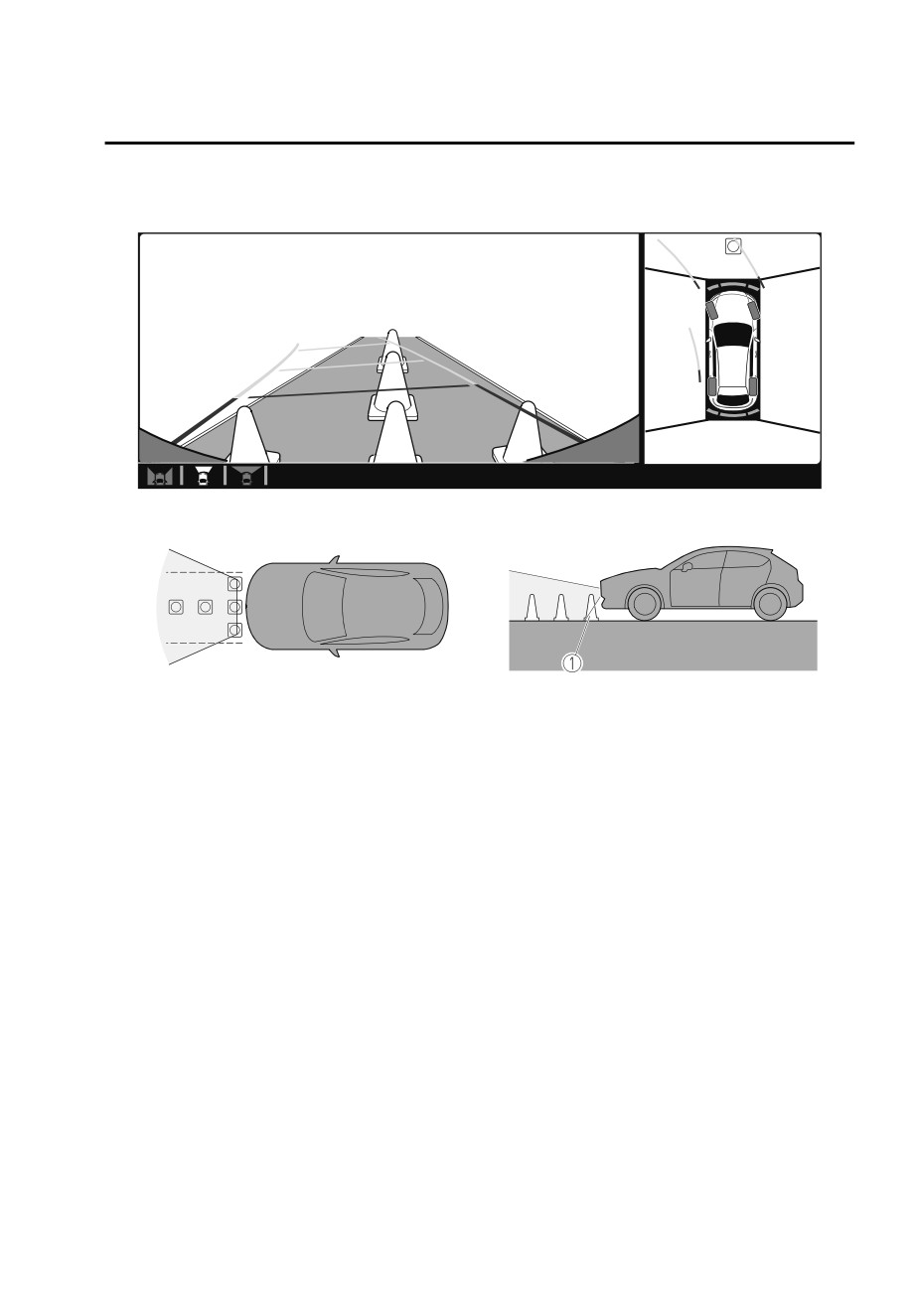

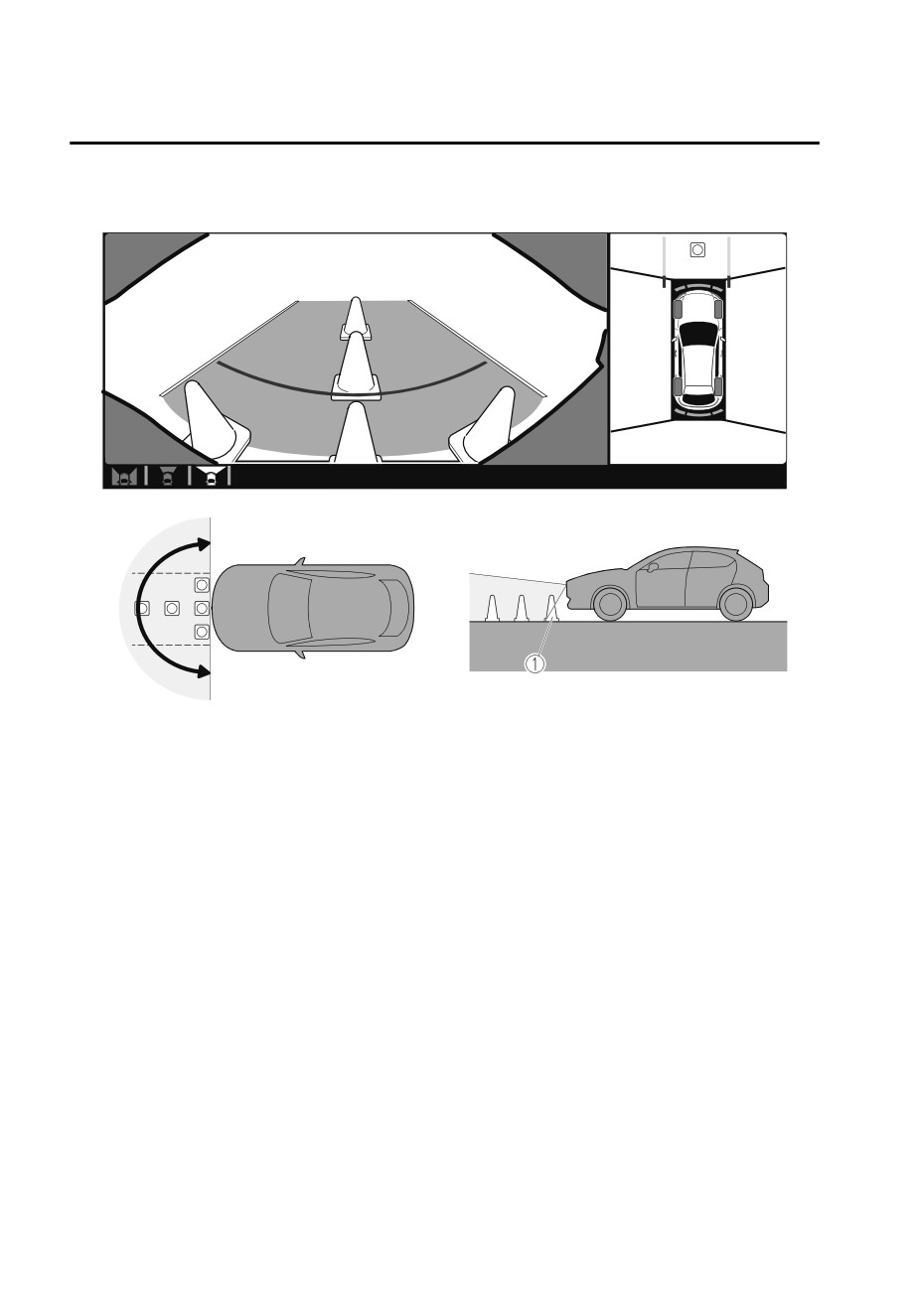

Display range

1. Target object

NOTE

^ In the top view screen, the areas in black at the front and rear of the vehicle image

and the seams where each of the camera images merge are blind spots.

^ Because images displayed in the top view screen are processed from each camera,

the top view screen may display in the following ways.

^ If an image containing an object with a conspicuous color is picked up by any of

the cameras, the screen area for each camera may be affected and it may display

in that color.

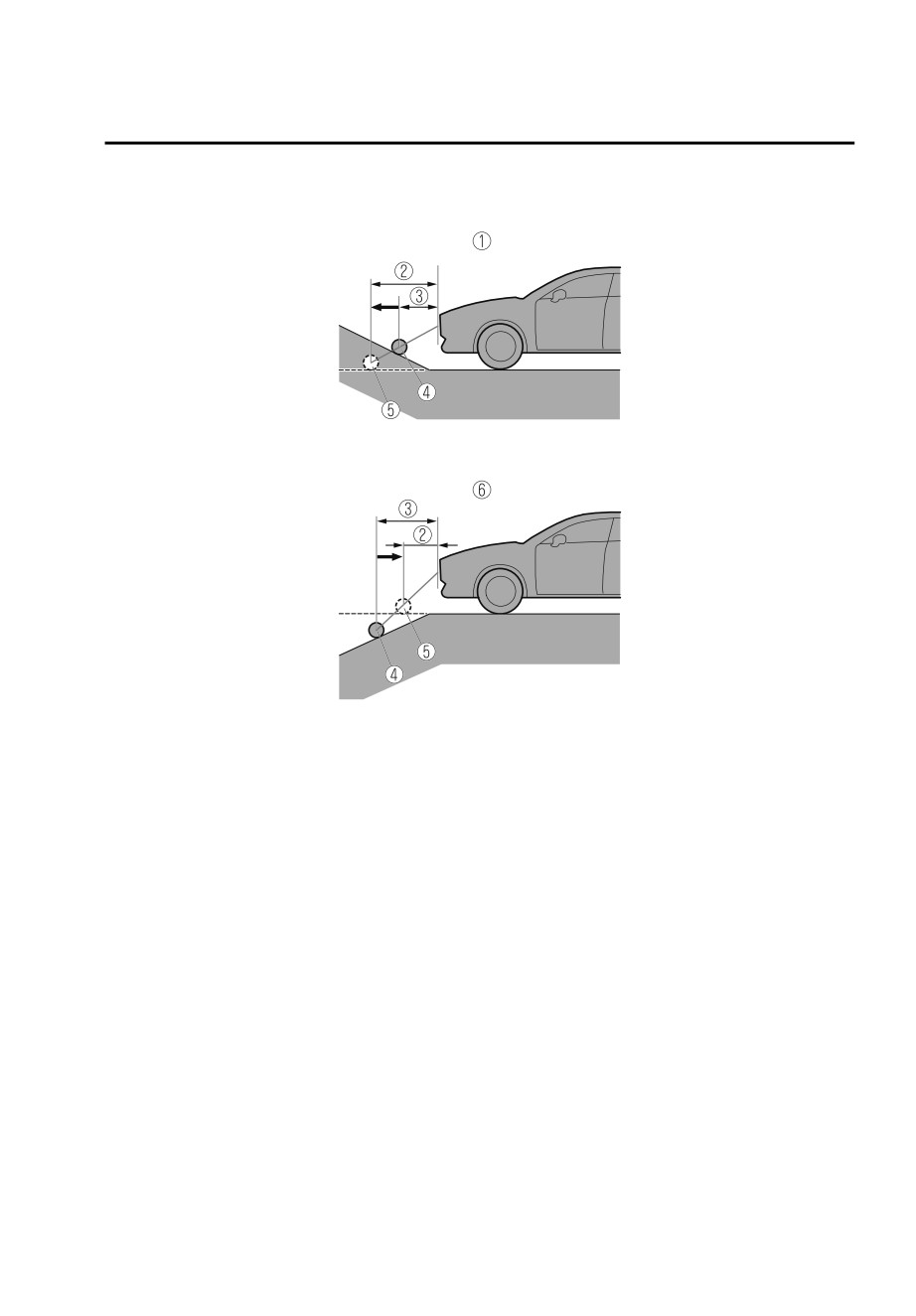

^ Obstructions displayed in the front view may not display on the top view screen.

^ If the position or angle of each camera changes due to tilting of the vehicle, the

image may appear distorted.

^ Lines on the road may appear distorted at the seams where each of the camera

images merge.

^ The screen area for each camera may appear bright/dark depending on the

illumination level around any of the cameras.

4-155

When Driving

i-ACTIVSENSE

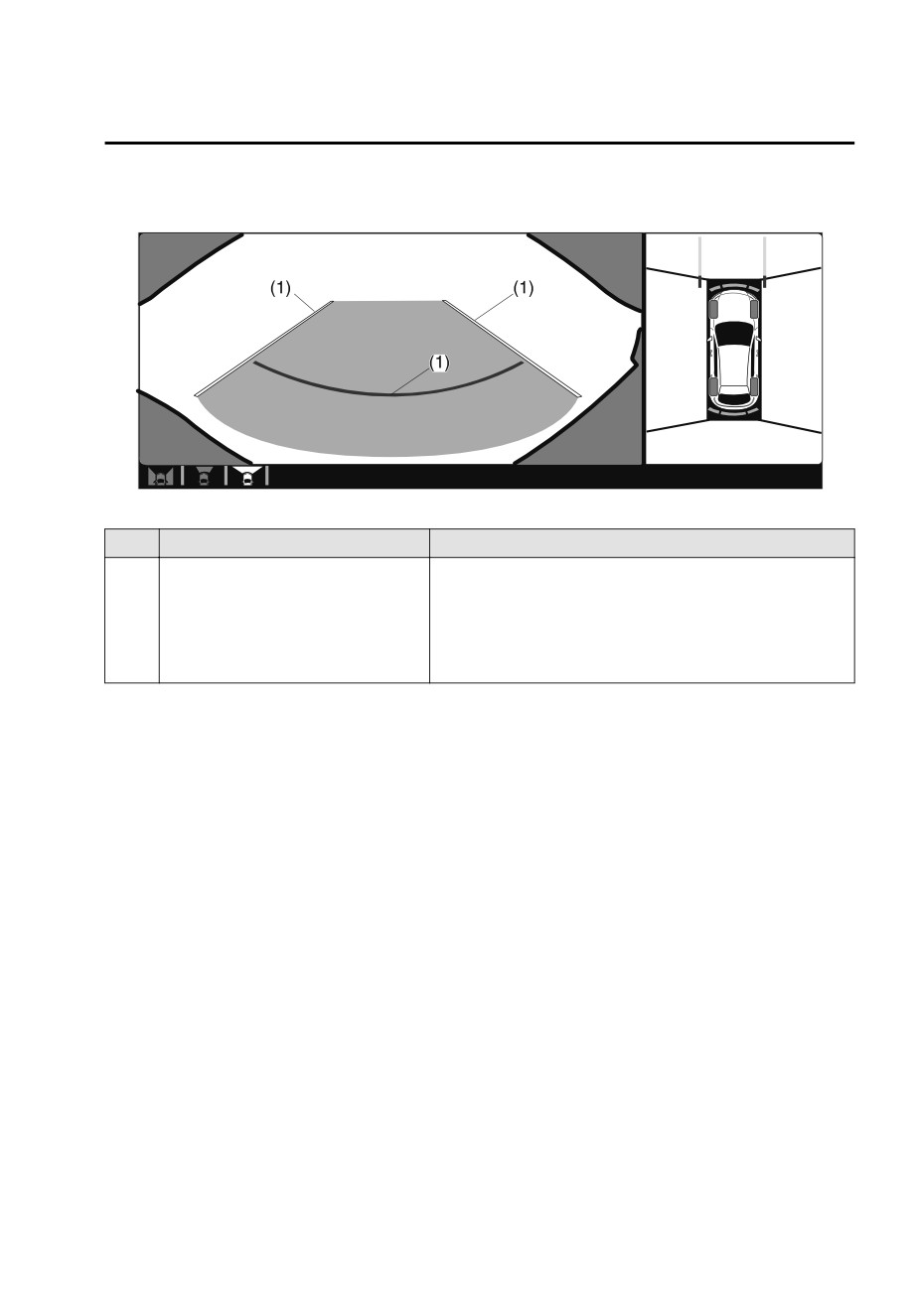

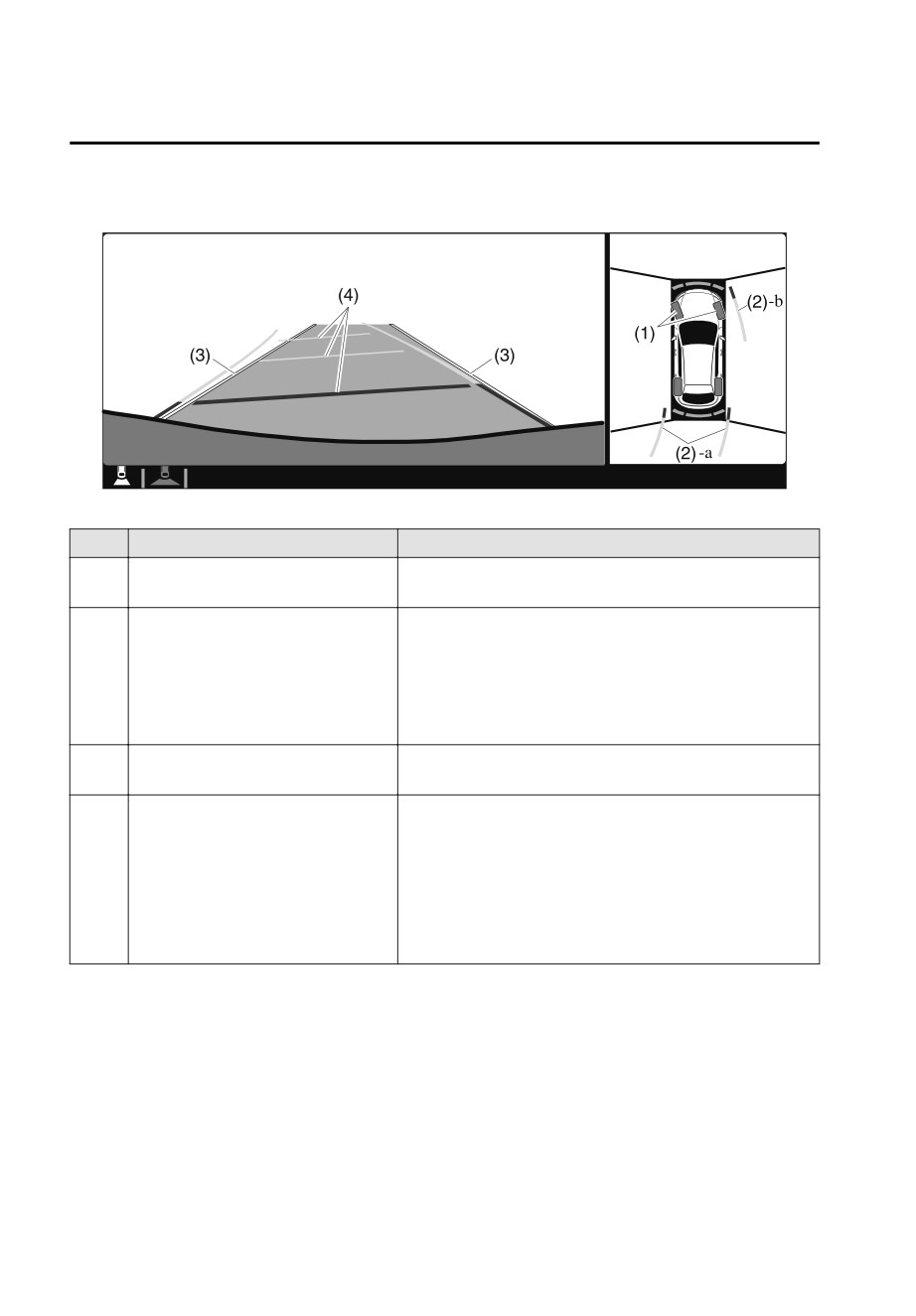

Viewing the screen

Display/Icon

Content

(1)

Tire icon

Indicates the tire direction. Moves in conjunction with

the steering wheel operation.

(2)

Projected vehicle path lines (yellow

Indicates the approximate projected path of the vehicle.

& red)

Moves in conjunction with the steering wheel operation.

a) Indicates the path where the edge of the front bumper

is expected to travel.

b) Indicates the path where the inner side of the vehicle

is expected to travel.

(3)

Extended vehicle width lines (blue)

Indicates the approximate width of the vehicle.

(4)

Projected vehicle path distance

Indicates the distance (from front end of bumper) in

guide lines (yellow & red)

front of the vehicle.

 The red line indicates the point about 0.5 m (19 in)

from the front end of the bumper.

 The yellow lines indicate the points about 1.0 m (39

in) and 2.0 m (78 in) from the front end of the bump-

er.

CAUTION

The parking sensor detection range has limitations. For example, obstructions

closing in from the side and objects short in height may not be detected. Always

confirm the safety around the vehicle visually when driving.

For details, refer to the parking sensor obstruction detection indication and warning

sound.

Refer to Parking Sensor System on page 4-198.

4-156

When Driving

i-ACTIVSENSE

NOTE

The setting can be changed so that the projected vehicle path lines are not

displayed.

Refer to the Settings section in the Mazda Connect Owner's Manual.

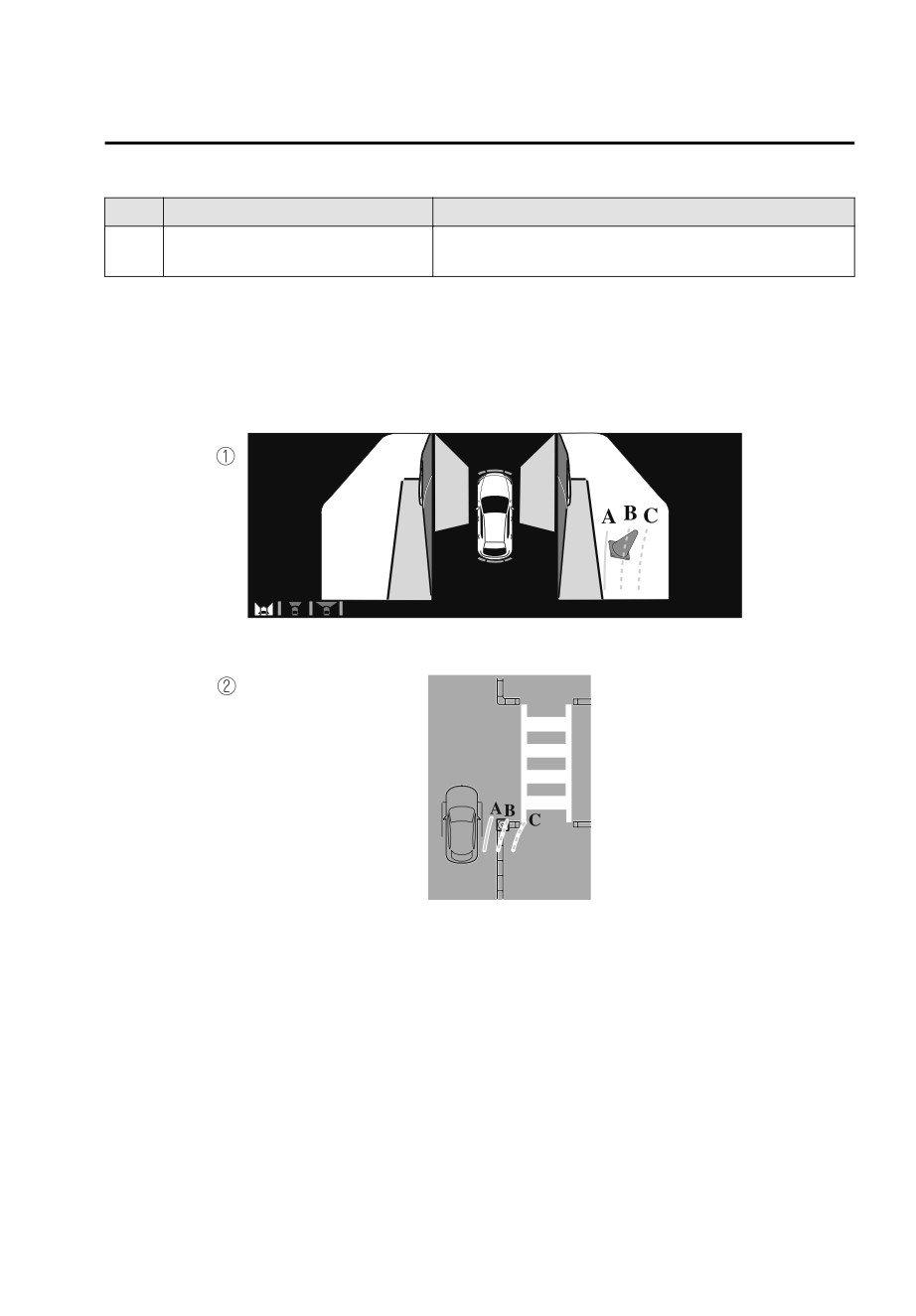

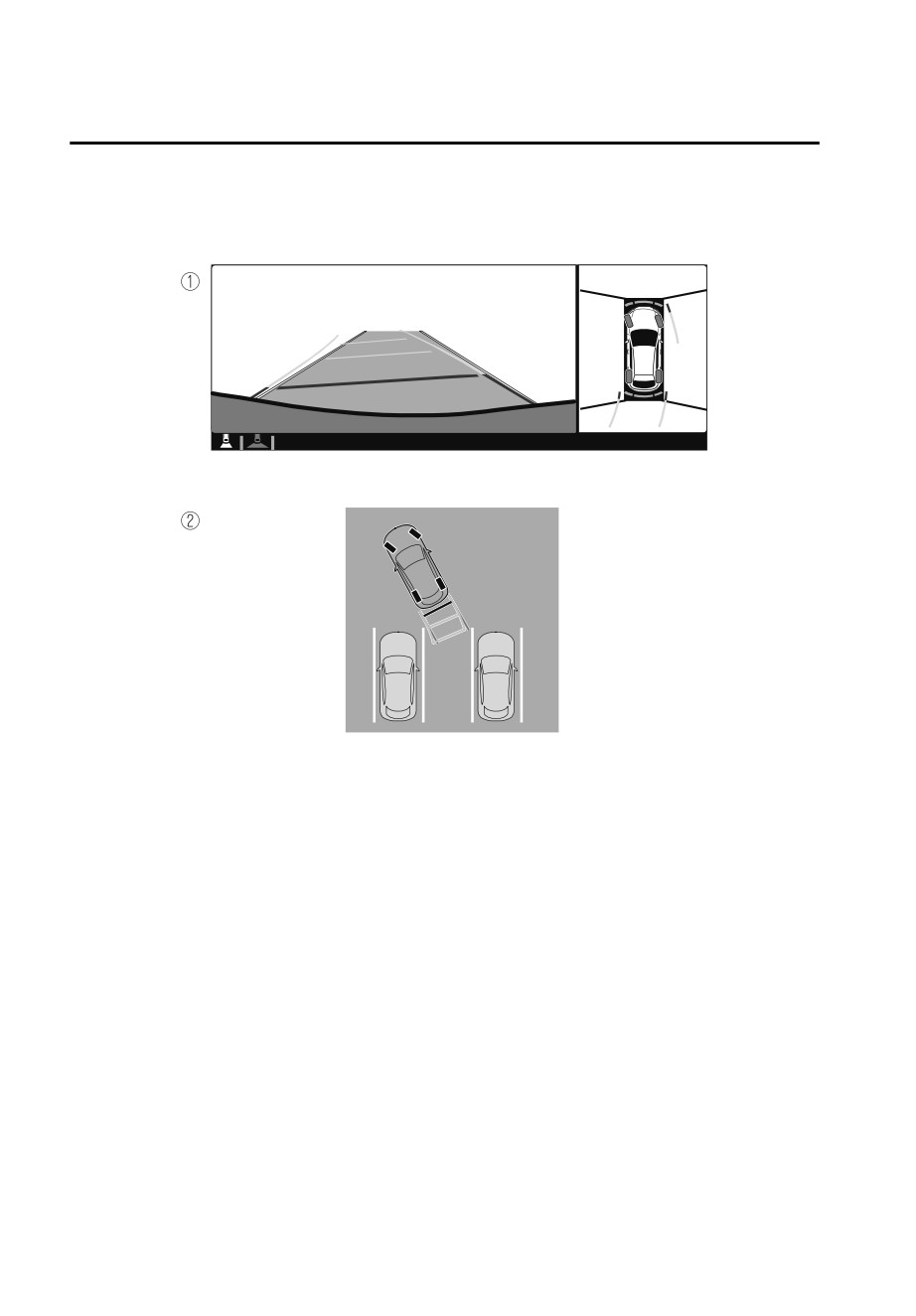

How to use the projected vehicle path line function

(Screen display)

(Actual condition)

Make sure that there are no obstructions within the projected vehicle path lines.

Drive the vehicle forward while turning the steering wheel so that no obstructions

come within the projected vehicle path lines.

▼ Top View/Front Wide View

Use the top view/front wide view to assist in checking the safety of the surrounding

area when accelerating from a stop or entering a T-shaped intersection and

intersection.

4-157

When Driving

i-ACTIVSENSE

Display range

1. Target object

NOTE

^ In the top view screen, the areas in black at the front and rear of the vehicle image

and the seams where each of the camera images merge are blind spots.

^ Because images displayed in the top view screen are processed from each camera,

the top view screen may display in the following ways.

^ If an image containing an object with a conspicuous color is picked up by any of

the cameras, the screen area for each camera may be affected and it may display

in that color.

^ Obstructions displayed in the front view may not display on the top view screen.

^ If the position or angle of each camera changes due to tilting of the vehicle, the

image may appear distorted.

^ Lines on the road may appear distorted at the seams where each of the camera

images merge.

^ The screen area for each camera may appear bright/dark depending on the

illumination level around any of the cameras.

4-158

When Driving

i-ACTIVSENSE

Viewing the screen

Display/Icon

Content

(1)

Extended vehicle width lines and

Indicates the approximate width of the vehicle and the

distance guide lines (blue & red)

distance (from front end of bumper) in front of the vehi-

cle.

 The red lines indicate the points up to about 0.5 m (19

in) from the front end of the bumper.

NOTE

The front wide view screen displays the image in front of the vehicle at a wide angle

and corrects the image to help detect approaching obstructions from the side.

Therefore, it differs from the actual view.

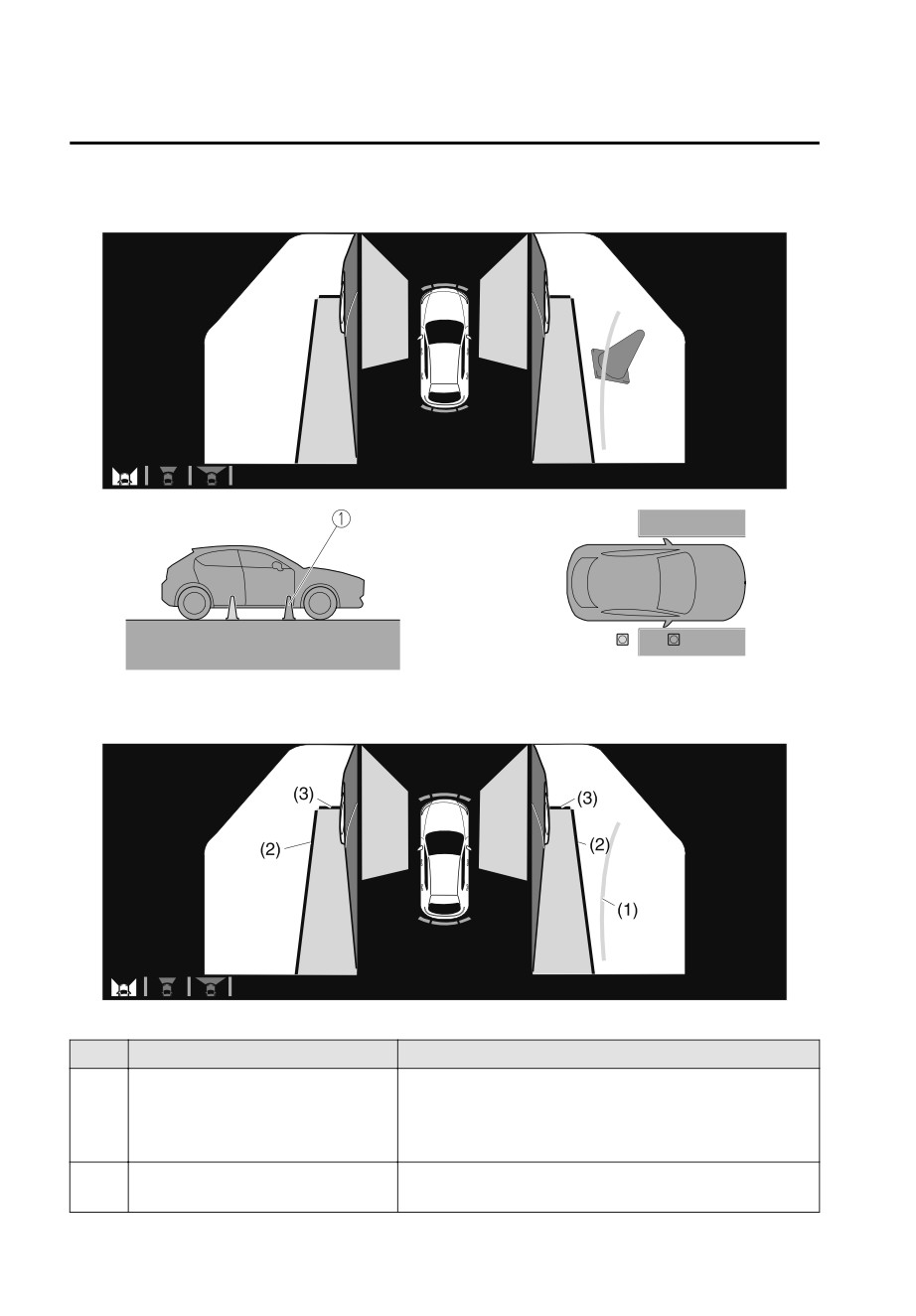

▼ Side View

Use the side view to assist in checking the safety of the surrounding area when

accelerating from a stop, parking, or stopping the vehicle.

4-159

When Driving

i-ACTIVSENSE

Display/Icon

Content

(3)

Vehicle front end guide lines (blue)

Indicates the point about 0.25 m (9.84 in) from the front

edge of the vehicle (front edge of the bumper).

NOTE

The setting can be changed so that the projected vehicle path lines are not

displayed.

Refer to the Settings section in the Mazda Connect Owner's Manual.

How to use the projected vehicle path line function

(Screen display)

(Actual condition)

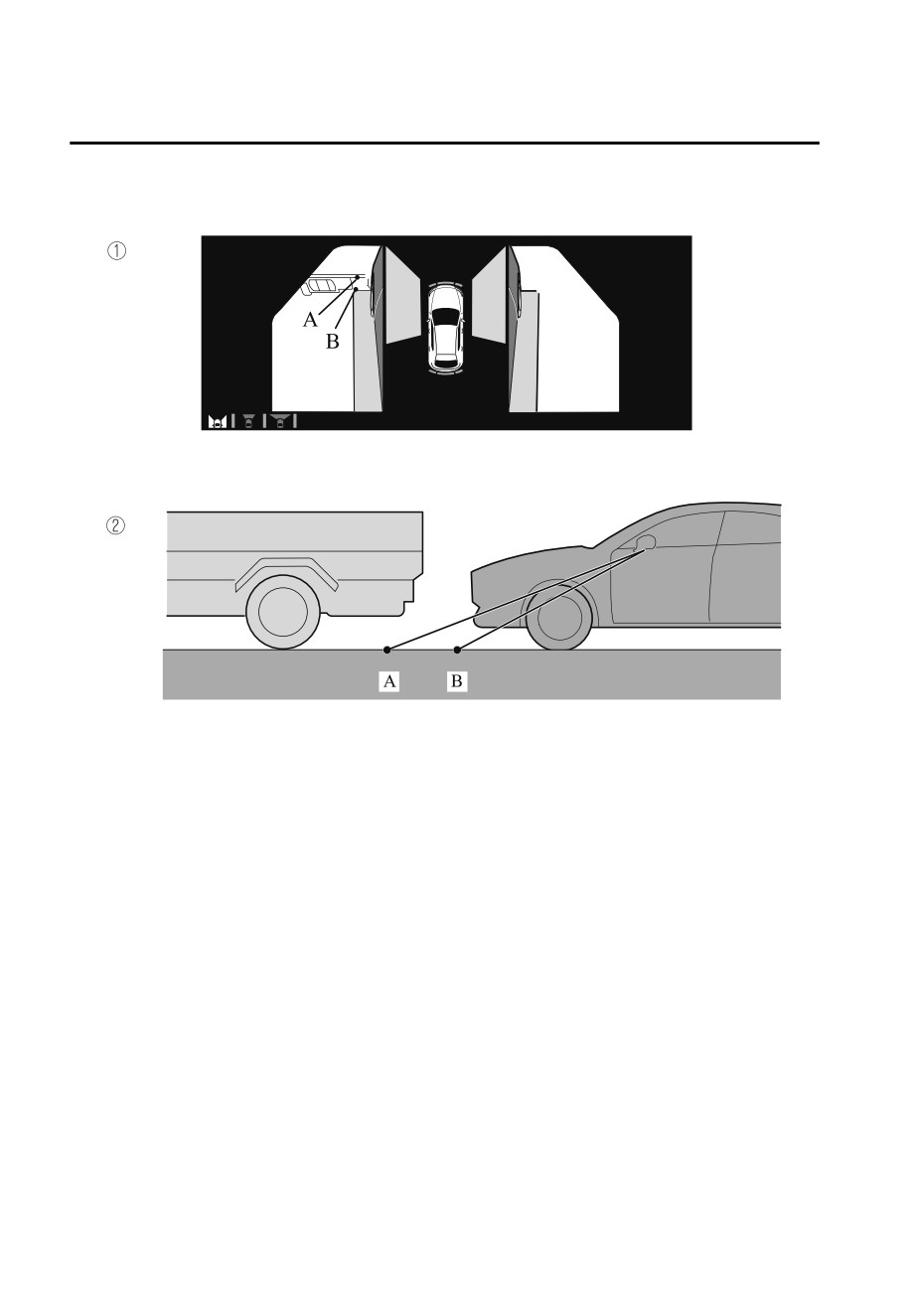

Make sure that there are no obstructions within the projected vehicle path lines.

Turn the steering wheel so that the projected vehicle path lines travel inside of the

obstruction (A), and drive the vehicle forward until it passes the obstruction.

If the projected vehicle path lines are on an obstruction (B) or outside of the

obstruction (C), the vehicle may contact the obstruction when turning the vehicle

sharply.

4-161

When Driving

i-ACTIVSENSE

CAUTION

¾ The parking sensor detection range has limitations. For example, obstructions

closing in from the side and objects short in height may not be detected. Always

confirm the safety around the vehicle visually when driving.

For details, refer to the parking sensor obstruction detection indication and

warning sound.

Refer to Parking Sensor System on page 4-198.

¾ Do not turn the steering wheel any more until the vehicle has passed the

obstruction, even if the obstruction is not visible on the side view image. If the

steering wheel is turned even more, the vehicle may contact the obstruction if it is

turned sharply.

NOTE

^ Because there might be a difference between the image displayed on the screen

and the actual conditions, always check the safety of the surrounding area using

the mirrors and directly with your eyes when driving.

^ Even though the object displayed on the screen, such as a road curb or a division

line of a parking space, and the vehicle parallel guide lines appear parallel, they

may not actually be parallel.

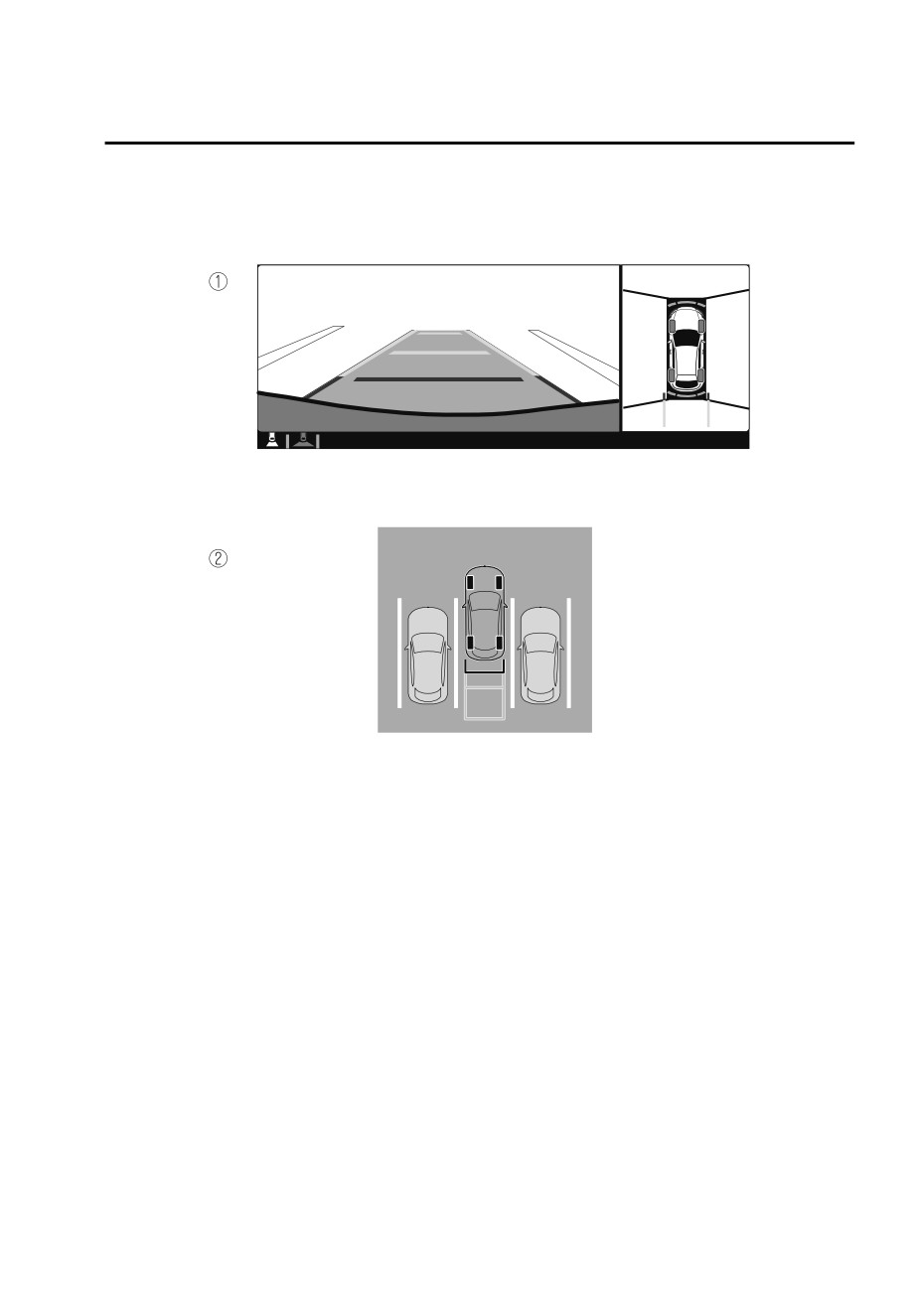

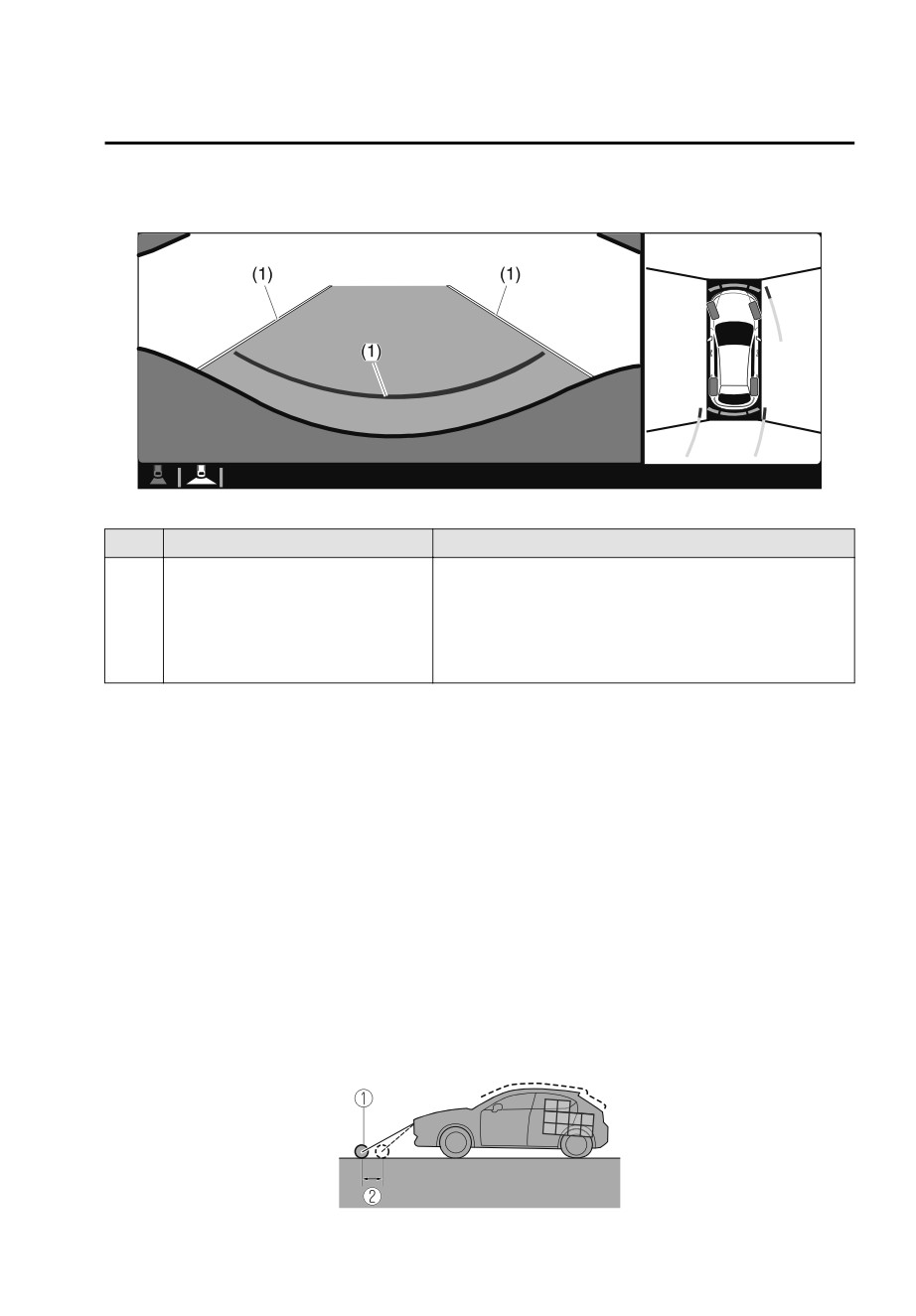

▼ Top View/Rear View

Use the top view/rear view to assist in checking the safety of the surrounding area

when accelerating from a stop, parking, or stopping the vehicle.

4-162

When Driving

i-ACTIVSENSE

Range of displayed screen image

1. Target object

NOTE

^ In the top view screen, the areas in black at the front and rear of the vehicle image

and the seams where each of the camera images merge are blind spots.

^ Because images displayed in the top view screen are processed from each camera,

the top view screen may display in the following ways.

^ If an image containing an object with a conspicuous color is picked up by any of

the cameras, the screen area for each camera may be affected and it may display

in that color.

^ Obstructions displayed in the rear view may not display on the top view screen.

^ If the position or angle of each camera changes due to tilting of the vehicle, the

image may appear distorted.

^ Lines on the road may appear distorted at the seams where each of the camera

images merge.

^ The screen area for each camera may appear bright/dark depending on the

illumination level around any of the cameras.

4-163

When Driving

i-ACTIVSENSE

Viewing the screen

Display/Icon

Content

(1)

Tire icon

Indicates the tire direction. Moves in conjunction with

the steering wheel operation.

(2)

Projected vehicle path lines (yellow

Indicates the approximate projected path of the vehicle.

& red)

Moves in conjunction with the steering wheel operation.

a) Indicates the path where the edge of the rear bumper

is expected to travel.

b) Indicates the path where the outer side of the vehicle

is expected to travel.

(3)

Extended vehicle width lines (blue)

These guide lines indicate the approximate width of the

vehicle.

(4)

Projected vehicle path distance

These guide lines indicate the approximate distance to a

guide lines (yellow & red)

point measured from the rear of the vehicle (from the

end of the bumper).

 The red line indicates the point about 0.5 m (19 in)

from the rear end of the bumper.

 The yellow lines indicate the points about 1.0 m (39

in) and 2.0 m (78 in) from the rear end of the bumper.

NOTE

The setting can be changed so that the projected vehicle path lines are not

displayed.

Refer to the Settings section in the Mazda Connect Owner's Manual.

How to use the projected vehicle path line function

4-164

When Driving

i-ACTIVSENSE

CAUTION

¾ The front of the vehicle swings out wide when turning the steering wheel while

reversing. Maintain sufficient distance between the vehicle and an obstruction.

¾ The parking sensor detection range has limitations. For example, obstructions

closing in from the side and objects short in height may not be detected. Always

confirm the safety around the vehicle visually when driving.

For details, refer to the parking sensor obstruction detection indication and

warning sound.

Refer to Parking Sensor System on page 4-198.

NOTE

^ Because there might be a difference between the image displayed on the screen,

such as indicated in the following, and the actual conditions when parking, always

check the safety at the rear of the vehicle and the surrounding area directly with

your eyes.

^ Even though the back end of the parking space (or garage) displayed on the

screen and distance guide lines appear parallel, they may not actually be

parallel.

^ When parking in a space with a division line on only one side of the parking

space, even though the division line and the vehicle width guide line appear

parallel, they may not actually be parallel.

^ The following shows an example of vehicle parking with the steering wheel turned

to the left while backing up the vehicle. When backing into a parking space from

the opposite direction, the steering operation is reversed.

4-165

When Driving

i-ACTIVSENSE

1. Back the vehicle into the parking space by turning the steering wheel so that the

vehicle enters the center of the parking space.

(Screen display)

(Actual condition)

2. After the vehicle starts entering the parking space, stop and adjust the steering

wheel so that the distance between the vehicle width lines and the sides of the

parking space on the left and right are roughly equal, and then continue backing

up slowly.

3. Once the vehicle width lines and the sides of the parking space on the left and

right are parallel, straighten the wheels and back the vehicle slowly into the

parking space. Continue checking the vehicle's surroundings and then stop the

4-166

When Driving

i-ACTIVSENSE

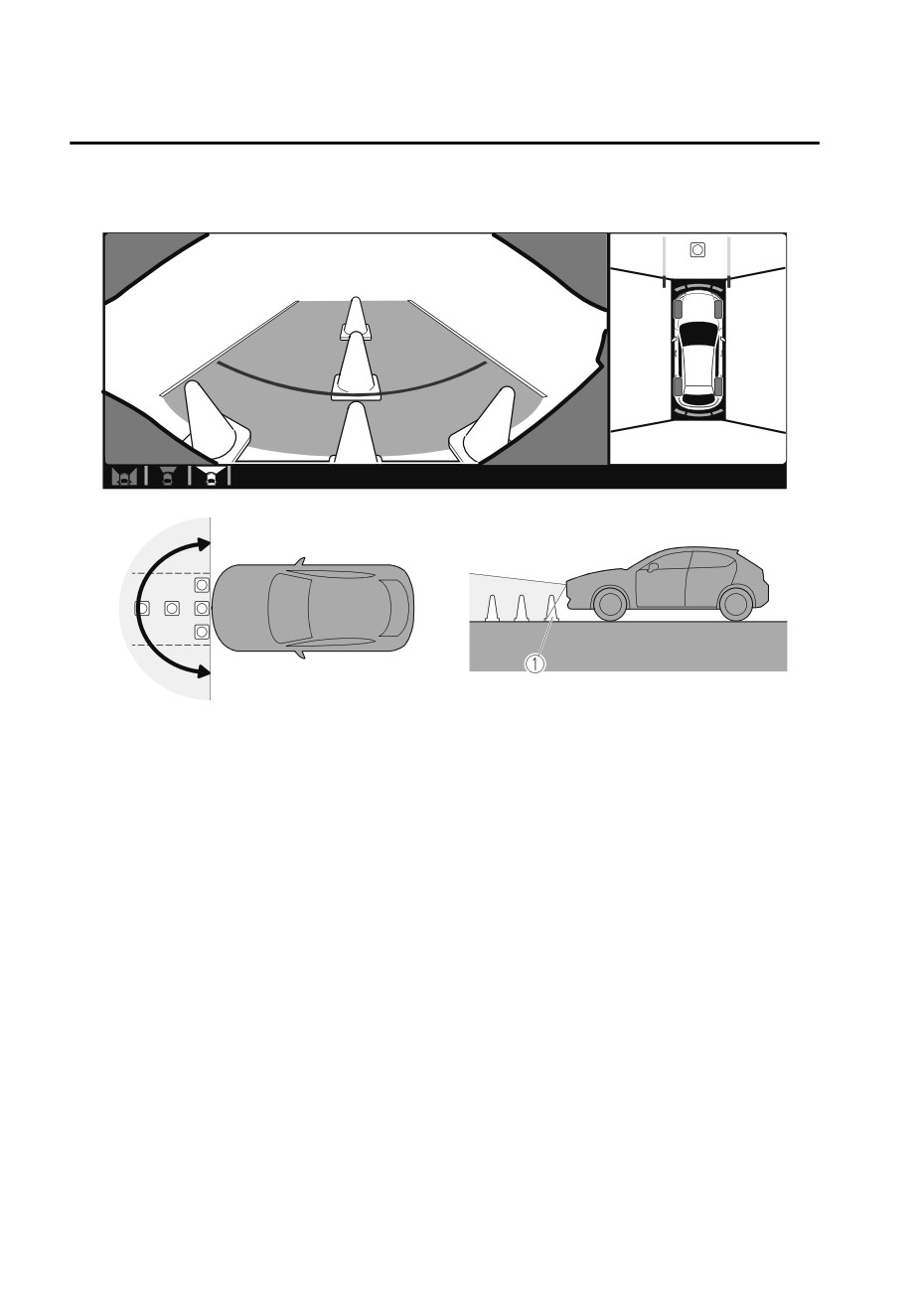

Range of displayed screen image

1. Target object

NOTE

^ In the top view screen, the areas in black at the front and rear of the vehicle image

and the seams where each of the camera images merge are blind spots.

^ Because images displayed in the top view screen are processed from each camera,

the top view screen may display in the following ways.

^ If an image containing an object with a conspicuous color is picked up by any of

the cameras, the screen area for each camera may be affected and it may display

in that color.

^ Obstructions displayed in the front view may not display on the top view screen.

^ If the position or angle of each camera changes due to tilting of the vehicle, the

image may appear distorted.

^ Lines on the road may appear distorted at the seams where each of the camera

images merge.

^ The screen area for each camera may appear bright/dark depending on the

illumination level around any of the cameras.

4-168

When Driving

i-ACTIVSENSE

Viewing the screen

Display/Icon

Content

(1)

Extended vehicle width lines and

These guide lines indicate the approximate width of the

distance guide lines (blue & red)

vehicle and distance to a point measured from the rear

of the vehicle (from the end of the bumper).

 The red lines indicate the points up to about 0.5 m

(19 in) from the rear end of the bumper.

NOTE

The top view/rear wide view screen displays the image at the rear of the vehicle at a

wide angle and corrects the image to help detect approaching obstructions from the

side. Therefore, it differs from the actual view.

▼ Margin of Error Between Road Surface on Screen and Actual Road Surface

There might be some margin of error between the road surface appearing on the

screen and the actual road surface. A margin of error in the perceived distance could

lead to an accident, therefore be aware of the following conditions which can more

easily produce errors in the perceived distance.

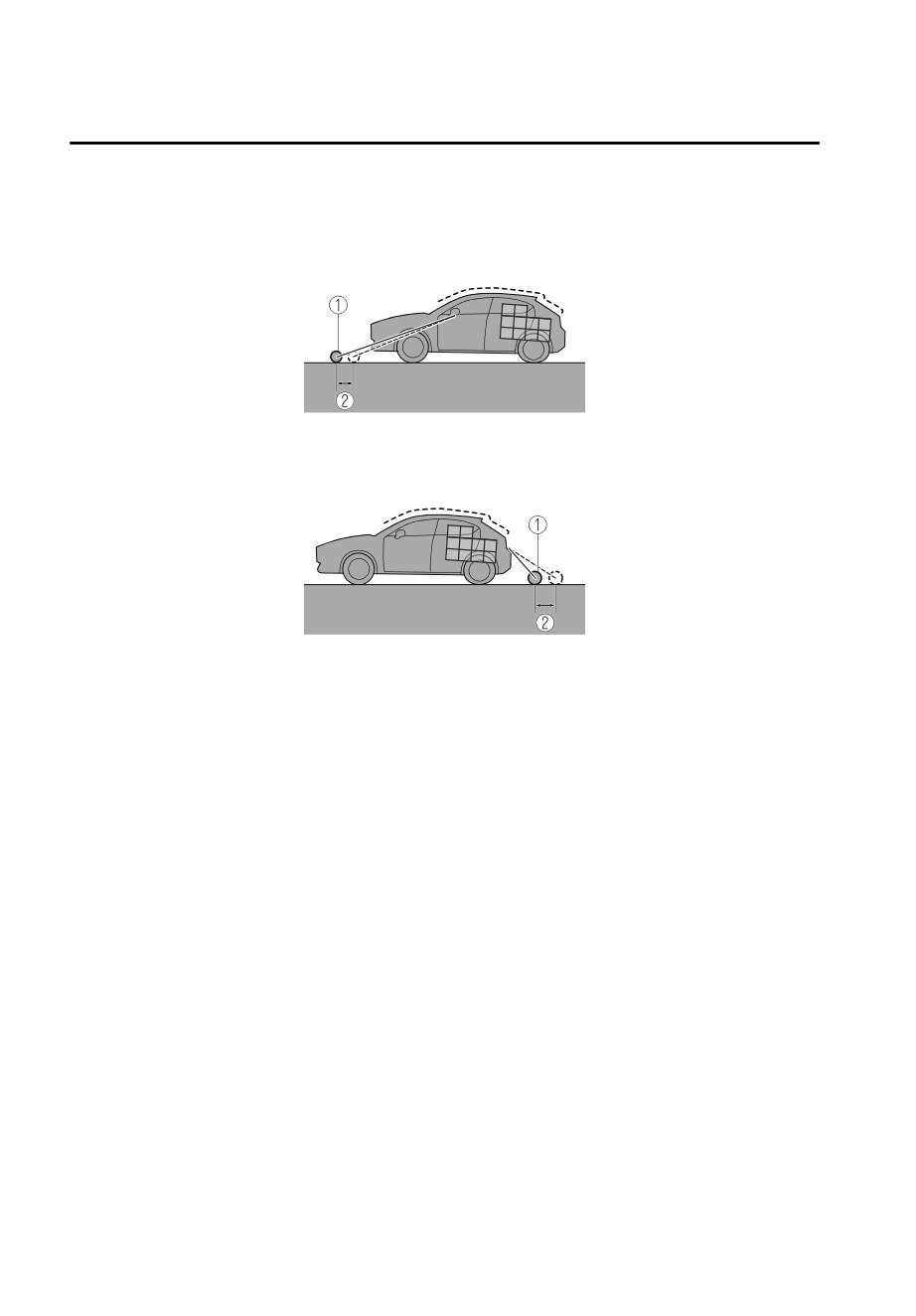

The vehicle tilts due to weight of passengers and cargo.

If the vehicle is tilted, obstructions picked up by a camera can appear farther or

closer than the actual distance from the vehicle.

Front camera

4-169

When Driving

i-ACTIVSENSE

Rear camera

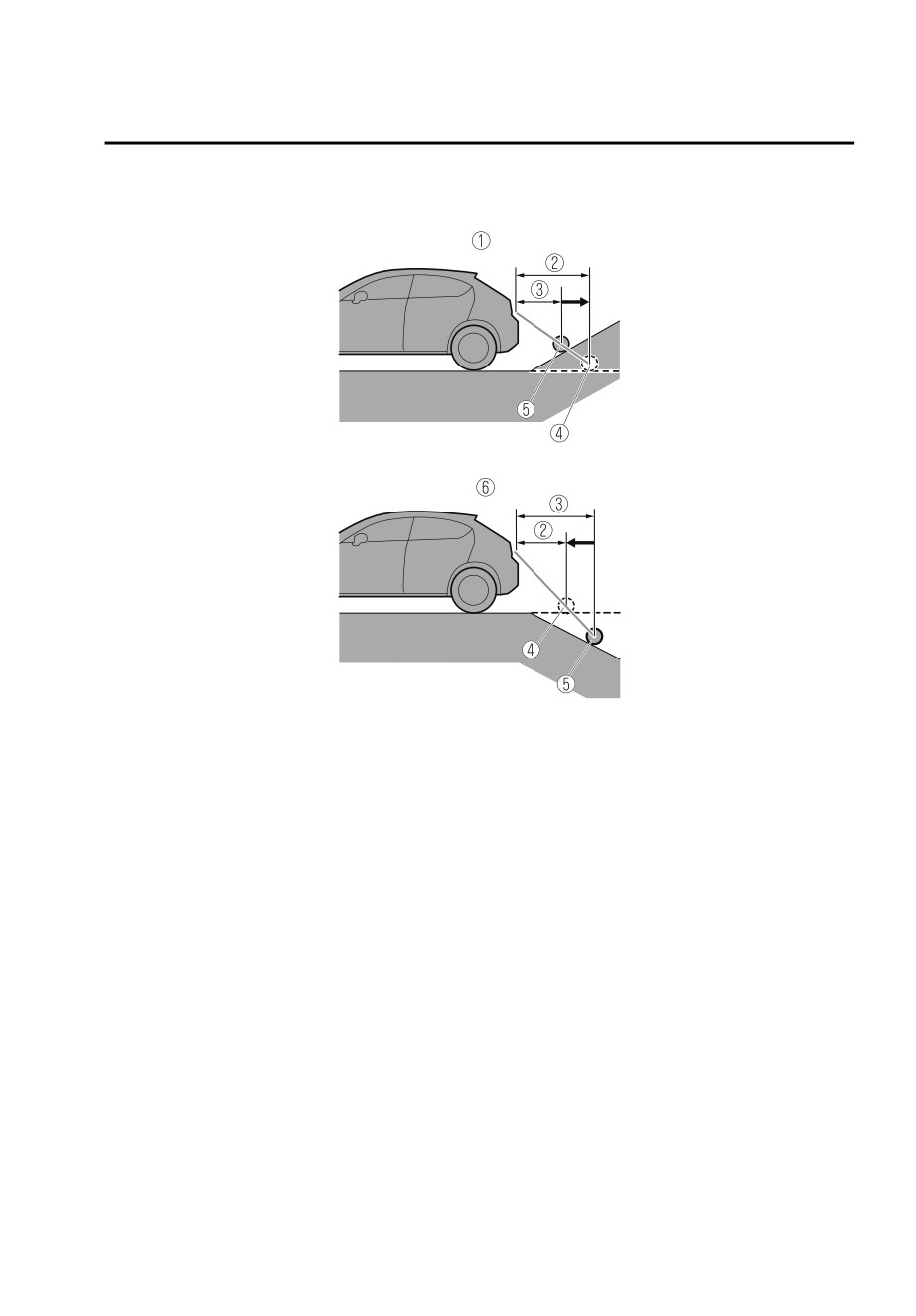

1. Appears further than actual distance

2. Distance of obstruction being viewed on screen

3. Actual distance of obstruction from vehicle

4. Obstruction appearing on screen

5. Actual obstruction

6. Appears closer than actual distance

NOTE

If the vehicle is on a slope, obstructions taken by the camera can appear farther or

closer than the actual distance from the vehicle.

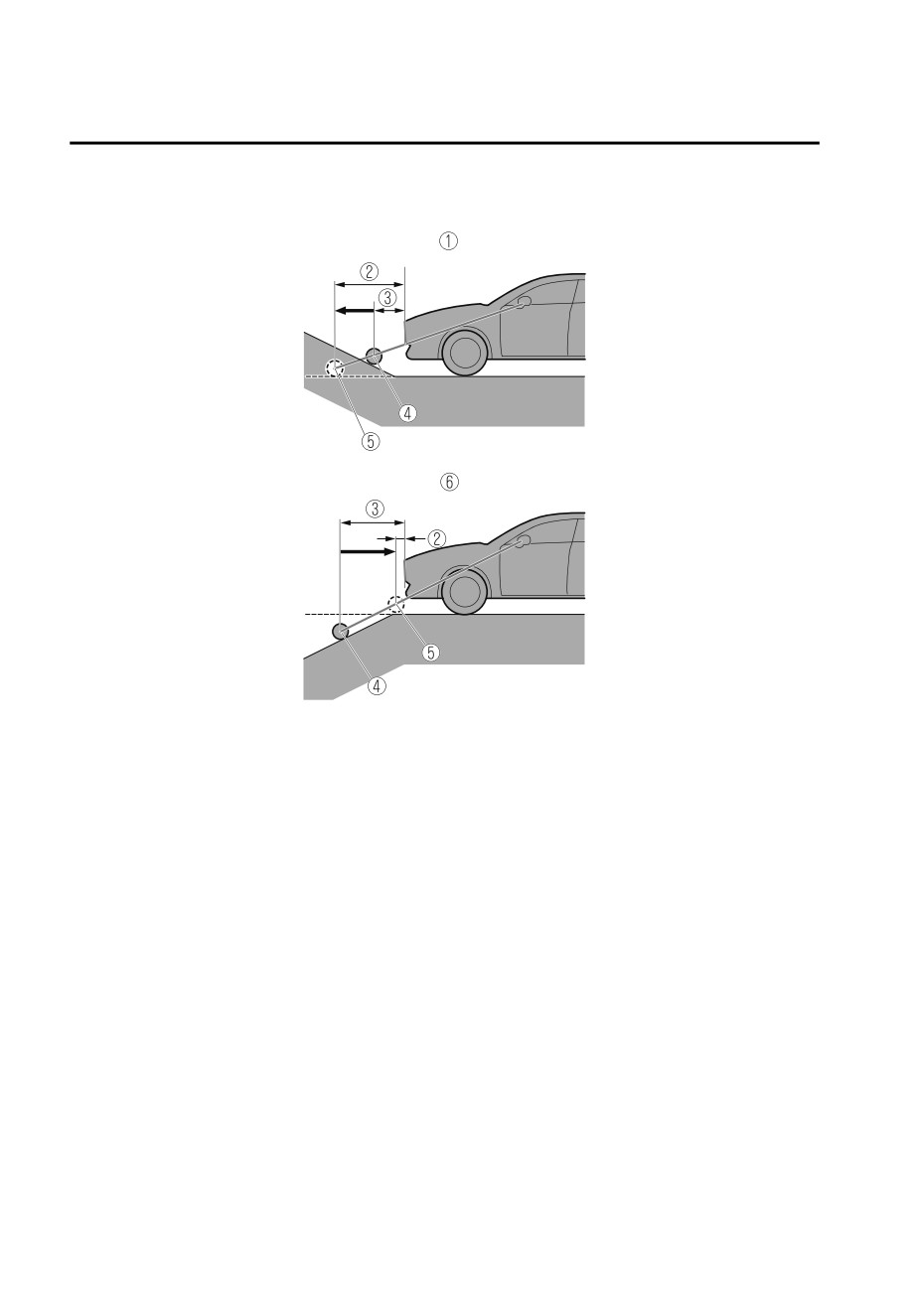

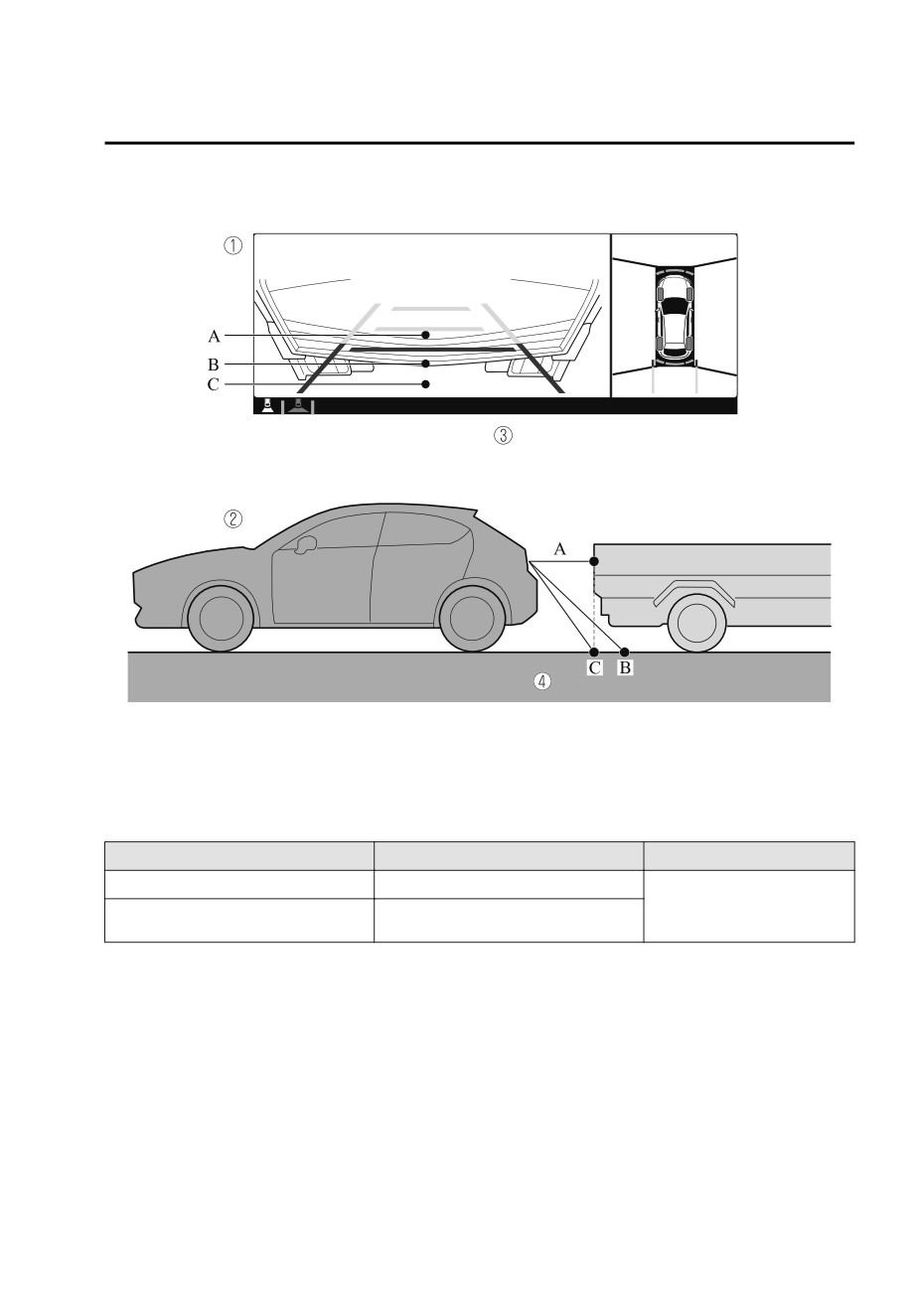

Three-dimensional object at vehicle front or rear

Because the vehicle front end guide lines (side camera) or the distance guide lines

(rear camera) are displayed based on a flat surface, the distance to the

three-dimensional object displayed on the screen is different from the actual

distance.

4-173

When Driving

Cruise Control

NOTE

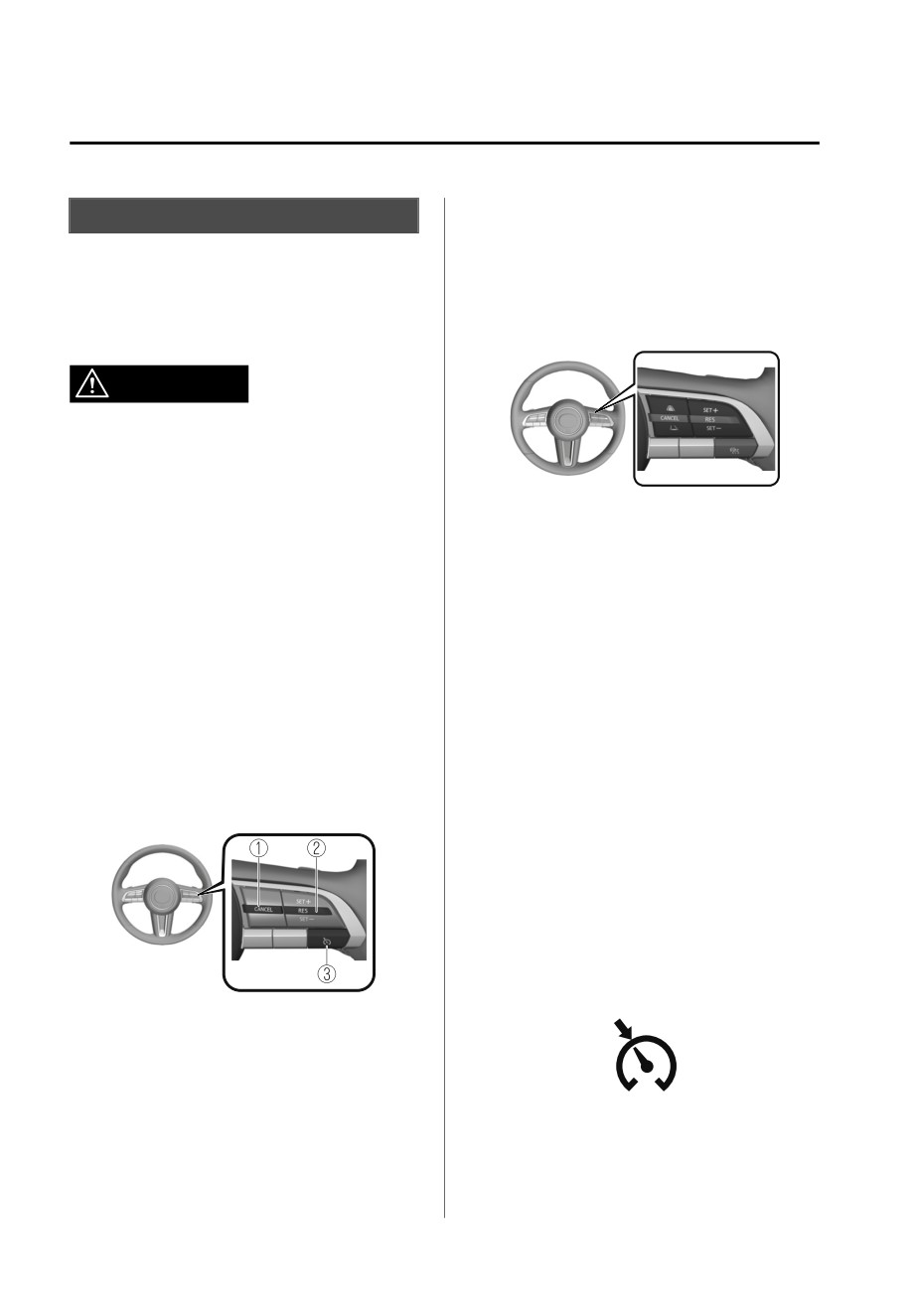

Cruise Control

If your Mazda has the following

steering switch, your Mazda is

▼ Cruise Control

equipped with the Mazda Radar

Cruise Control with Stop & Go

With cruise control, you can set and

function (MRCC with Stop & Go

automatically maintain any speed of

function) system.

more than about 30 km/h (19 mph).

WARNING

Do not use the cruise control under

the following conditions:

Using the cruise control under the

following conditions is dangerous and

Refer to Mazda Radar Cruise Control

could result in loss of vehicle control.

with Stop & Go function (MRCC with

Stop & Go function) on page 4-111.

¾ Hilly terrain

If the Mazda Radar Cruise Control with

¾ Steep inclines

Stop & Go function (MRCC with Stop

¾ Heavy or unsteady traffic

& Go function) is set to inoperable

¾ Slippery or winding roads

using the personalization feature, the

¾ Similar restrictions that require

system switches to the cruise control

inconsistent speed

function. In this case, the MRCC

¾ The vehicle speed may exceed the

functions as the cruise switch. In

set speed during sudden acceleration

addition, if the power switch is

or on steep down slopes.

switched OFF with the headway

In this case, depress the brake pedal

control disabled using the

to adjust the vehicle speed.

personalization features, the headway

▼ Cruise Control Switch

control is enabled when the power

switch is switched ON the next time.

▼ Cruise Standby Indication

(White)/Cruise Set Indication

(Green)

Cruise standby Indication (White)

The indication turns on (white) when

the cruise control system is activated.

1. CANCEL switch

2. RES switch

3. Cruise switch

4-176

When Driving

Cruise Control

Cruise Set Indication (Green)

2. Accelerate to the desired speed,

which must be more than 25 km/h

The indication turns on (green) when a

(16 mph).

cruising speed has been set.

3. Adjust the system to the desired

vehicle speed using the accelerator

pedal. Press the RES switch up (SET

+) or down (SET-) to start cruise

control. The cruise control

indication (green) in the instrument

▼ Activation/Deactivation

cluster turns on at the same time.

Quickly release the switch when the

cruise control indication (green)

WARNING

turns on.

Always turn off the cruise control

NOTE

system when it is not in use:

^ If the RES switch is operated up (SET

Leaving the cruise control system in an

+) or down (SET-) while the vehicle

activation-ready state while the cruise

speed is between 25 and 30 km/h

control is not in use is dangerous as the

(16 to 19 mph), the set speed is set

cruise control could unexpectedly

to 30 km/h (19 mph).

activate if the activation button is

^ The cruise control speed setting

accidentally pressed, and result in loss

cannot be performed under the

of vehicle control and an accident.

following conditions:

If the headway control function is

^ Any of the doors is opened.

disabled using a Mazda Connect

^ The driver's seat belt is unfastened.

setting, the system switches to cruise

^ The brake pedal is depressed.

control.

^ The parking brake is applied.

Activation

^ The selector lever is in the P, N, or

R position.

To activate the system, press the cruise

^ On a steep grade, the vehicle may

switch. The cruise standby indication

momentarily slow down while

(white) turns on.

ascending or speed up while

Deactivation

descending.

^ The cruise control will cancel if the

To deactivate the system, press the

vehicle speed decreases below 20

cruise switch again.

km/h (12 mph) when the cruise

The cruise standby indication (white)

control is activated, such as when

turns off.

climbing a steep grade.

▼ To Set Speed

The vehicle speed preset using the

1. Activate the cruise control system

cruise control is displayed in the

by pressing the cruise switch. The

instrument cluster and the active

cruise standby indication (white)

driving display (vehicles with active

turns on.

driving display).

4-177

When Driving

Cruise Control

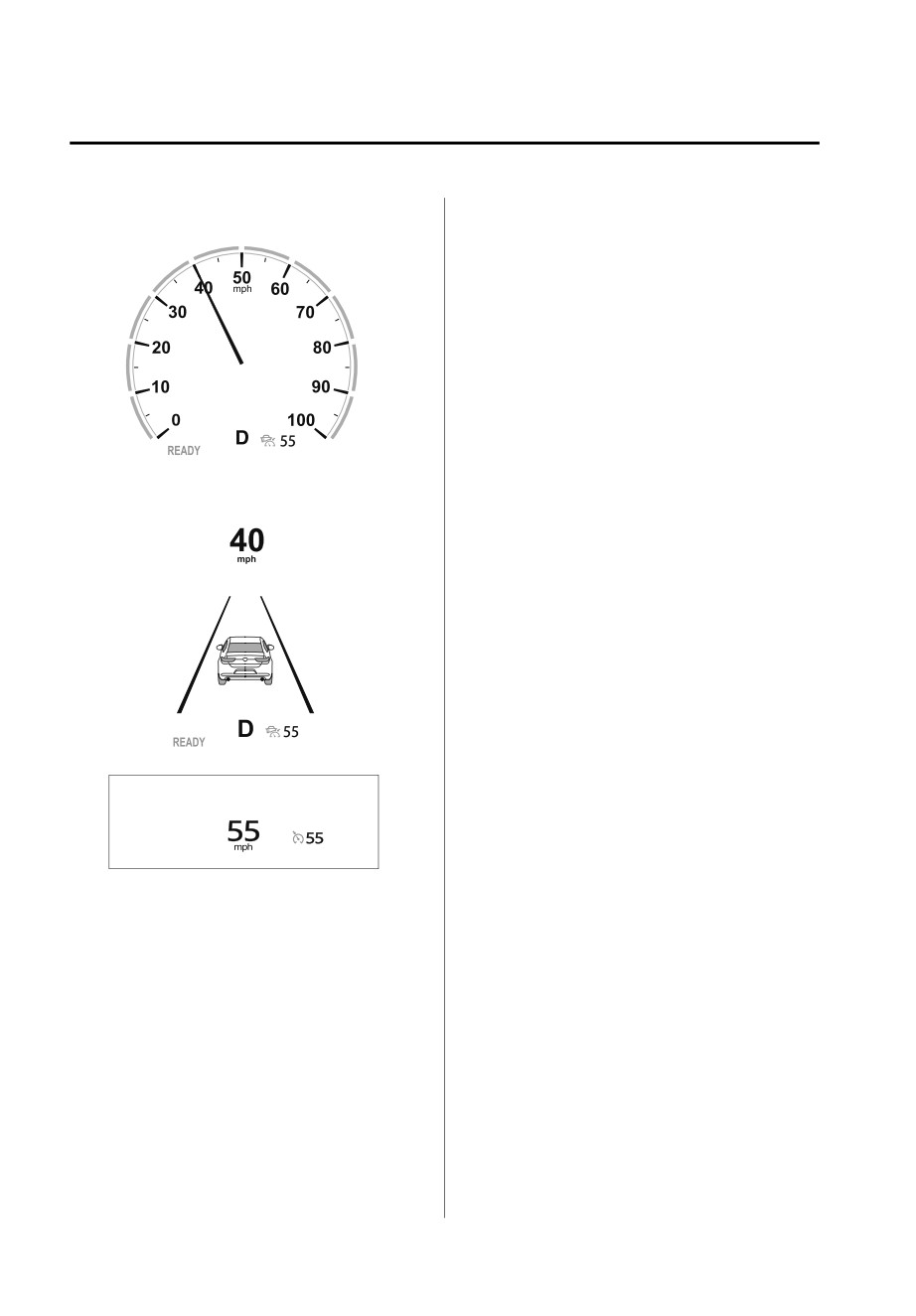

Instrument cluster (Basic display)

NOTE

Even after releasing the RES switch, the

cruise control accelerates/decelerates

continuously until the set speed

displayed in the instrument cluster and

on the active driving display is reached.

If you want to stop accelerating/

decelerating, change the set speed or

cancel the system (such as by

depressing the brake pedal).

To increase speed using accelerator

pedal

Instrument cluster (i-ACTIVSENSE

Depress the accelerator pedal and

display)

press the RES switch up (SET+) or

down (SET-) at the desired speed. If

the switch is not operated, the system

returns to the set speed after you

release your foot from the accelerator

pedal.

NOTE

Accelerate if you want to speed up

temporarily when the cruise control is

on. Greater speed will not interfere

with or change the set speed. Take

Active driving display

your foot off the accelerator to return

to the set speed.

▼ To Resume Cruising Speed at More

Than 30 km/h (19 mph)

If the cruise control system is

▼ Changing the Set Vehicle Speed

temporarily canceled (such as by

applying the brake pedal) and the

Follow either of these procedures.

system is still activated, the most

To increase/decrease speed using

recent set speed will automatically

cruise control switch

resume when the RES switch is

pressed.

When the RES switch is pressed up

If vehicle speed is below 30 km/h (19

(SET+), the vehicle accelerates and

mph), increase the vehicle speed up to

when the RES switch is pressed down

30 km/h (19 mph) or more and press

(SET-), it decelerates.

the RES switch.

^ Press and release immediately: 1

▼ To Temporarily Cancel

km/h (1 mph)

^ Press and hold: 10 km/h (5 mph)

To temporarily cancel the system, use

one of these methods:

4-178

When Driving

Cruise Control



Slightly depress the brake pedal.

^ Press the CANCEL switch.

If the RES switch is pressed when the

vehicle speed is 30 km/h (19 mph) or

higher, the system reverts to the

previously set speed.

NOTE

^ If any of the following conditions

occur, the cruise control system is

temporarily canceled.

^ Even when the brake pedal is

slightly depressed.

^ The DSC is operating.

^ There is a problem in the system.

^ Any of the doors is opened.

^ The driver's seat belt is unfastened.

^ The parking brake is applied.

^ The selector lever is in the P, N, or

R position.

^ When the cruise control system is

temporarily canceled by even one of

the applicable cancel conditions, the

speed cannot be re-set.

▼ To Deactivate

Press the cruise switch again.

4-179

When Driving

Tire Pressure Monitoring System (TPMS)

^ Before driving, visually inspect the

Tire Pressure Monitoring

tires for abnormalities. Additionally,

System (TPMS)

inspect the tire pressures monthly. A

digital type air pressure gauge is

▼ Tire Pressure Monitoring System

recommended for inspecting the tire

(TPMS)

pressures.

The TPMS monitors the air pressure of

The TPMS is not a substitute for your

each tire and if it decreases below the

own periodic inspection of the tires.

specified value, the system notifies the

Always inspect the tires yourself

driver by turning on the TPMS warning

periodically.

light in the instrument cluster and

indicating a message on the

CAUTION

multi-information display.

For the TPMS, the air pressure data

¾ Each tire, including the spare (if

sent from the tire pressure sensors

provided), should be checked

installed on each wheel via radio signal

monthly when cold and inflated to

is received by the receiver unit in the

the inflation pressure recommended

vehicle to monitor the tire pressures.

by the vehicle manufacturer on the

vehicle placard or tire inflation

pressure label. (If your vehicle has

tires of a different size than the size

indicated on the vehicle placard or

tire inflation pressure label, you

should determine the proper tire

inflation pressure for those tires.)

As an added safety feature, your

vehicle has been equipped with a

tire pressure monitoring system

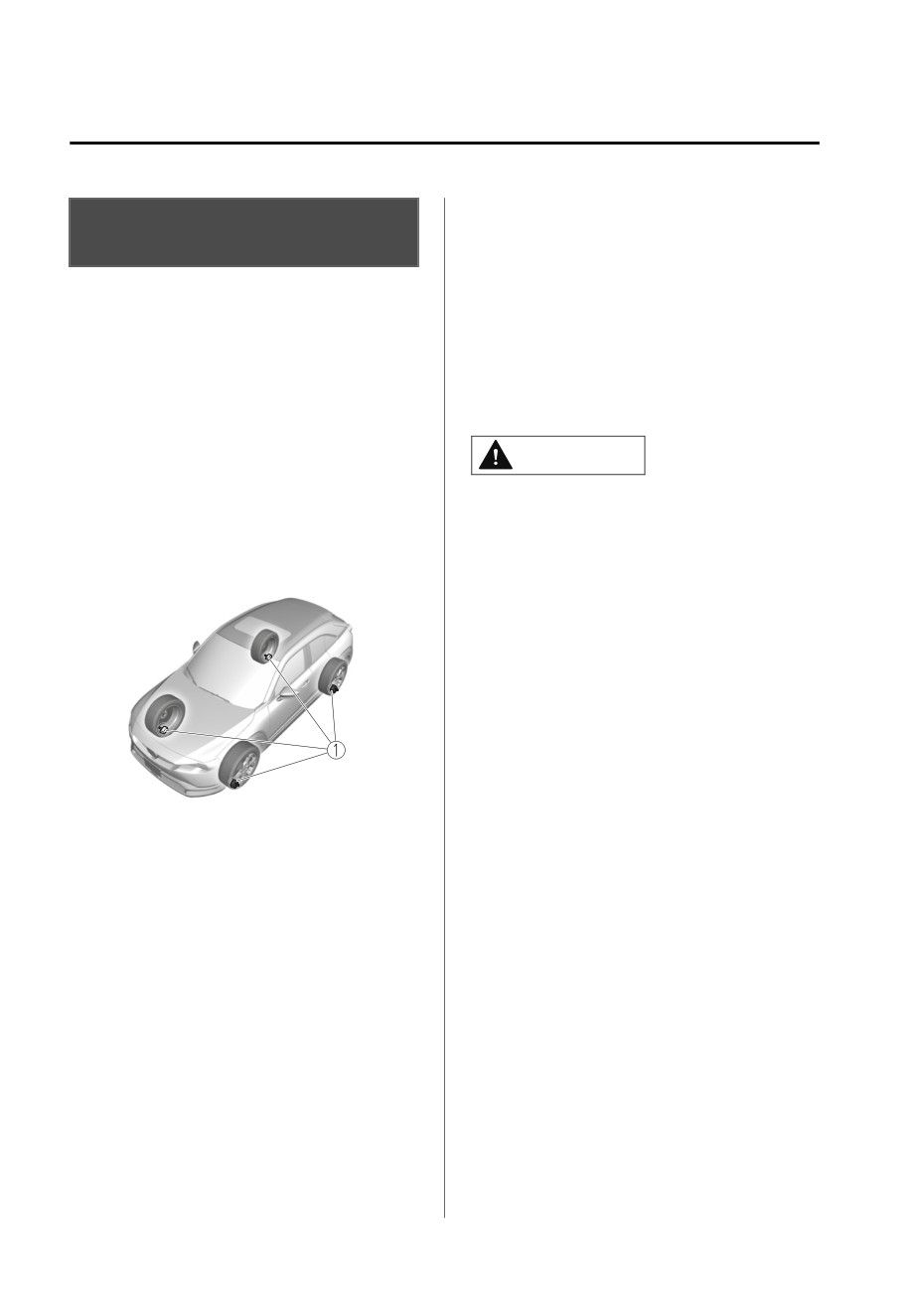

1. Tire pressure sensors

(TPMS) that illuminates a low tire

pressure telltale when one or more

In addition, the current tire pressures

of your tires is significantly

can be checked using the center

under-inflated. Accordingly, when

display.

the low tire pressure telltale

Refer to the Vehicle Status Monitor

illuminates, you should stop and

section in the Mazda Connect

check your tires as soon as possible,

Owner's Manual.

and inflate them to the proper

pressure. Driving on a significantly

NOTE

under-inflated tire causes the tire to

^ When the ambient temperature is

overheat and can lead to tire failure.

low, the tire temperatures also

Under-inflation also reduces fuel

decrease. If the tire temperatures

efficiency and tire tread life, and may

decrease, the air pressure in the tires

affect the vehicle's handling and

will also decrease which could turn

stopping ability.

on the TPMS warning light.

4-180

When Driving

Tire Pressure Monitoring System (TPMS)

Please note that the TPMS is not a

▼

If there is a problem with the Tire

substitute for proper tire

Pressure Monitoring System

maintenance, and it is the driver's

(TPMS)

responsibility to maintain correct tire

If the TPMS warning light flashes, there

pressure, even if under-inflation has

may be a problem with the system.

not reached the level to trigger

Consult an Authorized Mazda Dealer

illumination of the TPMS low tire

to have the system inspected.

pressure telltale.

Refer to Tire Pressure Monitoring

Your vehicle has also been equipped

System (TPMS) Warning Indication/

with a TPMS malfunction indicator to

Warning Light (Flashing) on page

indicate when the system is not

7-27.

operating properly.

In the following cases, the system

The TPMS malfunction indicator is

cannot recognize the tire pressures

combined with the low tire pressure

correctly and the TPMS warning light

telltale. When the system detects a

may flash.

malfunction, the telltale will flash for

approximately one minute and then

^ There is equipment or a device

remain continuously illuminated.

nearby emitting radio signals the

This sequence will continue upon

same as a tire pressure sensor.

subsequent vehicle start-ups as long

^ A metallic object such as a

as the malfunction exists. When the

non-genuine electronic device is

malfunction indicator is illuminated,

installed near the center of the

the system may not be able to detect

dashboard (obstructs the radio

or signal low tire pressure as

signals from the tire pressure sensors

intended. TPMS malfunctions may

to the receiver).

occur for a variety of reasons,

^ A device such as one of the following

including the installation of

is used in the cabin.

replacement or alternate tires or

^ Electronic devices such as a

wheels on the vehicle that prevent

computer.

the TPMS from functioning properly.

^ Converter devices such as a

Always check the TPMS malfunction

DC-AC converter.

telltale after replacing one or more

^ There is a large accumulation of

tires or wheels on your vehicle to

snow or ice around the vehicle tires.

ensure that the replacement or

^ The battery in a tire pressure sensor

alternate tires and wheels allow the

is dead.

TPMS to continue to function

^ A wheel not equipped with a tire

properly.

pressure sensor is used.

¾ To avoid false readings, the system

^ Tires employing steel in the sidewall

samples for a little while before

of the tire are installed.

indicating a problem. As a result it

^ Tire chains are used.

will not instantaneously register a

rapid tire deflation or blow out.

▼ When a tire pressure decreases

If the TPMS warning light turns on, a

tire pressure may be low. Inspect the

tire pressures and adjust them to the

correct inflation pressure.

4-181

When Driving

Tire Pressure Monitoring System (TPMS)

Refer to Tire Pressure Monitoring

NOTE

System (TPMS) Warning Indication/

If you drive the vehicle within 19

Warning Light (Turns on) on page

minutes of changing a tire or wheel,

7-30.

the TPMS warning light will flash

because the ID signal codes for the tire

▼ Tires and Wheels

pressure sensors were not registered.

In this case, stop the vehicle and

CAUTION

pressure sensors following the

When inspecting/adjusting the tire

procedure.

pressures, do not apply excessive force

When replacing tires and wheels

to the air valve of the tire pressure

sensor. Otherwise, the tire pressure

sensor could be damaged.

CAUTION

When changing tires and wheels

¾ When replacing the tires and wheels,

When changing the tires or wheels

consult an Authorized Mazda Dealer

(such as installing winter tires), it will

Otherwise, the tire pressure sensors

be necessary to register the ID signal

could be damaged when replacing

code of the tire pressure sensor to the

them.

TPMS.

¾ Do not install non-genuine wheels. If

Have an Authorized Mazda Dealer do

wheels other than genuine ones are

the registration or register the ID signal

installed, it may not be possible to

codes of the tire pressure sensors using

install the tire pressure sensors.

the following procedure.

When replacing a tire or wheel, always

NOTE

install the tire pressure sensor. The

The tire pressure sensors on each

following combinations of tires,

wheel have a unique ID signal code.

wheels, or tires and wheels are

For the TPMS to operate correctly, the

possible.

ID signal codes of the tire pressure

^ The tire pressure sensor from the old

sensors need to be registered to the

wheel is removed and it is installed

system.

to the new wheel.

1. Wait more than 19 minutes after

^ Only a tire is replaced without

changing a tire or wheel.

replacing the tire pressure sensor and

2. After more than 19 minutes have

wheel.

passed, drive the vehicle at a speed

^ A new tire pressure sensor is installed

of about 25 km/h (16 mph) or

to a new wheel.

faster for 3 minutes or longer. While

driving, the ID signal codes of the

NOTE

tire pressure sensors are

When installing a new tire pressure

automatically registered.

sensor, the ID signal code for the tire

pressure sensor needs to be registered.

For details on purchasing a tire

pressure sensor and registering the ID

signal of the tire pressure sensor,

consult an Authorized Mazda Dealer.

4-182

Mazda MX-30 (2022 year). Manual in english - page 10
