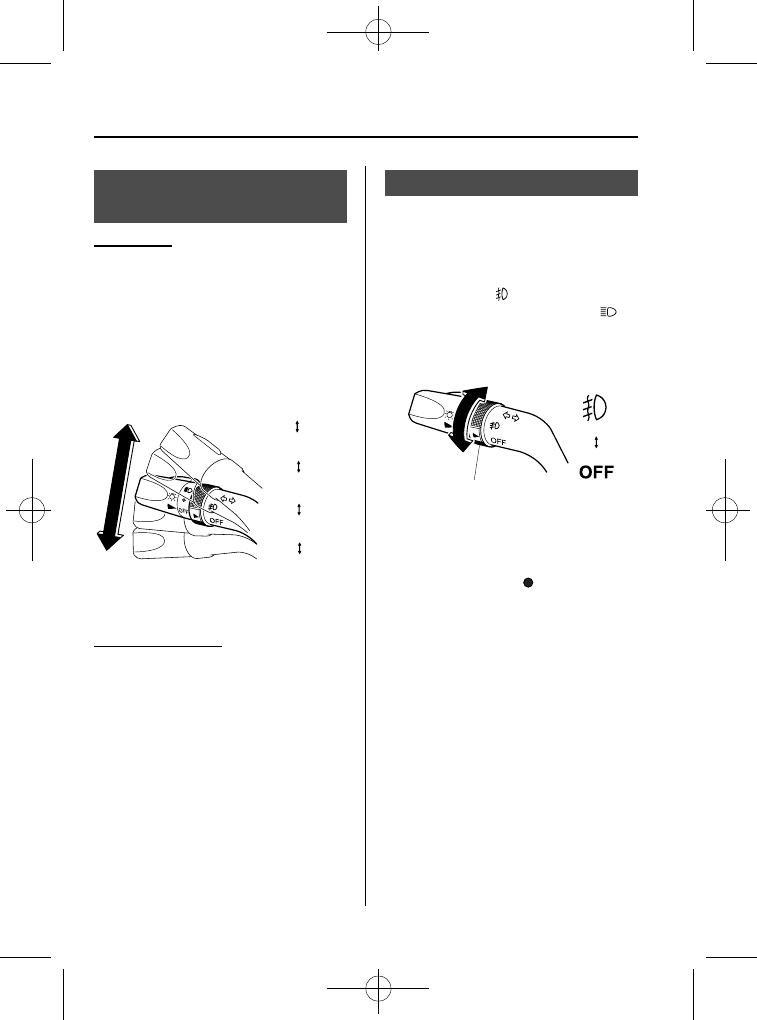

Turn and Lane-Change
Signals

Turn signals

Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.

If the indicator light continues to flash
after a turn, manually return the lever to
its original position.

Right turn

Left turn

Right lane change

Left lane change

OFF

Green indicators on the dashboard show
which signal is working.

Lane-change signals

Move the lever halfway toward the
direction of the change

―until the

indicator flashes

― and hold it there. It

will return to the off position when
released.

NOTE

If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.

Fog Lights

Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.

To turn the fog lights on, rotate the fog
light switch to the

position.

The headlight switch must be in the
position before turning on the fog lights.

Fog light switch

To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the

or OFF

position.

NOTE

The fog lights will turn off when the headlights
are set at high beam.

5-56

Driving Your Mazda

Some models.

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page200
Friday, March 28 2014 3:39 PM

Black plate (201,1)

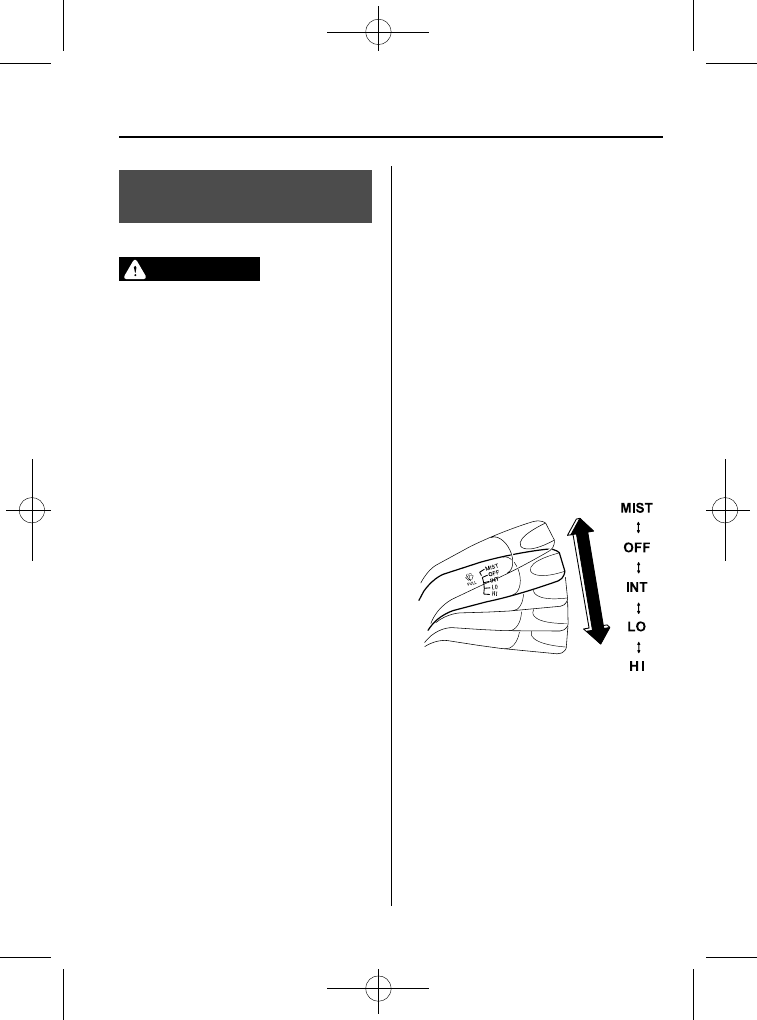

Windshield Wipers and
Washer

The ignition must be switched ON.

WARNING

Use only windshield washer fluid or
plain water in the reservoir:

Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.

Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:

Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.

NOTE

Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.

qWindshield Wipers

Turn the wipers on by pulling the lever
down.
INT

― Intermittent

― Low speed

― High speed

For a single wiping cycle, push the lever
up to MIST.
MIST

― Mist

Driving Your Mazda

Switches and Controls

5-57

MX-5_8EN7-EA-14E_Edition1 Page201
Friday, March 28 2014 3:39 PM

Black plate (202,1)

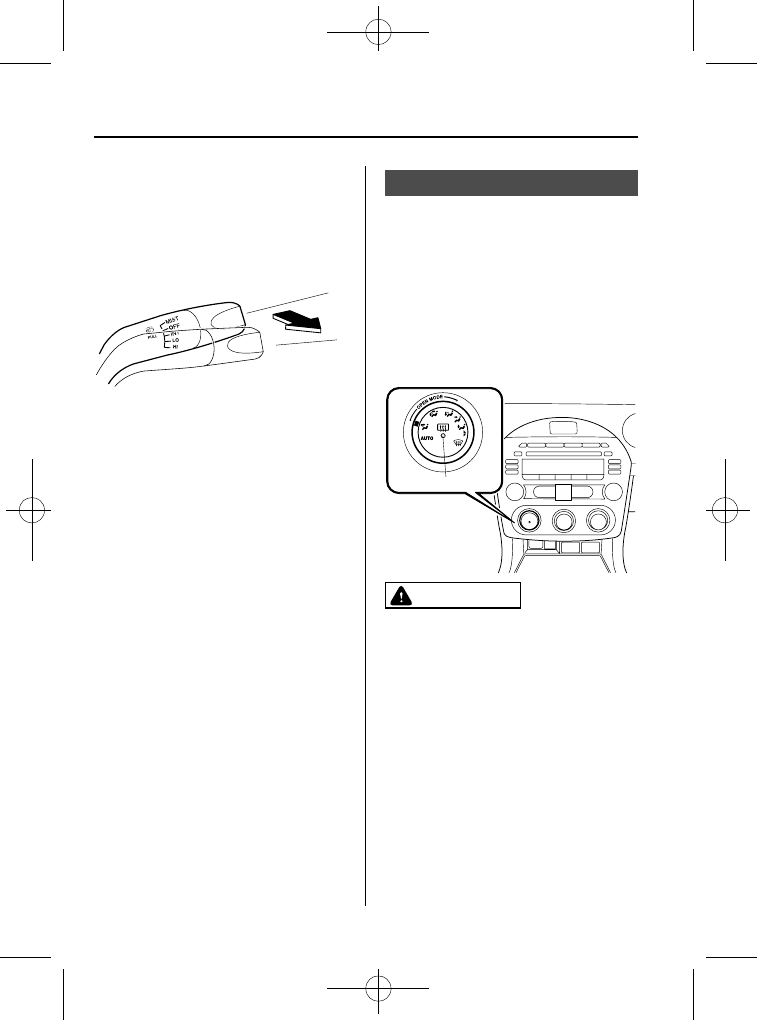

qWindshield Washer

Pull the lever toward you and hold it to
spray washer fluid.

OFF

Washer

NOTE

With the wiper lever in the OFF or INT
position, the wipers will operate continuously
until the lever is released.

If the washer does not work, inspect the
fluid level (page 8-25). If it's normal,
consult an Authorized Mazda Dealer.

Rear Window Defogger

The rear window defogger clears fog from
the rear window.

The ignition must be switched ON.

Press the switch to turn on the rear
window defogger, the indicator light will
illuminate.

Press the switch again to turn it off.

Indicator light

CAUTION

Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.

NOTE

This defogger is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defogger.

5-58

Driving Your Mazda

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page202
Friday, March 28 2014 3:39 PM

Black plate (203,1)

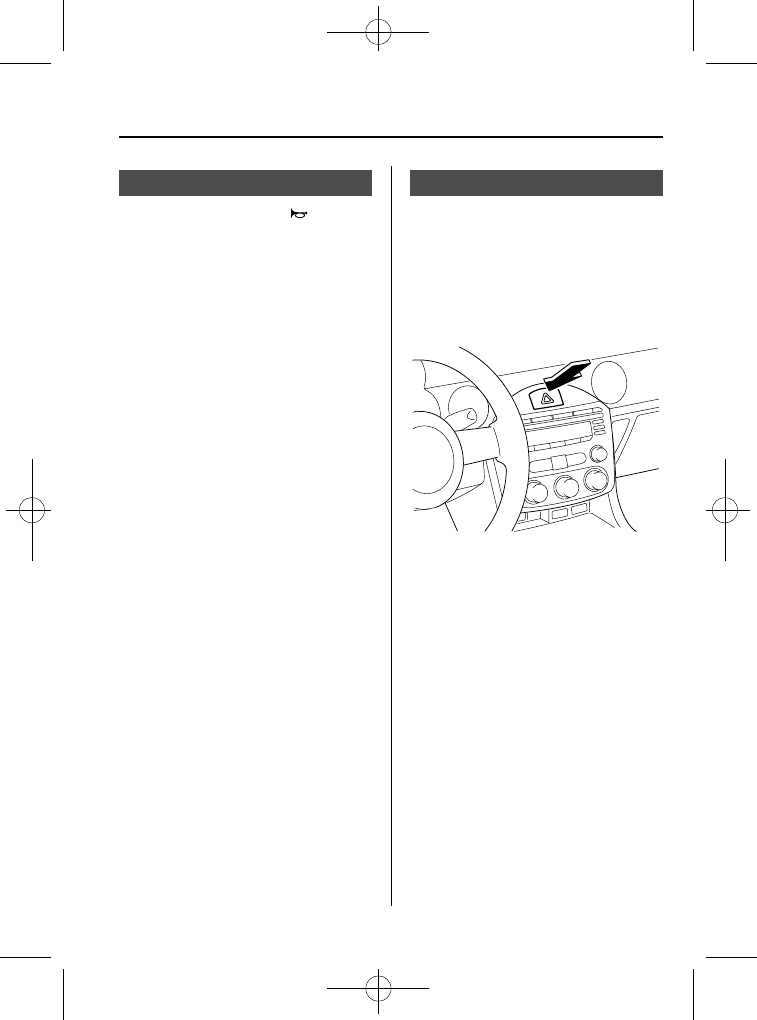

Horn

To sound the horn, press the

mark on

the steering wheel.

Hazard Warning Flasher

The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash.

NOTE

The turn signals do not work when the
hazard warning lights are on.

Check local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.

Driving Your Mazda

Switches and Controls

5-59

MX-5_8EN7-EA-14E_Edition1 Page203
Friday, March 28 2014 3:39 PM

Black plate (204,1)

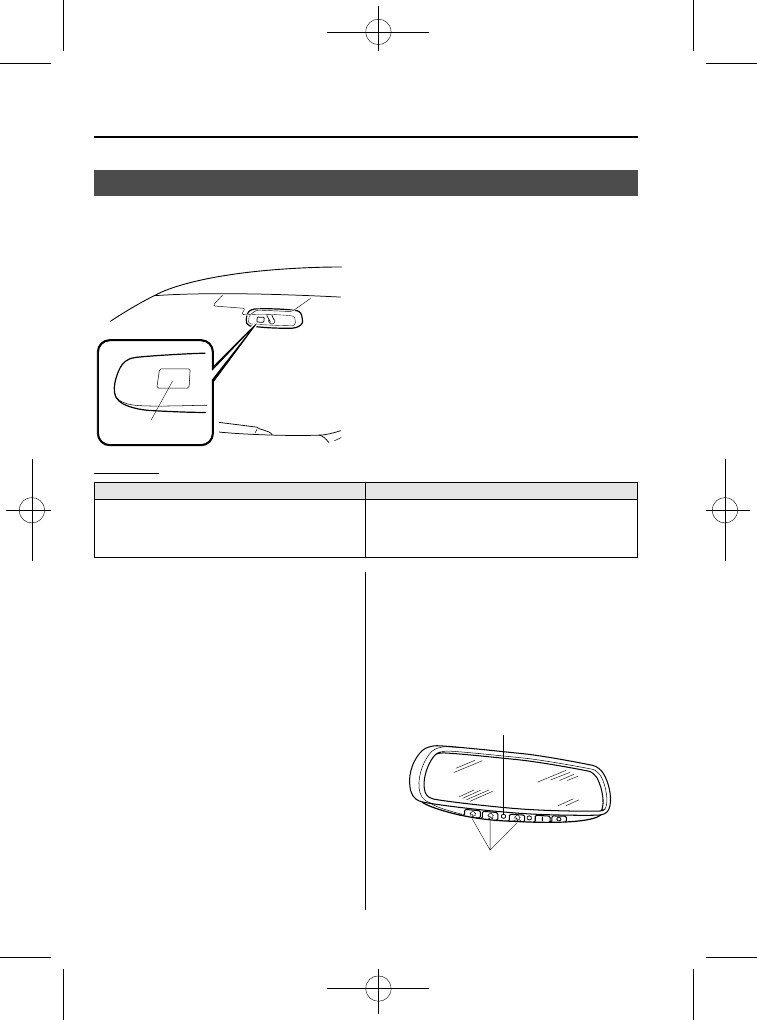

HomeLink Wireless Control System

There are two types of HomeLink Wireless Control systems; type A and B.
Check the indication on the backside of the rearview mirror and the description
corresponding to your vehicle.

Indication

Type A

Type B

FCC ID: NZLMOBHL4
IC: 4112A-MOBHL4
COFETEL: RLVCEMO11-0807
MODEL: MOBHL4

FCC ID: NZLOBIHL3
IC: 4112A-OBIHL3
MODEL: OBIHL3

qType A

NOTE

HomeLink and HomeLink house are registered
trademarks of Johnson Controls.

The HomeLink system replaces up to 3
hand-held transmitters with a single built-
in component in the auto-dimming mirror.
Pressing the HomeLink button on the
auto-dimming mirror activates garage
doors, gates and other devices
surrounding your home.

HomeLink button

Indicator light

5-60

Driving Your Mazda

Some models.

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page204
Friday, March 28 2014 3:39 PM

Black plate (205,1)

WARNING

Do not use the HomeLink system with
any garage door opener that lacks the
safety stop and reverse feature:

Using the HomeLink system with any
garage door opener that lacks the
safety stop and reverse feature as
required by federal safety standards
is dangerous. (This includes garage
doors manufactured before April 1,
1982.)
Using these garage door openers can
increase the risk of serious injury or
death. For further information,
contact HomeLink at 1-800-355-3515
or www.homelink.com or your
Authorized Mazda Dealer.

Always check the areas surrounding
garage doors and gates for people or
obstructions before programming or
during operation of the HomeLink
system:

Programming or operating the
HomeLink system without verifying
the safety of areas surrounding
garage doors and gates is dangerous
and could result in an unexpected
accident and serious injury if
someone were to be hit.

CAUTION

HomeLink has been tested and
complies with FCC and Industry
Canada rules. Changes or
modifications not expressly approved
by the party responsible for
compliance could void the user's
authority to operate the device.

NOTE

FCC ID: NZLMOBHL4
CANADA: 4112A-MOBHL4
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1- This device may not cause harmful
interference, and
2- This device must accept any interference
received, including interference that may cause
undesired operation.

NOTE

The programming will not be erased even if
the battery is disconnected.

Pre-programming the HomeLink
System

NOTE

It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink for
quicker training and accurate transmission of
the radio-frequency signal.

Verify that there is a remote control
transmitter available for the device you
would like to program.

Disconnect the power to the device.

Programming the HomeLink System

CAUTION

When programming a garage door
opener or a gate, disconnect the
power to these devices before
performing programming, as
continuous operation of the devices
could damage the motor.

Driving Your Mazda

Switches and Controls

5-61

MX-5_8EN7-EA-14E_Edition1 Page205
Friday, March 28 2014 3:39 PM

Black plate (206,1)

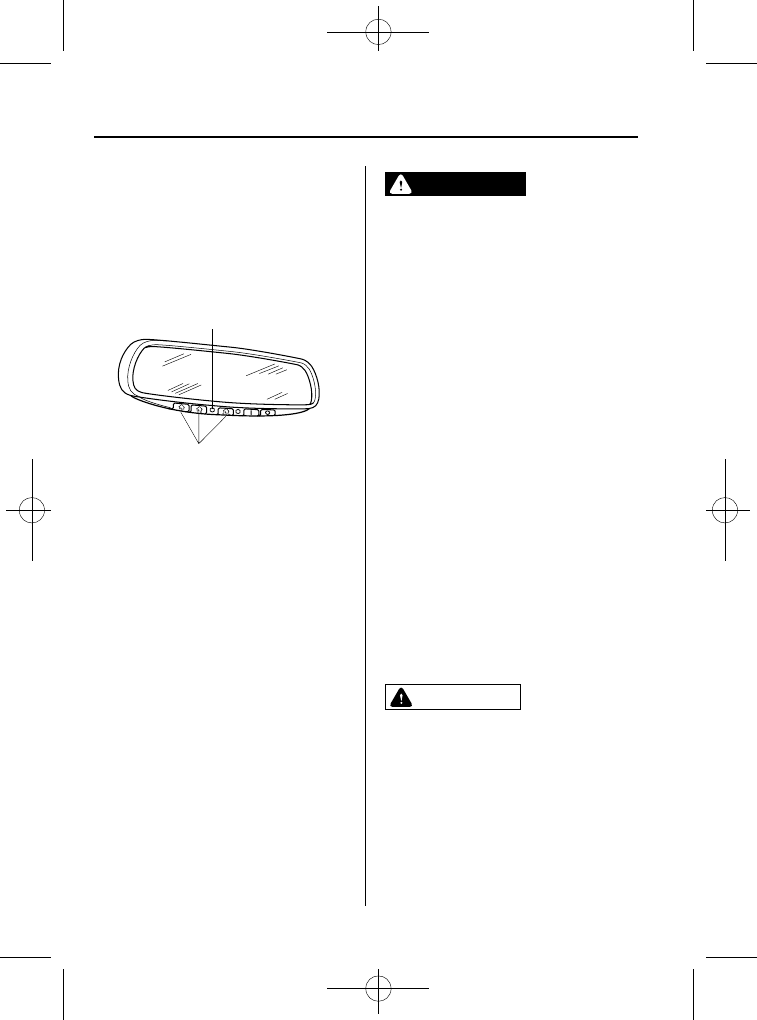

The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:

1. Position the end of your hand-held

transmitter 2.5

―7.5 cm (1―3 inches)

away from the HomeLink button you
wish to program while keeping the
indicator light in view.

2. Simultaneously press and hold both the

chosen HomeLink and hand-held
transmitter buttons. Do not release the
buttons until step 3 has been
completed.

NOTE

Some gate operators and garage door openers
may require you to replace this Programming
Step 2 with procedures noted in the

“Gate

Operator/Canadian Programming

” section.

3. After the HomeLink indicator light

changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.

NOTE

If the HomeLink indicator light does not
change to a rapidly blinking light, contact
HomeLink at www.homelink.com or call 1-
800-355-3515 for assistance.

4. Firmly press and hold the programmed

HomeLink button for five seconds, and
then release it. Perform this operation
two times to activate the door. If the
door does not activate, press and hold
the just-trained HomeLink button and
observe the indicator light.

If the indicator light stays on constantly,
programming is complete and your
device should activate when the
HomeLink button is pressed and released.

NOTE

To program the remaining two HomeLink
buttons, begin with

“Programming”― step 1.

If the indicator light blinks rapidly for
two seconds and then turns to a
constant light, continue with

“Programming” steps 5―7 to complete
the programming of a rolling code
equipped device (most commonly a
garage door opener).

5. At the garage door opener receiver

(motor-head unit) in the garage, locate
the

“learn” or “smart” button. This can

usually be found where the hanging
antenna wire is attached to the motor-
head unit.

6. Firmly press and release the

“learn” or

“smart” button. (The name and color of
the button may vary by manufacturer.)

NOTE

There are 30 seconds in which to initiate step
7.

7. Return to the vehicle and firmly press,

hold for two seconds and release the
programmed HomeLink button. Repeat
the

“press/hold/release” sequence a

second time, and, depending on the
brand of the garage door opener (or
other rolling code equipped device),
repeat this sequence a third time to
complete the programming process.

HomeLink should now activate your
rolling code equipped device.

NOTE

To program the remaining two HomeLink
buttons, begin with

“Programming”― step 1.

For questions or comments, please contact
HomeLink at www.homelink.com or 1-
800-355-3515.

5-62

Driving Your Mazda

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page206
Friday, March 28 2014 3:39 PM

Black plate (207,1)

Gate operator/Canadian Programming

Canadian radio-frequency laws require
transmitter signals to

“time-out” (or quit)

after several seconds of transmission

―

which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are
designed to

“time-out” in the same

manner.

If you live in Canada or you are having
difficulties programming a gate operator
by using the

“Programming” procedures

(regardless of where you live), replace

“Programming HomeLink” step 2 with
the following:

NOTE

If programming a garage door opener or gate
operator, it is advised to unplug the device
during the

“cycling” process to prevent

possible overheating.

Continue to press and hold the HomeLink
button while you press and release

―

every two seconds (

“cycle”) your hand-

held transmitter until the frequency signal
has successfully been accepted by
HomeLink. (The indicator light will flash
slowly and then rapidly.) Proceed with

“Programming” step 3 to complete.

Operating the HomeLink System

Press the programmed HomeLink button
to operate a programmed device. The
code will continue being transmitted for a
maximum of 20 seconds.

Reprogramming the HomeLink system

To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:

1. Press and hold the desired HomeLink

button. DO NOT release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink button, proceed with

“Programming” - step 1.

Erasing Programmed HomeLink
Buttons

To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (

)

on the auto-dimming mirror until the
HomeLink indicator light begins to flash
after approximately 10 seconds.
Verify that the programming has been
erased when you resell the vehicle.

qType B

NOTE

HomeLink and HomeLink house are registered
trademarks of Johnson Controls.

Driving Your Mazda

Switches and Controls

5-63

MX-5_8EN7-EA-14E_Edition1 Page207
Friday, March 28 2014 3:39 PM

Black plate (208,1)

HomeLink button

Indicator light

WARNING

Do not use the HomeLink system with
any garage door opener that lacks the
safety stop and reverse feature:

Always check the areas surrounding
garage doors and gates for people or
obstructions before programming or
during operation of the HomeLink
system:

CAUTION

5-64

Driving Your Mazda

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page208
Friday, March 28 2014 3:39 PM

Black plate (209,1)

NOTE

FCC ID: NZLOBIHL3
CANADA:4112A-OBIHL3
This device complies with FCC rules part 15.
Operation is subject to the following
conditions:
1- This device may not cause any harmful
interference and
2- This device must accept any interference
that may be received including interference
that may cause undesired operation.

NOTE

The programming will not be erased even if
the battery is disconnected.

Pre-programming the HomeLink
System

NOTE

It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink for
quicker training and accurate transmission of
the radio-frequency signal.

Verify that there is a remote control
transmitter available for the device you
would like to program.

Disconnect the power to the device.

Programming the HomeLink System

CAUTION

When programming a garage door
opener or a gate, disconnect the
power to these devices before
performing programming, as
continuous operation of the devices
could damage the motor.

The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:

1. Press and hold the two outer

HomeLink buttons (buttons one and
three)

― releasing only when the

indicator light begins to flash (after 20
seconds). Do not hold the buttons for
longer than 30 seconds and do not
repeat step 1 to program a second and/
or third hand-held transmitter to the
remaining two HomeLink buttons.

2. Position the end of your hand-held

transmitter 2.5

―7.5 cm (1―3 inches)

away from the HomeLink button you
wish to program while keeping the
indicator light in view.

3. Simultaneously press and hold both the

chosen HomeLink and hand-held
transmitter buttons. Do not release the
buttons until step 4 has been
completed.

NOTE

Some gate operators and garage door openers
may require you to replace this Programming
Step 3 with procedures noted in the

“Gate

Operator/Canadian Programming

” section.

4. After the HomeLink indicator light

changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.

NOTE

If the HomeLink indicator light does not
change to a rapidly blinking light, contact
HomeLink at www.homelink.com or call 1-
800-355-3515 for assistance.

Driving Your Mazda

Switches and Controls

5-65

MX-5_8EN7-EA-14E_Edition1 Page209
Friday, March 28 2014 3:39 PM

Black plate (210,1)

5. Press and hold the just-trained

HomeLink button and observe the
indicator light.

If the indicator light stays on constantly,
programming is complete and your
device should activate when the
HomeLink button is pressed and released.

NOTE

To program the remaining two HomeLink
buttons, begin with

“Programming”― step 2.

Do not repeat step 1.

If the indicator light blinks rapidly for
two seconds and then turns to a
constant light, continue with

“Programming” steps 6―8 to complete
the programming of a rolling code
equipped device (most commonly a
garage door opener).

6. At the garage door opener receiver

(motor-head unit) in the garage, locate
the

“learn” or “smart” button. This can

usually be found where the hanging
antenna wire is attached to the motor-
head unit.

7. Firmly press and release the

“learn” or

“smart” button. (The name and color of
the button may vary by manufacturer.)

NOTE

There are 30 seconds in which to initiate step
8.

8. Return to the vehicle and firmly press,

hold for two seconds and release the
programmed HomeLink button. Repeat
the

“press/hold/release” sequence a

second time, and, depending on the
brand of the garage door opener (or
other rolling code equipped device),
repeat this sequence a third time to
complete the programming process.

HomeLink should now activate your
rolling code equipped device.

NOTE

To program the remaining two HomeLink
buttons, begin with

“Programming”― step 2.

Do not repeat step 1.

For questions or comments, please contact
HomeLink at www.homelink.com or 1-
800-355-3515.

Gate operator/Canadian Programming

Canadian radio-frequency laws require
transmitter signals to

“time-out” (or quit)

after several seconds of transmission

―

which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are
designed to

“time-out” in the same

manner.

If you live in Canada or you are having
difficulties programming a gate operator
by using the

“Programming” procedures

(regardless of where you live), replace

“Programming HomeLink” step 3 with
the following:

NOTE

If programming a garage door opener or gate
operator, it is advised to unplug the device
during the

“cycling” process to prevent

possible overheating.

Continue to press and hold the HomeLink
button while you press and release

―

every two seconds (

“cycle”) your hand-

held transmitter until the frequency signal
has successfully been accepted by
HomeLink. (The indicator light will flash
slowly and then rapidly.) Proceed with

“Programming” step 4 to complete.

5-66

Driving Your Mazda

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page210
Friday, March 28 2014 3:39 PM

Black plate (211,1)

Operating the HomeLink System

Press the programmed HomeLink button
to operate a programmed device. The
code will continue being transmitted for a
maximum of 20 seconds.

Reprogramming the HomeLink system

To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:

1. Press and hold the desired HomeLink

button. DO NOT release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink button, proceed with

“Programming” - step 2.

Erasing Programmed HomeLink
Buttons

To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (

)

on the auto-dimming mirror until the
HomeLink indicator light begins to flash
after approximately 20 seconds.
Verify that the programming has been
erased when you resell the vehicle.

Driving Your Mazda

Switches and Controls

5-67

MX-5_8EN7-EA-14E_Edition1 Page211
Friday, March 28 2014 3:39 PM

Black plate (212,1)

5-68

MX-5_8EN7-EA-14E_Edition1 Page212
Friday, March 28 2014 3:39 PM

Black plate (213,1)

Interior Comfort

Use of various features for drive comfort, including air-conditioning and audio
system.

Climate Control System ............................................................... 6-2

Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type

.......................................................................... 6-6

Automatic Type

.................................................................... 6-10

Audio System ............................................................................... 6-14

Antenna ................................................................................... 6-14
Operating Tips for Audio System ........................................... 6-15
Audio Set ................................................................................ 6-25
Audio Control Switch Operation

......................................... 6-56

AUX Mode (Auxiliary input) ................................................. 6-58
Safety Certification ................................................................. 6-61

Bluetooth® Hands-Free .............................................................. 6-62

Bluetooth® Hands-Free

....................................................... 6-62

Basic Bluetooth® Hands-Free Operation ................................ 6-65
Convenient Use of the Hands-Free System ............................. 6-69
Hands-Free Telephone Setting ................................................ 6-74
When Bluetooth® Hands-Free cannot be used ....................... 6-79
Safety Certification ................................................................. 6-79
Mazda Bluetooth® Hands-Free Customer Service ................. 6-80

Interior Equipment ..................................................................... 6-81

6-1

Some models.

MX-5_8EN7-EA-14E_Edition1 Page213
Friday, March 28 2014 3:39 PM

Black plate (214,1)

Operating Tips

qOperating the Climate Control

System

Operate the climate control system with
the engine running.

NOTE

To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.

qClearing the Air Inlet

Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.

qFoggy Windows

The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.

To help defog the windows, operate the
air conditioner to dehumidify the air.

NOTE

The air conditioner may be used along with the
heater to dehumidify the air.

qParking in Direct Sunlight

If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

qNot Using for a Long Period

Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.

qCheck the Refrigerant before the

Weather Gets Hot

Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.

The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

6-2

Interior Comfort

Climate Control System

MX-5_8EN7-EA-14E_Edition1 Page214
Friday, March 28 2014 3:39 PM

Black plate (215,1)

Vent Operation

Button

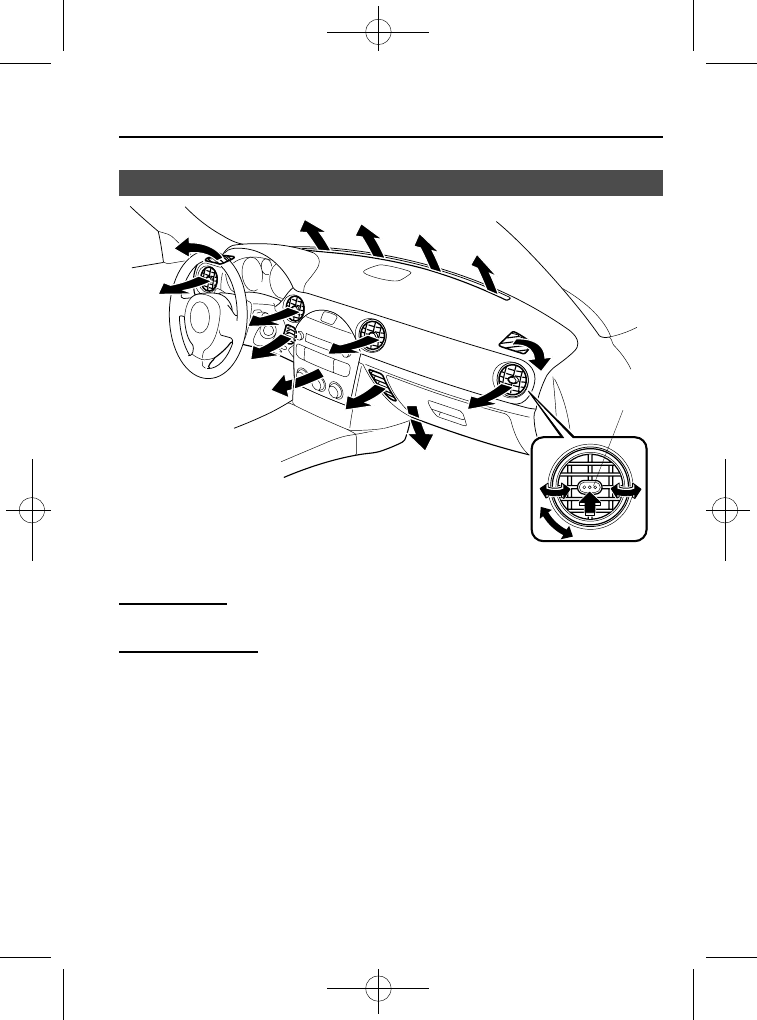

qAdjusting the Vents

Directing airflow

You can direct air flow by rotating the vent.

Opening/closing vents

The two outside vents can be opened and closed with center button.

NOTE

When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.

Interior Comfort

Climate Control System

6-3

MX-5_8EN7-EA-14E_Edition1 Page215
Friday, March 28 2014 3:39 PM

Content .. 11 12 13 14 ..
