Mazda MX-5 PRHT (2015 year). Instruction

Black plate (184,1)

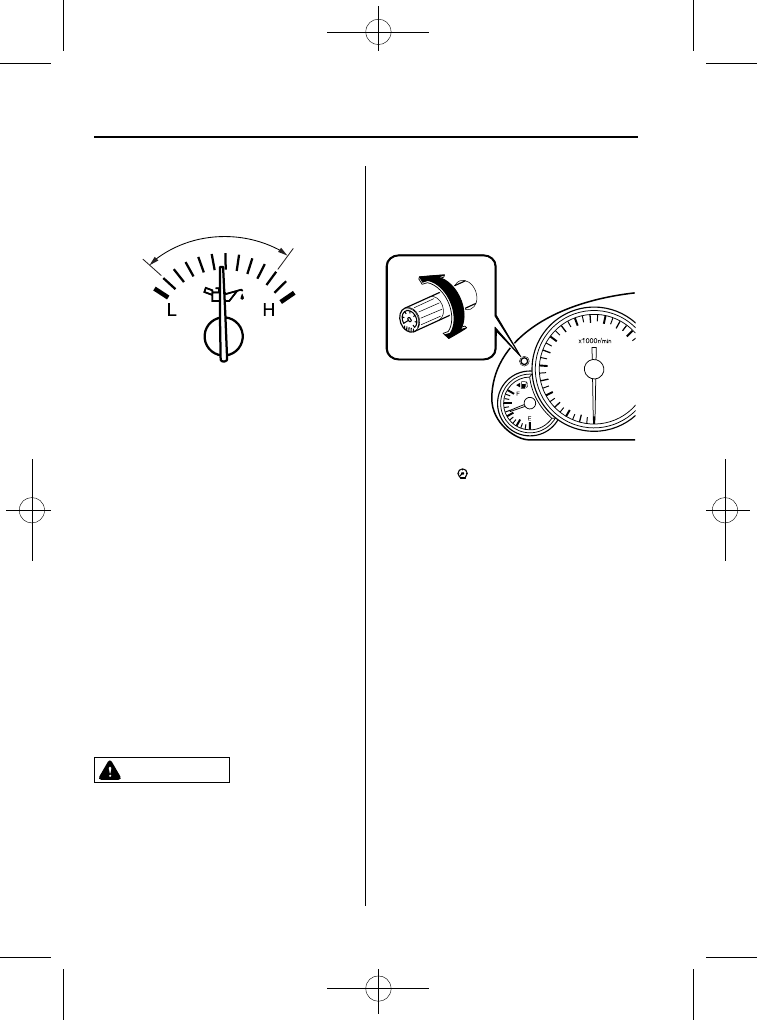

qEngine Oil Pressure Gauge

Normal range

Engine oil pressure is normal when the
engine oil pressure gauge needle points
within the normal range.

If the needle on the gauge doesn't move
after starting the engine, follow steps 1
through 3.

If the engine oil pressure gauge moves to
L (low) while you are driving, drive to the
side of the road and park off the right-of-
way. Set the parking brake. Then follow
steps 1 through 3.

1. Turn off the engine and inspect the

engine oil level (page 8-21). If it's low,
add oil.

2. Start the engine.

3. If the needle still doesn't move, have

your vehicle checked at an Authorized
Mazda Dealer.

CAUTION

Don't run the engine if the oil
pressure is low. It could result in
extensive engine damage.

qDashboard Illumination

When the exterior lights are on, rotate the
knob to adjust the brightness of the
dashboard illumination.

Dim

Bright

NOTE

This symbol (

) indicates the knob to adjust

the brightness of the dashboard illumination.

5-40

Driving Your Mazda

Instrument Cluster and Indicators

MX-5_8EN7-EA-14E_Edition1 Page184
Friday, March 28 2014 3:39 PM

Black plate (185,1)

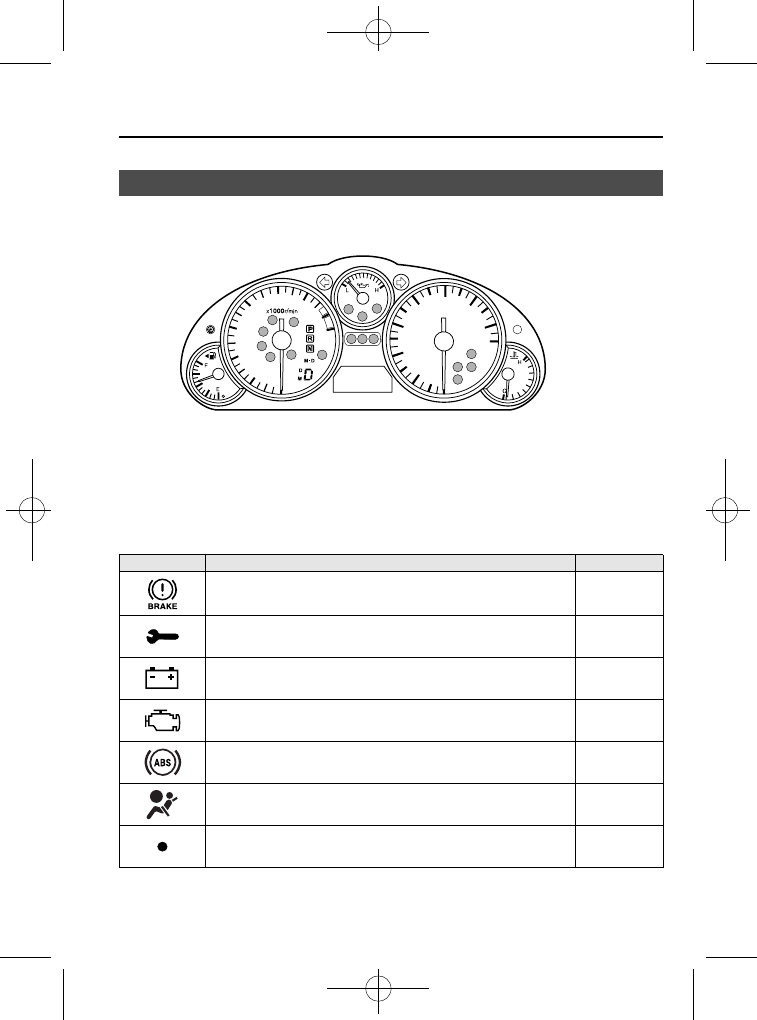

Warning/Indicator Lights

Warning/Indicator lights will appear in any of the highlighted areas

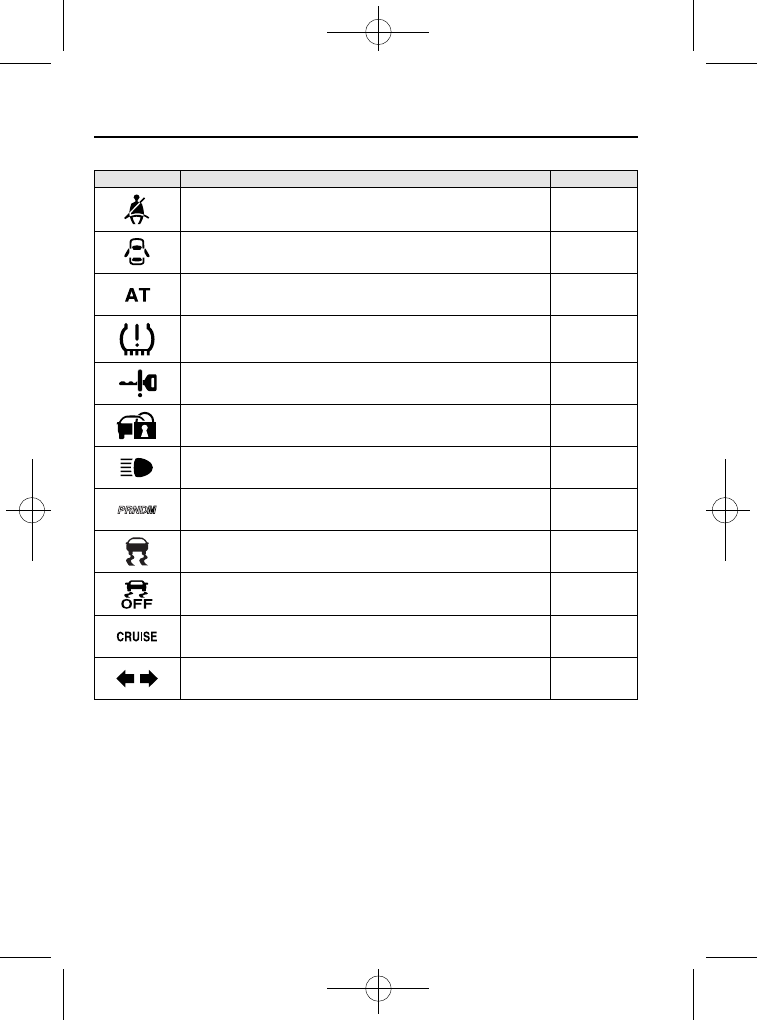

Signal

Warning/Indicator Lights

Page

Brake System Warning Light

5-43

Malfunction Warning Light

5-43

Charging System Warning Light

5-45

Check Engine Light

5-45

ABS Warning Light

5-44

Air Bag/Front Seat Belt Pretensioner System Warning Light

5-45

Low Fuel Warning Light

5-46

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-41

MX-5_8EN7-EA-14E_Edition1 Page185
Friday, March 28 2014 3:39 PM

Black plate (186,1)

Signal

Warning/Indicator Lights

Page

Seat Belt Warning Light

5-46

Door-Ajar Warning Light

5-46

Automatic Transmission Warning Light

5-46

Tire Pressure Monitoring System Warning Light

5-47

KEY Warning Light (Red)/KEY Indicator Light (Green)

5-49

Security Indicator Light

5-50

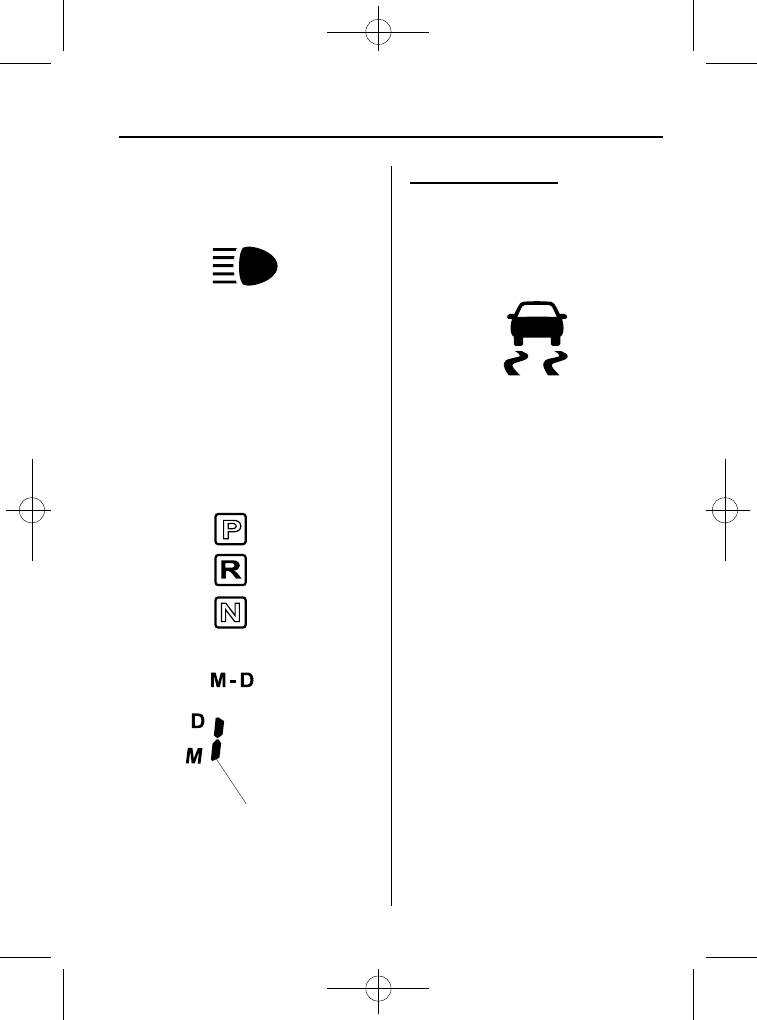

Headlight High-Beam Indicator Light

5-51

Shift Position Indicator Light

5-51

TCS/DSC Indicator Light

5-51

DSC OFF Indicator Light

5-52

Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green)

5-52

Turn Signal/Hazard Warning Indicator Lights

5-52

5-42

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

MX-5_8EN7-EA-14E_Edition1 Page186
Friday, March 28 2014 3:39 PM

Black plate (187,1)

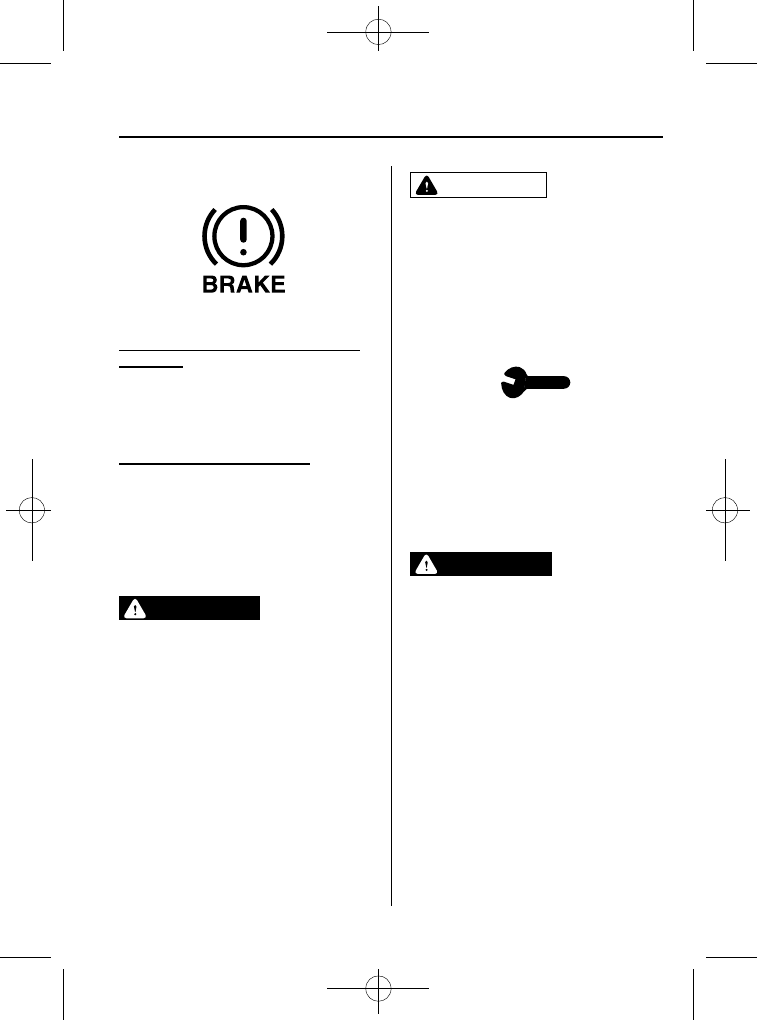

qBrake System Warning Light

This warning has the following functions:

Parking brake warning/Warning light
inspection

The light illuminates when the parking
brake is applied with the ignition switched
to START or ON. It turns off when the
parking brake is fully released.

Low brake fluid level warning

If the brake warning light remains
illuminated even though the parking brake
is released, the brake fluid may be low or
there could be a problem with the brake
system. Park the vehicle in a safe place
immediately and contact an Authorized
Mazda Dealer.

WARNING

Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:

Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.

CAUTION

In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.

qMalfunction Warning Light

When the ignition is switched ON, the
malfunction warning light illuminates and
then turns off after a few seconds.
The light stays on if the brake switch has
a malfunction. Consult an Authorized
Mazda Dealer.

WARNING

Do not drive the vehicle with the
malfunction warning light illuminated.

Driving with the malfunction
warning light illuminated is
dangerous because the brake lights
and engine control system may not
operate normally due to a brake
switch malfunction which could lead
to an accident. Have your vehicle
inspected by an Authorized Mazda
Dealer.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-43

MX-5_8EN7-EA-14E_Edition1 Page187
Friday, March 28 2014 3:39 PM

Black plate (188,1)

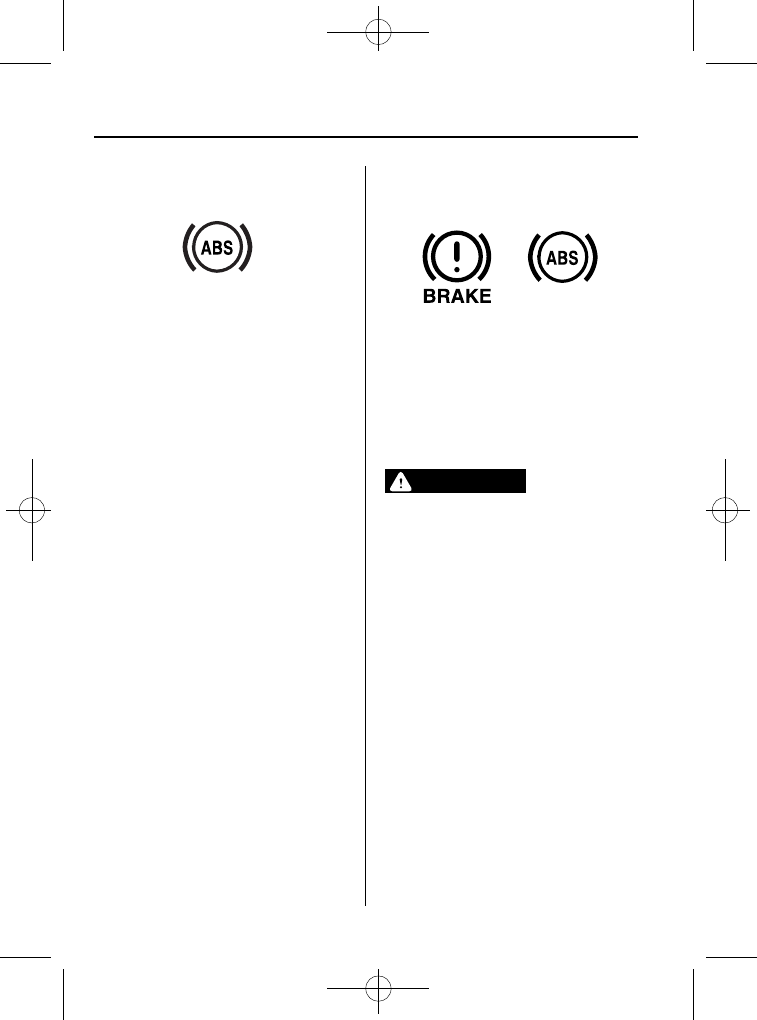

qABS Warning Light

The warning light stays on for a few
seconds when the ignition is switched
ON.

If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.

NOTE

When the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.

(With DSC vehicles)
The brake assist system does not operate
while the ABS warning light is illuminated.

qElectronic Brake Force

Distribution System Warning

If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.

WARNING

Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:

Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.

5-44

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

MX-5_8EN7-EA-14E_Edition1 Page188
Friday, March 28 2014 3:39 PM

Black plate (189,1)

qCharging System Warning Light

This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.

If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.

CAUTION

Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.

qCheck Engine Light

This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.

If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.

The check engine light may illuminate in
the following cases:

The fuel tank level being very low or
approaching empty.

The engine's electrical system has a
problem.

The emission control system has a
problem.

The fuel-filler cap is missing or not
tightened securely.

If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.

qAir Bag/Seat Belt Pretensioner

System Warning Light

If the air bag/seat belt pretensioner system
is working properly, the warning light
illuminates when the ignition is switched
ON or after the engine is cranked. The
warning light turns off after a specified
period of time.

A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-45

MX-5_8EN7-EA-14E_Edition1 Page189
Friday, March 28 2014 3:39 PM

Black plate (190,1)

WARNING

Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:

Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.

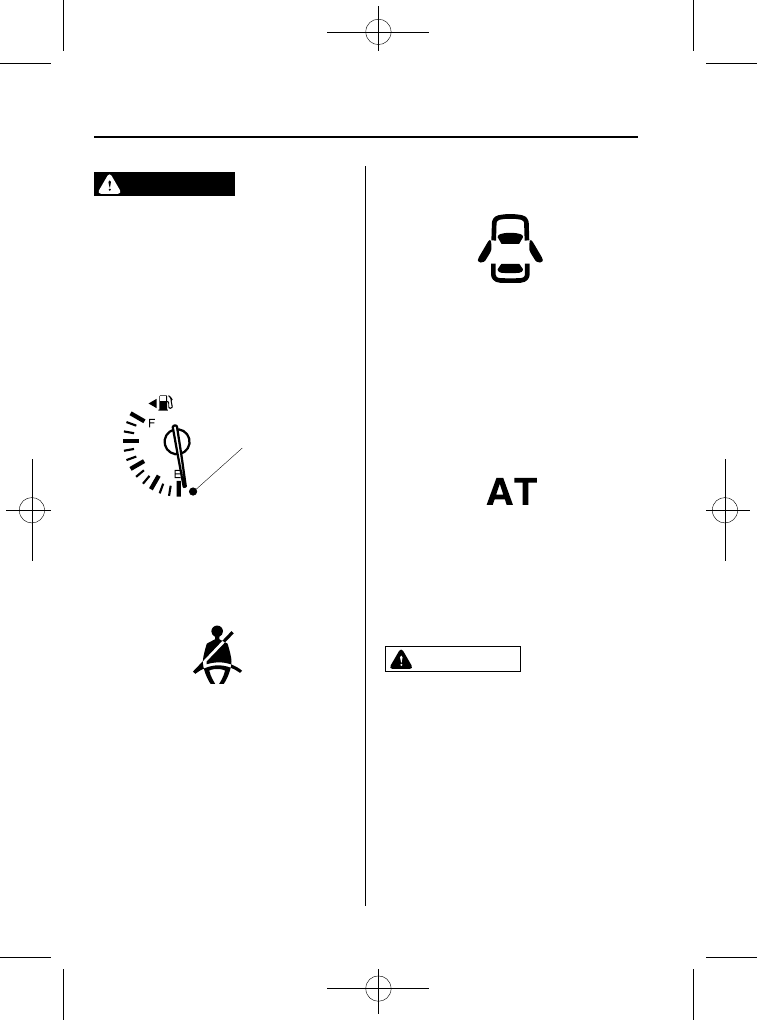

qLow Fuel Warning Light

Low fuel
warning light

This warning light signals that the fuel
tank will soon be empty.
Refuel as soon as possible.

qSeat Belt Warning Light

The seat belt warning light illuminates if
the driver or front passenger's seat is
occupied and the seat belt is not fastened
when the ignition switched ON.

qDoor-Ajar Warning Light

This warning light illuminates when any
door is not securely closed.
Close the door securely before driving the
vehicle.

qAutomatic Transmission Warning

Light

This warning light stays on for a few
seconds when the ignition is switched
ON.
The light illuminates when the
transmission has a problem.

CAUTION

If the automatic transmission
warning light illuminates, the
transmission has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transmission.
Consult an Authorized Mazda Dealer
as soon as possible.

5-46

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

MX-5_8EN7-EA-14E_Edition1 Page190
Friday, March 28 2014 3:39 PM

Black plate (191,1)

qTire Pressure Monitoring System

(TPMS) Warning Light

This warning light illuminates for a few
seconds when the ignition is switched
ON.

Thereafter, the warning light illuminates
and a beep is heard when tire pressure is
too low in one or more tires, and flashes
when there is a system malfunction.

WARNING

If the tire pressure monitoring system
warning light illuminates or flashes, or
the tire pressure warning beep sound is
heard, decrease vehicle speed
immediately and avoid sudden
maneuvering and braking:

If the tire pressure monitoring system
warning light illuminates or flashes,
or the tire pressure warning beep
sound is heard, it is dangerous to
drive the vehicle at high speeds, or
perform sudden maneuvering or
braking. Vehicle drivability could
worsen and result in an accident.
To determine if you have a slow leak
or a flat, pull over to a safe position
where you can check the visual
condition of the tire and determine if
you have enough air to proceed to a
place where air may be added and
the system monitored again by an
Authorized Mazda Dealer or a tire
repair station.

Do not ignore the TPMS Warning Light:

Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious
situation that could lead to tire
failure and a dangerous accident.

Warning light illuminates/Warning
beep sounds

When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low in one or
more tires.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-47

Some models.

MX-5_8EN7-EA-14E_Edition1 Page191
Friday, March 28 2014 3:39 PM

Black plate (192,1)

Adjust the tire pressure to the correct tire
pressure. Refer to the specification charts
(page 10-7).

CAUTION

When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.

NOTE

Perform tire pressure adjustment when the
tires are cold. Tire pressure will vary
according to the tire temperature, therefore
let the vehicle stand for 1 hour or only drive
it 1.6 km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold inflation
pressure, the TPMS warning light/beep may
turn on after the tires cool and pressure
drops below specification.
Also, an illuminated TPMS warning light,
resulting from the tire air pressure dropping
due to cold ambient temperature, may turn
off if the ambient temperature rises. In this
case, it will also be necessary to adjust the
tire air pressures. If the TPMS warning
light illuminates due to a drop in tire air
pressure, make sure to check and adjust the
tire air pressures.

After adjusting the tire air pressures, it may
require some time for the TPMS warning
light to turn off. If the TPMS warning light
remains illuminated, drive the vehicle at a
speed of at least 25 km/h (16 mph) for 10
minutes, and then verify that it turns off.

Tires lose air naturally over time and the
TPMS cannot tell if the tires are getting too
soft over time or you have a flat. However,
when you find one low tire in a set of four-
that is an indication of trouble; you should
have someone drive the vehicle slowly
forward so you can inspect any low tire for
cuts and any metal objects sticking through
tread or sidewall. Put a few drops of water
in the valve stem to see if it bubbles
indicating a bad valve. Leaks need to be
addressed by more than simply refilling the
trouble tire as leaks are dangerous - take it
to an Authorized Mazda Dealer which has
all the equipment to fix tires, TPMS systems
and order the best replacement tire for your
vehicle.

5-48

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

MX-5_8EN7-EA-14E_Edition1 Page192
Friday, March 28 2014 3:39 PM

Black plate (193,1)

If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.

Vehicles with Instant Mobility System
(IMS) emergency flat tire repair kit

If an emergency tire repair is needed,
repair the punctured tire with the
emergency flat tire repair kit (page 7-5).

CAUTION

Do not use non-genuine tire sealant.
It may damage the tire pressure
sensor.

Vehicles with optional temporary spare
tire

If you have bought the optional temporary
spare tire, replace the punctured tire with
the temporary spare tire. Refer to the
manufacturer's instructions.

Warning light flashes

When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.

qKEY Warning Light (Red)/KEY

Indicator Light (Green) (with
Advanced Key)

This indicator has two colors.

KEY Warning Light (Red)

When illuminated

When the ignition is switched ON, it
illuminates momentarily and then goes
out.

If any malfunction occurs in the
advanced keyless system, it illuminates
continuously.

WARNING

Do not drive the vehicle with the KEY
warning light illuminated:

If the KEY warning light remains
illuminated, do not continue to drive
using the advanced key system. Park
the vehicle in a safe place and use
the auxiliary key to continue driving
the vehicle. Have the vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.

When flashing

Under the following conditions, the
KEY warning light (red) flashes to
inform the driver that the start knob
will not rotate to the ACC position
even if it is pushed in from the OFF/
LOCK position.

The advanced key battery is dead.

The advanced key is not within
operational range.

The advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).

A key from another manufacturer
similar to the advanced key is in the
operational range.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-49

MX-5_8EN7-EA-14E_Edition1 Page193
Friday, March 28 2014 3:39 PM

Black plate (194,1)

Under the following conditions, the
KEY warning light (red) will flash
continuously when the start knob has
not been returned to the OFF/LOCK
position to notify the driver that the
advanced key has been removed from
the vehicle. It will stop flashing when
the advanced key is back inside the
vehicle.

The start knob has not been returned
to the OFF/LOCK position, the
driver's door is open, and the
advanced key is removed from the
vehicle.

The start knob has not been returned
to the OFF/LOCK position and all
the doors are closed after removing
the advanced key from the vehicle.

NOTE

The flashing KEY warning light (red) and the
beep sound operate simultaneously (page
3-22).

KEY Indicator Light (Green)

When illuminated

When the start knob is pushed in from the
OFF/LOCK position, the system confirms
that the correct advanced key is inside the
vehicle, the KEY indicator light (green)
illuminates, and the start knob can be
turned to the ACC position (page 3-11).

When flashing

When the advanced key battery power is
low, the KEY indicator light flashes for 30
seconds after the start knob is turned from
the ON position to the ACC or OFF/
LOCK position. Replace with a new
battery before the advanced key becomes
unusable (page 3-7).

NOTE

The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Setting Change (Function
Customization) on page 3-21.

qSecurity Indicator Light

This indicator light starts flashing every
two seconds when the ignition is switched
from ON to ACC and the immobilizer
system is armed.

The light stops flashing when the ignition
is switched ON with the correct ignition
key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about three seconds and then turns off.

If the engine does not start with the
correct ignition key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.

5-50

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

MX-5_8EN7-EA-14E_Edition1 Page194
Friday, March 28 2014 3:39 PM

Black plate (195,1)

qHeadlight High-Beam Indicator

Light

This light indicates one of two things:

The high-beam headlights are on.

The turn signal lever is in the flash-to-
pass position.

qShift Position Indicator Light

(Automatic Transmission)

This indicates the selected shift position
when the ignition is switched ON.

Gear position indicator

The gear position indicator displays the
gear in use while in either manual shift or
direct mode.

qTCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

NOTE

In addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS is
operating properly.

On slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-51

Some models.

MX-5_8EN7-EA-14E_Edition1 Page195
Friday, March 28 2014 3:39 PM

Black plate (196,1)

qDSC OFF Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-28).

If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.

NOTE

If the battery is disconnected or a fuse is
replaced, the DSC will be inoperable. In this
case, the DSC OFF indicator light flashes and
the TCS/DSC indicator light illuminates.
To make the DSC operable, do the following
procedure with the battery connected.

1. Switch the ignition ON.

2. Turn the steering clockwise fully, then turn

it counterclockwise fully.

3. Make sure the DSC OFF indicator turn off.

4. Switch the ignition off, then switch the

ignition to ON again.

5. Make sure the TCS/DSC indicator light

turns off.

If the TCS/DSC indicator light and the DSC
OFF indicator light remain illuminated even
after switching the ignition from ON to OFF,
and back to ON, attempt the procedure again.
If this still does not resolve the issue, consult
an Authorized Mazda Dealer.

qCruise Main Indicator Light

(Amber)/Cruise Set Indicator
Light (Green)

The indicator light has two colors.

Cruise Main Indicator Light (Amber)

The indicator light illuminates amber
when the ON/OFF switch is pressed and
the cruise control system is activated.

Cruise Set Indicator Light (Green)

The indicator light illuminates green when
a cruising speed has been set.

qTurn-Signal/Hazard Warning

Indicator Lights

When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-56).

When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-59).

NOTE

If an indicator light remains illuminated (does
not flash) or if it flashes abnormally, one of the
turn signal bulbs may be burned out.

5-52

Driving Your Mazda

Some models.

Warning/Indicator Lights and Beep Sounds

MX-5_8EN7-EA-14E_Edition1 Page196
Friday, March 28 2014 3:39 PM

Black plate (197,1)

Beep Sounds

qSeat Belt Warning Beep

If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver's seat belt is not fastened and
the vehicle is driven at a speed faster than
about 20 km/h (12 mph), a beep sound
will be heard again for a specified period
of time.
Refer to Seat Belt Reminder on page
2-17.

qIgnition Key Reminder

If the ignition is switched off or the
ignition is switched to ACC with the key
inserted, a continuous beep sound will be
heard when the driver's door is opened.

qLights-On Reminder

If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.

NOTE

When the advanced keyless function is used
and the start knob is in the ACC position, the
Start Knob Not in Lock Warning Beep (page
3-19) overrides the lights-on reminder.

qTire Inflation Pressure Warning

Beep

The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 5-30).

qAdvanced Keyless Warning (with

Advanced Key)

Warning indicators for the advanced key,
such as

“the advanced key removed from

vehicle warning

”, use a beep sound and

warning/indicator lights in the instrument
cluster.
Refer to Warning and Beep Sounds on
page 3-19.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-53

Some models.

MX-5_8EN7-EA-14E_Edition1 Page197
Friday, March 28 2014 3:39 PM

Black plate (198,1)

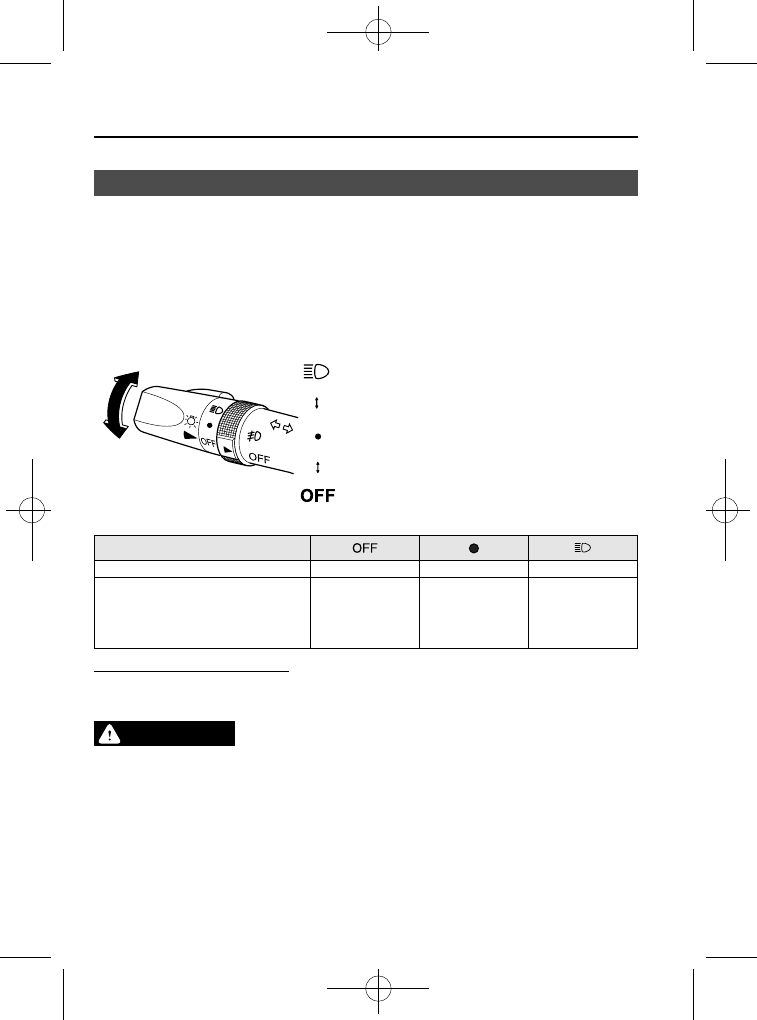

Lighting Control

qHeadlights

Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.

NOTE

To prevent discharging the battery, do not leave the lights on while the engine is off unless safety
requires them.

Switch Position

Headlights

Off

Taillights
Parking lights
License lights
Side-marker lights
Dashboard illumination

Off

Xenon fusion headlight bulbs

The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.

WARNING

Do not replace the xenon fusion bulbs yourself

Replacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.

NOTE

If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.

5-54

Driving Your Mazda

Some models.

Switches and Controls

MX-5_8EN7-EA-14E_Edition1 Page198
Friday, March 28 2014 3:39 PM

Black plate (199,1)

qLights-On Reminder

If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.

NOTE

When the advanced keyless function is used
and the start knob is in the ACC position, the
Start Knob Not in Lock Warning Beep (page
3-19) overrides the lights-on reminder.

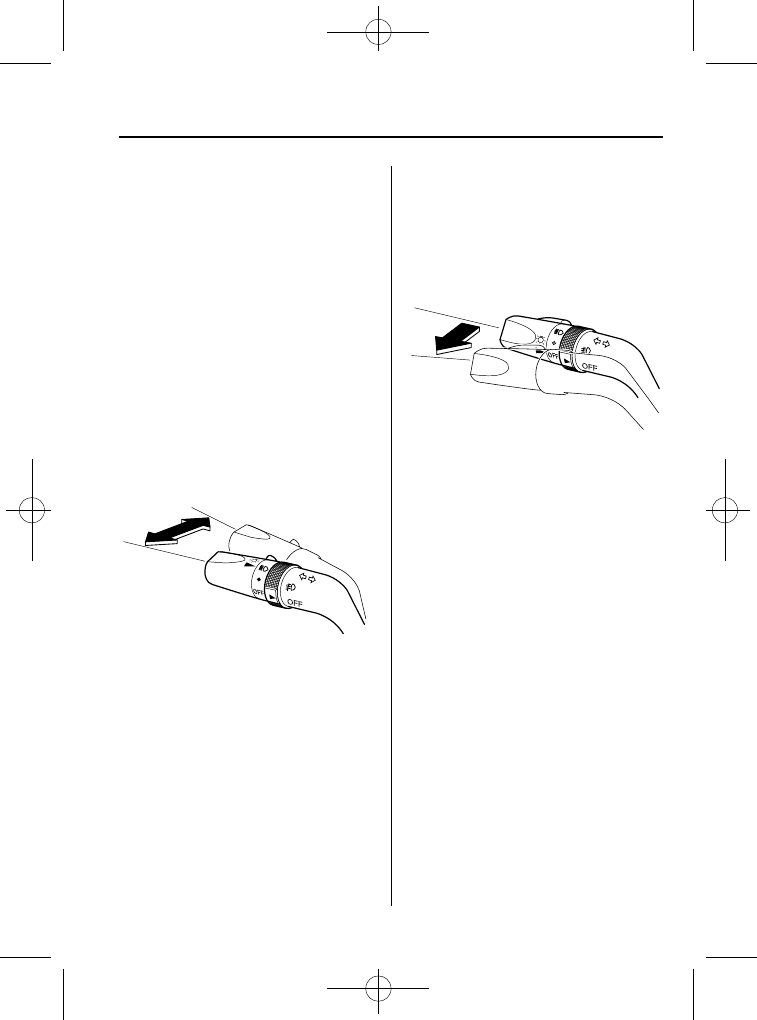

qHeadlight High-Low Beam

Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.

High beam

Low beam

qFlashing the Headlights

To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.

OFF

Flashing

qDaytime Running Lights (Canada)

In Canada, vehicles must be driven with
the headlights on during daytime
operation.

For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.

NOTE

The Daytime Running Lights turn off when the
parking brake is applied.

Driving Your Mazda

Switches and Controls

5-55

MX-5_8EN7-EA-14E_Edition1 Page199
Friday, March 28 2014 3:39 PM

Mazda MX-5 PRHT (2015 year). Instruction - part 12
