NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.

Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling where
temperatures may drop below freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.

CAUTION

Radiator coolant will damage paint.

Rinse it off quickly if spilled.

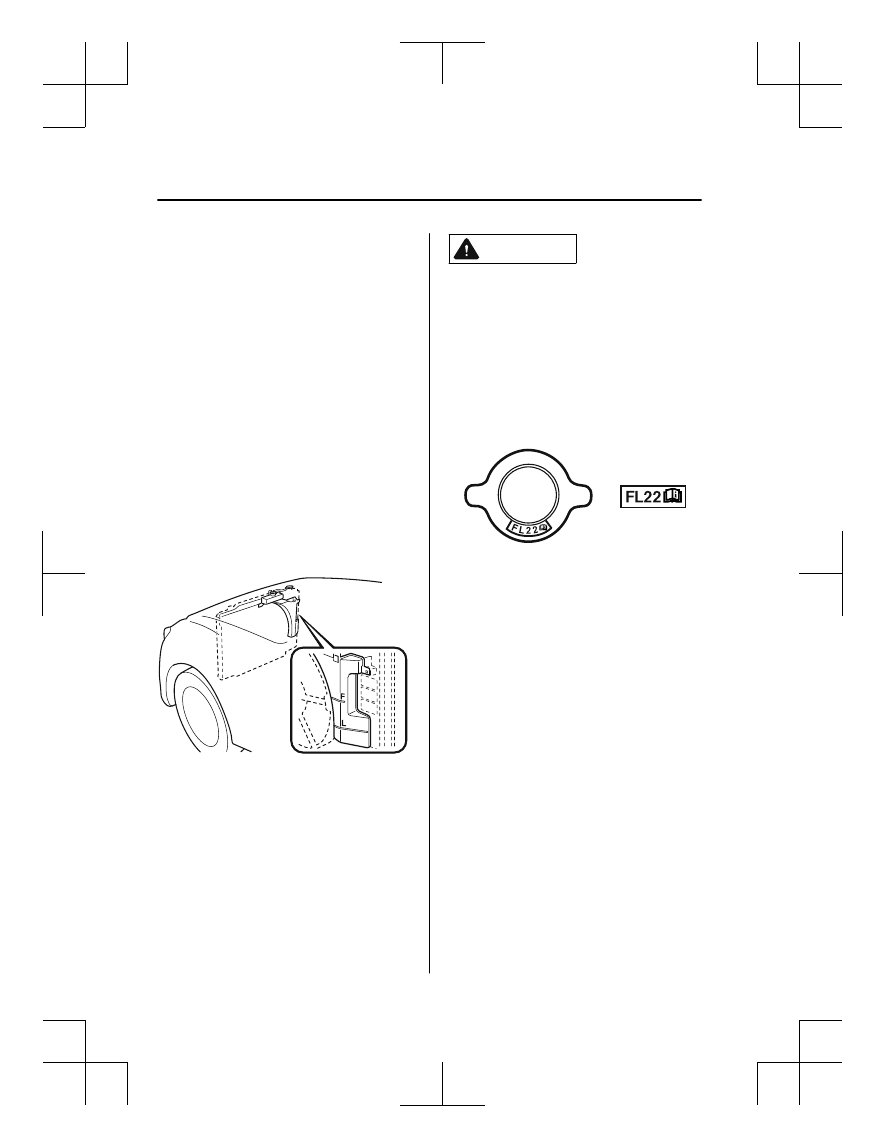

If the “FL22” mark is shown on or near

the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.

Maintenance and Care

Owner Maintenance

6-26

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Brake Fluid

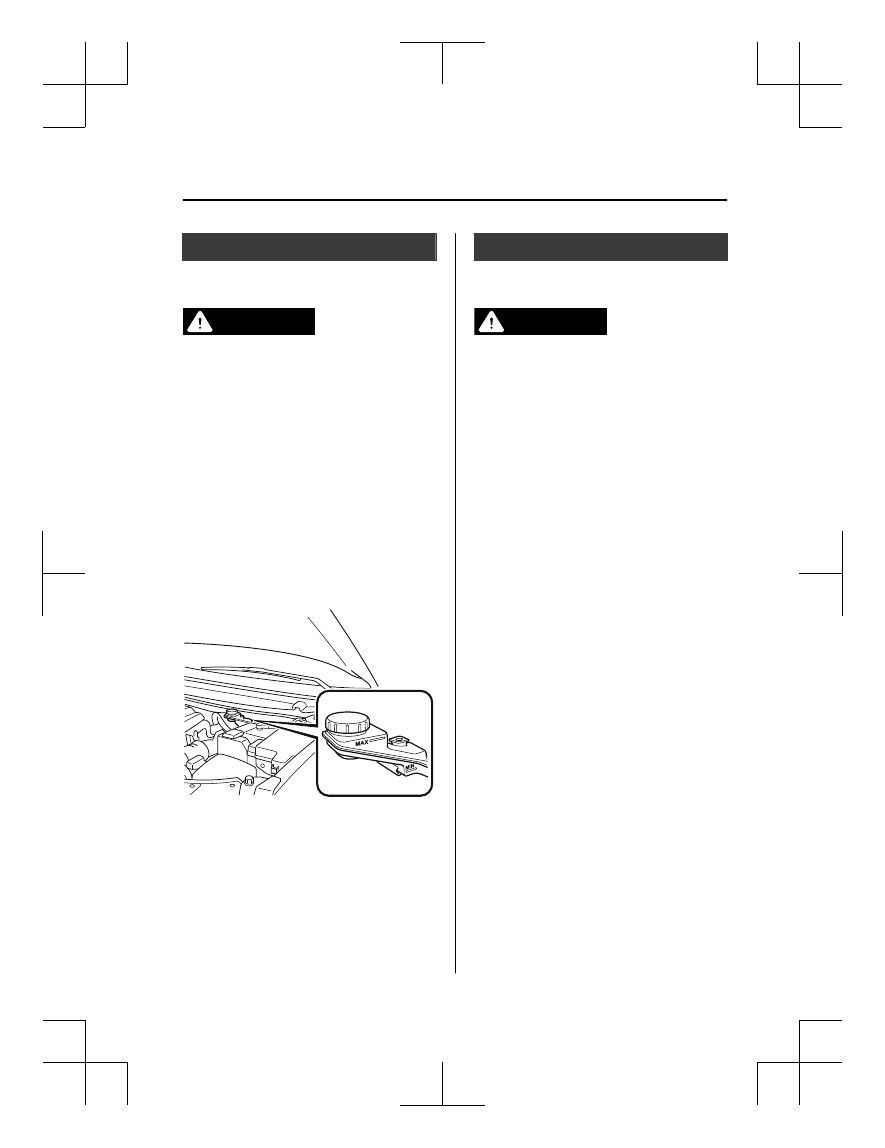

▼ Inspecting Brake Fluid Level

WARNING

If the brake fluid level is low, have the
brakes inspected:
A low brake fluid level is dangerous.
A low level could indicate brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.

Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda Dealer.

Washer Fluid

▼ Inspecting Washer Fluid Level

WARNING

Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.

Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:
Operating your vehicle in temperatures
below 4 degrees C (40 degrees F) using
washer fluid without anti-freeze protection
is dangerous as it could cause impaired
windshield vision and result in an accident.
In cold weather, always use washer fluid
with anti-freeze protection.

NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.

Maintenance and Care

Owner Maintenance

6-27

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

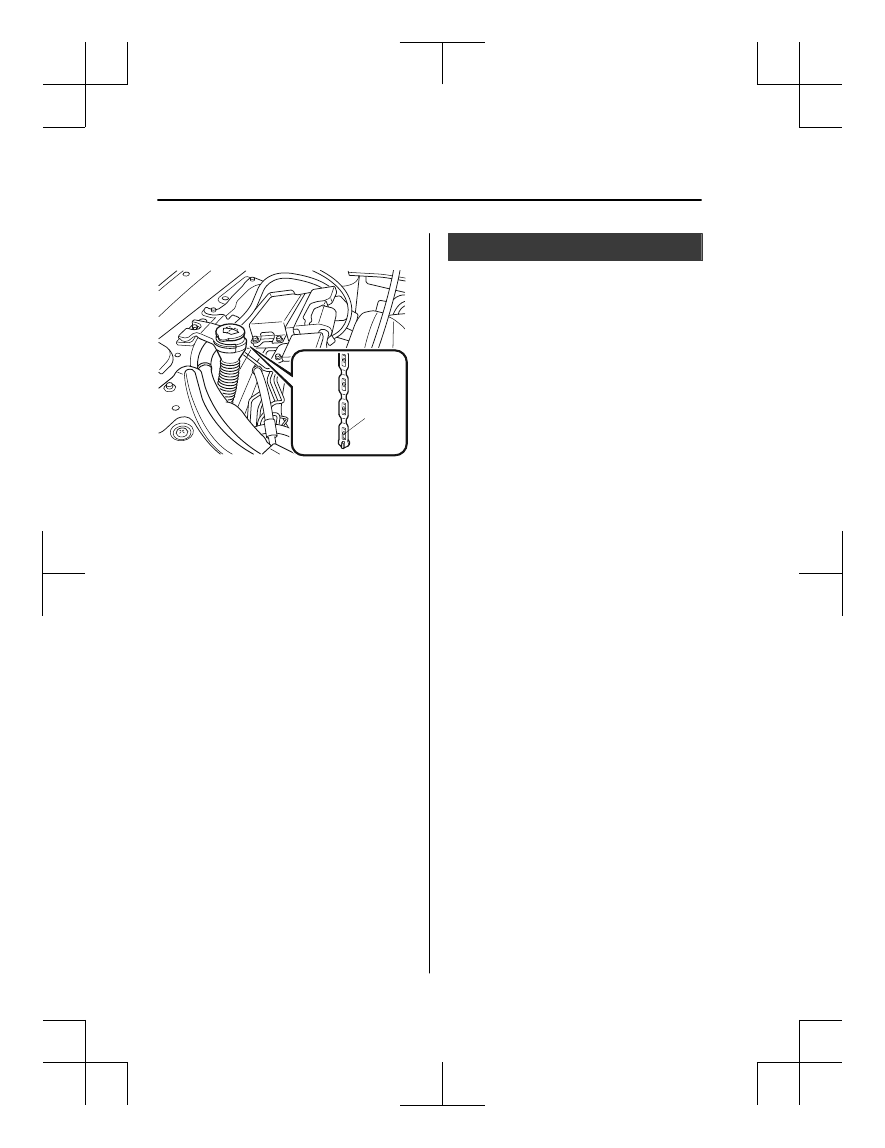

Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.

NOTE
Front and rear washer fluid is supplied
from the same reservoir.

Body Lubrication

All moving points of the body, such as
door and hood hinges and locks, should be
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.

Maintenance and Care

Owner Maintenance

6-28

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Wiper Blades

CAUTION

Hot waxes applied by automatic car

washers have been known to affect the
wiper's ability to clean windows.

To prevent damage to the wiper blades,

do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.

When the wiper lever is in the AUTO

position and the ignition is switched ON,
the wipers may move automatically in
the following cases:

If the windshield above the rain sensor

is touched.

If the windshield above the rain sensor

is wiped with a cloth.

If the windshield is struck with a hand

or other object.

If the rain sensor is struck with a hand

or other object from inside the vehicle.

Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.

Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.

▼ Replacing Windshield Wiper Blades

When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.

CAUTION

To prevent damage to the wiper arms

and other components, do not try to
sweep the wiper arm by hand.

Do not bend the blade rubber

unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the windshield
wiper operation may be adversely
affected.

NOTE
When raising both windshield wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.

1. Raise the wiper arm.

CAUTION

To prevent damage to the windshield
let the wiper arm down easily, do not
let it slap down on the windshield.

Maintenance and Care

Owner Maintenance

6-29

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

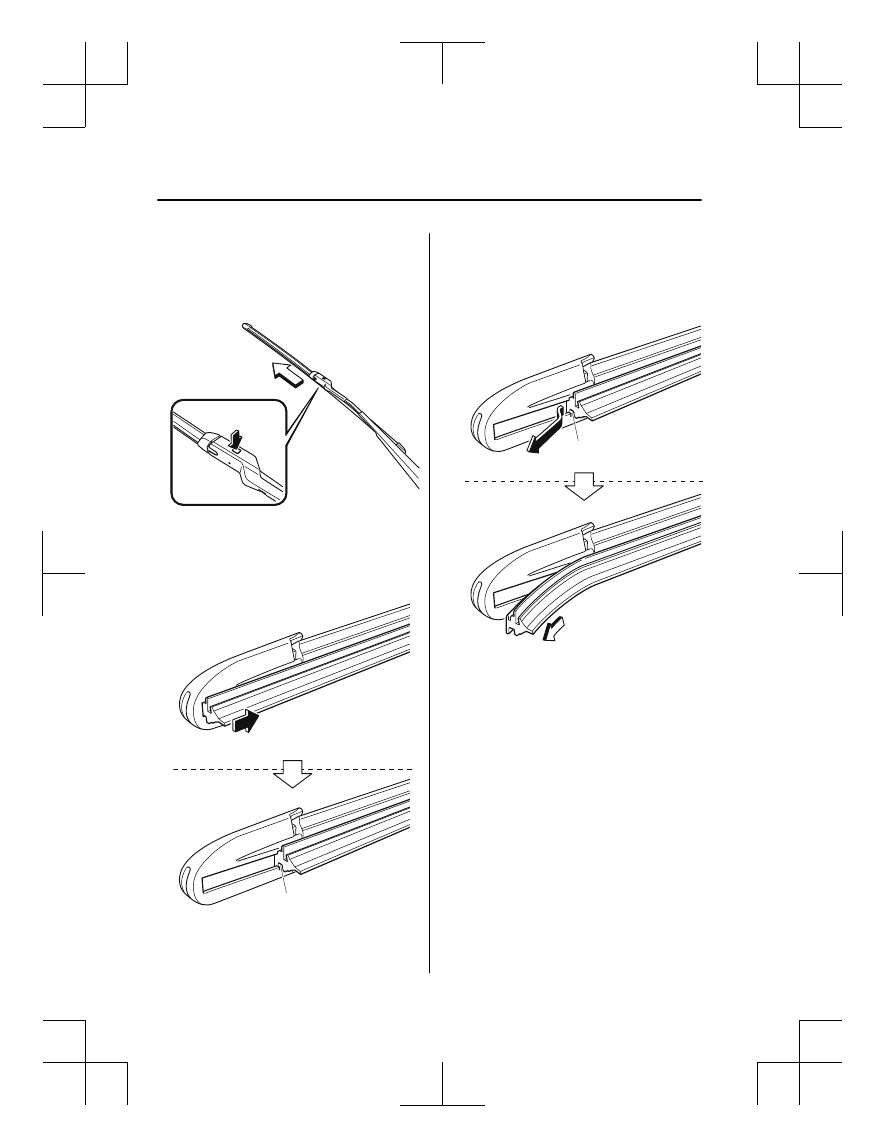

2. Slide the blade component in the

direction of the arrow while pressing
the wiper arm tab to remove the blade
component from the wiper arm.

3. Pull the blade rubber in the direction of

the arrow and slide it to a position
where the blade holder groove can be
checked.

Groove

4. Pull the end of the blade rubber from

the blade holder groove in the direction
of the arrow and remove the blade
rubber from the blade holder.

Groove

Maintenance and Care

Owner Maintenance

6-30

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

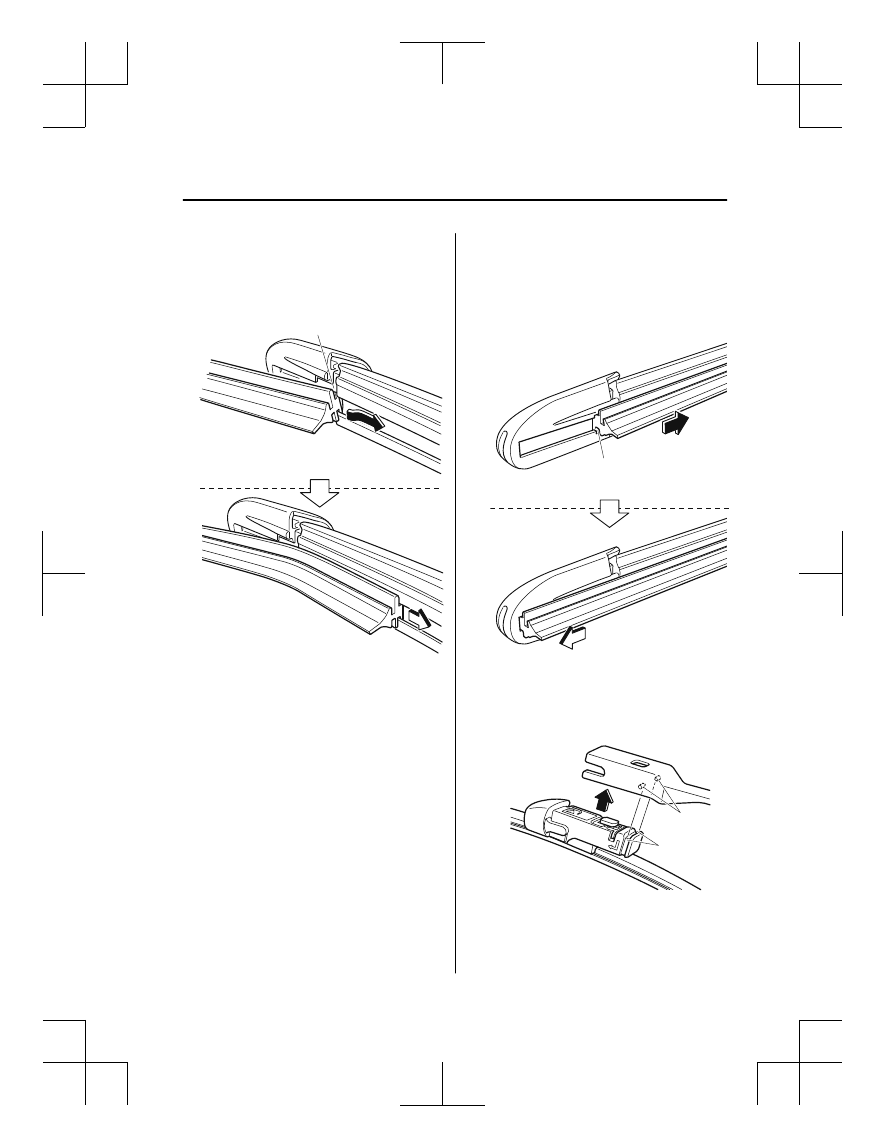

5. Insert the end of the new blade rubber

into the groove of the blade holder
until it contacts the end of the blade
holder.

Groove

6. After pulling the blade rubber in the

direction of the arrow and sliding the
blade rubber to a position to check the
blade holder groove, slide the blade
rubber end in the opposite direction.

Groove

7. Make sure that the blade rubber is

correctly installed to the blade holder.

8. Align the wiper arm tabs with the

blade component grooves.

Tabs

Grooves

Maintenance and Care

Owner Maintenance

6-31

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

9. Align the blade component projection

with the wiper arm notch.

Projection

Notch

10. Slide the blade component and install

it to the wiper arm.

11. Slowly lower the wiper arm onto the

windshield.

▼ Replacing Rear Window Wiper

Blade

When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.

CAUTION

To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.

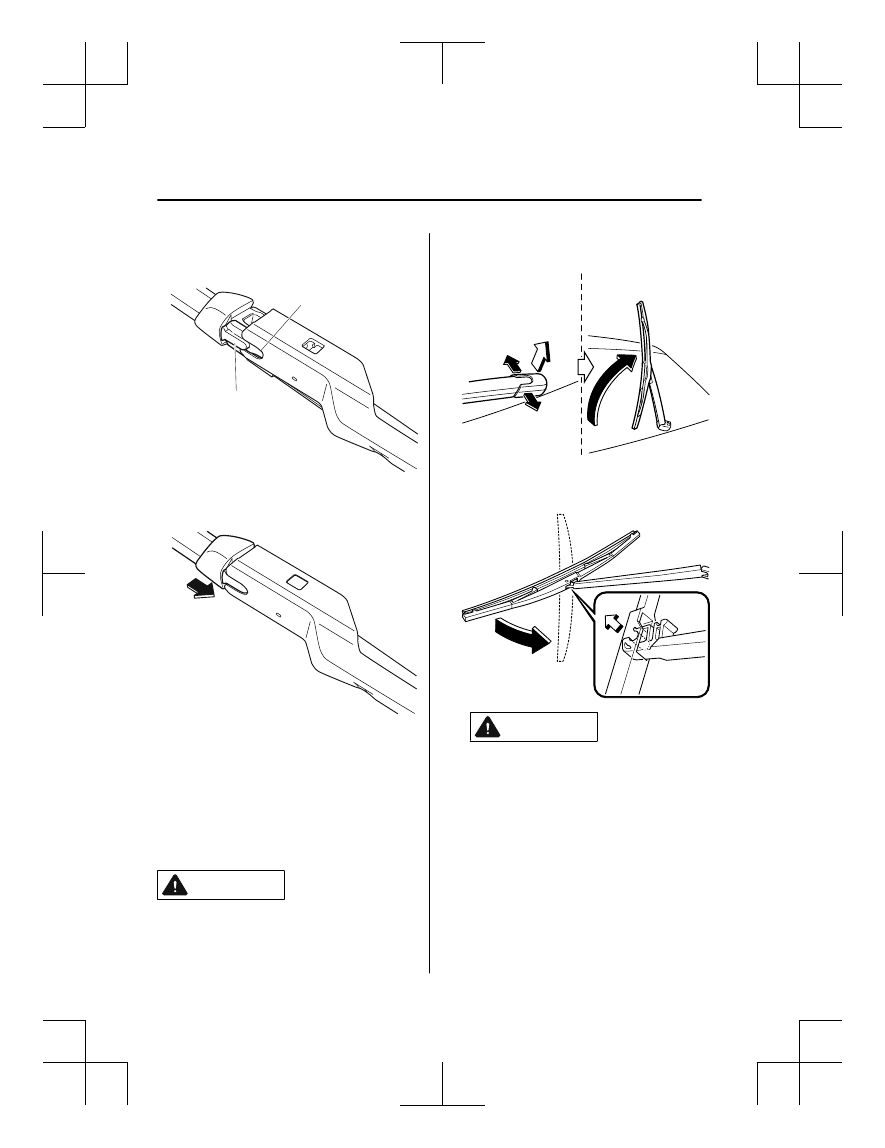

1. Remove the cover and raise the wiper

arm.

2. Firmly rotate the wiper blade to the

right until it unlocks, then remove the
blade.

CAUTION

To prevent damage to the rear window,
do not let the wiper arm fall on it.

Maintenance and Care

Owner Maintenance

6-32

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

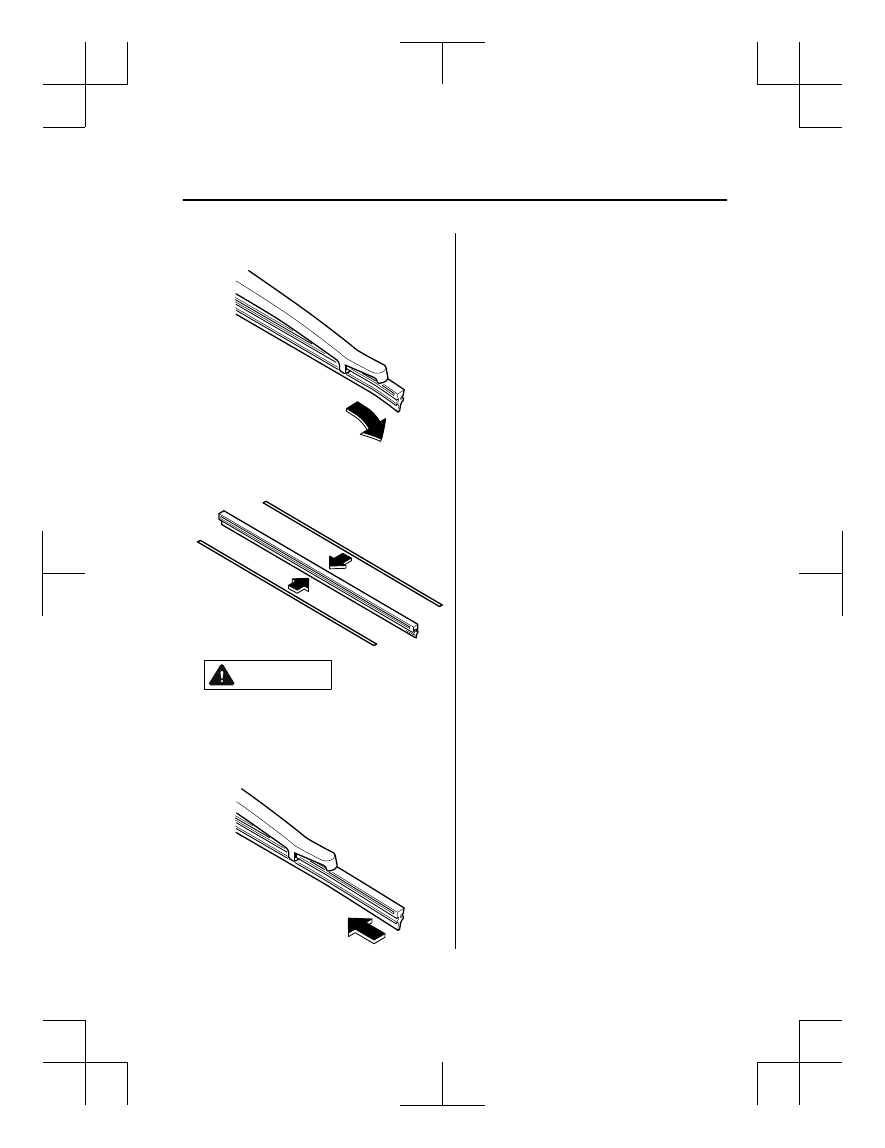

3. Pull down the blade rubber and slide it

out of the blade holder.

4. Remove the metal stiffeners from the

blade rubber and install them in the
new blade.

CAUTION

Do not bend or discard the stiffeners.
You need to use them again.

5. Carefully insert the new blade rubber.

Then install the blade assembly in the
reverse order of removal.

Maintenance and Care

Owner Maintenance

6-33

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Battery

WARNING

Wash hands after handling the battery and related accessories:
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm.

Read the following precautions carefully before using the battery or inspecting to

ensure safe and correct handling:

Always wear eye protection when working near the battery:

Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.

Wear eye protection and protective gloves to prevent contact with battery fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.

Always keep batteries out of the reach of children:

Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.

Keep flames and sparks away from open battery cells and do not allow metal tools to

contact the positive ( ) or negative ( ) terminal of the battery when working near a battery.
Do not allow the positive ( ) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

Maintenance and Care

Owner Maintenance

6-34

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Keep all flames and sparks away from open battery cells because hydrogen gas is

produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

NOTE

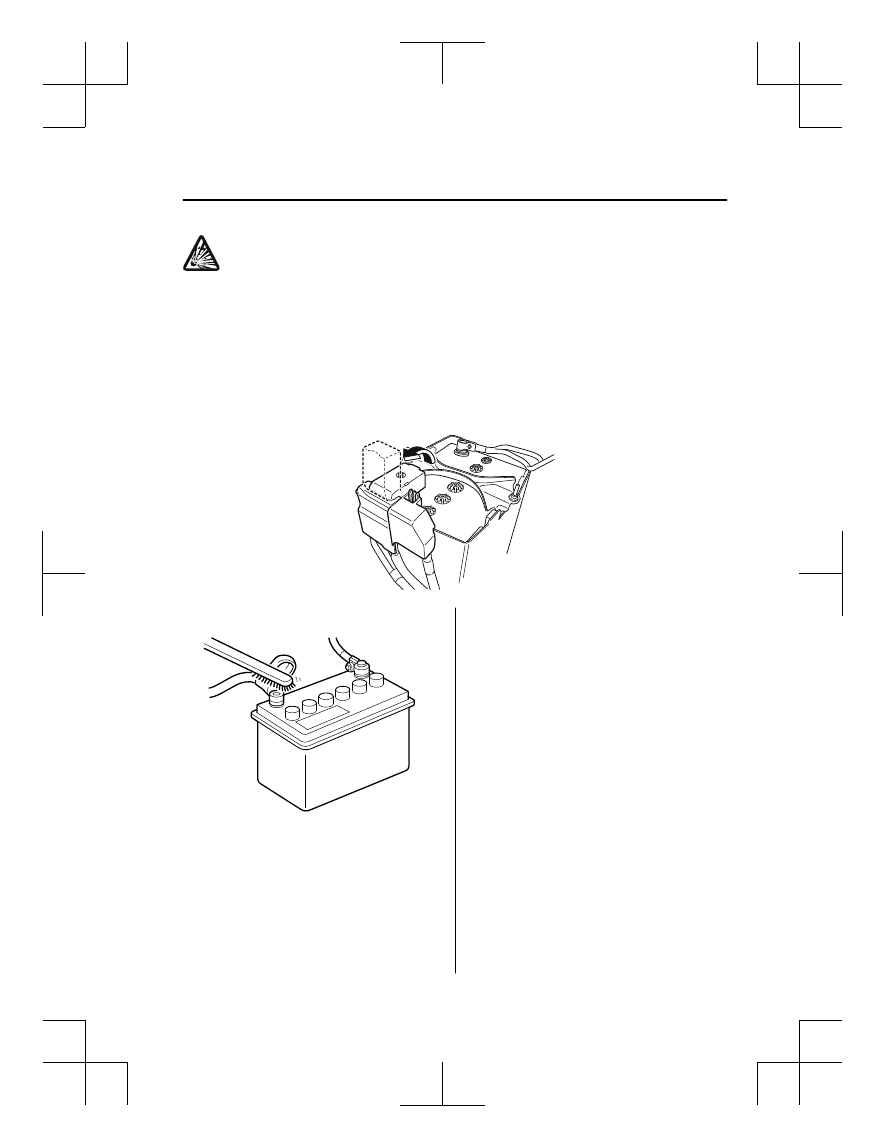

Before performing battery maintenance, remove the battery cover.

▼ Battery Maintenance

To get the best service from a battery:



Keep it securely mounted.



Keep the top clean and dry.



Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.



Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.



If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every 6
weeks.

▼ Battery Replacement

Contact an Authorized Mazda Dealer for a
battery replacement purchase.

Maintenance and Care

Owner Maintenance

6-35

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Key Battery Replacement

If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.

CAUTION

Make sure the battery is installed

correctly. Battery leakage could occur if it
is not installed correctly.

When replacing the battery, be careful

not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.

There is the danger of explosion if the

battery is not correctly replaced.

Dispose of used batteries according to

the following instructions.

Insulate the plus and minus terminals

of the battery using cellophane or
equivalent tape.

Never disassemble.
Never throw the battery into fire or

water.

Never deform or crush.

Replace only with the same type battery

(CR2025 or equivalent).

The following conditions indicate that the
battery power is low:



The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is switched
OFF (for vehicles with a type A/type B
instrument cluster (page 4-12, 4-2 9),
messages are displayed in the instrument
cluster).



The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.



The system's operational range is
reduced.

Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.

Replacing the key battery

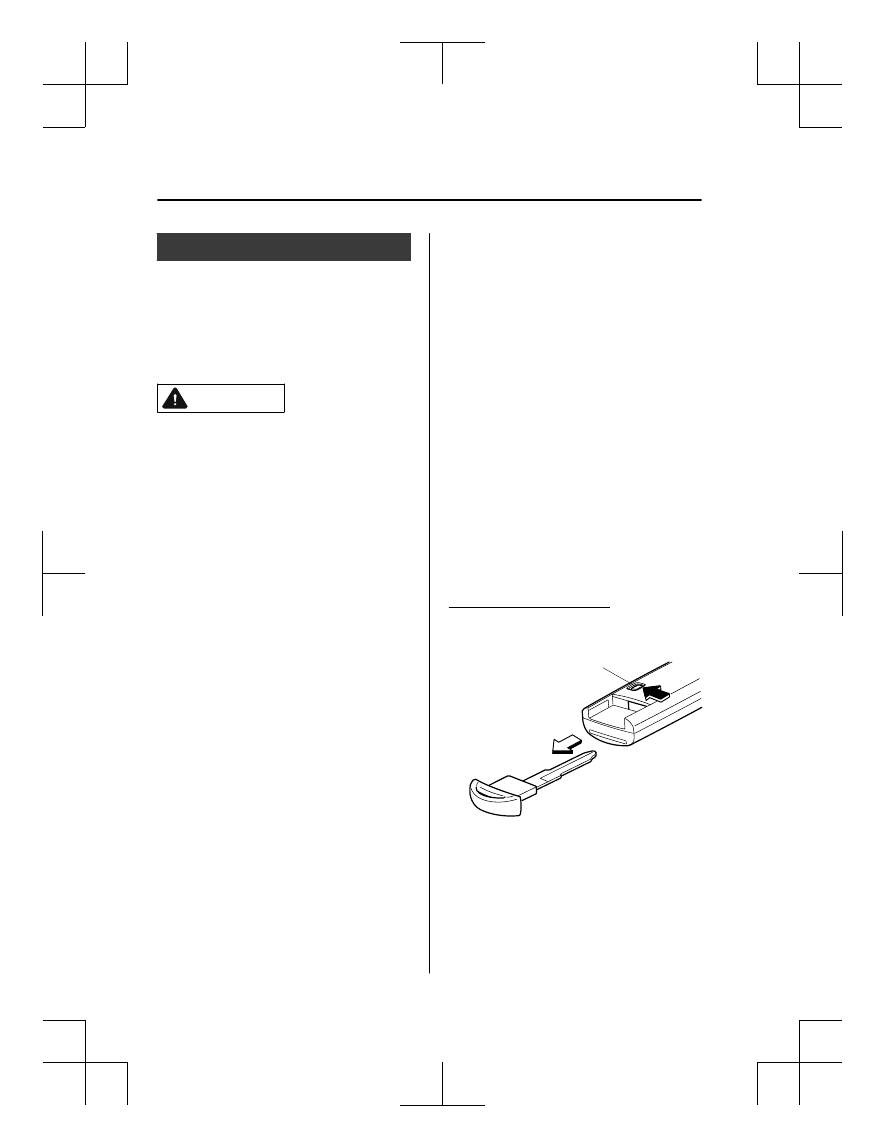

1. Press the knob and pull out the

auxiliary key.

Knob

Maintenance and Care

Owner Maintenance

6-36

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

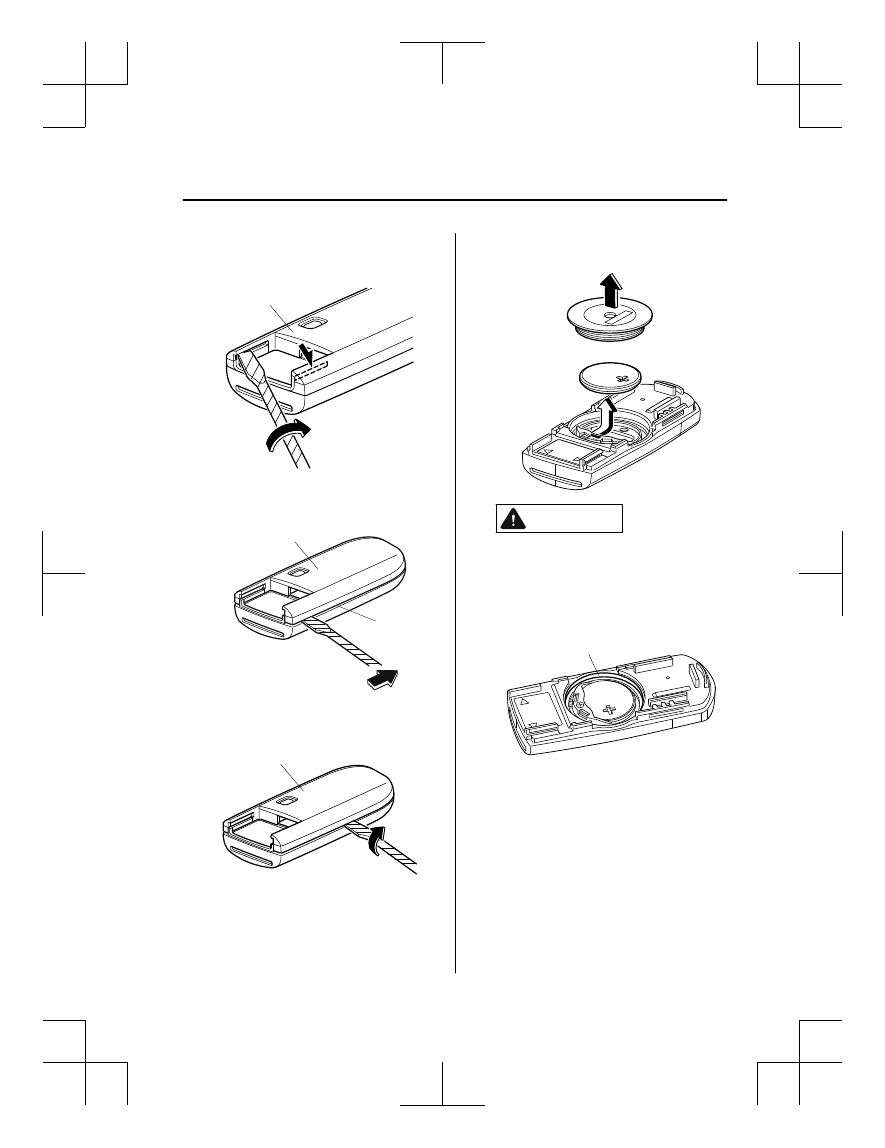

2. Twist a tape-wrapped flathead

screwdriver in the direction of the
arrow and open the cover slightly.

Cover

3. Insert the tape-wrapped flathead

screwdriver into the gap and slide it in
the direction of the arrow.

Cover

Gap

4. Twist the flathead screwdriver in the

direction of the arrow and remove the
cover.

Cover

5. Remove the battery cap, then remove

the battery.

CAUTION

Be careful not to allow the rubber

ring shown in the figure to be
scratched or damaged.

If the rubber ring detaches, reattach

it before inserting a new battery.

Rubber ring

Maintenance and Care

Owner Maintenance

6-37

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

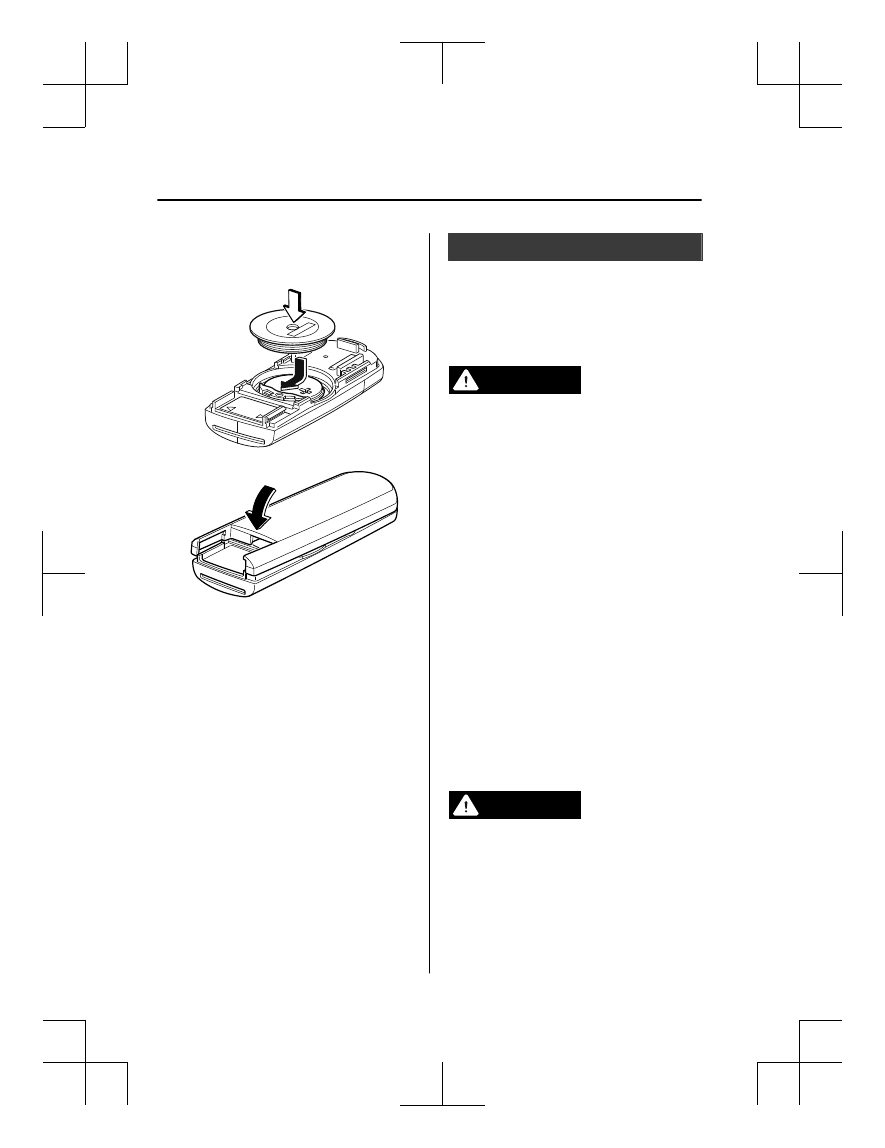

6. Insert a new battery with the positive

pole facing up, and then cover the
battery with the battery cap.

7. Close the cover.

8. Reinsert the auxiliary key.

Tires

For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

WARNING

Using Different Tire Types:
Driving your vehicle with different types of
tires is dangerous. It could cause poor
handling and poor braking; leading to loss
of control.
Except for the limited use of the temporary
spare tire, use only the same type tires
(radial, bias-belted, bias-type) on all four
wheels.

Using Wrong-Sized Tires:
Using any other tire size than what is
specified for the vehicle (page 9-8) is
dangerous. It could seriously affect ride,
handling, ground clearance, tire clearance,
and speedometer calibration. This could
cause you to have an accident. Use only
tires that are the correct size specified for
the vehicle.

▼ Tire Inflation Pressure

WARNING

Always inflate the tires to the correct
pressure:
Overinflation or underinflation of tires is
dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-8.

Maintenance and Care

Owner Maintenance

6-38

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Use only a Mazda-genuine tire valve cap:
Use of a non-genuine part is dangerous as
the correct tire air pressure cannot be
maintained if the tire valve becomes
damaged. If the vehicle is driven under this
condition, the tire air pressure will decrease
which could result in a serious accident. Do
not use any part for the tire valve cap that
is not a Mazda-genuine part.

Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures for
the best ride, handling, and minimum tire
wear.
Refer to the specification charts (page
9-8).

NOTE



Always check tire pressure when tires
are cold.



Warm tires normally exceed
recommended pressures. Do not release
air from warm tires to adjust the
pressure.



Underinflation can cause reduced fuel
economy, uneven and accelerated tire
wear, and poor sealing of the tire bead,
which will deform the wheel and cause
separation of tire from rim.



Overinflation can produce a harsh ride,
uneven and accelerated tire wear, and a
greater possibility of damage from road
hazards.
Keep your tire pressure at the correct
levels. If one frequently needs inflating,
have it inspected.

▼ Tire Rotation

WARNING

Rotate tires periodically:
Irregular tire wear is dangerous. To
equalize tread wear for maintaining good
performance in handling and braking,
rotate the tires every 12,000 km (7,500
miles). However Mazda recommends to
rotate every 8,000 km (5,000 miles) to help
increase tire life and distribute wear more
evenly.
Refer to Scheduled Maintenance on page
6-4.

During rotation, inspect them for correct
balance.

Do not include (TEMPORARY USE ONLY)
spare tire in rotation.

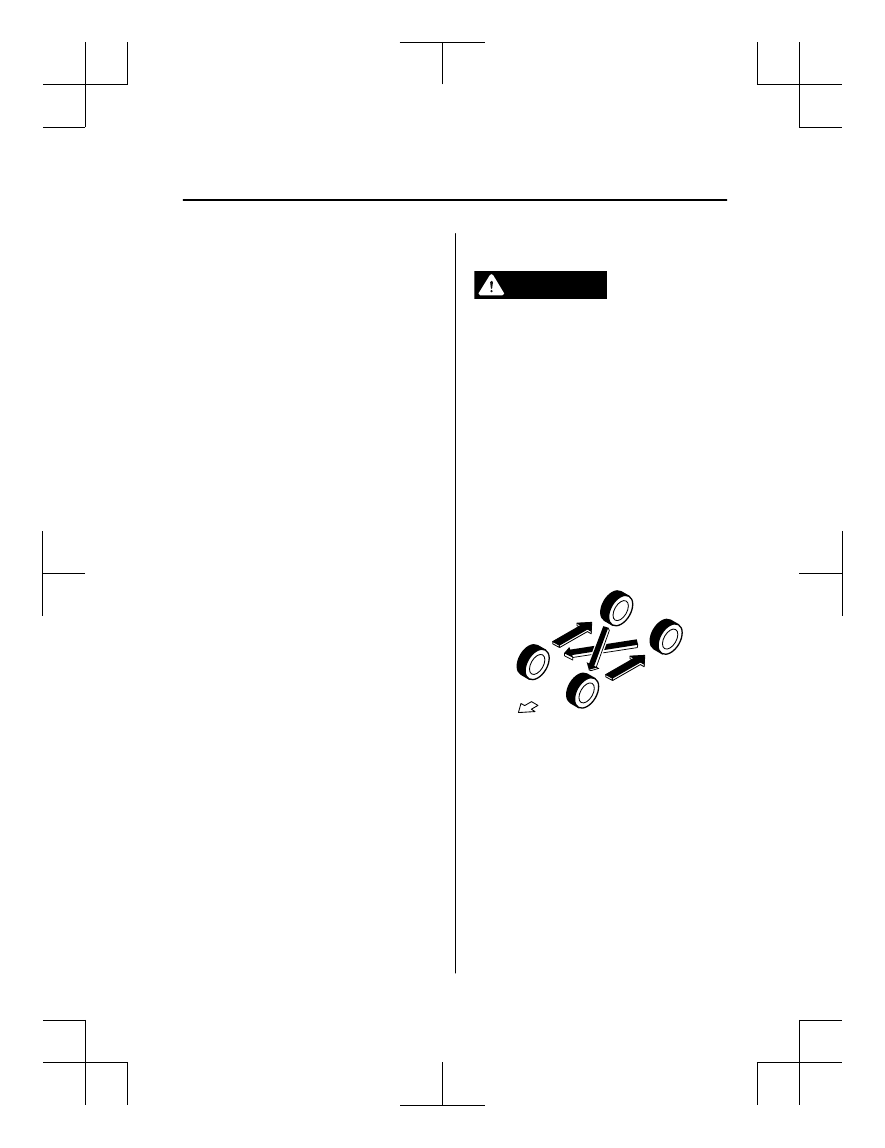

Forward

Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:



Incorrect tire pressure



Improper wheel alignment



Out-of-balance wheel

Maintenance and Care

Owner Maintenance

6-39

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



Severe braking

After rotation, inflate all tire pressures to
specification (page 9-8) and inspect the
lug nuts for tightness.

CAUTION

Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tire performance will be reduced if
rotated from side to side.

▼ Replacing a Tire

WARNING

Always use tires that are in good condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.

Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
replace all four tires at the same time.

If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.

Replace the tire when this happens.

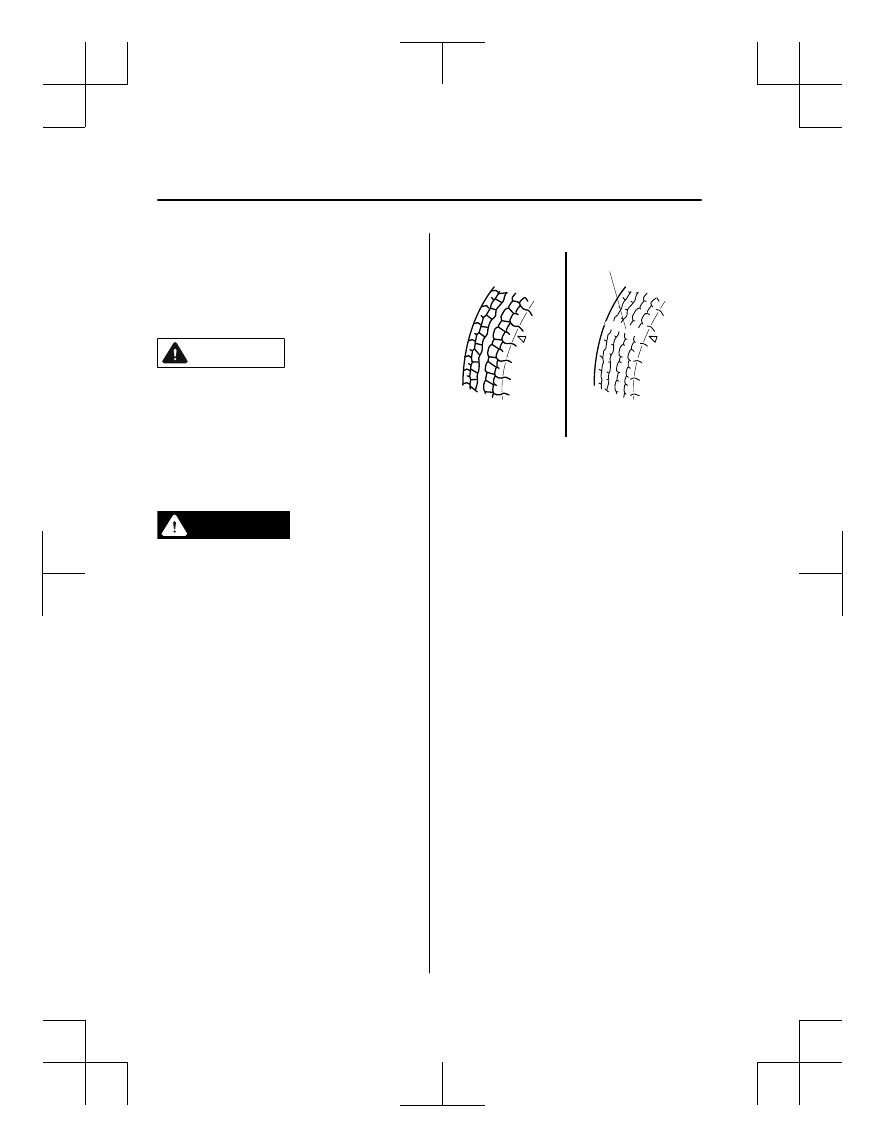

New tread

Tread wear indicator

Worn tread

You should replace the tire before the band
crosses the entire tread.

NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-25.

▼ Temporary Spare Tire

Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.

NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.

Maintenance and Care

Owner Maintenance

6-40

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-8.

CAUTION

Do not use your temporary spare tire rim

with a snow tire or a conventional tire.
Neither will properly fit and could
damage both tire and rim.

The temporary spare tire has a tread life

of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.

The temporary spare tire is for limited

use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-40).

▼ Replacing a Wheel

WARNING

Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.

CAUTION

A wrong-sized wheel may adversely affect:

Tire fit
Wheel and bearing life
Ground clearance
Snow-chain clearance
Speedometer calibration
Headlight aim
Bumper height
Tire Pressure Monitoring System

NOTE



When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).



For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.

Maintenance and Care

Owner Maintenance

*Some models.

6-41

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Content .. 31 32 33 34 ..
