Mazda CX-9 Grand Touring. Manual - part 540





DTC B2936 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2936 - DETECTION CONDITION POSSIBLE CAUSE CHART

2

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND
LIFTGATE LOCK ACTUATOR


Disconnect the PLG control module
connector.

Disconnect the liftgate latch switch
connector.

Inspect the wiring harness between PLG
control module terminals 1A and 1B, and
liftgate lock actuator terminals A and B
for an open circuit.

Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to Step 5.

3

INSPECT LIFTGATE LATCH SWITCH

Inspect the liftgate latch switch.

(See LIFTGATE LATCH AND
LOCK ACTUATOR INSPECTION
 .)

Is the liftgate latch switch normal?

Yes Go to the next step.

No

Replace the liftgate latch and lock actuator.

(See LIFTGATE LATCH AND LOCK

ACTUATOR

REMOVAL/INSTALLATION .)

Go to Step 5.

4

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND
LIFTGATE LATCH SWITCH


Inspect the wiring harness between PLG
control module terminal 3F and liftgate
latch switch terminal B for a short circuit
to ground system.

Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

5

VERIFY CORRECTION COMPLETED

Reconnect the disconnected connector.

Clear the DTC.

Operate the PLG system. (Close
operation)

Is DTC B2821 stored?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

DTC B2936

PLG motor circuit malfunction

DETECTION

CONDITION

The current flowing to the PLG motor is significantly low (1 A or less) and the output
signal of rotation sensor A continues to not change while the PLG is operating.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 36

© 2005 Mitchell Repair Information Company, LLC.

POSSIBLE CAUSE

Open circuit in wiring harness between PLG control module terminal 1E and PLG
motor terminal A (PLG drive unit)

Open circuit in wiring harness between PLG control module terminal 1F and PLG
motor terminal B (PLG drive unit)

PLG drive unit (clutch) malfunction

PLG motor malfunction

PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 37

© 2005 Mitchell Repair Information Company, LLC.

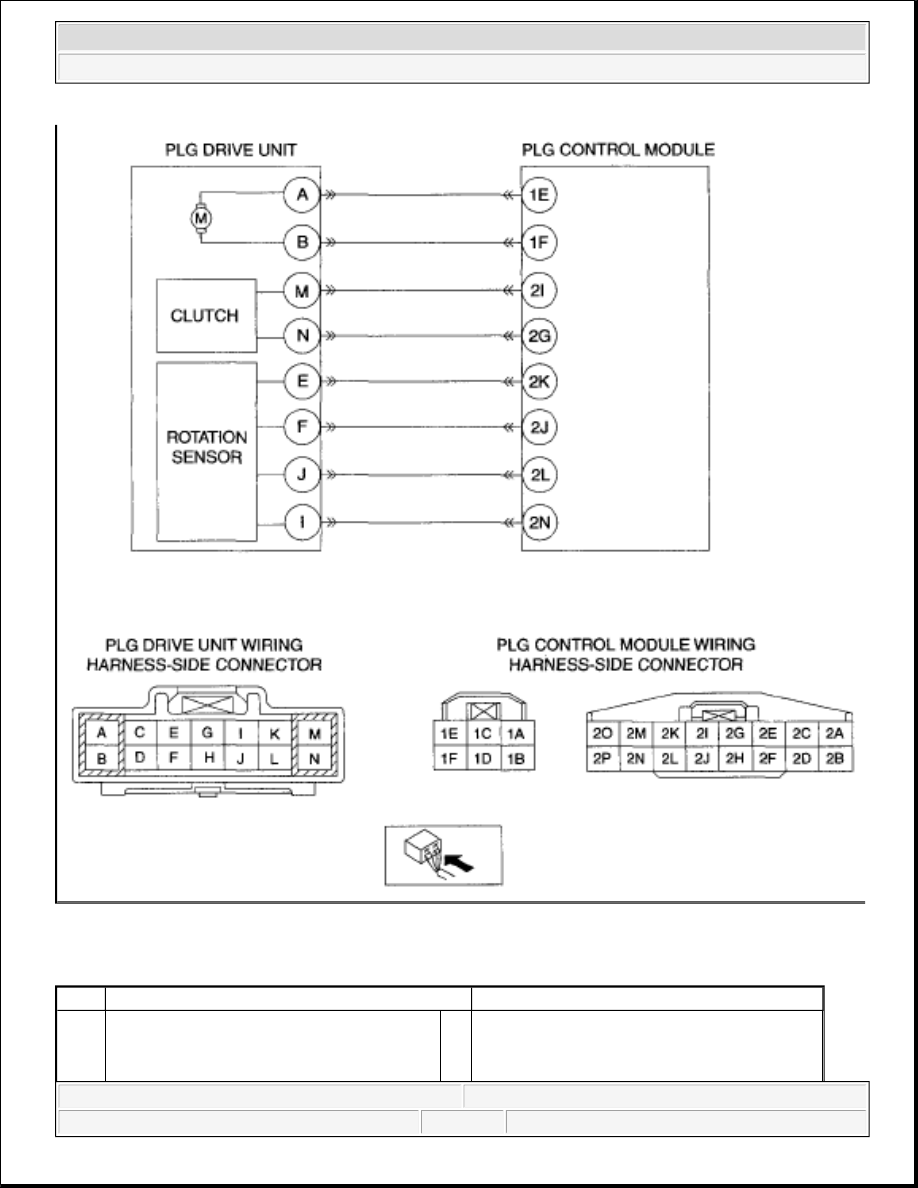

DIAGNOSTIC PROCEDURE

DTC B2936 - DIAGNOSTIC PROCEDURE

DTC B2937 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2937 - DETECTION CONDITION POSSIBLE CAUSE CHART

STEP

INSPECTION

ACTION

1

INSPECT WIRING HARNESS
BETWEEN PLG CONTROL MODULE
AND PLG DRIVE UNIT


Disconnect the PLG control module
connector.

Disconnect the PLG drive unit
connector.

Inspect PLG control module
terminals 1E and 1F, and PLG drive
unit terminals A and B for an open
circuit.

Is the wiring harness normal?

Yes

Replace the PLG drive unit.
(See POWER LIFTGATE (PLG) DRIVE
UNIT REMOVAL/INSTALLATION
 .)
Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

2

VERIFY CORRECTION
COMPLETED


Reconnect the disconnected
connector.

Clear the DTC.

Operate the PLG system.

Is DTC B2936 stored?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG) CONTROL
MODULE REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

DTC B2937

PLG motor circuit malfunction

DETECTION

CONDITION

PLG motor current is excessively low. (less than 1A)

POSSIBLE CAUSE

Open circuit in wiring harness between PLG control module terminal 1E and
PLG motor terminal A (PLG drive unit)

Open circuit in wiring harness between PLG control module terminal 1F and
PLG motor terminal B (PLG drive unit)

PLG motor malfunction

PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 38

© 2005 Mitchell Repair Information Company, LLC.

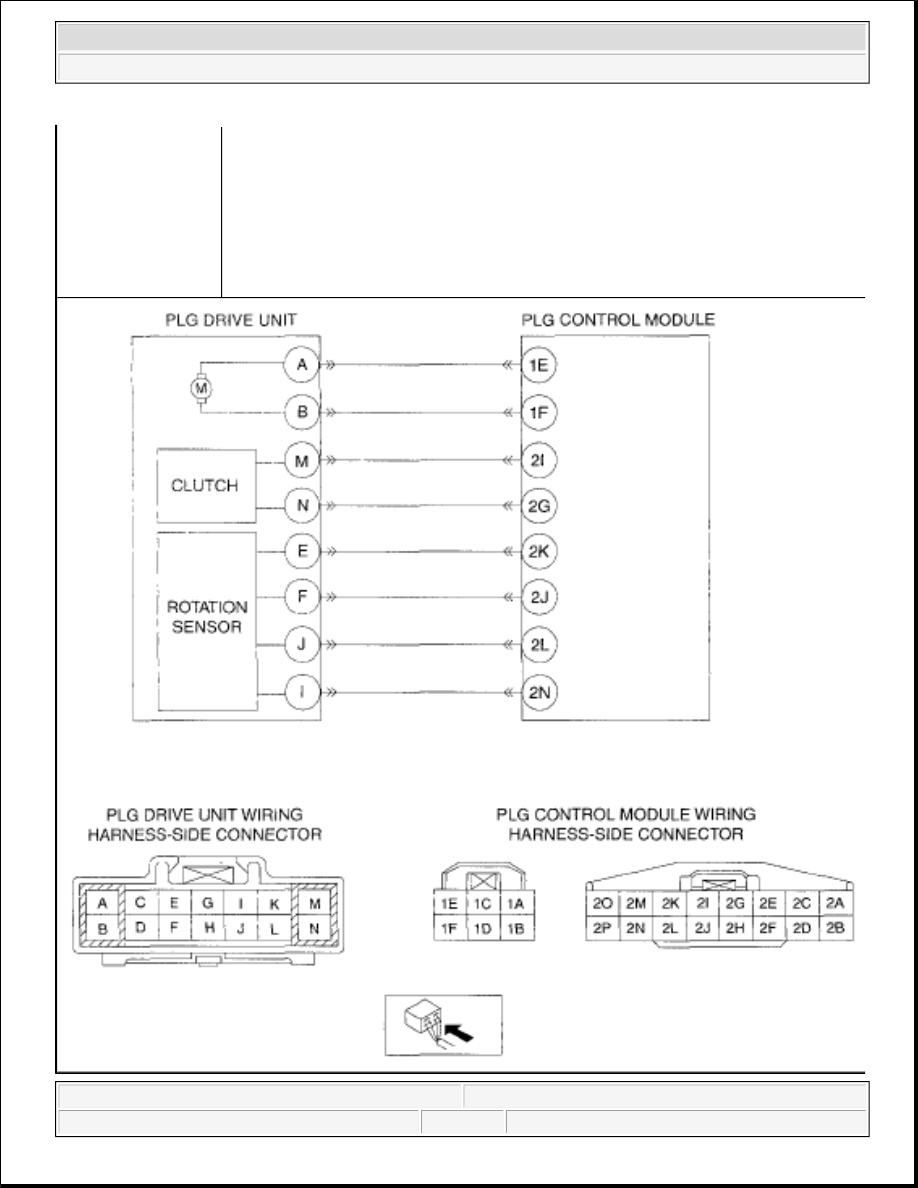

DIAGNOSTIC PROCEDURE

DTC B2937 - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

INSPECT WIRING HARNESS
BETWEEN PLG CONTROL MODULE
AND PLG DRIVE UNIT


Replace the PLG drive unit.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 39

© 2005 Mitchell Repair Information Company, LLC.
