DTC B2699 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2699 - DETECTION CONDITION POSSIBLE CAUSE CHART

Is the wiring harness normal?

2

INSPECT WIRING HARNESS
BETWEEN LIFTGATE LATCH AND
LOCK ACTUATOR AND BODY
GROUND


Inspect the wiring harness between
liftgate latch and lock actuator terminal
C and body ground.

Is the wiring harness normal?

Yes

Replace the liftgate latch and lock actuator.
(See LIFTGATE LATCH AND LOCK
ACTUATOR
REMOVAL/INSTALLATION
 .)
Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

3

VERIFY CORRECTION COMPLETED

Reconnect the disconnected connector.

Clear the DTC.

Operate the PLG system. (Open
operation)

Is DTC B267C stored?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

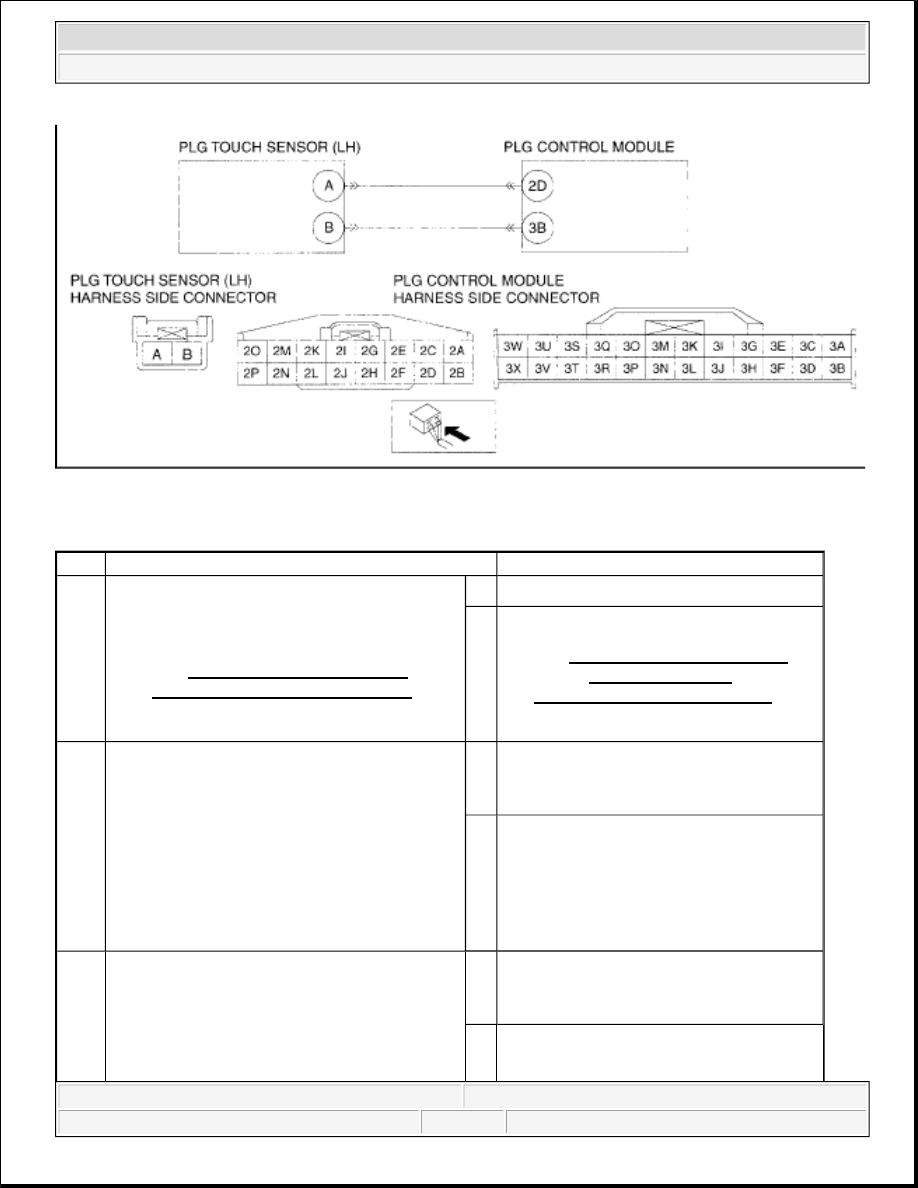

DTC B2699

PLG touch sensor (LH) circuit malfunction

DETECTION

CONDITION

Open circuit is detected in the PLG touch sensor (LH)

POSSIBLE CAUSE

Short to power supply circuit in wiring harness between PLG control module
terminal 3B and PLG touch sensor (LH) terminal B

Open circuit in wiring harness between PLG control module terminal 3B and
PLG touch sensor (LH) terminal B

Short to power supply circuit in wiring harness between PLG control module
terminal 2D and PLG touch sensor (LH) terminal A

Open circuit in wiring harness between PLG control module terminal 2D and
PLG touch sensor (LH) terminal A

PLG touch sensor malfunction

PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B2699 - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT PLG TOUCH SENSOR (LH)

Inspect the PLG touch sensor (LH).

(See POWER LIFTGATE (PLG)
TOUCH SENSOR INSPECTION
 .)

Is the touch sensor normal?

Yes Go to the next step.

No

Replace the PLG touch sensor (LH).

(See POWER LIFTGATE (PLG)

TOUCH SENSOR

REMOVAL/INSTALLATION .)

Go to Step 4.

2

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND PLG
TOUCH SENSOR (LH)


Inspect the wiring harness between PLG
control module terminal 3B and PLG
touch sensor (LH) terminal B for an open
circuit/short circuit to power supply
system.

Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to Step 4.

3

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND PLG
TOUCH SENSOR (LH)


Inspect the wiring harness between PLG
control module terminal 2D and PLG

Yes Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

DTC B2700 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2700 - DETECTION CONDITION POSSIBLE CAUSE CHART

touch sensor (LH) terminal A for an open
circuit/short circuit to power supply
system.

Is the wiring harness normal?

No

Repair or replace the wiring harness.

Go to the next step.

4

VERIFY CORRECTION COMPLETED

Reconnect the disconnected connector.

Clear the DTC.

Is DTC B2669 stored after 1 min or more
have elapsed?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG) DRIVE
UNIT REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

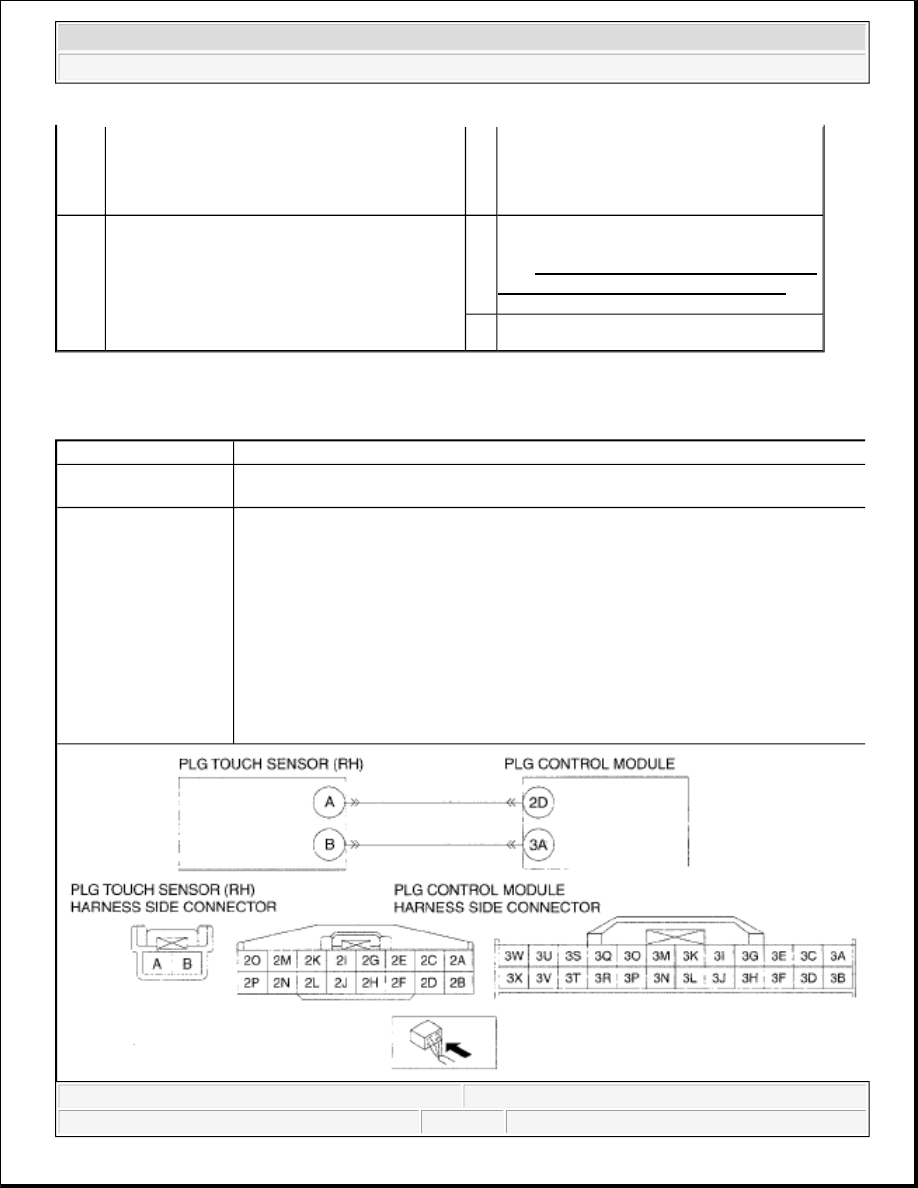

DTC B2700

PLG touch sensor (RH) circuit malfunction

DETECTION

CONDITION

Open circuit is detected in the PLG touch sensor (RH)

POSSIBLE CAUSE

Short to power supply circuit in wiring harness between PLG control module
terminal 3A and PLG touch sensor (RH) terminal B

Open circuit in wiring harness between PLG control module terminal 3A and
PLG touch sensor (RH) terminal B

Short to power supply circuit in wiring harness between PLG control module
terminal 2D and PLG touch sensor (RH) terminal A

Open circuit in wiring harness between PLG control module terminal 2D and
PLG touch sensor (RH)terminal A

PLG touch sensor malfunction

PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B2700 - DIAGNOSTIC PROCEDURE

DTC B2701 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2701 - DETECTION CONDITION POSSIBLE CAUSE CHART

STEP

INSPECTION

ACTION

1

INSPECT PLG TOUCH SENSOR (RH)

Inspect the PLG touch sensor (RH).

(See POWER LIFTGATE (PLG)
TOUCH SENSOR INSPECTION
 .)

Is the touch sensor normal?

Yes Go to the next step.

No

Replace the PLG touch sensor (RH).

(See POWER LIFTGATE (PLG) TOUCH

SENSOR

REMOVAL/INSTALLATION .)

Go to Step 4.

2

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND PLG
TOUCH SENSOR (RH)


Inspect the wiring harness between PLG
control module terminal 3A and PLG
touch sensor (RH) terminal B for an open
circuit/short circuit to power supply
system.

Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to Step 4.

3

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND PLG
TOUCH SENSOR (RH)


Inspect the wiring harness between PLG
control module terminal 2D and PLG
touch sensor (RH) terminal A for an open
circuit/short circuit to power supply
system.

Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

4

VERIFY CORRECTION COMPLETED

Reconnect the disconnected connector.

Clear the DTC.

Is DTC B2700 stored after 1 min or more
have elapsed?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

DTC B2701

PLG touch sensor (LH) circuit malfunction

DETECTION

A short circuit to ground in the PLG touch sensor (LH) continues for 5 min or more



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 31
