DIAGNOSTIC PROCEDURE

DTC B2701 - DIAGNOSTIC PROCEDURE

CONDITION

POSSIBLE CAUSE



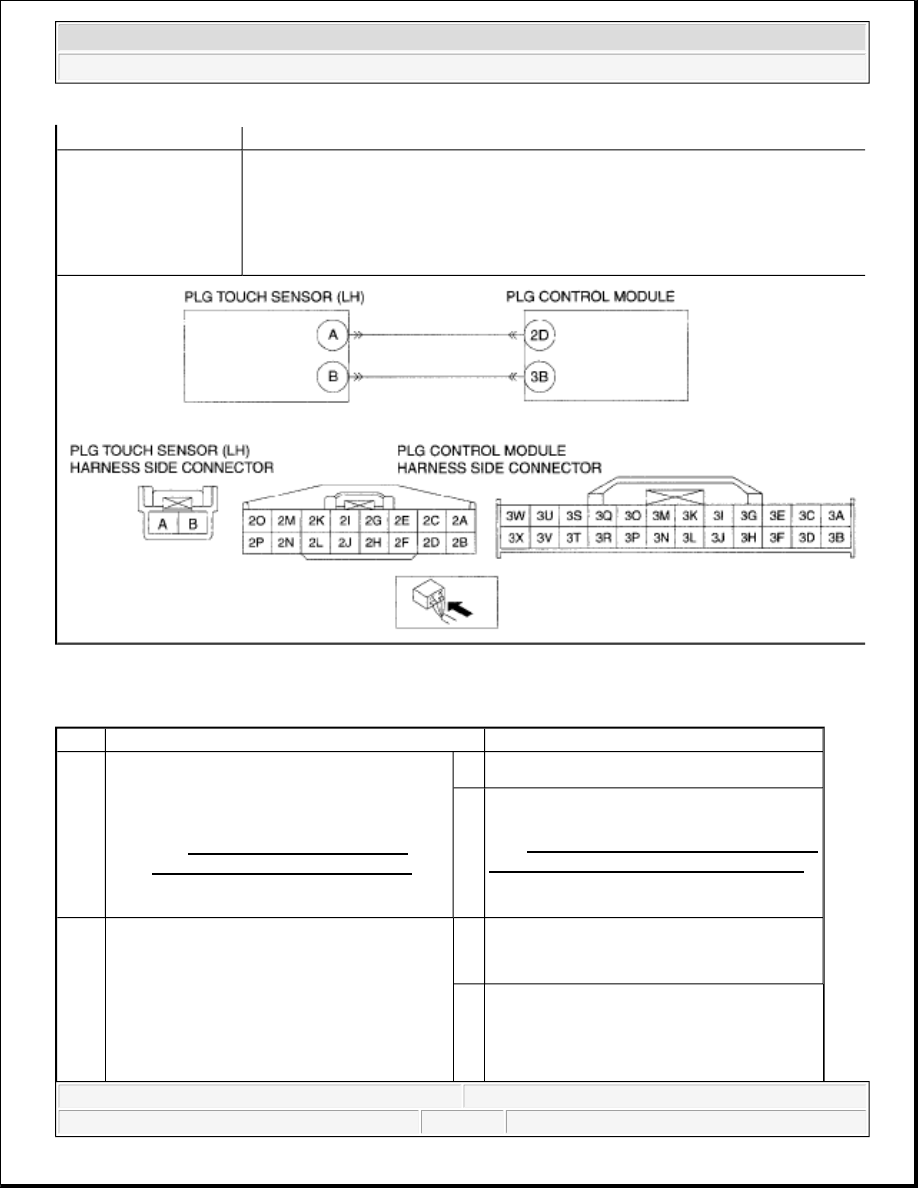

Short to GND in wiring harness between PLG control module terminal 3B and
PLG touch sensor (LH) terminal B



PLG touch sensor (LH) malfunction



Obstructions in the detection part



PLG control module malfunction

STEP

INSPECTION

ACTION

1

INSPECT PLG TOUCH SENSOR (LH)



Inspect the PLG touch sensor (LH).

(See POWER LIFTGATE (PLG)
TOUCH SENSOR INSPECTION .)



Is the touch sensor normal?

Yes Go to the next step.

No

Replace the PLG touch sensor (LH).

(See POWER LIFTGATE (PLG) TOUCH

SENSOR REMOVAL/INSTALLATION .)

Go to Step 3.

2

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL MODULE AND PLG
TOUCH SENSOR (LH)



Inspect the wiring harness between PLG
control module terminal 3B and PLG
touch sensor (LH) terminal B for a short
circuit to ground system.

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

DTC B2702 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2702 - DETECTION CONDITION POSSIBLE CAUSE CHART

DIAGNOSTIC PROCEDURE

DTC B2702 - DIAGNOSTIC PROCEDURE



Is the wiring harness normal?

3

VERIFY CORRECTION COMPLETED



Reconnect the disconnected connector.



Clear the DTC.



Is DTC B2701 stored after 5 min or
more have elapsed?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION .)

No

DTC troubleshooting completed.

DTC B2702

PLG touch sensor (RH) circuit malfunction

DETECTION

CONDITION

A short circuit to ground in the PLG touch sensor (RH) continues for 5 min or more.

POSSIBLE CAUSE



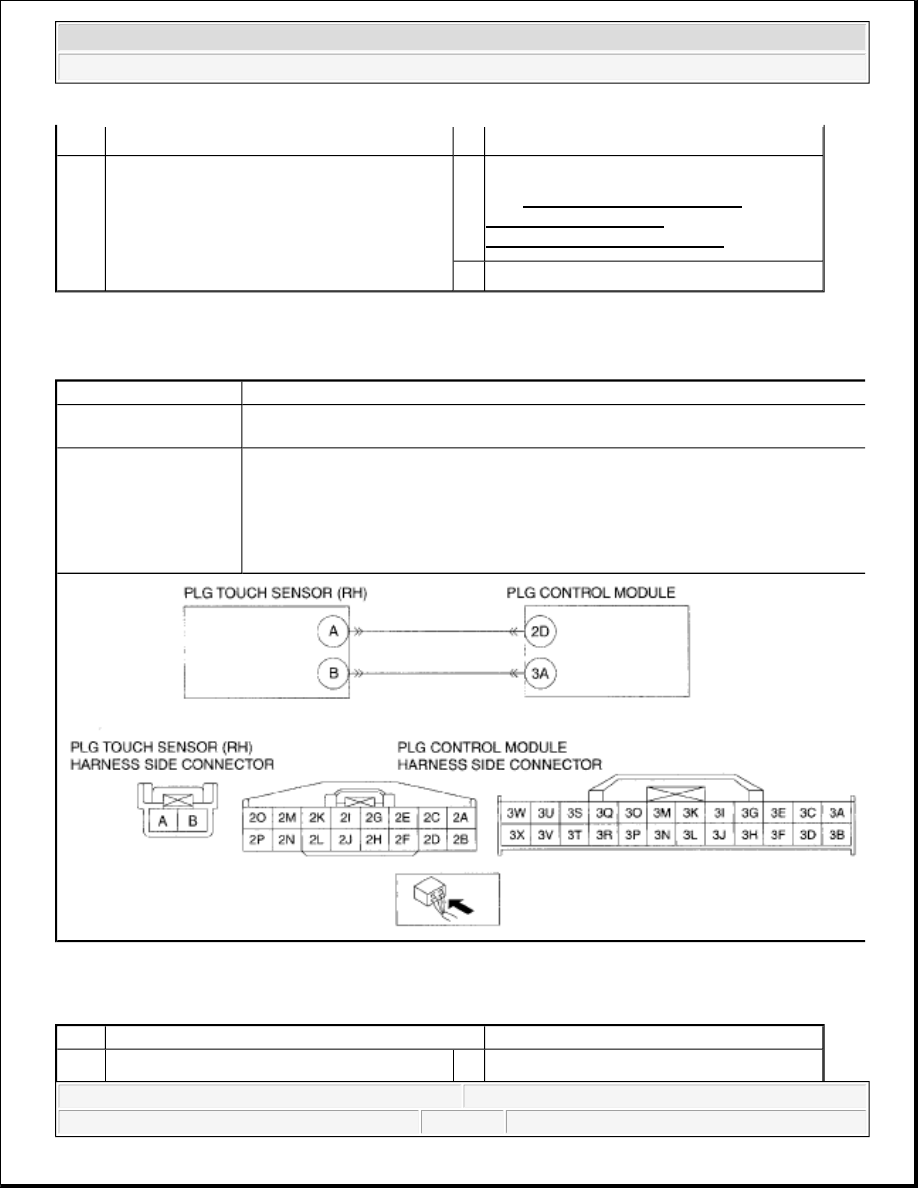

Short to GND in wiring harness between PLG control module terminal 3A and
PLG touch sensor (RH) terminal B



PLG touch sensor (RH) malfunction



Obstructions in the detection part



PLG control module malfunction

STEP

INSPECTION

ACTION

INSPECT PLG TOUCH SENSOR (RH)

Yes Go to the next step.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 33

© 2005 Mitchell Repair Information Company, LLC.

DTC B2821 [POWER LIFTGATE (PLG) SYSTEM]

DTC B2821 - DETECTION CONDITION POSSIBLE CAUSE CHART

1



Inspect the PLG touch sensor (RH).

(See POWER LIFTGATE (PLG)
TOUCH SENSOR INSPECTION .)



Is touch sensor normal?

No

Replace the PLG touch sensor (RH).

(See POWER LIFTGATE (PLG) TOUCH

SENSOR REMOVAL/INSTALLATION .)

Go to Step 3.

2

INSPECT WIRING HARNESS BETWEEN
PLG COTROL MODULE AND PLG
TOUCH SENSOR (RH)



Inspect the wiring harness between PLG
control module terminal 3A and PLG
touch sensor (RH) terminal B for a short
circuit to ground system.



Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

3

VERIFY CORRECTION COMPLETED



Reconnect the disconnected connector.



Clear the DTC.



Is DTC B2702 stored after 5 min or
more have elapsed?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION .)

No

DTC troubleshooting completed.

DTC B2821

Closure motor circuit malfunction

DETECTION

CONDITION

Liftgate latch switch signal does not change (ON) when closure motor is operating

POSSIBLE CAUSE



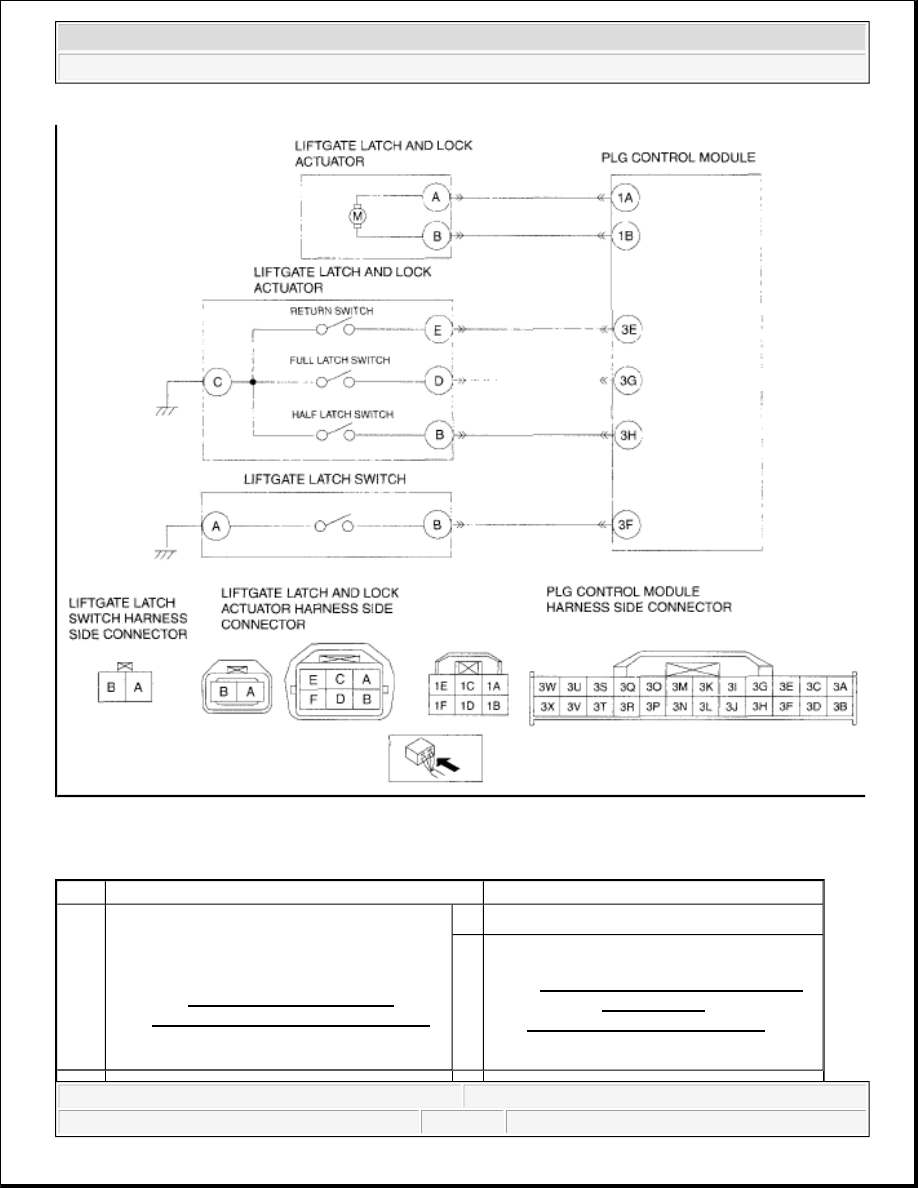

Open circuit in wiring harness between PLG control module terminal 1A and
closure motor terminal A (liftgate latch and lock actuator)



Open circuit in wiring harness between PLG control module terminal 1B and
closure motor terminal B (liftgate latch and lock actuator)



A short circuit to ground in the wiring harness between the liftgate latch switch
and PLG control module



Closure motor malfunction



Liftgate latch switch malfunction



PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 34

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B2821 - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

INSPECT LIFTGATE LOCK ACTUATOR




Inspect the liftgate lock actuator.

(See LIFTGATE LATCH AND
LOCK ACTUATOR INSPECTION .)



Is the liftgate lock actuator normal?

Yes Go to the next step.

No

Replace the liftgate latch and lock actuator.

(See LIFTGATE LATCH AND LOCK

ACTUATOR

REMOVAL/INSTALLATION .)

Go to Step 5.
