DIAGNOSTIC PROCEDURE

DTC B266E - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

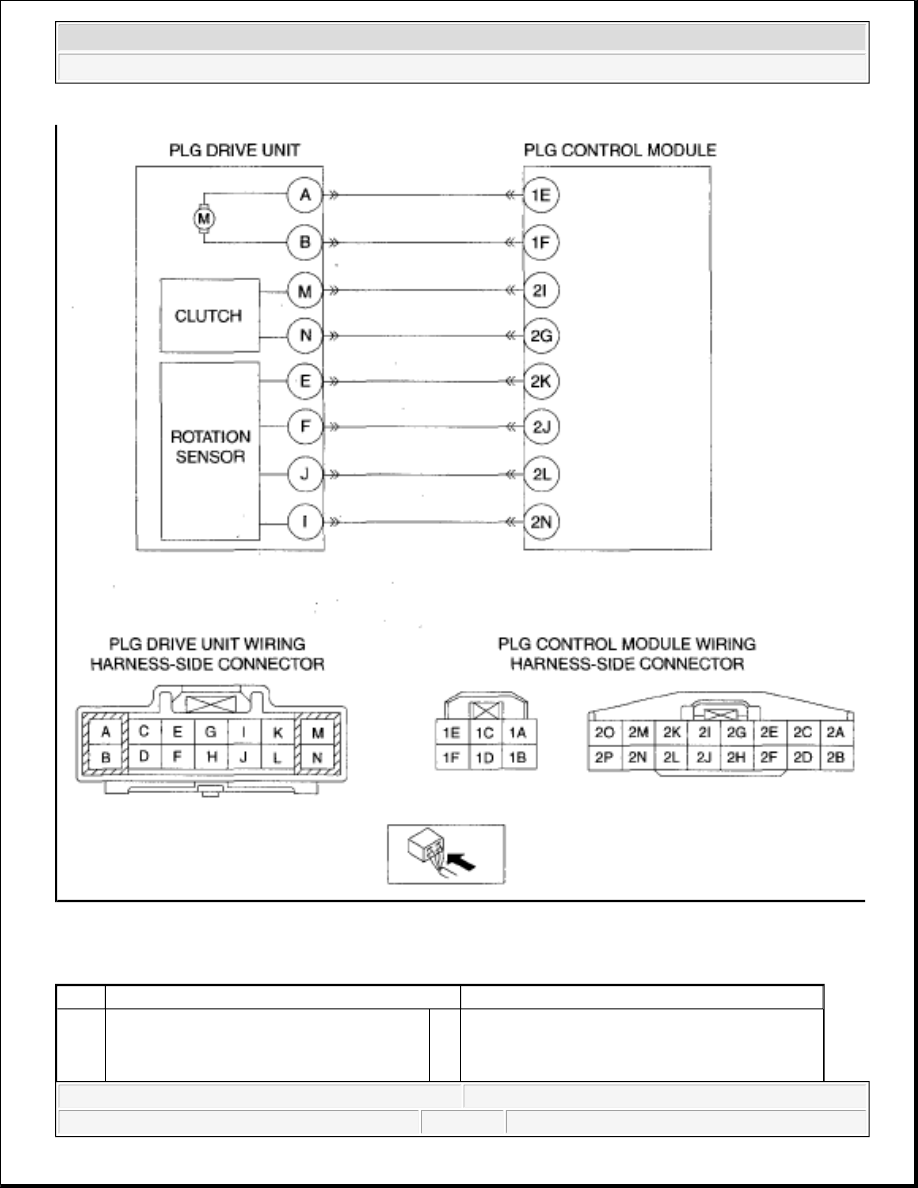

INSPECT WIRING HARNESS
BETWEEN PLG CONTROL UNIT
AND PLG DRIVE UNIT



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

1



Disconnect the PLG control module
connector.



Disconnect the PLG drive unit
connector.



Inspect for continuity between the
following wiring harnesses:



PLG control module terminal
1E and PLG drive unit terminal
A



PLG control module terminal
1F and PLG drive unit terminal
B



PLG control module terminal
2J and PLG drive unit terminal
F



PLG control module terminal
2L and PLG touch sensor (LH)
J



Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to Step 5.

2

INSPECT PLG ARM



Inspect the PLG arm for the
following:



Is the ball joint dislocated or is
there excessive play?



Is the PLG arm normal?

Yes Go to the next step.

No

Replace the PLG arm.

(See POWER LIFTGATE (PLG) ARM

REMOVAL/INSTALLATION .)

3

INSPECT PLG SLIDER



Inspect the PLG slider for the
following:



Is the PLG slider spinning?



Is the PLG slider normal?

Yes Go to the next step.

No

Replace the PLG slider.

(See POWER LIFTGATE (PLG) DRIVE

UNIT REMOVAL/INSTALLATION .)

4

INSPECT TORQUE cable



Inspect the torque cable for the
following:



Is the torque cable
disconnected?



Is the torque cable normal?

Yes Go to the next step.

No

Replace the PLG slider.

(See POWER LIFTGATE (PLG) DRIVE

UNIT REMOVAL/INSTALLATION .)

VERIFY CORRECTION COMPLETED




Reconnect the disconnected
connector.

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG) CONTROL



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

DTC B267A [POWER LIFTGATE (PLG) SYSTEM]

DTC B267A - DETECTION CONDITION POSSIBLE CAUSE CHART

5



Clear the DTC.



Operate the PLG system.



Is DTC B266E stored?

MODULE REMOVAL/INSTALLATION .)

No

DTC troubleshooting completed.

DTC B267A

Half latch switch circuit malfunction

DETECTION

CONDITION

The voltage input to the half latch switch does not change while the PLG system is
operating.

POSSIBLE CAUSE



Open circuit in wiring harness between PLG control module terminal 3H and
liftgate latch and lock actuator terminal B



Short to GND in wiring harness between PLG control module terminal 3H and
liftgate latch and lock actuator terminal B



Open circuit in wiring harness between liftgate latch and lock actuator terminal
C and body GND



Half latch switch malfunction



PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B267A - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

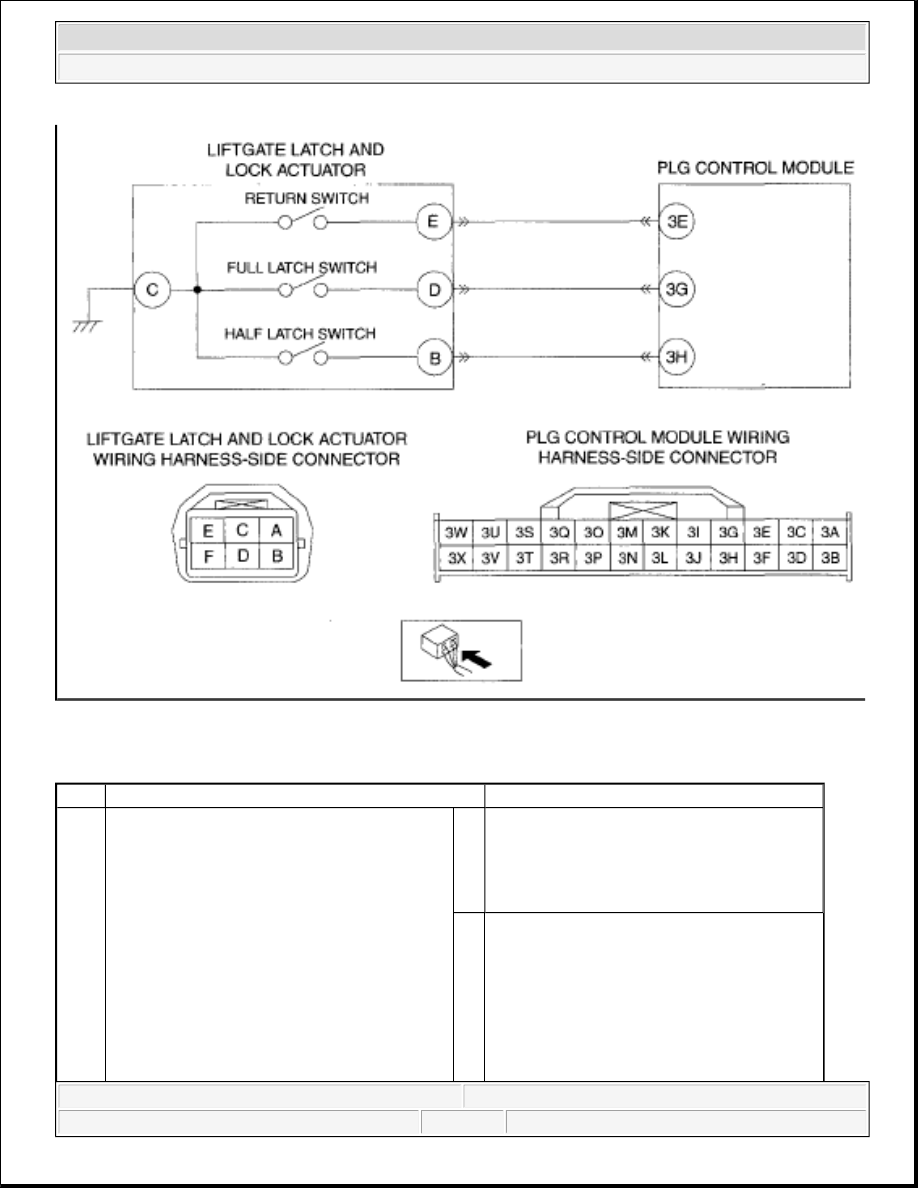

INSPECT WIRING HARNESS BETWEEN
PLG CONTROL UNIT AND LIFTGATE
LATCH AND LOCK ACTUATOR



Disconnect the PLG control module
connector.



Disconnect the liftgate latch and lock
actuator connector.



Inspect the wiring harness between PLG
control module terminal 3H and liftgate
latch and lock actuator terminal B for an
open circuit/short circuit to ground
system.

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to Step 3.
