Mazda CX-9 Grand Touring. Manual - part 503





1. Fully lower the driver-side door glass.

2. Connect the M-MDS to the DLC-2.

3. Pull out the M-MDS cable from the door glass opening and set the M-MDS outside the vehicle.

4. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

When using the IDS (laptop PC)

1. Select "Body".

2. Select "Security".

When using the PDS (Pocket PC)

1. Select "Programming".

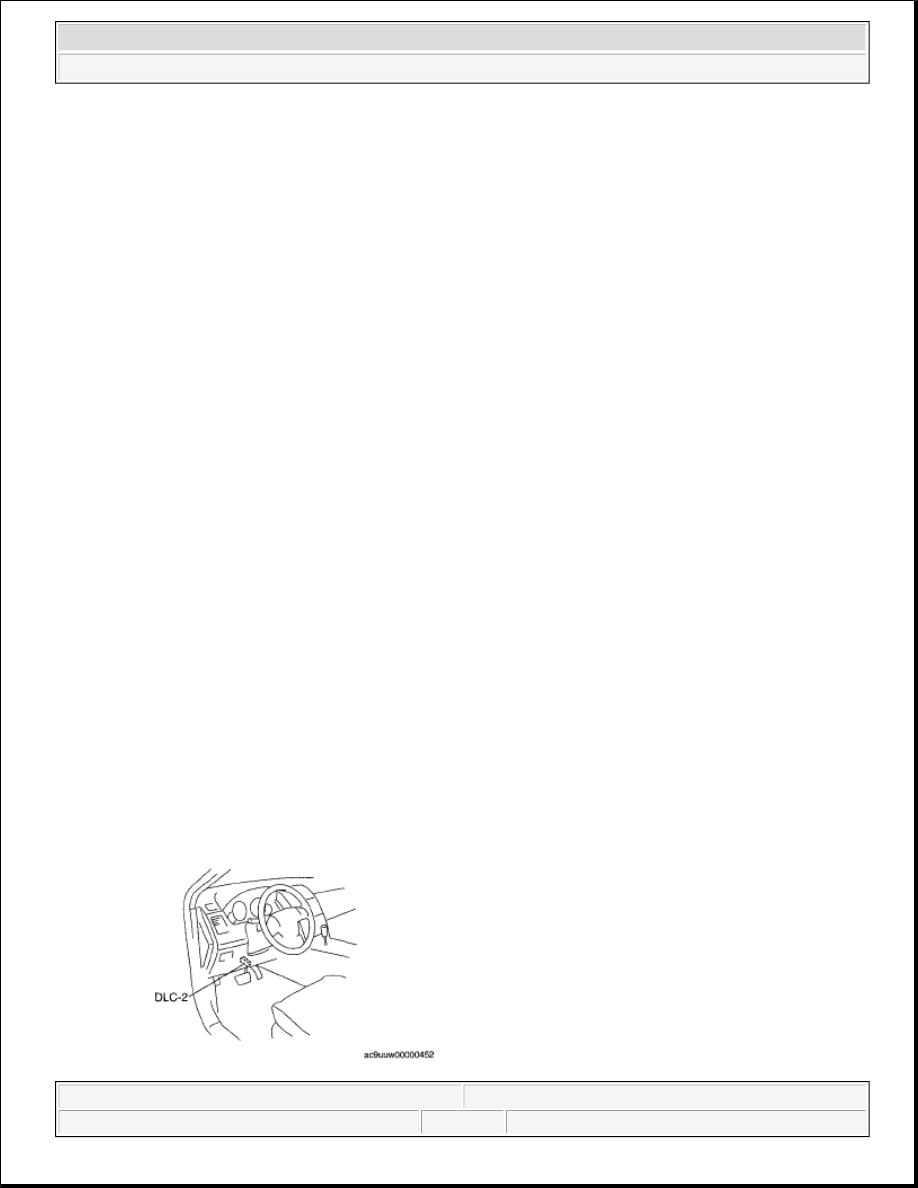

Fig. 60: Identifying DLC-2 Location
Courtesy of MAZDA MOTORS CORP.

5. Then, select items from the screen menu in the following order.

1. Select "PATS Functions".

2. Select "Program Additional card key".

6. Security access begins and the M-MDS displays the "OUT-CODE".

7. Input the "IN-CODE" that corresponds to the "OUT-CODE" displayed on the M-MDS screen.

8. Press the unprogrammed card key UNLOCK button twice.

CAUTION:

Protect the cable and body contact area with a clean rag,
otherwise they could be damaged.

NOTE:

When "OUT-CODE" is first displayed, turning the ignition switch from
the LOCK to the ON position 5 times will change the "OUT-CODE".

NOTE:

After Step 7 is completed and the card key programming is activated,
the door lock actuator operates to lock, and then operates to unlock.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

9. If programming more card keys, remove the supplementary key once, and then repeat the procedure by

following the instructions on the M-MDS screen.

CLEARING CARD KEY [ADVANCED KEYLESS SYSTEM]

1. Fully lower the driver-side door glass.

2. Connect the M-MDS to the DLC-2.

3. Pull out the M-MDS cable from the door glass opening and set the M-MDS outside the vehicle.

4. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

When using the IDS (laptop PC)

1. Select "Body".

2. Select "Security".

When using the PDS (Pocket PC)

1. Select "Programming".

5. Then, select items from the screen menu in the following order.

1. Select "PATS Functions".

2. Select "Card Key Code Erase and Program".

6. Security access begins and the M-MDS displays the "OUT-CODE".

NOTE:

After Step 8 is completed and the card key is programmed, the door
lock actuator operates to lock, and then operates to unlock.

CAUTION:

Protect the cable and body contact area with a clean rag,
otherwise they could be damaged.

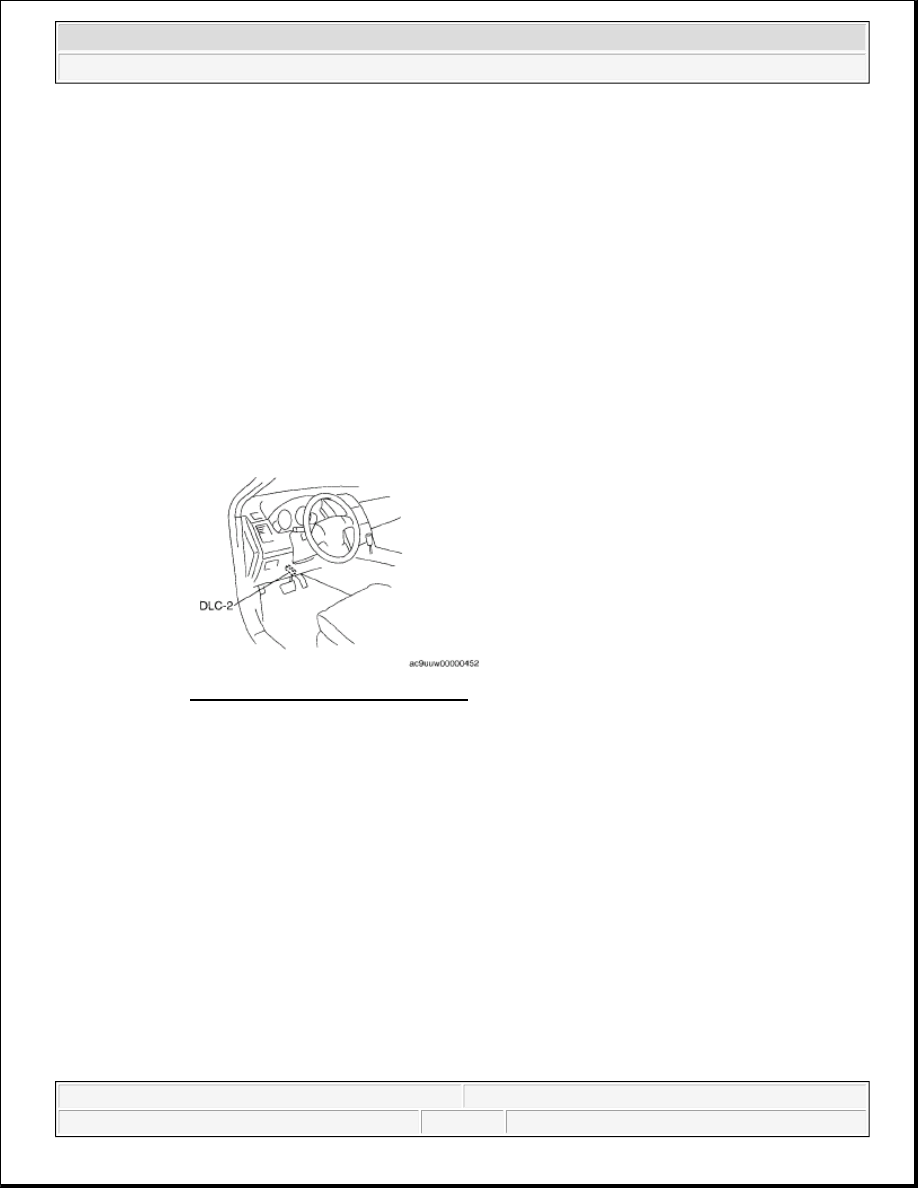

Fig. 61: Identifying DLC-2 Location
Courtesy of MAZDA MOTORS CORP.

NOTE:

When "OUT-CODE" is first displayed, turning the ignition switch from
the LOCK to the ON position 5 times will change the "OUT-CODE".



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

7. Input the "IN-CODE" that corresponds to the "OUT-CODE" displayed in the M-MDS screen.

8. Select "CARD KEY CLEARING" from the M-MDS screen menu.

STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS
SYSTEM]

1. Bring the programmed card key into the vehicle.

2. Fully lower the driver-side door glass.

3. Connect the M-MDS to the DLC-2.

4. Pull out the M-MDS cable from the door glass opening and set the M-MDS outside the vehicle.

5. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

CAUTION:

Do not place the following devices in the vehicle while programming,
otherwise programming cannot be performed.

M-MDS

Personal computer

Device that can send/receive radio waves

NOTE:

The steering lock unit and steering lock component are a single unit.
Therefore, replace the steering lock component when replacing steering
lock unit. (See STEERING WHEEL AND COLUMN
REMOVAL/INSTALLATION .)

For this procedure, a programmed card key is necessary. If there is no
programmed card key, perform the steering lock unit programming after
the card key programming.

CAUTION:

Protect the cable and body contact area with a clean rag,
otherwise they could be damaged.

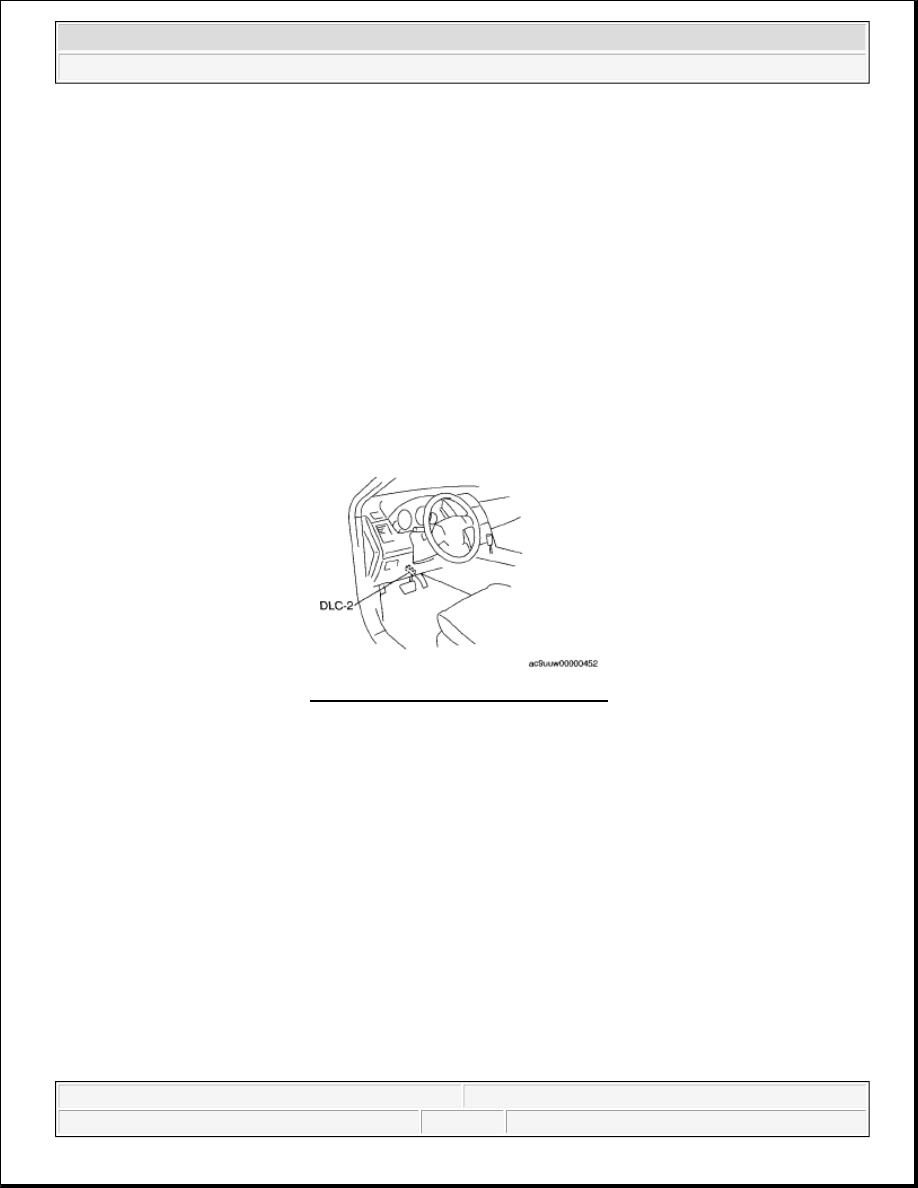

Fig. 62: Identifying DLC-2 Location
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

When using the IDS (laptop PC)

1. Select "Body".

2. Select "Security".

When using the PDS (Pocket PC)

1. Select "Programming".

6. Then, select items from the screen menu in the following order.

1. Select "PATS Functions".

2. Select "Steering Lock Unit Programming".

7. The security access begins and the M-MDS displays "OUT-CODE".

8. Input the "IN-CODE" that corresponds to the "OUT-CODE" displayed on the M-MDS screen.

9. Perform procedures according to the directions on the M-MDS screen.

CUSTOMIZED FUNCTION SETTING PROCEDURE [ADVANCED KEYLESS
SYSTEM]

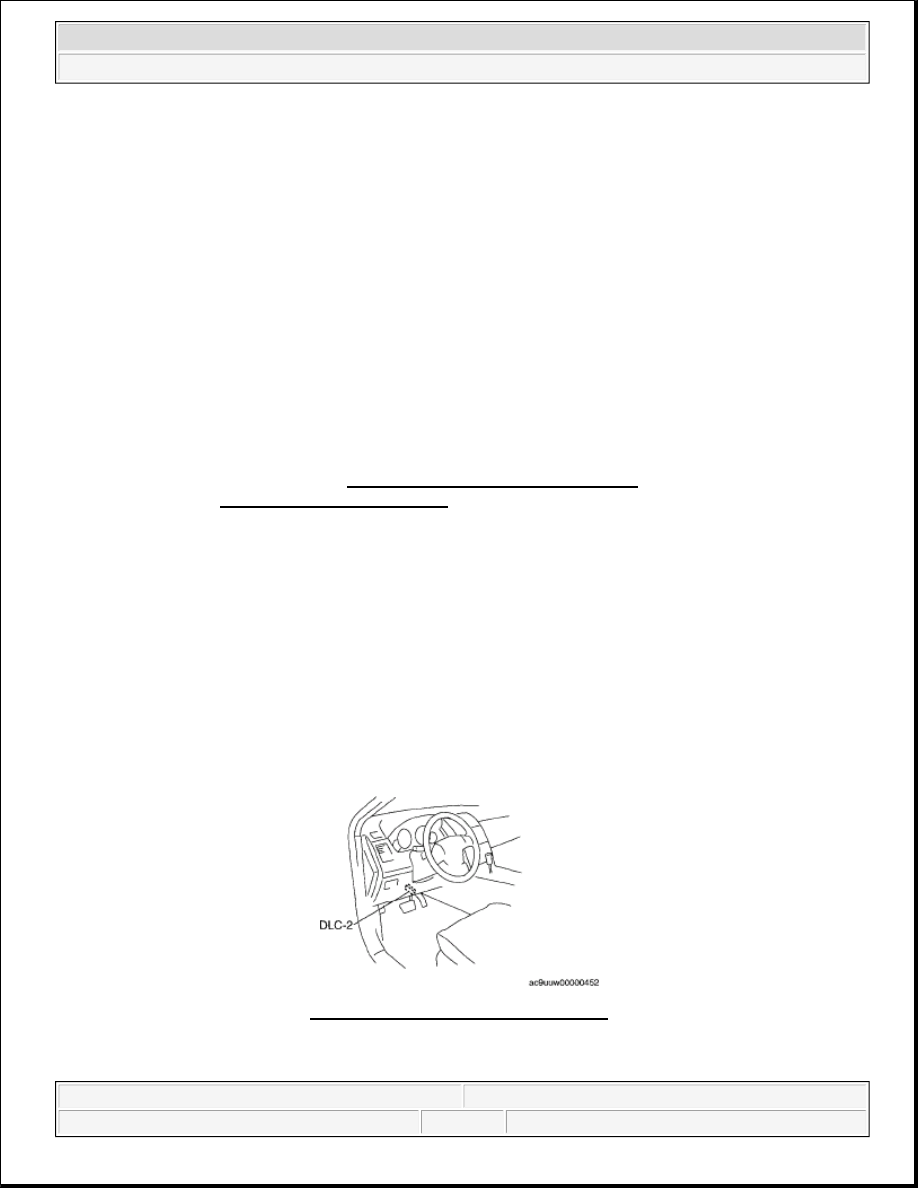

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

When using the IDS (laptop PC)

1. Select "Module programming".

When using the PDS (Pocket PC)

1. Select "Programming".

2. Select "Module programming".

3. Then, select items from the screen menu in the following order.

1. Select "Programmable Parameters".

2. Select "RKE".

NOTE:

When "OUT-CODE" is first displayed, turning the ignition switch from
the LOCK to the ON position 5 times will change the "OUT-CODE".




2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 42

© 2005 Mitchell Repair Information Company, LLC.
