Mazda CX-9 Grand Touring. Manual - part 501

11

keyless antenna
(Interior, rear)(+)

Keyless antenna
(Interior, rear)

condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, rear)

1J

Keyless antenna
(Interior, rear)(-)

Keyless antenna
(Interior, rear)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, rear)

1K

Keyless antenna
(Interior, middle)
(+)

Keyless antenna
(Interior, middle)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, middle)

1L

Keyless antenna
(Interior, middle)(-)

Keyless antenna
(Interior, middle)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, middle)

1M

Keyless antenna
(Interior, front
center)(+)

Keyless antenna
(Interior, front
center)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, front
center)

1N

Keyless antenna
(Interior, front
center)(-)

Keyless antenna
(Interior, front
center)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, front
center)

1O

Keyless antenna
(Interior, front RH)
(+)

Keyless antenna
(Interior, front
RH)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, front
RH)

1P

Keyless antenna
(Interior, front RH)
(-)

Keyless antenna
(Interior, front
RH)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Interior, front
RH)

2A

Power supply

ROOM 15 A
fuse

Under any condition

B+

ROOM 15 A
FUSE

2B

GND

Body ground

Under any condition

1.0 or less

Related wiring
harnesses

2C

IG1

ENG.IGA7.5 A
fuse

Ignition switch is at
ON position

B+

ENG.IGA7.5 A
fuse

Ignition switch is at
LOCK or ACC
position

1.0 or less

2E

ACC

MIRROR 7.5 A
fuse

Ignition switch is at
ACC position

B+

MIRROR 7.5 A
fuse

Ignition switch is at
LOCK or ON
position

1.0 or less



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

2K

Beeper

Keyless beeper

Beeper operated

1.0 or less

Keyless beeper

Other

5.0

3A

Power supply
(keyless receiver)

Keyless receiver Under any condition

B+

Keyless receiver

3C

Communication
(Keyless receiver)

Keyless receiver

Under any
condition: Inspect
for continuity to
keyless receiver.

Continuity

detected

Keyless receiver

3E

Start knob (Push
switch)

Steering lock
unit

Start knob is pushed

B+

Steering lock
unit

Other

1.0 or less

3F

Key reminder
switch

Steering lock
unit

Key reminder
switch is ON

B+

Steering lock
unit

Other

1.0 or less

3H

Communication
(Steering lock unit)

Steering lock
unit

Under any
condition: Inspect
for continuity to
steering lock unit.

Continuity

detected

Steering lock
unit

3I

Request switch
input (Passenger
side)

Request switch
input (Passenger
side)

Passenger-side
request switch is
ON: Inspect for
continuity to
ground.

Continuity

detected

Request switch
input (Passenger
side)

Passenger-side
request switch is
OFF: Inspect for
continuity to
ground.

No continuity

3K

Request switch
input (Driver side)

Request switch
input (Driver
side)

Driver-side request
switch is ON:
Inspect for
continuity to
ground.

Continuity

detected

Request switch
input (Driver
side)

Driver-side request
switch is OFF:
Inspect for
continuity to
ground.

No continuity

3M

Request switch
input (Liftgate)

Request switch
input (Liftgate)

Liftgate request
switch is ON:
Inspect for
continuity to
ground.

Continuity

detected

Request switch
input (Liftgate)

Liftgate request
switch is OFF:
Inspect for

No continuity



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS
SYSTEM]

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)

1. Select "Module Programming".

continuity to
ground.

3N

Lock signal input

Door lock-link
switch

Driver-side door is
locked: Inspect for
continuity to
ground.

No continuity

Door lock-link
switch

Driver-side door is
unlocked: Inspect
for continuity to
ground.

Continuity
detected

3Q

Communication
(BCM)

BCM

Under any
condition: Inspect
for continuity to
BCM.

Continuity

detected

BCM

3U

Tx-SKE

Coil antenna

Ignition switch is at
ON position

B+

Coil antenna

Ignition switch is at
LOCK or ACC
position

1.0 or less

3V

Rx-SKE

Coil antenna

Ignition switch is at
ON position

B+

Coil antenna

Ignition switch is at
LOCK or ACC
position

1.0 or less

3W

HS-CAN-

PCM

Under any
condition: Inspect
for continuity to
PCM.

Continuity

detected

-

3X

HS-CAN+

PCM

Under any
condition: Inspect
for continuity to
PCM.

Continuity

detected

-

NOTE:



Use the IDS (laptop PC) because the PDS (Pocket PC) does not support
the KEYLESS CONTROL MODULE CONFIGURATION.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 33

© 2005 Mitchell Repair Information Company, LLC.

3. Then, select items from the screen menu in the following order.

1. Select "Programmable Module Installation".

2. Select "RKE".

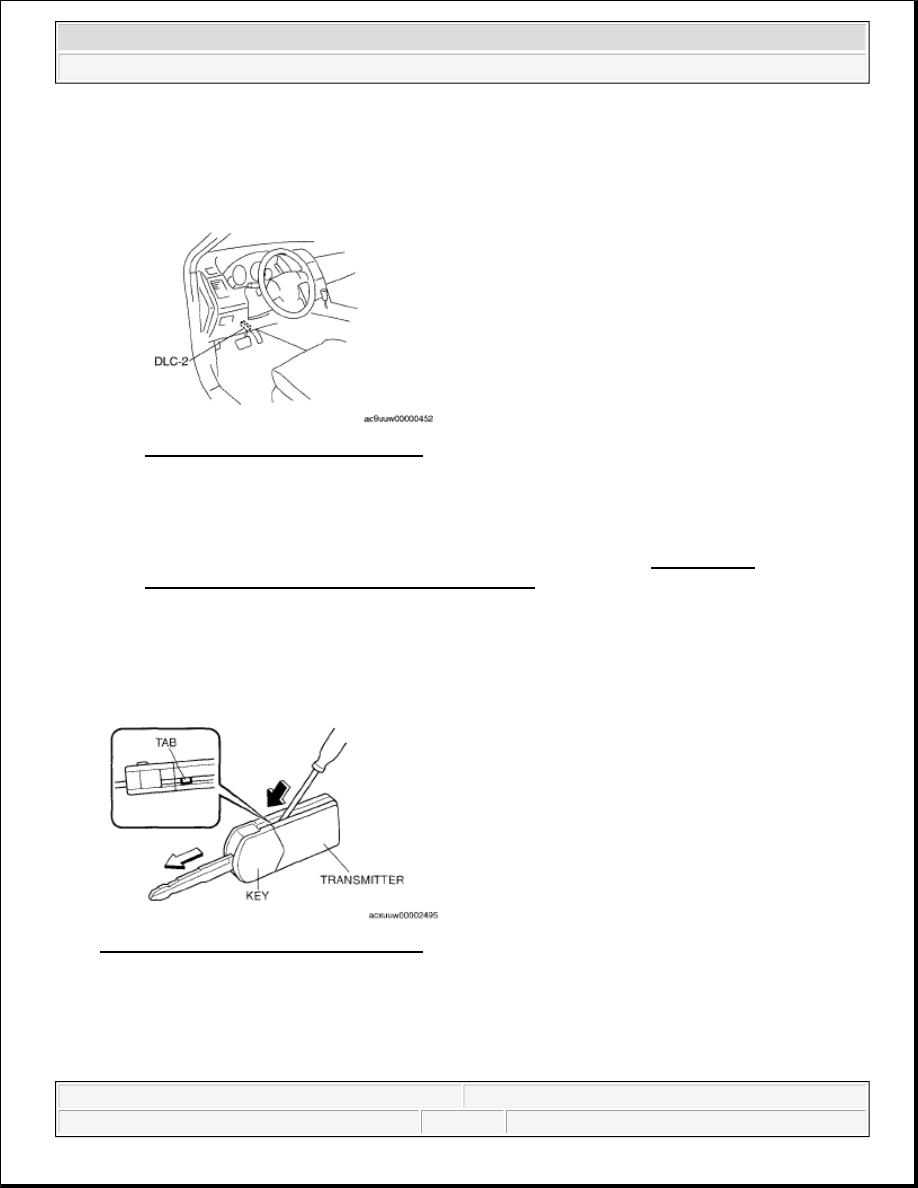

Fig. 54: Identifying DLC-2 Location
Courtesy of MAZDA MOTORS CORP.

4. Perform the configuration according to the directions on the screen.

5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.



If a DTC (s) is detected, perform the applicable DTC inspection. (See DTC TABLE
[ADVANCED KEYLESS AND START SYSTEM] .)

TRANSMITTER BATTERY REPLACEMENT [KEYLESS ENTRY SYSTEM]

1. Insert a small flathead screwdriver into the transmitter notch and remove the key from the transmitter by

pressing the tab.

Fig. 55: Removing Key From Transmitter
Courtesy of MAZDA MOTORS CORP.

2. Insert a small flathead screwdriver into the transmitter notch and the transmitter.
