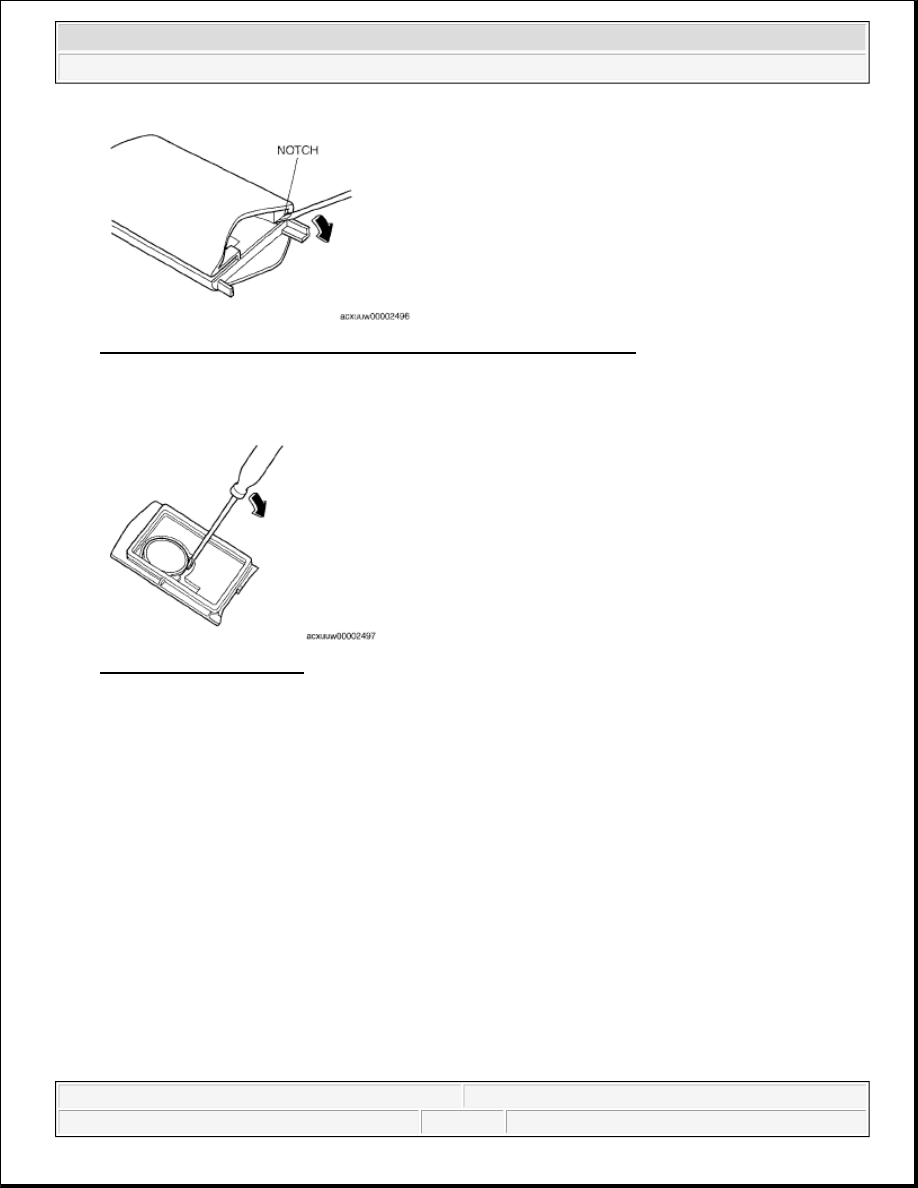

Fig. 56: Inserting Screwdriver Into Transmitter Notch & Transmitter
Courtesy of MAZDA MOTORS CORP.

3. Remove the battery.

Fig. 57: Removing Battery
Courtesy of MAZDA MOTORS CORP.

4. Install the new battery (CR1620) with the positive pole facing down.

5. Align the upper and lower cover and close the transmitter.

Used battery

Lithium battery CR1620

Battery life

Approx. 2 years (when used 10 times/day)

6. Install the key to the transmitter.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 35

© 2005 Mitchell Repair Information Company, LLC.

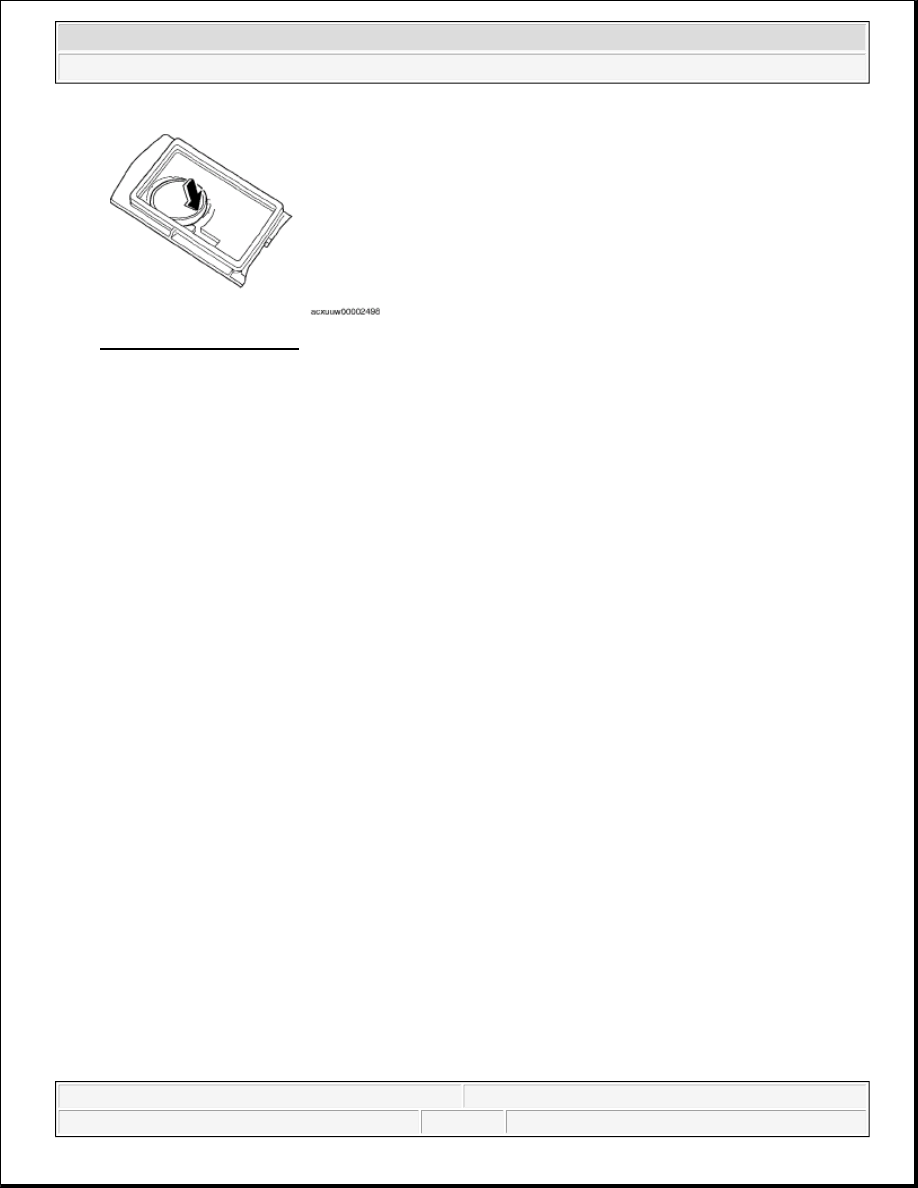

Fig. 58: Installing Battery
Courtesy of MAZDA MOTORS CORP.

TRANSMITTER ID CODE REGISTRATION [KEYLESS ENTRY SYSTEM]

NOTE:

When registering the ID code into a keyless control module, verify that
other transmitters are not being operated in the vicinity.

After ID code registering, remove the key from the steering lock and verify
that all doors lock/unlock normally using the transmitter.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 36

© 2005 Mitchell Repair Information Company, LLC.

CARD KEY ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM]

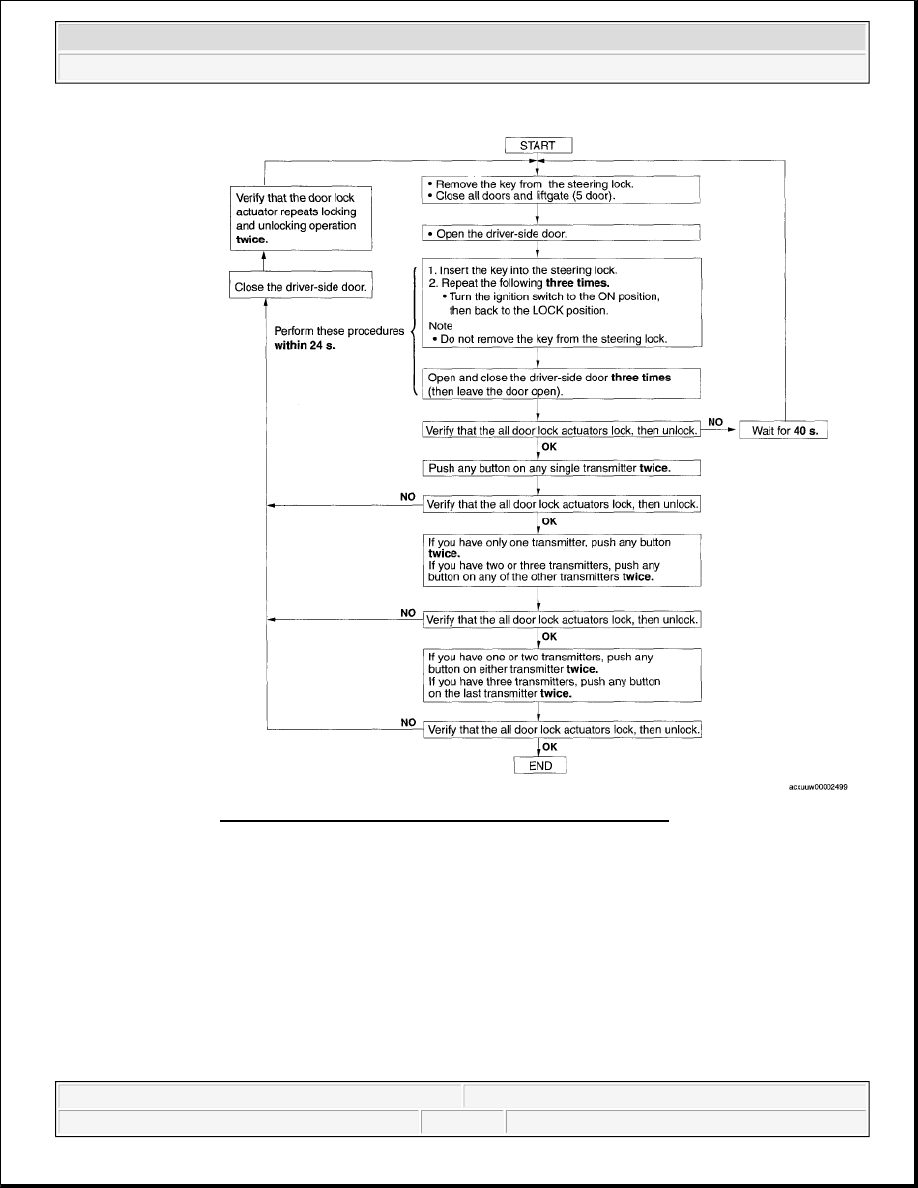

Fig. 59: Transmitter ID Code Registration Flow Chart
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not place the following devices in the vehicle while programming,
otherwise programming cannot be performed.

M-MDS

Personal computer

Device that can send/receive radio waves

Verify that the other transmitter is not being operated around the



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 37

© 2005 Mitchell Repair Information Company, LLC.

WITH TWO PROGRAMMED CARD KEYS

1. Bring the programmed card keys (2) and a unprogrammed card key into the vehicle.

2. Close all doors.

3. Insert the supplementary key into the ignition key cylinder.

4. Turn the ignition switch to the ON position.

5. Press the UNLOCK button on card key 1.

6. Press the UNLOCK button on card key 2.

7. From the ignition switch in the ON position, switch the ignition switch in the order indicated below.

ACC --> ON --> ACC --> ON --> ACC --> ON

8. Open the driver-side front door, press the door switch twice , and then close the door.

9. Press the UNLOCK button on the unprogrammed card key twice.

10. If programming more card keys, remove the supplementary key once, and then repeat the procedure from

Step 2.

USING M-MDS

servicing area during card key programming.

NOTE:

Use the M-MDS and start programming if the condition corresponds to the
following:

One or No Programmed Card Keys

Keyless control module is replaced

If six card keys are already programmed, the programming mode does not
activate. If programming is needed, use the M-MDS to erase the
unnecessary card key programming.

NOTE:

Complete the procedures up to Step 7 within 30 s after the
supplementary key is inserted.

NOTE:

After Step 3 is completed and the card key programming mode is
activated, the door lock actuator operates to lock, and then operates
to unlock.

If the door lock actuator does not operate, repeat the procedure from
Step 2.

NOTE:

After Step 8 is completed and the card key is programmed, the door
lock actuator operates to lock, and then operates to unlock.
