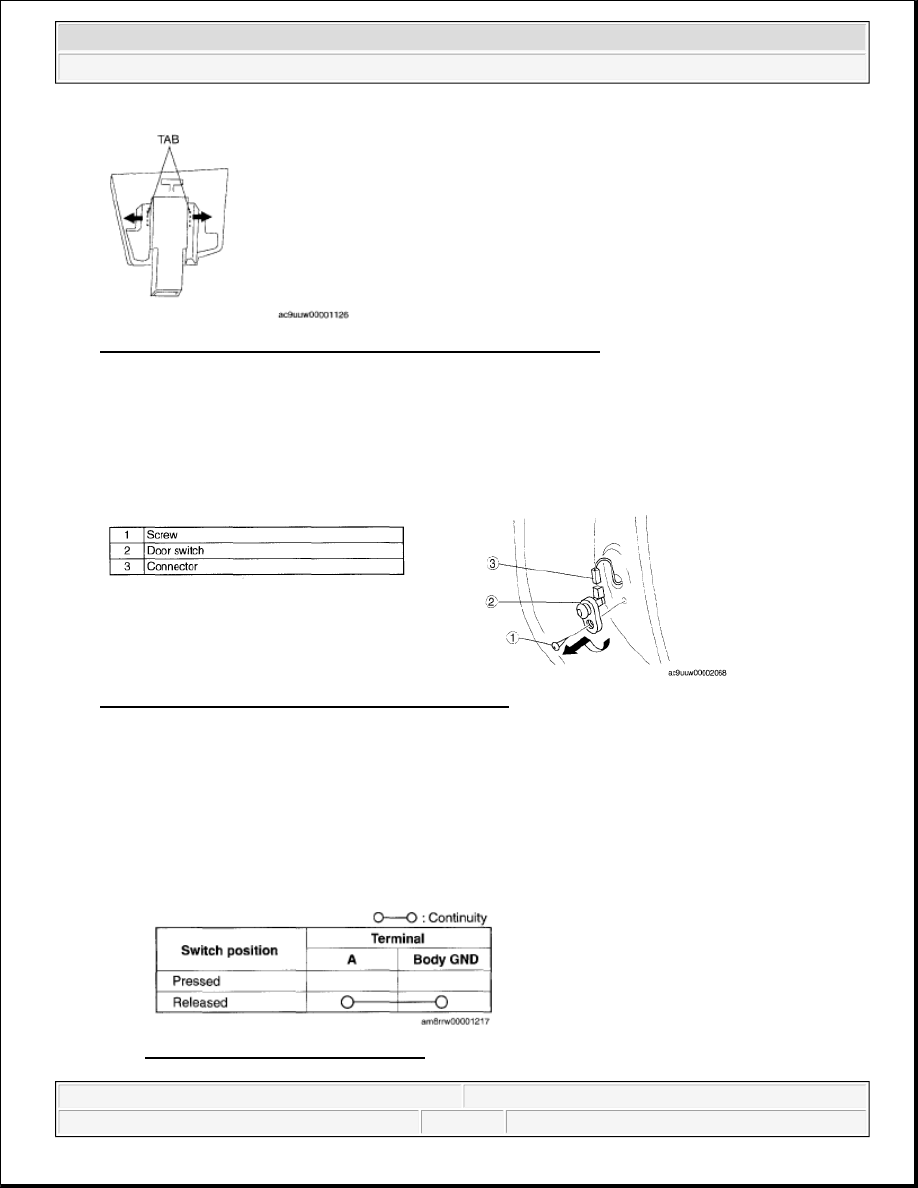

Fig. 85: Identifying Rear Door Pocket Indirect Illumination Tabs
Courtesy of MAZDA MOTORS CORP.
DOOR SWITCH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Disassemble in the order indicated in the table.
Fig. 86: Identifying Door Switch, Connector & Screw
Courtesy of MAZDA MOTORS CORP.
3. Install in the reverse order of removal.
DOOR SWITCH INSPECTION

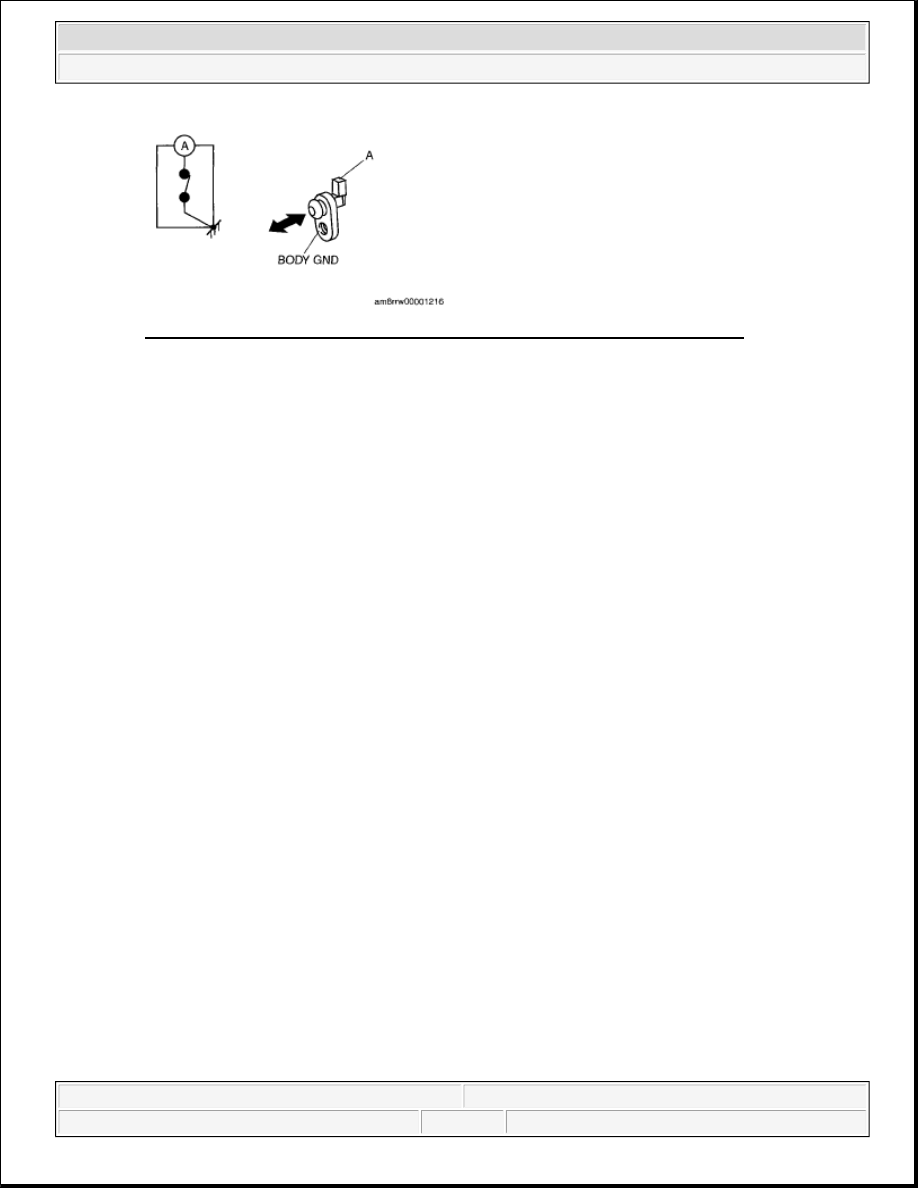

1. Verify that the continuity between door switch terminal and the body ground is as indicated in the table.
If not as indicated in the table, replace the door switch.
Fig. 87: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
