Mazda CX-9 Grand Touring. Manual - part 492





Fig. 76: Identifying Glove Compartment Light Bulb & Socket
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

Fig. 77: Identifying Vanity Mirror Illumination Bulb & Lens
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

LENS REMOVAL NOTE

1. Insert a tape-wrapped flathead screwdriver into the service hole, and pry it in the direction indicated by

the arrow to remove the lens.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

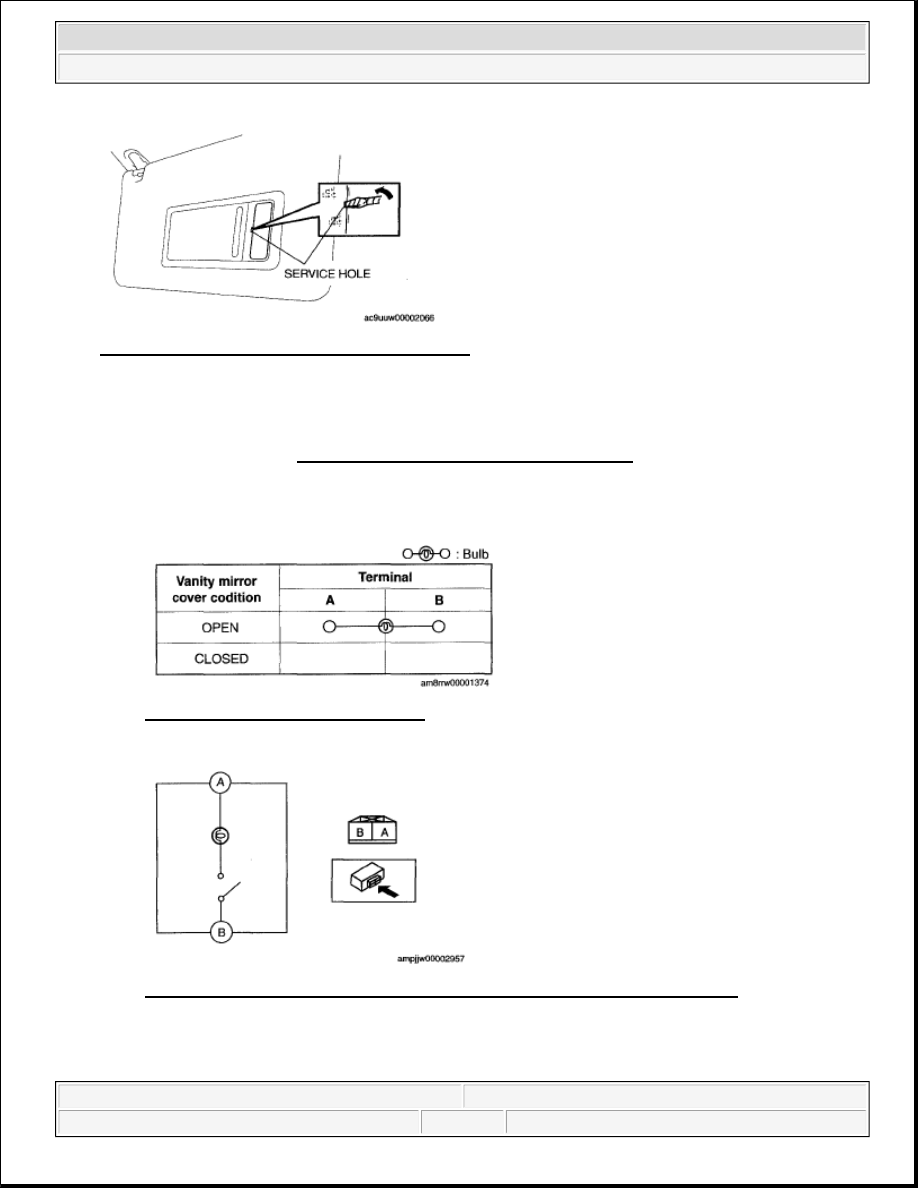

Fig. 78: Inserting Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.

VANITY MIRROR ILLUMINATION INSPECTION

1. Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION .)

2. Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.

If not as indicated in the table, inspect the bulb. If there is no malfunction, replace the sunvisor.

Fig. 79: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 80: Checking Continuity Between Vanity Mirror Illumination Terminals
Courtesy of MAZDA MOTORS CORP.

INDIRECT ILLUMINATION REMOVAL/INSTALLATION



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

CONSOLE

1. Disconnect the negative battery cable.

2. Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

Fig. 81: Identifying Console Indirect Illumination & Connector
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

FRONT DOOR POCKET

1. Disconnect the negative battery cable.

2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

3. Remove the handle pull. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)

4. Remove in the order indicated in the table.

Fig. 82: Identifying Front Door Pocket Indirect Illumination, Cover & Connector
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

FRONT DOOR POCKET INDIRECT ILLUMINATION REMOVAL NOTE

1. Open the cover in the direction of the arrow and remove the front door pocket indirect illumination.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 51

© 2005 Mitchell Repair Information Company, LLC.

Fig. 83: Identifying Front Door Pocket Indirect Illumination Tabs
Courtesy of MAZDA MOTORS CORP.

REAR DOOR POCKET

1. Disconnect the negative battery cable.

2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION )

3. Remove in the order indicated in the table.

Fig. 84: Identifying Rear Door Pocket Indirect Illumination, Cover & Connector
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

REAR DOOR POCKET INDIRECT ILLUMINATION REMOVAL NOTE

1. Open the cover in the direction of the arrow and remove the rear door pocket indirect illumination.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 52

© 2005 Mitchell Repair Information Company, LLC.
