2. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

3. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

4. Put aside the upper column cover.

5. Remove in the order indicated in the table.

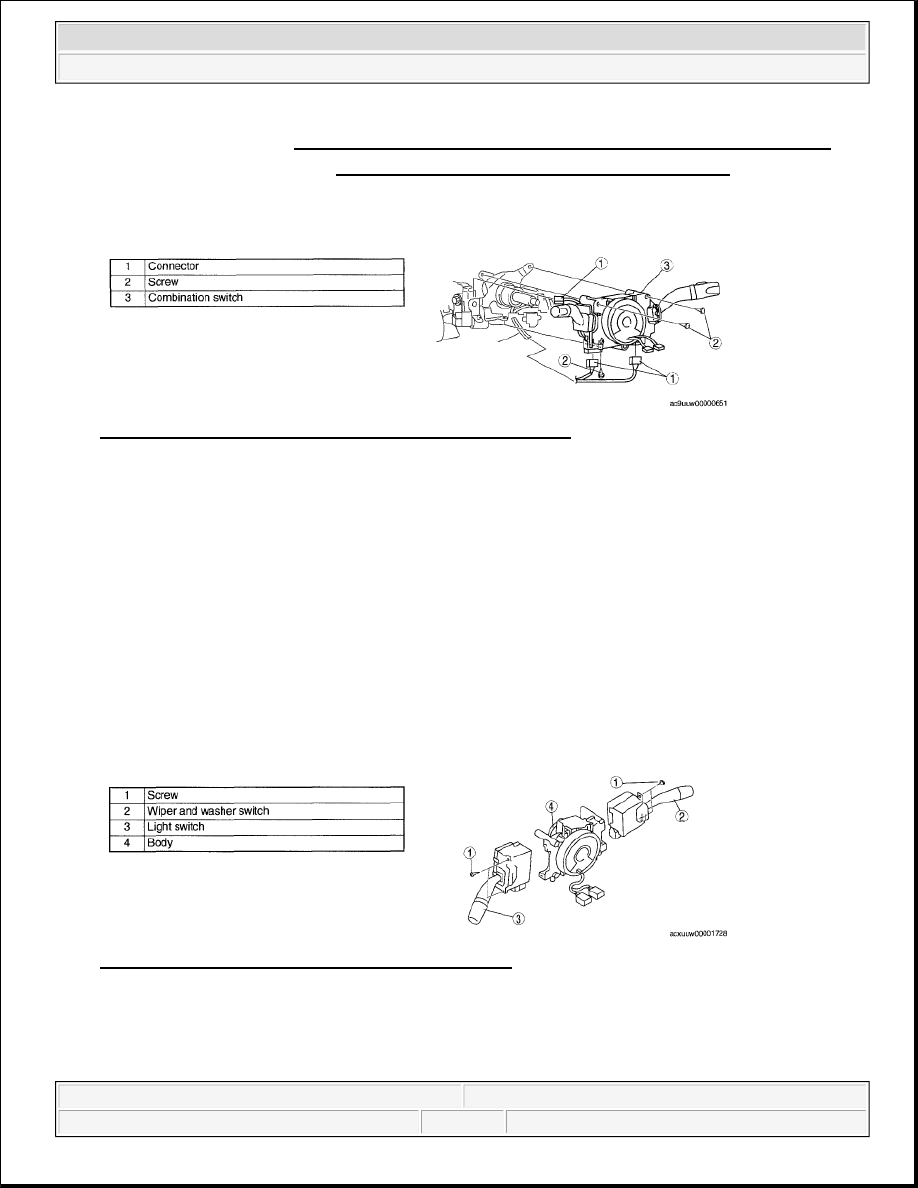

Fig. 32: Identifying Combination Switch, Connector & Screw
Courtesy of MAZDA MOTORS CORP.

6. Disconnect the steering angle sensor connector.

7. Install in the reverse order of removal.

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

Fig. 33: Identifying Combination Switch Components
Courtesy of MAZDA MOTORS CORP.

2. Assemble in the reverse order of disassembly.

LIGHT SWITCH REMOVAL/INSTALLATION

CAUTION:



If the disc on the combination switch is deformed or has foreign
material adhering to it, performance of the steering angle sensor may
be reduced, causing abnormal operation. When handling the
combination switch, be careful not to deform the disc and make sure
there is no foreign material on it.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

3. Put aside the upper column cover.

4. Remove in the order indicated in the table.

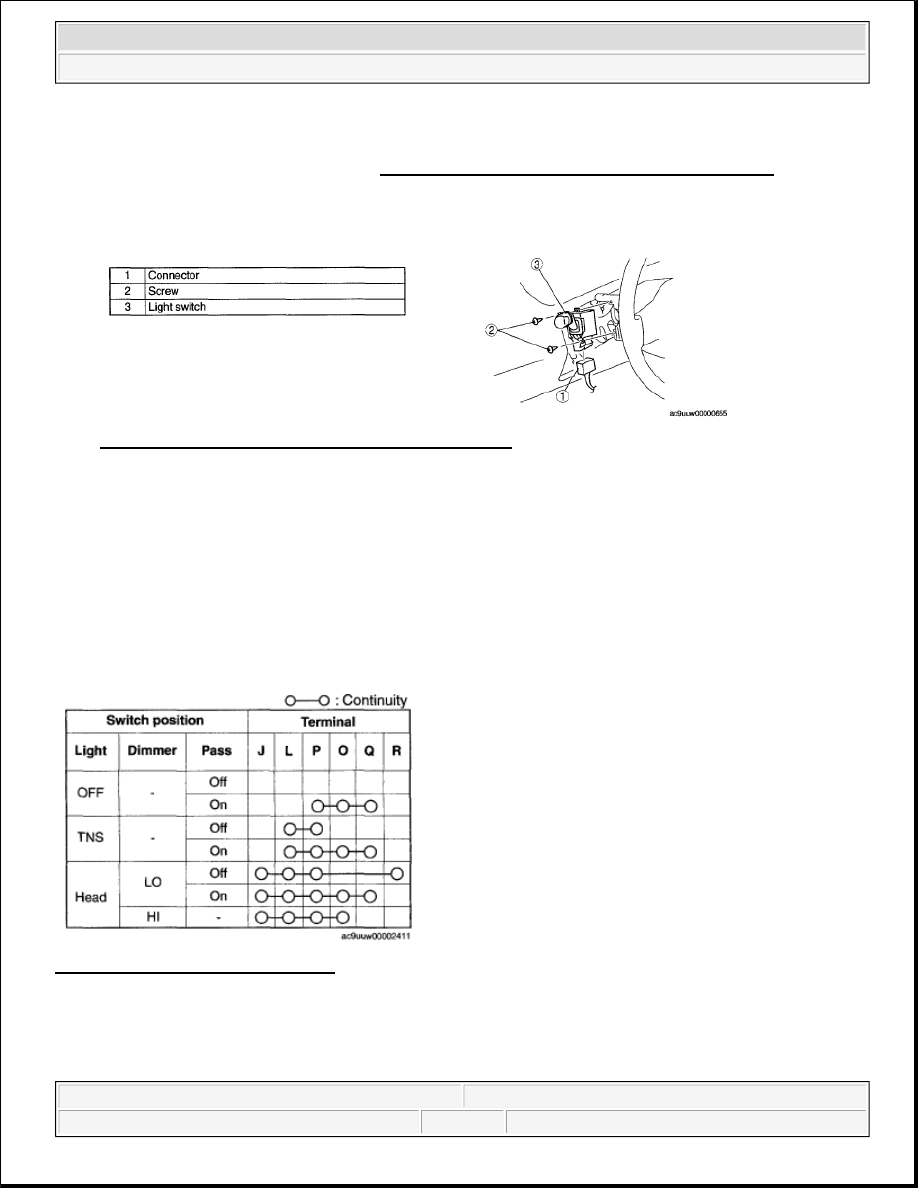

Fig. 34: Identifying Light Switch, Connector & Screw
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

LIGHT SWITCH INSPECTION

1. Verify that the continuity between the light switch terminals is as indicated in the table.



If not as indicated in the table, replace the light switch.

HEADLIGHT SWITCH (VEHICLE WITHOUT AUTO LIGHT)

Fig. 35: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

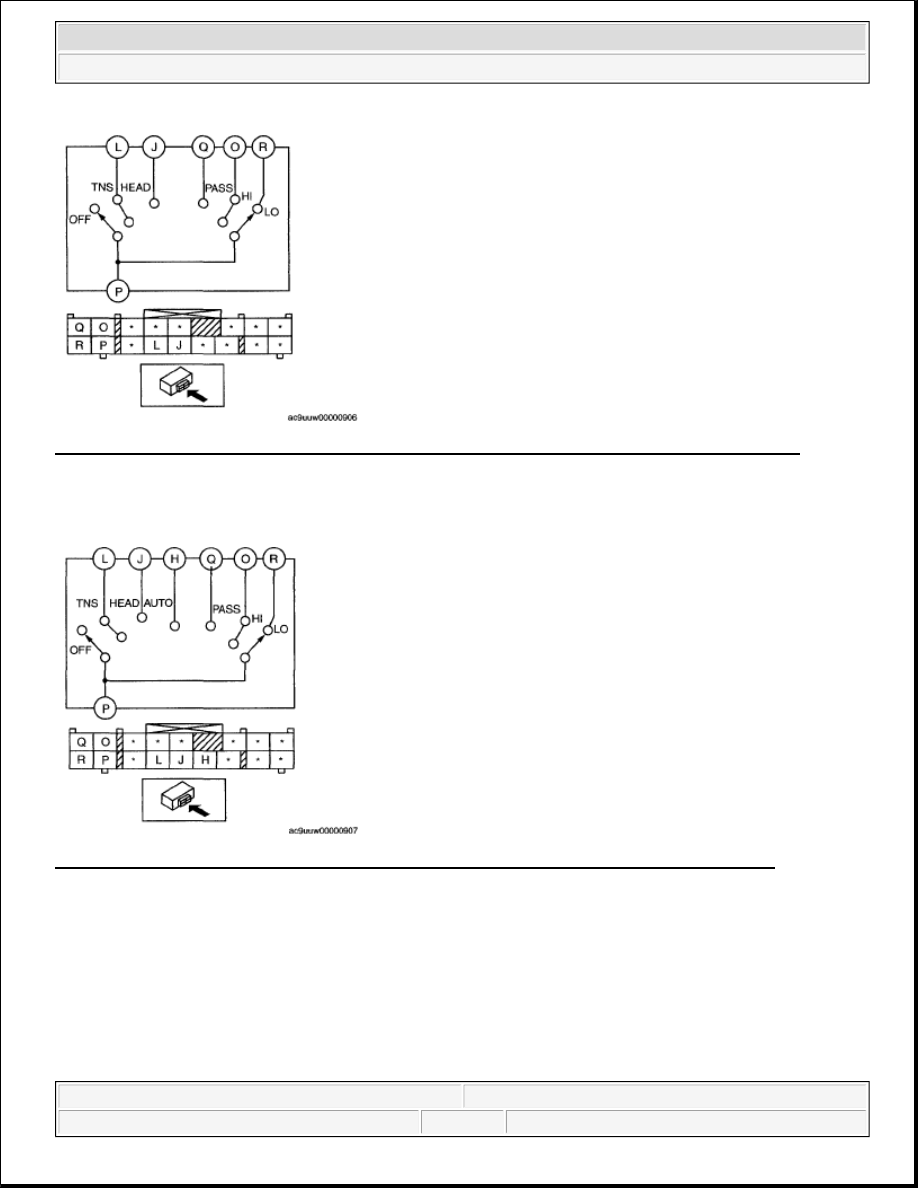

Fig. 36: Checking Continuity Between Headlight Switch Terminals (Vehicle Without Auto Light)
Courtesy of MAZDA MOTORS CORP.

HEADLIGHT SWITCH (VEHICLE WITH AUTO LIGHT)

Fig. 37: Checking Continuity Between Headlight Switch Terminals (Vehicle With Auto Light)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

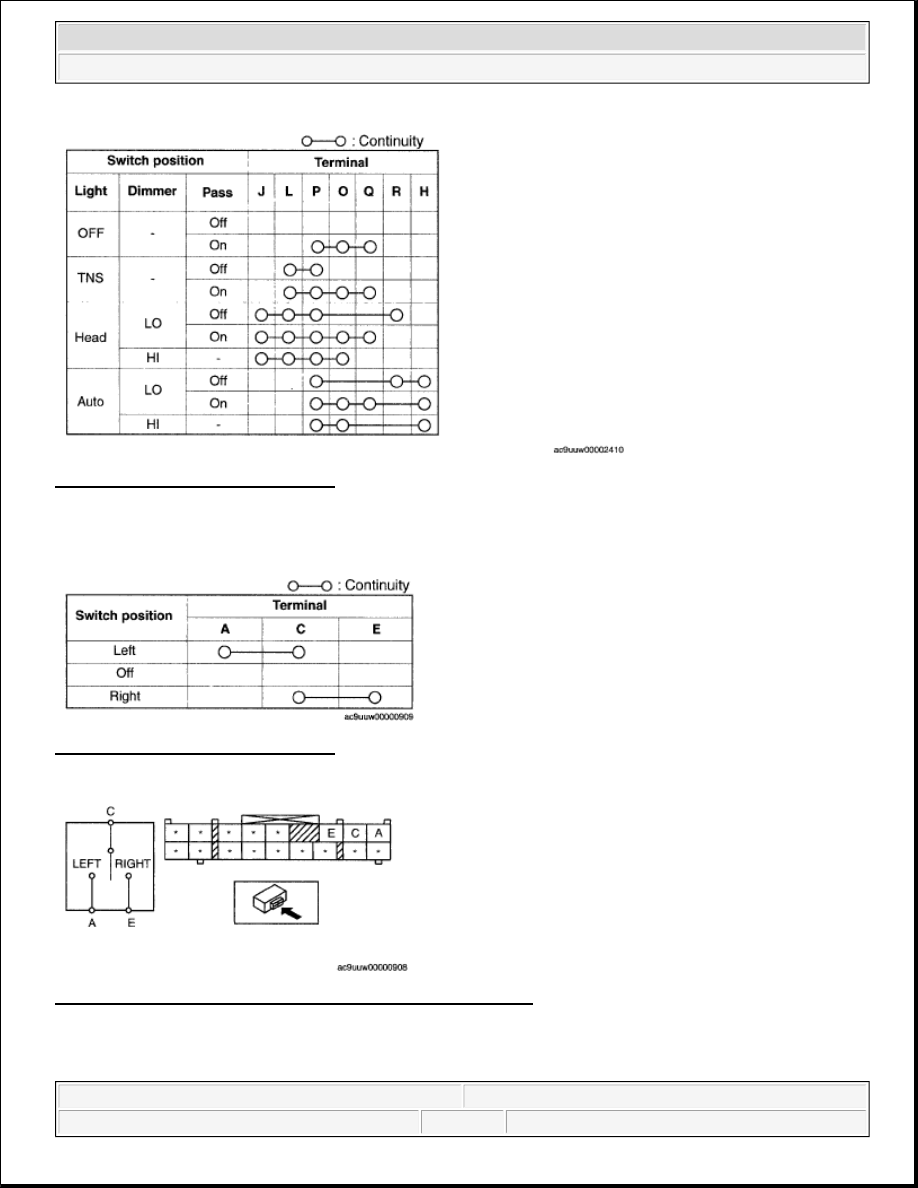

Fig. 38: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

TURN SWITCH

Fig. 39: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 40: Checking Continuity Between Turn Switch Terminals
Courtesy of MAZDA MOTORS CORP.

FRONT FOG LIGHT SWITCH INSPECTION
