Fig. 14: Identifying Front Turn Light Bulb & Socket
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

FRONT FOG LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.

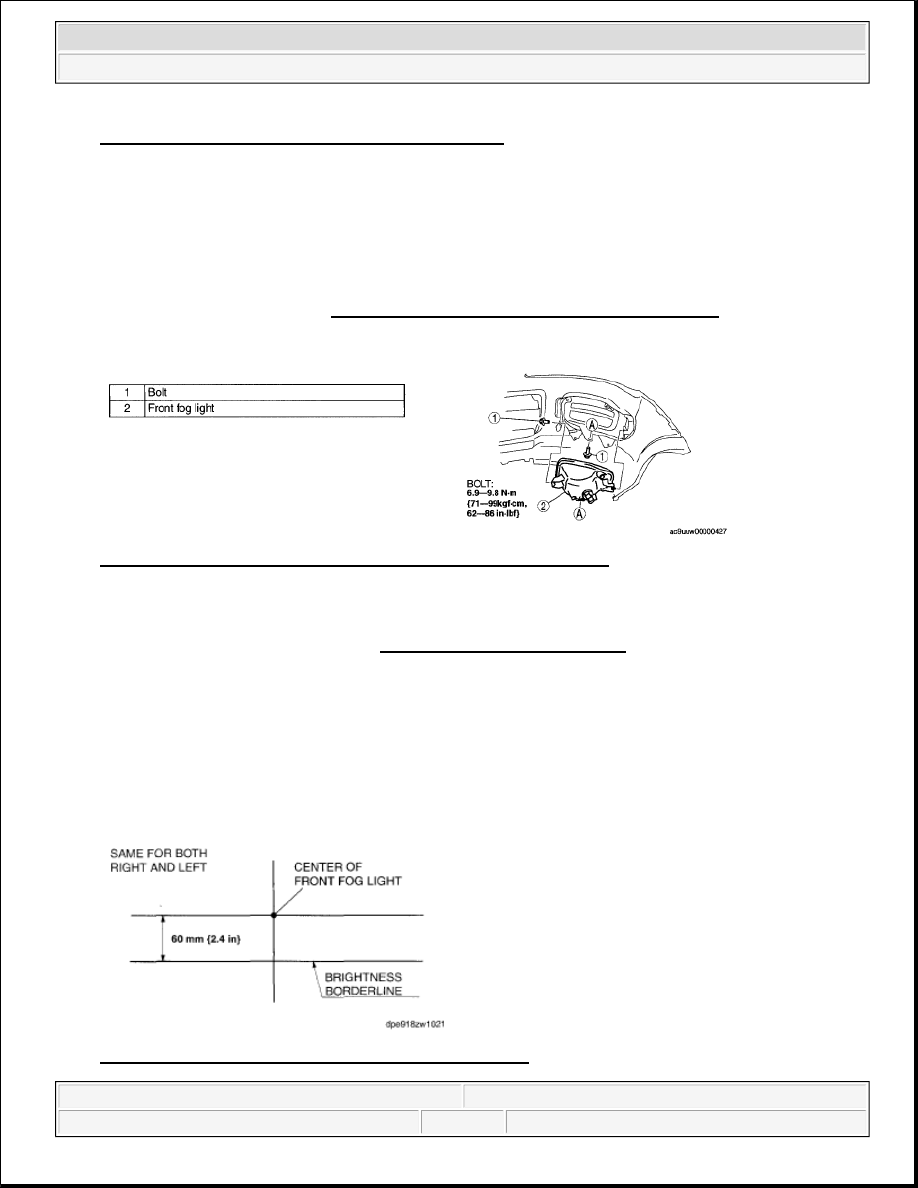

Fig. 15: Identifying Front Fog Light, Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

5. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

FRONT FOG LIGHT AIMING

1. Make a front fog light adjustment screen as shown in the figure using double-weight, white paper.

2. Adjust the tire pressure to the specification.

3. Position the unloaded vehicle on a flat, level surface.

4. Seat one person in the driver's seat.

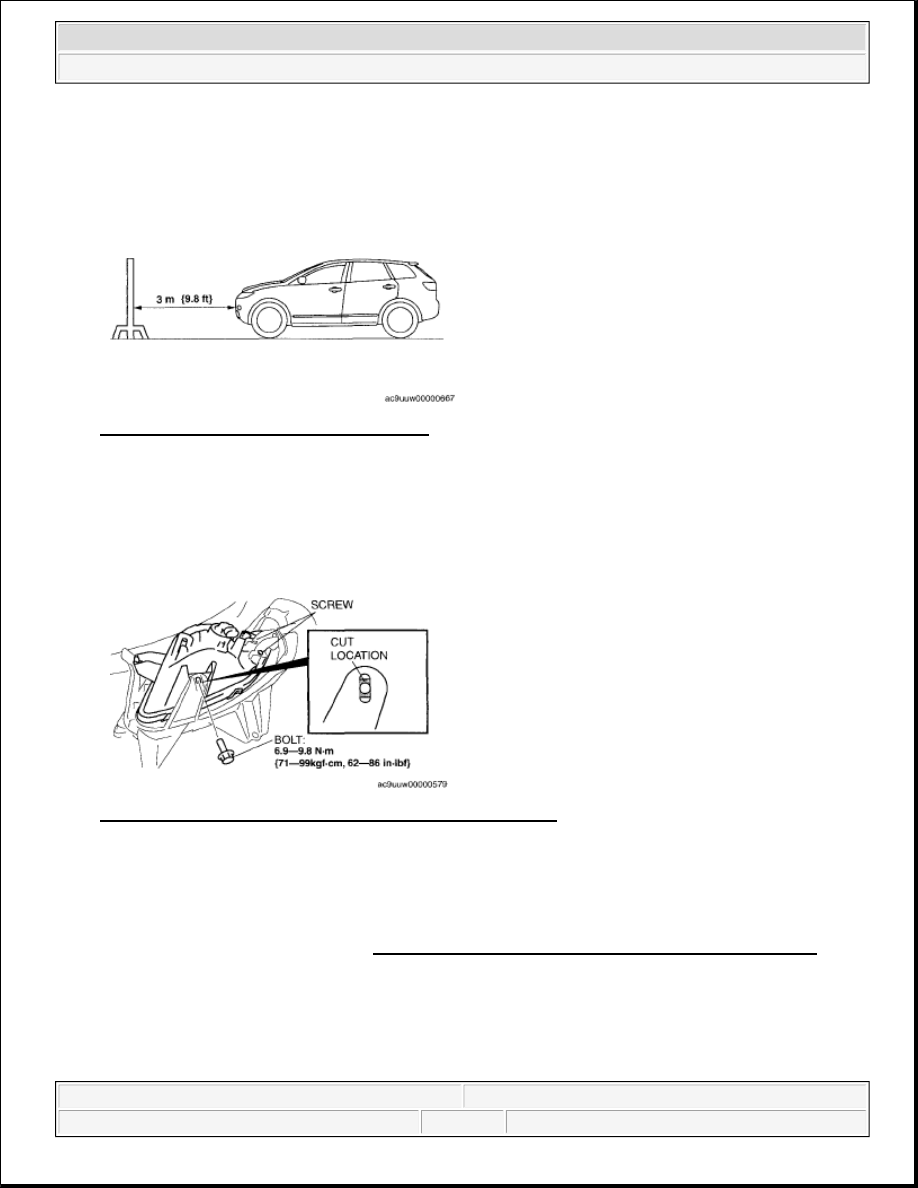

Fig. 16: Identifying Front Fog Light Adjustment Screen
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:39:06 AM

Page 13

5. Line up the front fog lights with the white screen at a distance of 3 m {9.8 ft} apart.

6. Place an object in front of the fog light not being adjusted to block its light beam.

7. Start the engine so that the battery remains charged.

8. Turn the front fog lights on.

Fig. 17: Adjusting Front Fog Light Aiming
Courtesy of MAZDA MOTORS CORP.

9. Remove the adjusting bolt and cut the front fog light hole cover at the position shown in the figure.

10. Loosen the screw, move the front fog light in the direction of the arrows, and adjust the center of the front

fog light to the position shown in the figure.

11. Install the adjusting bolt and tighten the screw.

Fig. 18: Identifying Adjusting Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front undercover B. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:39:06 AM

Page 14

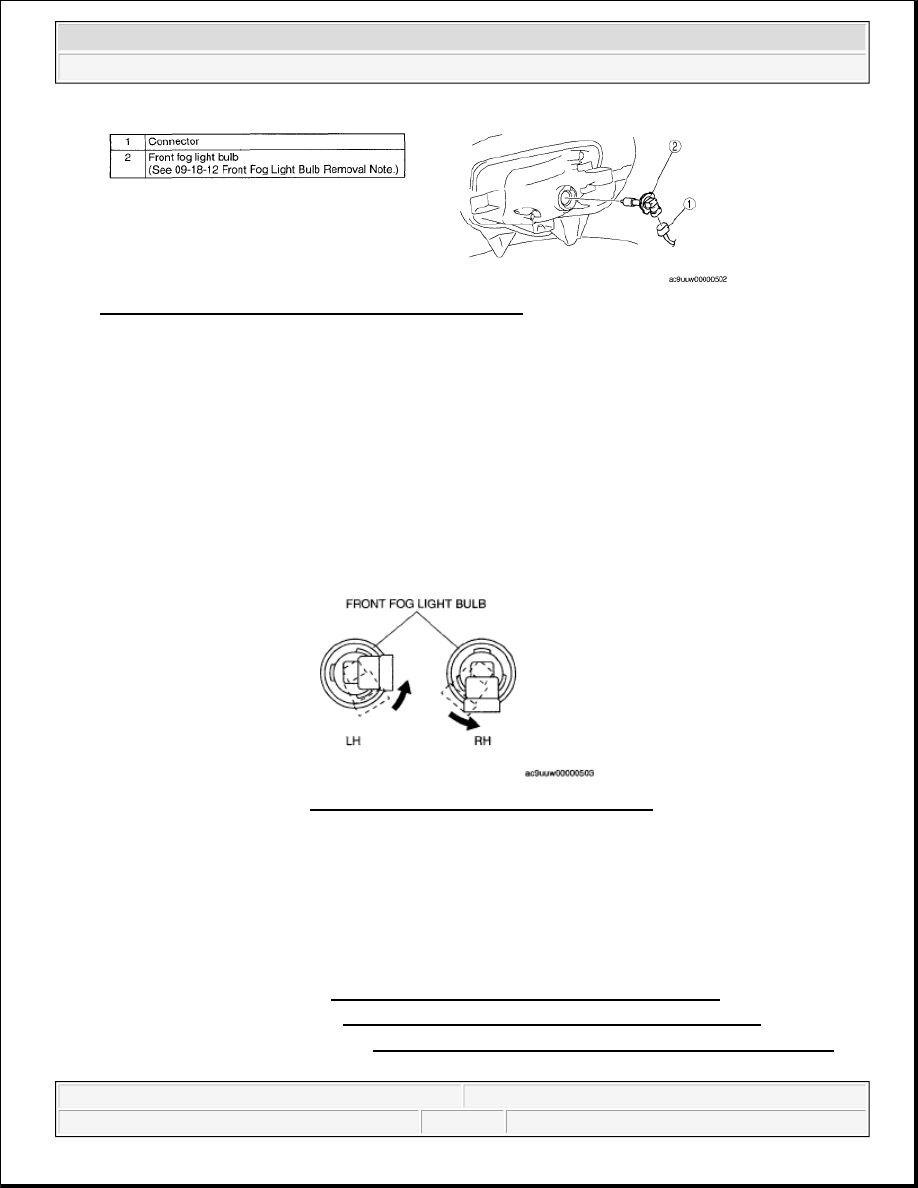

Fig. 19: Identifying Front Fog Light Bulb & Connector
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

FRONT FOG LIGHT BULB REMOVAL NOTE

1. Remove the front fog light bulb by turning it in the direction shown by the arrow.

FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)

3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

4. Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

5. Install in the reverse order of removal.

CAUTION:



A halogen bulb generates extremely high heat when it is
illuminated. If the surface of the bulb is soiled, excessive heat
will build up and the life of the bulb will be shortened. When
handling the bulb, hold the flange, not the glass.

Fig. 20: Identifying Front Fog Light Bulb
Courtesy of MAZDA MOTORS CORP.

NOTE:



Front side turn lights are integrated with the power outer mirror.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:39:06 AM

Page 15

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

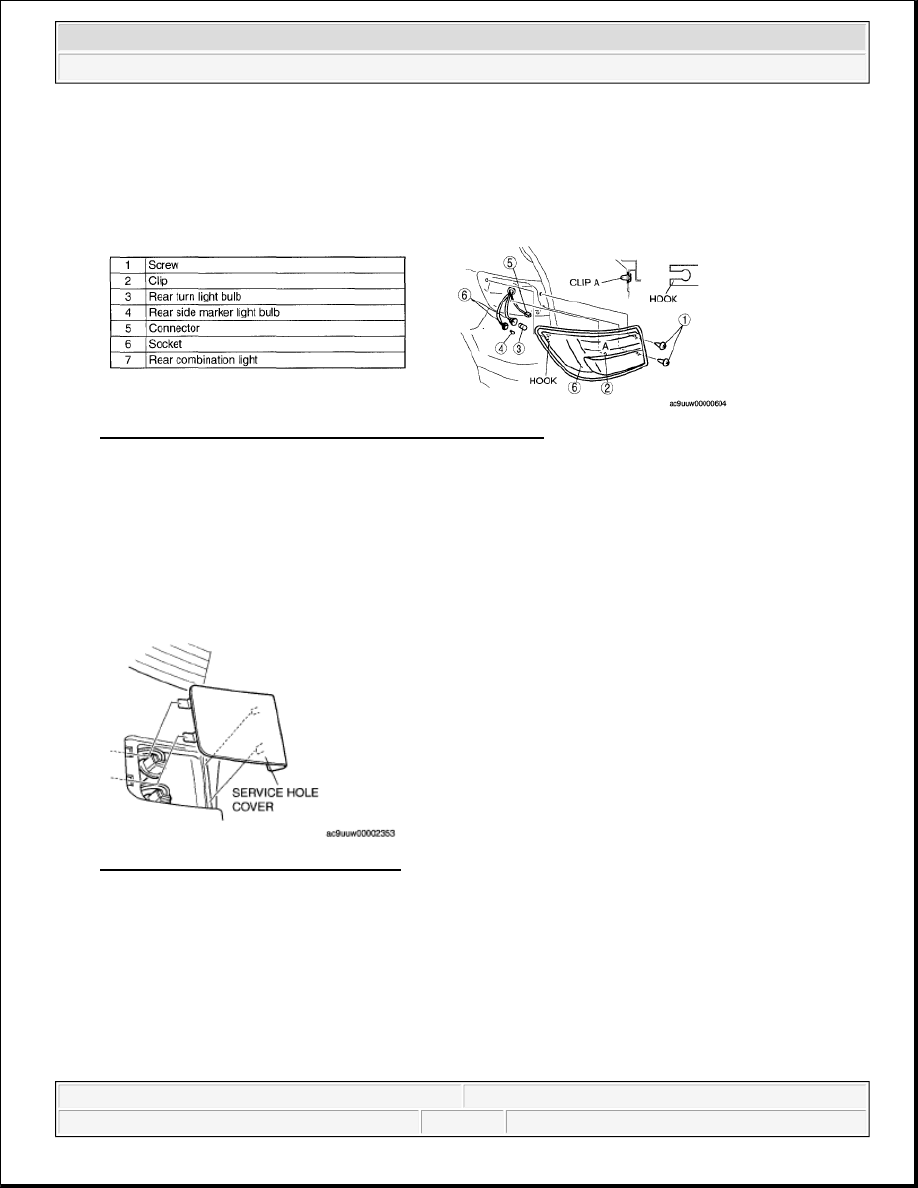

Fig. 21: Identifying Rear Combination Light Components
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

INBOARD LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the service hole cover.

Fig. 22: Identifying Service Hole Cover
Courtesy of MAZDA MOTORS CORP.

3. Remove in the order indicated in the table.
