3. Remove in the order indicated in the table.

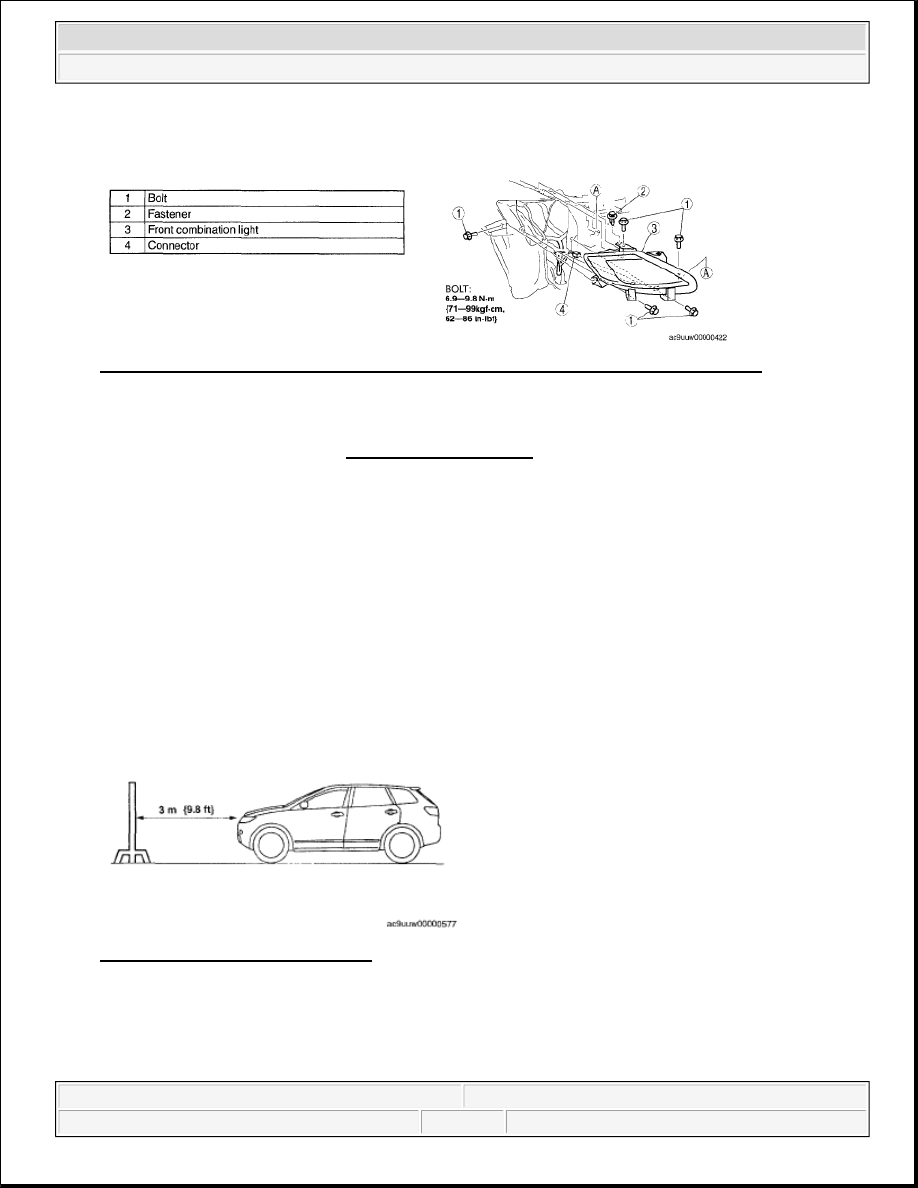

Fig. 4: Identifying Front Combination Light, Connector, Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

5. Adjust the headlight aiming. (See HEADLIGHT AIMING.)

HEADLIGHT AIMING

1. Adjust the tire pressure to the specification.

2. Position the unloaded vehicle on a flat, level surface.

3. Seat one person in the driver's seat.

4. Position the vehicle straight ahead and perpendicular to the white screen.

5. Set the headlights 3 m {9.8 ft} from the white screen.

6. Place an object in front of the headlight not being adjusted to block its light beam.

7. Start the engine so that the battery remains charged.

8. Turn on the low-beam headlight.

9. Set the headlight leveling switch to the 0 position. (Vehicles with headlight leveling switch)

Fig. 5: Adjusting Headlight Aiming
Courtesy of MAZDA MOTORS CORP.

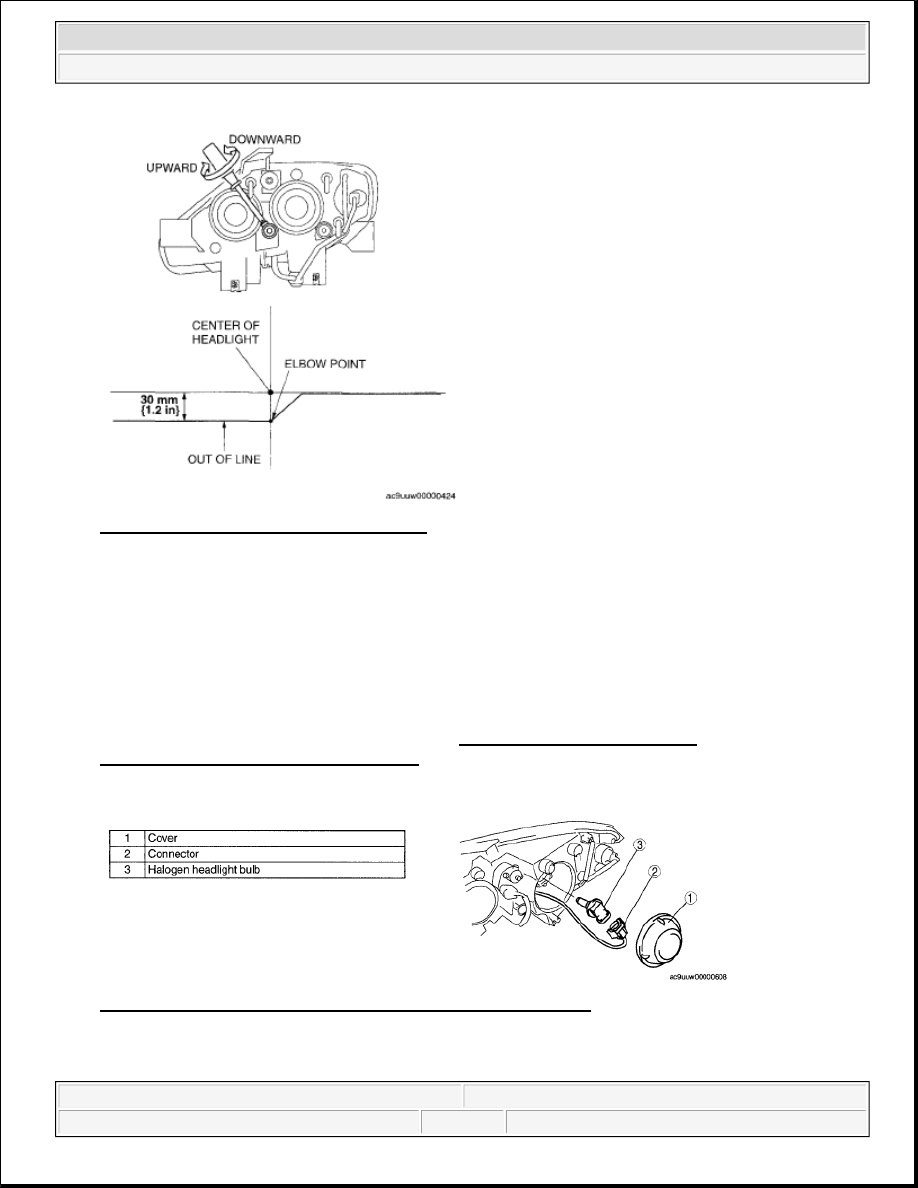

10. Adjust by turning the aiming adjustment screw so that elbow point is in the position shown in the figure.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:05 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

Fig. 6: Turning Aiming Adjustment Screw
Courtesy of MAZDA MOTORS CORP.

HEADLIGHT BULB REMOVAL/INSTALLATION

LOW-BEAM

Halogen type

1. Disconnect the negative battery cable.

2. Remove the coolant reserve tank. (RH only) (See COOLANT RESERVE TANK

REMOVAL/INSTALLATION [MZI-3.7] .)

3. Remove in the order indicated in the table.

Fig. 7: Identifying Halogen Headlight Bulb, Connector & Cover
Courtesy of MAZDA MOTORS CORP.

CAUTION:

A halogen bulb generates extremely high heat when it is



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:05 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

4. Install in the reverse order of removal.

Discharge type

1. Disconnect the negative battery cable.

2. Remove the coolant reserve tank. (RH only) (See COOLANT RESERVE TANK

REMOVAL/INSTALLATION [MZI-3.7] .)

3. Remove in the order indicated in the table.

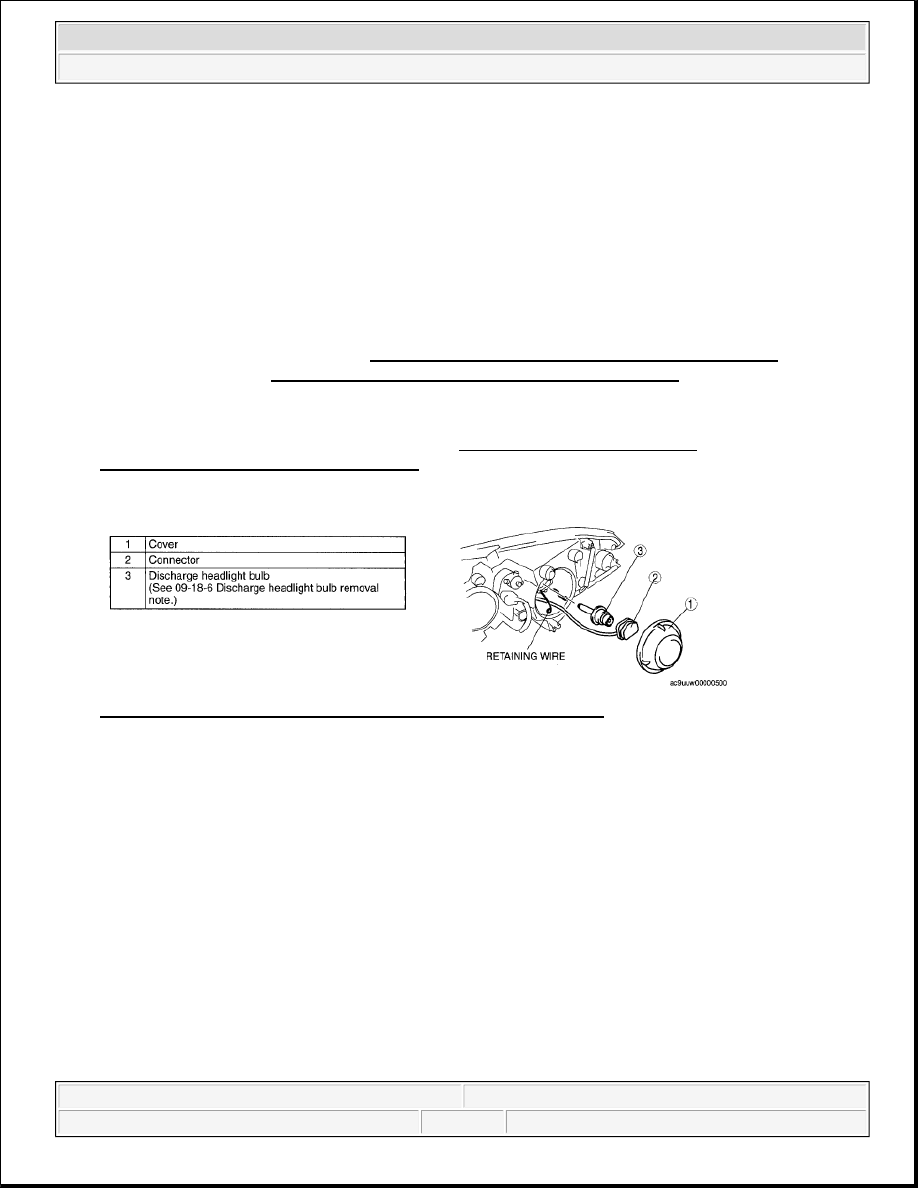

Fig. 8: Identifying Discharge Headlight Bulb, Connector & Cover
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

Discharge headlight bulb removal note

1. Press sections A to release the bulb retaining wire and remove the discharge headlight bulb.

illuminated. If the surface of the bulb is soiled, excessive heat
will build up and the life of the bulb will be shortened. When
replacing the bulb, hold the metal flange, not the glass.

WARNING:

Incorrect servicing of the discharge headlights could result in
electrical shock. Before servicing the discharge headlights, always
refer to the DISCHARGE HEADLIGHT SERVICE WARNINGS. (See
DISCHARGE HEADLIGHT SERVICE WARNINGS.)

CAUTION:

The bulb generates extremely high heat when it is illuminated. If
the surface of the bulb is soiled, excessive heat will build up
and the life of the bulb will be shortened. When replacing the
bulb, hold the metal flange, not the glass.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:05 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

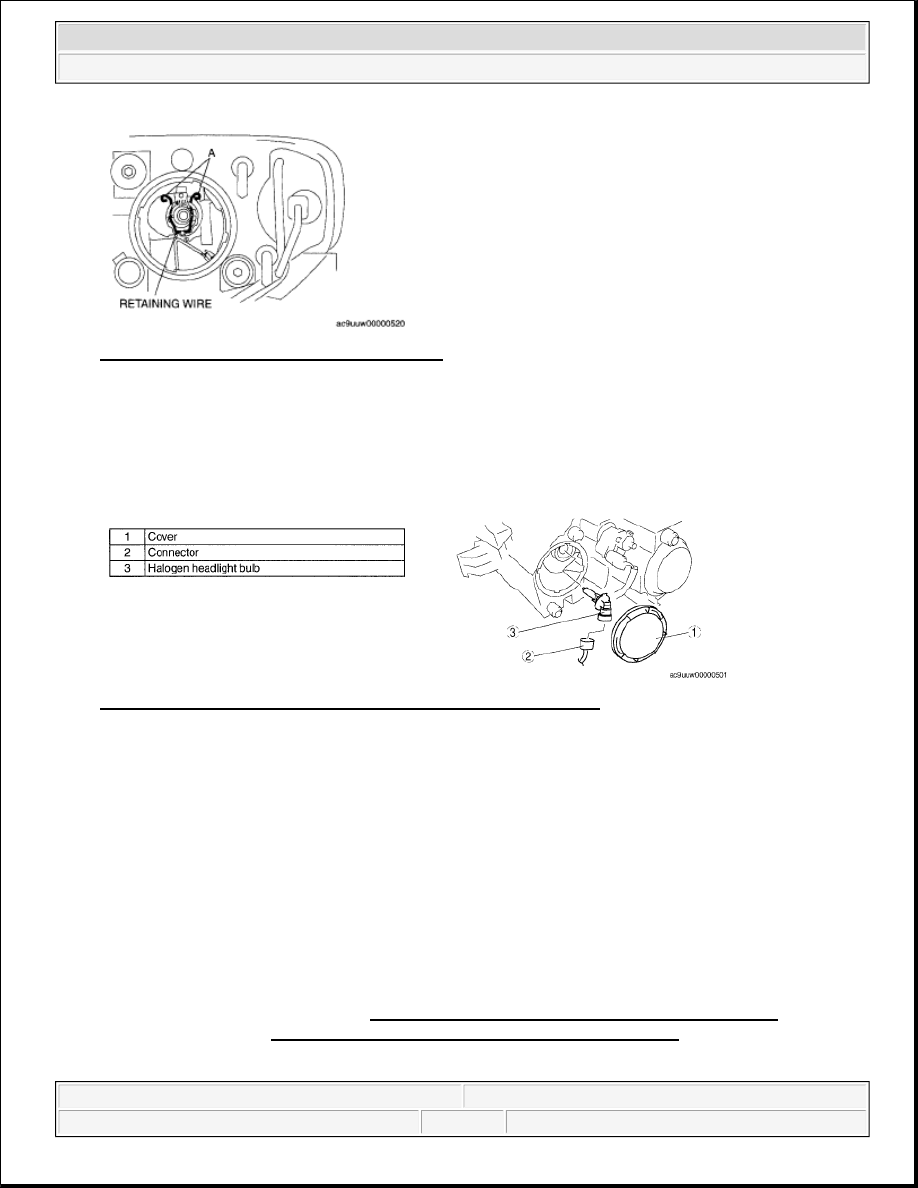

Fig. 9: Identifying Discharge Headlight Bulb
Courtesy of MAZDA MOTORS CORP.

HIGH-BEAM

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

Fig. 10: Identifying Halogen Headlight Bulb, Connector & Cover
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

CAUTION:

A halogen bulb generates extremely high heat when it is
illuminated. If the surface of the bulb is soiled, excessive heat
will build up and the life of the bulb will be shortened. When
replacing the bulb, hold the metal flange, not the glass.

WARNING:

Incorrect servicing of the discharge headlights could result in
electrical shock. Before servicing the discharge headlights, always
refer to the DISCHARGE HEADLIGHT SERVICE WARNINGS. (See
DISCHARGE HEADLIGHT SERVICE WARNINGS.)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:05 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.
