Mazda CX-9 Grand Touring. Manual - part 97

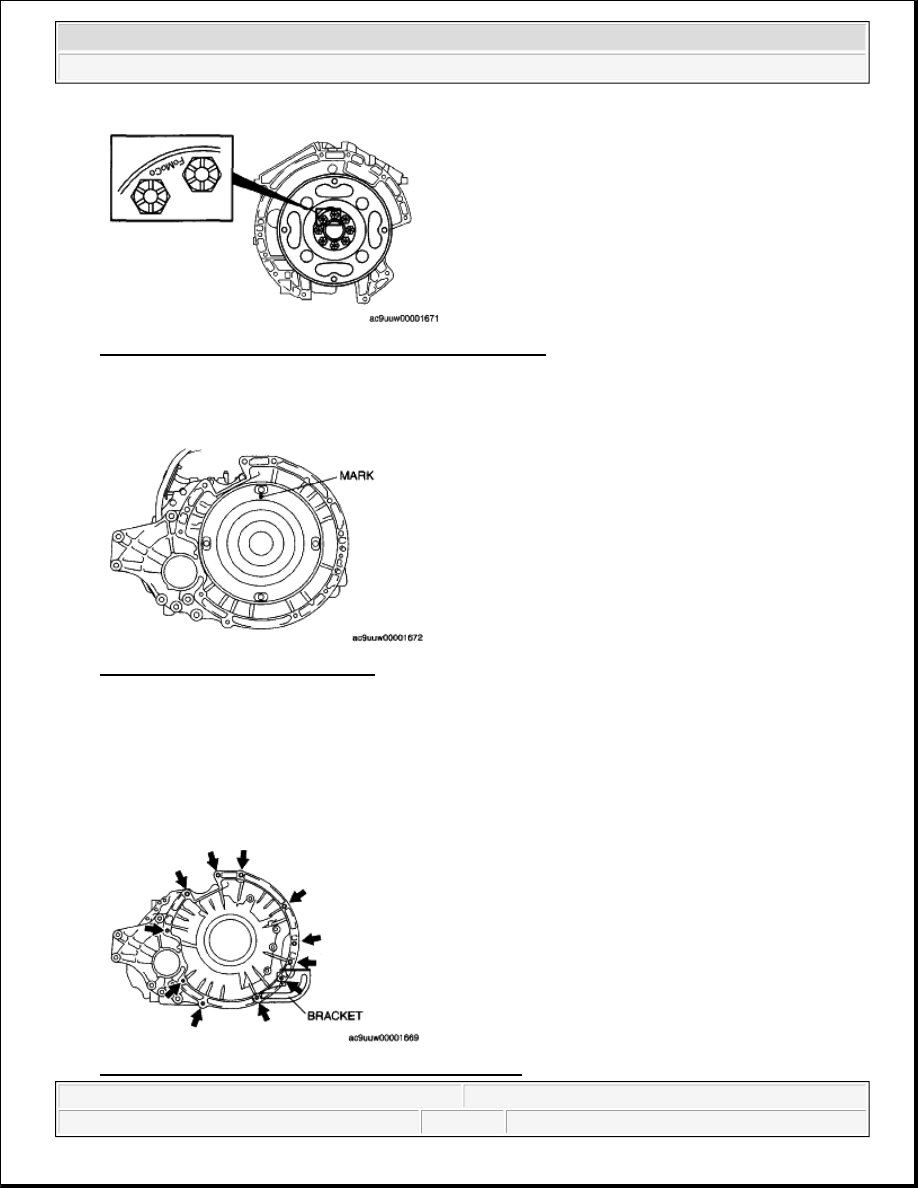

Fig. 68: Identifying Drive Plate Logo Mark Faces Upward
Courtesy of MAZDA MOTORS CORP.

3. Rotate the torque converter so that the mark faces upward.

Fig. 69: Rotating Torque Converter
Courtesy of MAZDA MOTORS CORP.

4. Install the transaxle mounting bolts and bracket.

Tightening torque

37-52 N.m {3.8-5.3 kgf.m, 28-38 ft.lbf}

Fig. 70: Locating Transaxle Mounting Bolts & Bracket



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 57

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

NO.4 ENGINE MOUNT BRACKET INSTALLATION NOTE

1. Install the No.4 engine mount bracket to the transaxle and temporarily tighten nuts.

2. Temporarily tighten bolt.

3. Temporarily tighten bolt A and nuts B, C.

4. Tighten bolt A, nuts B and C in the order of B-->A-->C.

5. Tighten bolt D.

Tightening torque

Bolt A, Nut B, C: 66.6-93.1 N.m {6.80-9.49 kgf.m, 49.2-68.6 ft.lbf}

Bolt D: 74.5-104.9 N.m {7.60-10.69 kgf.m, 55.0-77.3 ft.lbf}

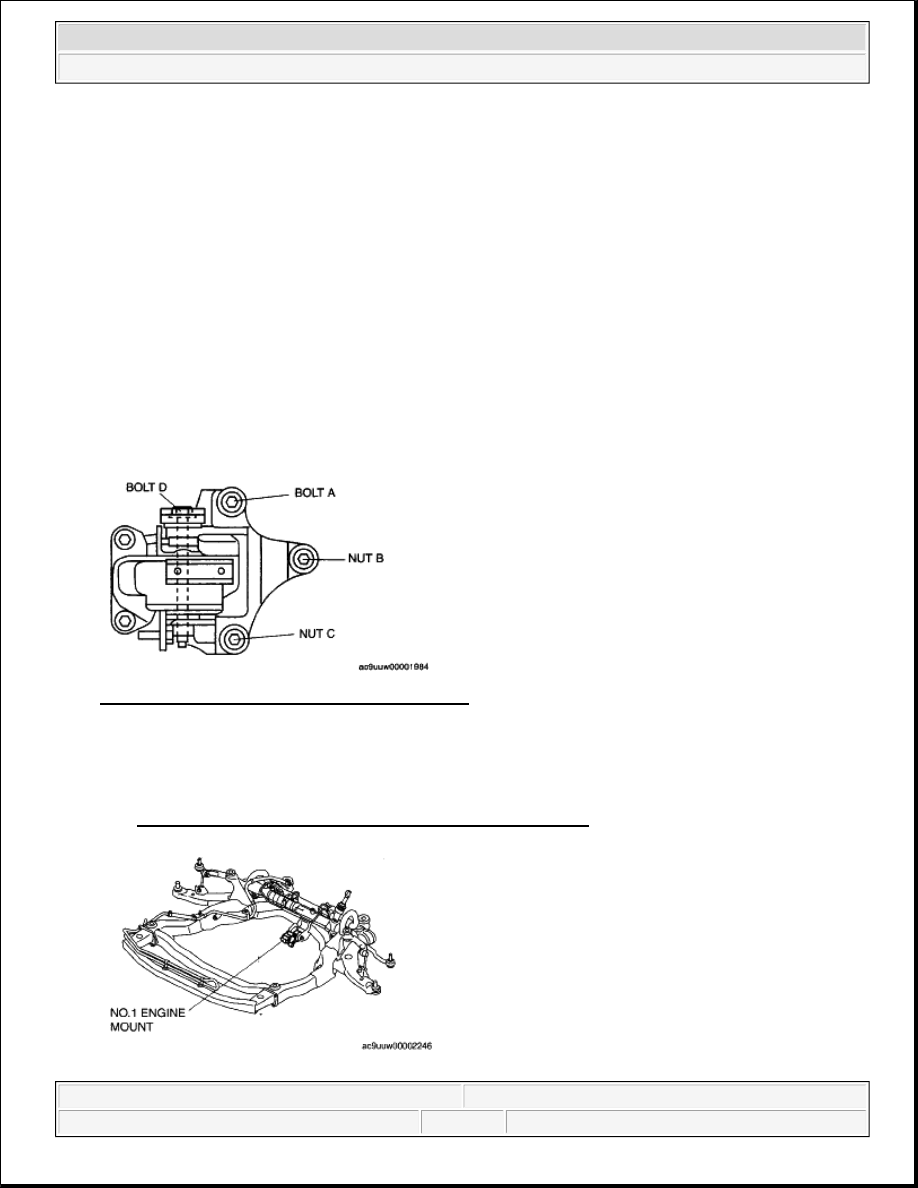

Fig. 71: Identifying No.4 Engine Mount Bracket
Courtesy of MAZDA MOTORS CORP.

NO.1 ENGINE MOUNT INSTALLATION NOTE

1. Install the No.1 engine mount, No.1 engine mount bracket and the front crossmember as a single unit.

(See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)

Fig. 72: Identifying No.1 Engine Mount



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 58

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

2. Tighten the bolts on the No.1 engine mounting bracket in the order of A, B.

Tightening torque

93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

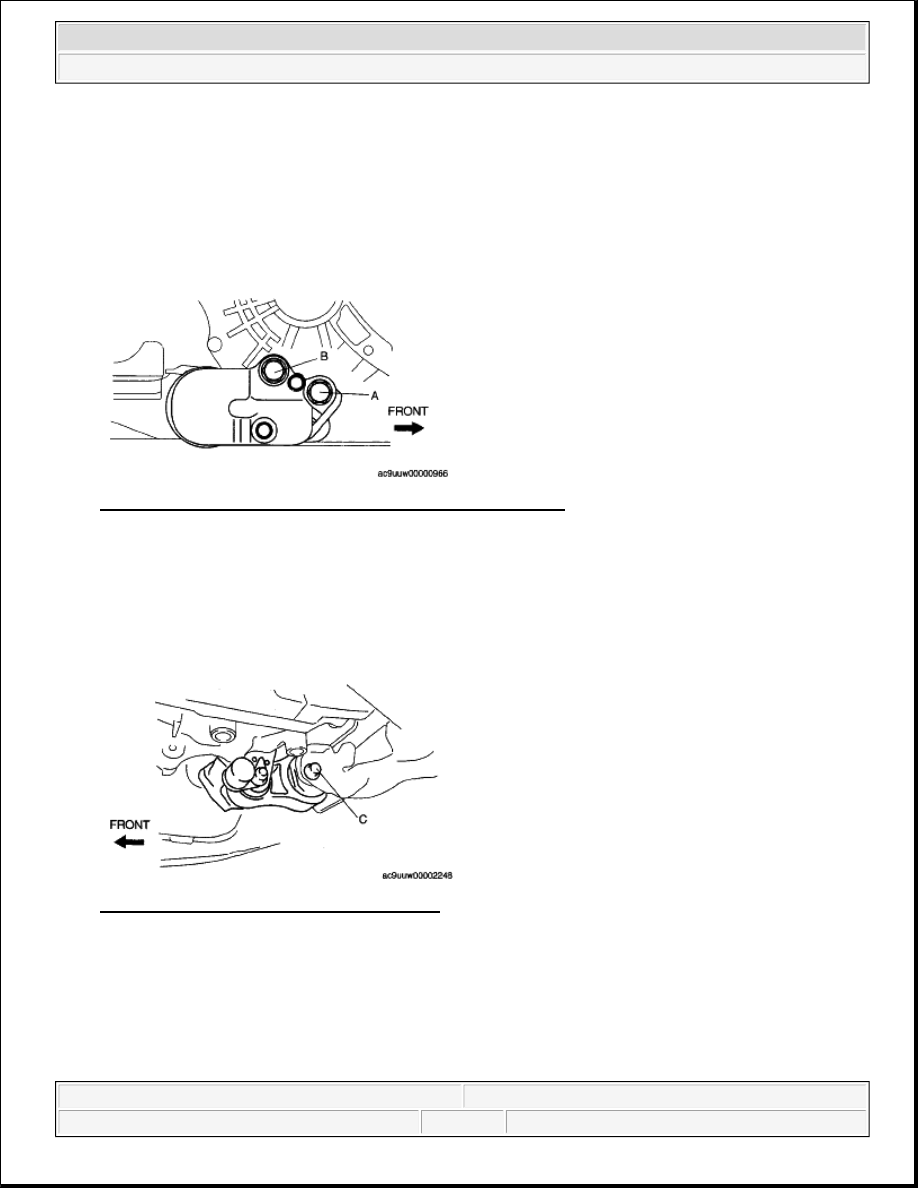

Fig. 73: Identifying Bolts On No.1 Engine Mounting Bracket
Courtesy of MAZDA MOTORS CORP.

3. Tighten the No.1 engine mount bolt C at the specified torque.

Tightening torque

93.1-116.6 N.m {9.50-11.8 kgf.m, 68.7-85.9 ft.lbf}

Fig. 74: Identifying No.1 Engine Mount Bolt
Courtesy of MAZDA MOTORS CORP.

TORQUE CONVERTER NUTS INSTALLATION NOTE

1. Align the holes by turning the torque converter.

2. Insert a screwdriver through the converter housing service hole, and lock the drive plate.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 59

© 2005 Mitchell Repair Information Company, LLC.

3. Tighten the torque converter mounting nuts.

Tightening torque

40.5-54.7 N.m {4.13-5.57 kgf.m, 29.9-40.3 ft.lbf}

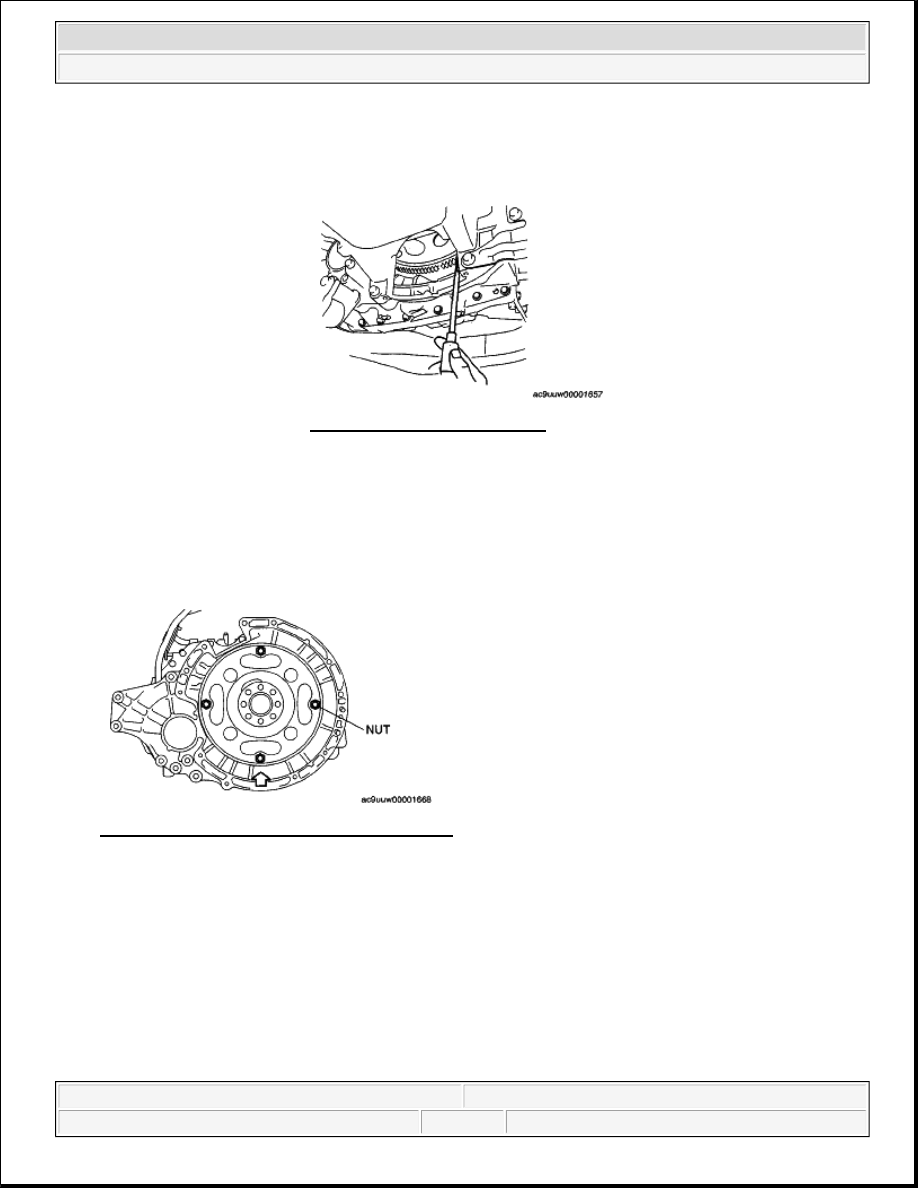

Fig. 76: Identifying Converter Mounting Nuts
