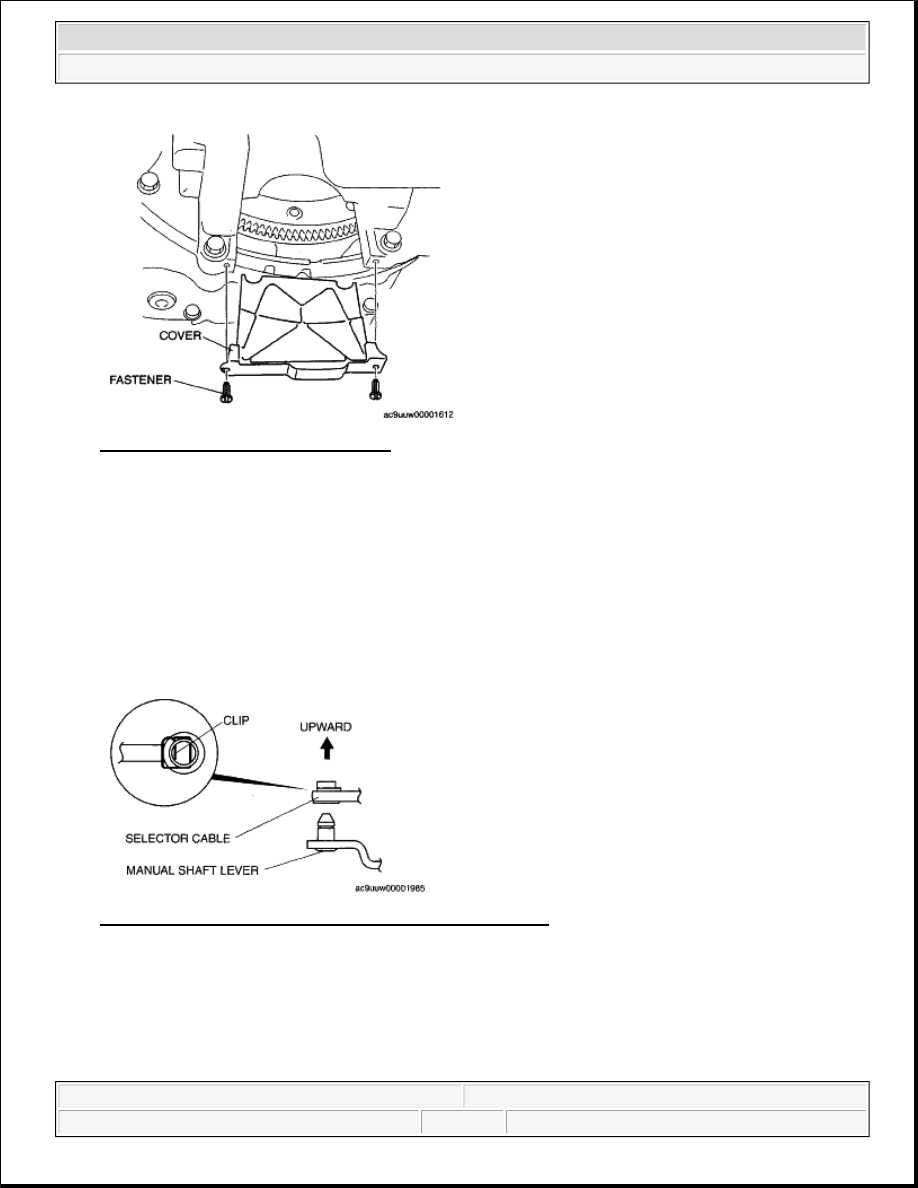

Fig. 77: Identifying Fastener & Cover
Courtesy of MAZDA MOTORS CORP.

SELECTOR CABLE INSTALLATION NOTE

1. Install the selector lever to the manual shaft lever so that no load acts on the selector cable.

2. Confirm that the tip of the manual shaft lever projects out of the end of the selector cable.

Fig. 78: Identifying Selector Lever To Manual Shaft Lever
Courtesy of MAZDA MOTORS CORP.

OIL SEAL (DIFFERENTIAL) REPLACEMENT [AW6A-EL, AW6AX-EL]

TRANSAXLE CASE SIDE

1. Disconnect the negative battery cable.

NOTE:



Install the selector lever to the manual shaft lever with the clip side of
the selector cable end facing up.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 61

© 2005 Mitchell Repair Information Company, LLC.

2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL,

AW6AX-EL].)

3. Remove the drive shaft (left side). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)

4. Remove the oil seal lip using a razor.

5. Remove and discard the oil seal using a tape-wrapped flathead screwdriver.

6. Using the SST and a hammer, tap a new oil seal so that the specified oil seal position is obtained.

Substitution SST



49 H028 202

Outer diameter: 54.5-61 mm {2.15-2.40 in}

Inner diameter: 52 mm {2.05 in} or more

Plate thickness: 2 mm {0.08 in} or more

7. Install the drive shaft (left side). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)

8. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT

CAUTION:



The oil seal is easily damaged by the sharp edges of the drive
shaft splines. Do not let the splines contact the oil seal.

CAUTION:



Do not damage the transaxle case.



Do not damage the differential case.

CAUTION:



Do not damage the oil seal.

Fig. 79: Removing Oil Seal
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 62

© 2005 Mitchell Repair Information Company, LLC.

[AW6A-EL, AW6AX-EL].)

9. Connect the negative cable.

10. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [AW6A-EL, AW6AX-

EL].)

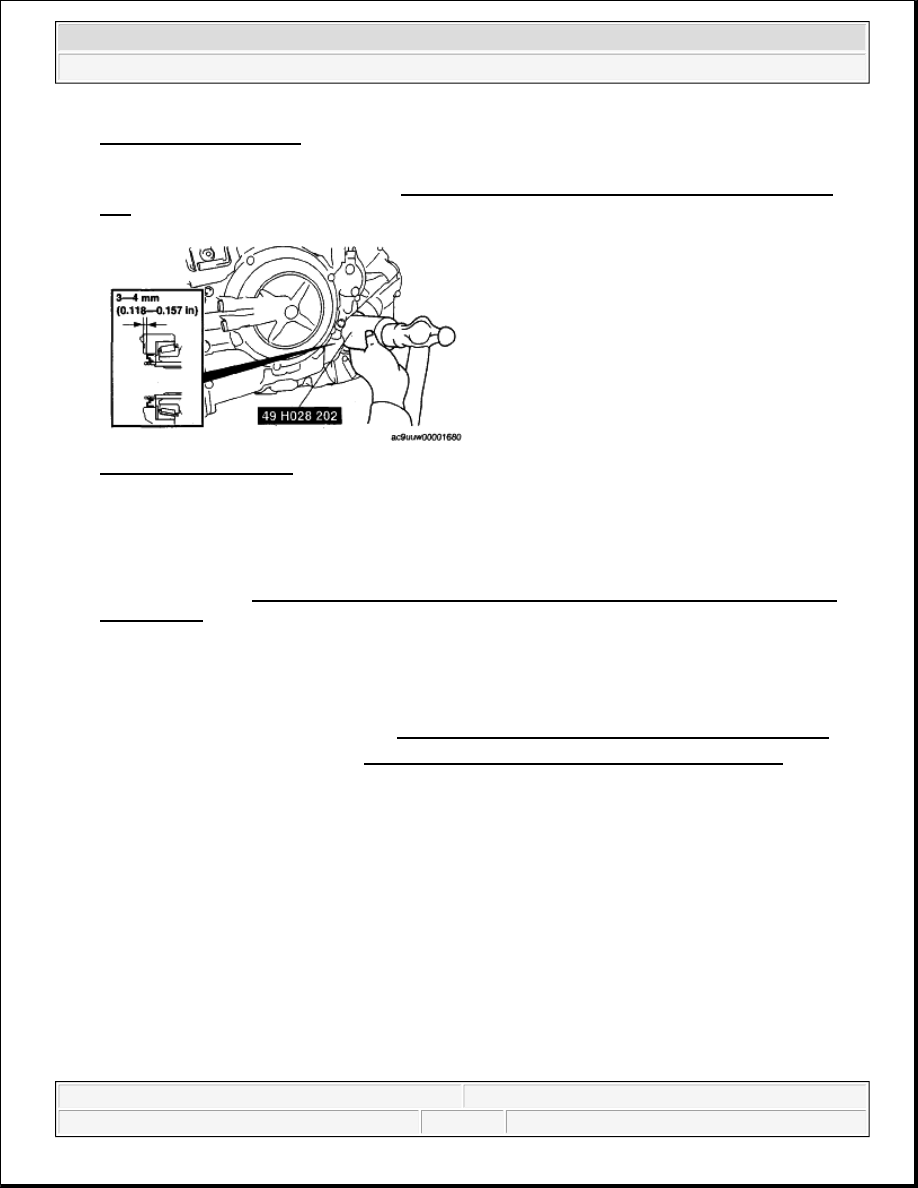

Fig. 80: Tapping Oil Seal
Courtesy of MAZDA MOTORS CORP.

CONVERTER HOUSING SIDE (2WD)

1. Disconnect the negative battery cable.

2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL,

AW6AX-EL].)

3. Remove the drive shaft (right side). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)

4. Remove the joint shaft. (2WD) (See JOINT SHAFT REMOVAL/INSTALLATION [2WD] .)

5. Remove the oil seal lip using a razor.

6. Remove and discard the oil seal using a tape-wrapped flathead screwdriver.

CAUTION:



The oil seal is easily damaged by the sharp edges of the drive
shaft splines. Do not let the splines contact the oil seal.

CAUTION:



Do not damage the converter housing.



Do not damage the differential case.

CAUTION:



Do not damage the oil seal.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 63

© 2005 Mitchell Repair Information Company, LLC.

7. Using the SST and a hammer, tap a new oil seal so that the specified oil seal position is obtained.

Substitution SST



49F027 009

Outer diameter: 76.8 mm {3.02 in}

Plate thickness: 2 mm {0.08 in} or more

8. Install the joint shaft. (2WD) (See JOINT SHAFT REMOVAL/INSTALLATION [2WD] .)

9. Install the drive shaft (right side). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)

10. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT

[AW6A-EL, AW6AX-EL].)

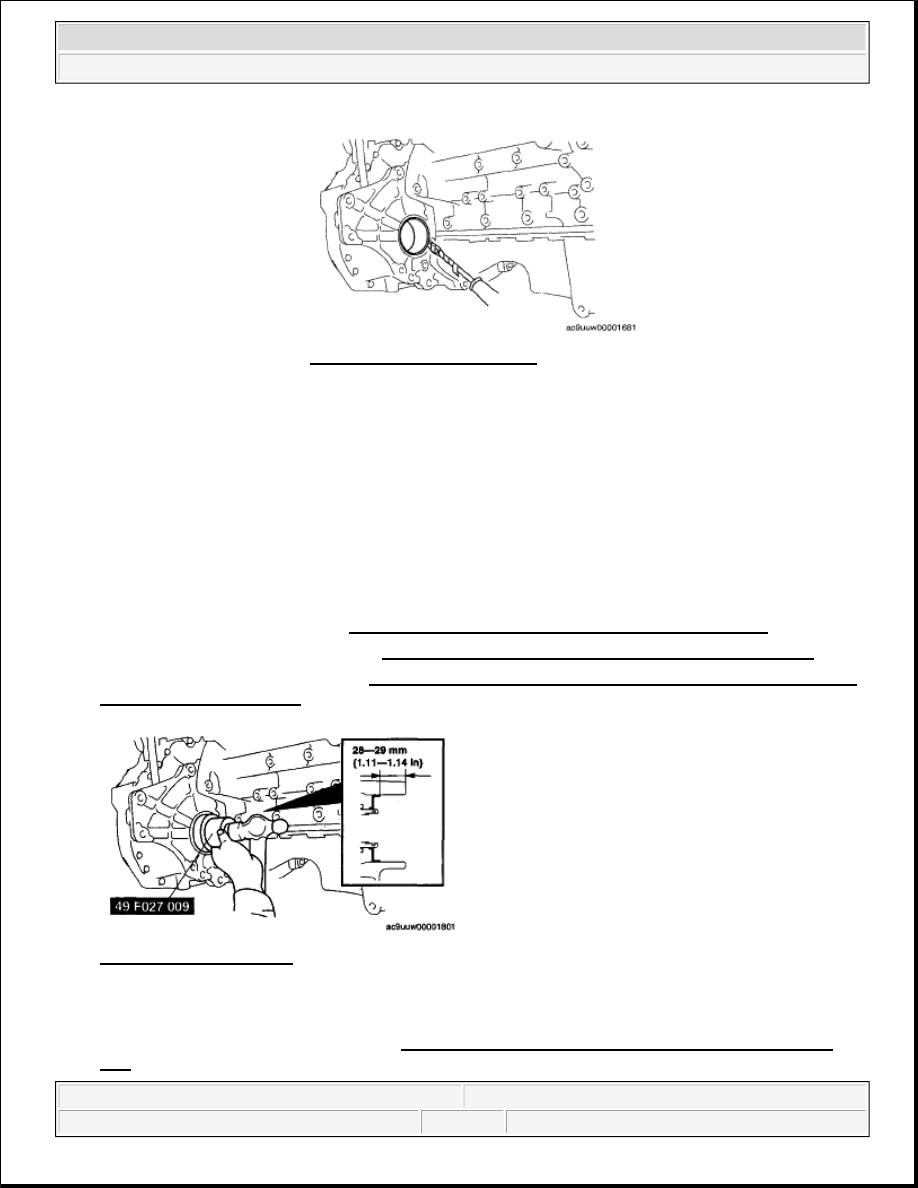

Fig. 82: Tapping Oil Seal
Courtesy of MAZDA MOTORS CORP.

11. Connect the negative cable.

12. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [AW6A-EL, AW6AX-

EL].)

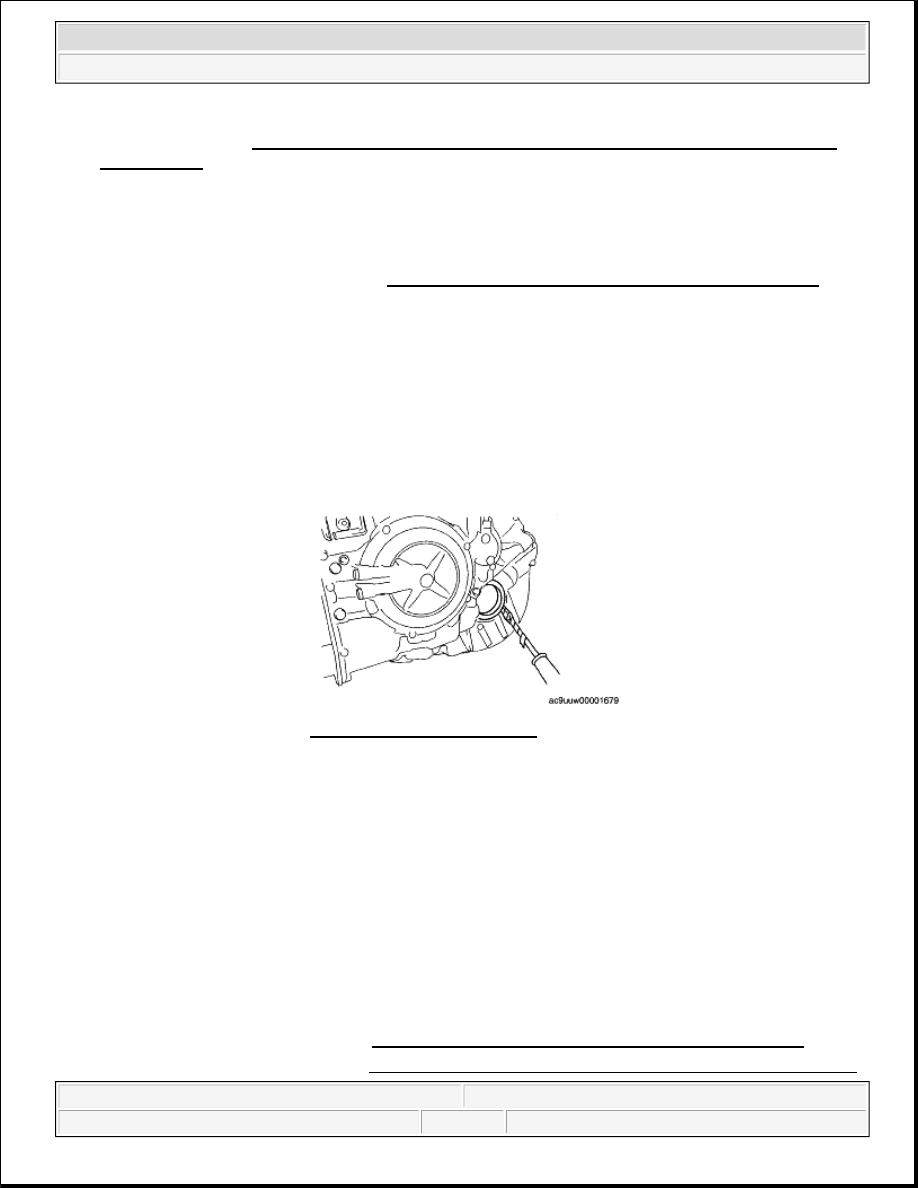

Fig. 81: Removing Oil Seal
Courtesy of MAZDA MOTORS CORP.
