Mazda CX-9 Grand Touring. Manual - part 95

Substitution SST



49 F026 102

Outer diameter: 27 mm {1.06 in} or more

Inner diameter: 15-18 mm {0.60-0.70 in}

6. Install the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

7. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

8. Connect the negative battery cable.

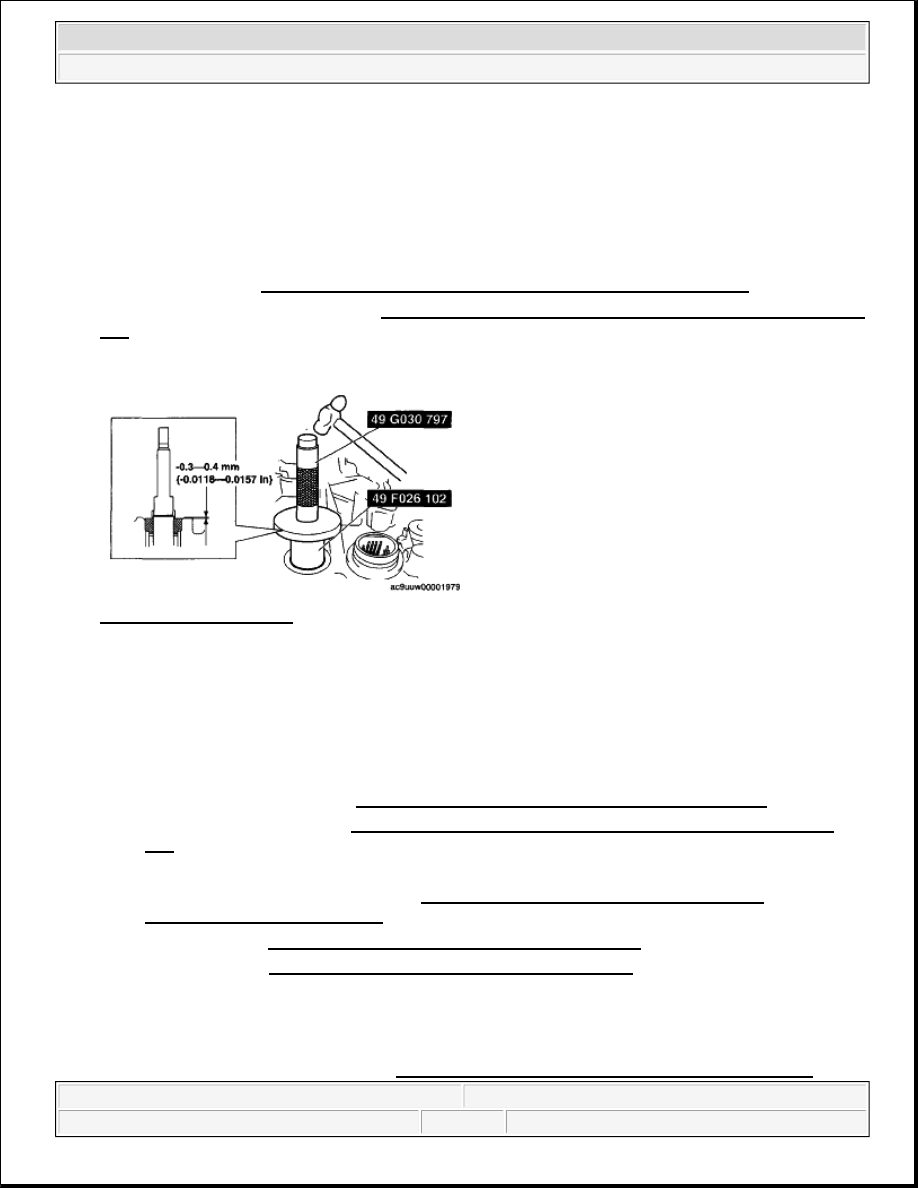

Fig. 55: Tapping Oil Seal
Courtesy of MAZDA MOTORS CORP.

AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AW6A-EL, AW6AX-
EL]

1. Disconnect the negative battery cable.

2. Remove the following parts.

1. Battery and battery tray (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)

2. Air cleaner component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

3. Engine cover

4. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

5. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)

6. Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)

7. Front wheel

8. Splash shield

9. Side cover

10. Propeller shaft (transfer side) (See PROPELLER SHAFT REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 49

© 2005 Mitchell Repair Information Company, LLC.

3. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL,

AW6AX-EL].)

4. Remove in the order shown in the figure.

5. Install in the reverse order of removal.

6. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT

[AW6A-EL, AW6AX-EL].)

7. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [AW6A-EL, AW6AX-

EL].)

LINE PRESSURE TEST REFERENCE

WARNING:



Improperly jacking a transaxle is dangerous. It can slip off the
jack and may cause serious injury.

CAUTION:



To prevent the torque converter and transaxle from separating,
remove the transaxle without tilting it toward the torque
converter.

Service item

Test item

Line pressure test Stall test Time lag test Time lag test

ATX replacement

X







ATX overhaul

X

X

X

X

Torque converter replacement

X

X





Oil pump replacement

X







Control valve body component

X







Clutch system replacement

X



X

X

X : Test to be performed after the service work



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

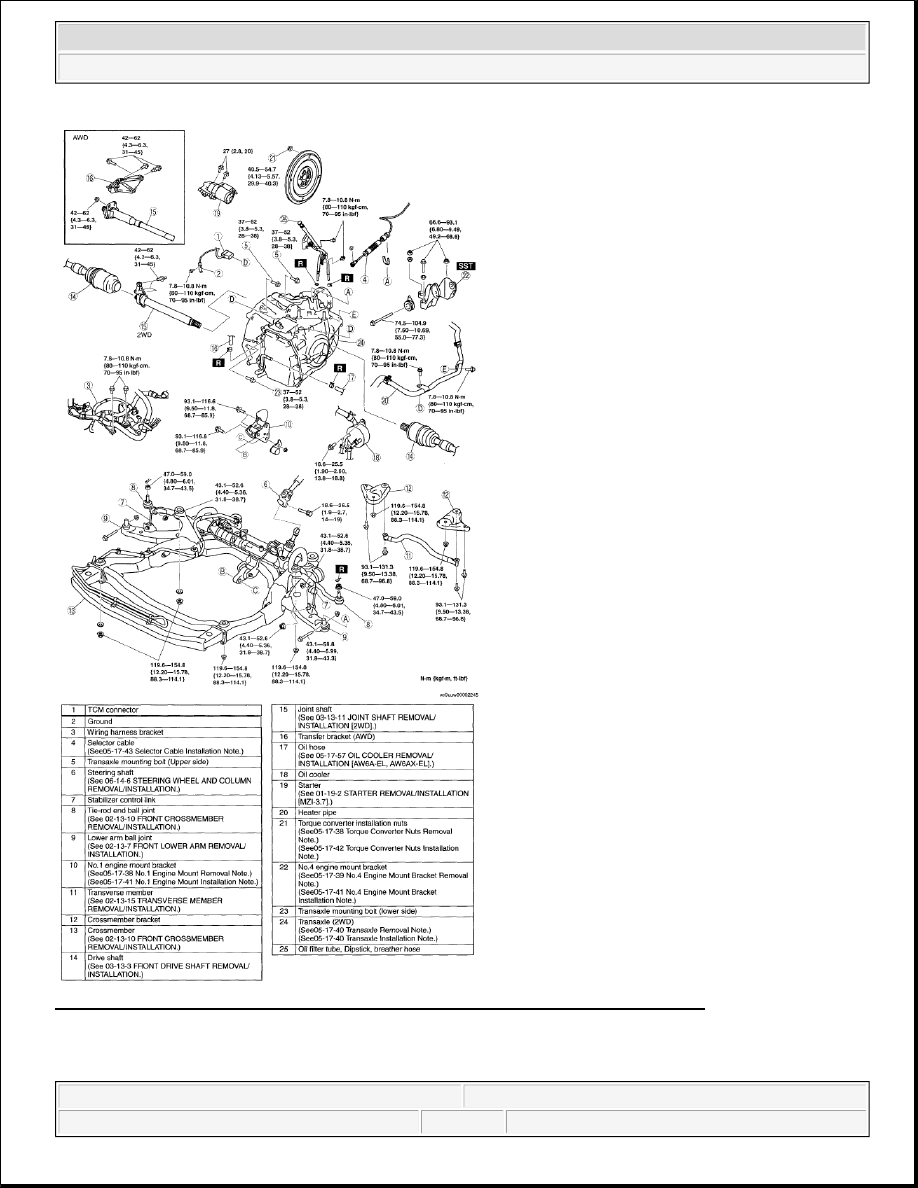

Fig. 56: View Of Automatic Transaxle Components & Torque Specifications (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

AWD



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:31 AM

Page 51

© 2005 Mitchell Repair Information Company, LLC.

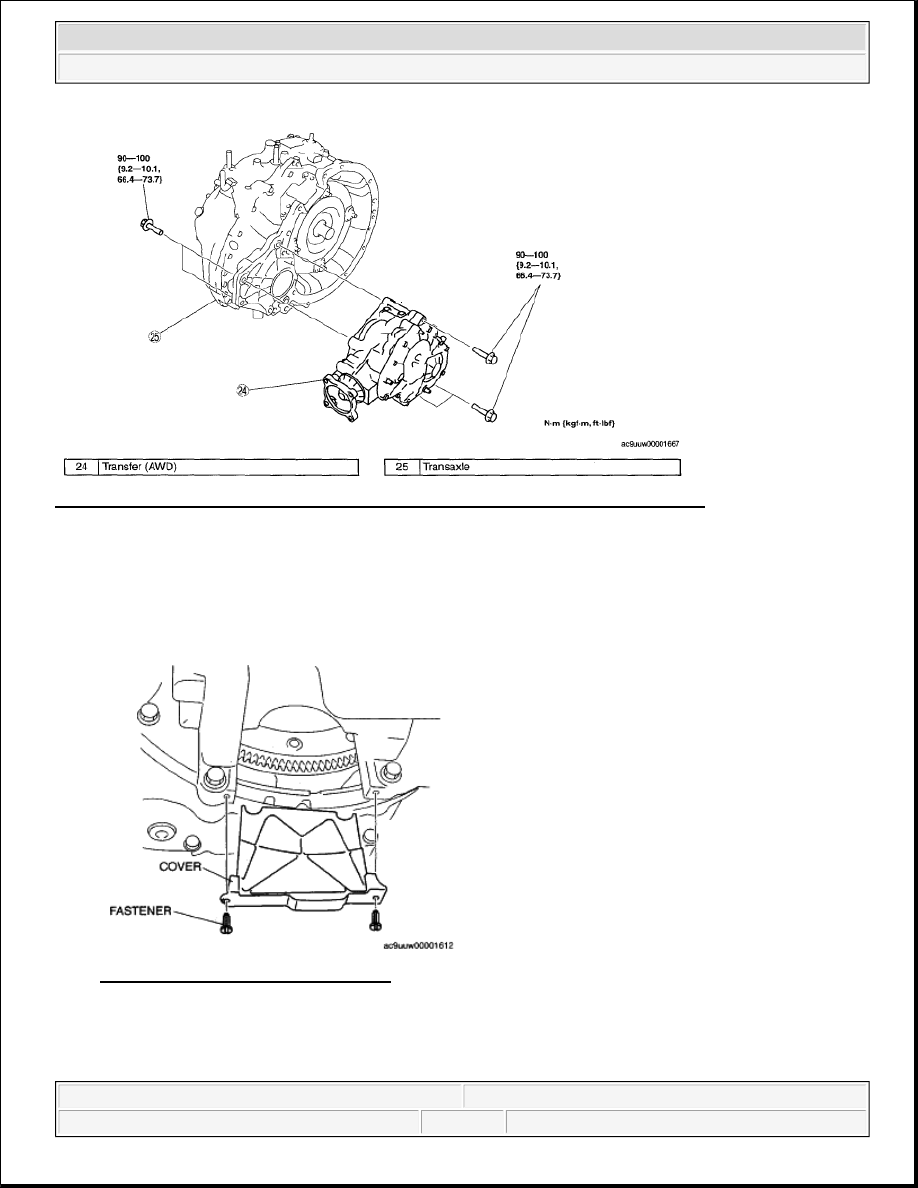

Fig. 57: View Of Automatic Transaxle Components & Torque Specifications (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

TORQUE CONVERTER NUTS REMOVAL NOTE

1. Remove the cover as shown in the figure.

2. Align the holes by turning the torque converter.

Fig. 58: Identifying Fastener & Cover
Courtesy of MAZDA MOTORS CORP.

3. Insert a flathead screwdriver through the converter housing service hole, and lock the drive plate.
