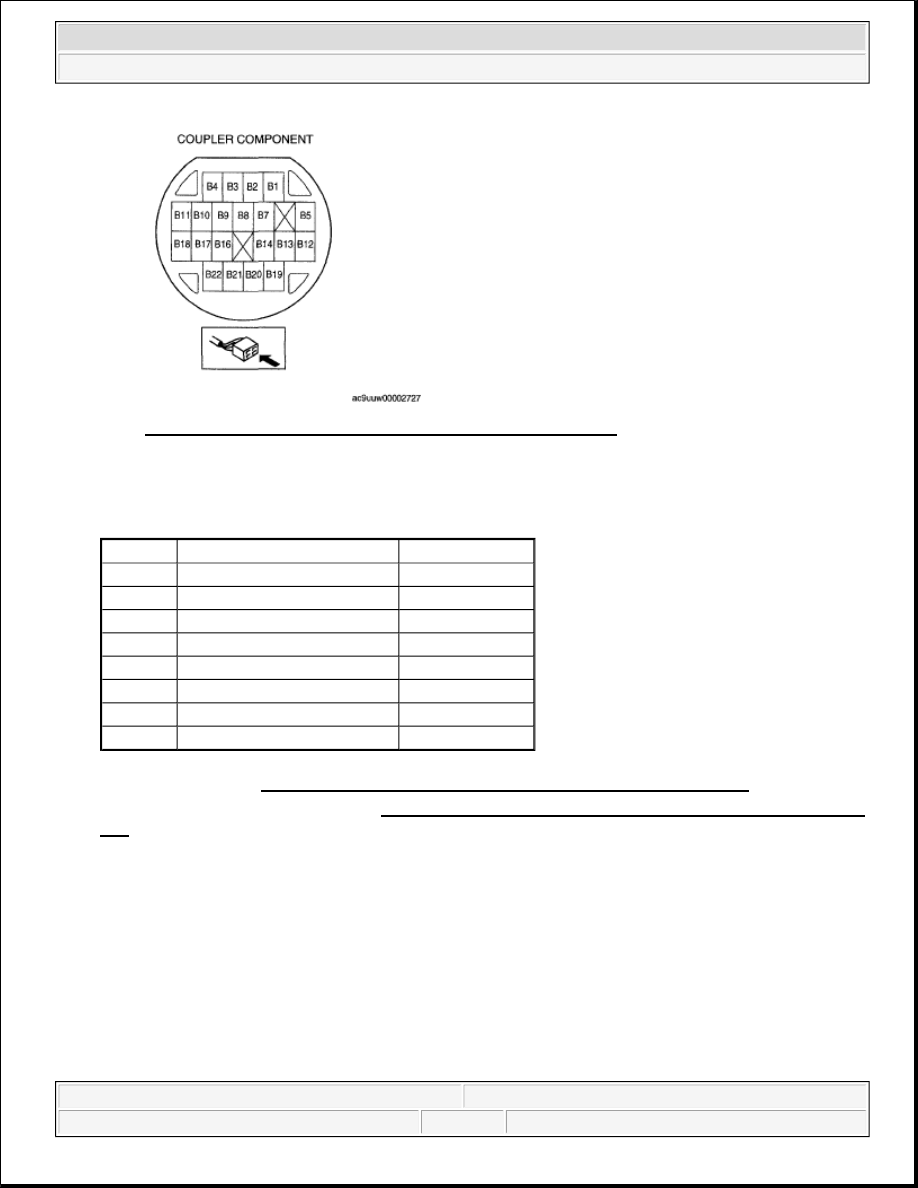

Fig. 35: Identifying Coupler Component Connector Terminal
Courtesy of MAZDA MOTORS CORP.

Solenoid valve resistance (ATF temperature: 20°C {68°F})

SOLENOID VALVE RESISTANCE REFERENCE

5. Install the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

6. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

7. Connect the negative battery cable.

CONTINUITY INSPECTION (ON-VEHICLE INSPECTION)

1. Disconnect the negative battery cable.

Terminal

Solenoid valve

Resistance (ohm)

B5-GND

Shift solenoid A

11-15

B2-GND

Shift solenoid B

11-15

B11-B10

Shift solenoid C

5.0-5.6

B17-B18

Shift solenoid D

5.0-5.6

B14-B22

Shift solenoid E

5.0-5.6

B21-B16

Shift solenoid F

5.0-5.6

B9-B4

TCC control solenoid

5.0-5.6

B3-B1 Line pressure control solenoid

5.0-5.6

CAUTION:



Water or foreign material entering the connector can cause a poor
connection or corrosion. Be sure not to allow water or foreign
material on the connector when disconnecting.



Do not damage the terminals.

2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:29:30 AM

Page 33

2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

[MZI-3.7] .)

3. Remove the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

4. Verify that there is no continuity between coupler component terminals B1, B3, B4, B9, B10, B11, B14,

B17, B18, B21, B22 and GND.



If there is any malfunction, inspect the coupler component.



If the coupler component is normal, replace the control valve body. (See CONTROL VALVE
BODY REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

5. Install the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

6. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

7. Connect the negative battery cable.

TCM INSPECTION [AW6A-EL, AW6AX-EL]

TR SWITCH OPERATING INSPECTION

1. Verify that the starter operates only when the ignition switch is turned to the START position with the

selector lever in P or N position.



If there is any malfunction, neutral position learning. (See TCM REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL].)

2. Verify that the back-up lights illuminate when shifted to R position with the ignition switch at the ON

position.



If there is any malfunction, neutral position learning. (See TCM REMOVAL/INSTALLATION
[AW6A-EL, AW6AX-EL].)

3. Verify that the positions of the selector lever and the indicator light correspond.



If there is any malfunction, perform the neutral position learning. (See TCM
REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

4. Verify that the TR PID is normal.



If there is any malfunction, perform the neutral position learning. (See TCM
REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:29:30 AM

Page 34

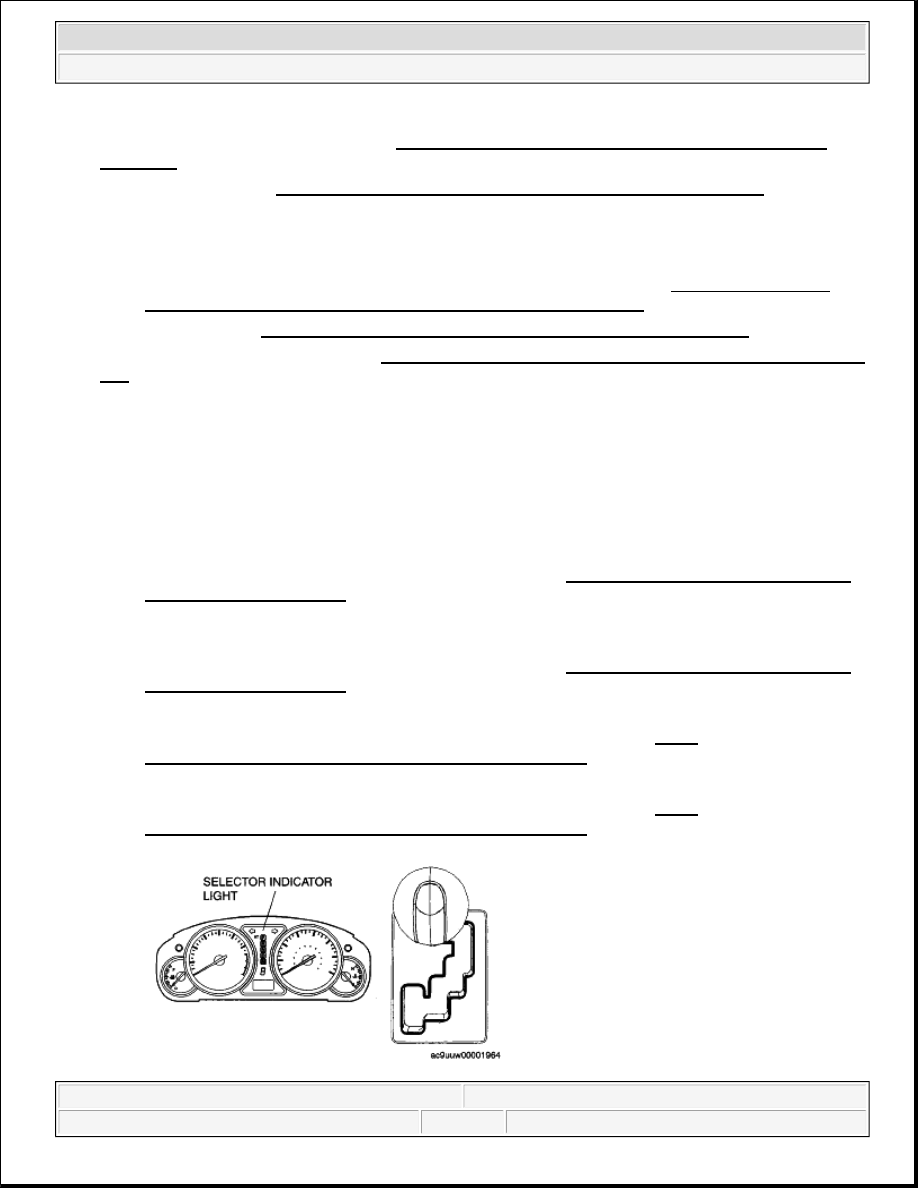

Fig. 36: Identifying Selector Indicator Light
Courtesy of MAZDA MOTORS CORP.

CONTROL MODULE INSPECTION

1. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

[MZI-3.7] .)

2. Measure the voltage at each TCM connector (wiring harness-side) terminal and refer to the TERMINAL

VOLTAGE TABLE.



If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under
"Inspection item (s)".

Terminal Voltage Table (Reference)

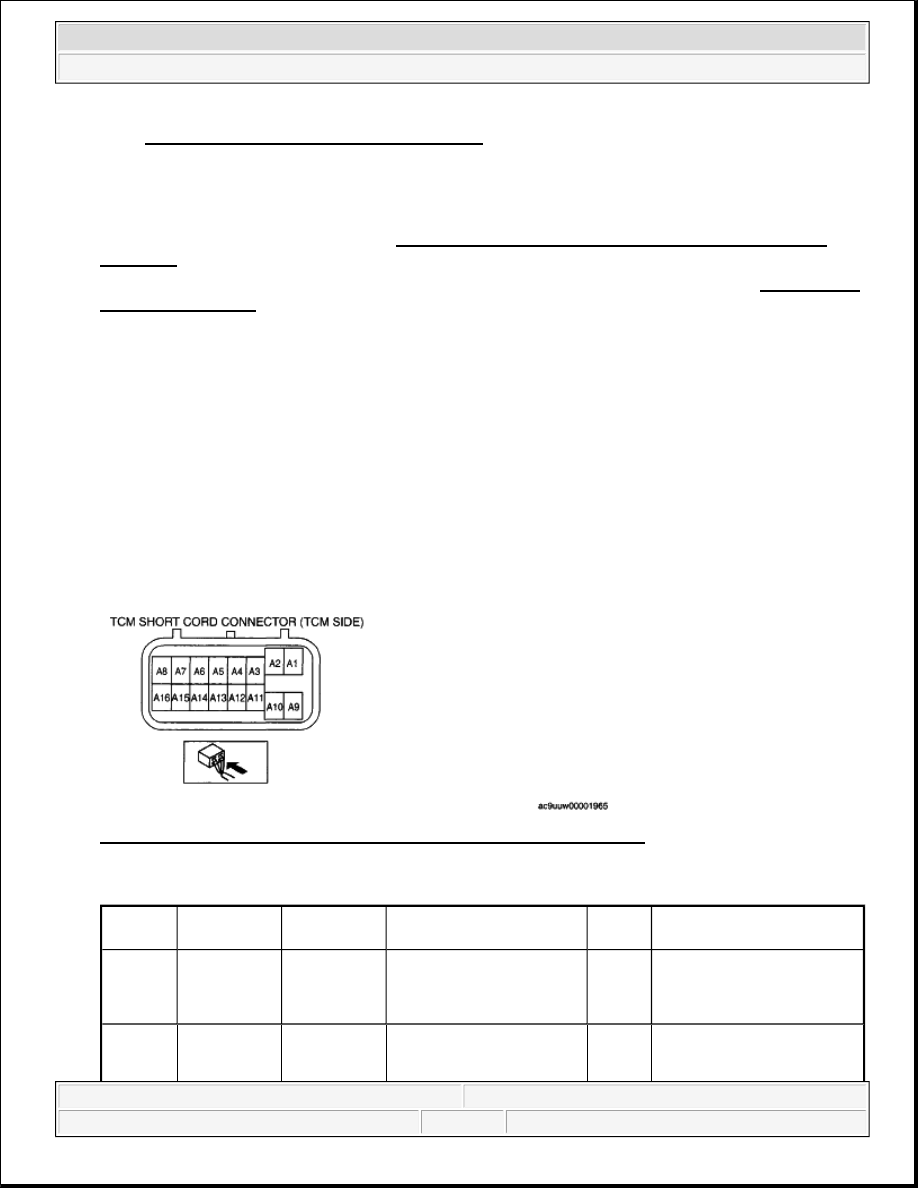

Fig. 37: Identifying TCM Short Cord Connector Terminal (TCM Side)
Courtesy of MAZDA MOTORS CORP.

VOLTAGE SPECIFICATION

WARNING:



Be careful not to damage the connector waterproofing when
measuring the TCM terminal voltage. If damaged, the
waterproofing efficiency could be negatively affected.

NOTE:



Use the ground of terminal A9 of the TCM connector (wiring harness-
side) when measuring terminal voltage, as an error may occur when
connecting the negative circuit tester to ground.

Terminal

Signal

Connected

Test condition

Voltage

(V)

Inspection item (s)

Battery back
up supply

Battery

Constant

B+



Inspect battery



Inspect related
harness

Below



Inspect selector lever

component (See

2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:29:30 AM

Page 35

Up switch
(Selector
lever
component)

Shift up (M range)

1.0

SELECTOR

LEVER

COMPONENT

INSPECTION )



Inspect related

harness

Other ranges, all positions B+

Down switch
(Selector
lever
component)

Shift down (M range)

Below

1.0



Inspect selector lever
component (See
SELECTOR
LEVER
COMPONENT
INSPECTION )



Inspect related
harness

Other ranges, all positions B+

Starter lock
output signal

PCM

Shift the
selector lever
to P or N
position.

Ignition
switch ON

B+



Inspect PCM



Inspect related
harness

Ignition
switch OFF

Below
1.0

CAN_L

PCM

Because this terminal is for
serial communication,
good/no good judgment by
terminal voltage is not
possible. Carry out
inspection according to
DTCs.



Inspect related
harness

M range
switch

M range

Below

1.0



Inspect selector lever
component (See
SELECTOR
LEVER
COMPONENT
INSPECTION )



Inspect related
harness

Other positions, all ranges B+

A11

Power supply

Ignition
switch

Ignition switch ON

B+



Inspect Ignition
switch



Inspect related
harness

Ignition switch OFF

Below
1.0

A13

Back-up light
relay

Ignition
switch ON

Shift the
selector
lever to R
position.

Below

1.0



Inspect back-up light
relay (See RELAY
INSPECTION )



Inspect related
harness

Other

B+

Because this terminal is for
