5. Verify that there is continuity between coupler component terminals B19 and B20.

Fig. 30: Identifying Coupler Component
Courtesy of MAZDA MOTORS CORP.



If there is any malfunction, inspect the coupler component.



If the coupler component is normal, replace the ATX. (See AUTOMATIC TRANSAXLE
REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

6. Install the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

7. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-

3.7] .)

8. Connect the negative battery cable.

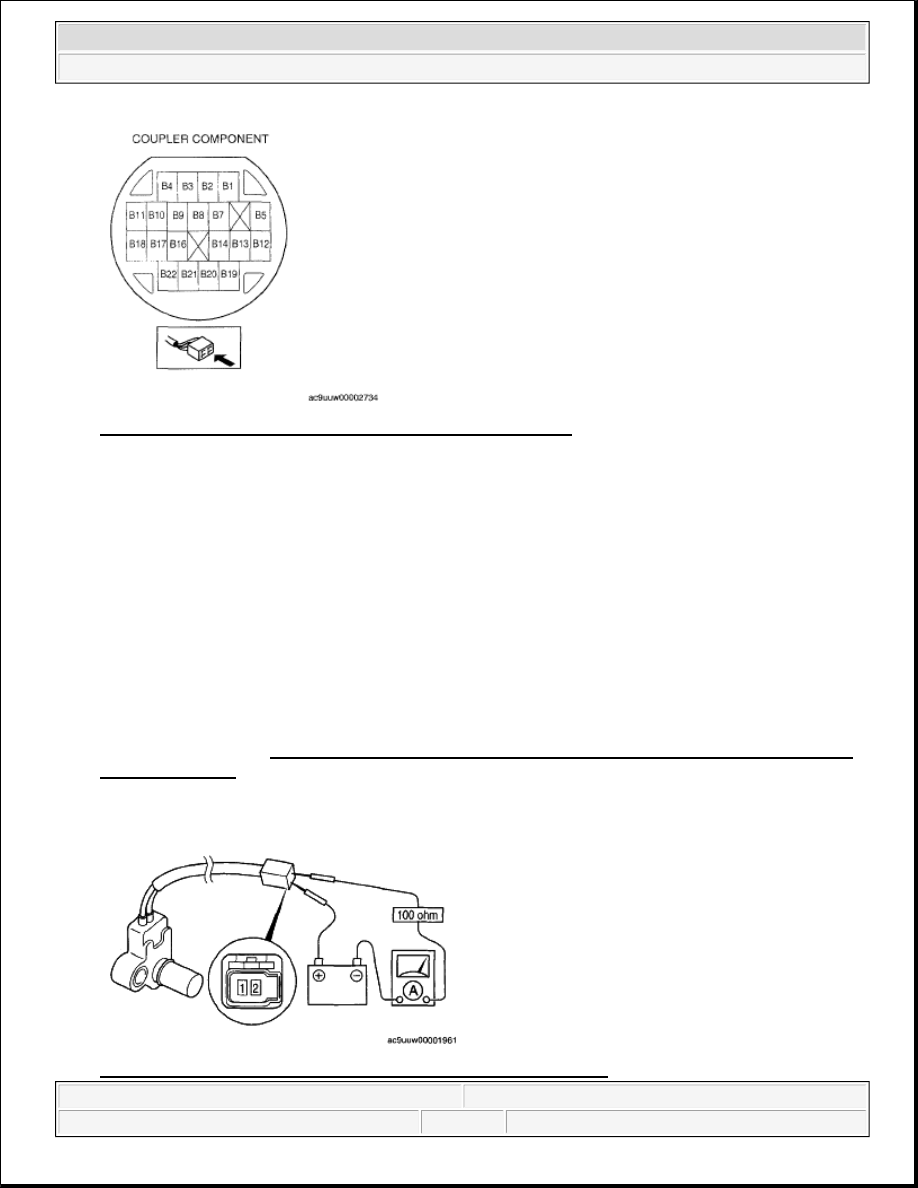

Fig. 29: Identifying Coupler Component Connector Terminal
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:30 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

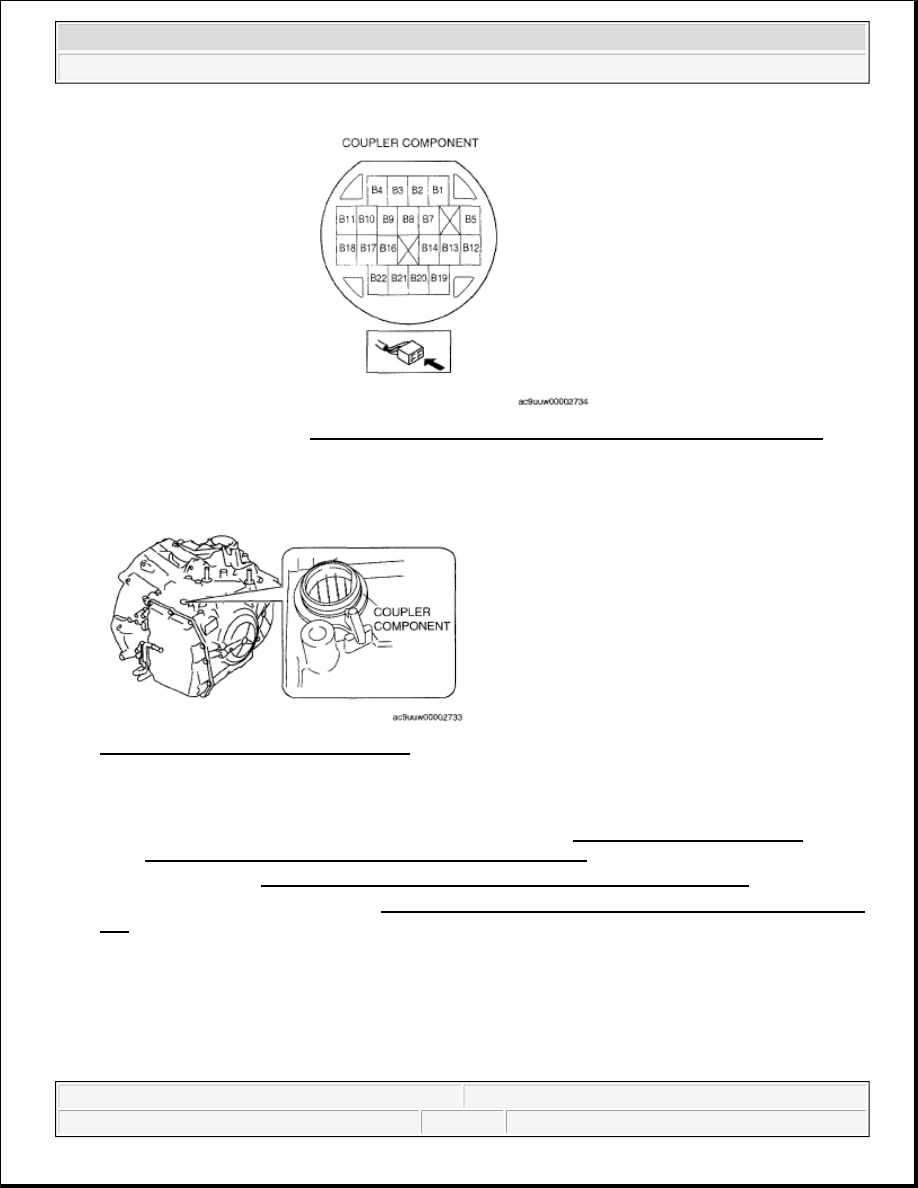

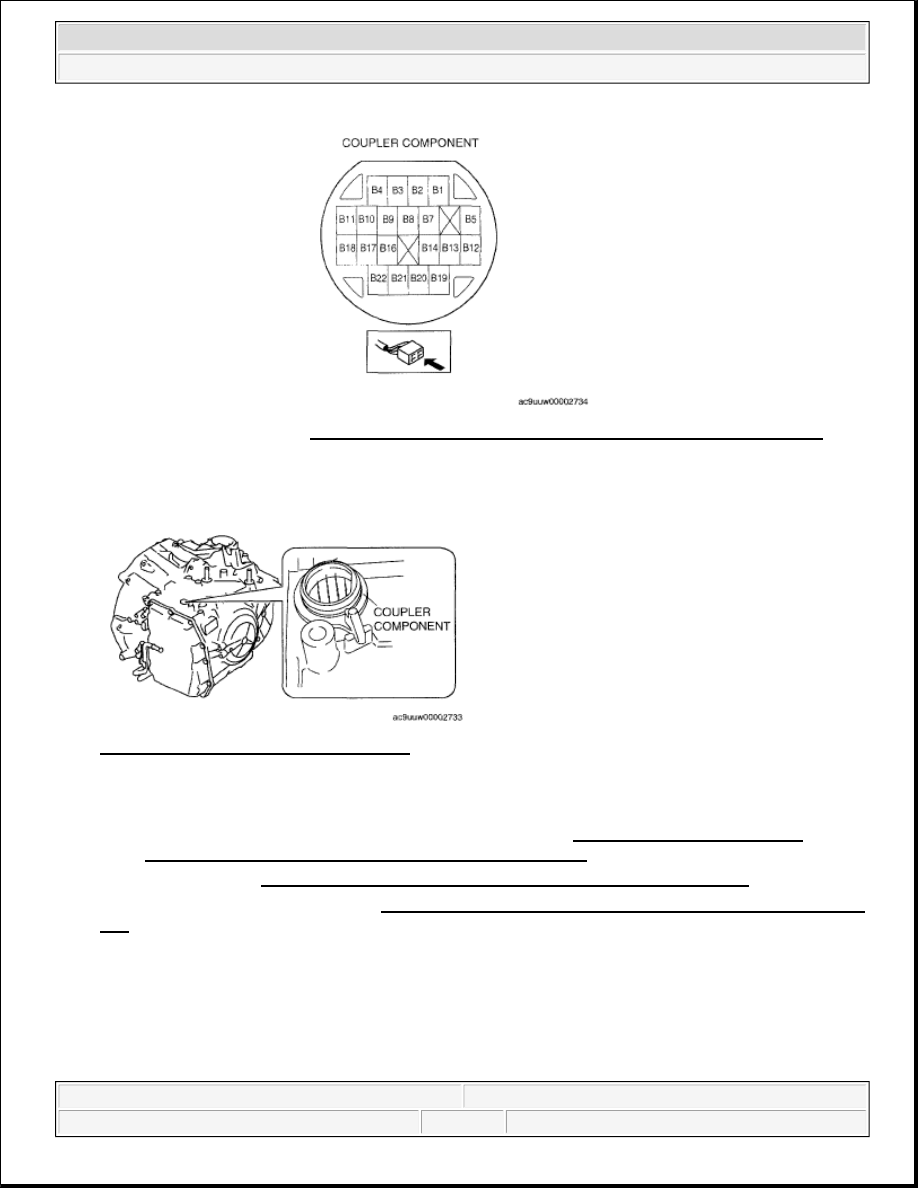

Fig. 31: Identifying Coupler Component Connector Terminal
Courtesy of MAZDA MOTORS CORP.

OFF-VEHICLE INSPECTION

1. Disconnect the negative battery cable.

2. Remove the VSS. (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [AW6A-

EL, AW6AX-EL].)

3. Connect the VSS terminal 2 to the battery positive terminal, connect the battery negative terminal to VSS

terminal 1 through an ammeter set to a resistance of 100 ohm.

Fig. 32: Connecting VSS Terminal 2 To Battery Positive Terminal

WARNING:



A hot transaxle and ATF can cause severe burns. Turn off the engine
and wait until they are cool before replacing the ATF.

CAUTION:



Water or foreign material entering the connector can cause a poor
connection or corrosion. Be sure not to allow water or foreign
material on the connector when disconnecting.



Do not damage the terminals.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:30 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

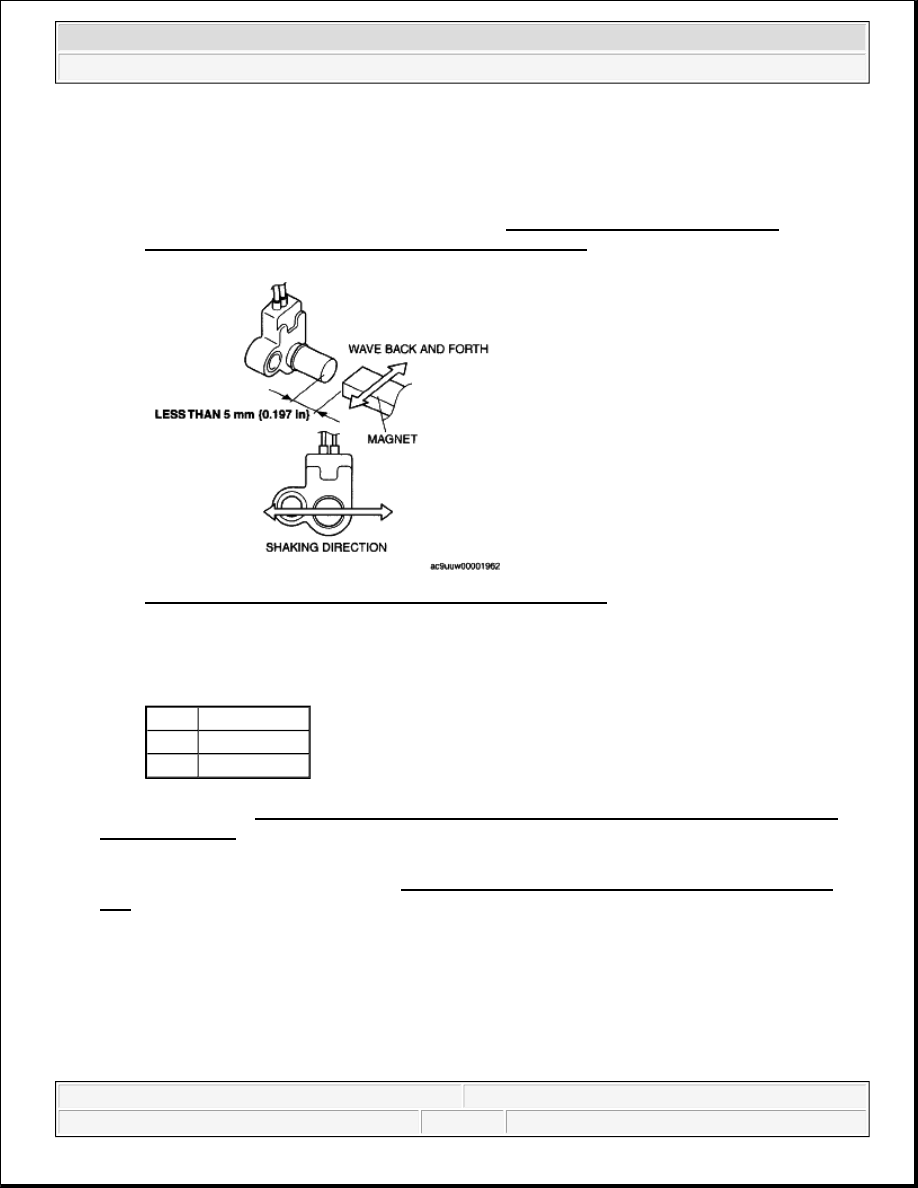

4. Measure the current while waving a magnet back and forth over the top of the VSS (less than 5 mm

{0.197 in}).



If there is any malfunction, replace the VSS. (See VEHICLE SPEED SENSOR (VSS)
REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

Fig. 33: Measuring Magnet Back & Forth Over Top Of VSS
Courtesy of MAZDA MOTORS CORP.

VSS

VSS SIGNAL REFERENCE

5. Install the VSS. (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [AW6A-

EL, AW6AX-EL].)

6. Connect the negative battery cable.

7. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [AW6A-EL, AW6AX-

EL].)

VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [AW6A-EL,
AW6AX-EL]

Signal Current (mA)

High

12.0-16.0

Low

4.0-8.0

CAUTION:



Water or foreign material entering the connector can cause a poor
connection or corrosion. Be sure not to drop water or foreign
material on the connector when disconnecting it.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle (AW6A-EL, AW6AX-EL) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:29:30 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION

[AW6A-EL, AW6AX-EL].)

2. Remove the VSS. (See Automatic Transaxle and Transfer Workshop Manual AW6A-EL, AW6AX-EL)

SOLENOID VALVE INSPECTION [AW6A-EL, AW6AX-EL]

RESISTANCE INSPECTION (ON-VEHICLE INSPECTION)

1. Disconnect the negative battery cable.

2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION

[MZI-3.7] .)

3. Remove the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

4. Measure the resistance between the following terminals.

Fig. 34: Identifying Coupler Component
Courtesy of MAZDA MOTORS CORP.



If there is any malfunction, inspect the coupler component.



If the coupler component is normal, replace the control valve body. (See CONTROL VALVE
BODY REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)



If foreign materials are stuck to the VSS, disturbance by magnetic
flux can cause sensor output to be abnormal and thereby negatively
affect control. Make sure that foreign materials such as iron filings
are not stuck to the VSS during installation.

CAUTION:



Water or foreign material entering the connector can cause a poor
connection or corrosion. Be sure not to allow water or foreign
material on the connector when disconnecting.



Do not damage the terminals.
